Isuzu merchnical sweeper truck

Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck
Isuzu merchnical sweeping truck

Isuzu merchnical sweeper truck

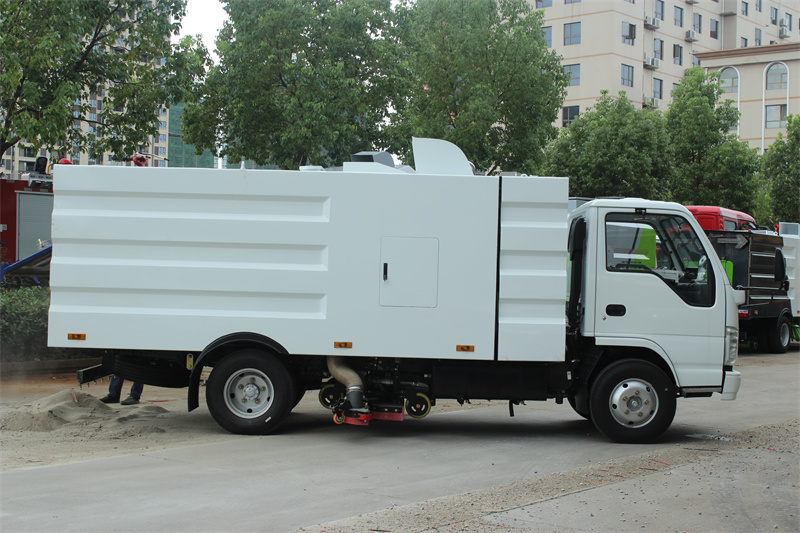

Isuzu merchnical sweeper truck is a road sweeping vehicle with excellent features. First of all, the car adopts advanced technology and craftsmanship and has excellent performance. Its power system uses a four-stroke diesel engine to provide strong power output and excellent fuel economy.
The Isuzu merchnical sweeper truck has excellent sweeping capabilities. The vehicle is equipped with an efficient sweeping device and vacuum system, which can thoroughly clean garbage and dust on the road. At the same time, the car also has the function of automatically adjusting the sweeping and vacuuming intensity, making intelligent adjustments according to the actual situation to improve cleaning efficiency.

  • Work capacity:

    5 m3 dust + 2 m3 water
  • Truck model:

    PT5080TSL
  • Engine power:

    120 HP
  • Engine type:

    ISUZU 4KH1
  • Axle drive:

    4x2
  • Gear box:

    ISUZU MSB
  • Remarks:

    Sweeper upper structurer avaiable

Isuzu Mechanical Sweeper Truck is a state-of-the-art vehicle specifically designed for street cleaning and waste management purposes. This robust and efficient truck is manufactured by Isuzu Motors Ltd., a renowned Japanese automaker known for its high-quality commercial vehicles.

The Isuzu Mechanical Sweeper Truck is equipped with advanced technology and innovative features, making it a reliable and effective tool for maintaining cleanliness on roads and other public areas. Its primary function is to efficiently remove dust, debris, leaves, and other waste materials from the streets and sidewalks, ensuring a clean and safe environment for the community.

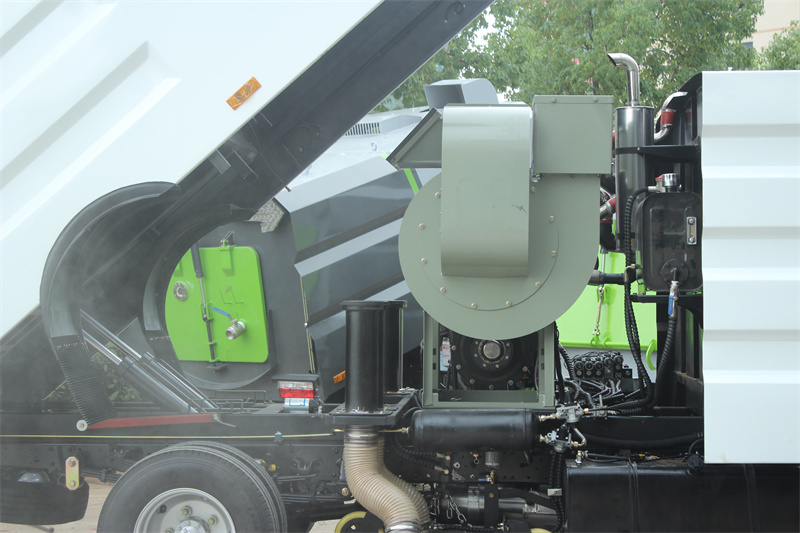

The key component of this truck is its mechanical sweeper system. The sweeper brushes, placed at the front and rear of the truck, rotate at a high speed, effectively sweeping and collecting all kinds of waste. The collected waste is then transferred into a large storage hopper, capable of containing a significant amount of debris.

This vehicle also offers exceptional maneuverability, thanks to its compact design and high-performance engine. The truck's powerful engine ensures smooth and efficient operation, allowing it to cover a large area in a short period. Additionally, its ergonomic and user-friendly cabin provides the operator with optimal visibility and control for more precise and efficient cleaning.



Truck Specification
Truck model  PT5120TSL1
Cab ISUZU 600P single row cabin
Driving Type  4*2 Left hand driving
Max Speed (km/h) 99
Overall dimension(mm) 6900*2200*2670
GVW( kg)  10055
Mass in working order ( kg) 7180
Wheelbase(mm) 3365
F/R track base (mm) 1680/1650
F/R overhang (mm) 1010/1615
Approach/Departure Angel  21/19
Tire  8.25-20 (6+1)
Clutch  Single-plate dry diaphragm spring clutch
Steering  Hydraulic steering with power assistance
Gear box MLD 6-speed gear box
Bridge Front axle 4T
Rear axle 7T
Enging Model 4HK1-TCG40
Fuel Type  Diesel fuel
Type  ISUZU Water-cooled four-stroke,, direct injection, turbocharged
Exhaust(ml) 5193
Max output power/rotate speed (hp /rpm ) 190/2600
Max torque/rotate speed(N.m/rpm) 510/1600
Braking  system  Service Brake  Oil brake
Park Brake  Spring energy
Auxiliary brake engine exhaust brake
Eletric system  24v
Upper-Body  specification

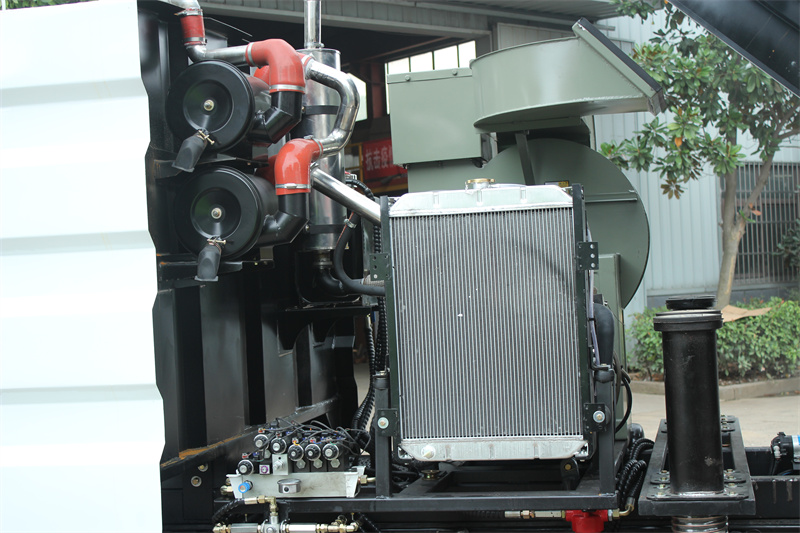

Vice generator
Model B140 cummins engine
Rated power (kw) 103
Suction sweep operation
Cleaning efficiency ≥95%
The maximum diameter of the suction body(mm) 120
Suction sweep width(mm) 2.8-3.2
Maximum cleaning  capacity (m2/h) 60000
Butterfly dish brush overhang dimension(mm) ≥400
Working speed (km/h) 3-20
Water tank body
Rated capacity (m3) 1.0-1.5
Garbage tank body
Rated capacity(m3) 3.5-4

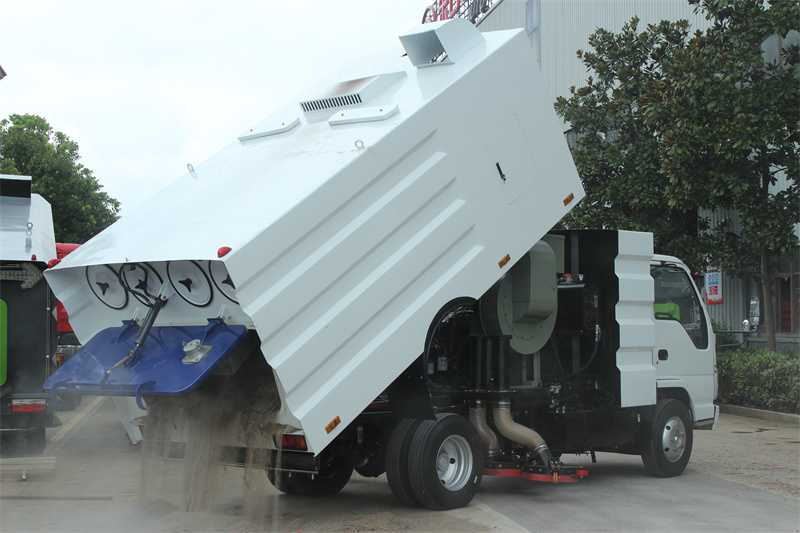

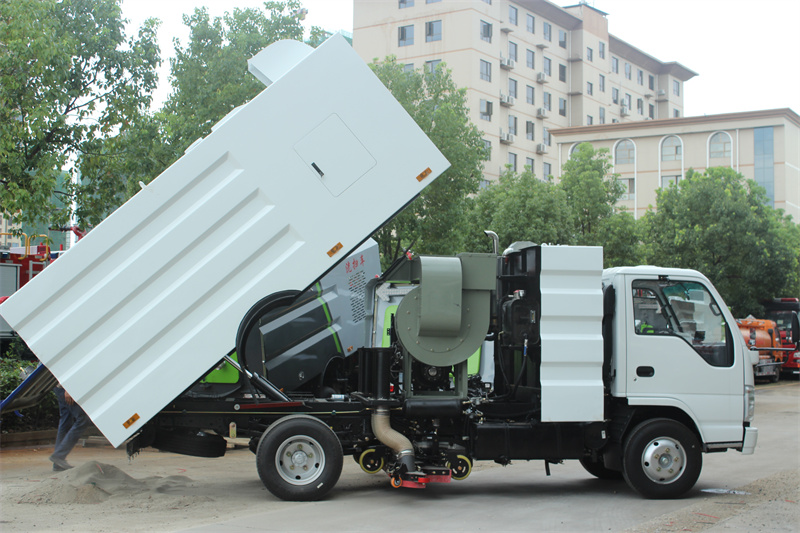

Discharge door opening angle ≥45º
Hydraulic system
Model Open, electrical control
The main element Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve
Pressure (mpa) 16
Hydraulic oil tank capacity  (l) 60
Hydraulic oil temperature (ºC) 60
Electrical system
Model DC24V
voltage 24V
Battery 24V(2 set 12 v battery series connection )
Sprinkle system
The main elements Electric diaphragm pump, water filters, nozzles, etc.
Sweeper disk device
Model Center four sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function
Diameter (mm) 850
Angel Forward  4-6º  roll 4-7º

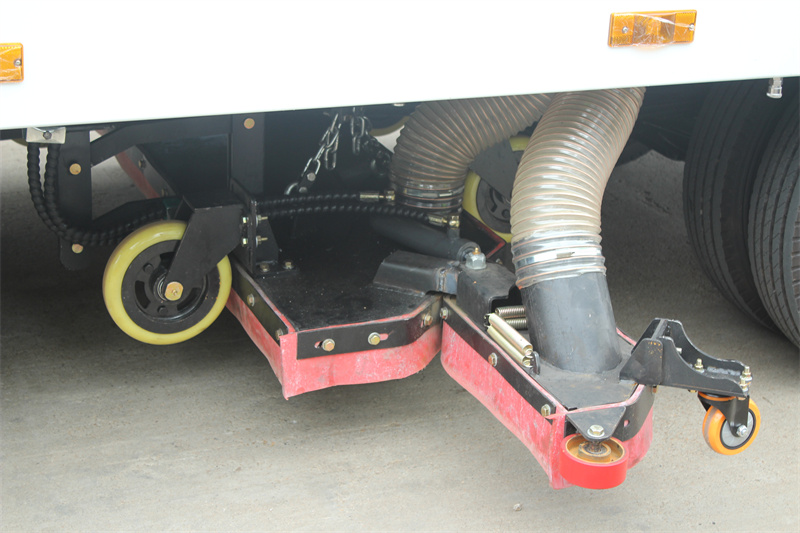

Sucker device
Model Single suction port, hydraulically controlled, spring suspension.
Diameter (mm) 200

An innovative road washing and sweeping model developed by Powerstar trucks. Using our original V-shaped nozzle cleaning technology, it integrates the functions of the road sweeper and high-pressure cleaning truck. It can not only perform road sweeping operations or washing operations independently but also perform road scrubbing operations simultaneously. This truck has outstanding features such as no raised dust during operation, no dust left after the operation, long operation time, and stable operating performance. It is especially suitable for the cleaning and washing operations of urban arterial roads.




Isuzu mechanical sweeper truck is a specialized vehicle designed for the purpose of sweeping and cleaning the streets, roads, and other public areas. It is equipped with various mechanical components and tools that allow for efficient and effective sweeping and cleaning tasks.
The main purposes and uses of Isuzu mechanical sweeper truck can be summarized as follows:

1. Street Cleaning: One of the primary uses of the Isuzu mechanical sweeper truck is to clean the streets. It is capable of removing dirt, dust, leaves, and other debris that accumulate on the roads. The mechanical sweeper brushes located at the front and sides of the truck effectively sweep the debris onto a wide collection hopper, ensuring a clean and safe environment.
2. Road Maintenance: The mechanical sweeper truck also plays a vital role in road maintenance. It can remove small rocks, gravel, and other loose materials from the surface of the roads, preventing them from causing damage to vehicles and ensuring a smooth and safe driving experience. Moreover, it can also help in clearing the roads during construction or repair work.
3. Public Area Cleaning: The Isuzu mechanical sweeper truck is also used for cleaning public areas such as parking lots, sidewalks, parks, and other outdoor spaces. The versatile brushes and suction systems can effectively collect trash, leaves, and other debris, ensuring a clean and inviting environment for the public.
4. Environmental Benefits: The use of Isuzu mechanical sweeper truck has significant environmental benefits. By effectively cleaning the streets and public areas, it helps to minimize the amount of pollutants and debris that flow into the drains and water bodies, preventing environmental contamination. Additionally, it helps in reducing air pollution by controlling the amount of dust and particulate matter in the air.
In conclusion, Isuzu mechanical sweeper truck serves a crucial purpose in maintaining cleanliness and hygiene in streets, roads, and public areas. Its uses range from street cleaning to road maintenance and public area cleaning, providing a clean environment for both pedestrians and motorists. Moreover, it also contributes to environmental protection by minimizing pollution and reducing air pollution.
