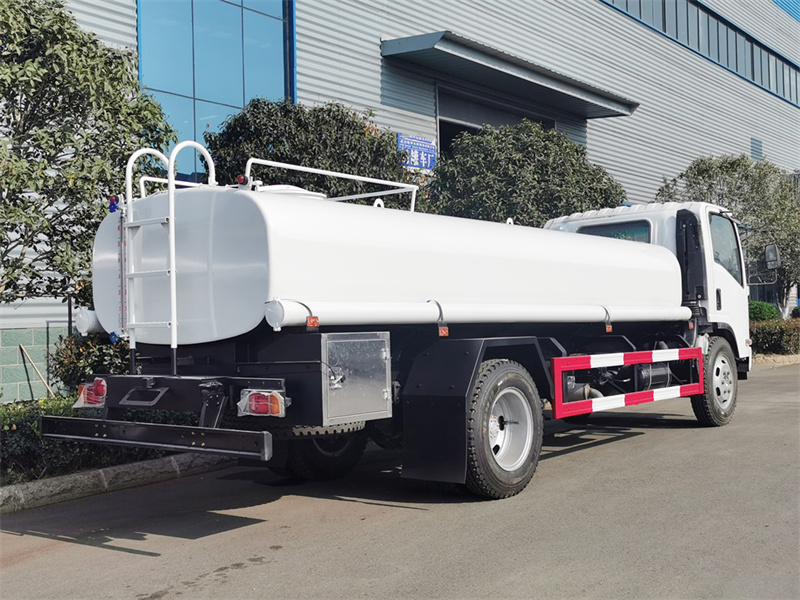

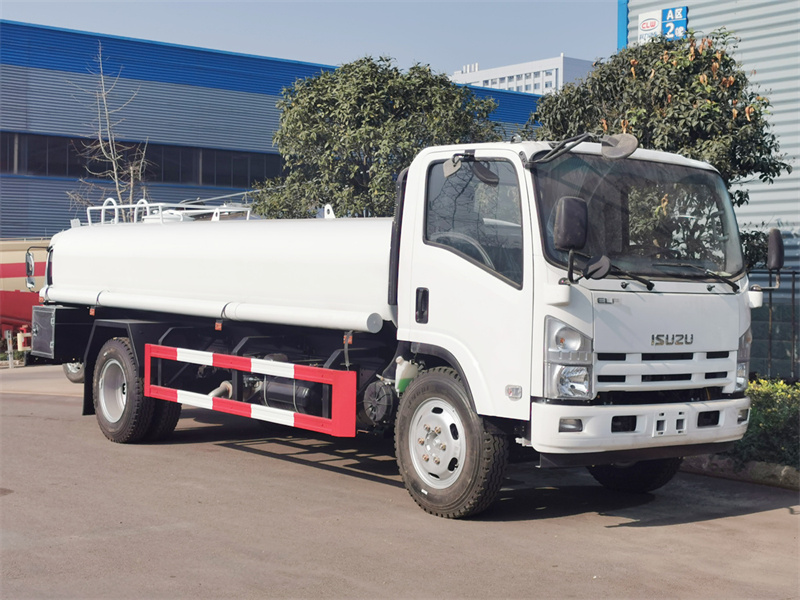

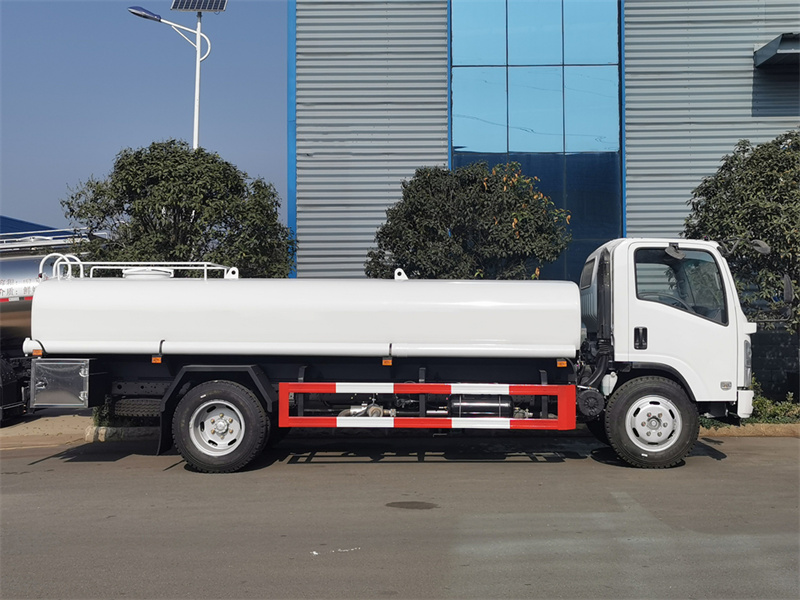

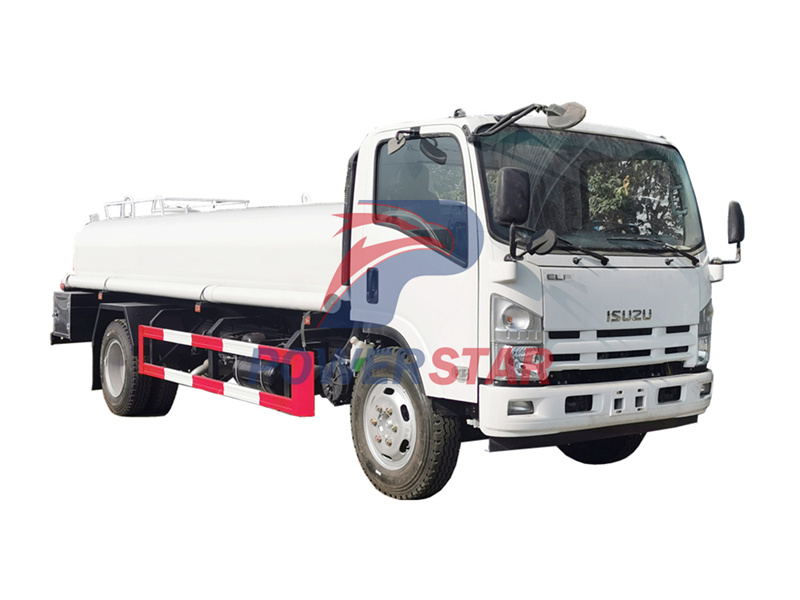

Isuzu NKR portable water tanker

Isuzu NKR portable water tank truck
Isuzu NKR portable water tank truck
Isuzu NKR portable water tank truck
Isuzu NKR portable water tank truck
Isuzu NKR portable water tank truck
Isuzu NKR portable water tank truck
Isuzu NKR portable water tank truck

Isuzu NKR portable water tanker

Isuzu drinking water truck is a professional automotive equipment mainly used for transporting safe drinking water. Isuzu drinking water trucks can be used for natural disasters and emergency relief. In natural disasters such as earthquakes and floods, water supply systems are often damaged, making it difficult for residents to provide water. Drinking water trucks can provide a large amount of clean drinking water to meet the basic living needs of disaster-stricken people and provide reliable logistical support for rescue efforts.

  • Work capacity:

    8000 Liters
  • Truck model:

    PT5100GJY08F
  • Engine power:

    190 hp
  • Engine type:

    4HK1-TC
  • Axle drive:

    4×2
  • Gear box:

    MLD 6-speed, manual
  • Remarks:

    4X4 drive, RHD drive avaiable

Isuzu portable water tanker is a specially designed vehicle that can efficiently transport and distribute water to various locations. Isuzu portable water tanker primary purpose is to meet the water supply needs in areas where access to clean water is limited or unavailable, such as construction sites, remote villages, disaster-stricken areas, and events.

The Isuzu portable water tank's portability allows it to navigate through challenging terrains and narrow roads, ensuring that water can be delivered to even the most difficult-to-reach locations. Isuzu portable water tanker is equipped with a reliable pumping system that enables the tanker to draw water from various sources, including lakes, rivers, or artificial reservoirs.

The Isuzu portable water tank's large capacity allows it to carry a substantial amount of water, usually ranging from 5,000 to 20,000 liters, depending on the model. This enables the vehicle to supply a significant volume of water, making it suitable for a wide range of applications. It can be used for everyday purposes, such as providing water for household use, agriculture, livestock, or firefighting activities.

During emergencies or natural disasters, the Isuzu portable water tanker plays a crucial role in providing immediate relief by delivering clean drinking water to affected areas. Its ability to quickly respond to changing water needs makes it an essential asset for disaster response teams and humanitarian organizations.

Isuzu portable water tanker

Product Parameters:

Isuzu NPR potable water tanker trucks water wagon Sprinkles water bowser standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.

Chassis Specification
Driving Type 4*2 Left hand driving
Max Speed (km/h) 110
Overall Dimension (mm) 7780*2300*2880
GVW (kg) 10000
Truck Tare Weight (kg) 5200
Wheelbase (mm) 4175 mm
F/R track base (mm) 1680/1650
Spring 8/10+6
Tire 8.25R20
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear Box ISUZU MLD 6-shift
Bridge Front axle 4000kg load-bearing
Rear axle 7000kg load-bearing
Engine Brand ISUZU
Model 4HK1-TC
Fuel Type Diesel fuel
Emission Standard Euro 5/6
Type Water-cooled four-stroke,, direct injection, turbocharged
Exhaust (ml) 5193
Max output power/rotate speed (hp /rpm) 140/2600
Max torque/rotate speed (N.m/rpm) 510/1600
Upper Parts Specification
Sprinkler front, side, rear three sprinklers
Valves Fire valve and water valve
Tank shape  Ellipse
Material of tanker  5mm food grade stainless steel 304-2B
Color of the tanker  According your demands
Special function Rating speed 1450r/min
flux 60m³/h
self-suction height 7.5m
sprinkler width ≥14m
the range when adjusted column,the range ≥30m
when adjusted fog, the range≤15m
Introduction of function front rise and back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function.
Fittings PTO water pump
One Manhole
water hose box fitted on both side of tank
One spare tyre
Ladder: For access to top of tank complete with cat walk on top of tank
Heavy-duty rear bumper



Isuzu drinking water truck is a professional automotive equipment mainly used for transporting safe drinking water. It has many uses, and its main uses are divided into four points below.

1. Isuzu drinking water trucks can be used for natural disasters and emergency rescue. In natural disasters such as earthquakes and floods, water supply systems are often damaged, making it difficult for residents to provide water. Drinking water trucks can provide a large amount of clean drinking water to meet the basic living needs of disaster-stricken people and provide reliable logistical support for rescue efforts.
2. The vehicle can be used for water supply in sparsely populated or resource-poor areas. In some remote areas, it is relatively difficult to build water supply systems due to factors such as inconvenient transportation and harsh natural conditions. Isuzu drinking water trucks can solve the drinking water problems in these areas through mobile water supply and meet the water needs of local residents.
3. Isuzu drinking water trucks can also be used to ensure water supply for large-scale events. In large outdoor events, concerts, sports games and other occasions, participants usually require large amounts of drinking water. Drinking water trucks can provide large-capacity drinking water on site to meet the needs of participants and ensure the normal conduct of the event.
4. The vehicle can also be used for temporary water supply in supplier communities, camps, construction sites and other places. In some situations where temporary water supply is required, such as camps, construction sites, etc., Isuzu drinking water trucks can flexibly provide the required drinking water to meet the needs of relevant personnel.

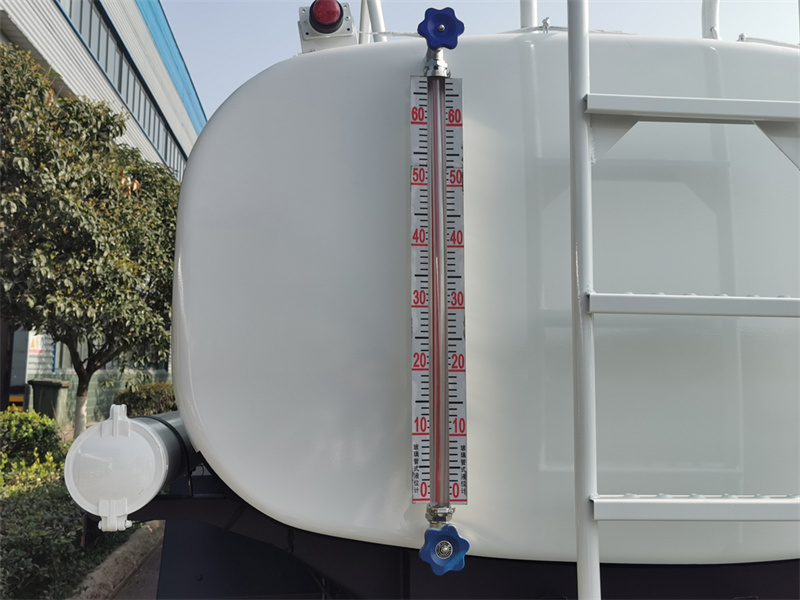

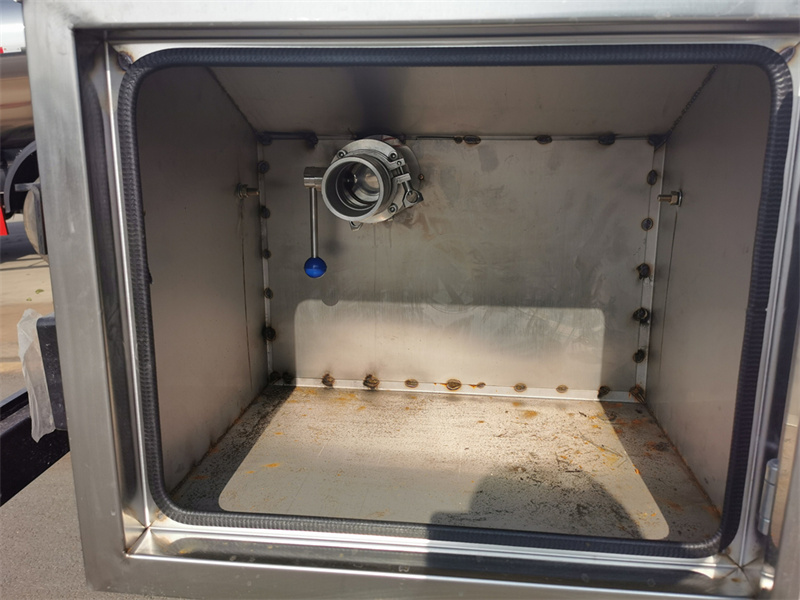

Isuzu fuel truck pump in and out valve   Isuzu water bowser level gauge

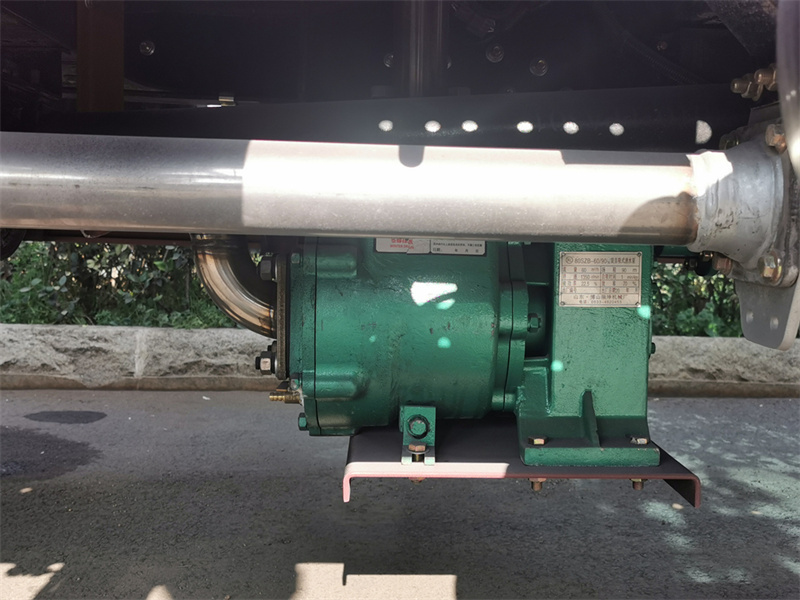

Isuzu drinking water truck SS water pump   Isuzu water bowser self discharge valve
