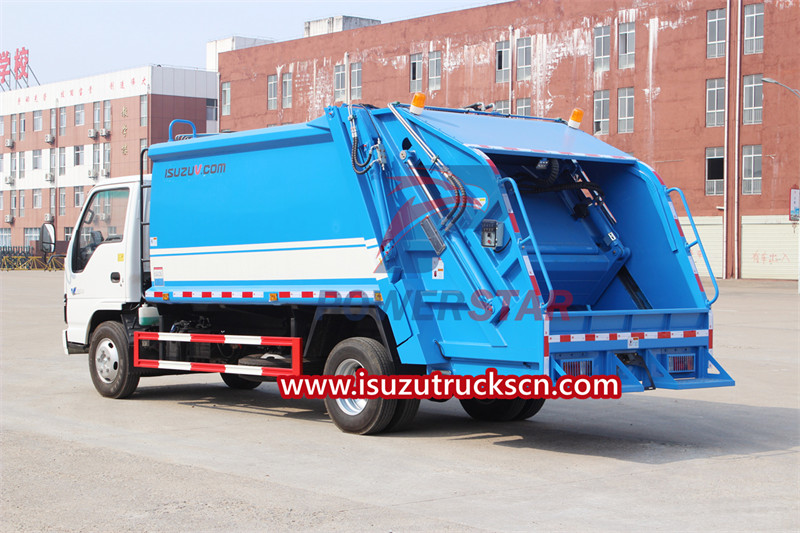

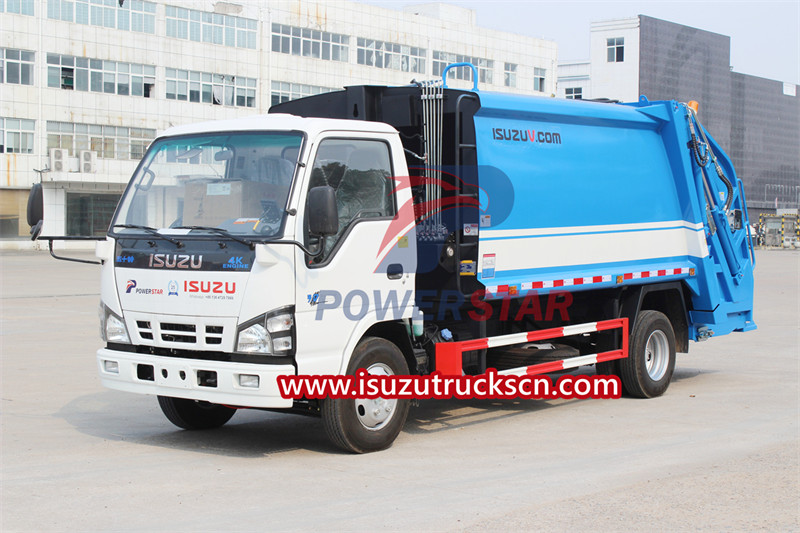

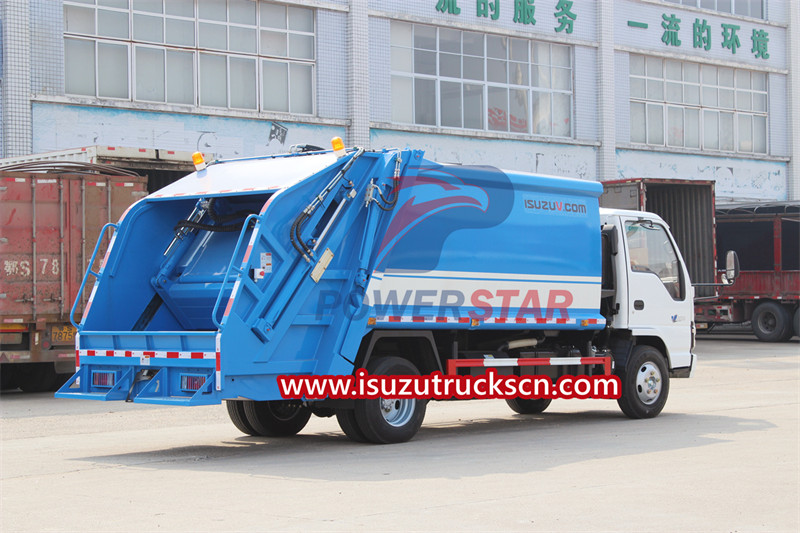

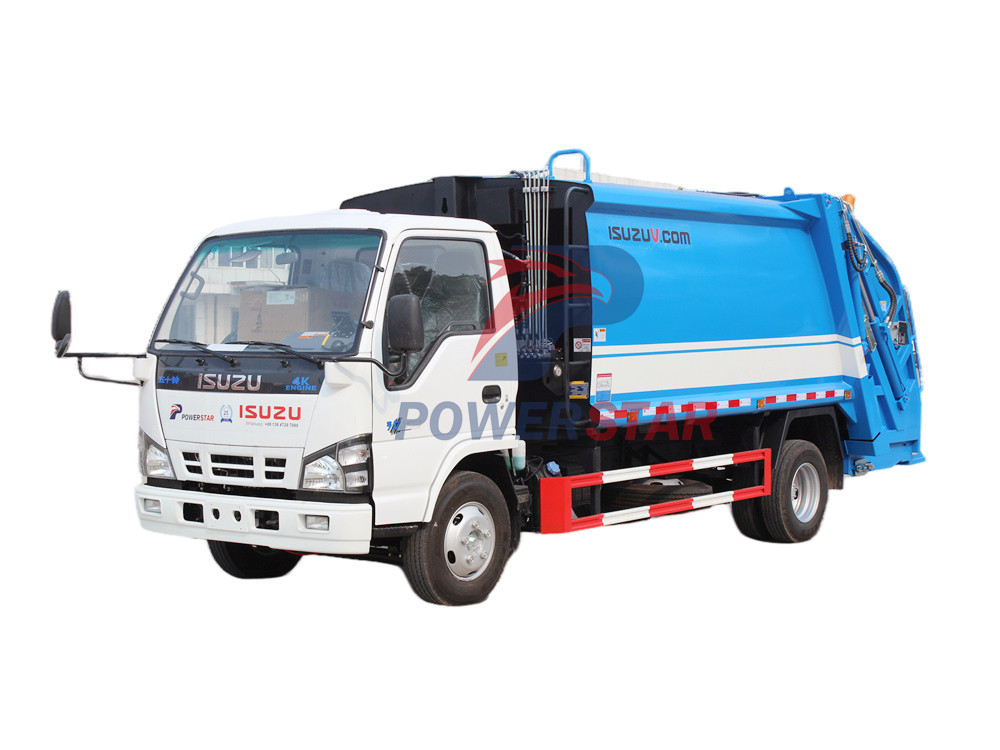

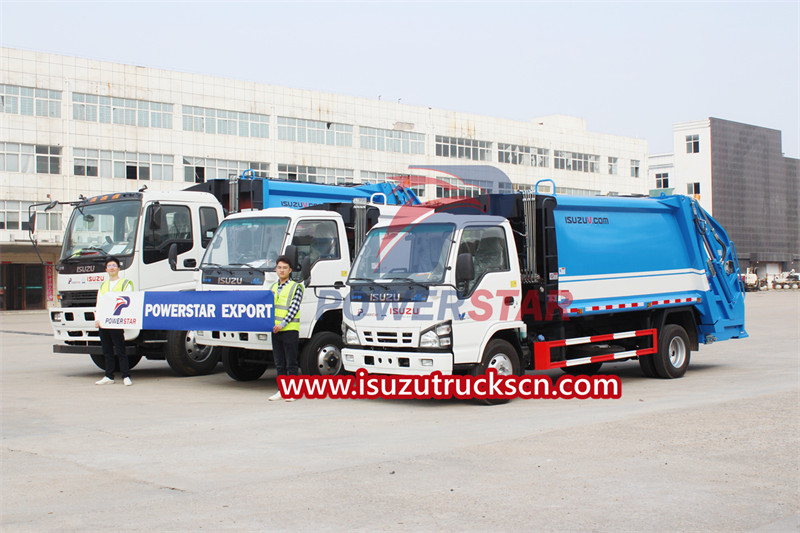

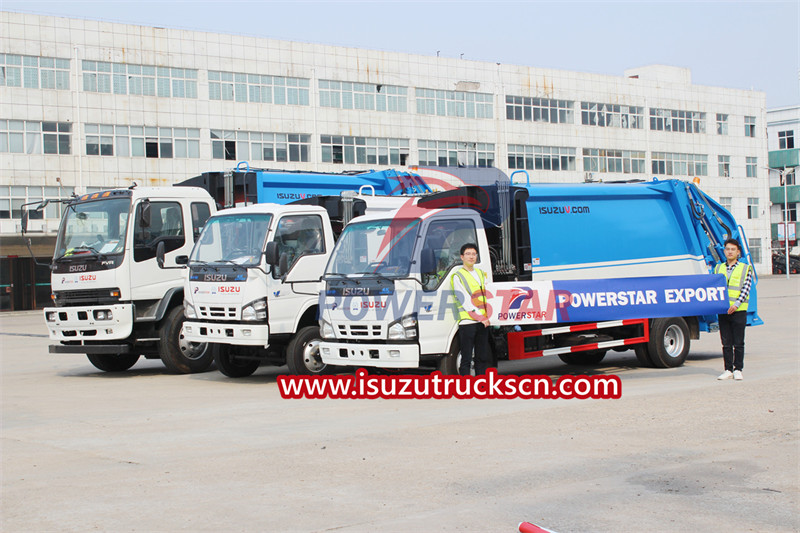

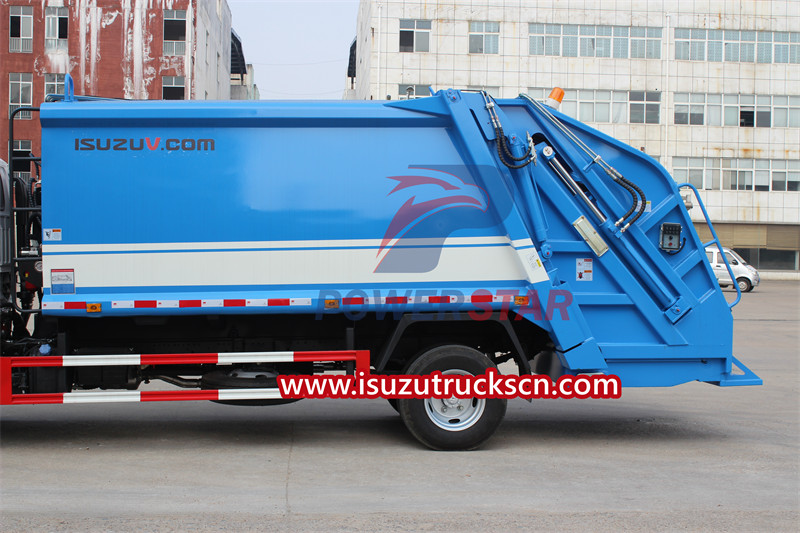

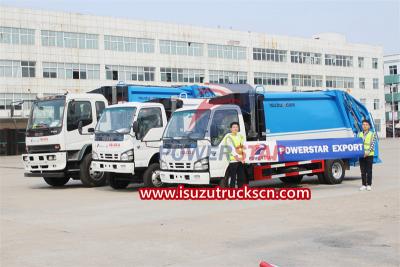

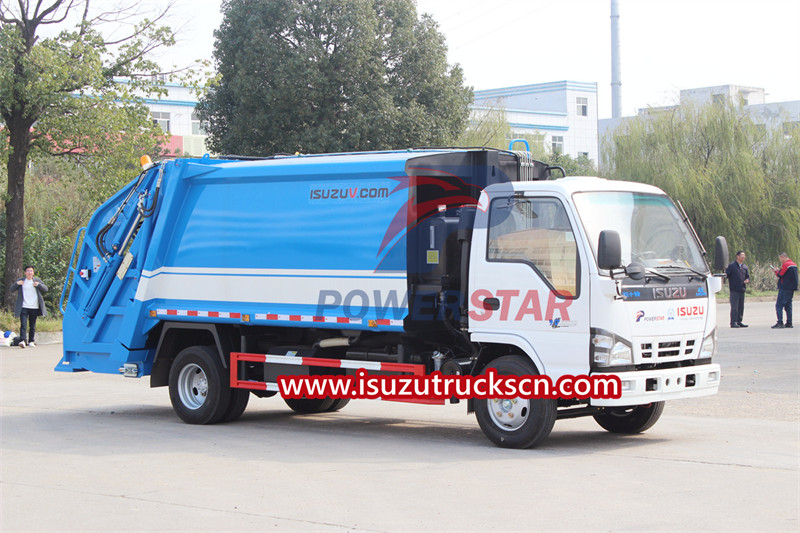

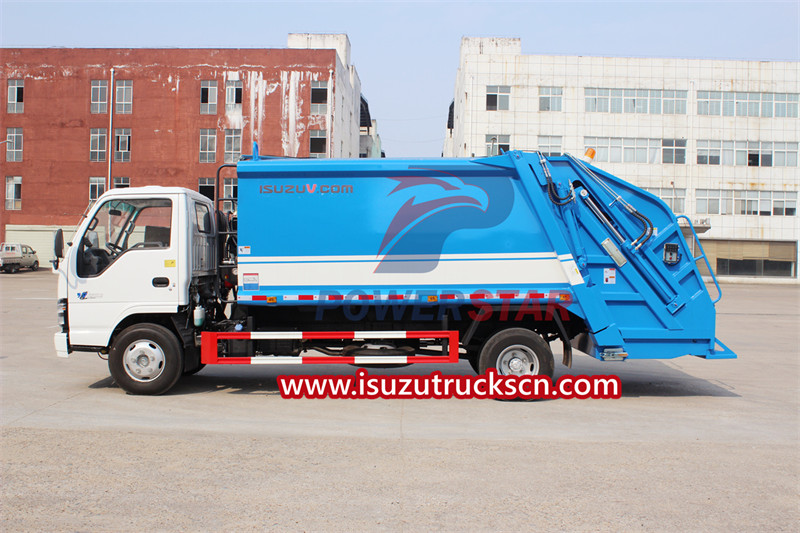

ISUZU NKR refuse compactor truck

Rear loader garbage trucks, also known as refuse compactor trucks, are special vehicles used for the collection, transportation, and unloading of bagged, barreled, and bulk domestic garbage in cities and towns. The garbage is pushed into the compactor box by the shovel mechanism and squeezed, so that the garbage is distributed more densely and evenly in the carriage until it is full. The garbage collection and transportation method of this garbage truck is currently widely used in the world. The functions of its special device are powered by the automobile engine and are realized manually or electronically through a hydraulic mechanism. The vehicle's compactor body, tailgate and sewage tank are all made of high-strength wear-resistant steel plates with fully sealed and welded structures, which have the advantages of high strength, light weight, and no secondary pollution.

ISUZU NKR refuse compactor truck specifications

Main performance features:

★1. Slider structure: The slider movement process in the filler adopts a highly wear-resistant slider structure with good self-removal function to prevent damage to the track caused by garbage stuck.
★2. The side guardrails on both sides of the vehicle are made of aluminum alloy, which is lightweight and beautiful.
★3. Electronic control system: Using "CAN bus + dedicated controller mode", it has high automation and reliability.

★4. The hydraulic system adopts ferrule type pipelines, which are beautiful in appearance and can be easily disassembled and assembled repeatedly. Compared with ordinary welded pipes, they can reduce the impact of impurities on the performance of the hydraulic system.
★5. Sealing performance between the compactor box and the tailgate: The sealing design between the compactor and the tailgate adopts a hydraulic lock hook to lock and seal, which has good sealing performance and prevents secondary pollution.
★6. Push shovel slide design method: The push shovel slide of the garbage compactor truck is designed on both sides of the compactor body, which extends the service life of the compactor and slide and reduces the difficulty and cost of maintenance and repair of the slide block.

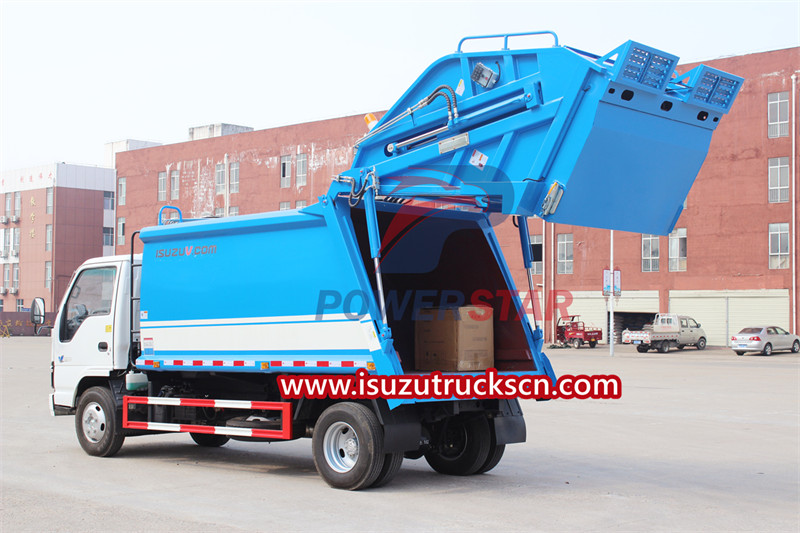

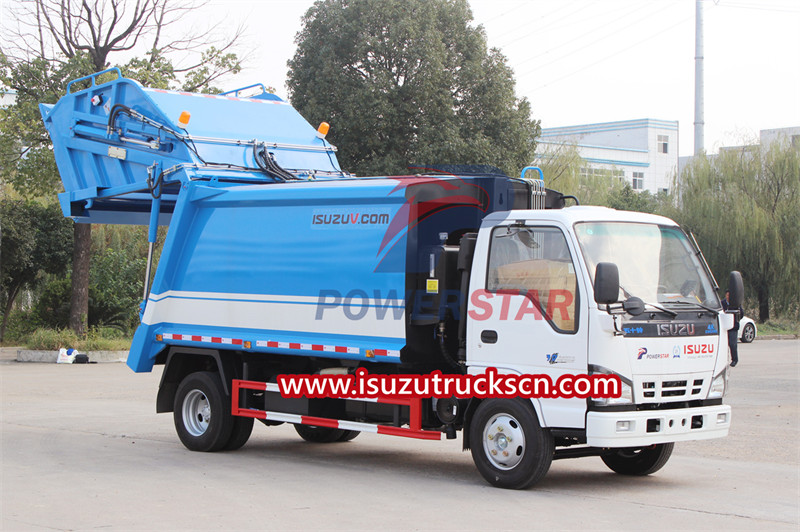

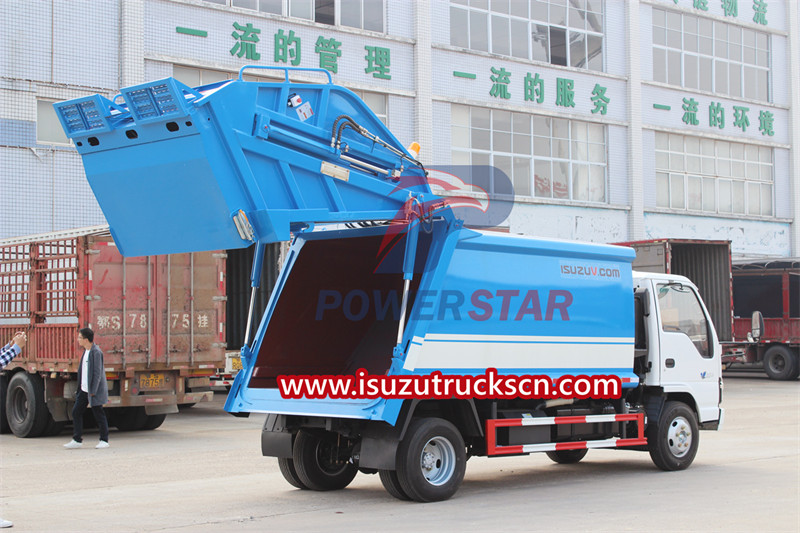

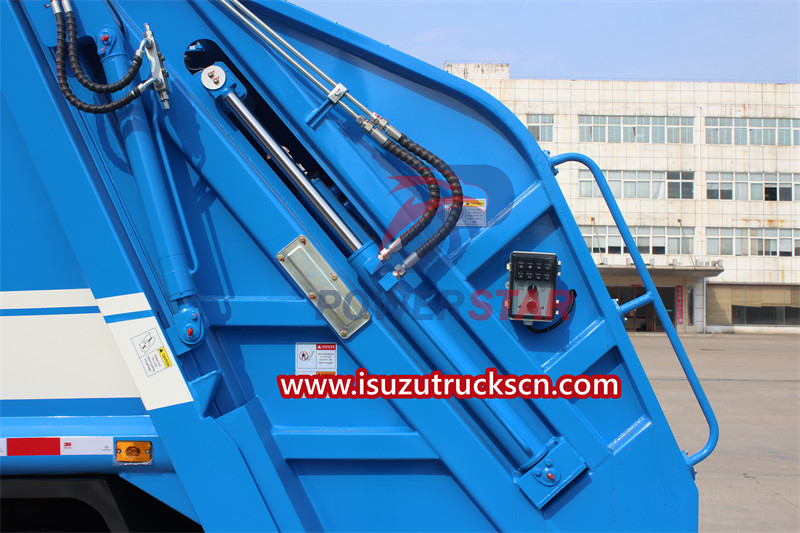

★7. Tailgate design method: The slide cylinder of the tailgate is a built-in design, that is, the slide cylinder is built into the tailgate. The tailgate has a beautiful appearance and has no skirt structure, which is easy to maintain, improves the vehicle sealing performance, and is easy to fill.

★8. The main components of ISUZU NKR refuse compactor are made of high-strength manganese steel with strong corrosion resistance; the steel plates that are in direct contact with the garbage such as garbage bins and fillers are preferably made of high-quality weathering steel with high ultimate strength and corrosion resistance. Strong, suitable for corrosive working environment.

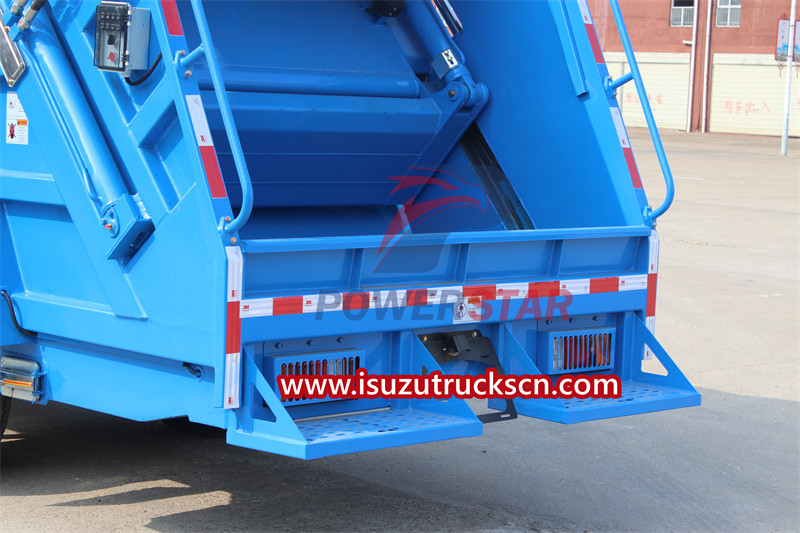

★9. Sealing treatment: The garbage is completely enclosed during compression, filling and transportation, eliminating the phenomenon of flying garbage dust caused by airflow disturbance at the rear of the vehicle during garbage transfer. Garbage and sewage collection adopts advanced sealing design structure, so sewage will not drip or spray during the collection and transportation process. There are sewage tanks at the bottom of the box and the lower part of the filler. The sewage storage capacity reaches 460L, which improves the sewage storage capacity.
★10. Safety design: Adopt advanced hydraulic lifting safety circuit, and a one-way balance valve is installed on the lifting cylinder in the hydraulic system. The direct connection between the lifting cylinder and the hydraulic hose means that even if the oil pipe bursts, the filler will not suddenly fall and cause an accident, ensuring the safety of the product.
