Work capacity:
5 CBMTruck model:
PT5050TSLEngine power:
98HP/72KWEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
Manual, MSB, 5-speedRemarks:

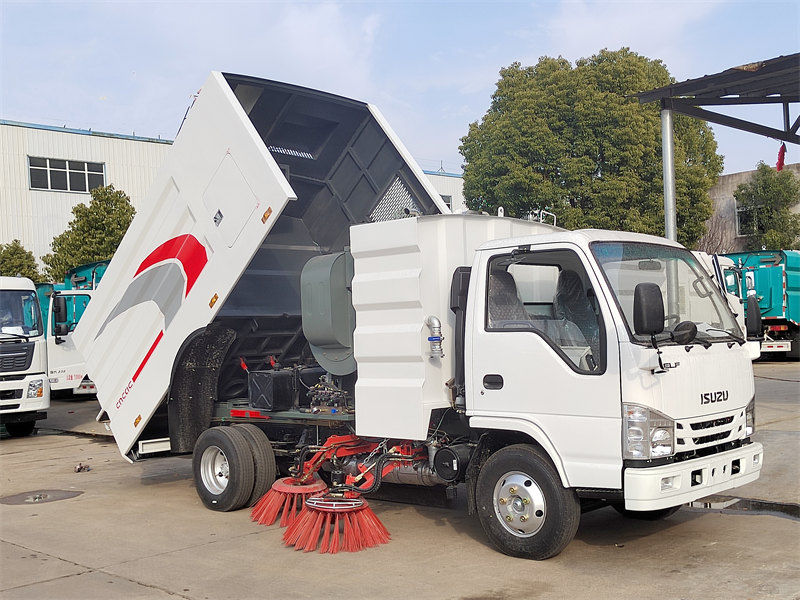

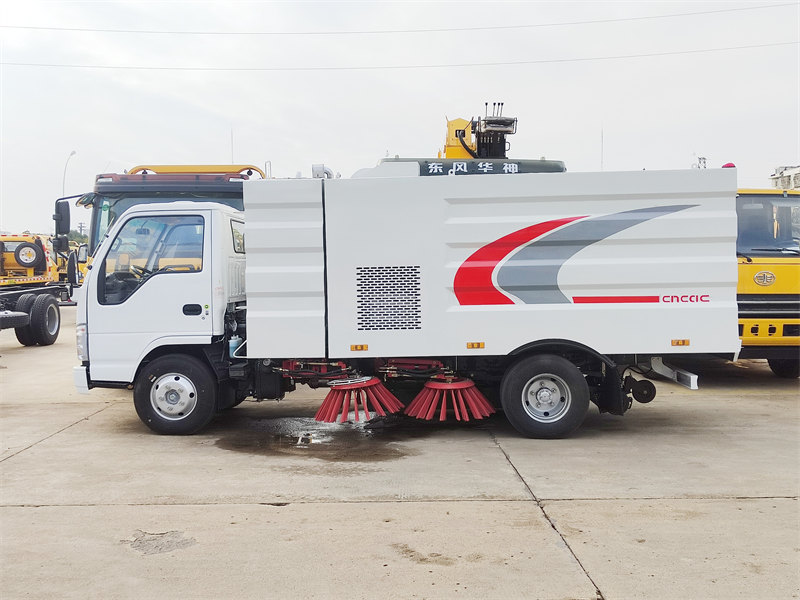

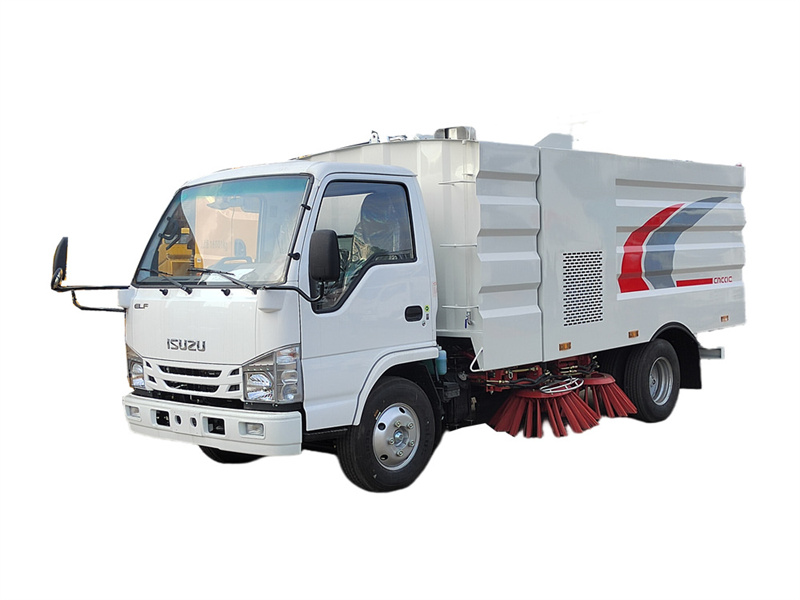

CUMMINS 140HP auxiliary engine, stainless steel water tank and dust tankThe ISUZU small road sweeper is a multi-functional sanitation vehicle specially designed for cleaning, collecting and disposal road garbage. It is mainly used for ground cleaning, road curb cleaning, road curb washing and ground watering. It is suitable for cleaning operations in various climates and different road surfaces, and is more suitable for cleaning and dust removal in squares, highways, residential areas, parking lots, docks, airports, stations, cement plants, power plants and other places. It is a new type of efficient cleaning equipment that integrates road cleaning, garbage recycling and transportation.

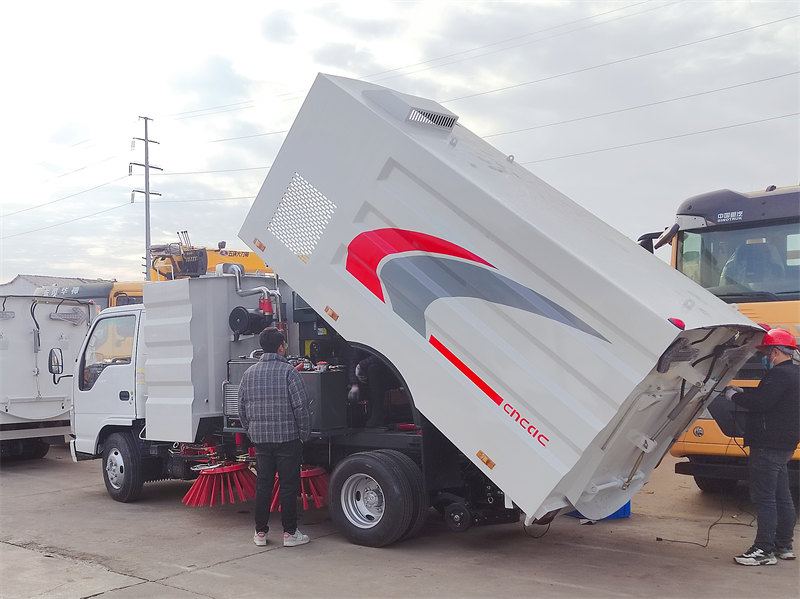

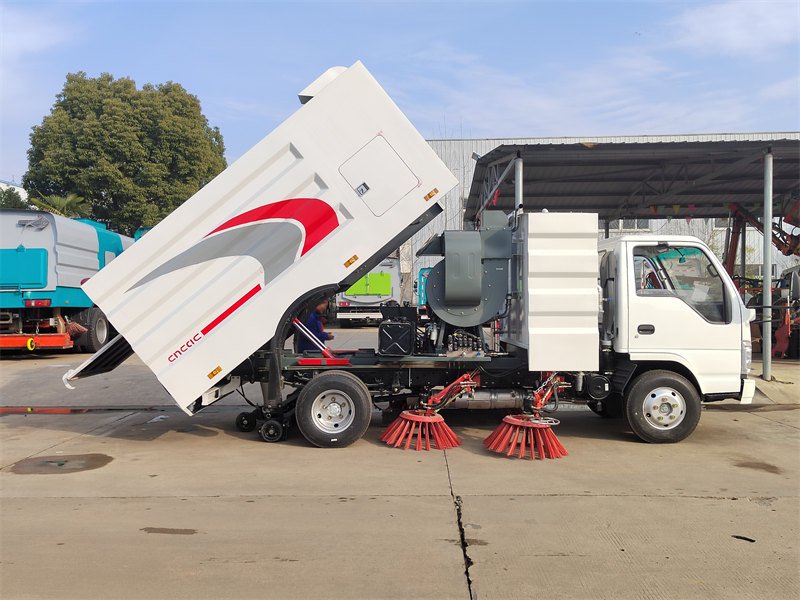

The road sweeper is divided into two parts: a clean water tank and a dust tank. The clean water tank is responsible for reducing dust on the road, and then the sweeper moves all the garbage to the middle of the vehicle. The rear dustbin body is connected to a high-power suction cup, which can pick up all kinds of garbage from the road. The street sweeper comes with its own auxiliary engine unit, which has stable functions and high cleaning efficiency.
Product specifications
Truck name
ISUZU small road sweeper
Wheelbase
3360mm
Front/rear suspension
1015/2330 mm
Engine model
Chassis engine
4KH1CN5LS
Auxiliary engine
ISB140 33
Engine rate
Chassis engine
72kw, 2999cc, 98hp
Auxiliary engine
103 kW
Max upgrade angle
30%
Emission standard
Euro 5
Accelerating outside noise
≤84dB(A)
Max speed
95 km/h
Approach angle
24°
Departure angle
12°
Weight specifications
Kurb weight
6400 kg
Whole weight
7300kg
Dimensions
Overall dimension
6000×2200×2550mm
Ground clearance
250 mm
Sweeping performance
Sweeping speed
3~20 Km/h
Sweeping width
3 m
Water pressure
12 MPa
Water pump flow
115 L/min
Clean and suction
performance
Cleaning efficiency
≥95%
Maximum suction particle
size
110 mm
Clean and suction width
3 m
Max clean capacity
60000 m2/h
Disc brush size
≥400 mm
Clean and suction speed
3-20 km/h
Water Tank
Water tank volume
4 m³
Dust tank
Dust tank volume
1 m³
Dump bin tilting angle
≥46°
Discharge door opening angle
≥85°
Hydraulic system
Model
Open, electrical control
Major parts
Gear pump, hydraulic motor,
hydraulic cylinder, solenoid valve
System pressure
16 MPa
Oil tank
60 L
Oil temperature
60 ˚C

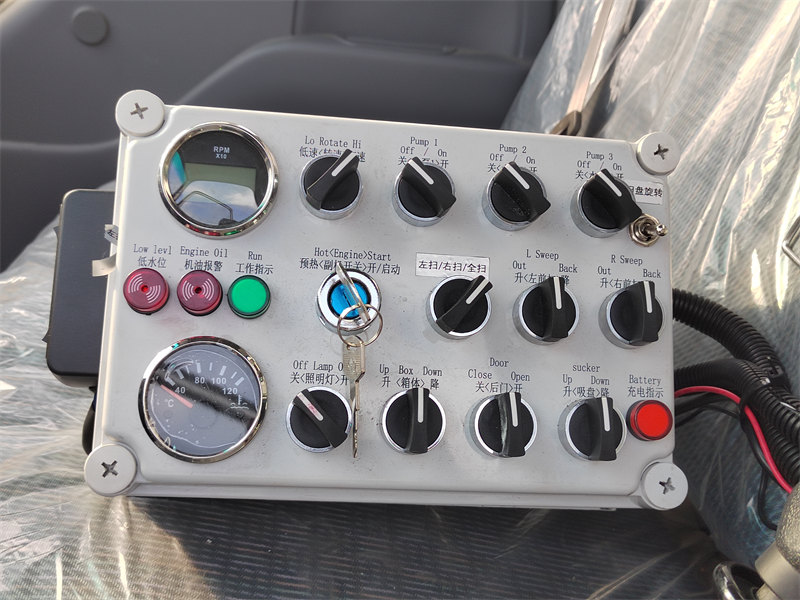

Electrical system
Model
DC24 V
Voltage
24 V
Battery
24 V
Water spray system
Main parts
Electric diaphragm pumps,
water filters, nozzles, etc.

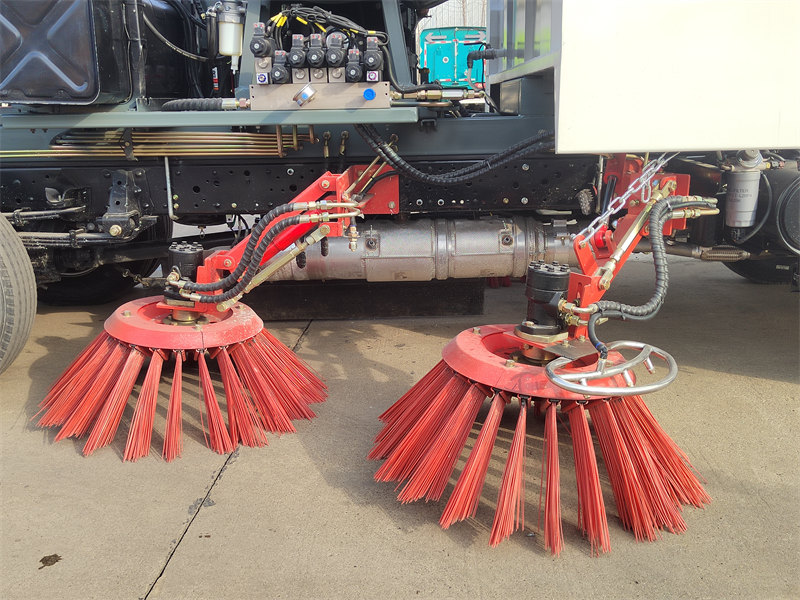

Sweeping device
Model
Center 4 brush plates,
driven by a hydraulic motor
Brush plate diameter
850 mm
Brush angle
Tilt forward: 4-6 degrees
Tilt: 4-7 degrees

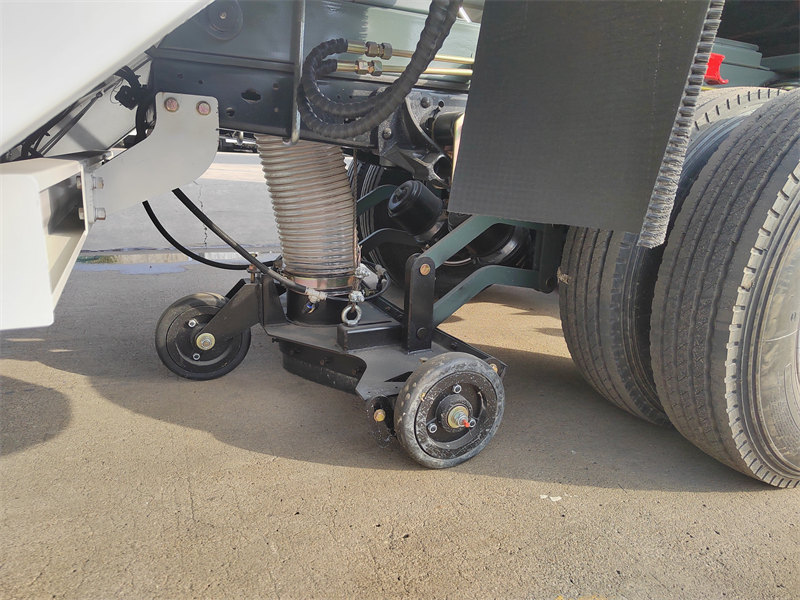

Sucking plate
Model
Double suction, hydraulic
control, spring suspension.
Suction plate diameter
180 mm
Suction plate width
1800mm
High pressure
water system
Model
post pump
No:.
Germany PT36
System pressure
10 MPa
Speed
1150 r/min
Water valve model
Hydraulic pressure ball
valve.
Water valve pressure
7 MPa
Spray nozzles model
High pressure washing type
Water filter
Mesh type
Main performance and features
● Using a combination of suction and sweeping, cyclone plus filter secondary dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface.
● Equipped with auxiliary engine to drive fans and working devices.
● There is a universal coupling and an electrically controlled clutch between the auxiliary engine and the fan, which can ensure the separation of the auxiliary engine from the fan when starting without load and stalling, simplifying the operation, reducing the impact on the auxiliary engine, and improving the safety of the auxiliary engine. working reliability and service life.
● The fully floating wide suction nozzle with backflush and rolling brush effectively utilizes the energy of the fan and greatly improves the suction performance of the suction nozzle.
● Equipped with a dust suppression device for garbage bin unloading, which can effectively suppress the dust generated during garbage unloading.
● The ISUZU street sweeper has automatic avoidance protection function and automatic reset function when encountering obstacles. It will automatically retract after encountering obstacles and automatically reset after crossing obstacles.
● The speed of the sweeping plate can be adjusted to high, medium and low gears according to various cleaning conditions, ensuring good cleaning results under various pollution conditions.
● Using advanced and efficient special fans with long service life.
● Equipped with a switch for sunny and rainy day operation, it can operate on sunny days, rainy days and cold winters, achieving all-weather operation.
● The high-quality imported filter is waterproof and oil-proof, has high dust cleaning efficiency through compressed air injection, and works reliably.
Road sweeper functions:
A road sweeper is a mechanical device used
to clean roads and has multiple functions. The main functions of the road
sweeper are as follows:
1. Road sweepers can clean garbage and
debris on the road. It is equipped with an efficient vacuum device that can
clean dust, leaves, pebbles and other garbage on the road. This can keep roads
tidy and improve the quality of city appearance and environment. In addition,
cleaning road debris can also reduce road wear and extend road life.
2. Road sweepers can clear snow and ice
from roads. In winter, snow and ice on the roads can cause great harm to
traffic. Road sweepers are equipped with snow removal devices to remove snow.
It can use the snow shoveling device to shovel the snow into the storage box,
and then use the snow melting device to melt the snow. This ensures smooth
roads and improves traffic safety.
3. The road sweeper can wash the road. It
can spray water mist and wet clean the road surface to remove stains and oil
stains. This keeps roads clean and reduces environmental pollution. Cleaning
roads can also reduce dust, improve air quality, and improve residents' quality
of life.
4. The road sweeper has the function of
recycling garbage. It can collect cleaned garbage and debris into storage bins
and sort them. For example, recyclable and non-recyclable waste can be
separated for subsequent processing and reuse. This can effectively reduce the
amount of garbage generated and improve resource utilization.
5. Road sweepers can monitor the condition
of the road. It is equipped with various sensors and cameras that can monitor
road conditions in real time, such as road smoothness, cracks, damage, etc. By
promptly identifying and repairing road problems, you can improve the safety
and longevity of your roads.
