Japan mobile power supply station vehicle

Motion power supply vehicle with Isuzu chassis

Details

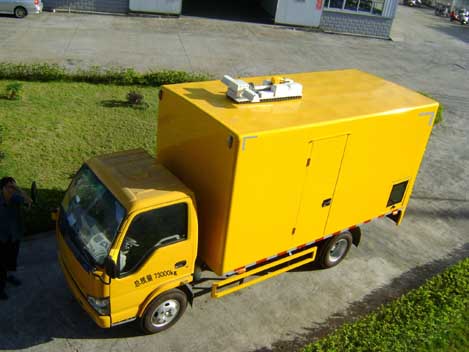

Japan mobile power supply station vehicle

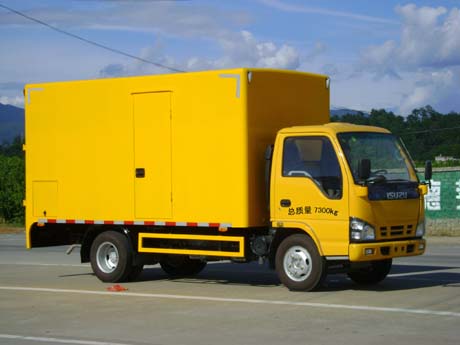

Japan mobile power supply station vehicle

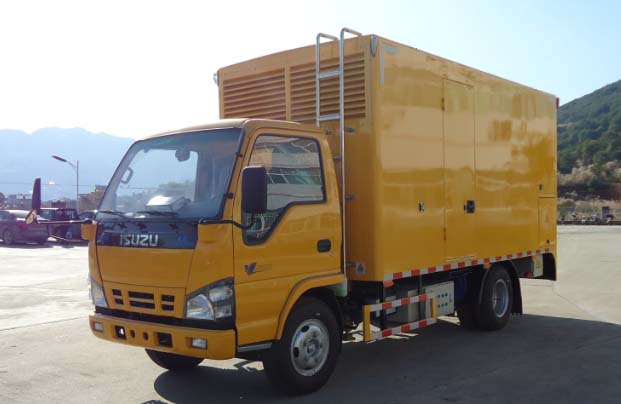

Japan mobile power supply station vehicle

Japan mobile power supply station vehicle

 Briefings

²  Good maneuverability, used for remote emergency power supply

²  Equipped with Wilson generator

²  Fire extinguisher and emergency stop switch equipped

²  Well sealed, rainproof, snow-proof and dustproof

²  Reasonable structure, excellent quality with low noise and easy to operate



  Power Supply Function

  • Ø  Power distribution cabinet on the right of vehicle, equipped with gauges. 8 route 5kW power distributed to other vehicles, 1 route 20kW for starting power, 2 route 10kW for illumination. Power distribution equipped with anti-leakage current protection switch.



  • Ø  Imported Wilson P100E generator powered by diesel, low consumption and low noise. Three phases four lines Y-shape connected. Level H insulation, neutral point grounded. Protection applies IP22 (NEMA 1) Standard.


Product

Wilson Diesel Generator

Product Model

P100(380/220V,50HZ)

Output

100kVA 80kw

Dimensions(L*W*H mm)

2600*1100*1700

Weight(kg)

1600

Diesel Motor Model

Perkins 1006TG2A

Generator Model

LL3014B

Cylinder

4 (inline)

Cylinder Volume( L)

5.99

Cylinder Bore /Stroke( mm)

100.0/127.0

Compression Rate

16.0:1

Frequency (Hz)

50

Rev (rpm)

1500

Motor Shaft Power(kW)

105

Brake Pressure (kPA)

1404

Piston Speed (m/sec)

6.35

Fuel Consumption( P100E l/hr)

23.9

Smoke Discharge Heat Radiation (kW)

68.7

Cooling Heat Radiation (kW)

68.1

Total Heat Dissipation (kW)

44.6

Smoke Discharge Temperature (℃)

576

Wind Discharge (m3 /min )

174

Air Discharge (m3/min)

5.9

Smoke Discharge (m3 /min )

17.3





  Chassis Technical Data

Chassis

ISUZU NKR77

Dimensions(L*W*H mm)

7020×2260×3358

Wheelbase(mm)

3815

Wheel Tread(F/R mm)

1110/2095

Seating Capacity

2

Curb Weight(kg)

6800

Total Weight(kg)

9995

Engine

4HK1-TC

Engine Type

Diesel inline 4 cylinders

Max Power(kW/rpm)

129/3600








Function:



The low noise mobile power station is excellent in providing power support for matched vehicle, electric equipment used under field condition, power-off or no-power remote regions and disaster-hit areas.











Application Events:







- mining company, power company, oil field, exterior shooting of film companies, field drill







- emergency rescue







- frontier defence, rural healthcare







- field working of army / police / armed police











The low noise mobile power station consists of vehicle generator system, fixed shelter assembly, modified chassis, electrical control system, ventilating system, noise reduction system, cable management system, lifting illumination system, etc.



And the generator on the low noise power station vehicle is delicately selected from well-known generator brands like KOHLER, CUMMINS, KIPOR, etc.



You are also free to select your desired brand. This mobile power station can be used as emergency power station. If the power station trailer does peek your interest, please contact us right now for more information.
