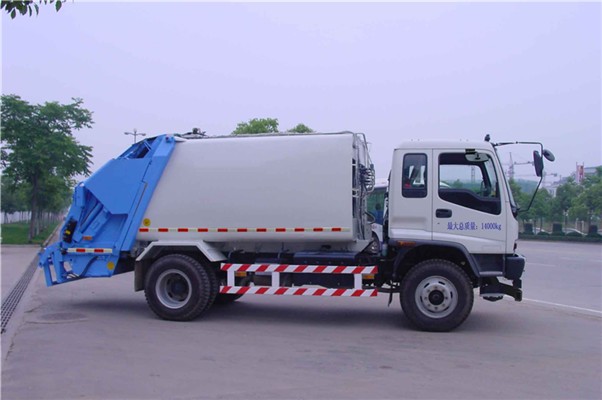

New arrival Isuzu FTR customized 10m3 garbage compactor truck

FTR FVR ISUZU Garbage compactor/10ton garbage compactor/10cbm garbage compactor

Details

New arrival Isuzu FTR customized 10m3 garbage compactor truck

FTR FVR ISUZU Garbage compactor/10ton garbage compactor/10cbm garbage compactor, 10CBM garbage compactor,isuzu 10m3 refuse compactor truck,New arrival Isuzu FTR customized 10m3 garbage compactor truck



FTR FVR ISUZU Garbage compactor/10ton garbage compactor/10cbm garbage compactor, 10CBM garbage compactor,isuzu 10m3 refuse compactor truck,New arrival Isuzu FTR customized 10m3 garbage compactor truck

Main specifications:

Chassis

ISUZU ELF

Model

PT5140ZYS

Driving Type

4x2    (Left hand drive)

Wheelbase

4475 mm

Overall Dimension

7650x2200x2600 mm

Garbage Container capacity

10Cbm to 12Cbm

Loading type

Rear loading

Compression ratio

1: 3.2

Operation control system

Electrically hydraulic control + Manual hydraulic control

Discharging system

Horizontal ejection

Loading cycle time:   (sec)

10~15

Rubbish discharging time: (sec)

20

Max hydraulic pressure (Mpa)

16.2

Feeding equipment lift angle

90

Multi-way shuttle valve

Imported

Body material

Weather resisting steel

Cab

Forward control over engine, all-steel-welded construction

Engine

Model:

4HK1-TCG40

Type:

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power:

139 KW (190HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

9.00-20

Color

Red    (Any color & logos up to wish)

Max Speed

90 km/h
