POWERSTAR Water Truck Isuzu ELF 5,000L

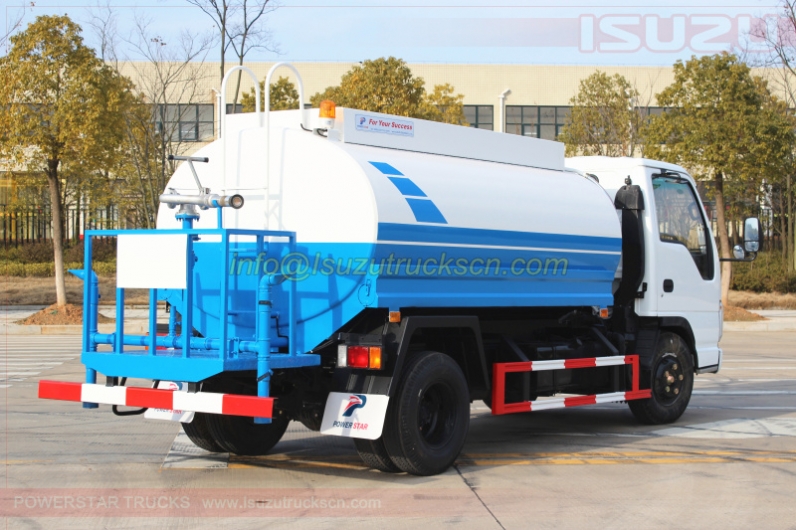

POWERSTAR Water tanker bowser isuzu 5000L

Details

Powerstar Water Bowsers Isuzu 5,000Liters for Export

Water Bowsers Isuzu ELF tanker trucks 5,000Liters

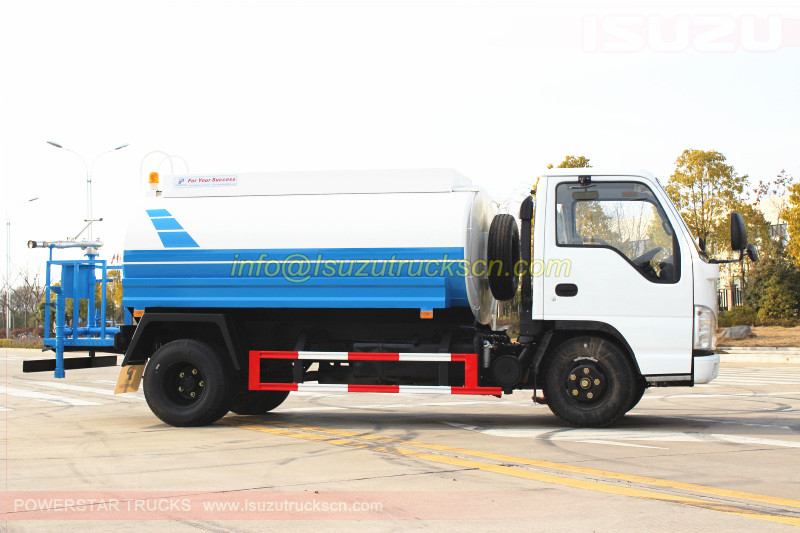

Water Bowsers Isuzu ELF tanker trucks 5,000Liters pictures

Function:

Water Trucks ISUZU 5,000L (also called water bowser Isuzu, water tanker truck, Japan tank truck,  water trucks, water sprinkling tank truck, watering vehilce,  Sprinkler truck, Truck water tanker, Water sprinkler bowser, spray tank truck, mobile water truck is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels,  dust and environmental control and  fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.


Areas of Application and Use

  • Transportation and distrubition of drinking water
  • Transportation and distrubition of industrial water

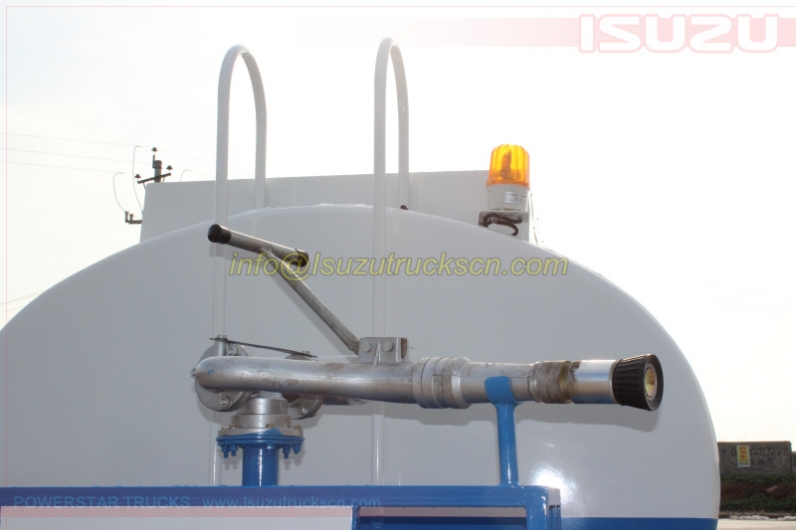

  • Pressurized street and road cleaning
  • Pressurized tunnel cleaning
  • Dust and environmental control

  • Fire fighting service

Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance

---- Prolonged service life

Specification:



Sprinkler Tank Truck ISUZU (5,000 litres)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU ELF
Overall Dimension 5900 * 1900 * 2500 mm
GVW / Kerb Weight 7,000 kg / 28,00kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4JB1CN
Power 98 PS (72 KW)
Displacement 2777 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-15
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 5,000 Litres ( About 1,200 US gallons)
Tank Material Carbon steel
Flow Speed 1000 litres / min
Delivery Head 45 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.


Technical drawing for water truck isuzu

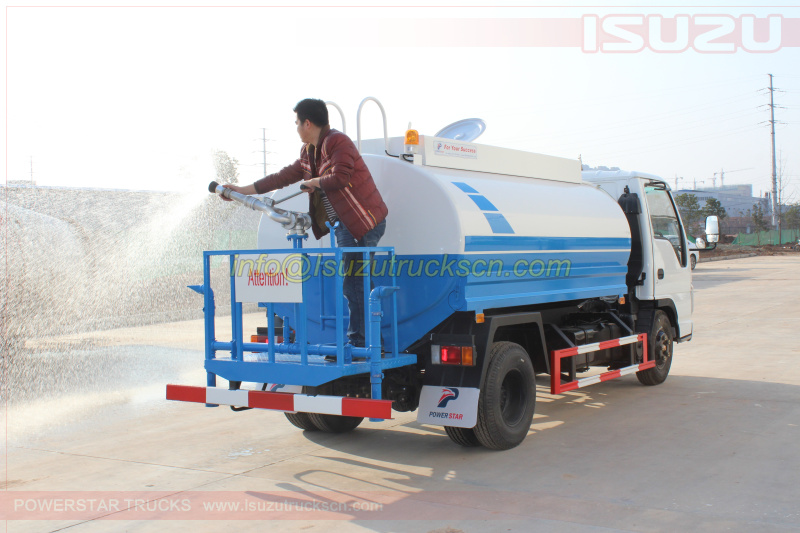

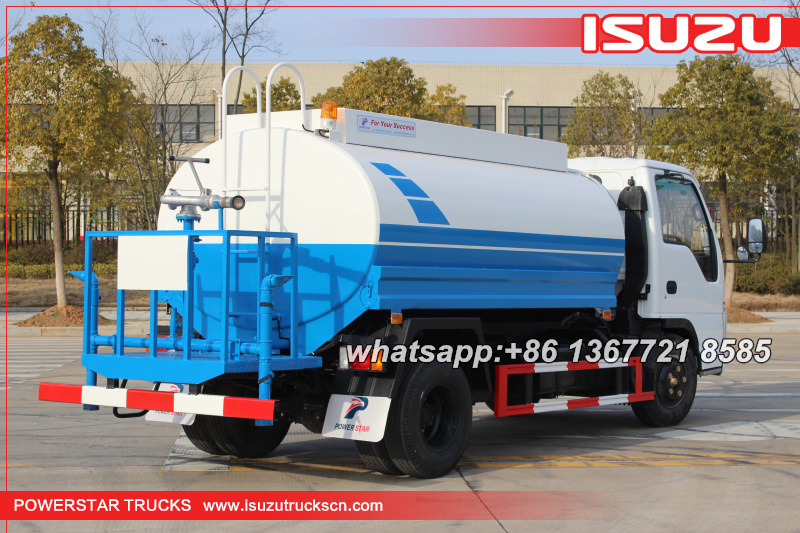

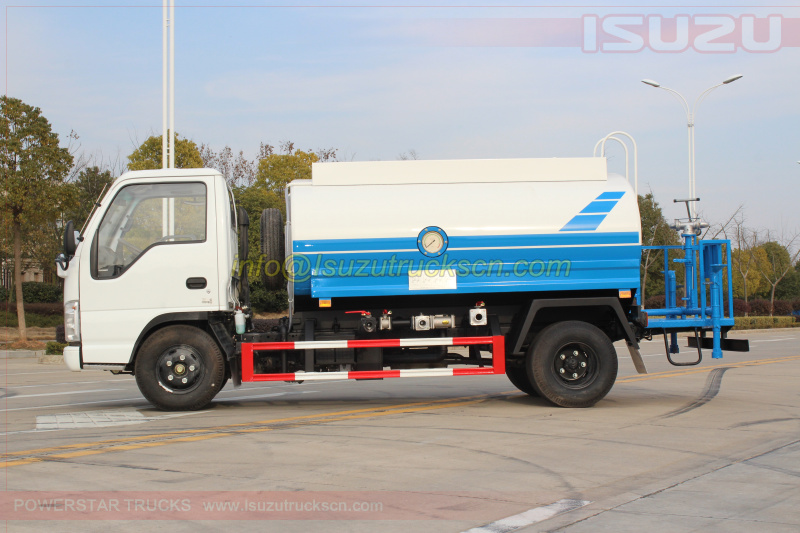

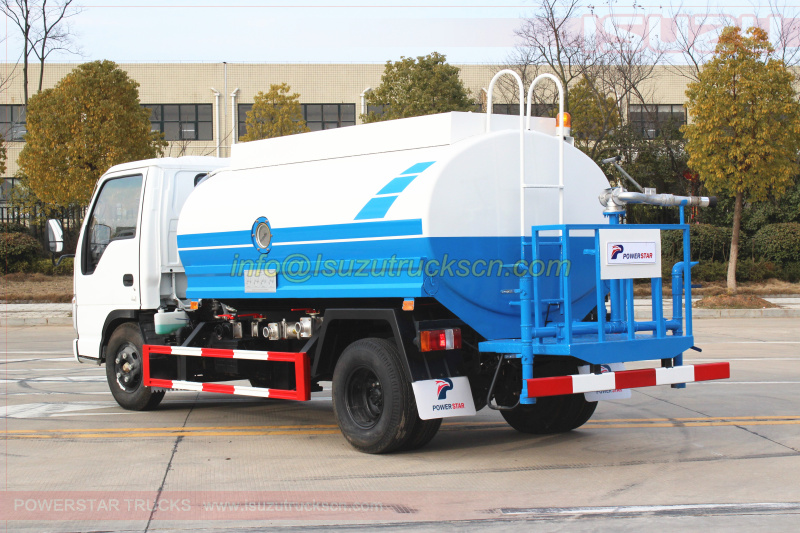

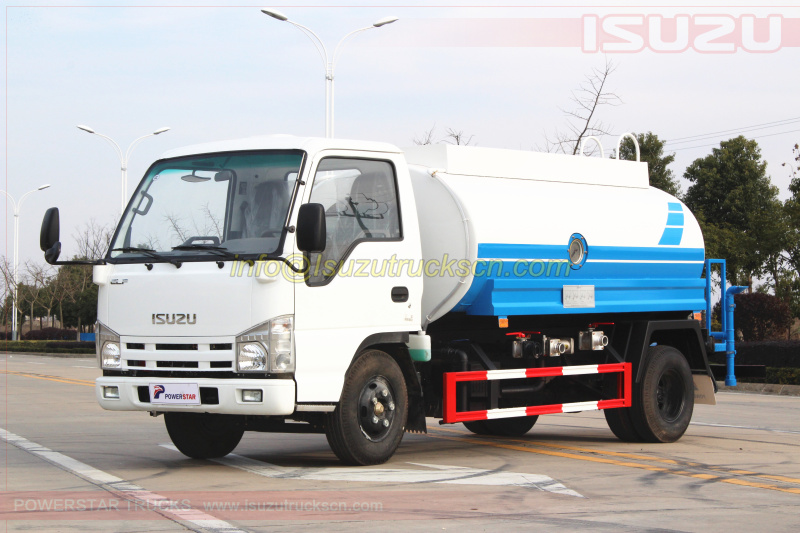

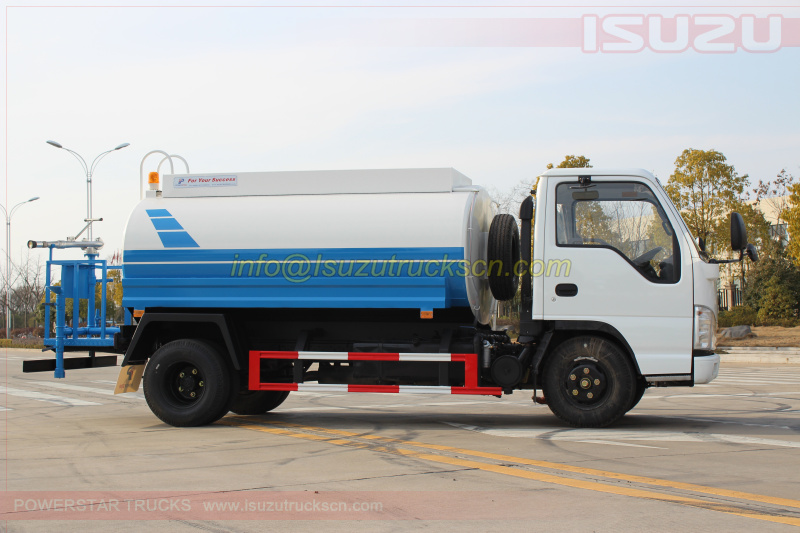

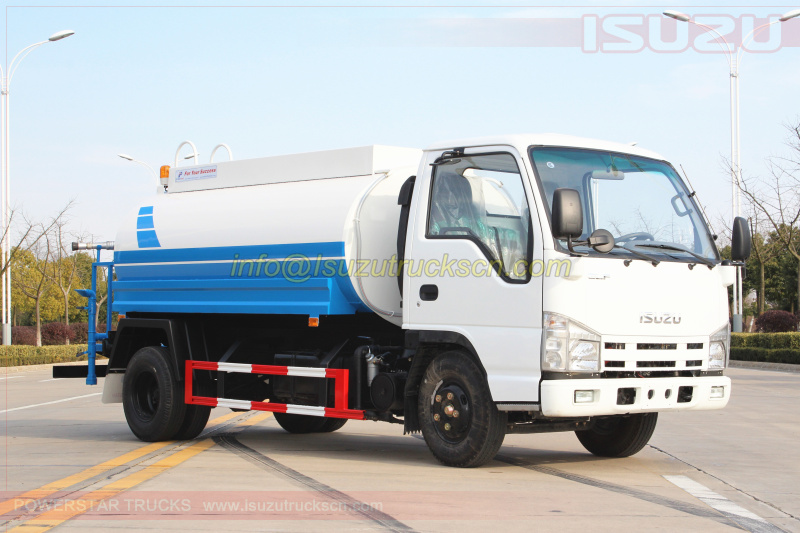

Overview of Water bowser Isuzu:

 Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures    Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

 Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures    Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

 Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures    Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

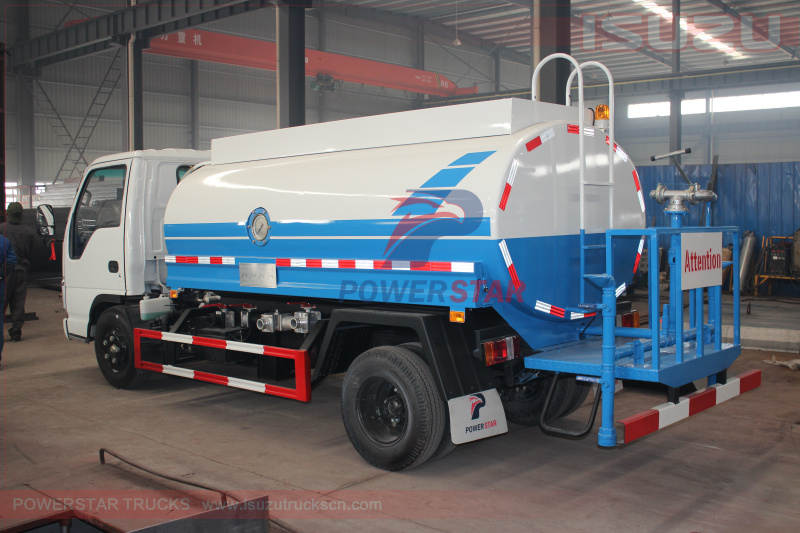

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

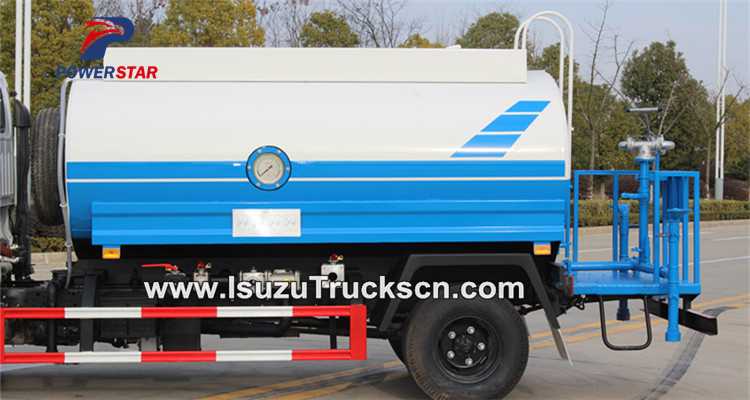

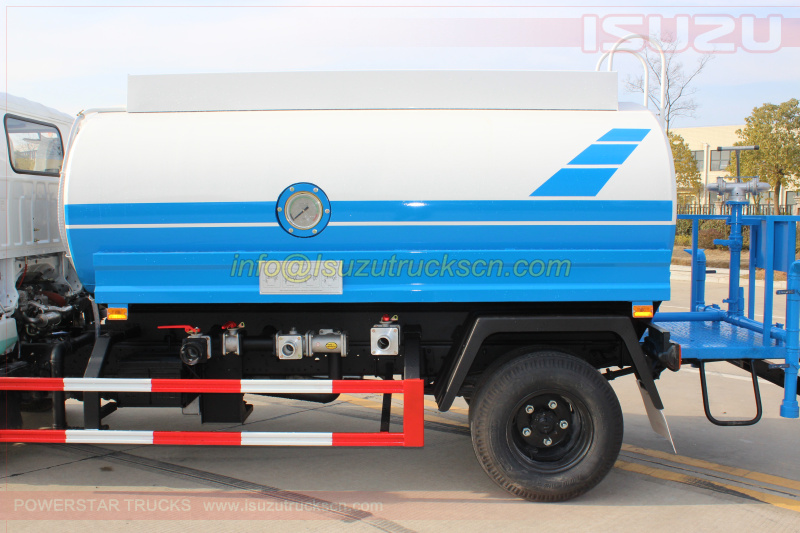

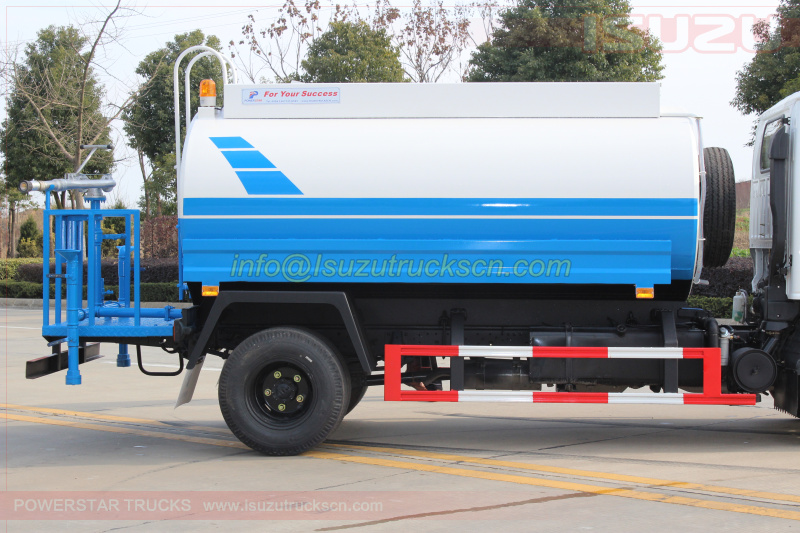

Water tank for Isuzu water bowser trucks
water tank capacity of the water trucks

Tank capacity
5,000 Liters
(Anti-corrosion treatment)
Material
Carbon Steel
4mm
rollback truck rollback truck
Tank shape
Ellipse
Water Pump
WEILONG gear pump

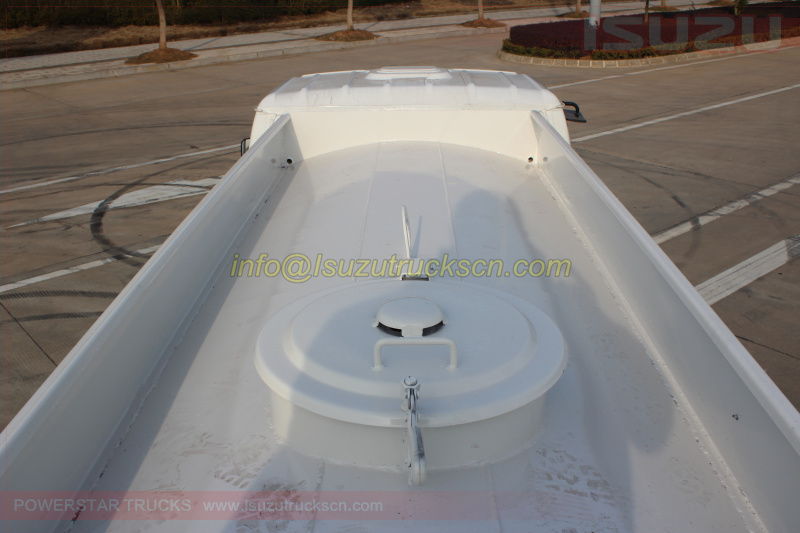

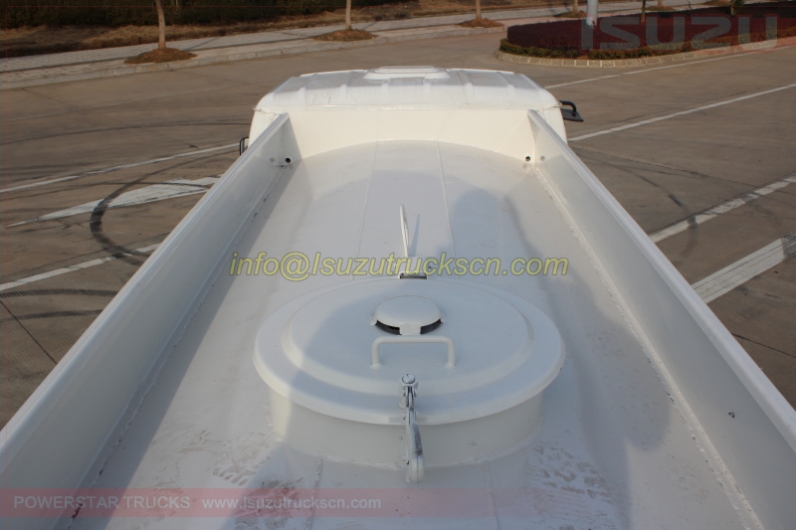

Manhole Cover
500 mm

Discharge Hose  &

Hose Box

Standard
rollback truck rollback truck
water pump for Isuzu water trucks tanker

water leverl gauge for isuzu water bowser

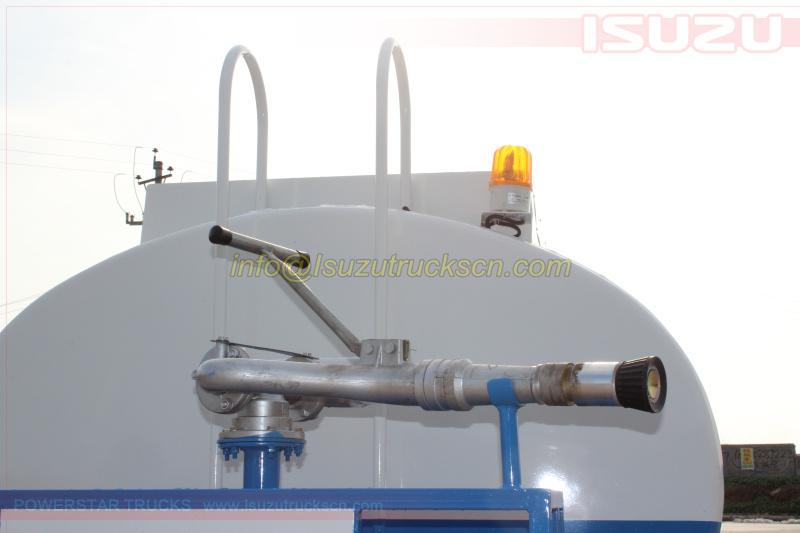

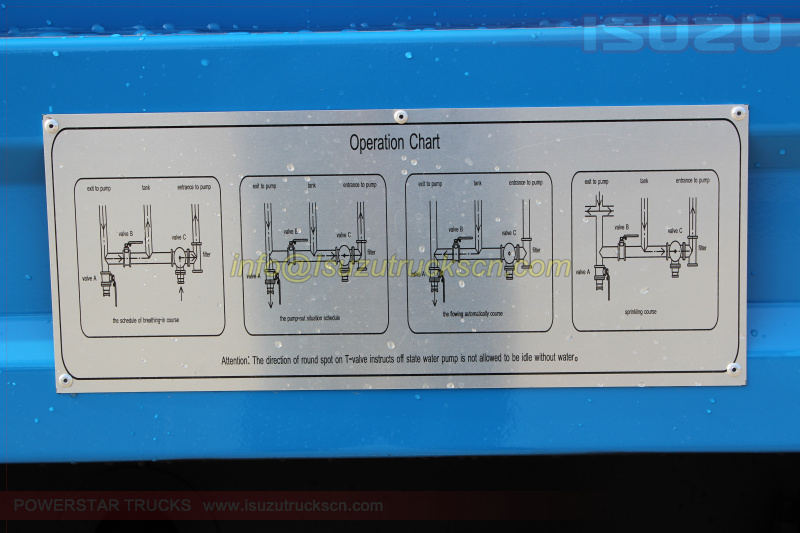

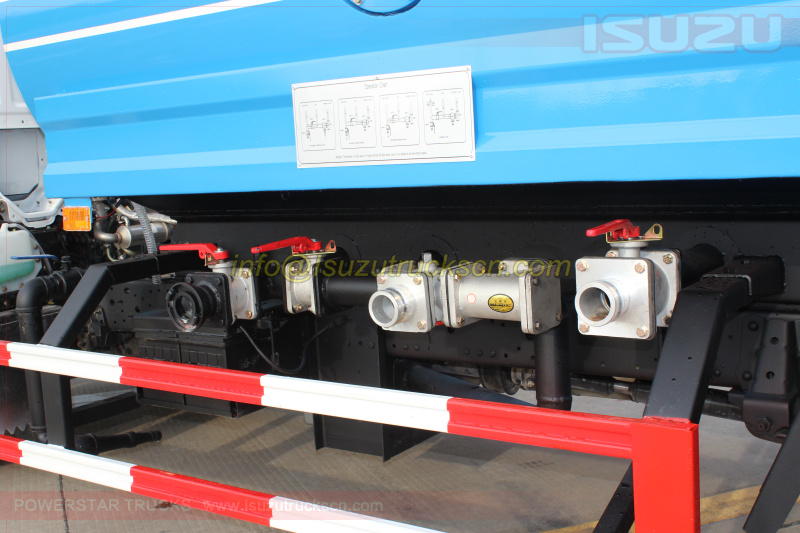

Valve Control Station

tow truck hydraulic tow truck hydraulic tow truck hydraulic

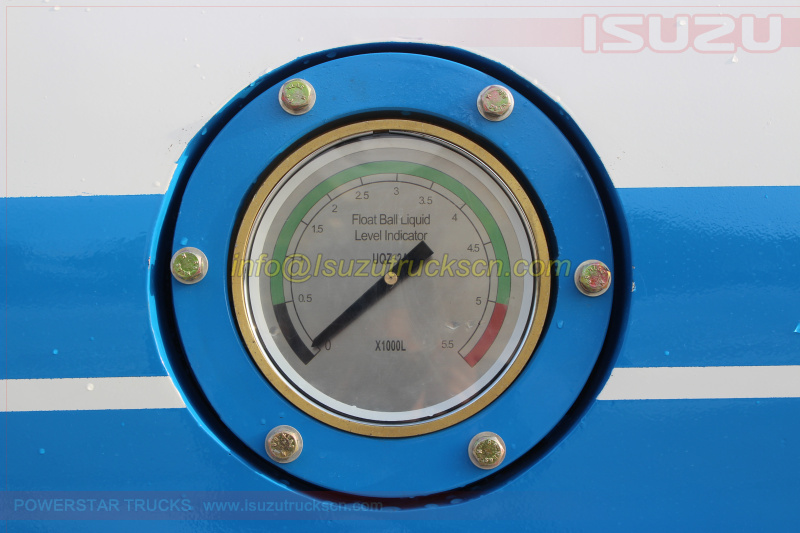

Float Ball Liquid Level Indicator

tow truck hydraulic tow truck hydraulic tow truck hydraulic

Discharge hose and hose box for water tanker Isuzu 5000L

Warning lights for water truck isuzu tanker

Hose & Hose box

tow truck hydraulic tow truck hydraulic tow truck hydraulic



Roating light with Music

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

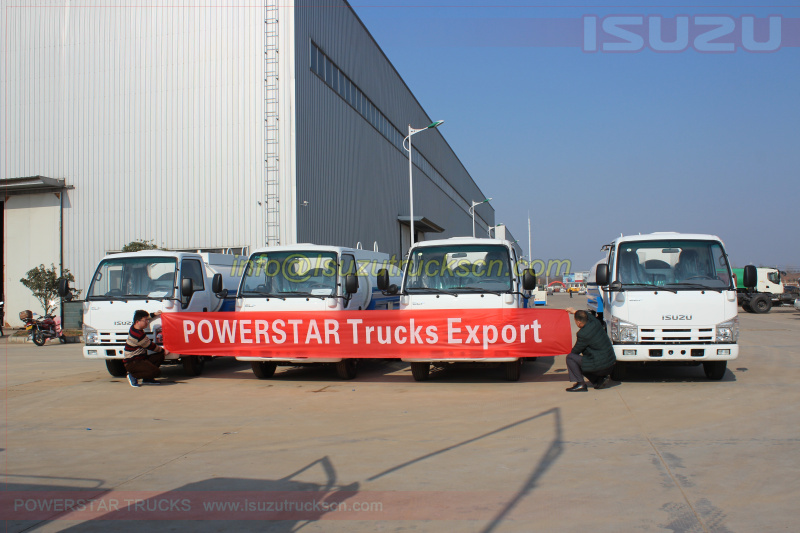

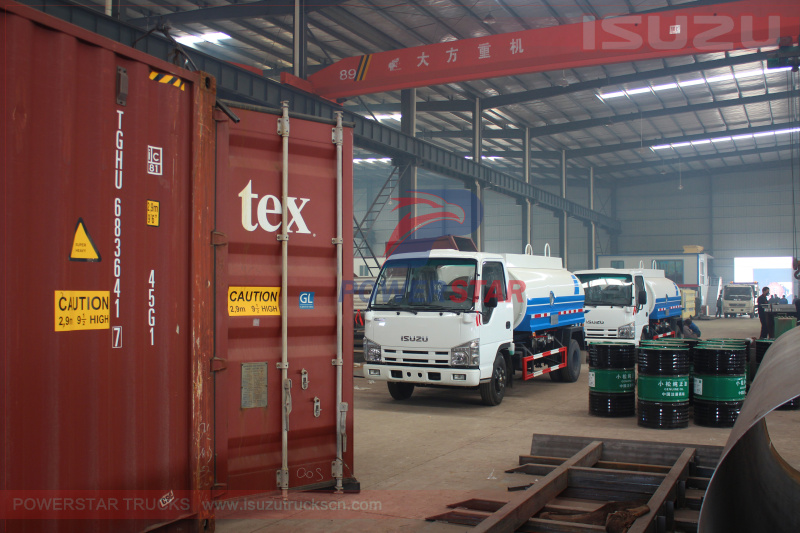

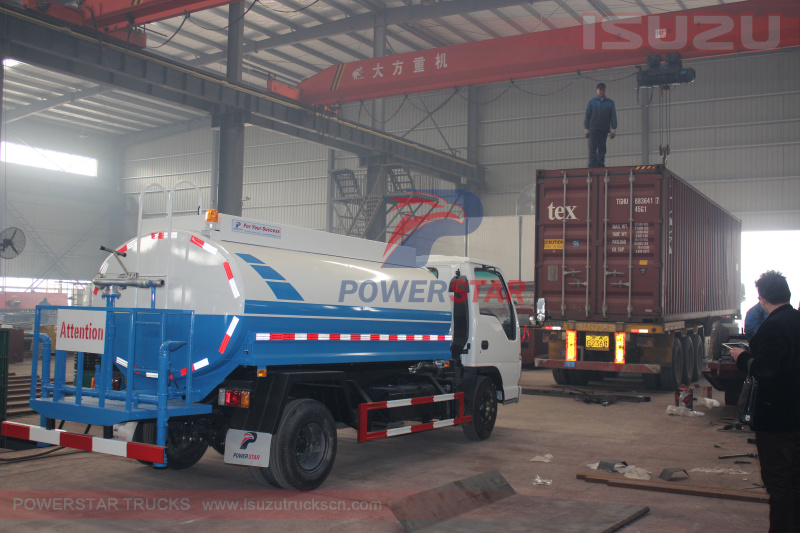

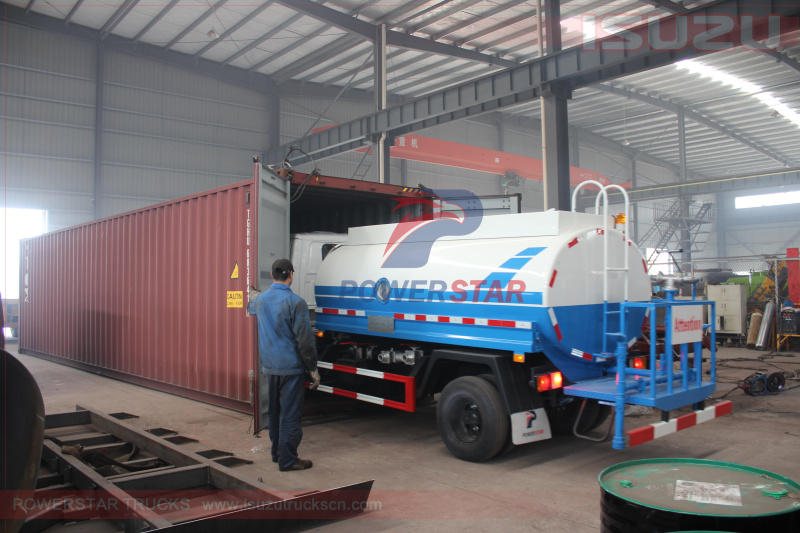

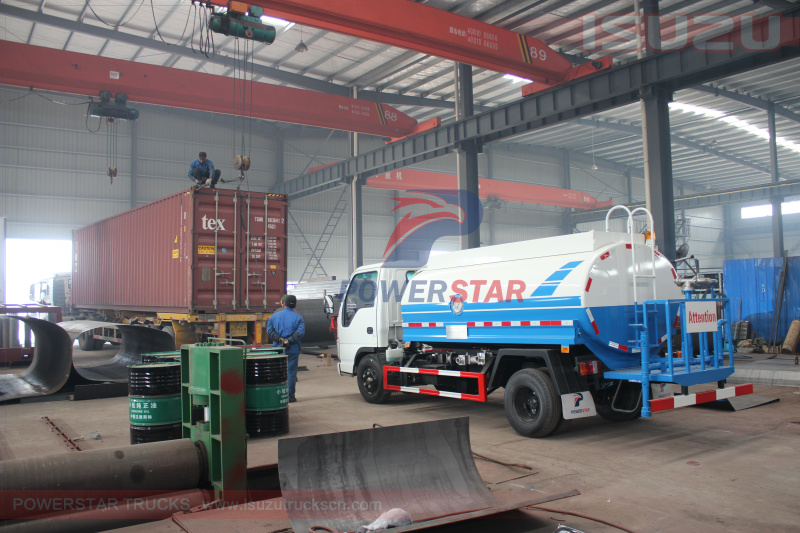

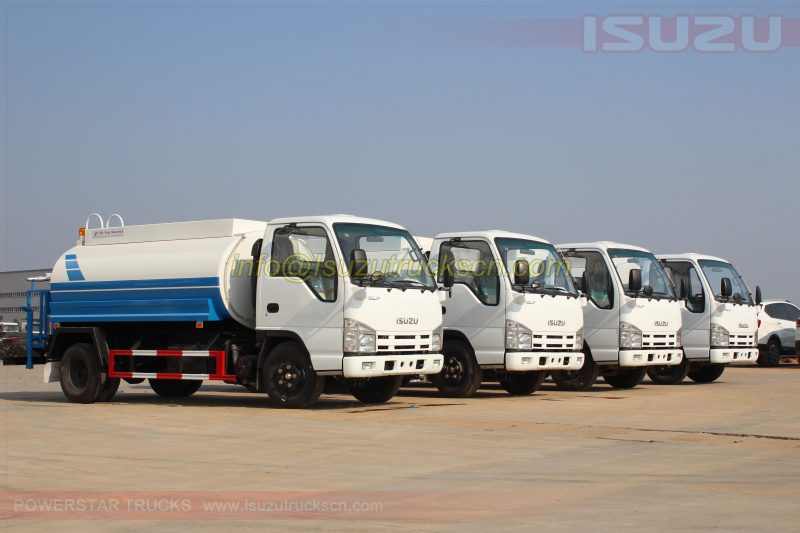

Shipment for 4units Water Trucks Isuzu ELF 5,000L

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

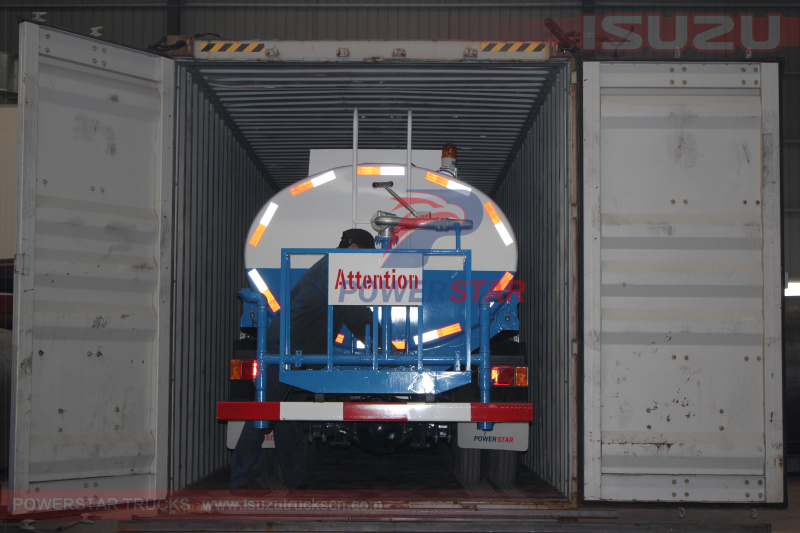

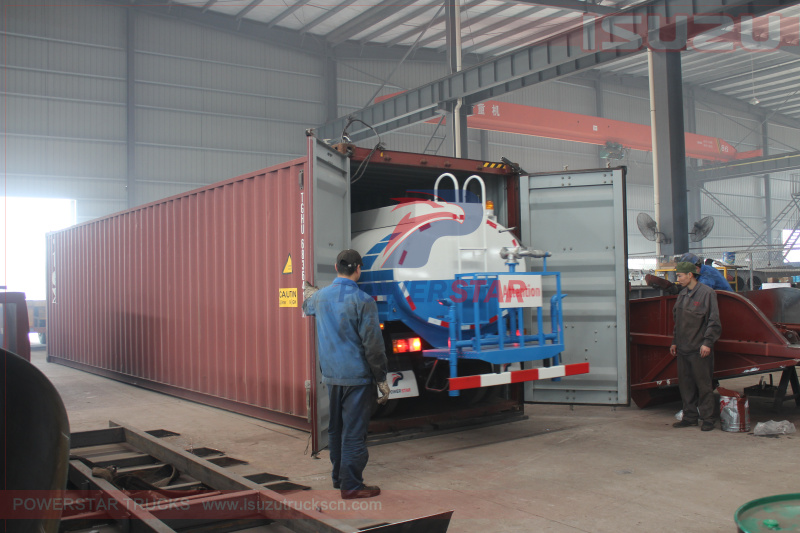

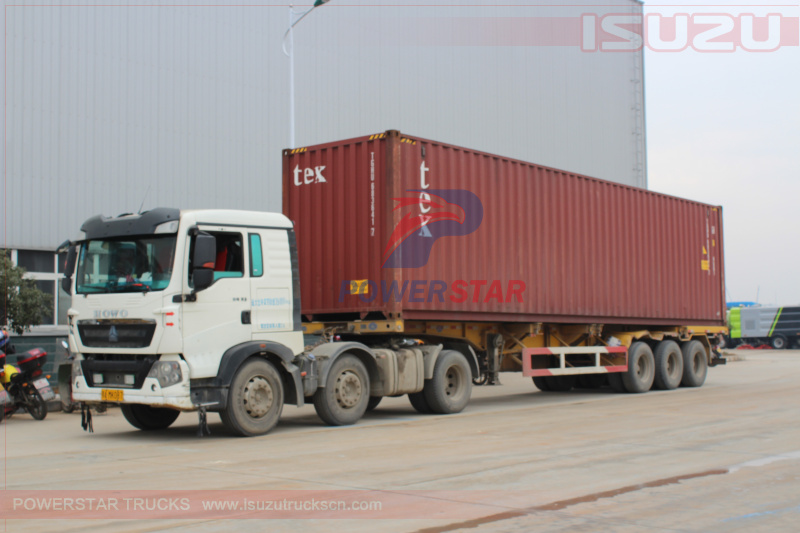

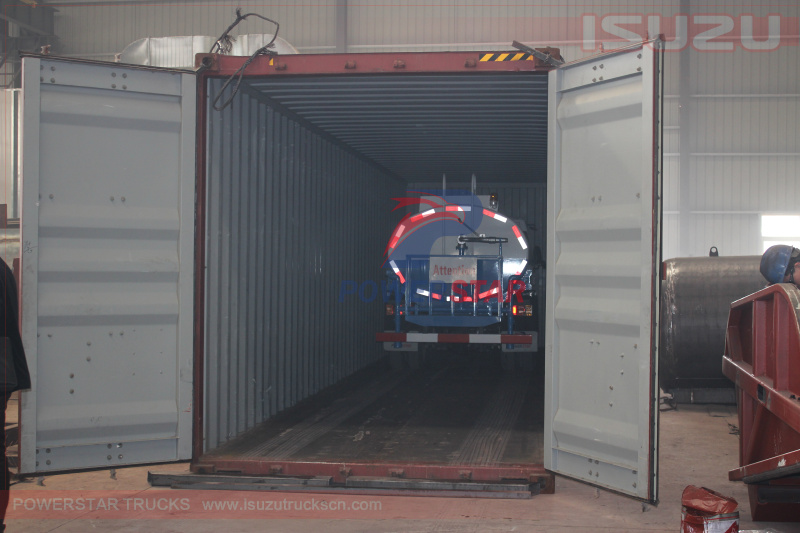

 Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters    Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters

 Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters    Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters



Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Shipment for Water TRUCKS Isuzu ELF tanker trucks 5,000Liters

Similar Key Words:  Isuzu brand Water sprinkler trucks, Powerstar water trucks, water bowser vehicle, water tank bowser, water tank trucks, Irrigation water truck, watering truck, Light duty water tank trucks for sale, 5,000L water tank, 1000 Gallon water tanker trucks, Truck water tanks
