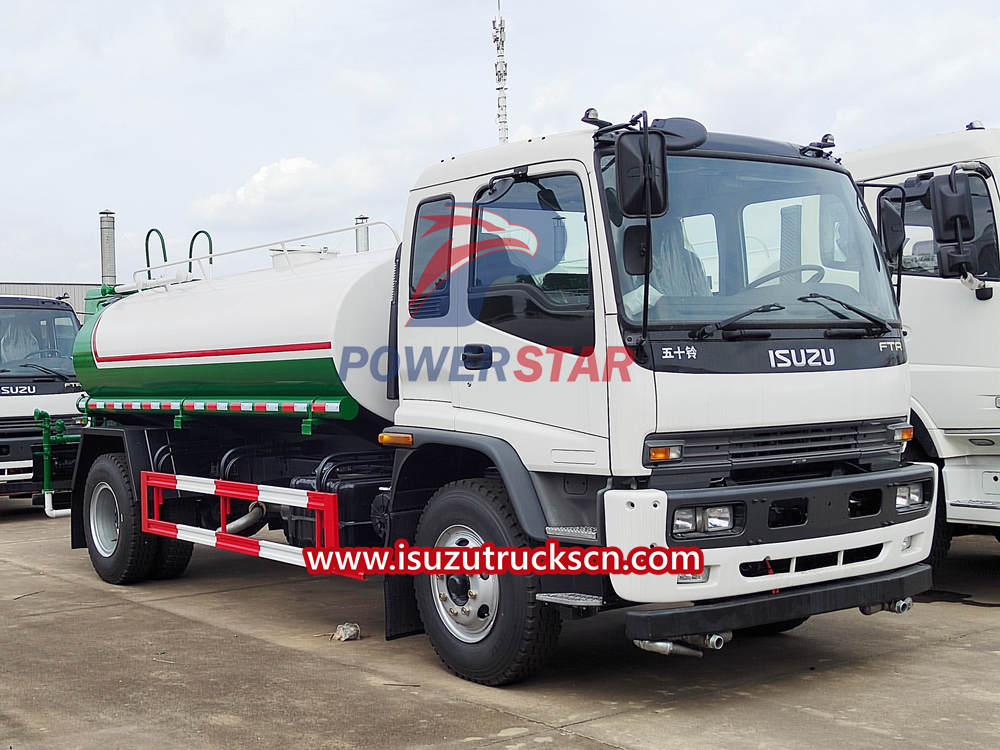

Street spraying water truck by Isuzu

Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3
Isuzu brand Street Sprinkler Road Water Truck 12m3

Street spraying water truck by Isuzu

3000Gallon Isuzu brand spraying water truck, also known as a Isuzu street water trucks or spray truck Isuzu, is a vehicle equipped with controlled spray nozzles used to provide water for various purposes such as construction, agriculture, dust control, and fire control. These trucks are outfitted with a water tank and spray nozzles that can be adjusted to control the water flow. They are commonly used to suppress dust at construction sites, provide supplemental water for agriculture, and help control fires by delivering water to fire-prone areas. Additionally, they can be used for soil compaction and other industrial applications.

  • Work capacity:

    3000 Gallon
  • Truck model:

    PT5180GSS
  • Engine power:

    205HP
  • Engine type:

    Isuzu 4HK1-TC60
  • Axle drive:

    4x2
  • Gear box:

    Isuzu MLD6S
  • Remarks:

    High-performance sprinkler system

The 3000Gallon Djibouti Isuzu Street spraying water truck is a specialized vehicle designed for effective and efficient dust suppression and street cleaning operations. Built on a robust Isuzu chassis, this truck is equipped with a high-capacity water tank, a powerful water pump, and a versatile spraying system, making it perfect for maintaining clean and dust-free streets in Djibouti.



2. Features:

- High-Capacity Water Tank: The Isuzu Street spraying water truck features a large water tank that can hold a significant amount of water. This allows for extended operational hours without frequent refills, ensuring uninterrupted street cleaning and dust suppression.

  • Versatile Spraying System: The Road sprinkler truck Isuzu is equipped with a versatile spraying system that can be adjusted for different spray patterns and water flow rates. It provides coverage over a wide area, efficiently cleaning streets and suppressing dust.

- Efficiency and Precision: The powerful water pump ensures optimal water flow and pressure for effective street cleaning. The spraying system is designed to provide uniform water distribution, ensuring thorough cleaning and dust suppression.

- Isuzu Chassis: Built on a sturdy Isuzu chassis, this truck offers durability, stability, and maneuverability, making it suitable for the demanding street cleaning tasks in Djibouti.

3000 gallon spraying water truck Isuzu

3000 gallon spraying water truck Isuzu



3000 gallon spraying water truck Isuzu



3. Advantages:

- Efficient Dust Suppression: The Djibouti Isuzu Street spraying water truck efficiently suppresses dust, improving air quality and reducing health hazards caused by airborne particles.

- Effective Street Cleaning: The powerful water pump and versatile spraying system ensure effective street cleaning, removing dirt, debris, and contaminants from the streets of Djibouti.

- Cost and Time Savings: The high-capacity water tank and efficient spraying system minimize the need for frequent refills and maximize cleaning coverage, resulting in cost and time savings for street cleaning operations.

- Environmentally Friendly: The truck is equipped with eco-friendly engines that comply with emission standards, reducing environmental impact and promoting sustainable street cleaning practices.



4. Application:

The Djibouti Isuzu Street spraying water truck is specifically designed for dust suppression and street cleaning in urban and residential areas, construction sites, industrial zones, and public spaces in Djibouti.

Technical data of 10ton-15ton Japan FTR 10000L-15000L 10000 liters 12000 litres 15000 liters water tank truck Isuzu
Main Technology Parameter
Model Name Isuzu water tanker truck 10000L-15000L
Driving Type   4×2,left hand drive
Color White,yellow,box can choose
Weights
Rated payload weight(kg) 15000
Curb weight(kg) 6500
Dimensions
Wheelbase(mm) 5000
Overall Dimension(mm) 8500*2500*3000
Box dimension  12000L(3000 gallon)
 Max speed(km/h) 110
Engine
Engine model 4HK1-TCG50(205HP)
Engine type 4 stroke water-cooled,inter-cooling
No. of cylinders straight-4 cylinders
Displacement(L) 5.193L
Max. output (kw) 150kw
Drive Line
Transmission MLD 6 speeds ,6 forwards,1 reverse gear,manual operation
Steering Power steering
Brake air brake
Cab
Cabin  FVR CABIN
Standard configuration  with A/C,oil brake with vacuum booster pump,power steering
Axle
Front axle 6.3tons
Rear axle 13 tons
Tire specification
Tire specification  295/80R22.5 standard tire,6 tires+1 spare tire
Water truck
Water tanker material Of high quality carbon steel (Q235).
Introduction  1. Suction7m  Sprinkler width14m   Range28m
2. with front spout, back spill and side spout function

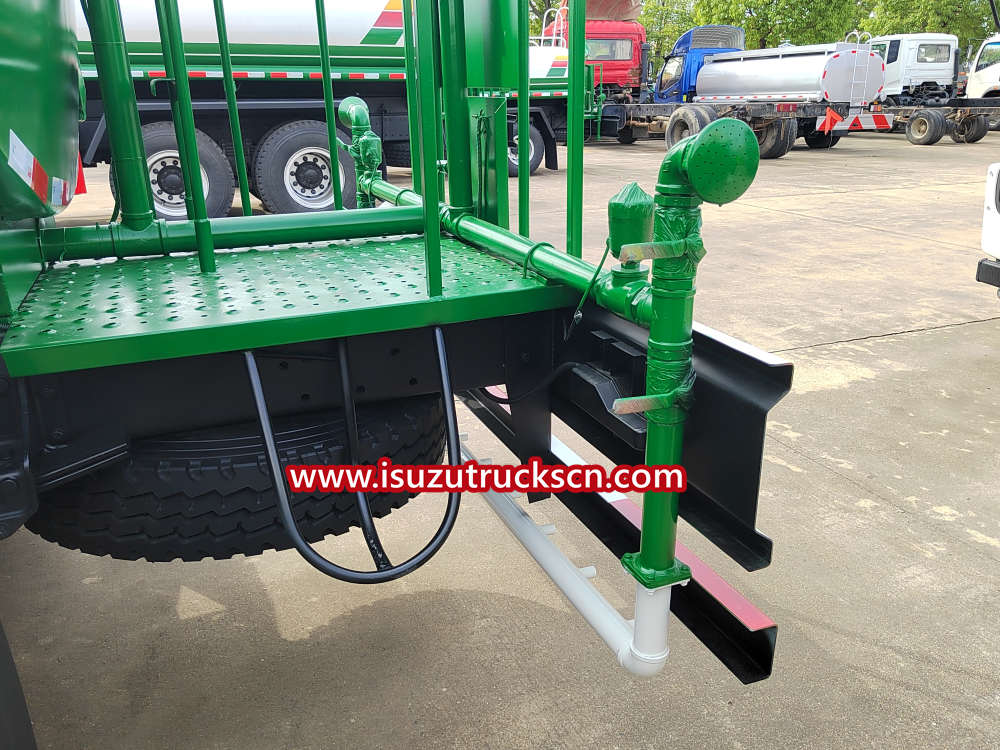

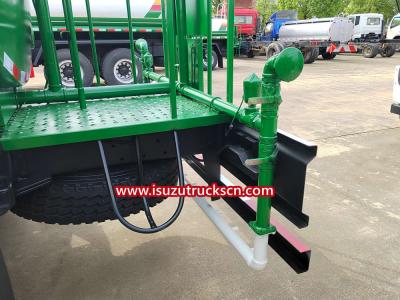

3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.

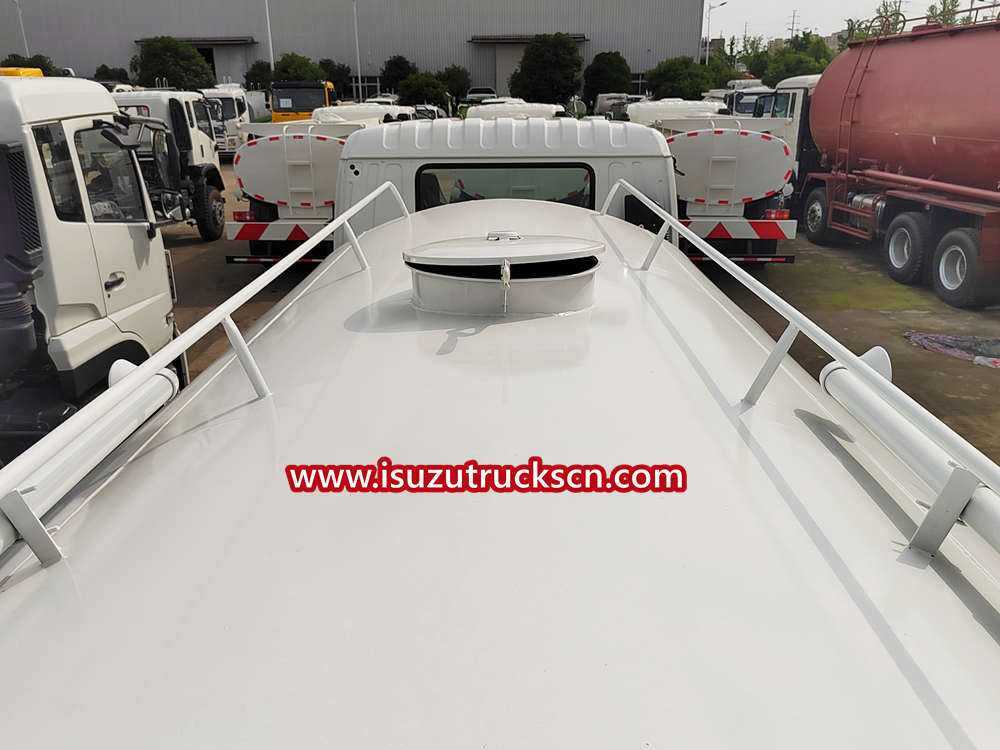

Manhole Man way access hole on top of tank;1 units DN500mm manhole
Horse reels Two hose reels at each side of the truck
Water pump  Water pump model: CLW80QZF-60/90N (N/S)
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m):1.5
Efficiency(%):95%
Related rotate speed(r/min)1180
matched power(kw):22
Isuzu brand Street Sprinkler Road Water Truck 12m3 Isuzu brand Street Sprinkler Road Water Truck 12m3

Isuzu brand Street Sprinkler Road Water Truck 12m3 Isuzu brand Street Sprinkler Road Water Truck 12m3


5. After-sales service:

Comprehensive after-sales services are provided for the Djibouti Isuzu Street spraying water truck. This includes regular maintenance, servicing, technical support, and readily available spare parts to ensure optimum performance and longevity of the vehicle.

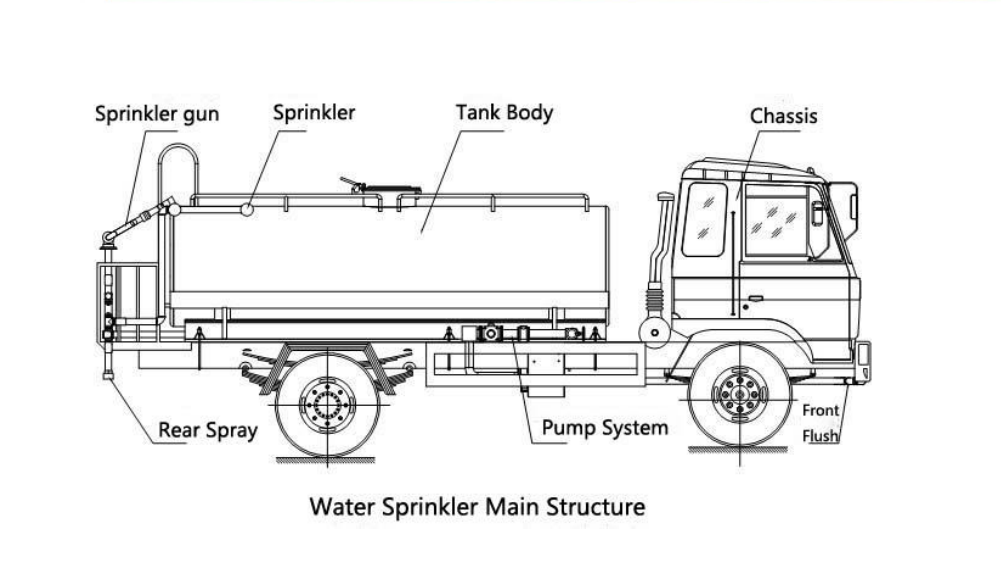

Technical drawing for Isuzu brand Street Sprinkler Road Water Truck 12m3

FAQ:

1. What is the water tank capacity of the Djibouti Isuzu Street spraying water truck?

The water tank capacity varies based on the model chosen. Please refer to the product specifications for detailed information regarding the water tank capacity.



2. Can the upper body of the truck be customized according to specific requirements?

Yes, the upper body of the Djibouti Isuzu Street spraying water truck can be customized to accommodate additional storage compartments, specialized equipment installations, or other specific features as per customer requirements.



3. Can this truck effectively suppress dust on dirt roads?

Yes, the Djibouti Isuzu Street spraying water truck is suitable for dust suppression on dirt roads. Its powerful water pump and versatile spraying system are designed to effectively suppress dust particles and keep the roads cleaner.



4. Is there training available for operating the Djibouti Isuzu Street spraying water truck?

Yes, comprehensive training can be provided for operating the Djibouti Isuzu Street spraying water truck. This ensures that operators are familiar with the equipment, its functionalities, and maintenance procedures to maximize performance and safety.



7. Upper Body Customized:

The upper body of the Djibouti Isuzu Street spraying water truck can be customized according to specific requirements. This customization can include additional storage compartments, specialized equipment installations, or other features to meet individual customer needs.

Isuzu brand Street Sprinkler Road Water Truck 12m3



Isuzu brand Street Sprinkler Road Water Truck 12m3

8. Truck Chassis Choice:

Customers have the flexibility to choose from a range of Isuzu truck chassis models that best suit their requirements. Various options with different load capacities and specifications are available, allowing customers to select the most suitable truck chassis for their specific street spraying water truck operations in Djibouti.
