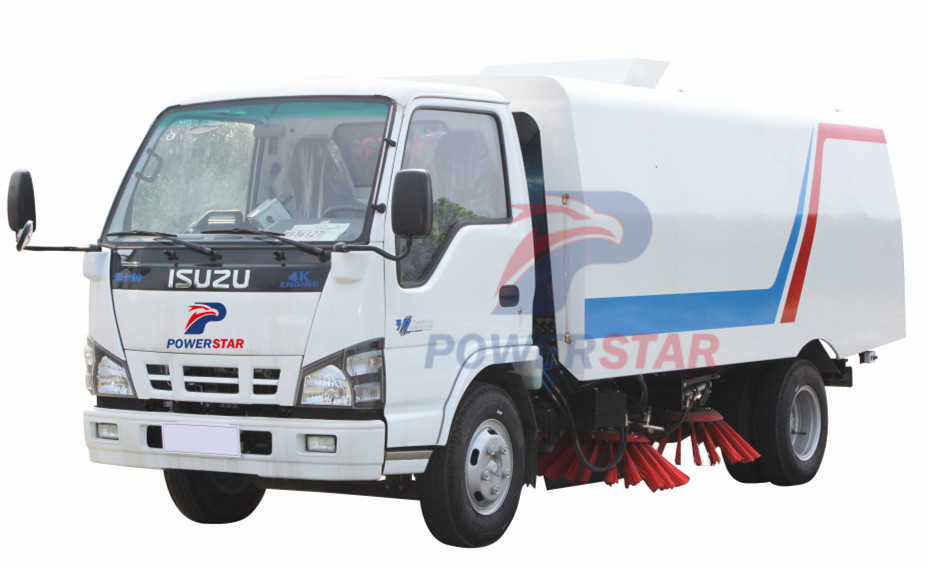

Street Sweeper Truck Isuzu

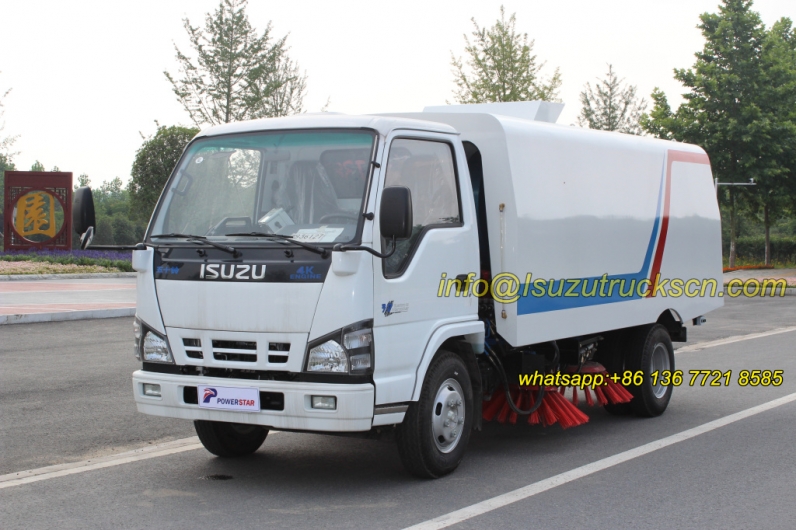

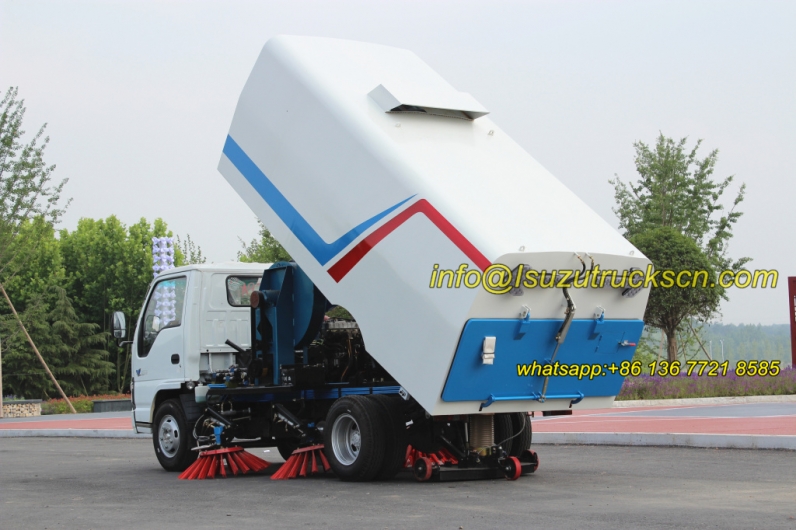

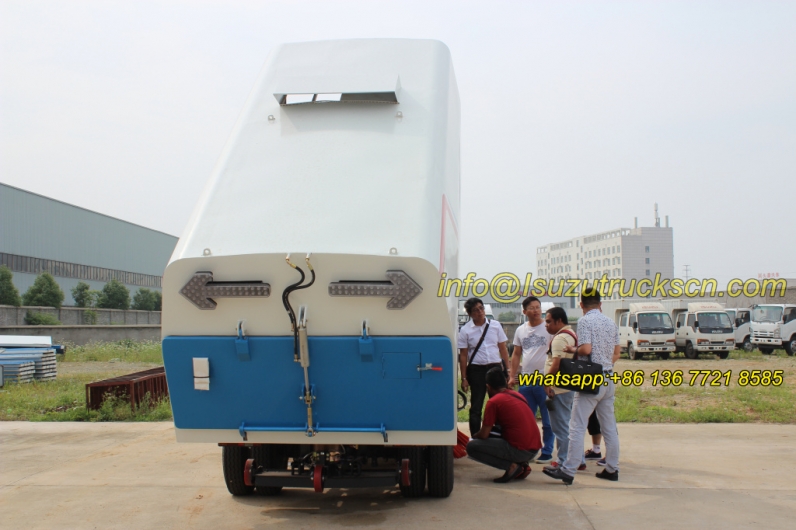

Isuzu 5000liters dust van street cleaning vehicle

Details

Street Sweeper Truck Isuzu

Street Sweeper Truck Isuzu



Basic Description

Street sweeper truck ISUZU (also called as road sweeping trucks, Mobile street sweeper truck, Road cleaning sweeper truck, sanitation road sweeper truck, Street sweeper suction truck) This Isuzu street sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.


With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.

Key Features

Key Features of road sweeper truck ISUZU    ISUZU NKR Chassis, Durable & Performance.

Key Features of road sweeper truck ISUZU    Sweeping, Sprinkling and garbage transportation

Key Features of road sweeper truck ISUZU     Stainless steeel garbage bin & Stainless water tank, longer service life

Key Features of road sweeper truck ISUZU     Fuel Dispenser, Flow meter, Level gauage can be optional

Key Features of road sweeper truck ISUZU     POWERSTAR 20 years’ experience on road sweeper truck exporting.







Main specifications



Street Sweeper Truck ISUZU

(5 CBM dustbin + 1 CBM water tank)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

5900 * 2000 * 2490 mm

GVW / Kerb Weight

7,300kg / 5,770kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

120 HP (88 KW)

Displacement

5900 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, left hand drive

Transmission

ISUZU gear box, no overhaul within 500,000km

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

105 km/h

Paint

Metallic paint

Superstructure

Dustbin Capacity

5 CBM

Dustbin Material

Stainless Steel

Water Tank volume

1,000 Liters

Water Tank Material

Stainless Steel

Sweeping Capacity

45,000 m³/h

Sweeping Speed

3-15 km/h

Max Sweeping Width

3000 mm

Brooms

2 sets at each side

Sweeping efficiency

96%

Garbage dump angle

50°

Max suction capacity

Suction density 2.0g/cm3

Suction fineness 100mm

Auxiliary Engine

ISUZU engine
77 HP (57 KW), super powerful

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.



Detail Images



 road sweeper truck details one man control in cab    Road Sweeper Truck Isuzu simple structure
 One man easy control in Cab     Simple structure

 road sweeper truck Isuzu control panel    Road Sweeper Truck Isuzu air blower

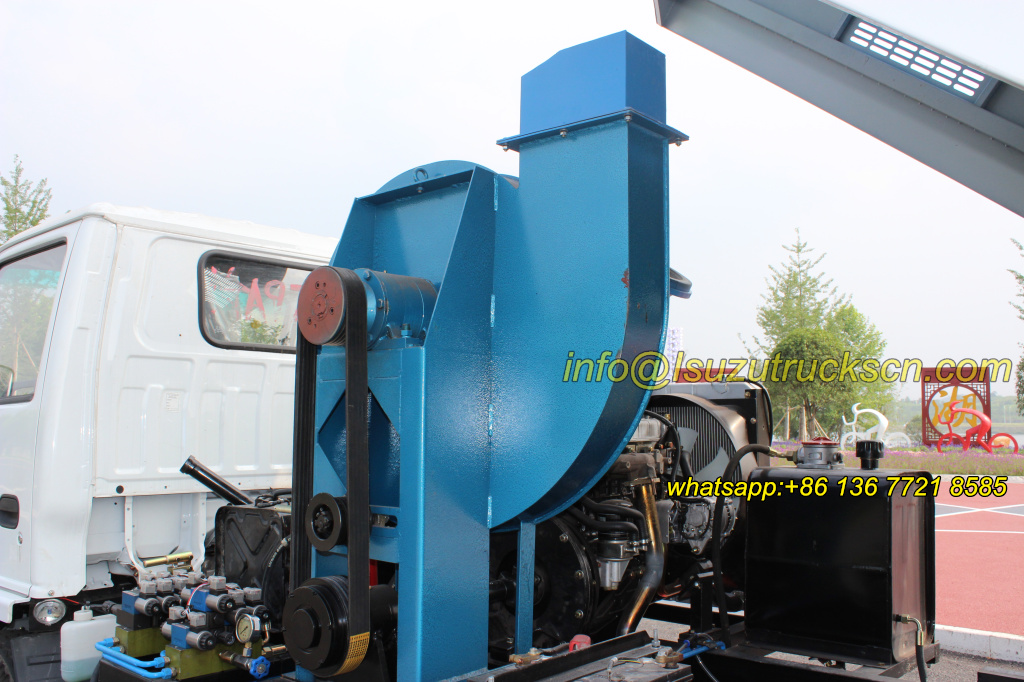

  Control panel (can be your language)    High-performance air blower

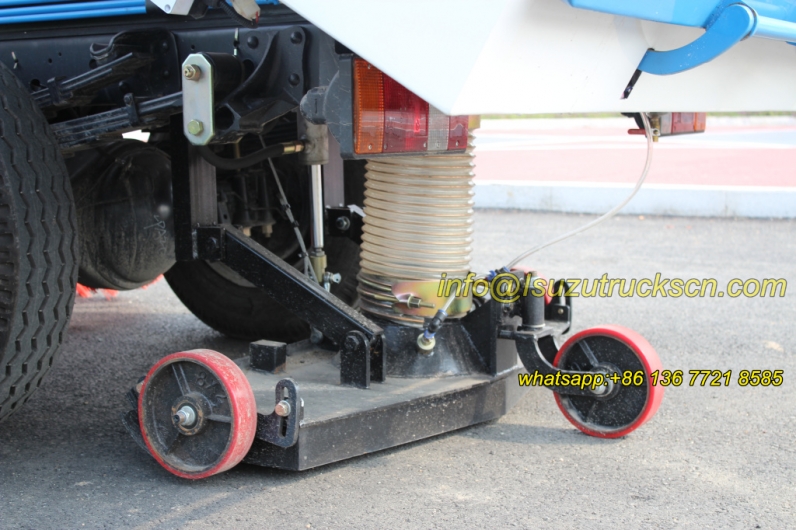

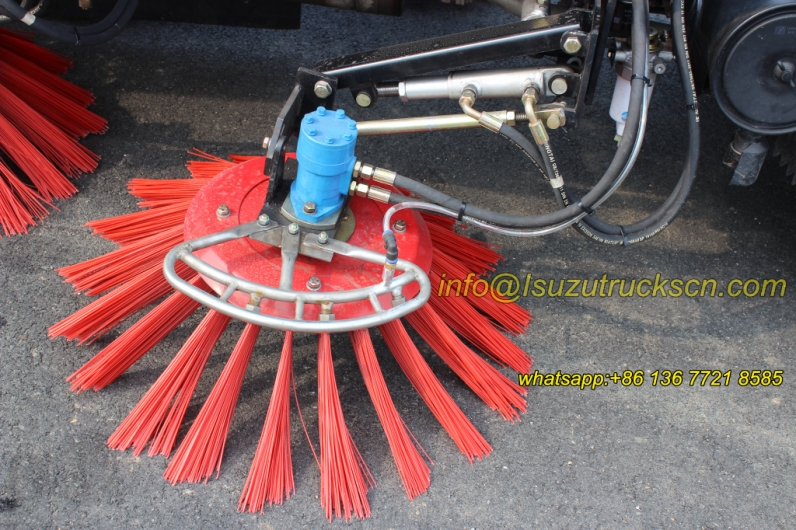

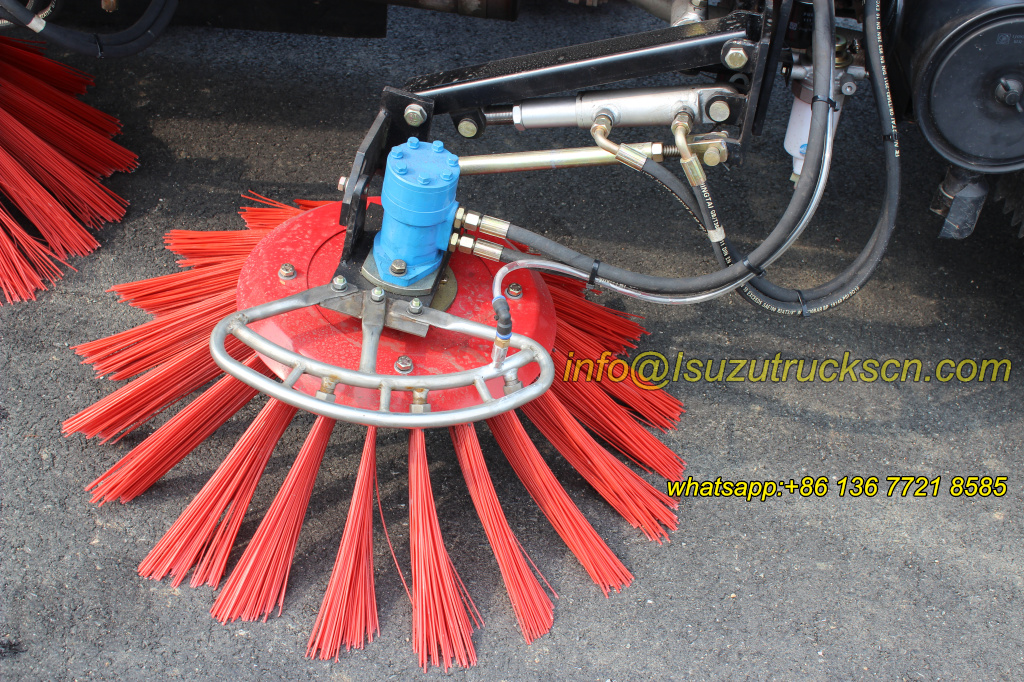

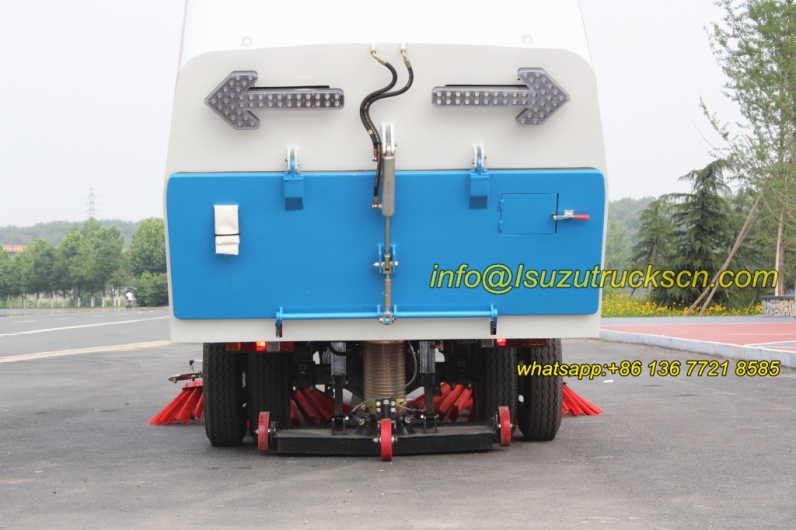

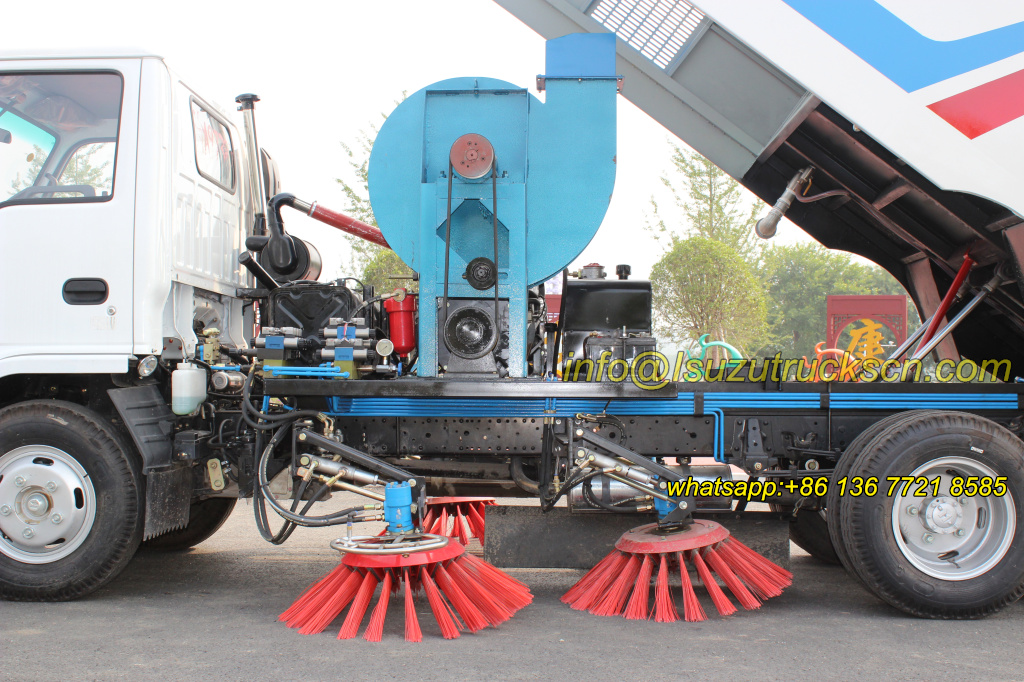

 side brush for Road Sweeper Truck Isuzu    suction port for road sweeper truck Isuzu

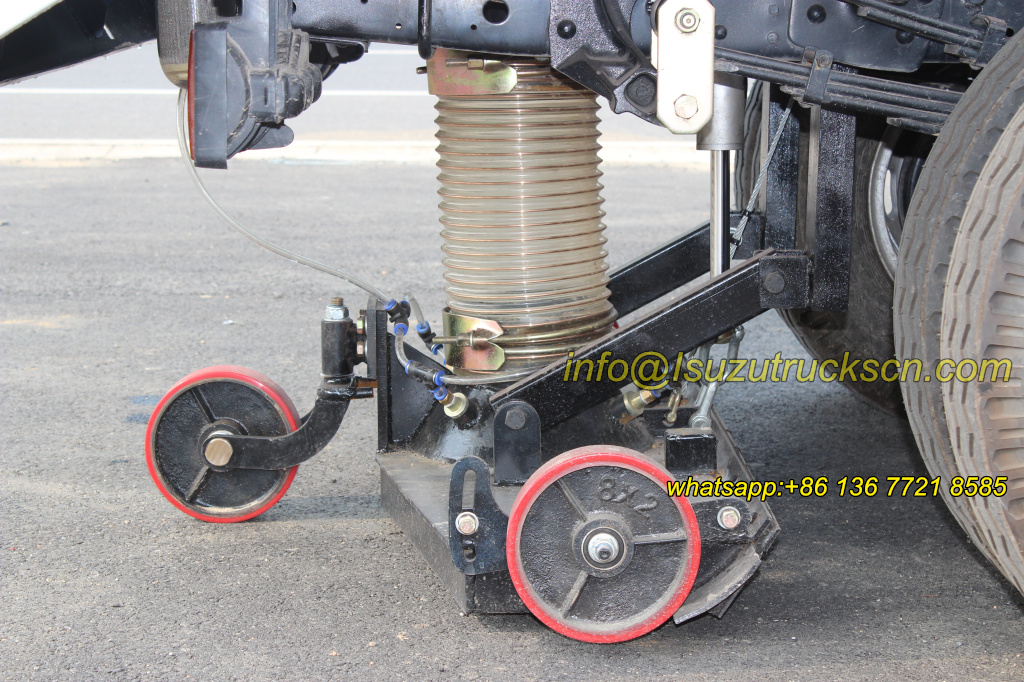

 Side brush (80mm)     Suction port

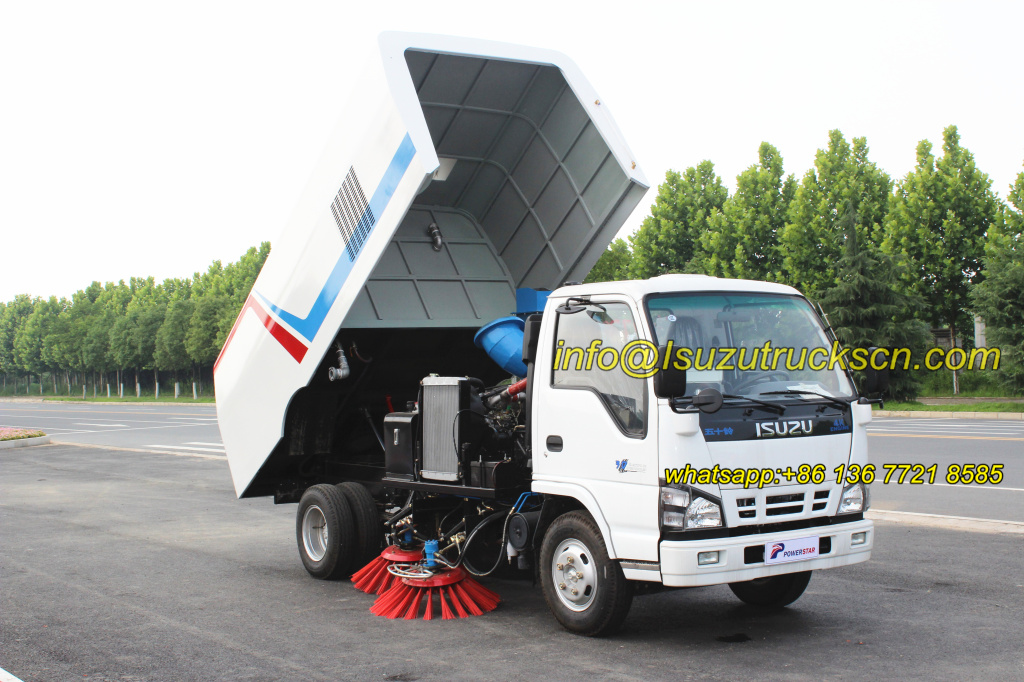

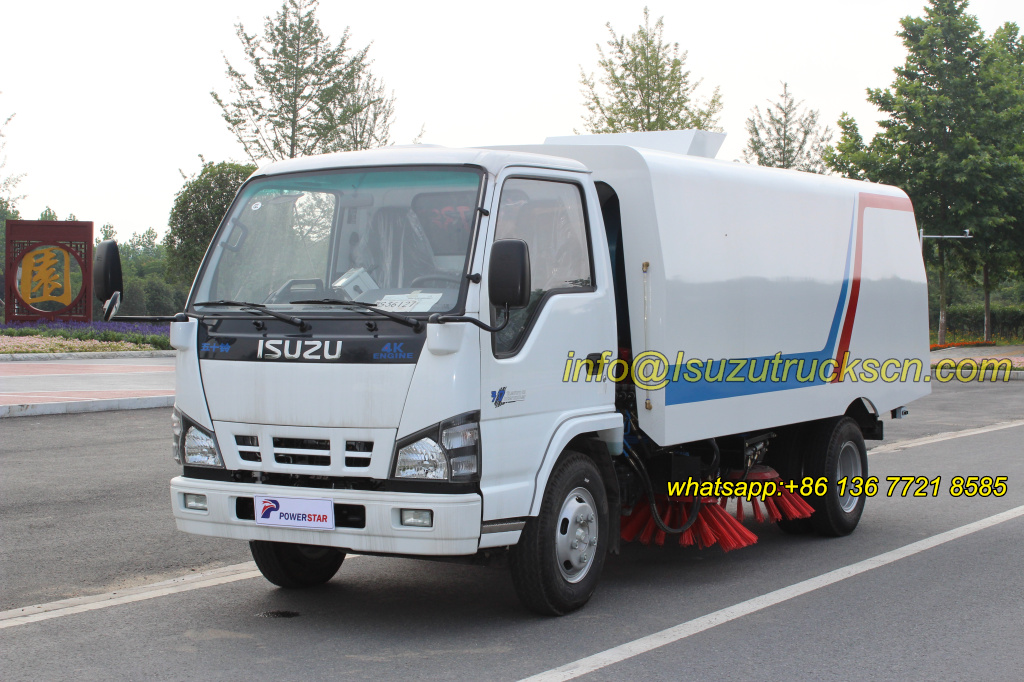

 Overview of the street sweeper truck Isuzu

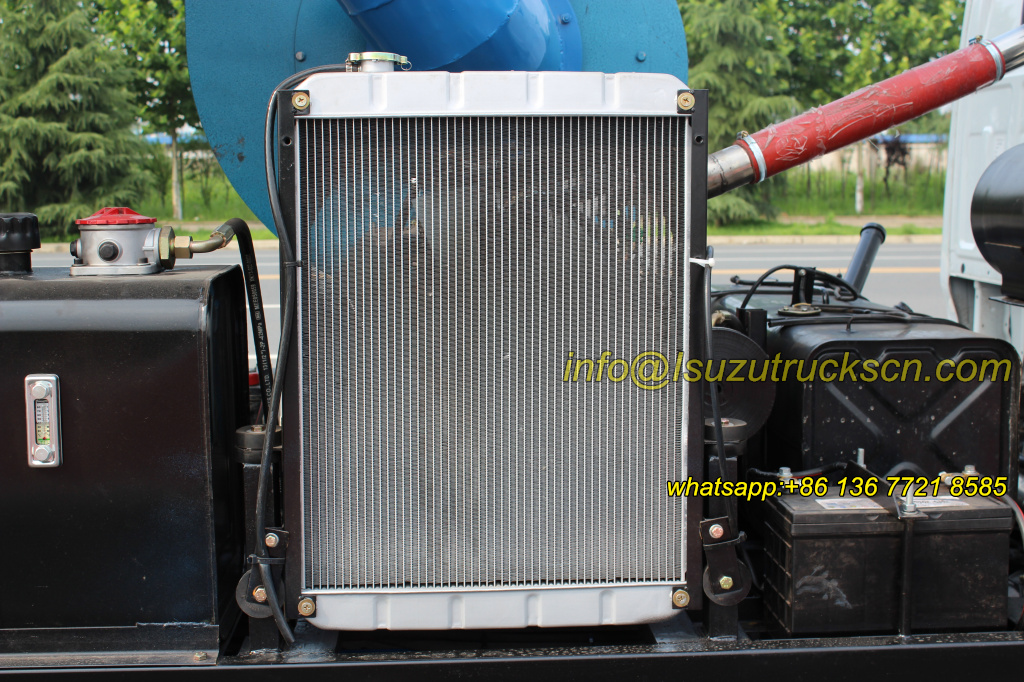

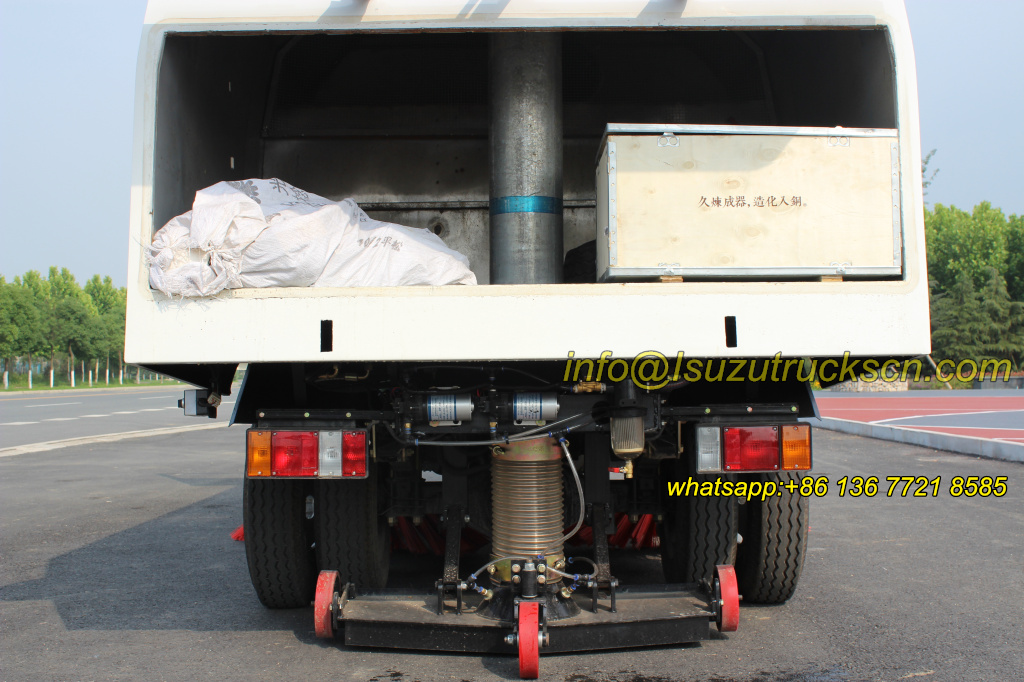

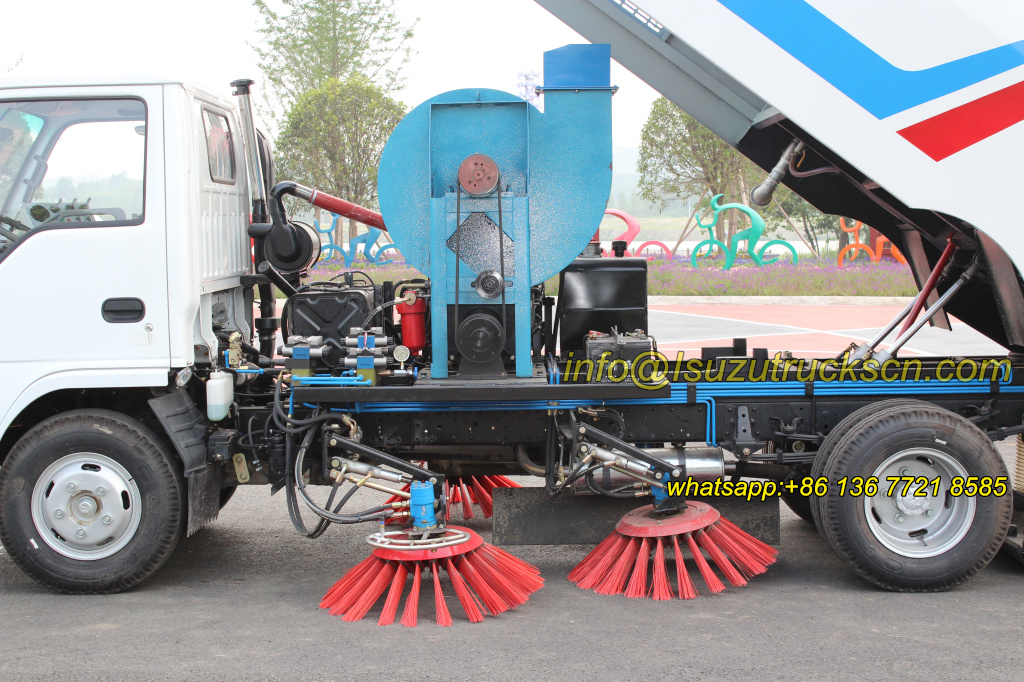

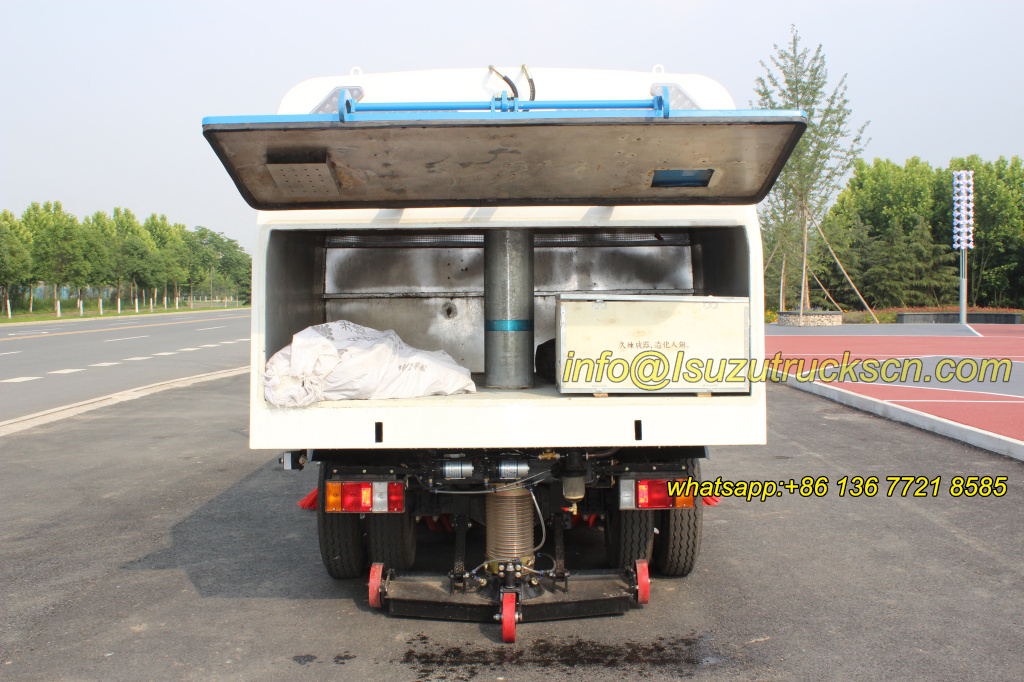

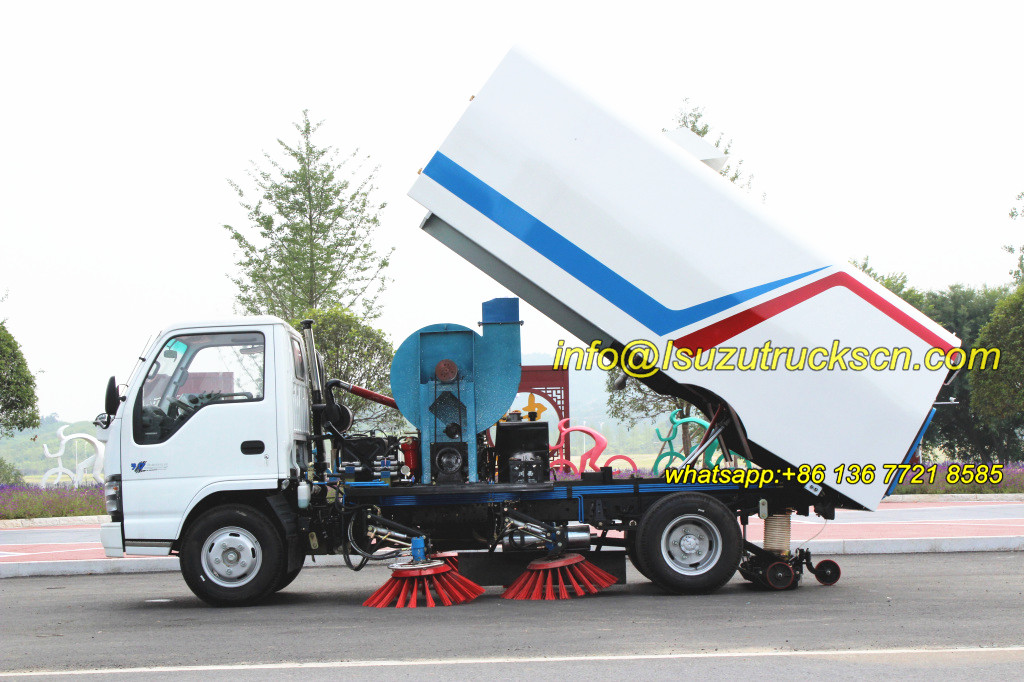

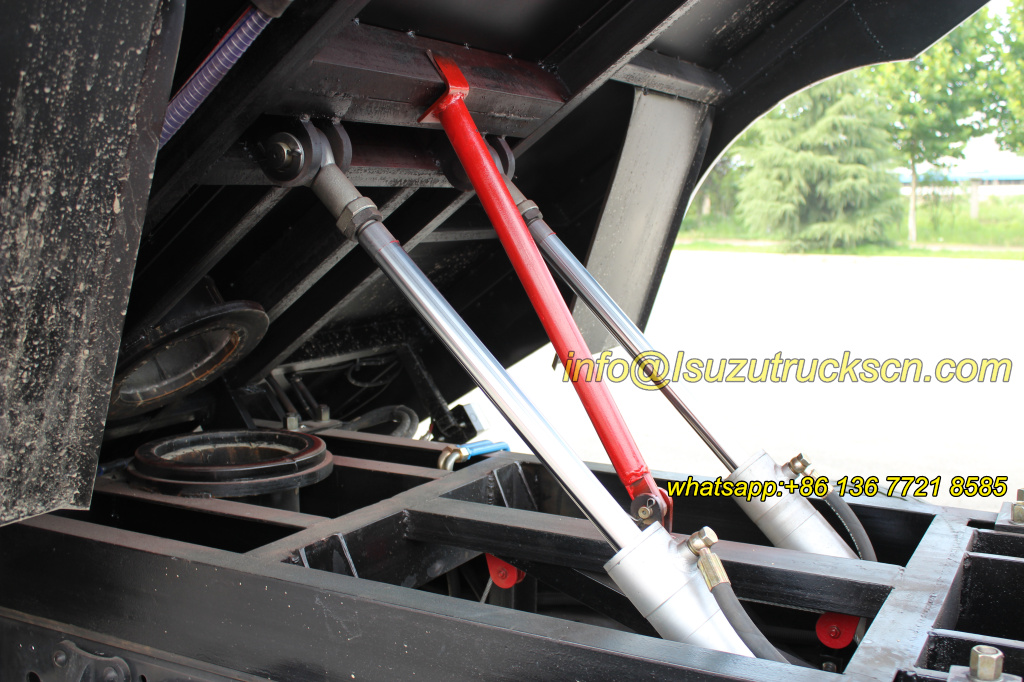

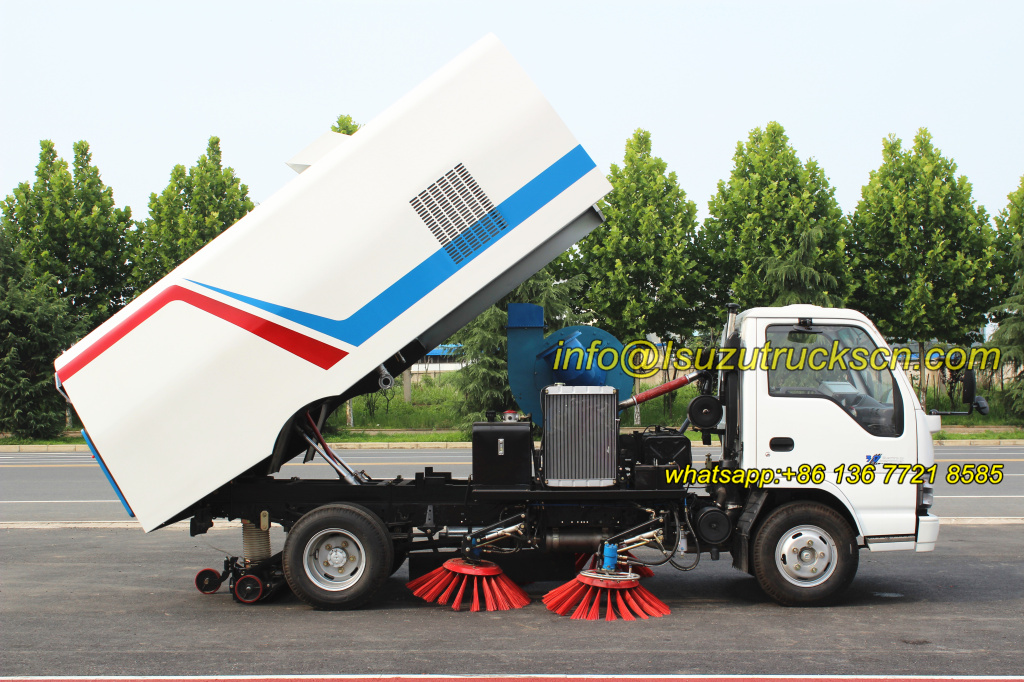

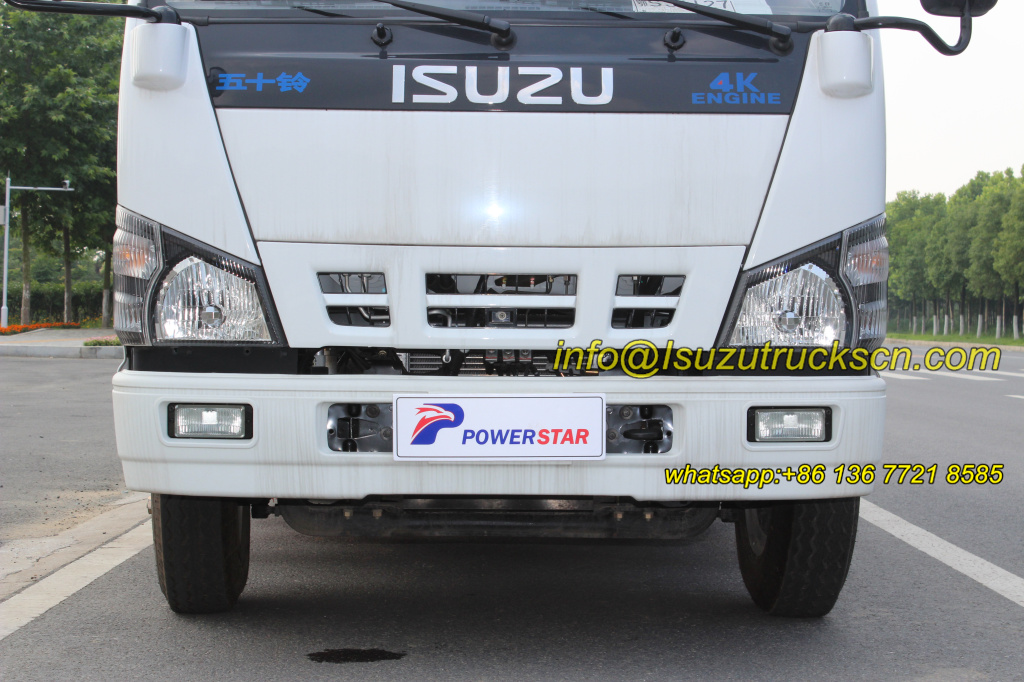

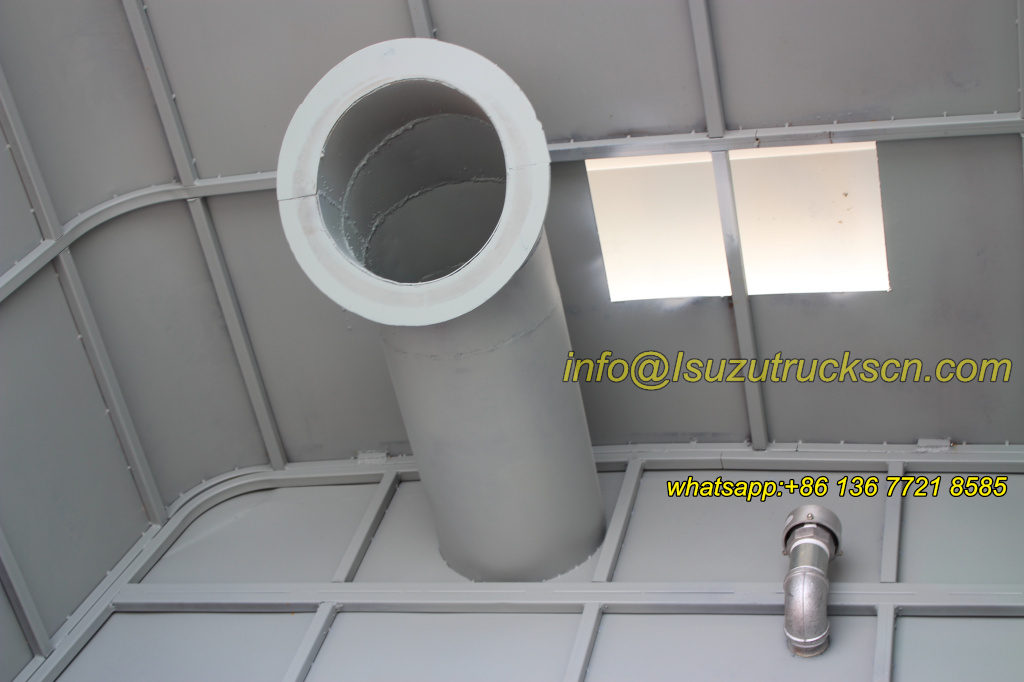

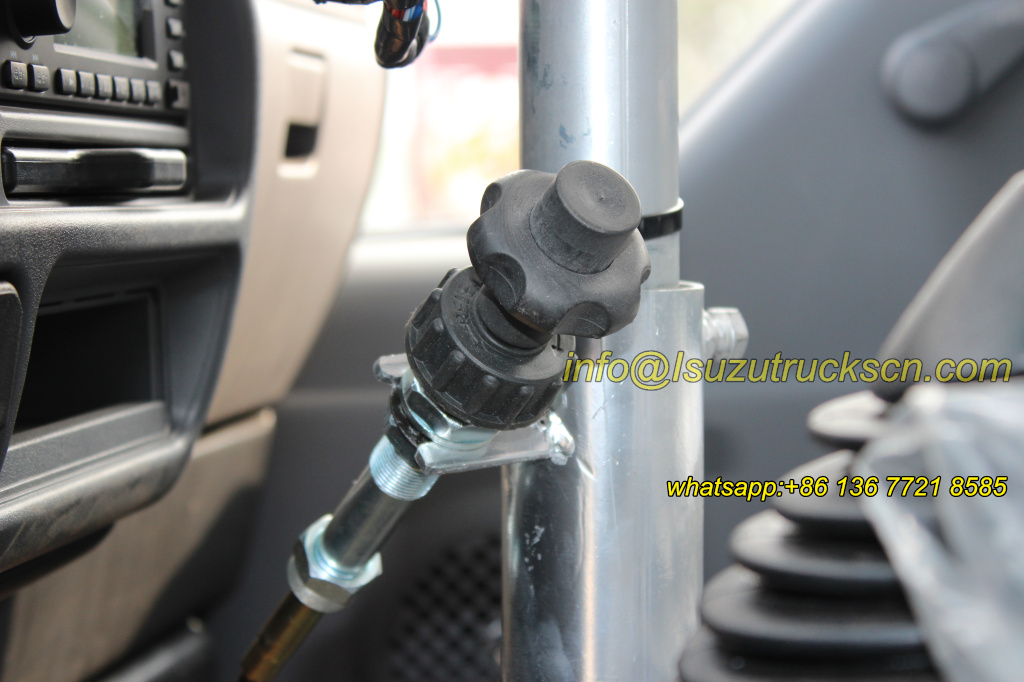

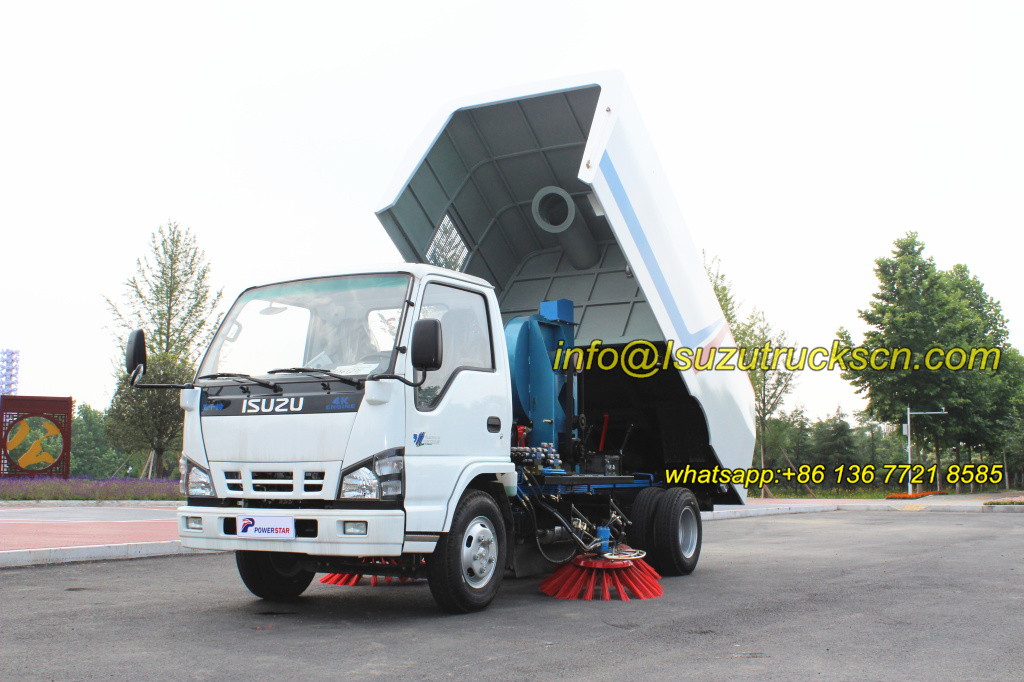

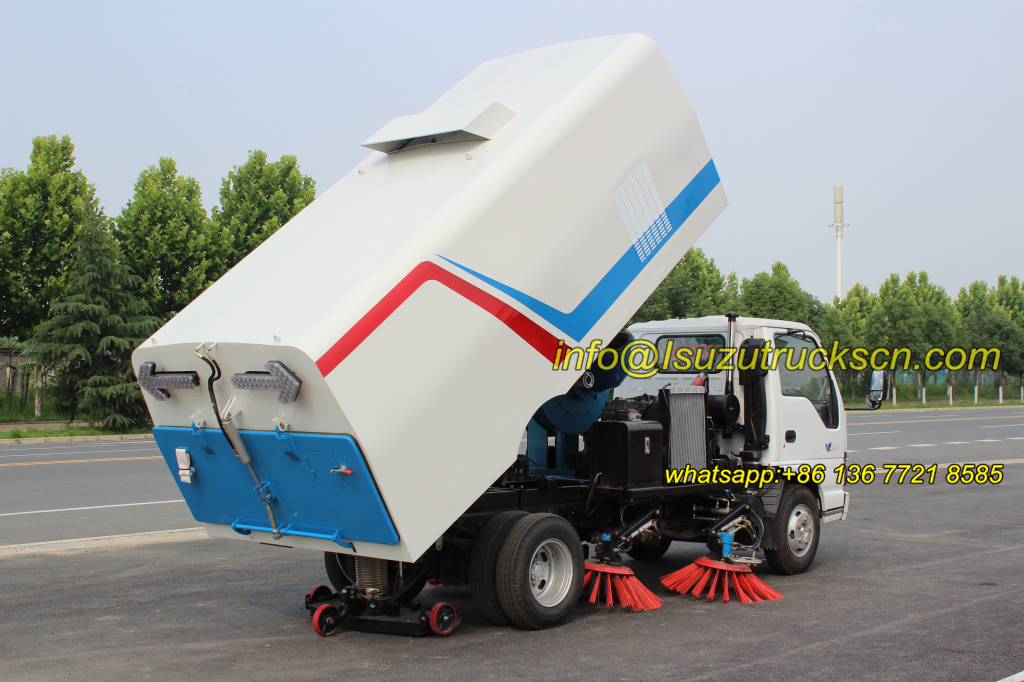

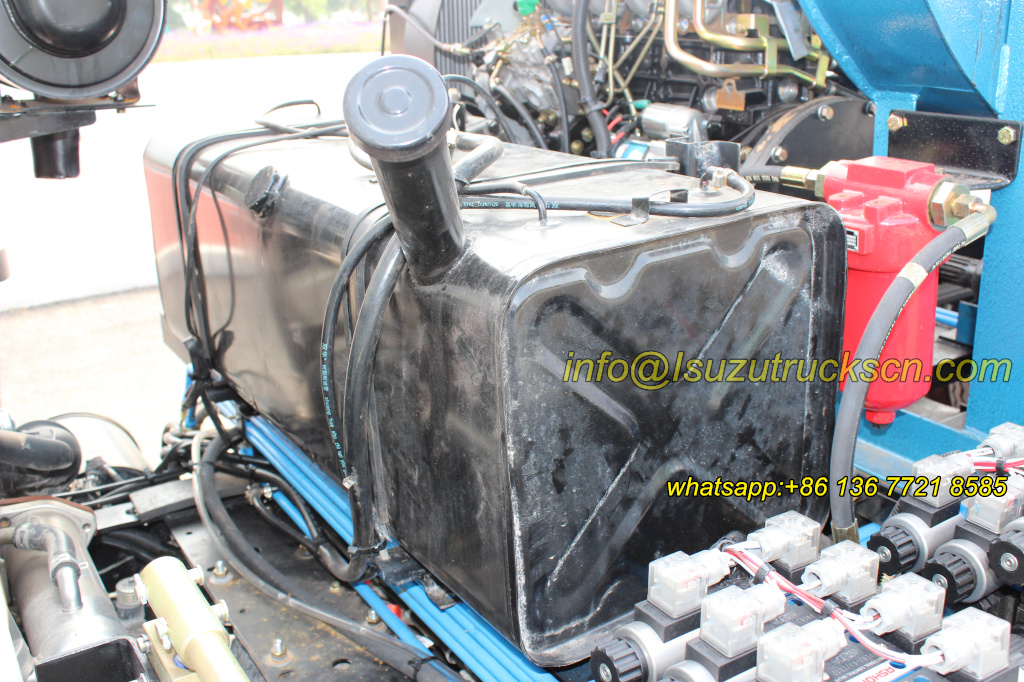

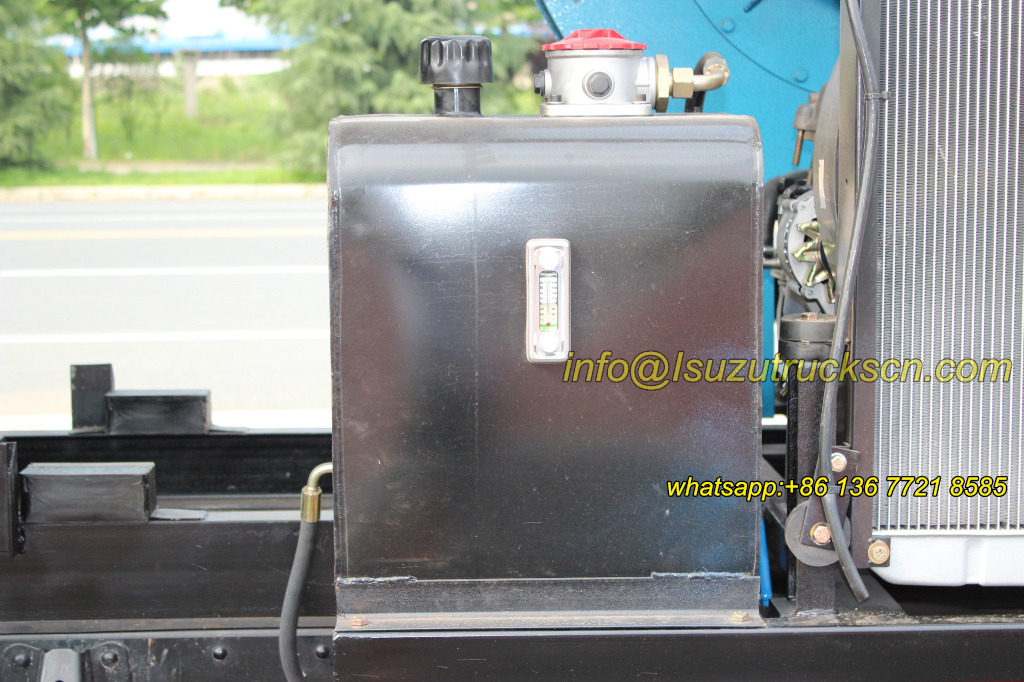

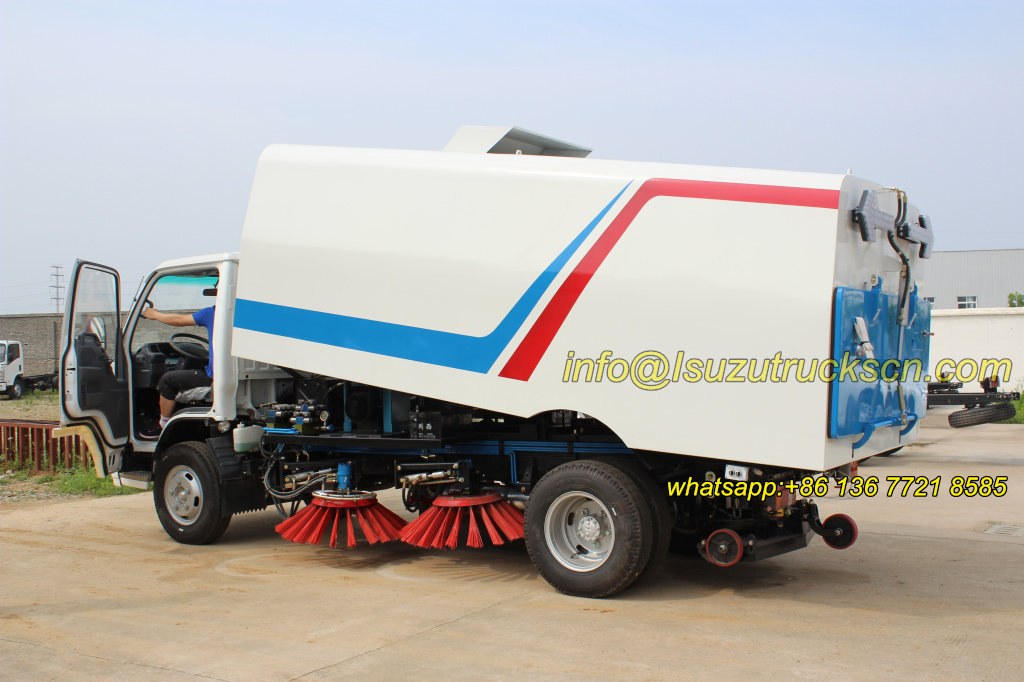

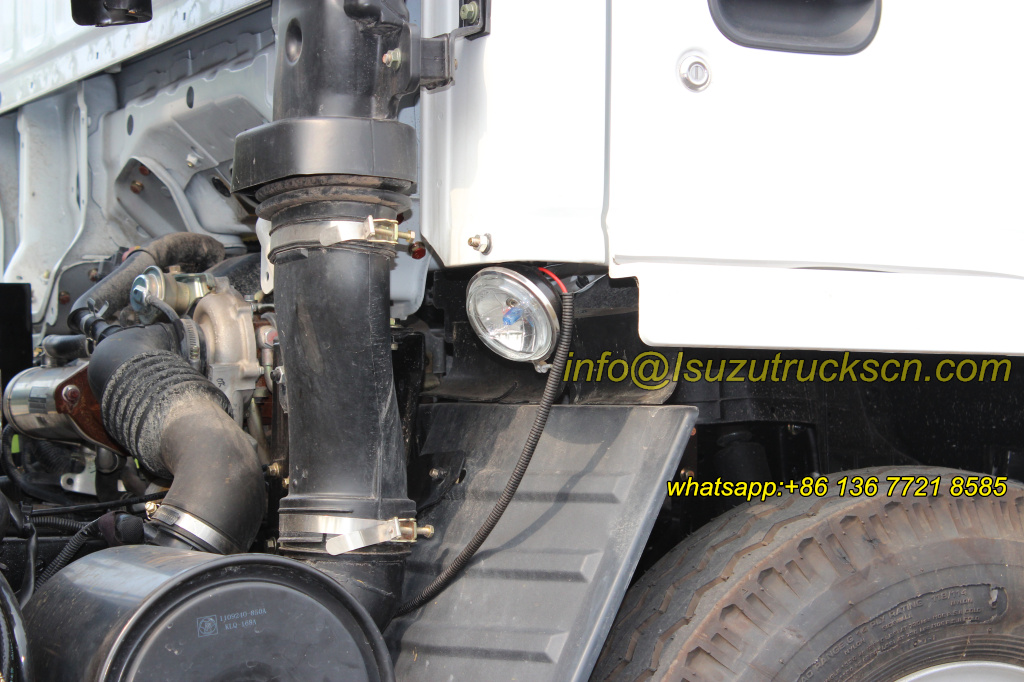

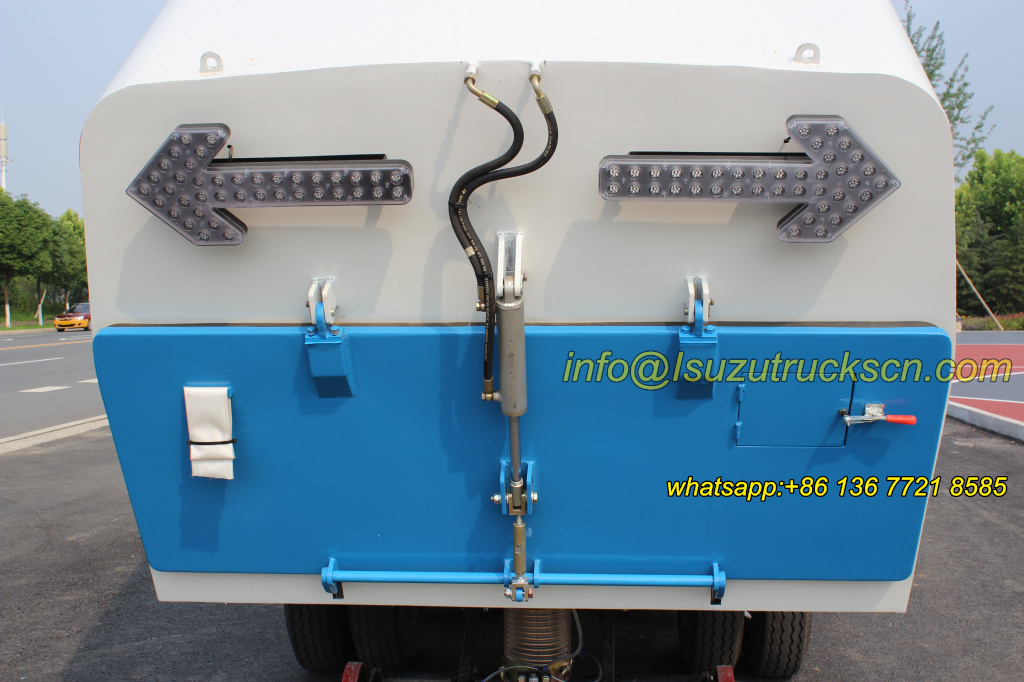

Street Sweeper Truck Isuzu details pictures

 Street Sweeper Truck Isuzu details pictures    Street Sweeper Truck Isuzu details pictures

 Street Sweeper Truck Isuzu details pictures

 Street Sweeper Truck Isuzu details pictures

 Street Sweeper Truck Isuzu details pictures        Street Sweeper Truck Isuzu details pictures



Street Sweeper Truck Isuzu details pictures

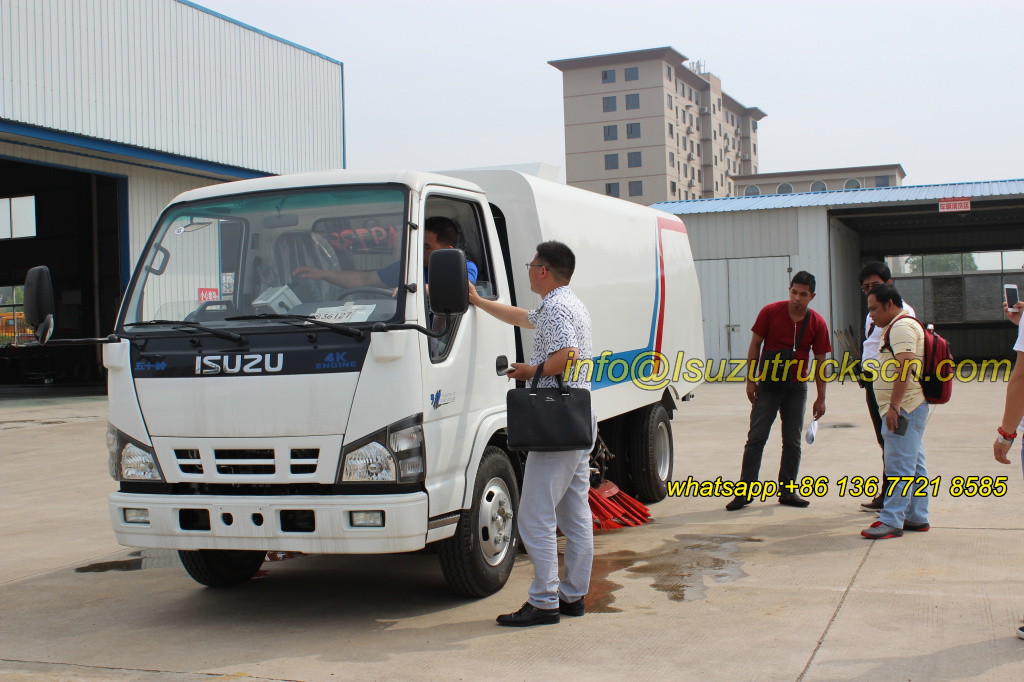

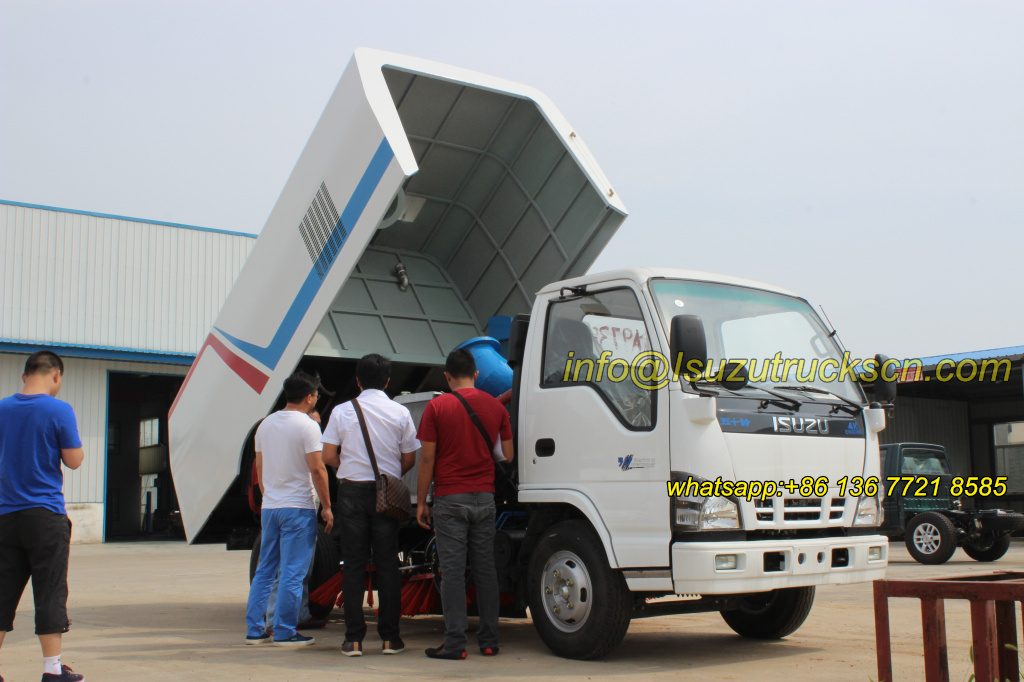

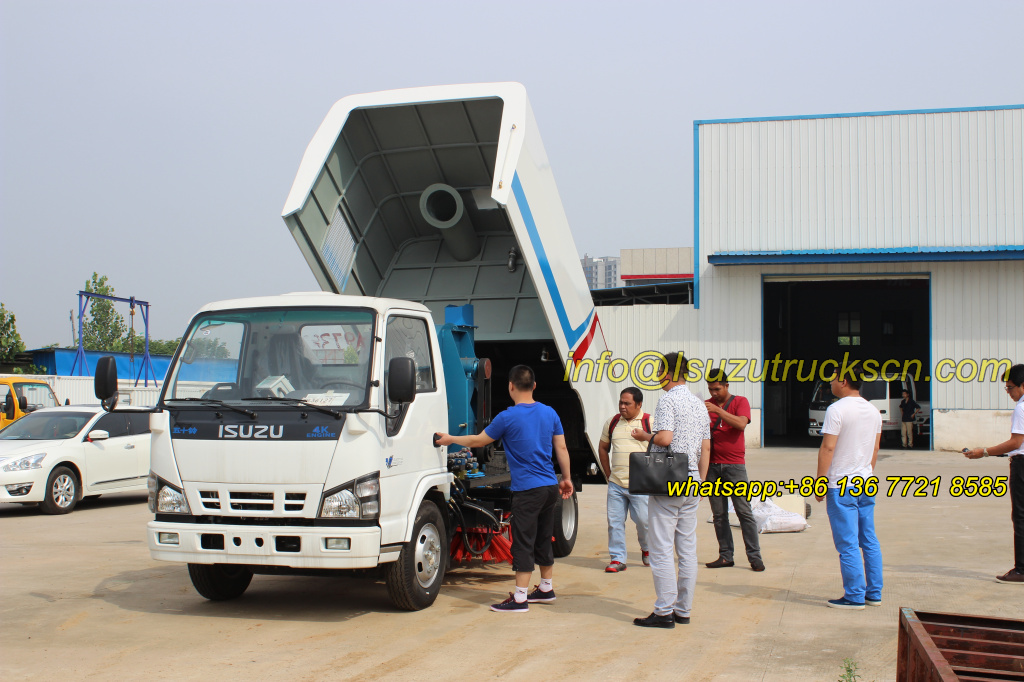

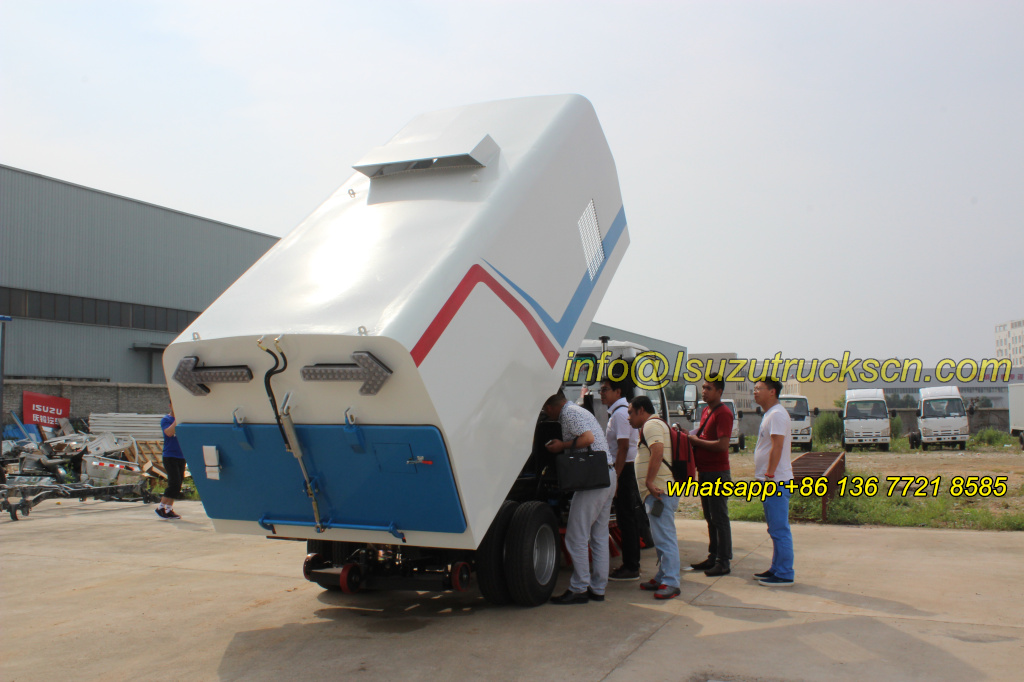

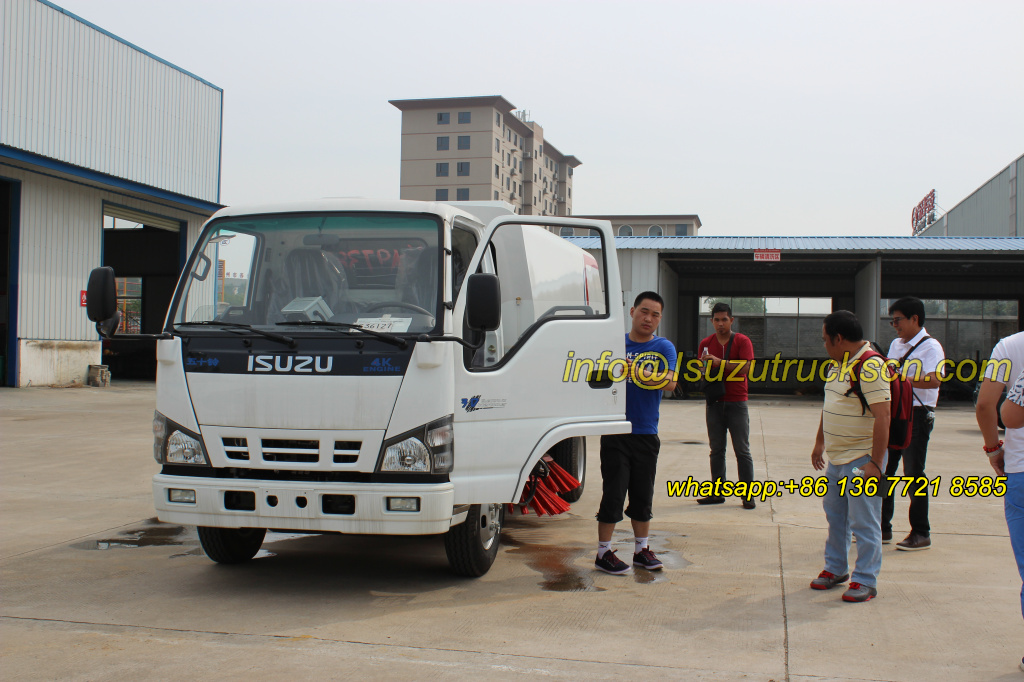

Customer inspection and test the Isuzu street sweeper truck:

Philippines custom inspection street sweeper truck Isuzu

Custom test the street sweeper truck Isuzu

Philippines custom inspection street sweeper truck Isuzu

Custom test the street sweeper truck Isuzu

Philippines custom inspection street sweeper truck Isuzu

Custom test the street sweeper truck Isuzu

Philippines custom inspection street sweeper truck Isuzu

Custom test the street sweeper truck Isuzu

Philippines custom inspection street sweeper truck Isuzu

Custom happy for the performance of the street sweeper truck Isuzu

Watch Street sweeper truck  on YOUTUBE.
