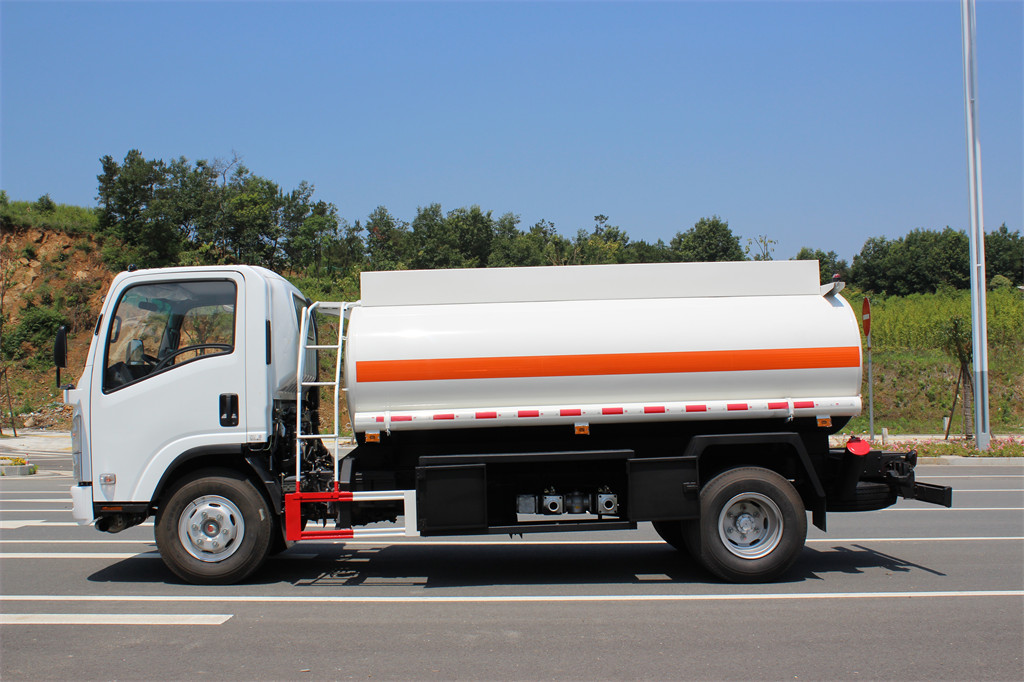

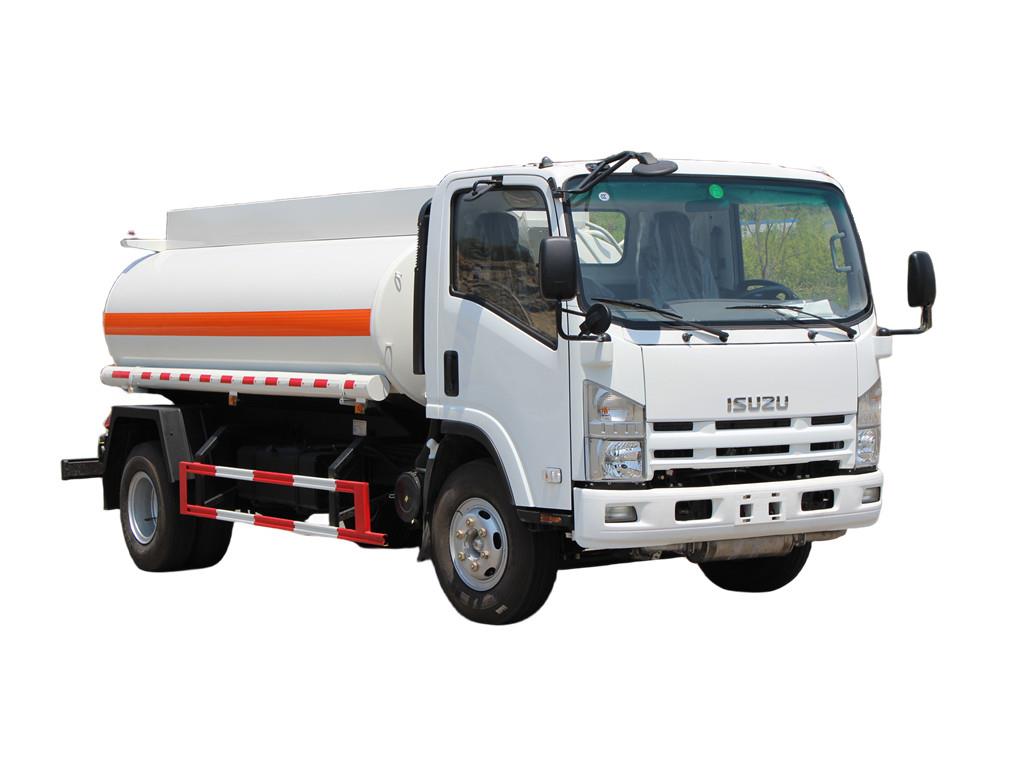

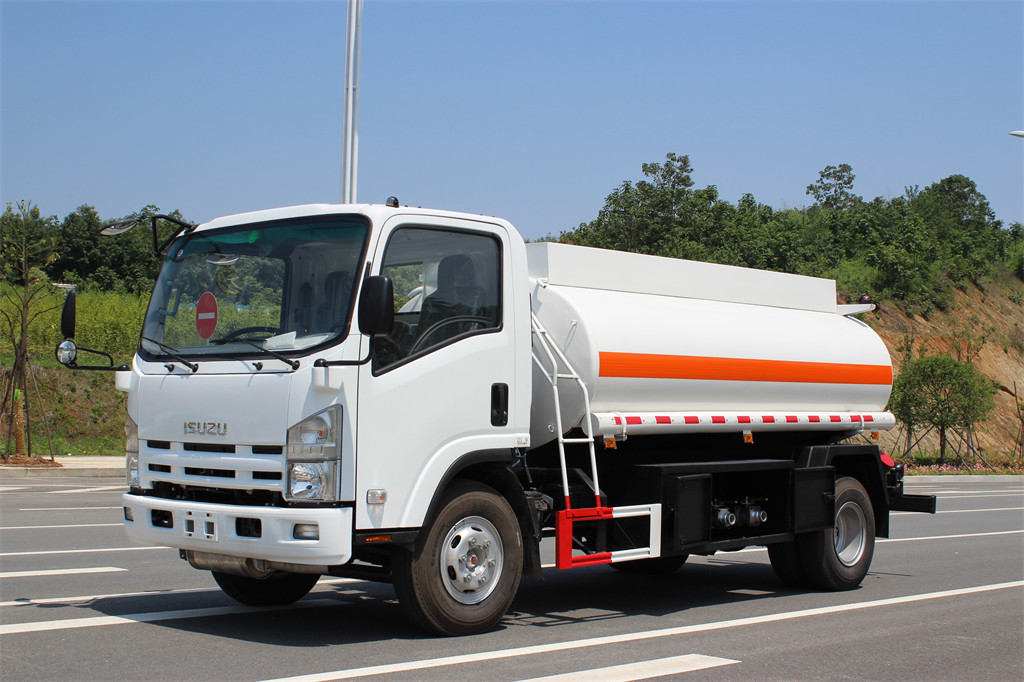

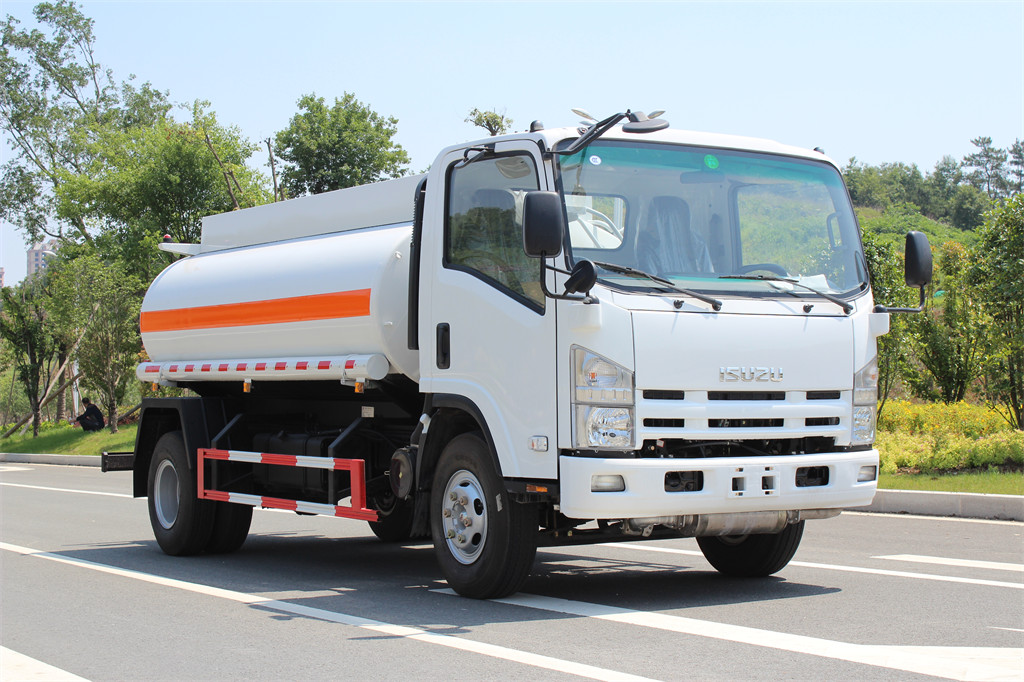

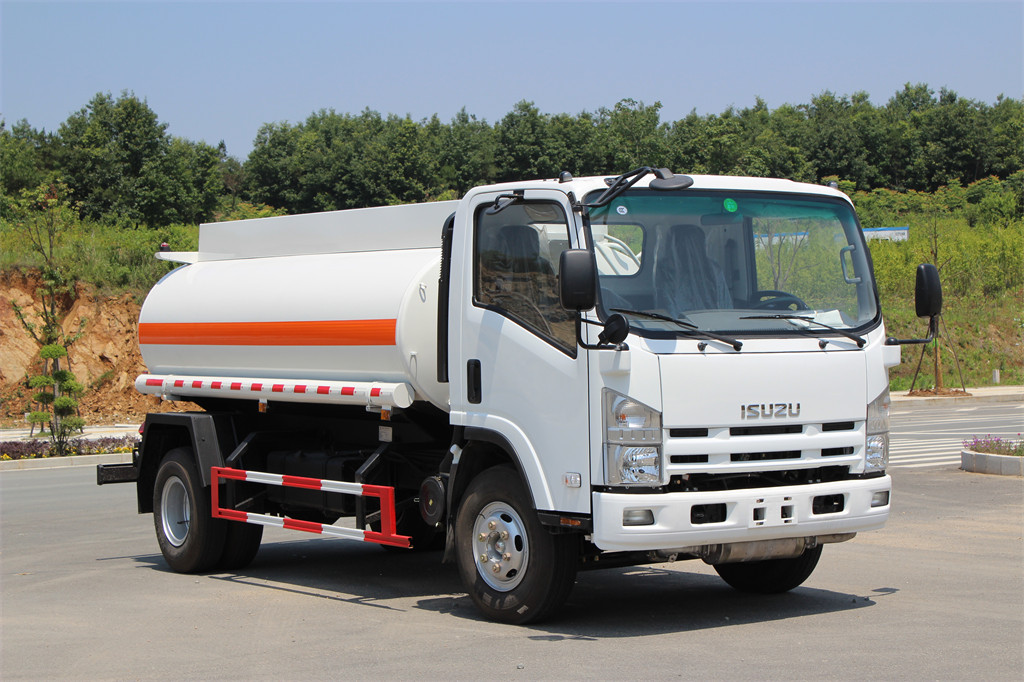

Top loading fuel tanker truck Isuzu

Mobile Oil Refuel Tanker Truck Isuzu with top loading
Mobile Oil Refuel Tanker Truck Isuzu with top loading
Mobile Oil Refuel Tanker Truck Isuzu with top loading
Mobile Oil Refuel Tanker Truck Isuzu with top loading
Mobile Oil Refuel Tanker Truck Isuzu with top loading
Mobile Oil Refuel Tanker Truck Isuzu with top loading
Mobile Oil Refuel Tanker Truck Isuzu with top loading

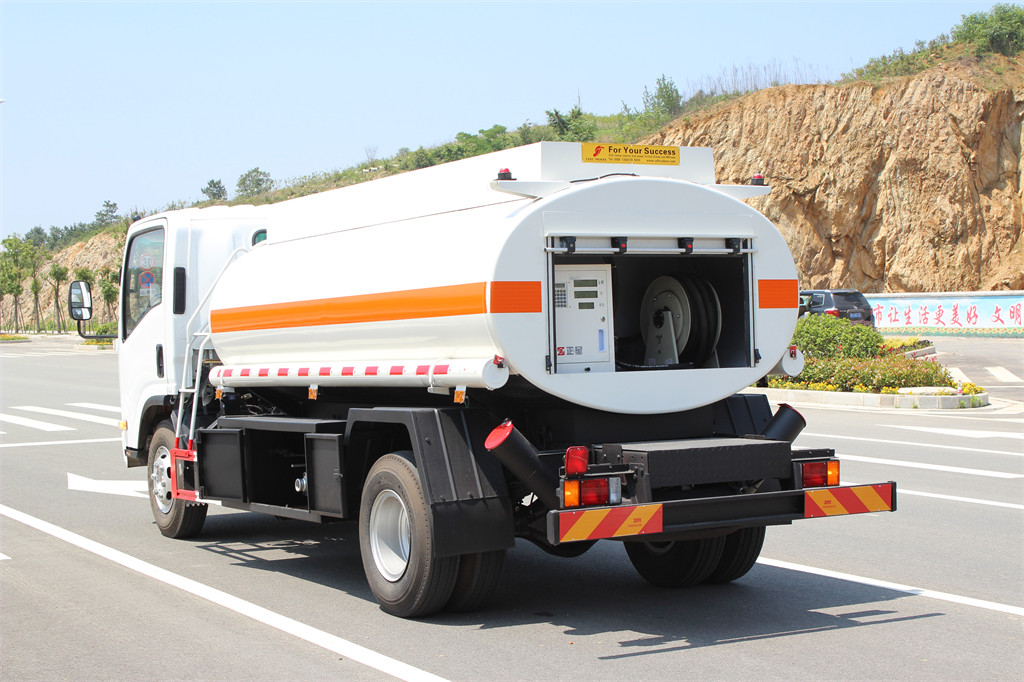

Top loading fuel tanker truck Isuzu

Top loading fuel tanker truck Isuzu, Widely use in various transportation units, chemical companies and other logistic industries.The Isuzu NPR fuel tank transportation series, as to the whole Isuzu diesel tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc.

  • Work capacity:

    6,000L
  • Truck model:

    PT5100GJY
  • Engine power:

    120 HP
  • Engine type:

    Isuzu 4KH1
  • Axle drive:

    4x2
  • Gear box:

    Isuzu MSB
  • Remarks:

    Bottom loading optional

Top loading fuel tanker truck Isuzu is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil transportation and storage.
Competitive Advantage:
1) competitive price, cost-effective
2) quick delivery time
3) Our Isuzu NPR Oil tank truck with advanced butt welding technology, after the forming of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,
safe and stable vehicle characteristics;
4) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,
5) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
6) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
7) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
8) with all kinds of truck model, which can fulfill your requirement
9) the key parts adopt the world's top technology products
10) based on strong technical support and top level technology make the trucks with high quality and more reliable
11) professional export and import procedure dealing
12) If you need. using ISUZU NPR 4x4 all wheels driving truck chassis,
13) Strong more power
14) Good off-road performance



Types of Isuzu fuel tankers

  • Petroleum Tankers (From 1 KL to 40 KL) [Top Loading and Bottom Loading]
  • Water Tankers
  • Edible Oil Tankers
  • Chemical Tankers
  • Fuel Bowsers
  • Trailer Tankers

Why choose our Isuzu Petroleum Tankers?

  • Predictable performance on every journey
  • Low maintenance & ease of service
  • Superior cabin comfort
  • In compliance with the industry norms
  • Best in durability, reliability and performance
  • Effective liquid surge control
  • Customized solutions

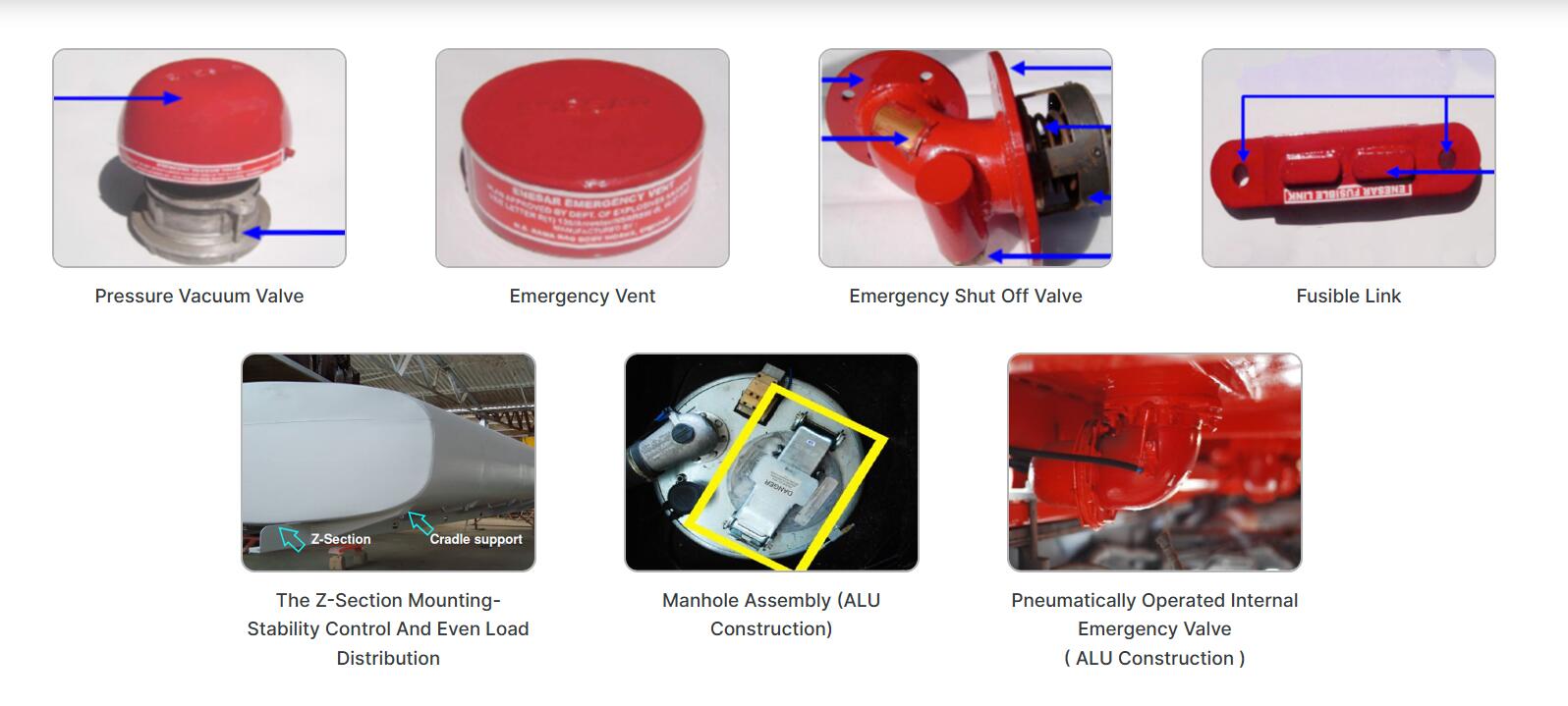

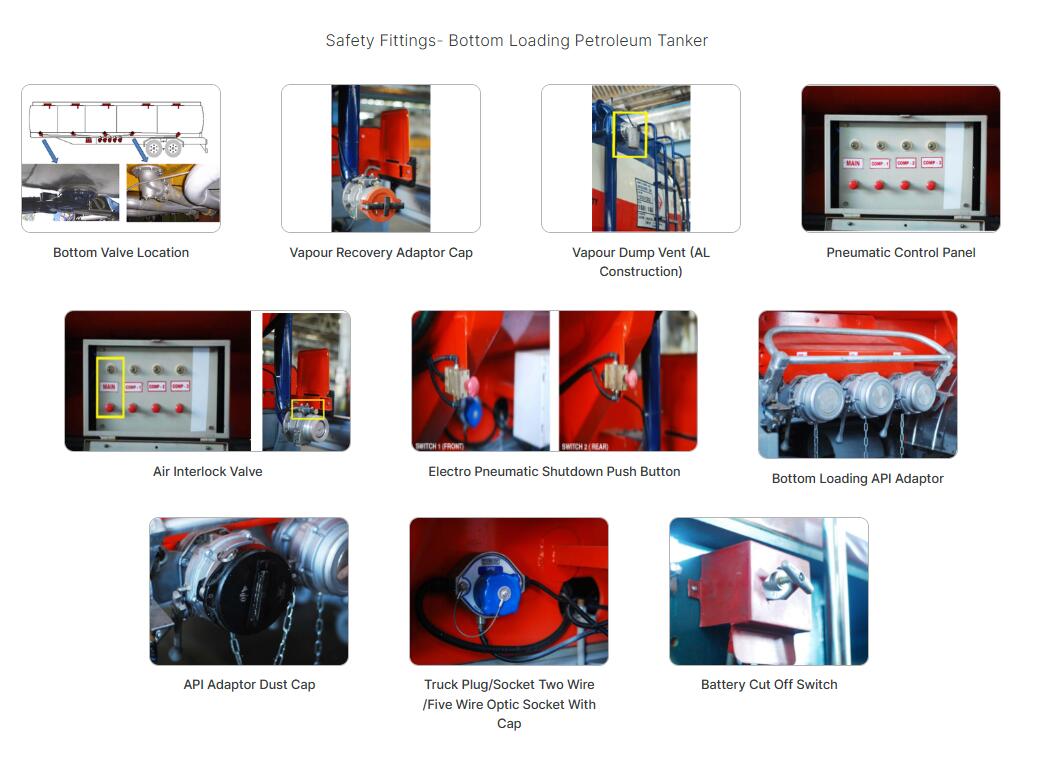

  • Safety fittings certified by PESO

Mobile Oil Refuel Tanker Truck Isuzu with top loading

Mobile Oil Refuel Tanker Truck Isuzu with top loading

Mobile Oil Refuel Tanker Truck Isuzu with top loading Mobile Oil Refuel Tanker Truck Isuzu with top loading Mobile Oil Refuel Tanker Truck Isuzu with top loading




Product Description
1. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
2. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.



3. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.

Specification



Main Specification
Product Name
ISUZU fuel tank truck
Driving Type
4×2,right/left hand drive

Weights
Max.Payload (kg)
5000
Curb weight(kg)
3500

Dimensions
Wheelbase (mm)
3815
Overall Dimension (mm)
6395×1980×2300
Tank dimension
6000liters

Engine
Engine
120hp
Engine type
4 stroke water-cooled, Inter-cooling,Turbocharged
Displacement (L)
3.0L
Rated power Rev ((Kw/rpm)
88kw/2800rpm
Max Torque (N*m)/Rev (rpm)
392N.m/1400-1800rpm
Emission standard
EURO 2

Drive Line
Transmission
ISUZU MSB,5 forwards, 1 reverse gear, manual operation
Steering
With power steering
Brake system
Air brake

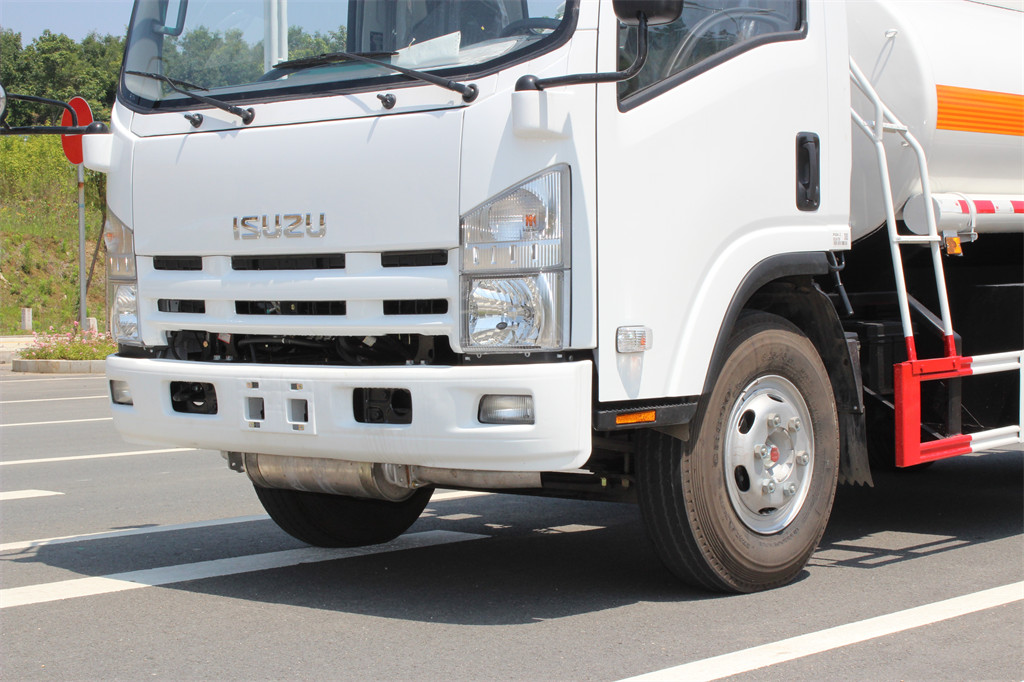

Cab
Cab
Single row, Howo cabin, A/C optional
Axles

Front axle
2 tons
Rear axle
3.5 tons

Tire specification
Tire specification
7.00R16 standard tire,6 tires+1 spare tire

Specification of Fuel truck
Tank capacity
5000liters,one compartment
Tanker material
Q235, carbon steel
Manhole
1 pcs manhole fixed on top of tank
Outlet and inlet
1 pcs outlet and 1 pcs inlet
Oil rope
2 pcs oil rope
Fire extinguisher
2 pcs 4kg fire extinguisher
Anti-static devices
Including ground towing, static line plate
Pump
Equipped Oil pump (driven from gearbox by PTO)
Model:60YHCB-30
Flow:30m3/h
Pressure :0.4Mpa
Rotate Speed:970r/min

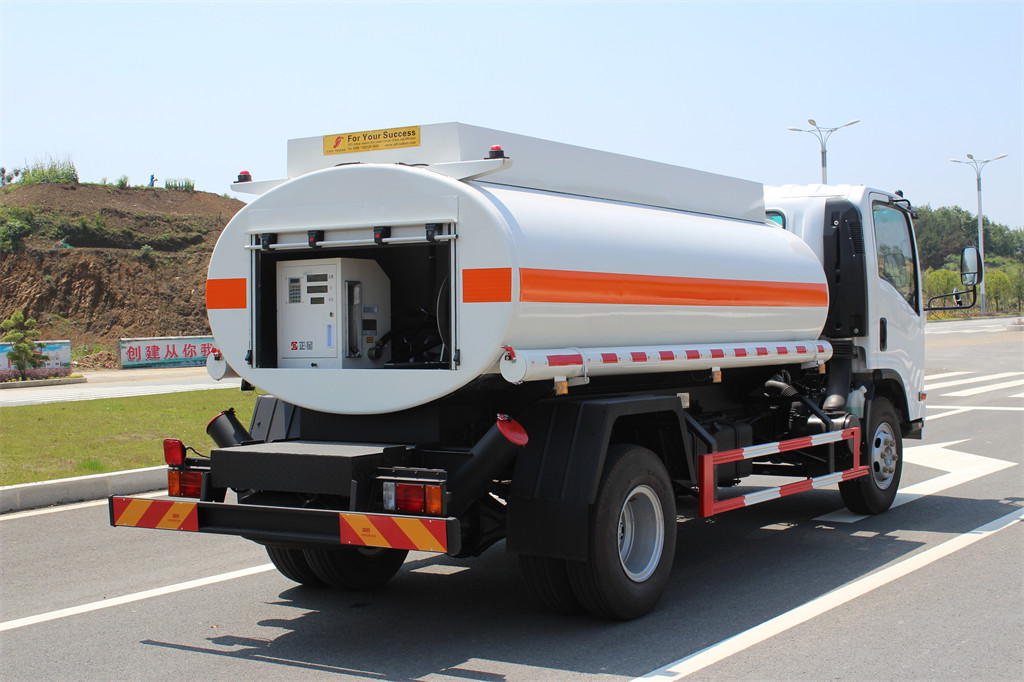

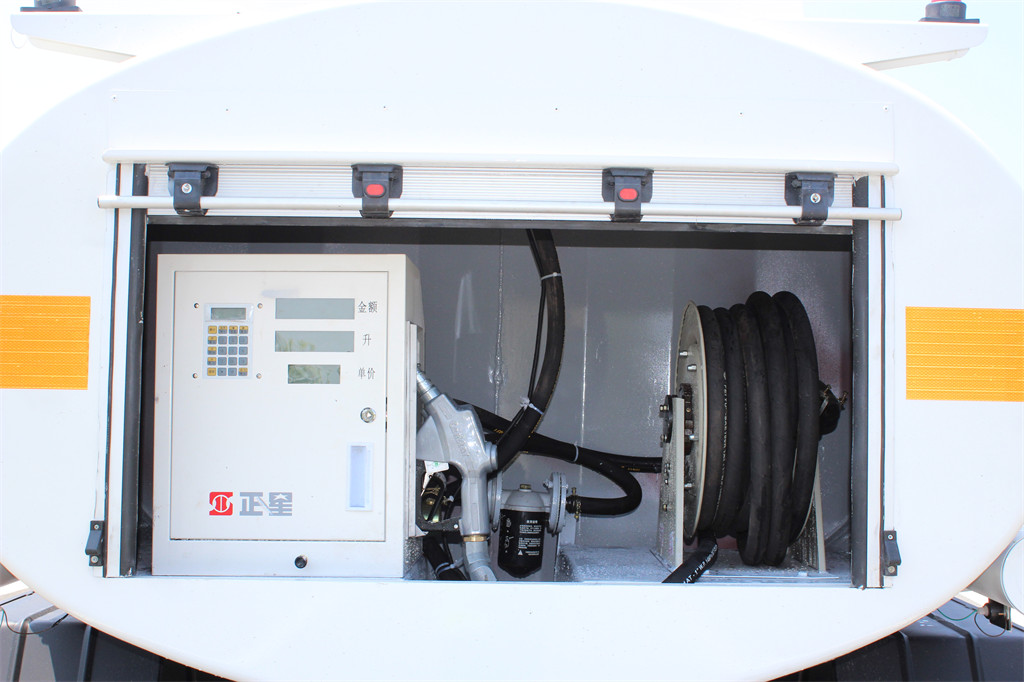

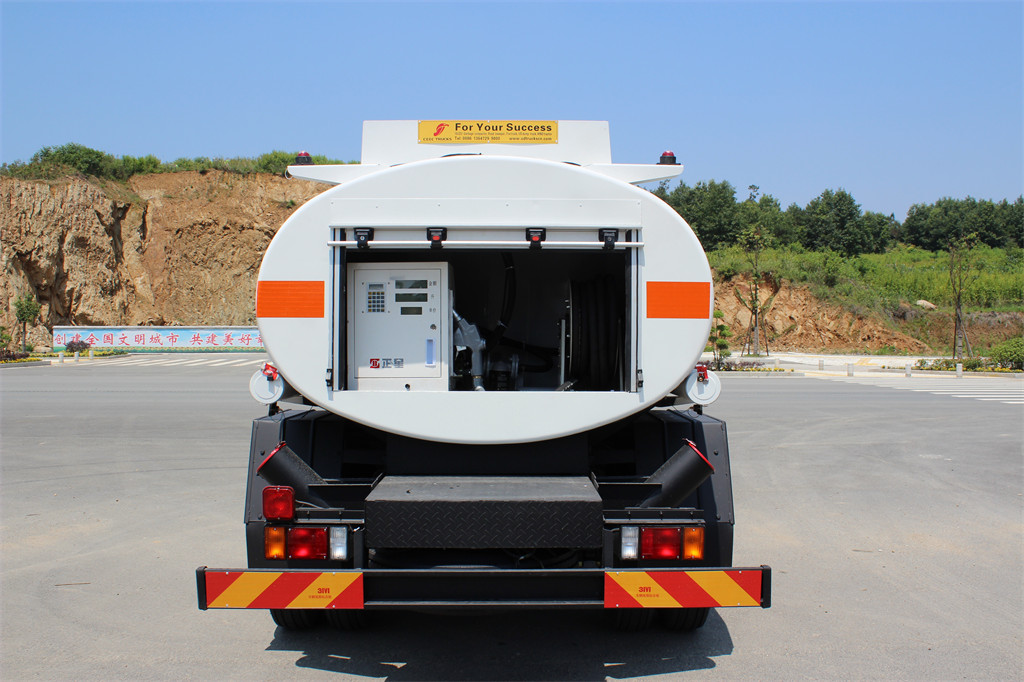

Fuel dispenser
This dispenser can use for diesel and gasoline



Automated Dish Forming Machinery Benefits:

  • The rubber seal belt is used to pressurize the workpiece. During the procedure, there is no need to change the module. Adjusting the size of the module according to your expected size will be all right.
  • The hydraulic system is hanged on the top. The platform on the top has a guiding slot, where the hydraulic pump can move freely to suit different sizes of the workpieces.
  • The hydraulic plump has multiple purposes and convenient operation characteristics with powerful pressure and its accessories can also be quite easy to purchase.



Mobile Oil Refuel Tanker Truck Isuzu with top loading



Mobile Oil Refuel Tanker Truck Isuzu with top loading

Dish Flange Making Machine Benefits:

  • Applicable for different kinds of pressure containers with easy operation, high efficiency and folding quality.
  • It improves the collective manufacturing as well as the work environment with highest quality.
  • The suitable applications include the automatic fixed distance gland edge folding of regular and irregular tanks, making it particularly suitable for various types of shell tank processing machines.



Mobile Oil Refuel Tanker Truck Isuzu with top loading



Mobile Oil Refuel Tanker Truck Isuzu with top loading



Mobile Oil Refuel Tanker Truck Isuzu with top loading



  • Fully Automated Butt Welding Machine Benefits:
  • Ensures that the steel is flat, one-side is welded and two sides are well shaped.
  • The width of the welding seam is 5-12 mm.
  • There are clean and beautiful seam on both sides, round and smooth transfers.
  • Ensures eliminating oil, burr, rust and other defects.
