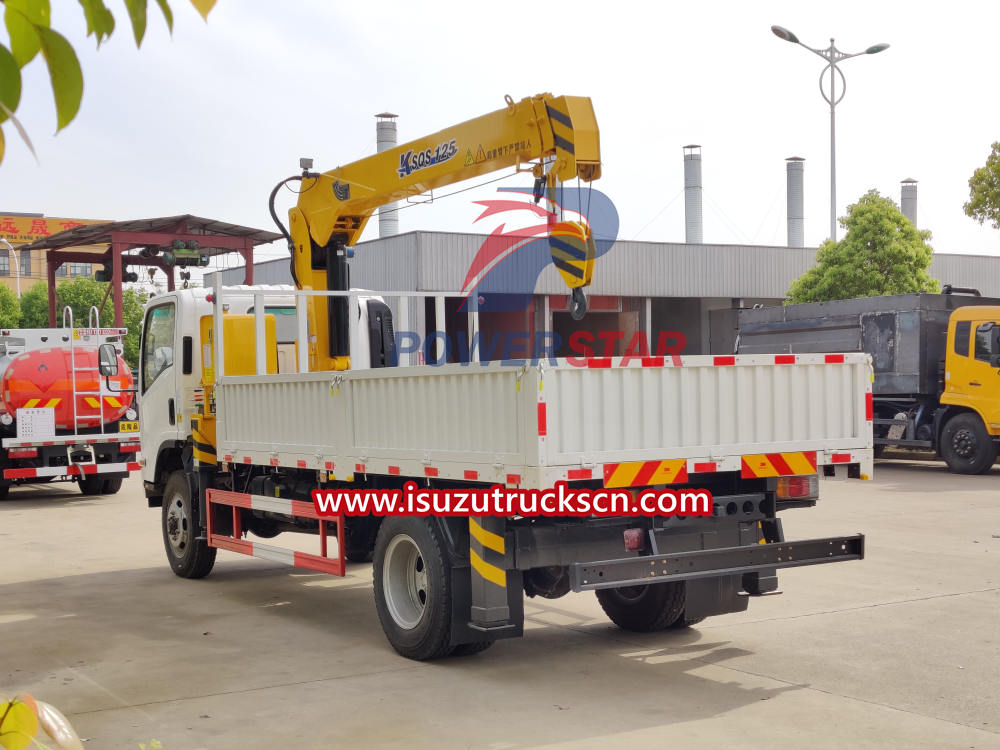

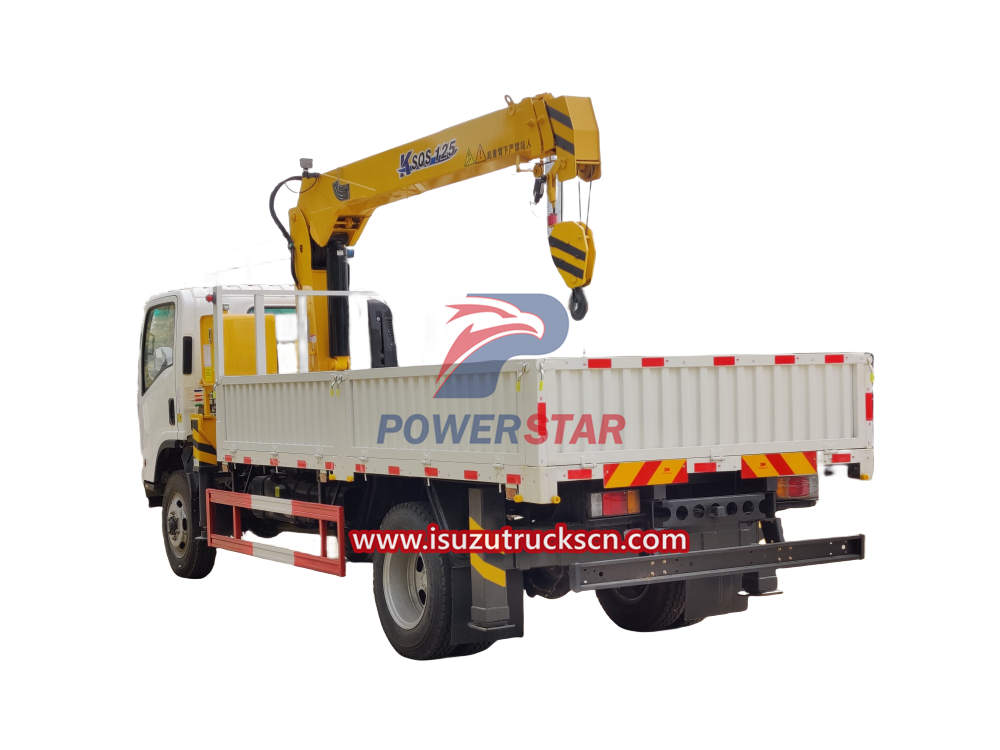

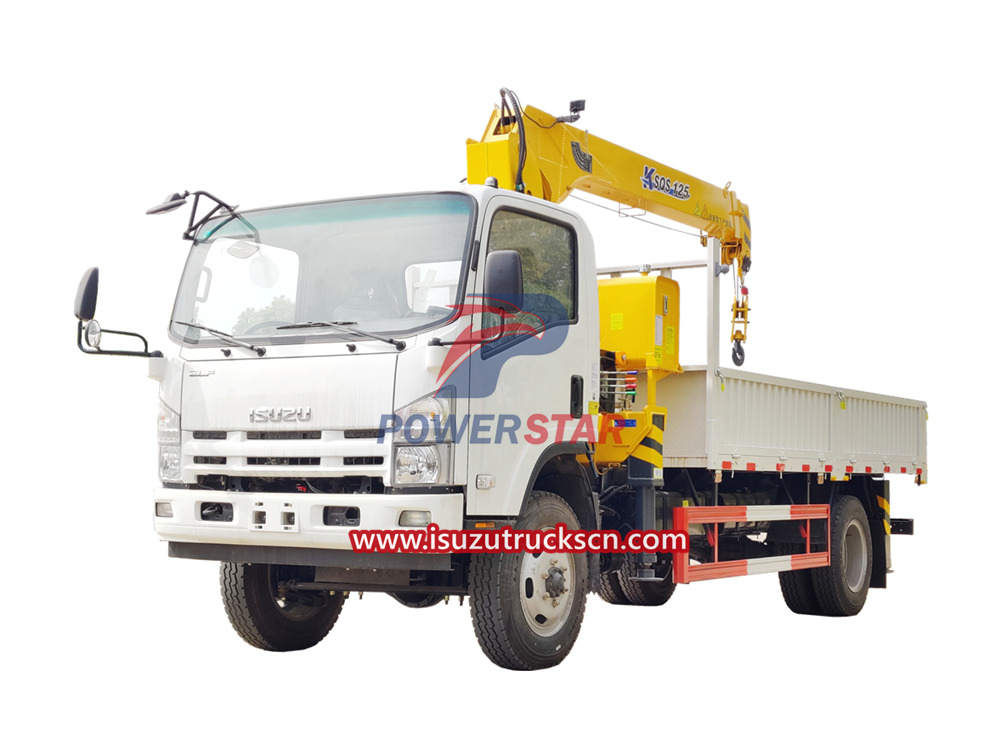

16ft 18ft 4HK1 Isuzu NPR Off-road cargo truck with crane refers to a type of boom crane truck that is designed to transport goods off paved roads. These 4x4 Isuzu boom crane trucks are built with features that enable them to navigate through rough terrains such as dirt roads, rocky paths, and steep slopes. They are commonly used in industries such as mining, construction, and agriculture, where transportation of goods over rough terrains is required.
Work capacity:
5 TonsTruck model:
PT5110JSQEngine power:
190HPEngine type:
Isuzu 4HK1-TC51Axle drive:
4x4 all driveGear box:
Isuzu MLD6SRemarks:

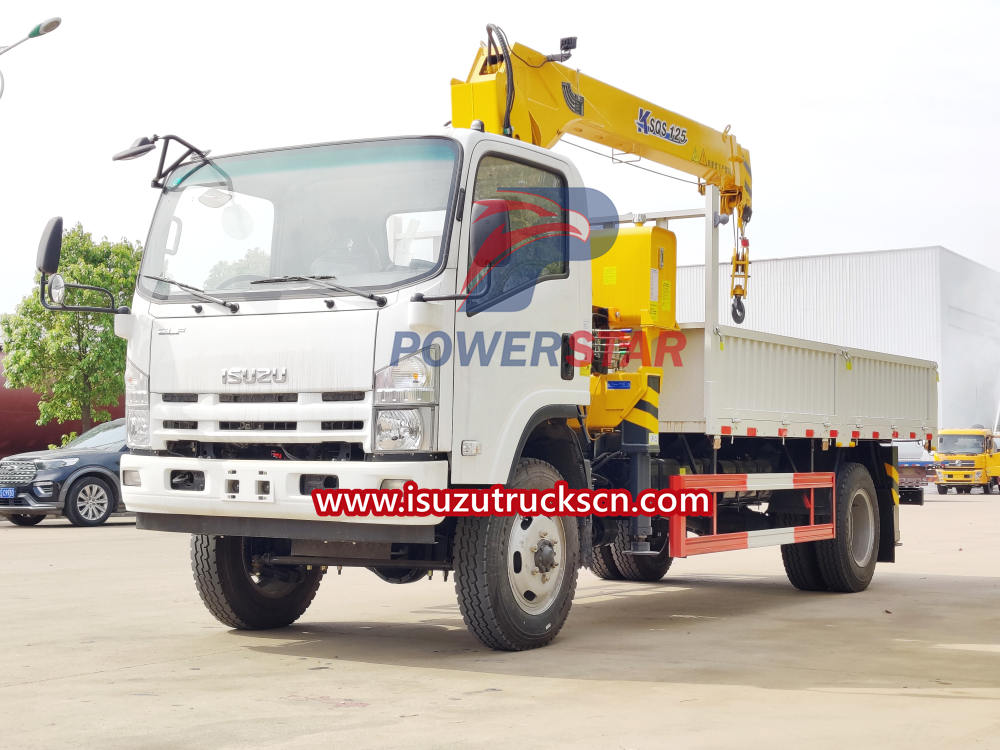

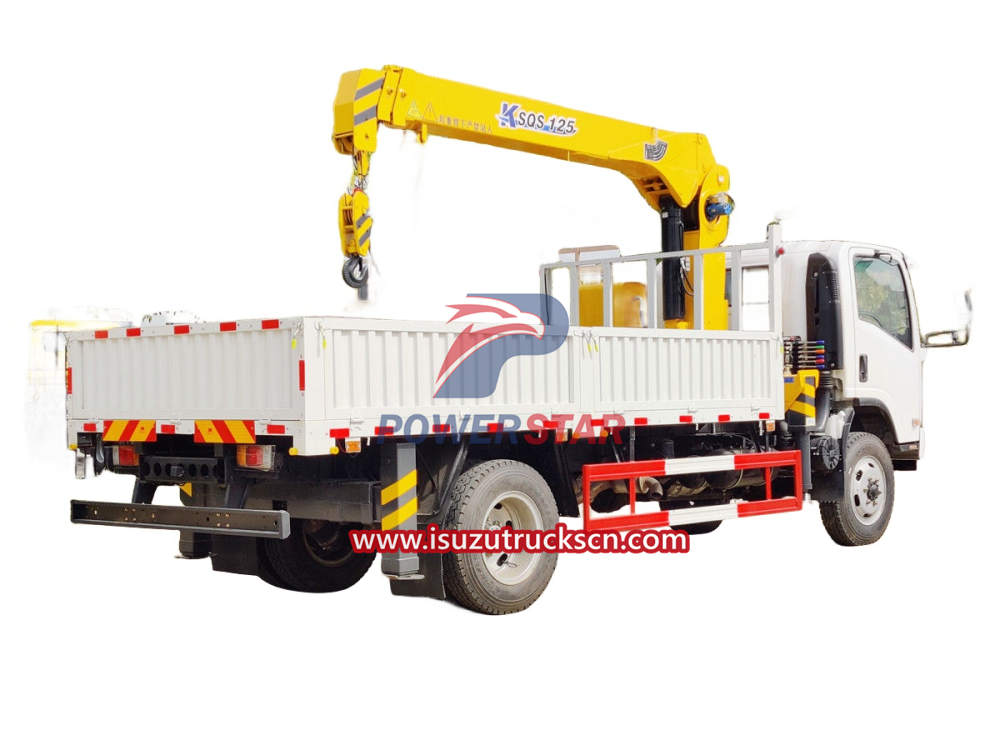

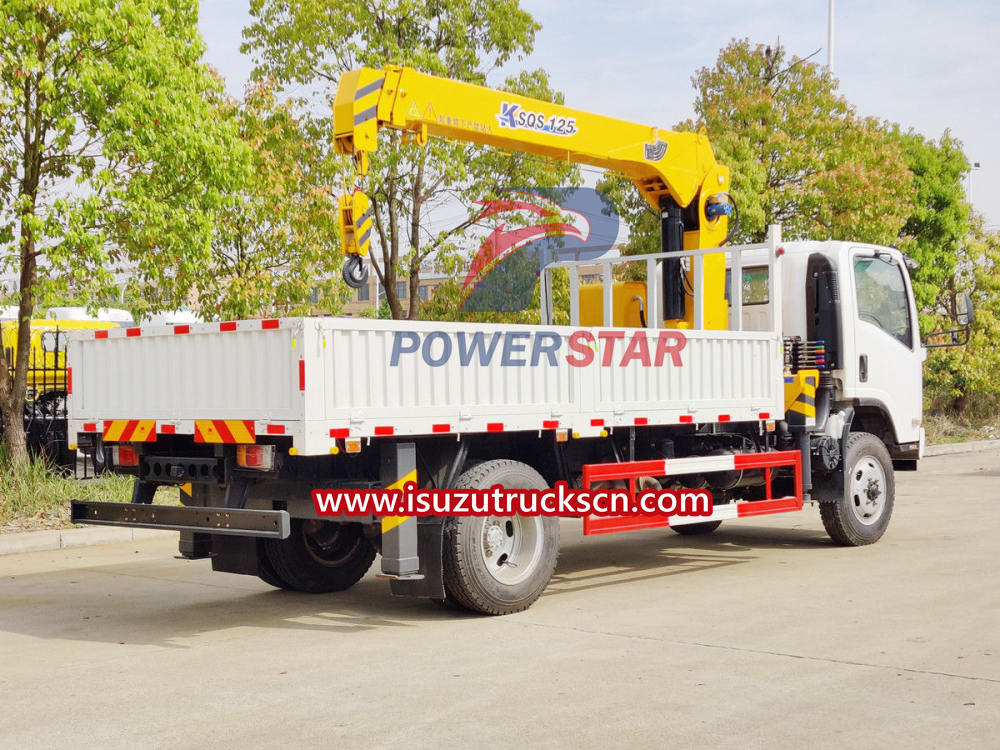

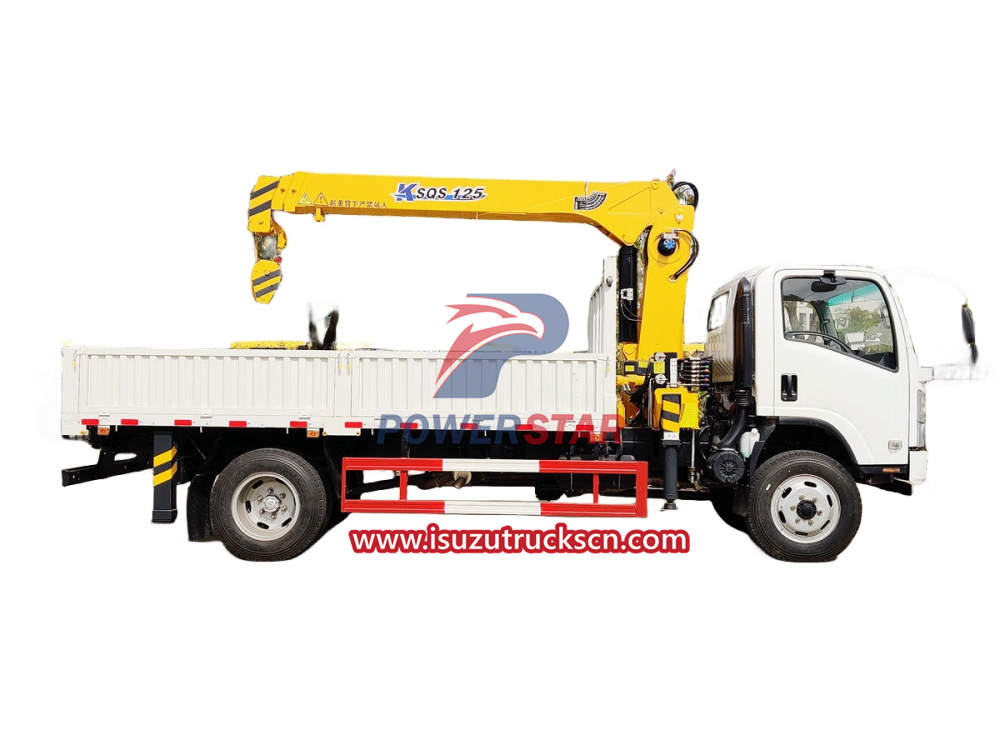

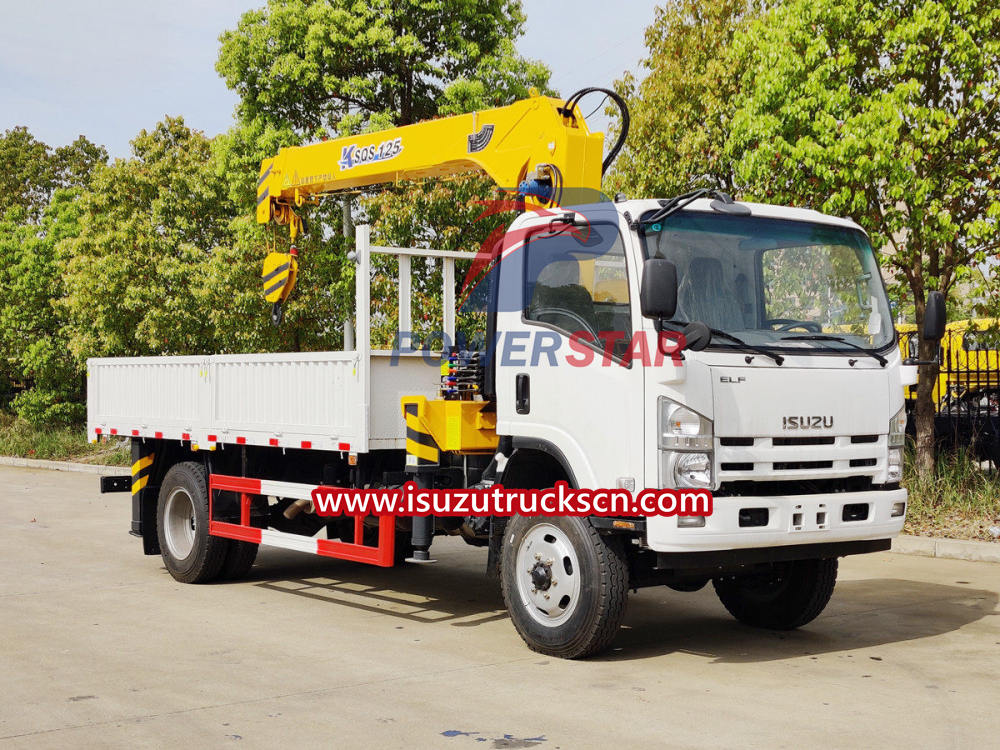

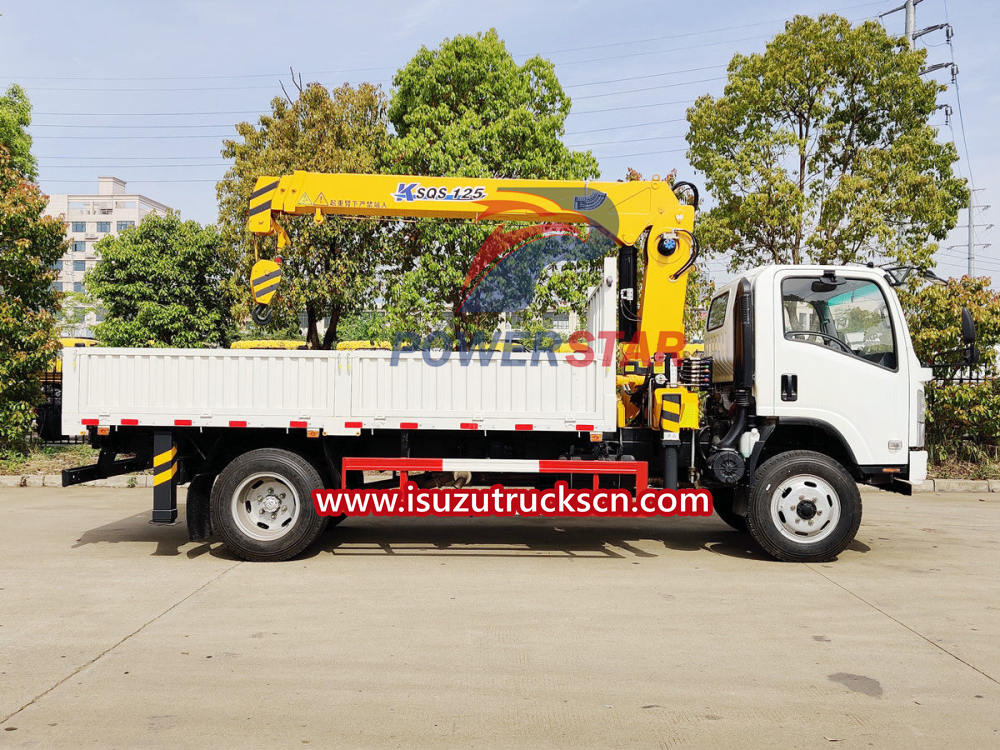

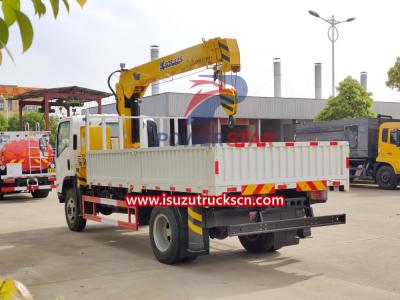

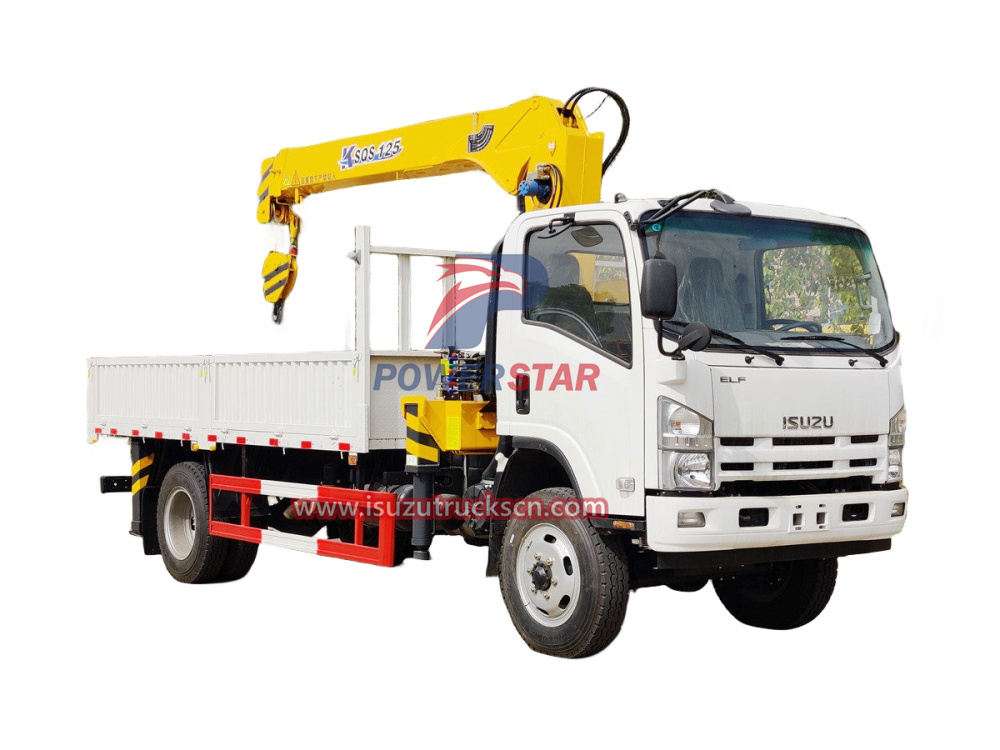

Pstar brand boom craneThe QL1100A8LAY 16ft off-road dropside truck Isuzu with crane is designed for versatile and efficient transportation and lifting operations. This Isuzu 4x4 boom crane truck combines the reliable Isuzu npr 4x4 chassis with a dropside cargo bed and a powerful crane, making it perfect for off-road applications and rugged terrains.
2. Features:
- Off-Road Capability: The Isuzu offroad boom crane truck is equipped with features that enhance off-road performance, including robust suspension, high ground clearance, and durable tires. It can effortlessly navigate through challenging terrains, such as uneven roads, gravel, or muddy surfaces.

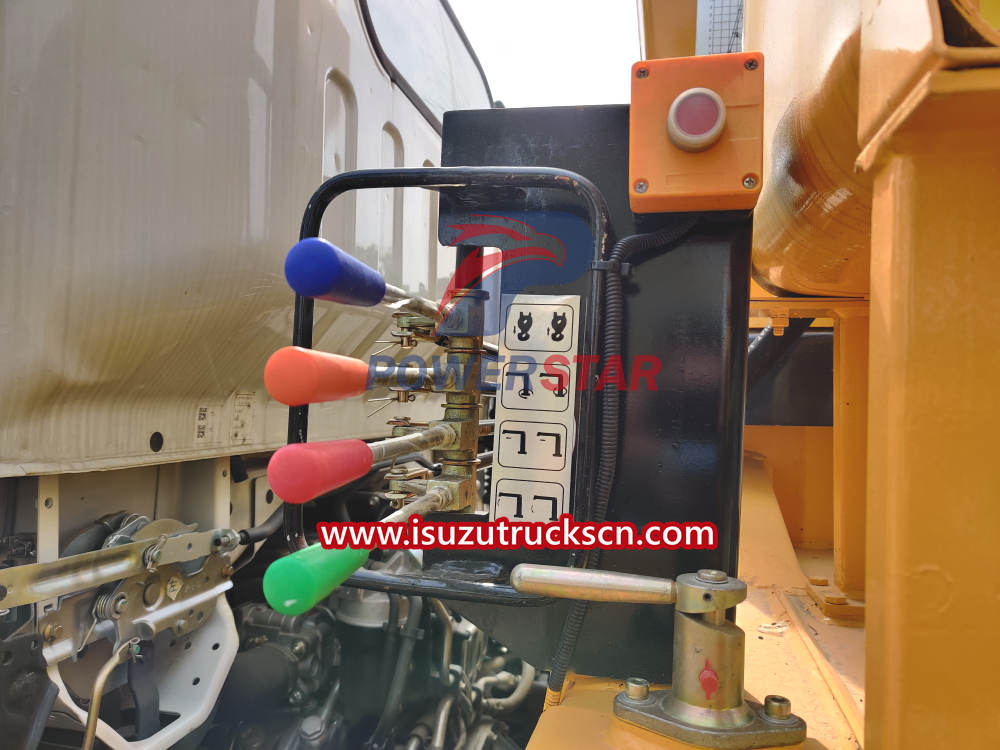

- Powerful Crane: The Isuzu 4X4 dropside truck with crane comes with a reliable and powerful crane, capable of lifting and maneuvering heavy loads. The crane's hydraulic system ensures precise control and smooth operation, making it suitable for construction, logistics, and other industries.
- Sturdy Construction: Built on a robust Isuzu 4x4 chassis, this truck offers durability and stability even in demanding environments. It is designed to withstand heavy loads and rough conditions, ensuring long-lasting performance.
 |
 |
 |
 |
3. Advantages:
- Versatility: The Isuzu off-road dropside truck with crane is versatile, making it suitable for various applications such as construction projects, infrastructure development, and transportation of goods in challenging terrains.
- Efficient Operations: The truck's dropside cargo bed and powerful crane enable quick and efficient loading, unloading, and transportation of materials, reducing downtime and improving productivity.
- Reliable Performance: With the reliable Isuzu chassis and high-quality components, this truck ensures excellent performance and longevity even in demanding off-road conditions.
- Operator Safety: The Isuzu 4x4 boom crane truck is equipped with safety features, including stability control, anti-lock braking system (ABS), and airbag systems, ensuring the safety of the driver and passengers during operations.
| Specification | ||||
| Vehicle Main Dimensions | (L x W x H)mm | 7100*2400*3700 | ||
| Wheel base (mm) | 4475 | |||
| Approach/Depart. Angle | 20/11 | |||
| Front/Back rear | 1880/1860/1860mm | |||
| Weight in KGS | Curb Weight | 7880 | ||
| Pay loading | 5,000KGS | |||
| Max. driving speed(km/h) | 90 | |||
| Engine | Brand | ISUZU | ||
| Model | 4HK1-TCG40 | |||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 190 | |||
| Emission standard | Euro 4 | |||
| Gearbox | 6 forwards& 1 reverse | |||
| Steel Spring | 9/11+7 | |||
| Fuel Tank | 200L | |||
| Clutch | Reinforced diaphragm clutch, diameter 350mm | |||
| Tire | 8.25R16 6 tires with 1 spare totally in 7pieces. | |||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | power steering, hydraulic steering with power assistance | |||

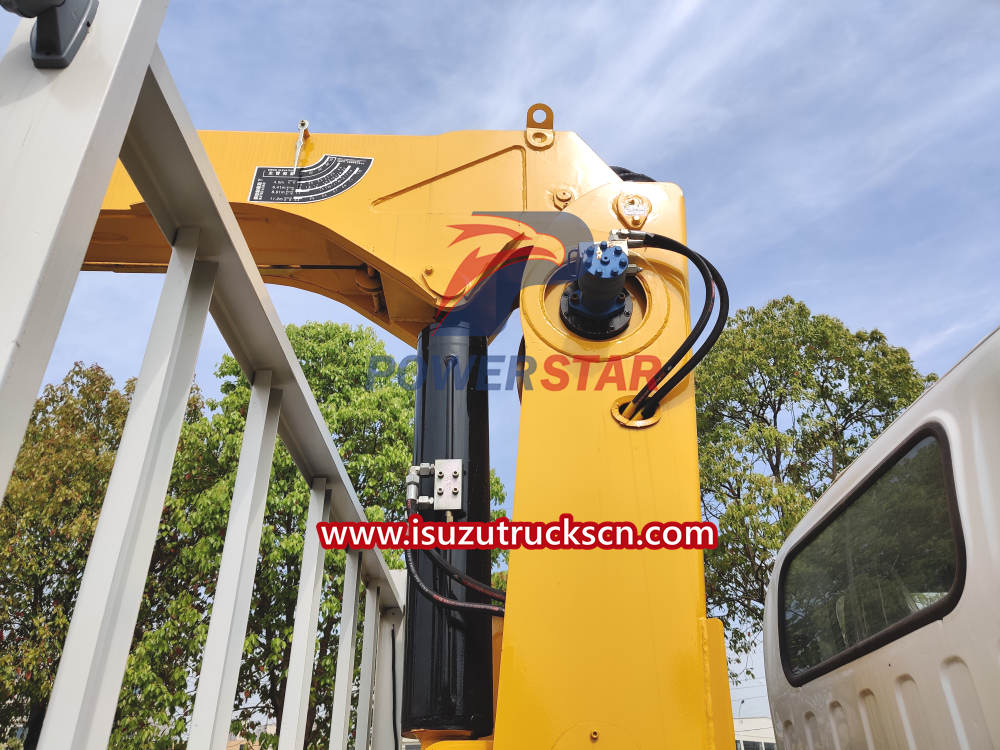

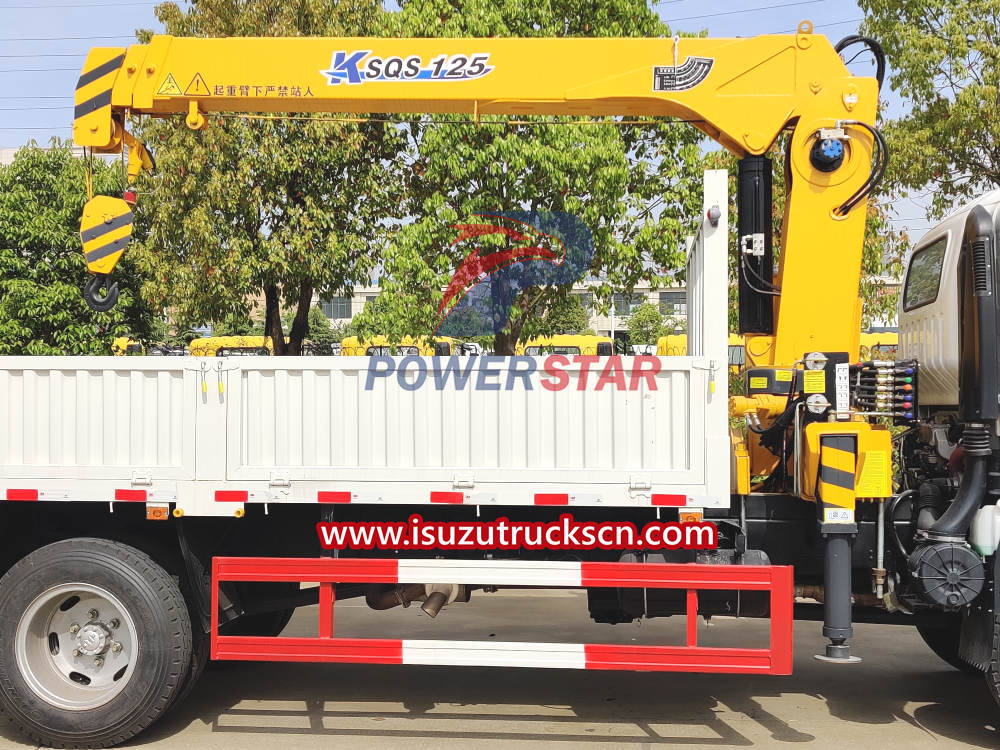

| Equipment for Crane Mounted Parts | ||||
| Modle No | SQ5SK2Q | |||

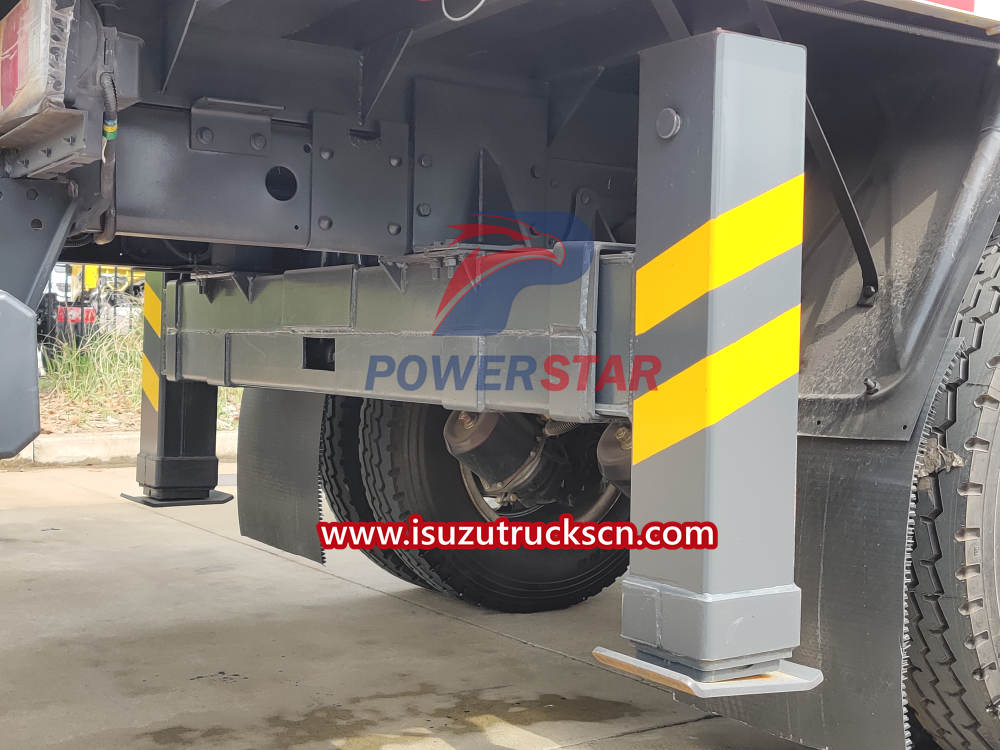

| Working Platform | 360°turning(left or right), H-shape legs 360° | |||
| Material | Q235 Carbon steel | |||
| Extendable boom section | 3 | |||
| Boom Type | Straight | |||
| Lifting Max. Weight | 5ton | |||
| Lifting Max. Height | 11m | |||
| Working Radius | 9m | |||
| Body dimension | 6250*2250*550mm | |||
| Max. Torque | 600N.m | |||
4. Application:
The 16ft off-road dropside truck Isuzu with crane is suitable for a wide range of applications, including construction, infrastructure projects, off-road logistics, and transportation of heavy materials. It offers efficient transport and lifting solutions in challenging terrains and remote areas.
5. After-sales service:
Customers can rely on comprehensive after-sales service for the off-road dropside truck Isuzu with crane. This includes regular maintenance, servicing, technical support, and readily available spare parts to ensure optimal performance and minimize downtime.
FAQ:
1. What is the lifting capacity of the crane?
The lifting capacity of the crane depends on the specific model chosen. Please refer to the product specifications for the exact lifting capacity information.
2. Can the upper body of the truck be customized according to specific requirements?
Yes, the upper body can be customized to accommodate additional storage compartments or specialized equipment installations based on individual customer requirements.
3. Can the off-road dropside truck with crane handle steep slopes and rugged terrains?
Yes, the truck is designed for off-road use and can handle challenging terrains, including steep slopes, rough terrains, and uneven surfaces.
4. Are spare parts readily available for the Isuzu truck and the crane?
Yes, spare parts for both the Isuzu truck and the crane are readily available to ensure quick and efficient maintenance or repairs when needed.
7. Upper Body Customized:
The upper body of the off-road dropside truck with crane can be customized according to specific requirements. This customization can include additional storage compartments, toolboxes, or other specialized equipment installations to meet individual customer needs.
 |
 |
 |
 |
 |
 |
8. Truck Chassis Choice:
Customers have the flexibility to choose the Isuzu truck chassis model that best suits their requirements. Various options with different load capacities and specifications are available, allowing customers to select the most suitable truck chassis for their specific operations.
