60cbm China cement tanker trailer

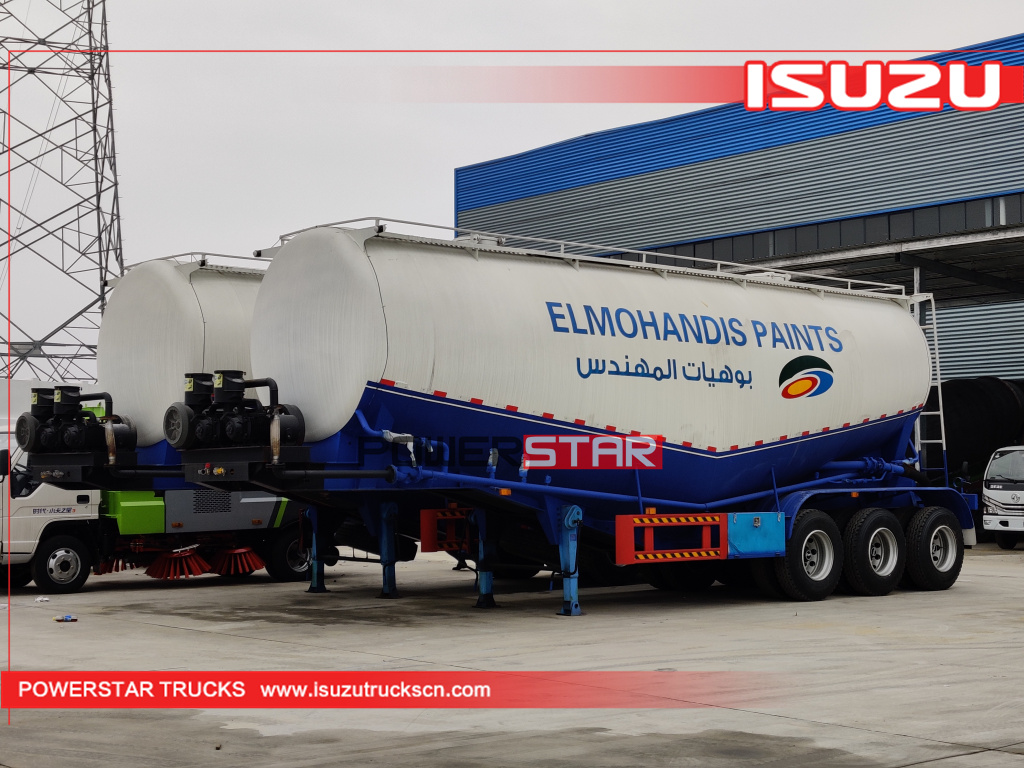

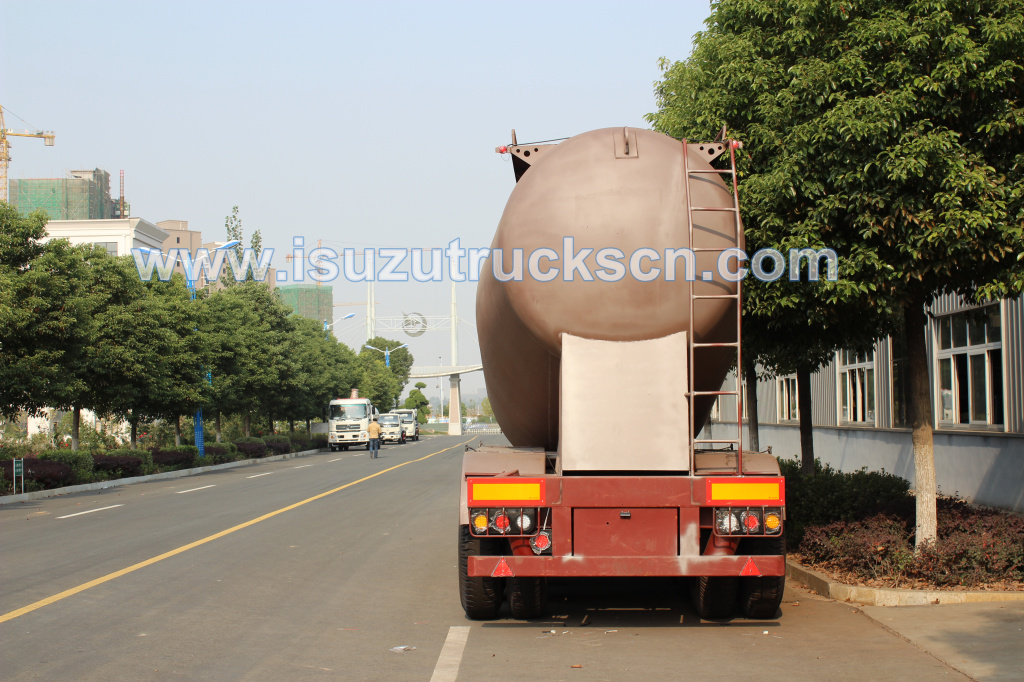

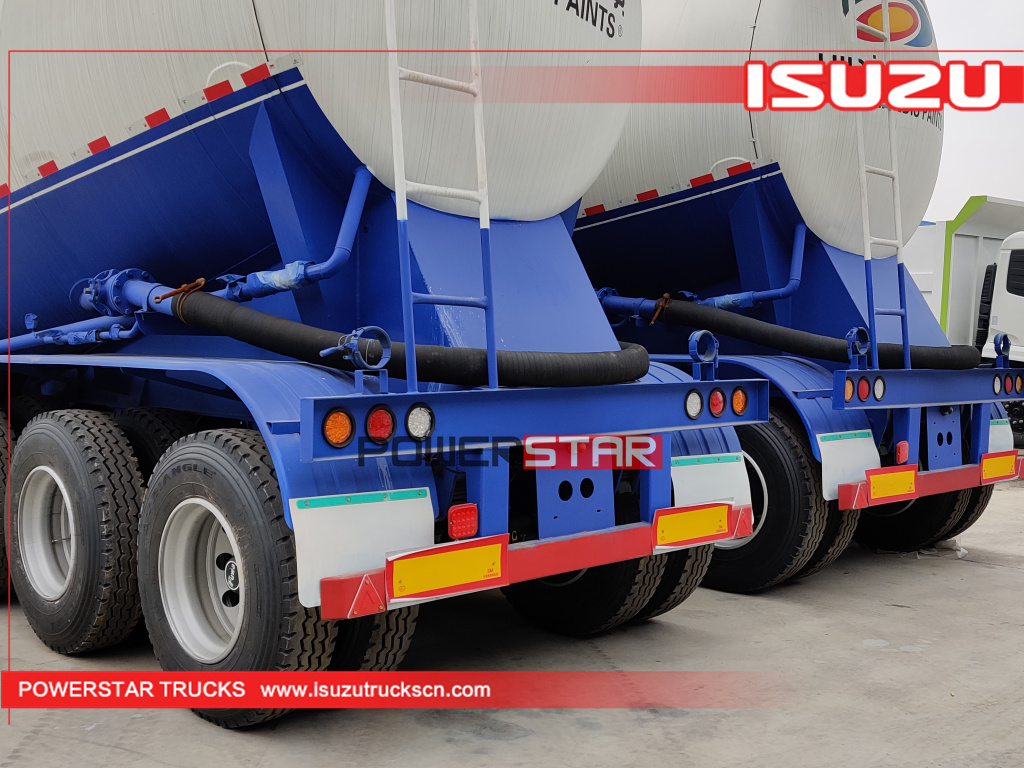

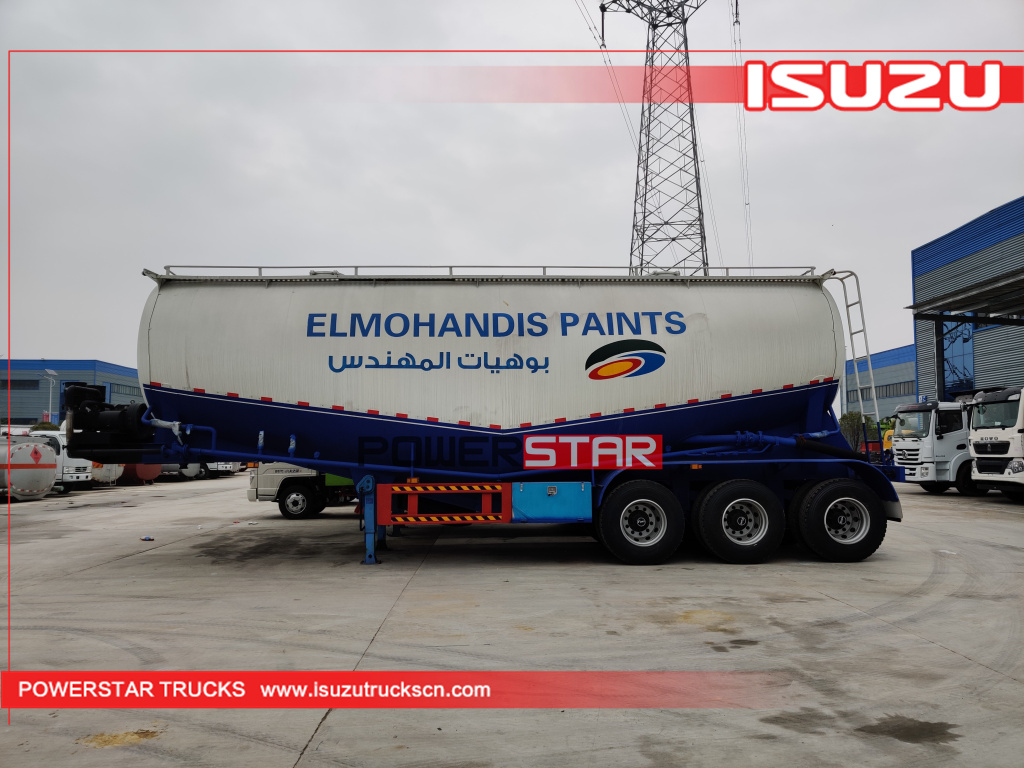

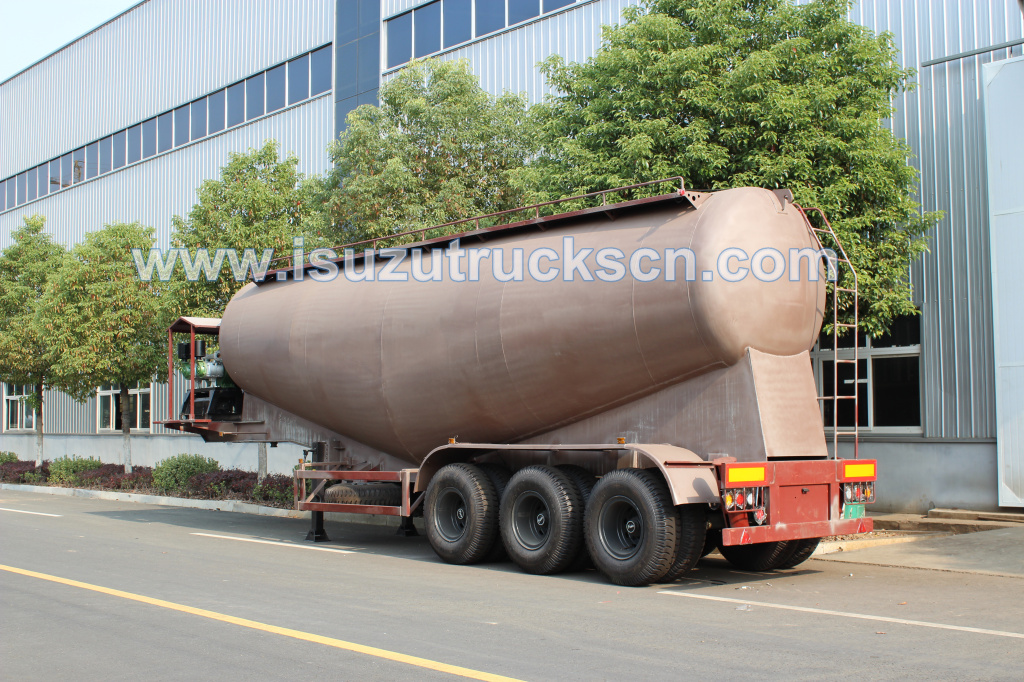

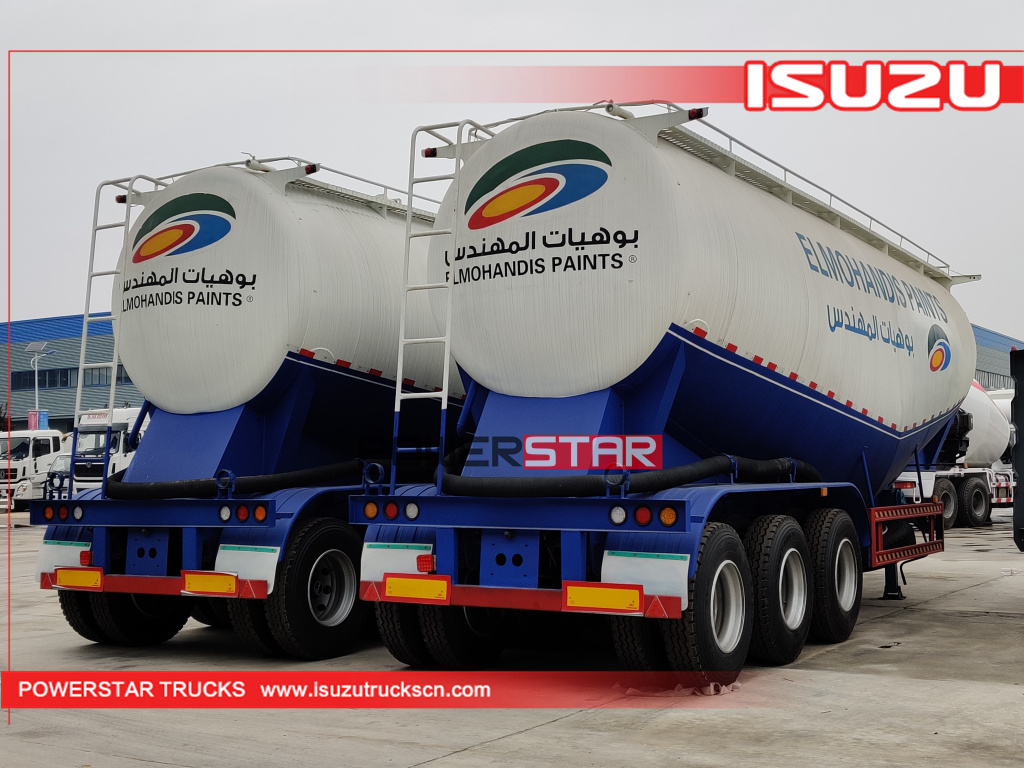

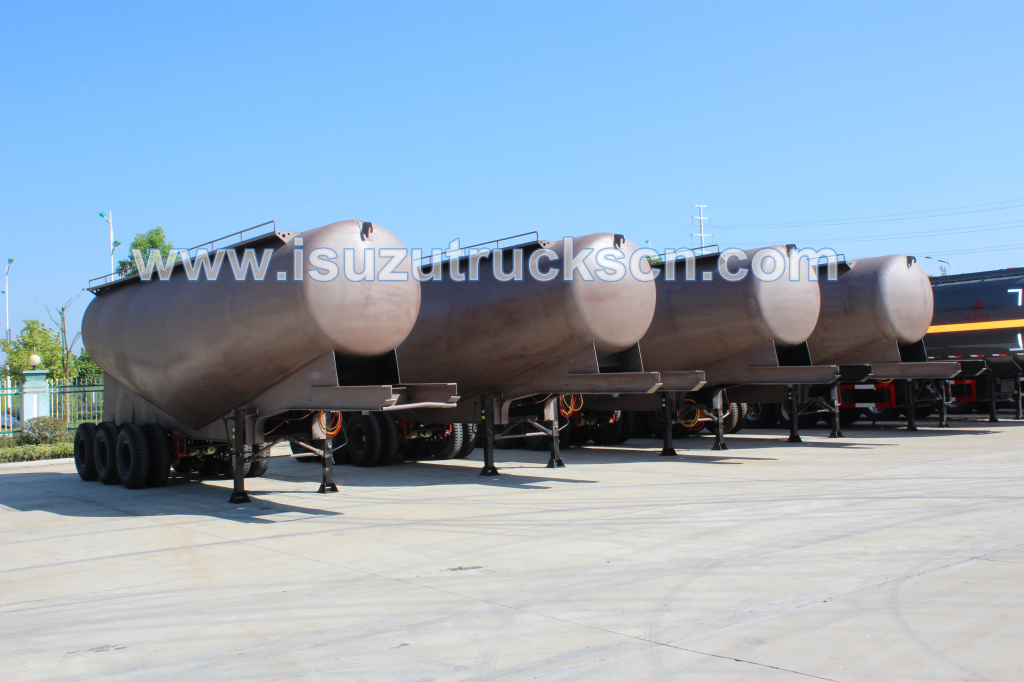

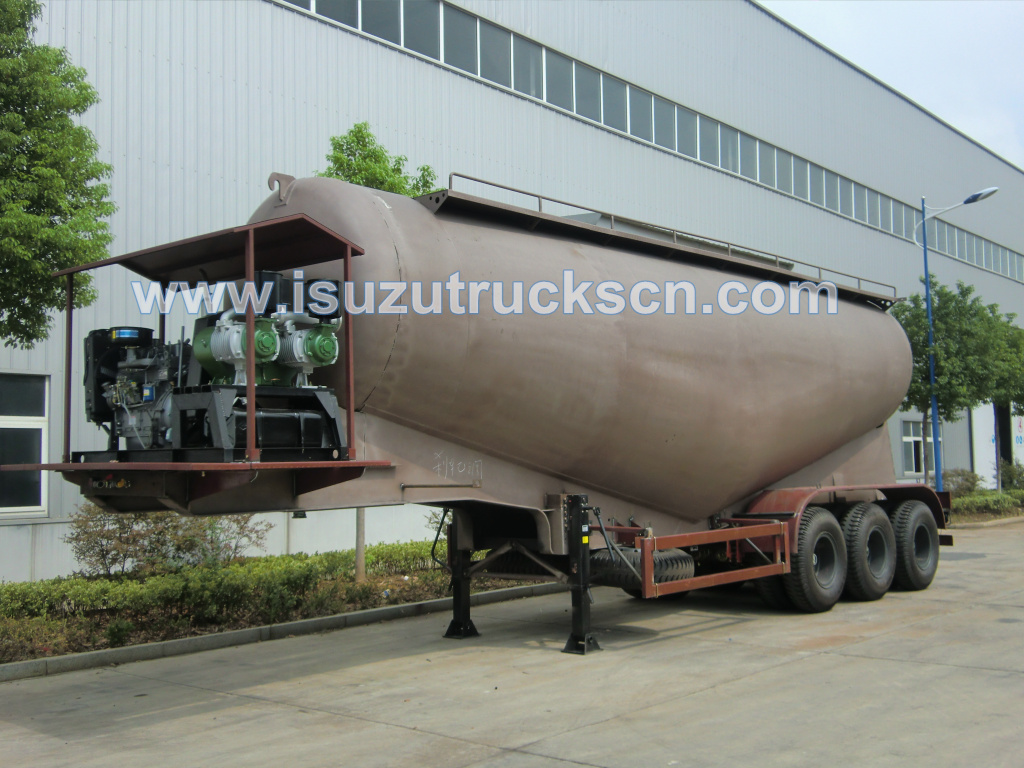

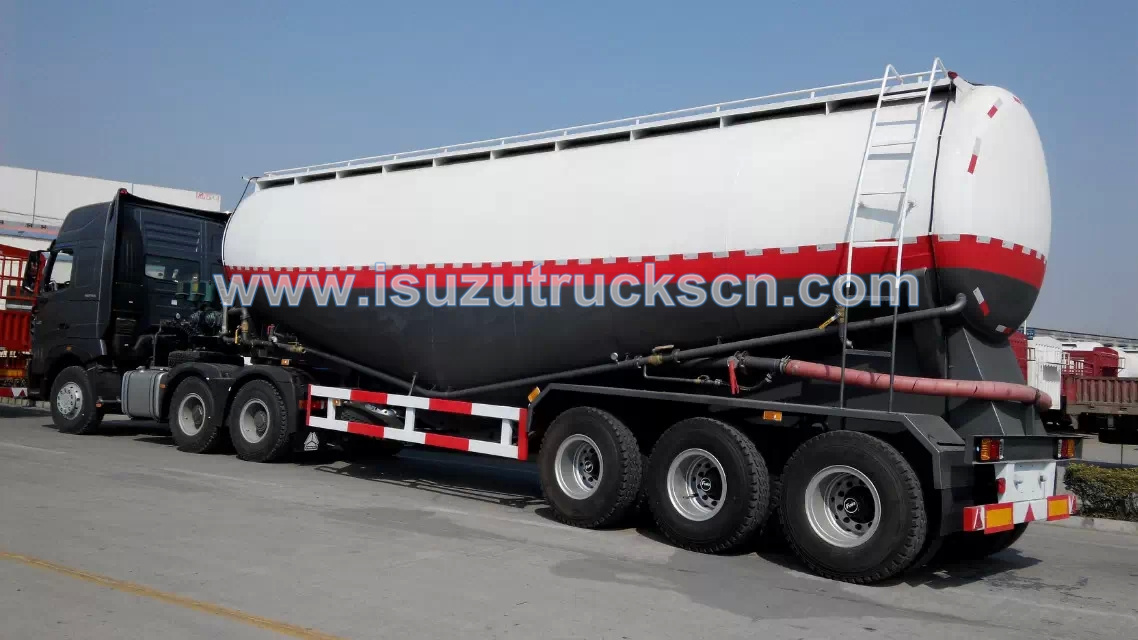

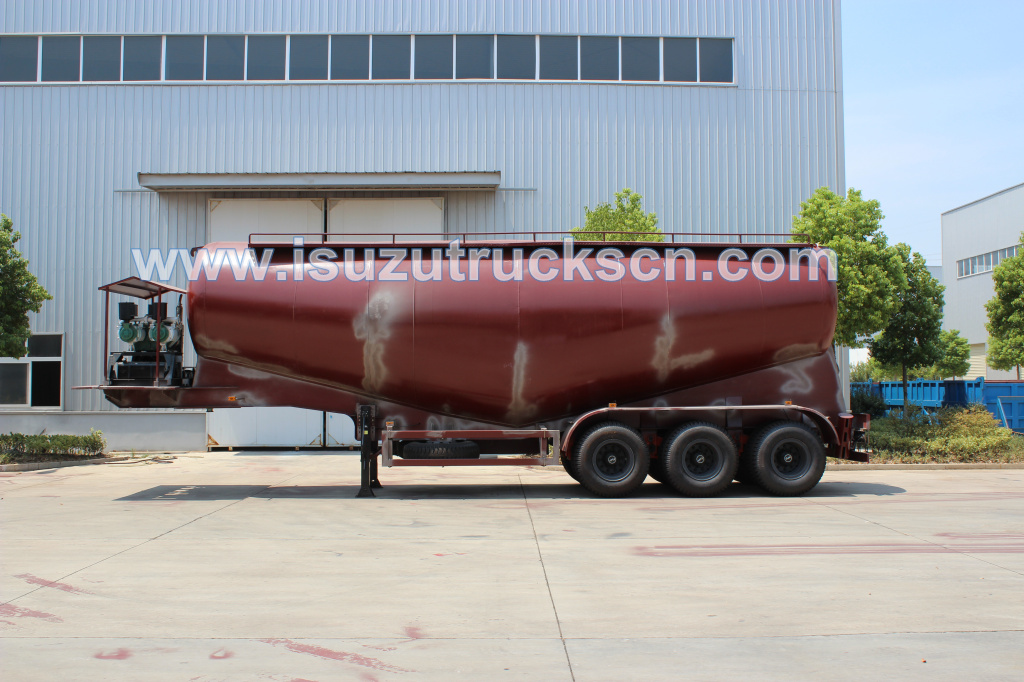

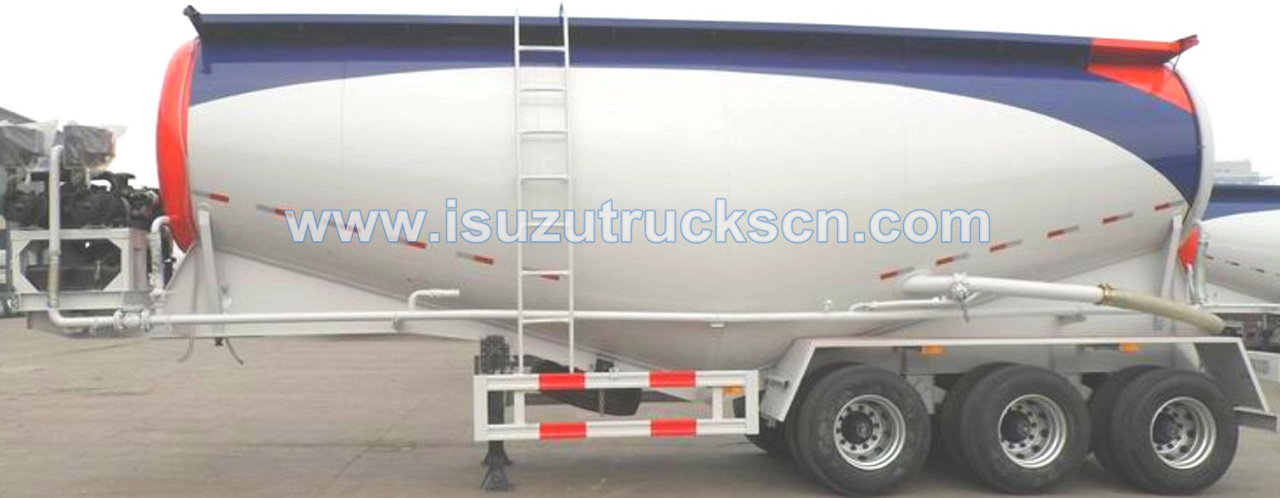

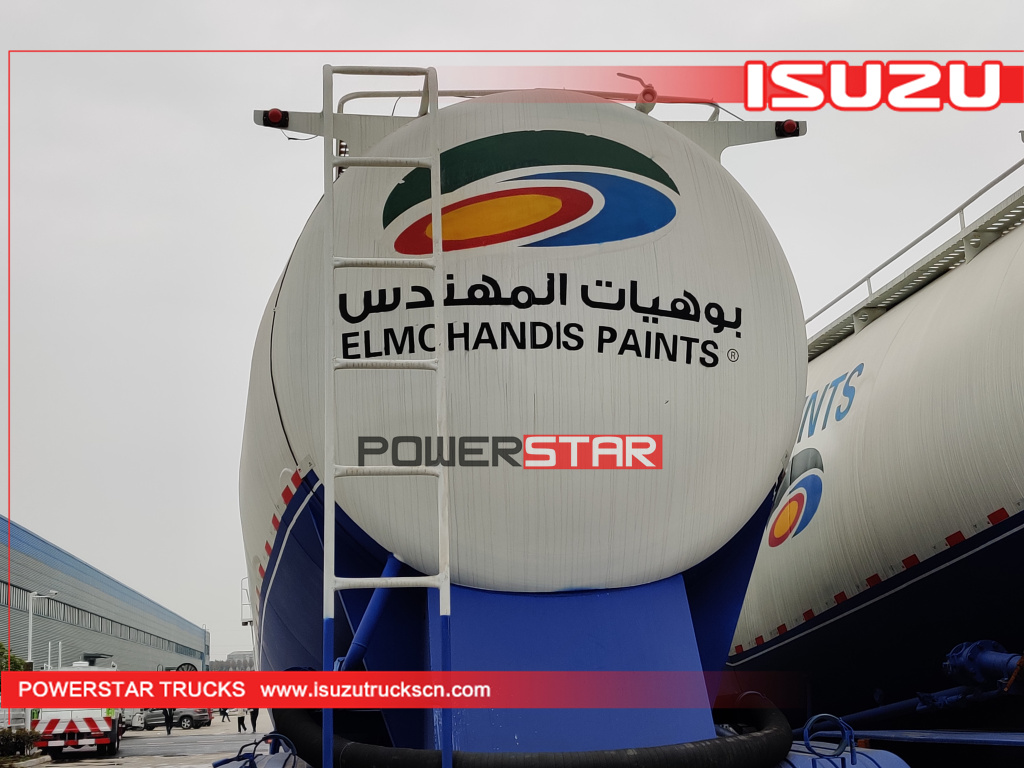

Images for bulk cement trailer

Details

           China cement tanker trailer(60m3)

60cbm China cement tanker trailer





The bulk cement trailer is normlly used in powder cargo transportation such as cement, mineral powder, ashes, flour, and other powder with diameter less than 0.1mm. The powder is discharged by compressed air generated by the air compressor. The tanker shell is specially desgined to bear the large air pressure. The tank design helps to shorten the discharge time and reduce the residual during unloading.

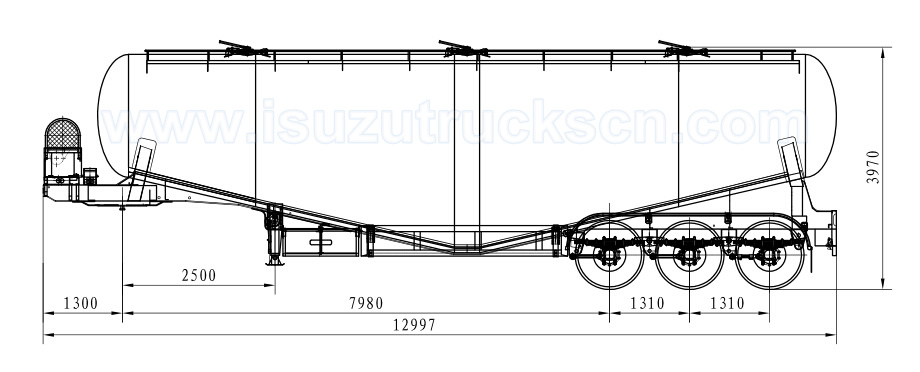

Technical drawings of 60m3 Bulk Cement Trailer:


60cbm China cement tanker trailer



bulk cement tanker , widely used bulk cement tanker , hot sale bulk cement tanker in Ethiopia

Product Description

Advantages

1>Powerstar is a state approved truck trailer factory with a better reputation.

2>The discharging speedof CIMC Master bulk cement tanker is up to 1.3tons/min .The residual volume is less than 50kg.

3>Engine bracket is made of hi-strength Mn plate. Engine and air compressor without shocking when the bulk cement trailer working.

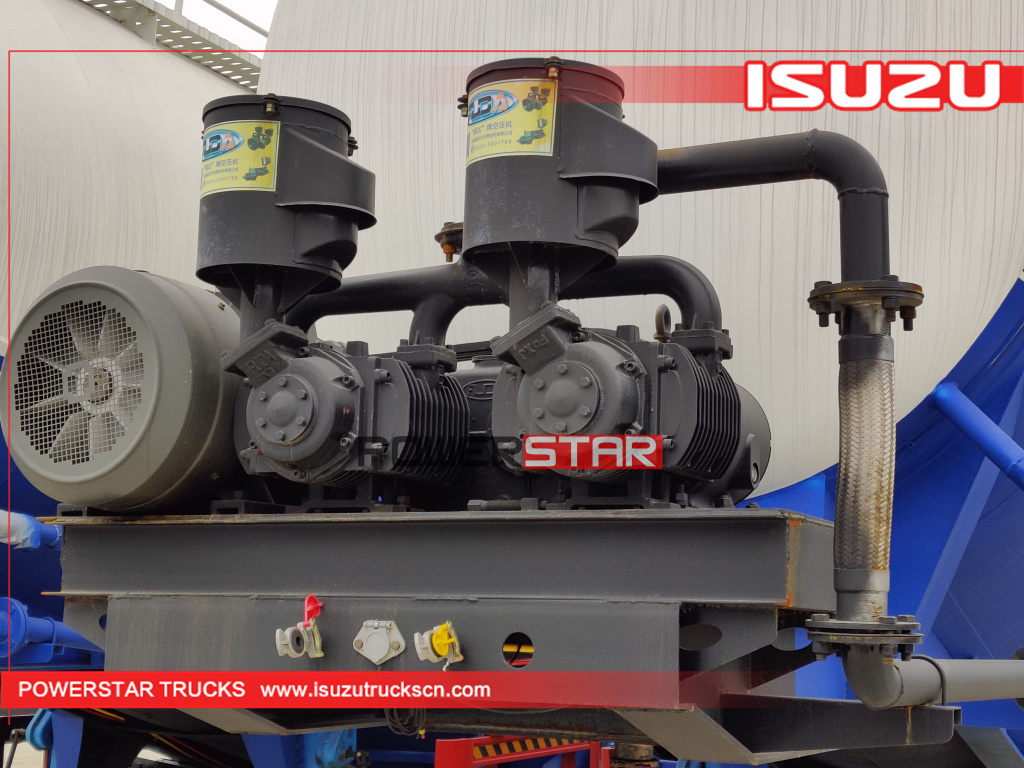

4> Original WEICHAI diesel engine and China top quality double cylinder air compressor.









Parameters of Bulk Cement Trailer 60m3

Product Specifications
Total Weight 40000 kg
Rated Load 80000 kg
Tare Weight 10000/9100 kg
Volume 60M 3 ,diesel engine, air compressor optional, "V" shaped tank shell
Wheel Base 5600+1310+1310 (mm)
TyreSpecifications 11.00R20-18PR  12R22.5-18PR
No. Of the Tyres 12
Axle Brand FUWA (BPW optional)
No. Of the Axles 3
Axle-load 24000 kg
King Pin 50#/90#
Landing Leg 28ton
Pieces of leaf-spring 10(8)
Suspension independent stamping steel rigid suspension (or air suspension)
Departure Angle 30
Front/Rear Overhang 980 mm
Outside Dimensions 10600,10000X2500X3990  (LxWxH) (mm)
(Interior)Tank shell Dimensions   9800X2500X2850 (LxWxH)  (mm)
Material of the Main Beam Q345B manganese plates, automatic submerged arc welded
Brake System Dual line braking system/ABS
Brake Air Chamber Six double chamber
Electrical 24V  7 ways(7 wire harness)
Usage The cargo’s carrying part is tank-style designed, is suitable for the transportation of liquid products, bulk materials, and bulk cement.


Characteristics

1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine, providing compressed air.
Other Specifications The sealing head theshell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer

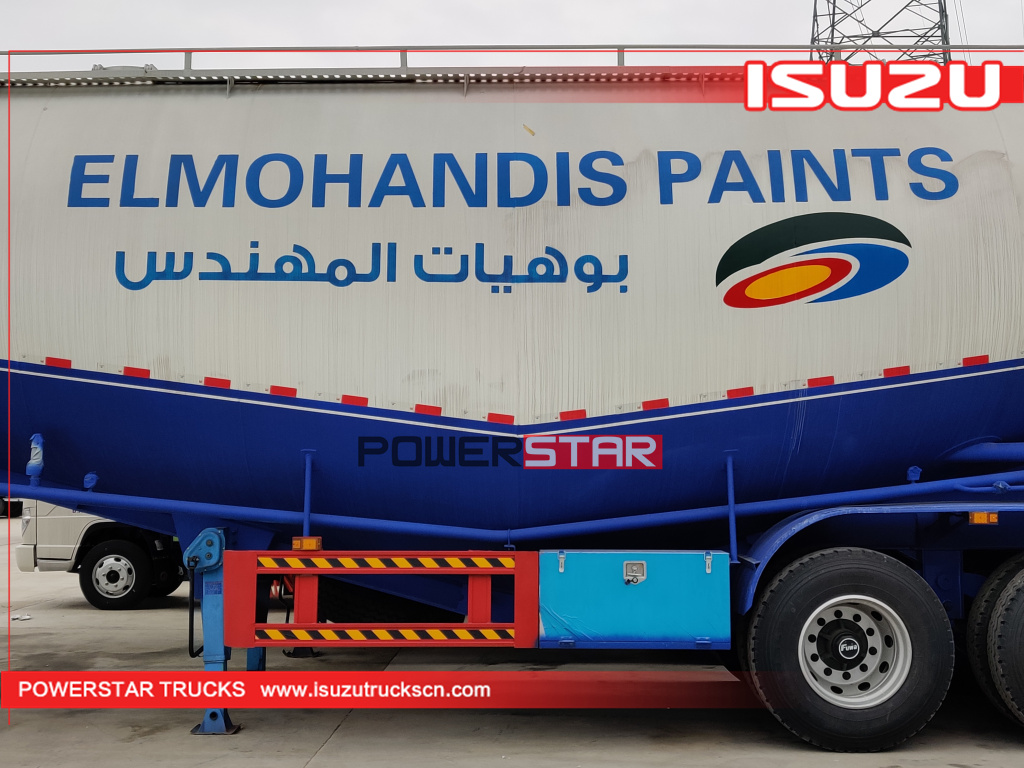

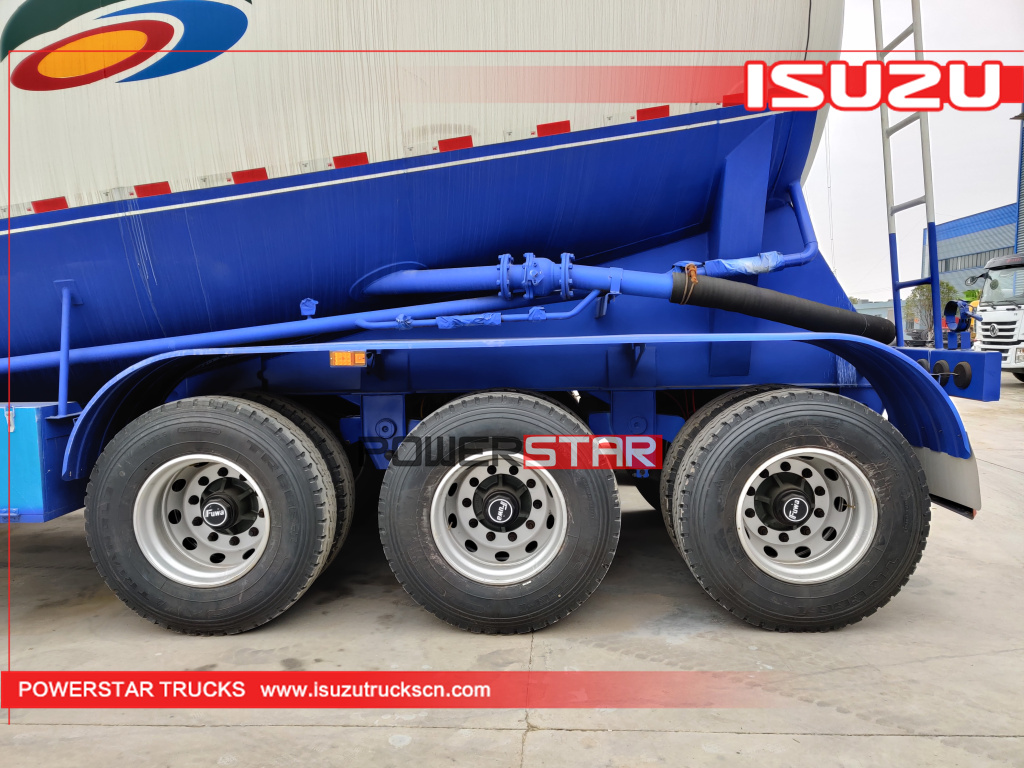

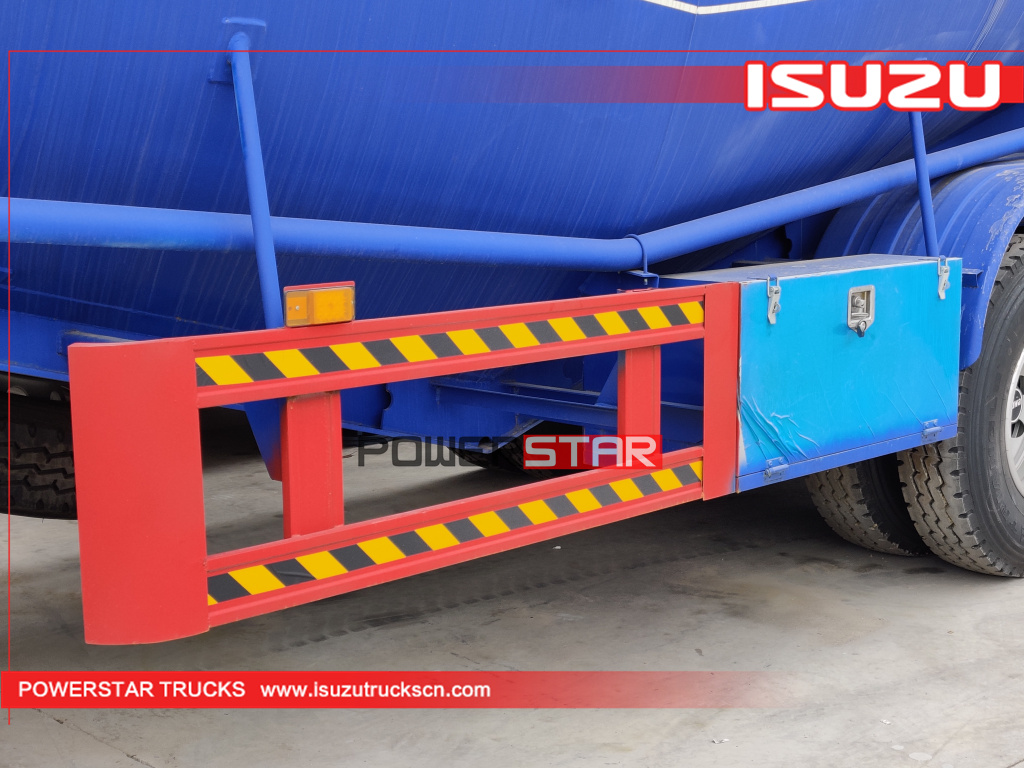

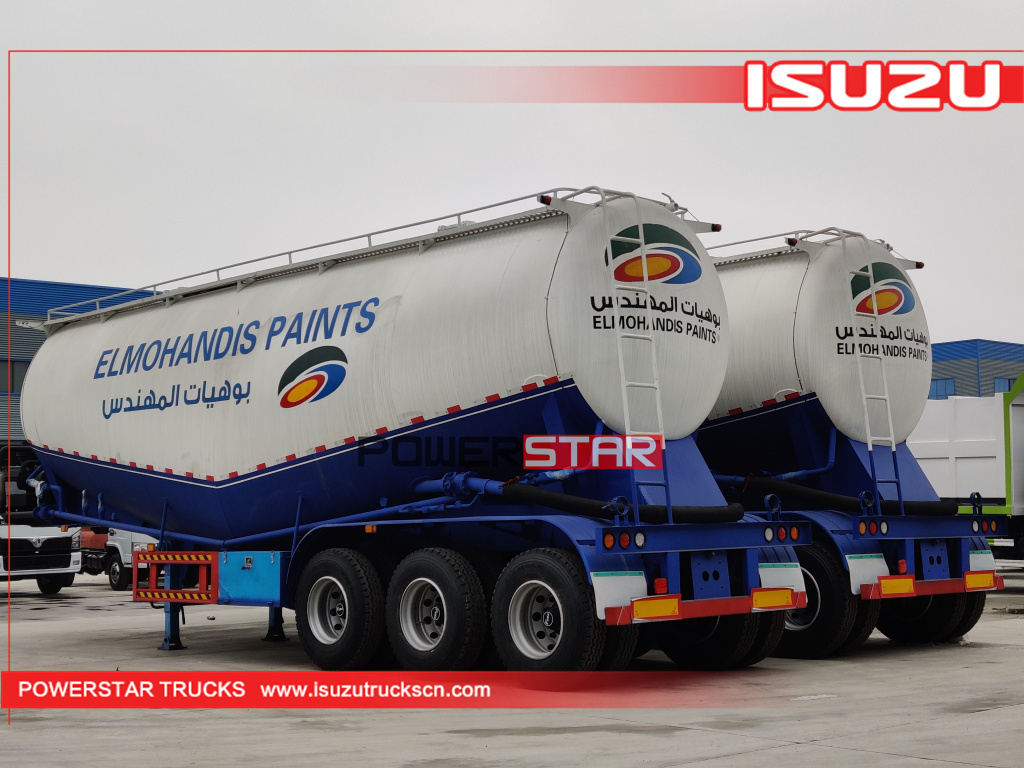

60cbm China cement tanker trailer



60cbm China cement tanker trailer



60cbm China cement tanker trailer



60cbm China cement tanker trailer



60cbm China cement tanker trailer
