6cbm Myanmar Japanese Isuzu Chassis 6x4 Mixer trucks

hot sale 6cbm Japanese Isuzu Chassis 6x4 Mixer trucks Isuzu engine

Details

6cbm Japanese Isuzu Chassis 6x4 Mixer trucks



 6cbm Japanese Isuzu Chassis 6x4 Cement Mixer trucks

The concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites. All cement mixer trucks are constructed with high-tensile steel for endurance and resistance to friction, it’s very easy to operation.



Key Features:

  World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime

  The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;

  Pneumatic Water Supple System. The pressure is provided by the air tank on the chassis with pressure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.

  New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;

  Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;

  The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;

  Colors can be customized.

  Mixer coverage can be customized.   3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.



Main specifications:

Model

PT250GJB -6M3

Driving Type

6x4    (Left hand drive)

Max. External Diameter of Drum

Φ2118

Length of the Drum

3588

Geometric Volume of Drum

9.7

Mixing Capacity

6 Cbm

Material of drum & blades

Q345MN/B520JJ

Inclination Angle for Drum

15

Padding rate

0.6185

Residual Rate

0.16%

Charging Speed

≥3

Discharging Speed

≥1.2

Mixing Speed

0-14

Slump Range

50-220

Capacity for Water Tank

360L

Water Supply Pressure

0.4

A Upper-fixing Length

5530

B Subframe Length

4690

C Chute Position

840

D Center of Gravity when Fully Load

2325

E Hopper Height

2500

F Upper-fixing Height

2565

Upper-fixing Width

2490

Overall Dimension(L×W×H)

5530×2490×2565

Weight

3800

Color

White   (Any color & logos up to wish)

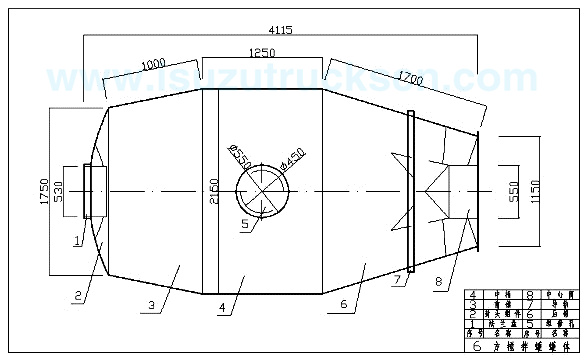

3. This Isuzu 6cbm mixing ball drum drawings:

 6cbm Myanmar Japanese Isuzu Chassis 6x4 Mixer trucks drawing

Details Description of 6CBM Mixer Ball Drum:

1. This Isuzu 6cbm concrete mixer ball drum is an all steel pear shape cylindrical revolving tank where the cement, sand gravel and water are mixed. The mixing ball drum uses imported American brand DAKIN SAUER DANFOSS for the hydraulic pump and motor, Italian brand BONFIGLIOLI for the reducer. It is fitted with an internal helix spiral blade to ensure proper mixing and faster discharging rate. Multi-points operation and all-direction unloading.

2. More optional specifications of mixer ball drum:

(1)Reduction gear:

 Brand      Country      Picture      Nameplate label
 BONFIGLIOLI   ITALIAN  6cbm Myanmar Japanese Isuzu Chassis 6x4 Mixer trucks  6cbm Myanmar Japanese Isuzu Chassis 6x4 Mixer trucks
     6cbm Myanmar Japanese Isuzu Chassis 6x4 Mixer trucks  6cbm Myanmar Japanese Isuzu Chassis 6x4 Mixer trucks

Product Description of 6CBM Mixer Ball Drum:

1. This 6cbm concrete mixer ball drum is an all steel pear shape cylindrical revolving tank where the cement, sand gravel and water are mixed. The mixing ball drum uses imported American brand DAKIN SAUER DANFOSS for the hydraulic pump and motor, Italian brand BONFIGLIOLI for the reducer. It is fitted with an internal helix spiral blade to ensure proper mixing and faster discharging rate. Multi-points operation and all-direction unloading.
