4x2 350HP GXR ISUZU Tractor Head Trucks

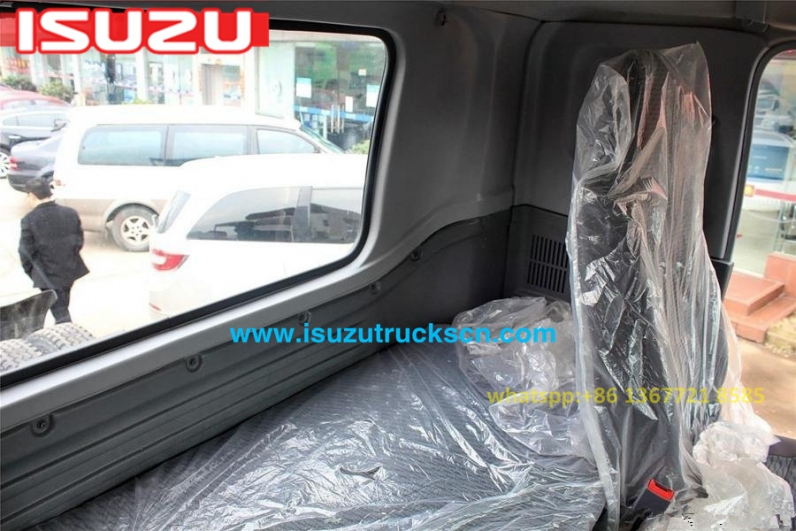

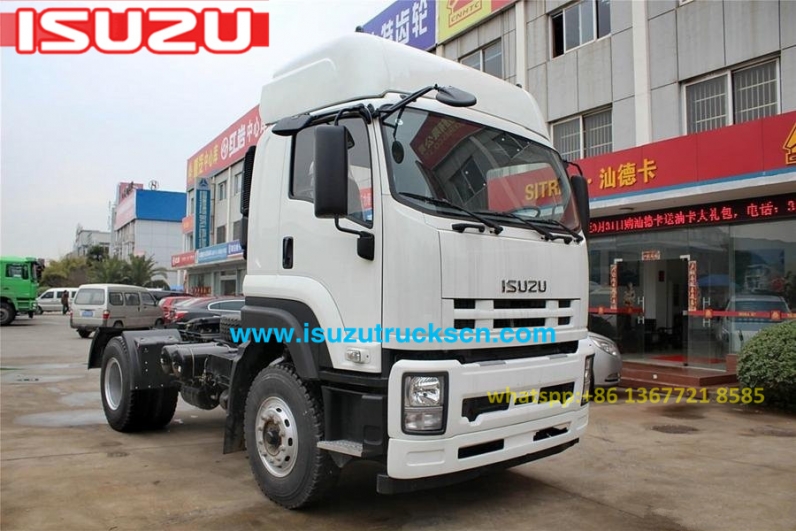

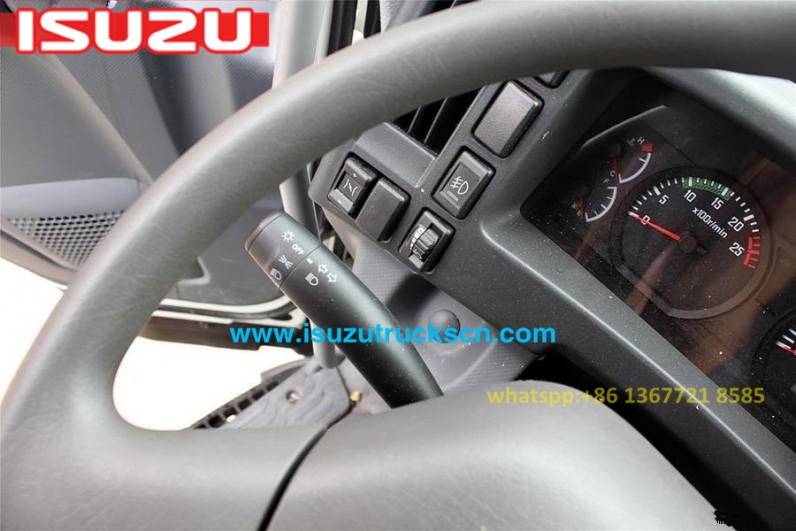

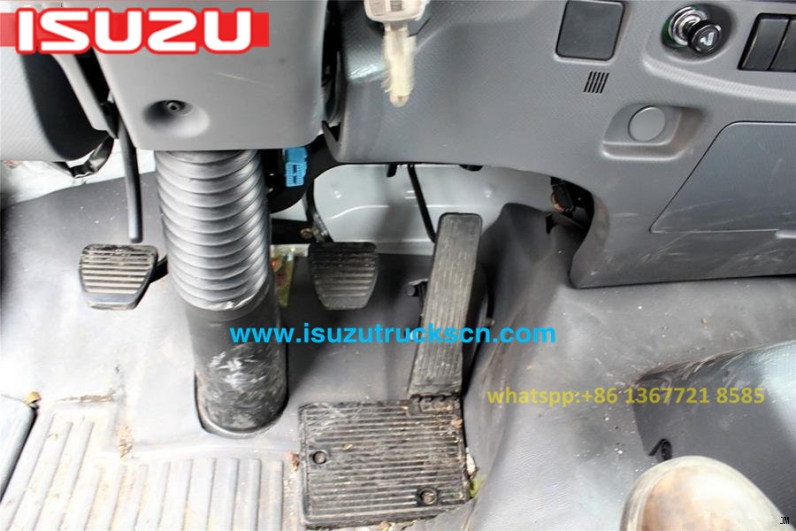

ISUZU brand truck tractor head 6x4 tractor truck low price

Details



GXR ISUZU 4x2 350HP Tractor Head Trucks

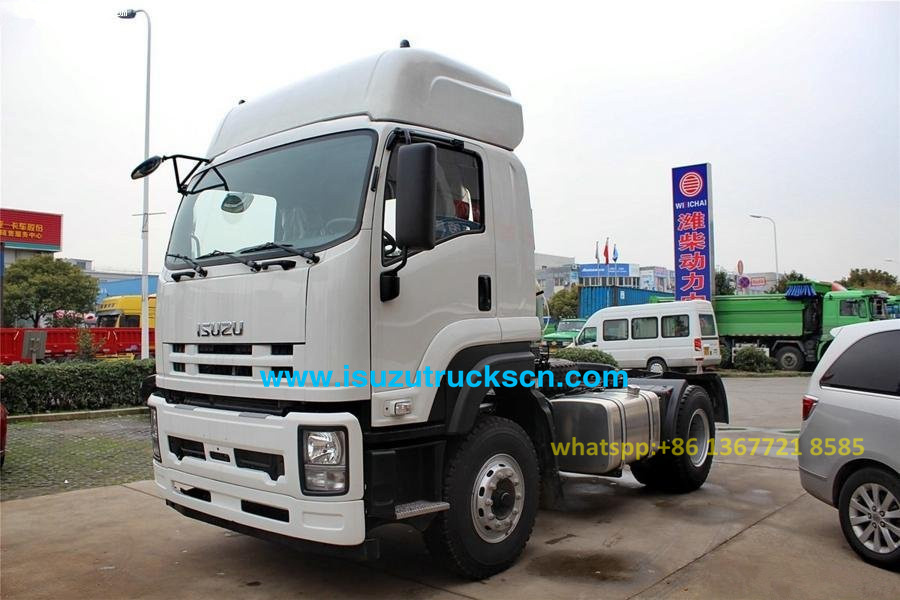

  6wheels ISUZU tractor head/ tractor truck/ tractor/prime mover for sale

Isuzu Prime Mover Truck Tractor Unit

Isuzu Truck tractor unit is an articulated vehicle composed of a towing engine or tractor and a trailer that carries the freight. The tractor and trailer are detachable, that is, the tractor can be used to haul other trailers, or vice versa. According to connection type of tractor and trailer, there are full trailer and semi trailer. A full trailer is a trailer that is supported by front and rear axles and pulled by a drawbar. A semi trailer is a trailer that has no front axle and is supported by a road tractor.



Key further of 350HP Isuzu VC46 Prime Mover

1. Excellent Isuzu 6UZ1 Surging Power

2. Lightweight and High Strength Frame

3. Style of Great General

4. Working with Great Care

5. Cost-efficient and Worry-free Performance



Main specifications:

Model

PT4250UK46

Driving Type

4x2

Left hand drive

Weight

Kerb Weight (kg)

6450

Max. Fifth Wheel Payload (kg)

15000 kg

Max. Towed Mass (kg)

30000 kg

Overload Range of Gross Vehicle Weight (kg)

40000 @ complex road

Dimensions (mm)

Wheelbase

3450

Overall Dimension

5790x2490x3580

Front Overhang

1370

Rear Overhang

970

King Pin Diameter

90#

Min. Ground Clearance

285

Cab

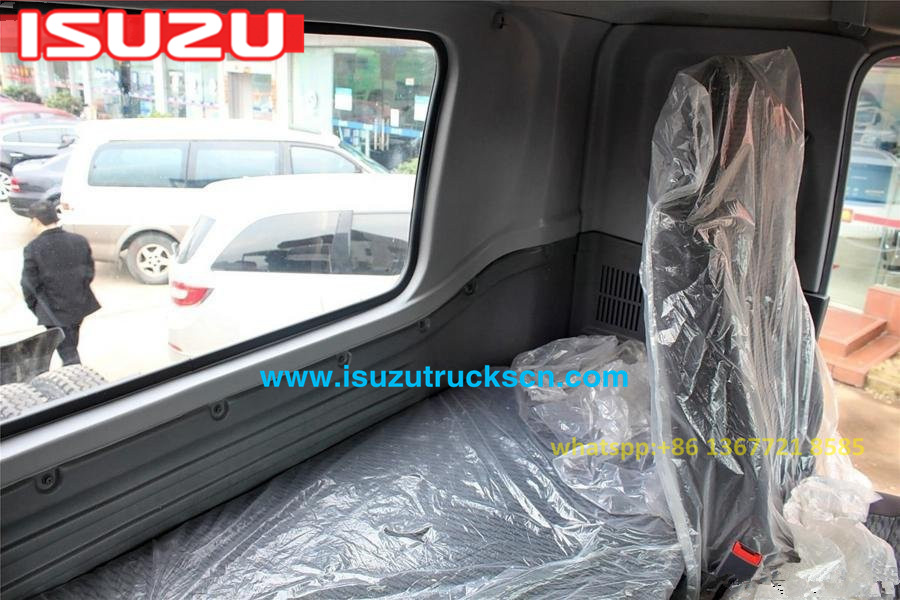

All-steel-welded construction, 3 seats with 1 sleeper

Engine

Model:

6UZ1-TCG40

Cylinder in Line

6

Capacity

9839 ml

Type

Diesel, turbo charged inter-cooled

Max. Power:

257/2000 KW/RPM

Max. Torque

1422/140 N.m/RPM

Gearbox

9JS119TA shift, mechanical type, 9 forward and 1 reverse with

Brakes

Type

2 independent pneumatic circuits, disc/drum

Parking

Mechanic with spring cylinder, rear

Emergency

Combined with parking brake

Engine

Decompression

ABS

Yes

Axles

Type

ISUZU exclusive high-performance axle

Loading

Front 9T

Rear 20T

Tyre

11.00-20

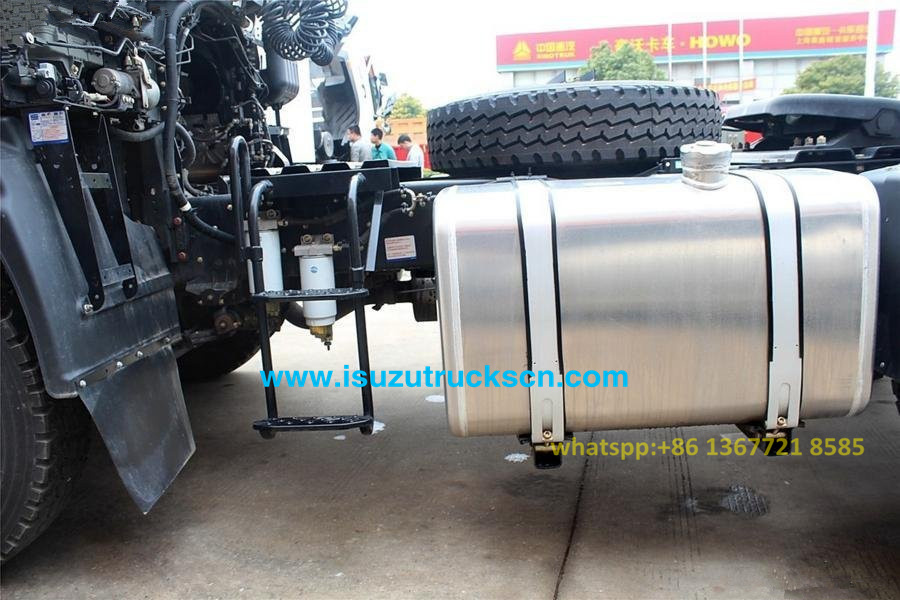

Fuel tank

400 L

Color

White

Max Speed

105 km/h







HOT sale Isuzu Trucks

 Isuzu Fuel Tank Truck Excellent Quality for Africa Market  8000L ISUZU NPR refueling tanker trucks  Isuzu ELF water fire fighting trucks Isuzu ELF water fire fighting trucks
 Isuzu foam fire vehicle for export  Japan Isuzu water foam fire fighting tender fire engine  Philippines custom made 5tons street cleaning sweeper truck Isuzu  Japan high performance Isuzu sweeping vehicle
 5tons city used garbage compactor truck Isuzu trucks  Japan quality Isuzu rubbish compactor trucks  Customized 5tons Isuzu trucks mounted crane for sale  Africa ghana order Isuzu heavy duty truck with crane
 Japan 16Meters Isuzu Aerial plaftform trucks  Isuzu Water Jetting high pressure truck for sale  Isuzu 3tons flatbed tow wrecker trucks  Customized fuel oil tanker semi trailer made in china

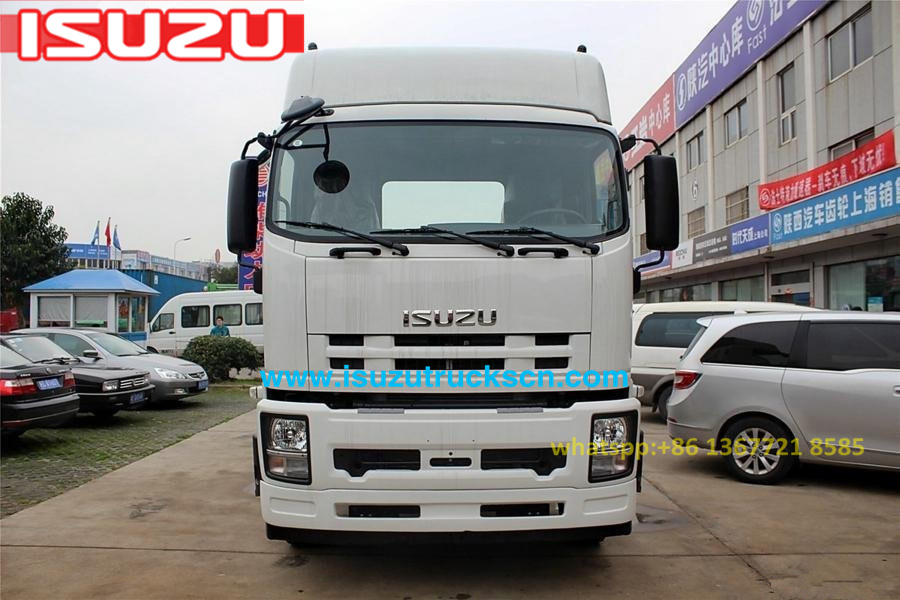

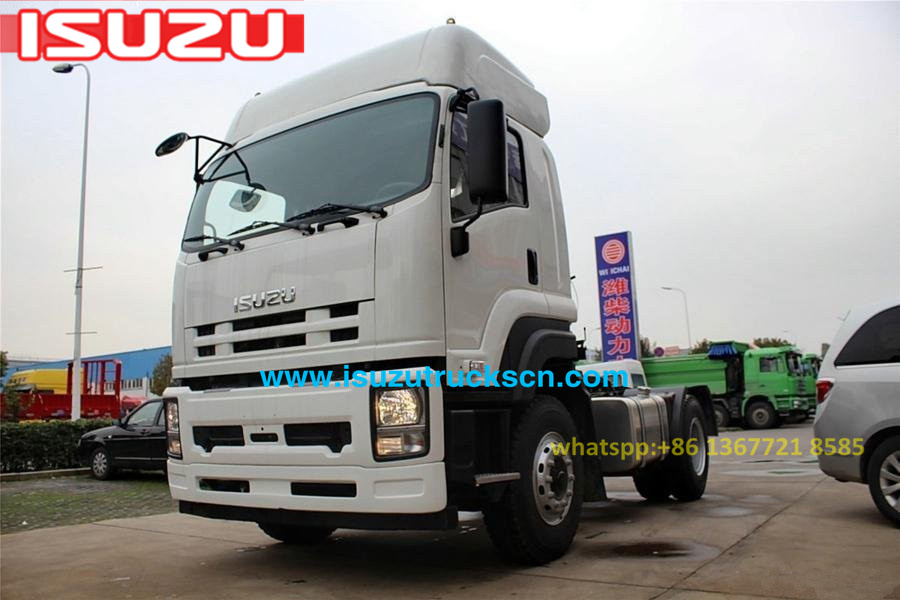

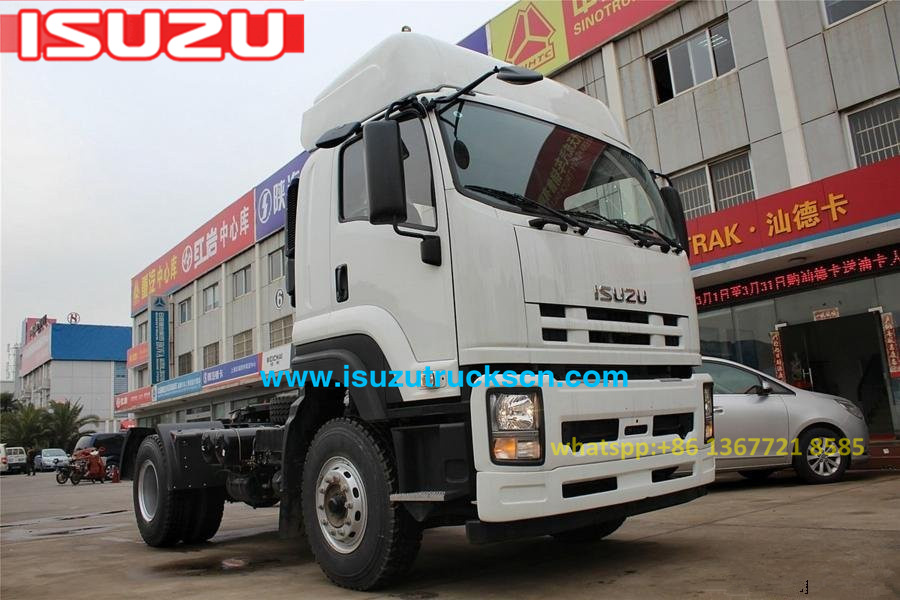

Over view of 4x2 GXR Tractor Truck:



 4x2 350HP GXR ISUZU Tractor Head Trucks  4x2 350HP GXR ISUZU Tractor Head Trucks
 Front right view      Front left view
 4x2 350HP GXR ISUZU Tractor Head Trucks  4x2 350HP GXR ISUZU Tractor Head Trucks

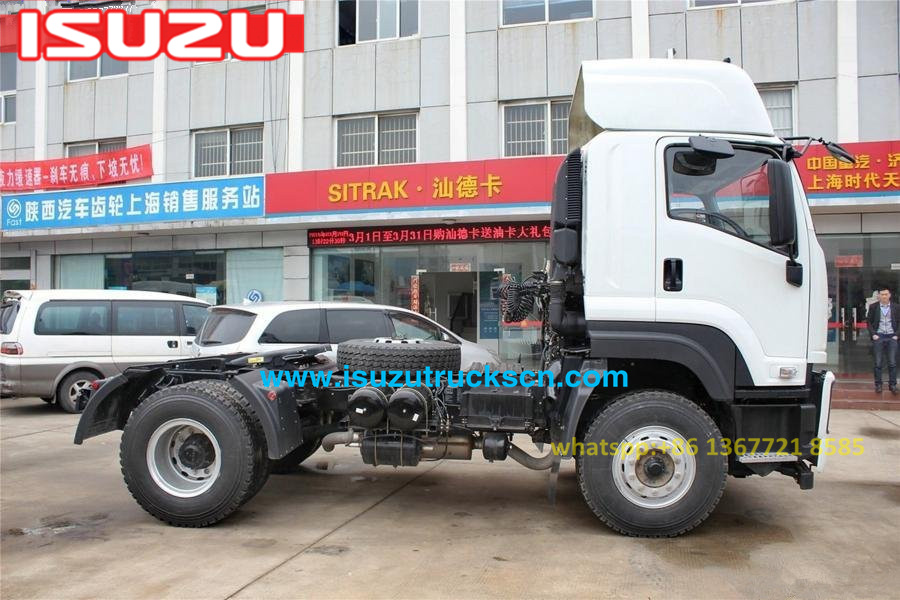

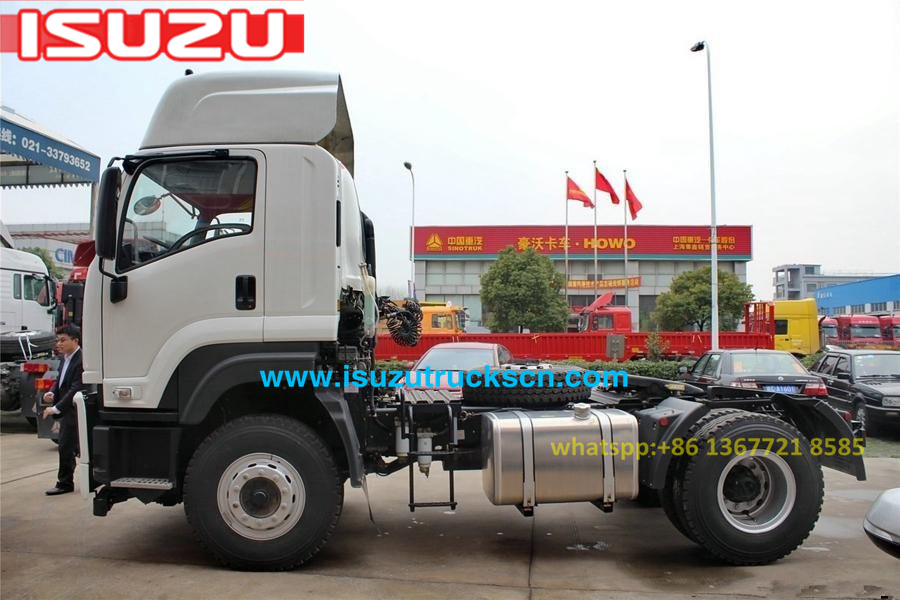

 Right side view      Left side view
 4x2 350HP GXR ISUZU Tractor Head Trucks  4x2 350HP GXR ISUZU Tractor Head Trucks

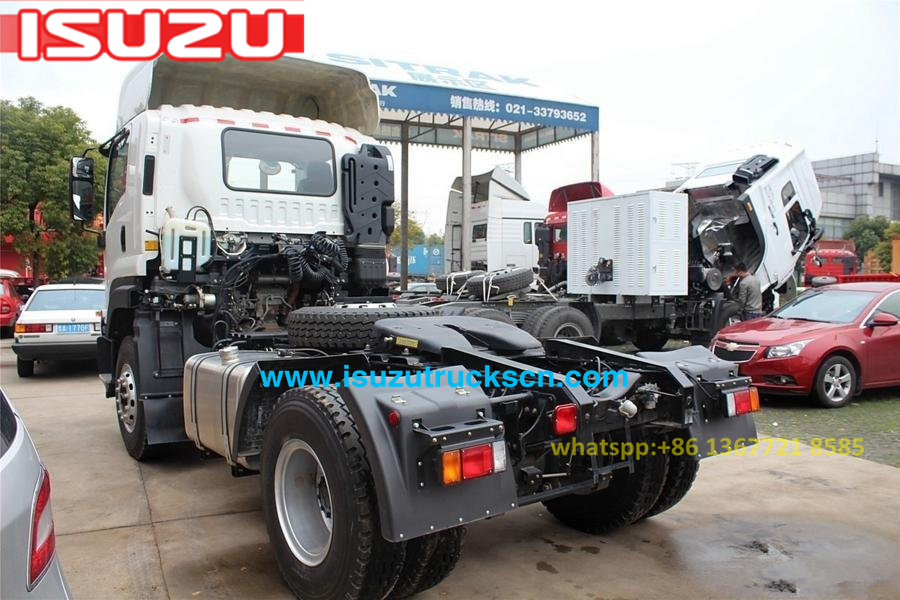

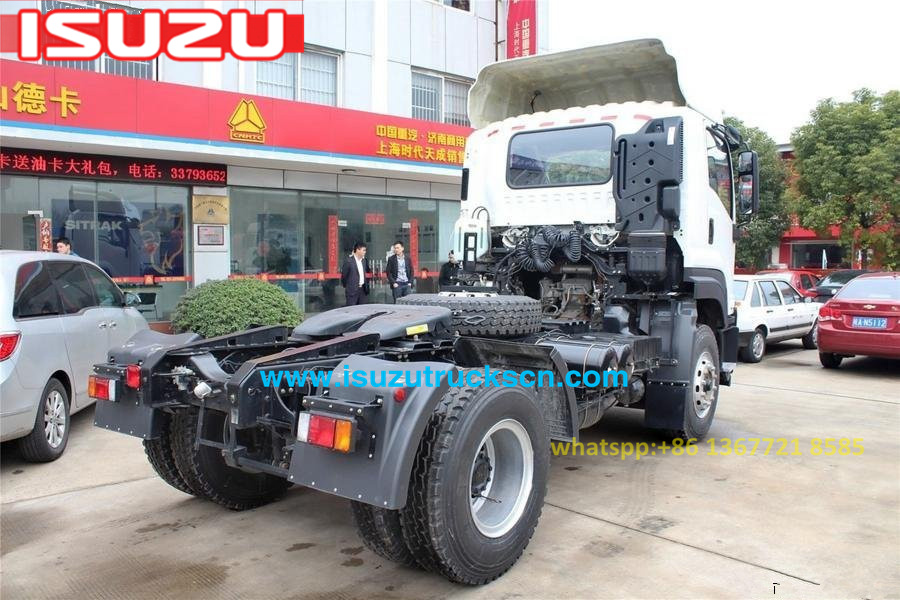

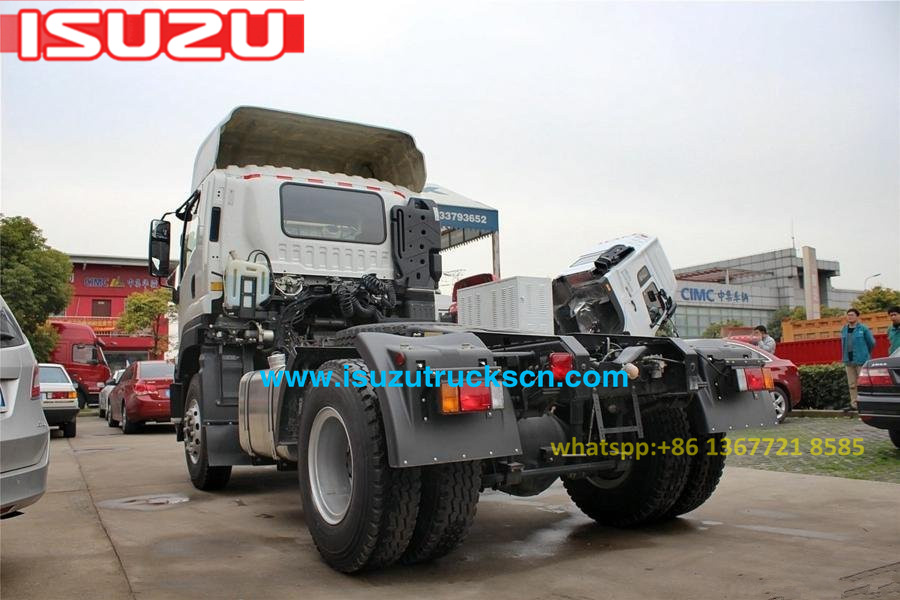

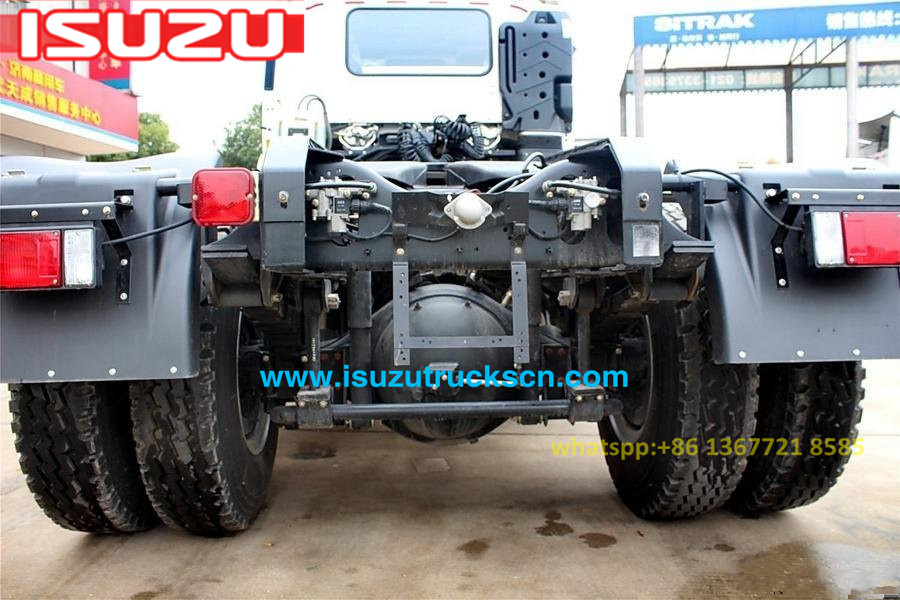

 Rear left view      Rear right view
