6x4 350HP GXZ Prime Mover Tractor ISUZU

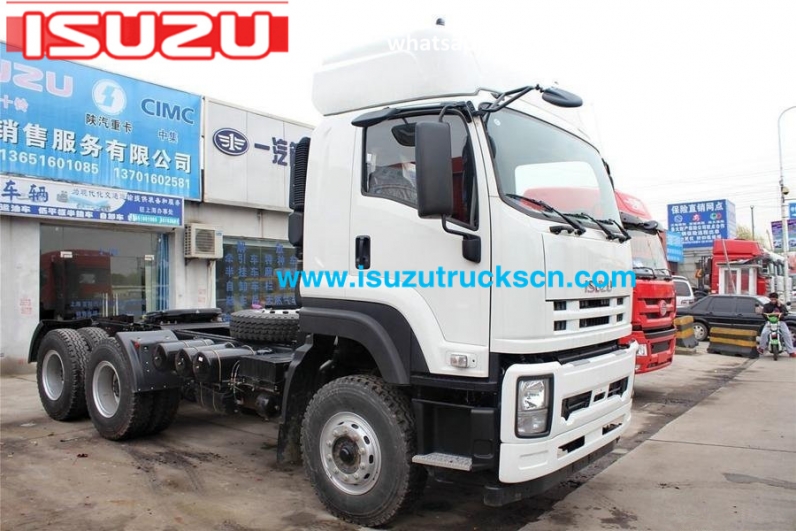

2016 10wheels ISUZU VC46 truck tractor

Details



6x4 350 GXZ Prime Mover Tractor ISUZU



 6x4 350 GXZ Prime Mover Tractor


Isuzu Prime Mover Truck Tractor Unit

Tractor Trucks ISUZU (also called Semi trailer tractor head, tractor head truck, heavy tractor head, Tractors semi, prime mover, Truck-ractor trucks, Japan semi tractor, Hauler tractor truck,Semi tractor head, tractor unit, Prime mover trucks, road tractor, semi truck tractor, Mobile tractor unit, etc.) is a specialized towing engine that provides motive power for hauling a towed or trailered load.


Isuzu Truck tractor unit is an articulated vehicle composed of a towing engine or tractor and a trailer that carries the freight. The tractor and trailer are detachable, that is, the tractor can be used to haul other trailers, or vice versa. According to connection type of tractor and trailer, there are full trailer and semi trailer. A full trailer is a trailer that is supported by front and rear axles and pulled by a drawbar. A semi trailer is a trailer that has no front axle and is supported by a road tractor.



Key further of Isuzu VC46 Prime Mover

1. Excellent Isuzu 6UZ1 Surging Power

2. Lightweight and High Strength Frame

3. Style of Great General

4. Working with Great Care

5. Cost-efficient and Worry-free Performance



Main specifications:

Model

PT4250UK46

Driving Type

6x4

Left hand drive

Weight

Kerb Weight (kg)

8200

Max. Fifth Wheel Payload (kg)

15000

Max. Towed Mass (kg)

45000

Overload Range of Gross Vehicle Weight (kg)

55000 @ complex road

Dimensions (mm)

Wheelbase

3425+1300

Overall Dimension

6775x2490x3580

Front Overhang

1370

Rear Overhang

680

King Pin Diameter

90#

Min. Ground Clearance

285

Cab

All-steel-welded construction, 3 seats with 1 sleeper

Engine

Model:

6UZ1-TCG40

Cylinder in Line

6

Capacity

9839 ml

Type

Diesel, turbo charged inter-cooled

Max. Power:

257/2000 KW/RPM

Max. Torque

1422/140 N.m/RPM

Gearbox

9JS119TA 9-shift, mechanical type, 9 forward and 1 reverse with

Brakes

Type

2 independent pneumatic circuits, disc/drum

Parking

Mechanic with spring cylinder, rear

Emergency

Combined with parking brake

Engine

Decompression

ABS

Yes

Axles

Type

ISUZU exclusive high-performance axle

Loading

Front 9T

Rear 20T+20T

Tyre

11.00-20

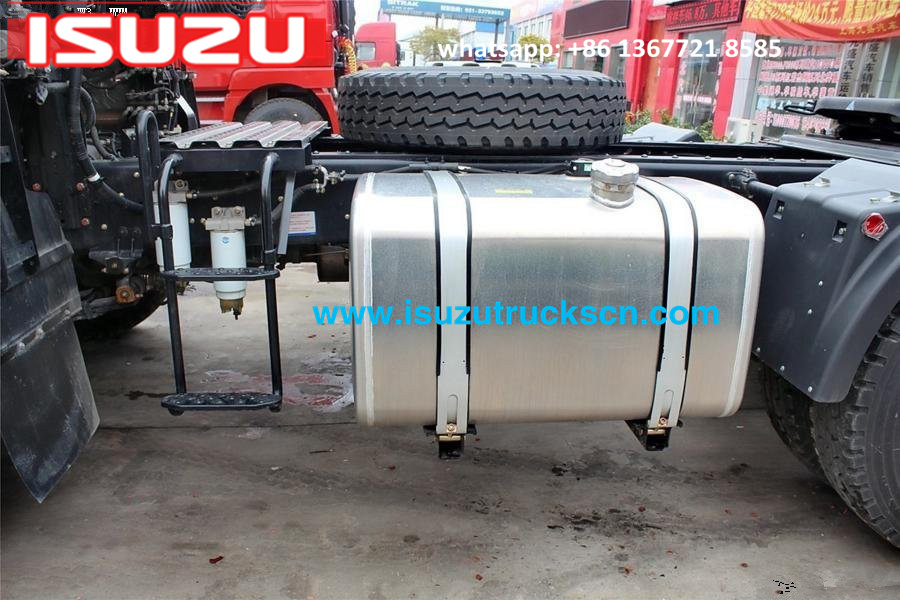

Fuel tank

400 L

Color

White

Max Speed

105 km/h







Over view of the 6x4 350 GXZ Prime Mover Tractor:

 6x4 350 GXZ Prime Mover Tractor 6x4 350 GXZ Prime Mover Tractor ISUZU

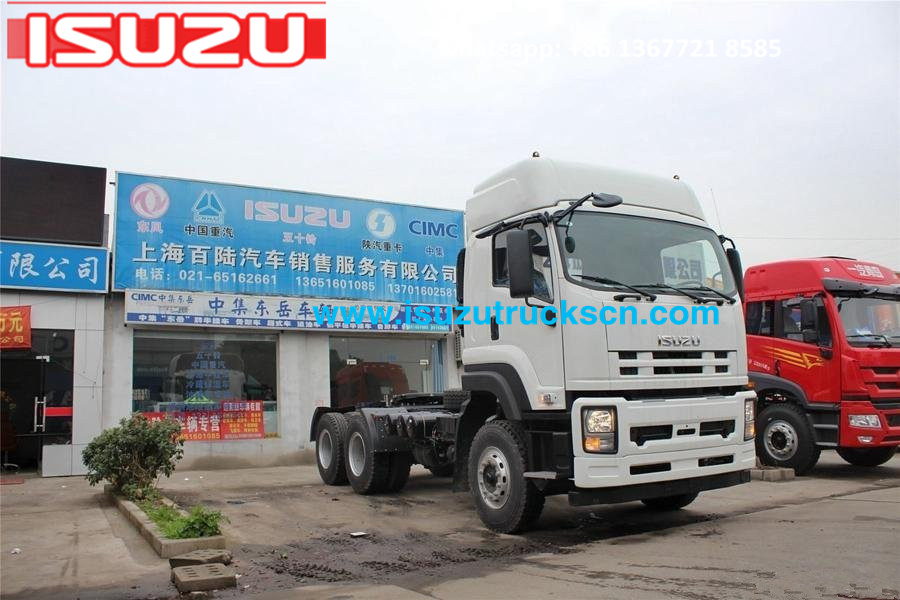

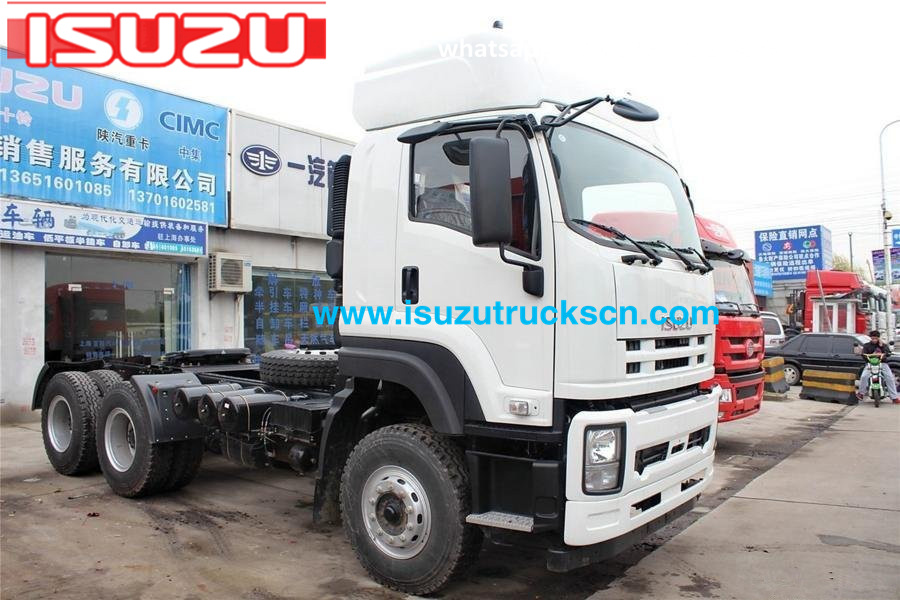

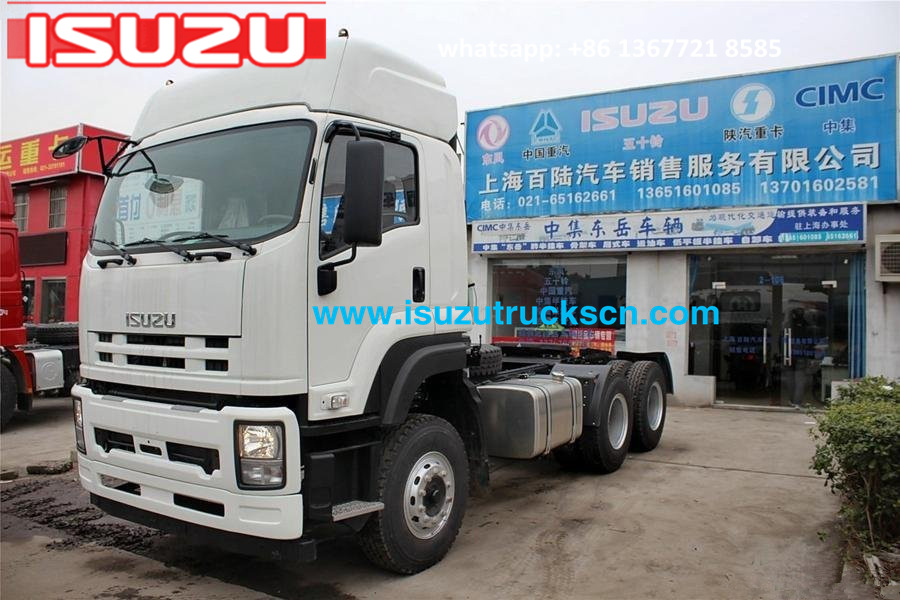

 Front left view      Front right view

6x4 350 GXZ Prime Mover Tractor ISUZU
 6x4 350 GXZ Prime Mover Tractor ISUZU

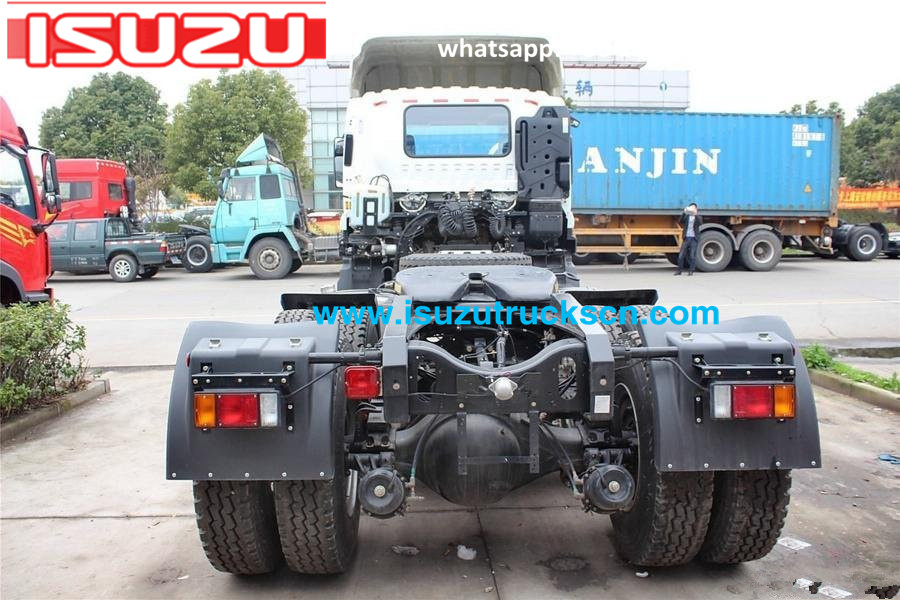

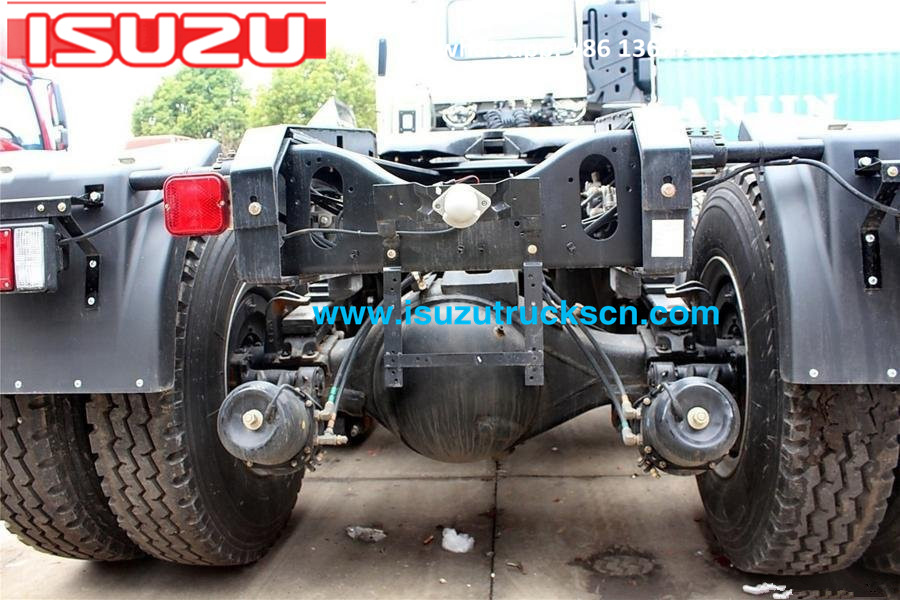

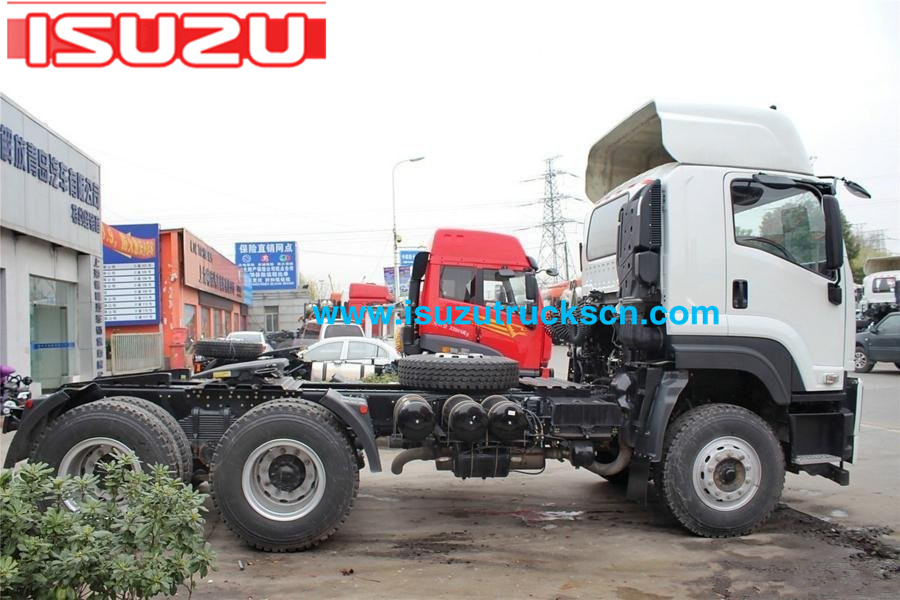

 Right side view      Rear view
 6x4 350 GXZ Prime Mover Tractor ISUZU  6x4 350 GXZ Prime Mover Tractor ISUZU

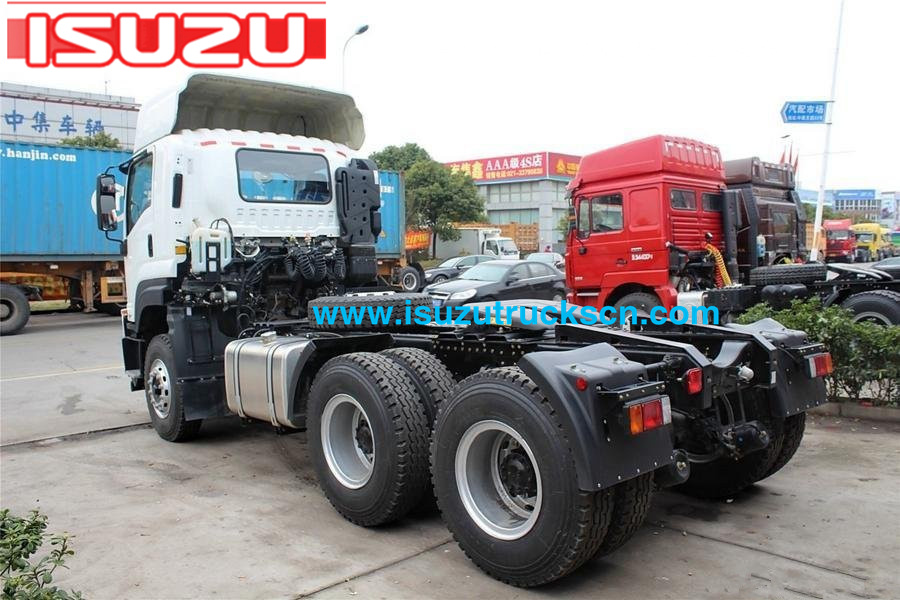

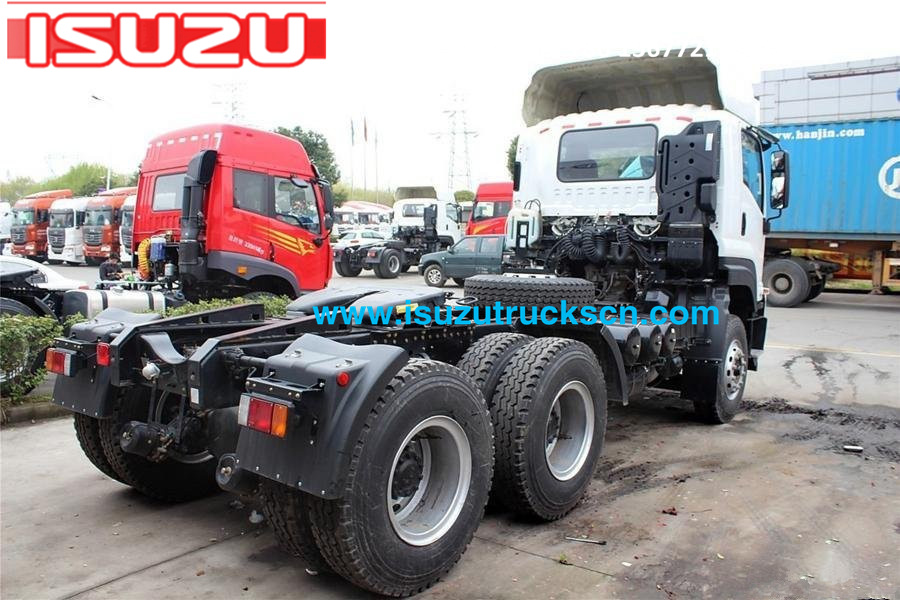

 Rear left view      Rear right view
