Work capacity:
6 CBMTruck model:
PT5080GYSEngine power:
120 HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSBRemarks:

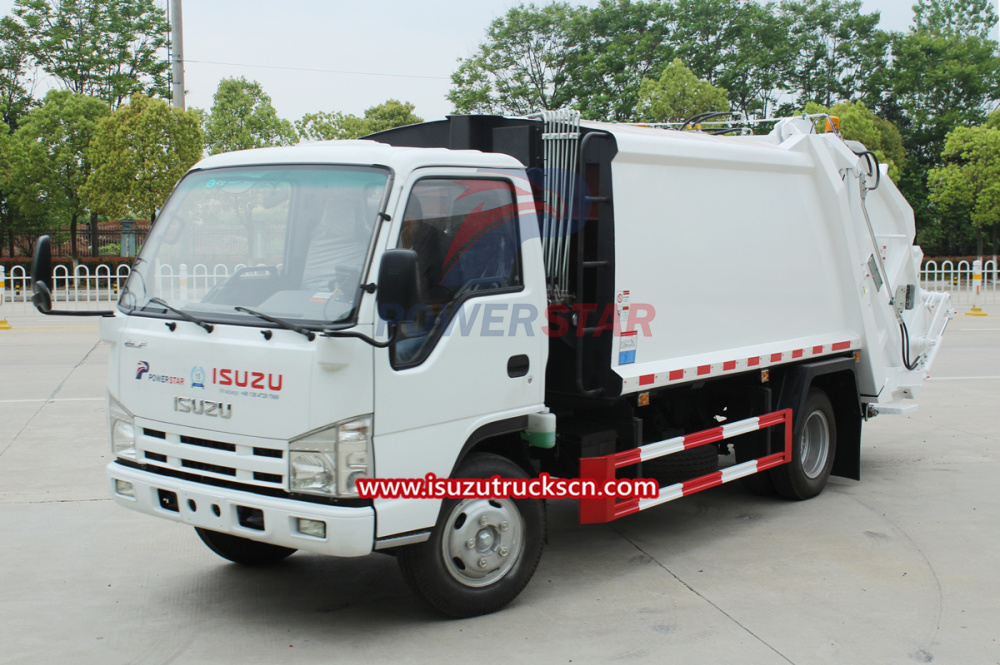

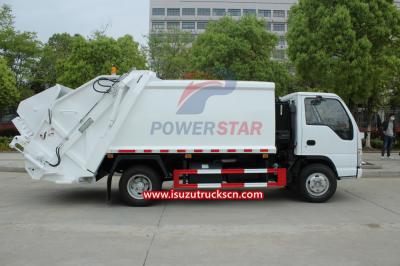

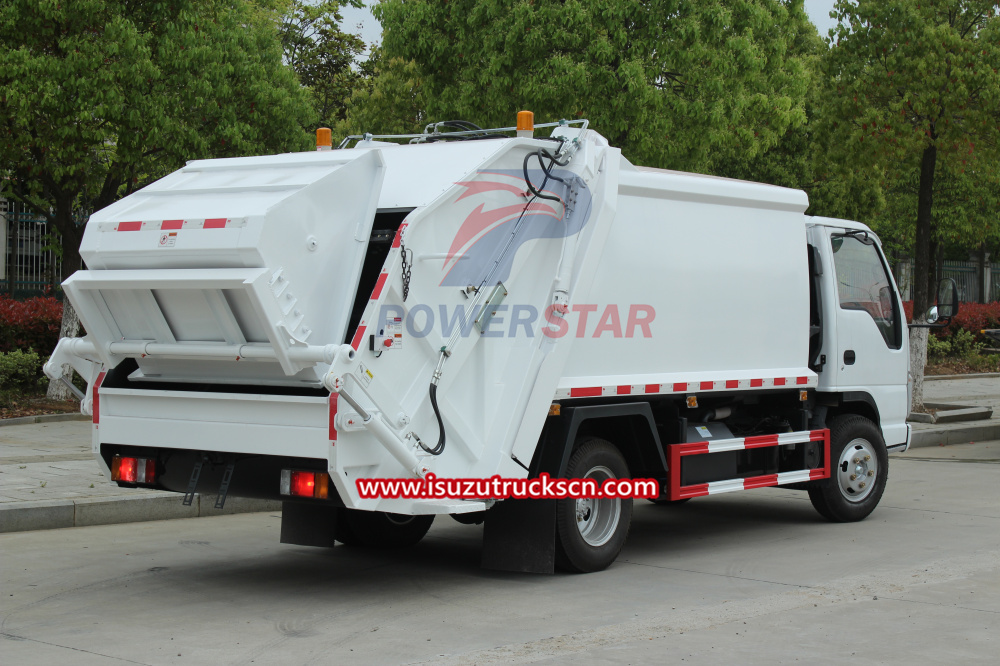

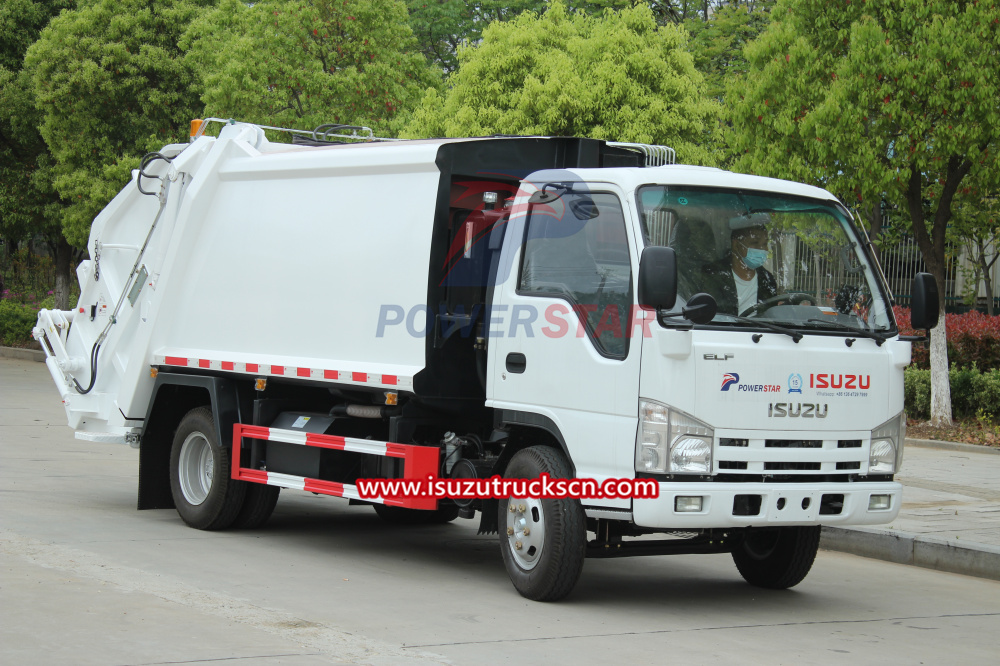

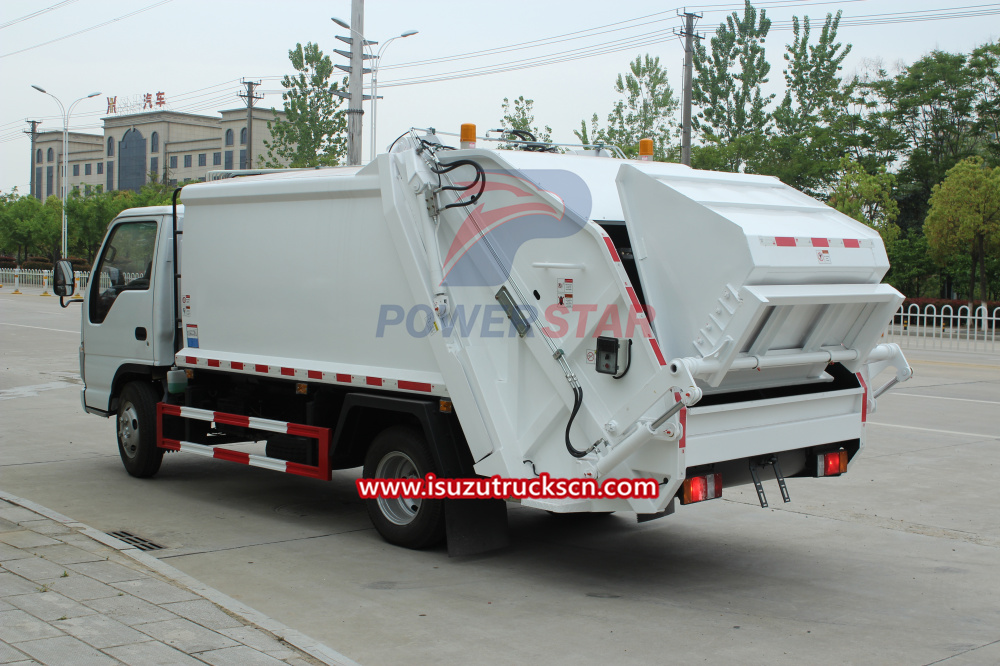

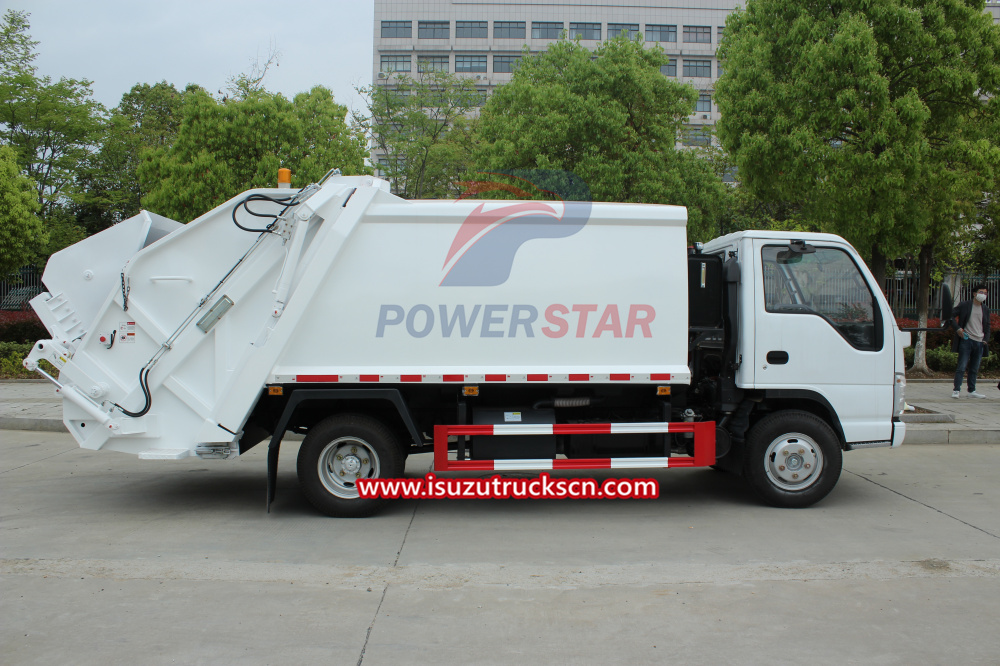

4x4 or Right drive model availableIsuzu 8 yard rear loader mainly uses the special devices such as the garbage carriage, packer, shovel, hydraulic system,to put the garbage into the tank and crush or flatten the garbage.It is convenient, efficient.It has automatic repeated compression function, and peristaltic compression function, and it has high compression ratio, high loading capacity, automation, good sealing and other advantages.
| Mian Technology Parameter | |
| Model Name | Isuzu 100p garbage compactor truck |
| Driving Type | 4×2,left hand drive |
| Color | White,yellow,box can choose |
| Weights | |
| Rated payload weight(kg) | 6000 |
| Curb weight(kg) | 4550 |

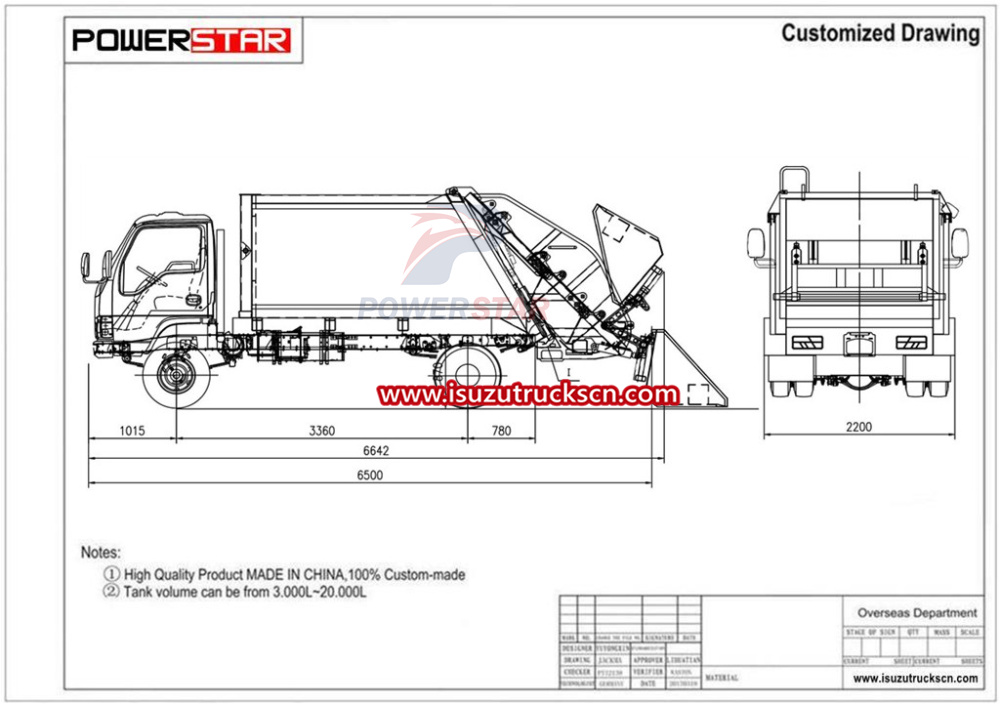

| Dimensions | |
| Wheelbase(mm) | 3815(also can choose 3360mm wheelbase) |
| Overall Dimension(mm) | 6710×1880×2600 |
| Box dimension | 6 m3 |
| Max speed(km/h) | 98 |
| Engine | |
| Engine model | 4KH1-TCG4O(120HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(L) | 2.999L |
| Max. output (kw) | 88kw |
| Emissions standard | Euro 5 |
| Drive Line | |
| Transmission | MSB 5 speeds ,5 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Cab | |
| Air container | Have |
| Standard configuration | Sound,,parking sensors |
| Axle | |
| Front axle | 2.5tons |
| Rear axle | 4.8 tons |
| Tire specification | |
| Tire specification | 7.00-16 standard tire,6 tires+1 spare tire |
| 6m3 garbage compactor truck | |
| Box valume | 6m3 |
| Box material | Side 4mm,bottom 5mm |
| Sewage tanker | 200L |
| Fill volume | 1.2cbm |
| Loading time | 8-10S |
| The cycle time of the loading | 50-60S/per turn |
| Unloading model | Dump |
| Unloading time | 30-40S |

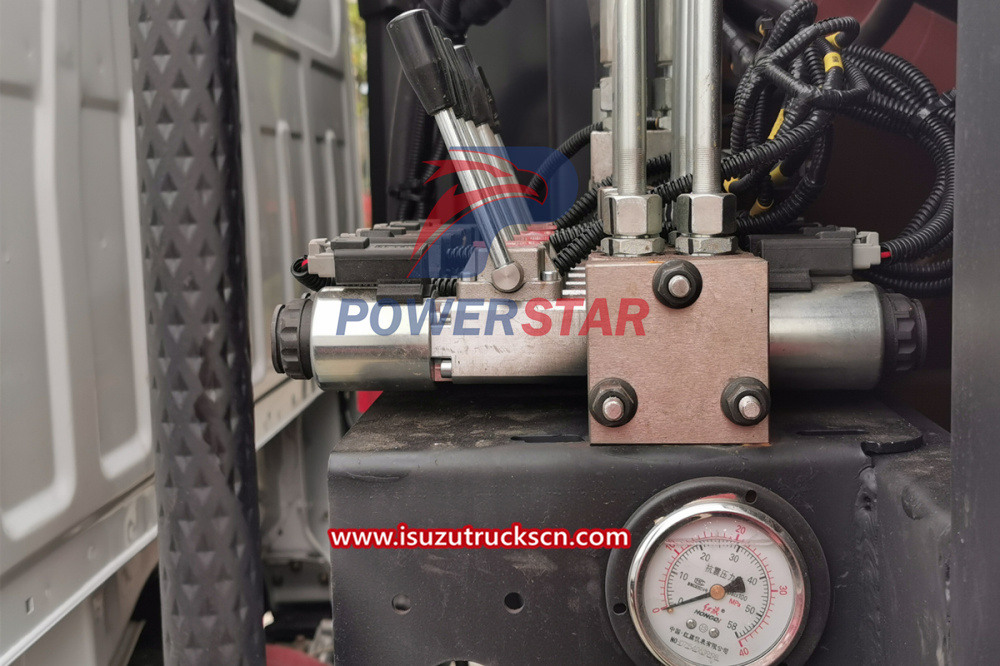

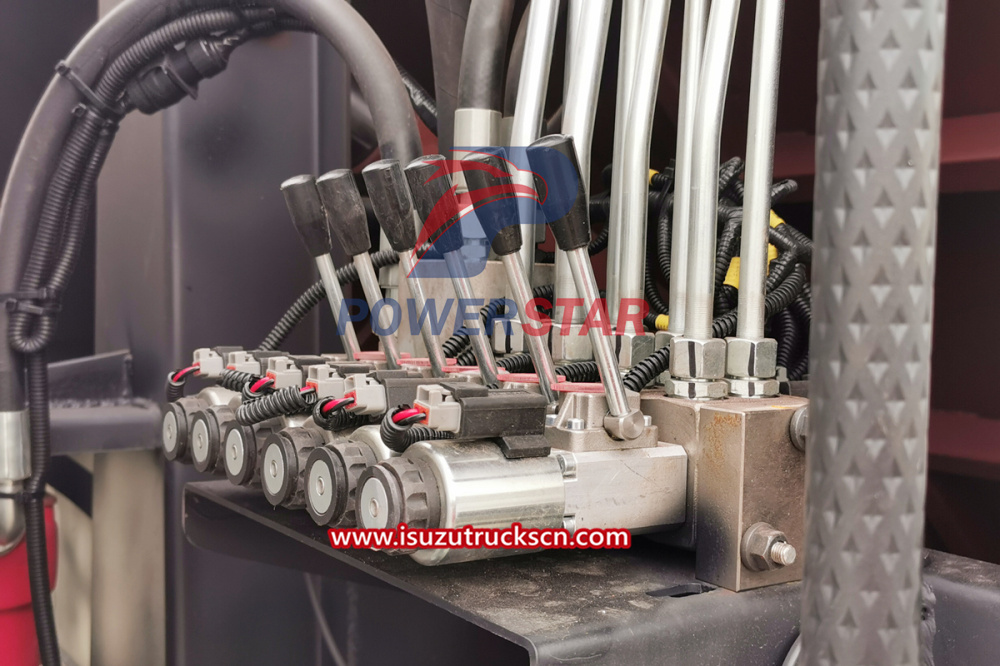

| Hydraulic system pressure | 16Mpa |
Operational:
Compactor garbage truck loading volume: 4-22m3
Euro standard : Euro 4-6
Operation system: PLC or CAN

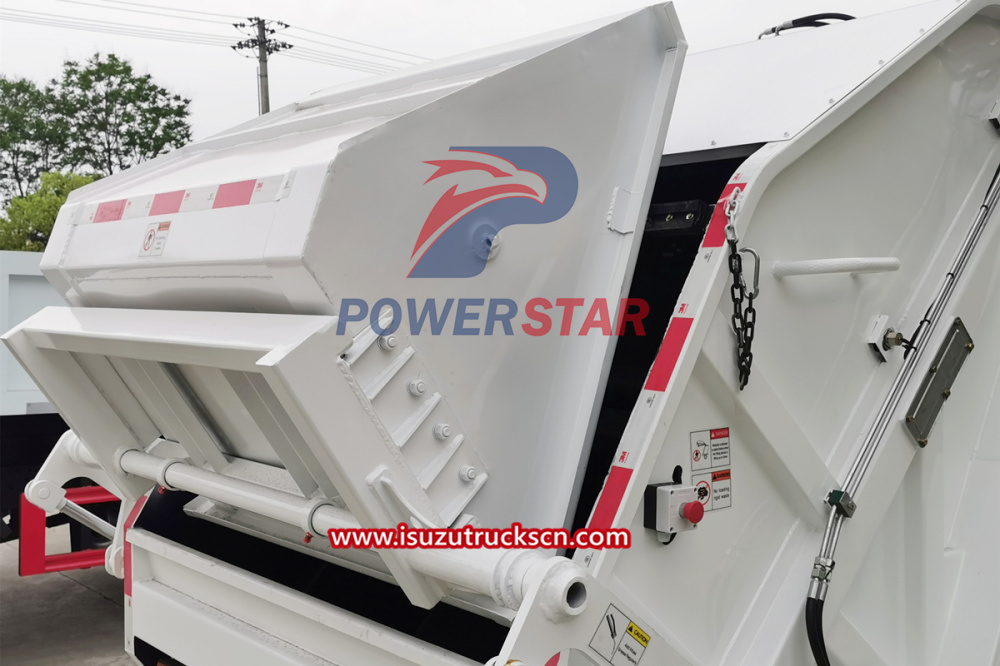

Tail turnover mechanism: dustpan hopper, trash bin, Fully sealed bucket.
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service
4.we have strong professional design team
5.promptly delivery. any order is welcome.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

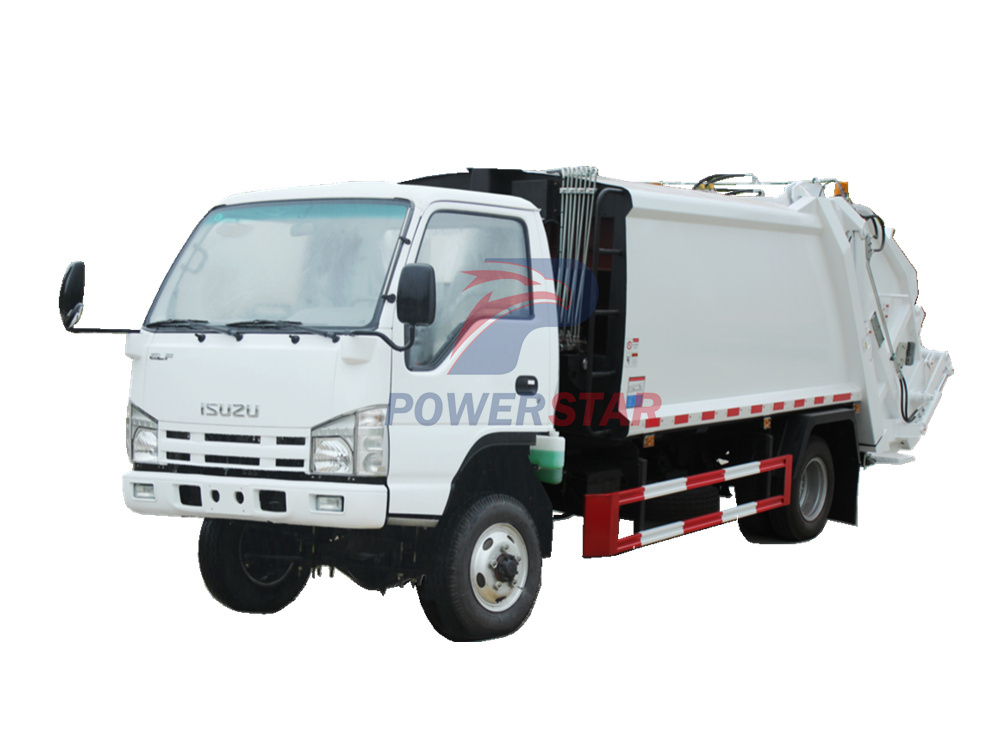

Brand new ISUZU 6 cubic meters 4x4 garbage compactor truck mounted on ISUZU 4x4 truck chassis, ISUZU LHD 6cbm compactor garbage truck 2 axles wast management truck.Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and reliable. Isuzu 120HP 4x4 truck mounted 6cbm garbage compactor.
