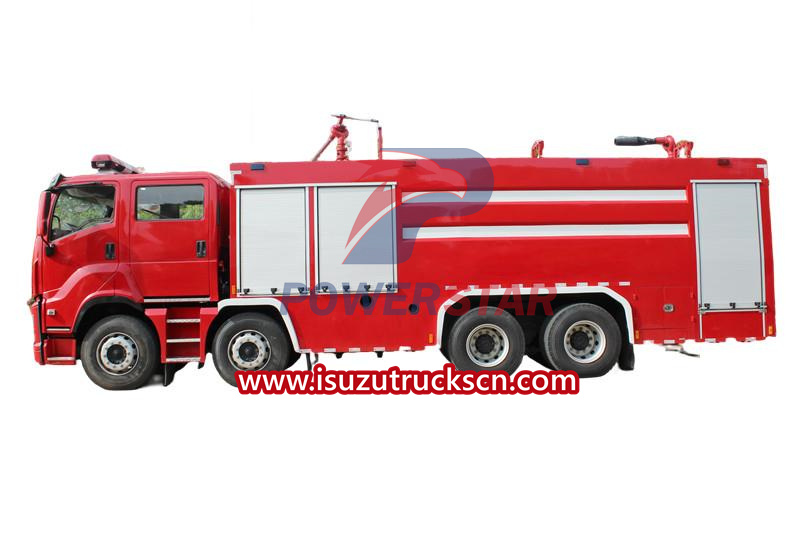

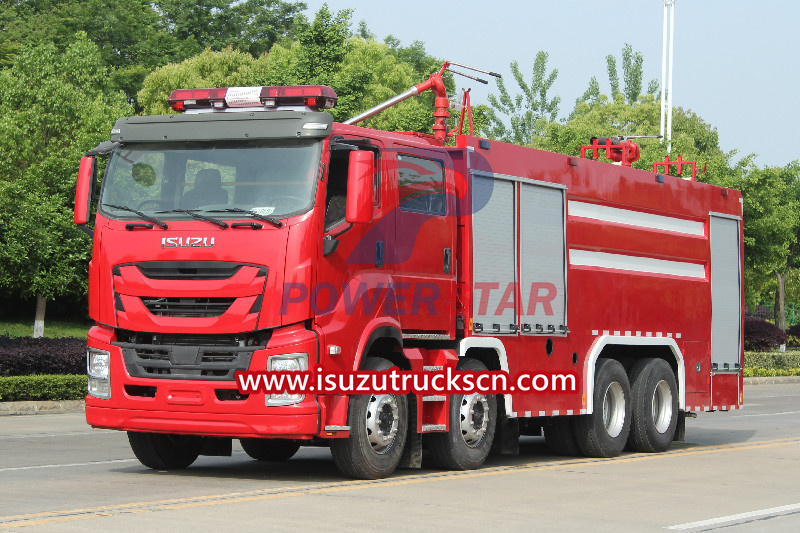

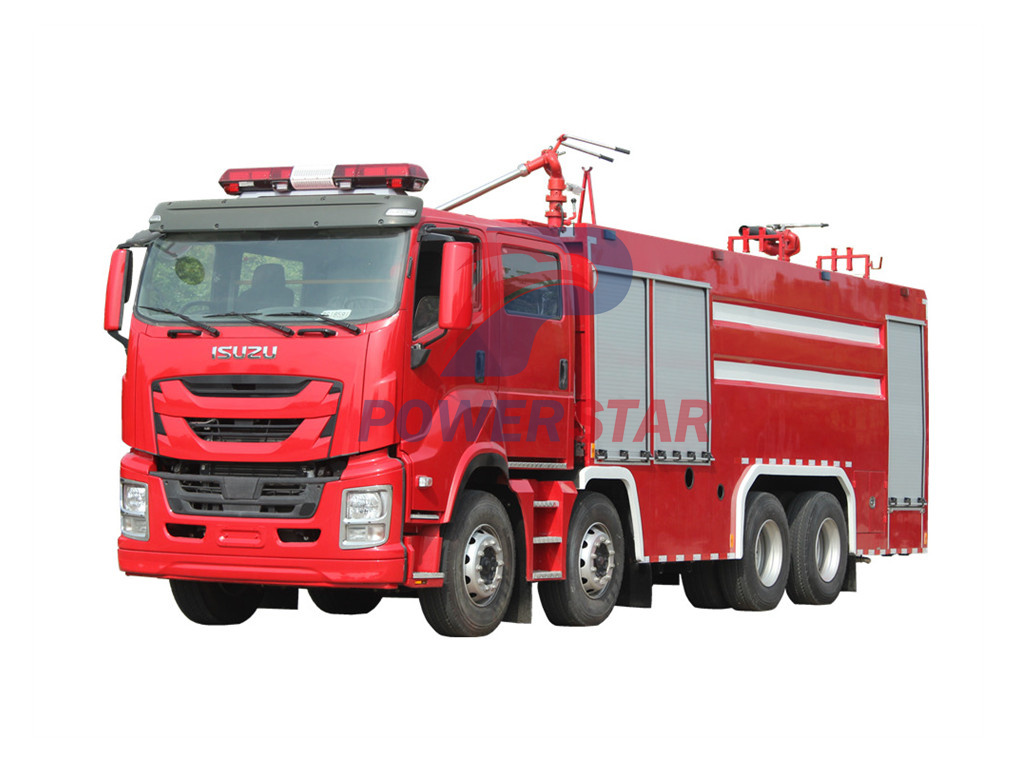

Isuzu airport fire truck

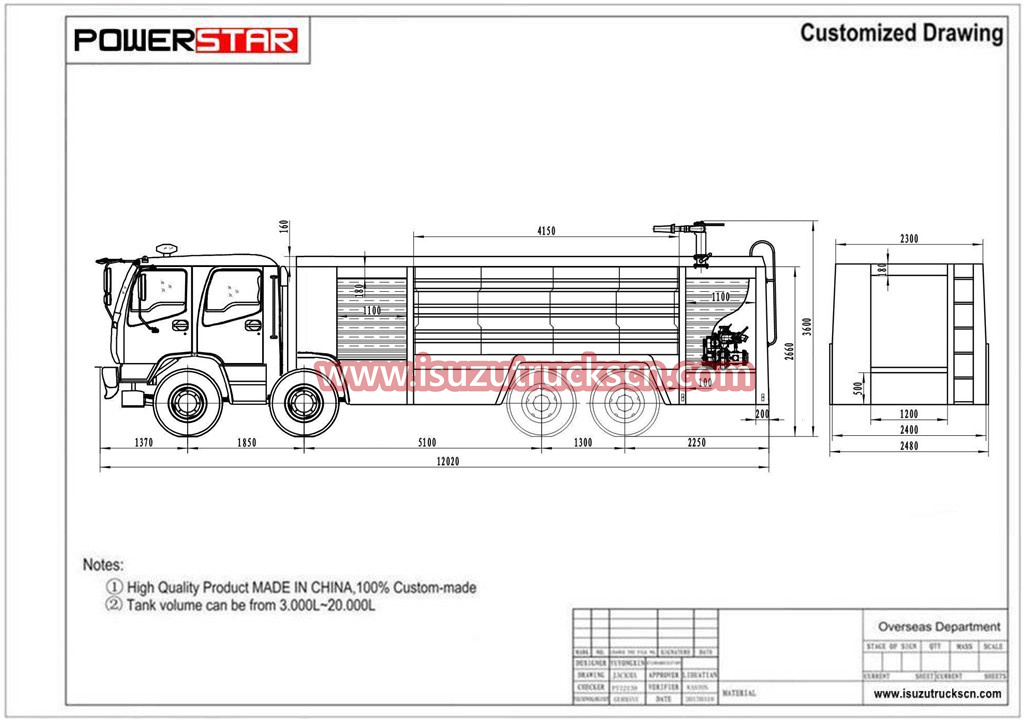

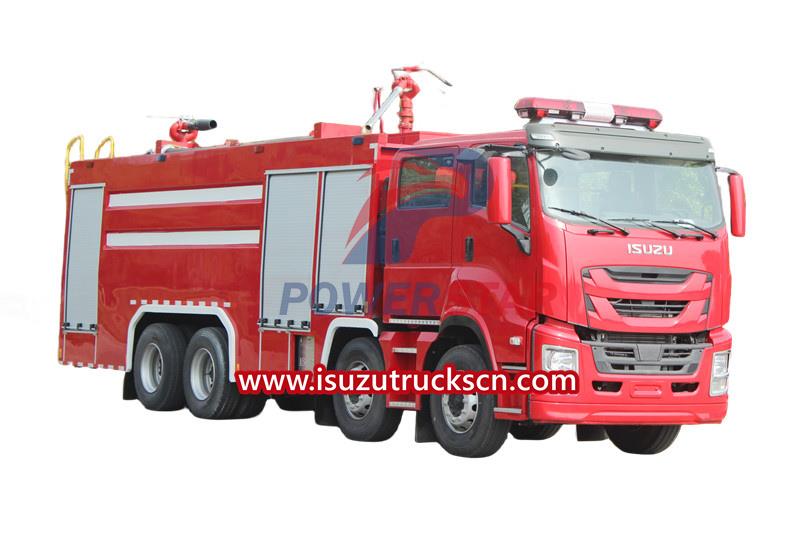

Outside dimensions

11995×2550×3800mm

Maximum total mass

42000kg

Carrier volume

Foam tank 4m3, Dry powder tank 2m3, water tank 10000kg;

Maximum speed

95km/h

Fire pump rated flow

60L/s 1.0MPa

Rated flow of fire monitor

Foam truck: 48L/s 1.0MPa Water tank truck: 60L/s 1.0MPa

Fire gun range

Foam truck: foam ≥50m water ≥55m water tank truck: ≥70m

Specific power

248/19.25=12.88

Approach / departure angle

19°/12°

model

Giga

manufacturer

POWERSTAR TRUCKS INDUSTRY CO., LIMITED

Engine rated power

420hp

engine capacity

15981 cc

Engine emission standards

Euro 5 / 6

Drive form

8×4

Wheelbase

1850+4575+1370mm

Maximum allowable gross weight

19000kg

Minimum turning radius

≤19m

Gearbox

Manual

PTO

Sandwich power take-off

structure

Flat head, four doors, original double row

Number of passengers

2+4 people

Driver position

Left

device

The dashboard of the original car is equipped with a fire control dashboard and a polic e light control box, equipped with
1. an alarm;
2. a power take-off control switch and indicator light;
3. an additional power switch;

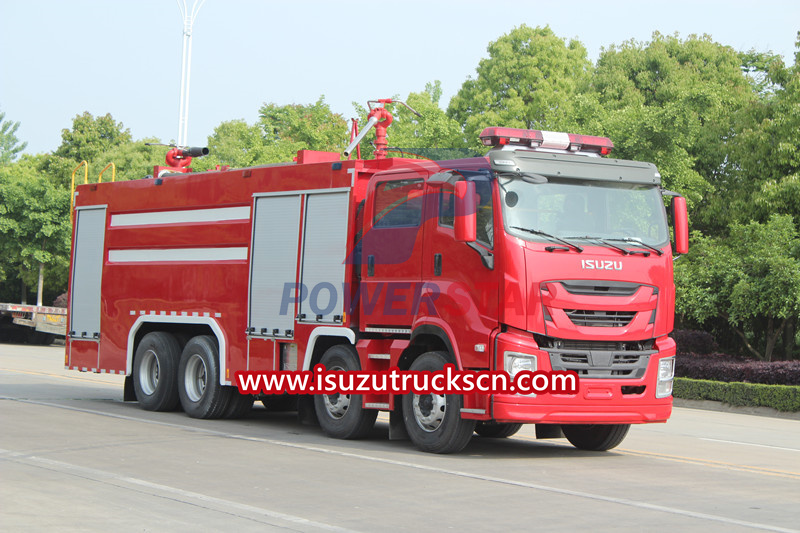

General layout

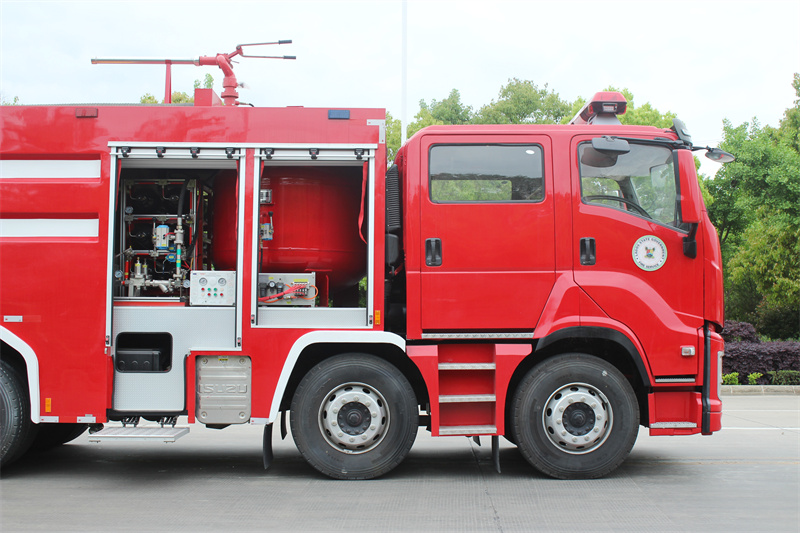

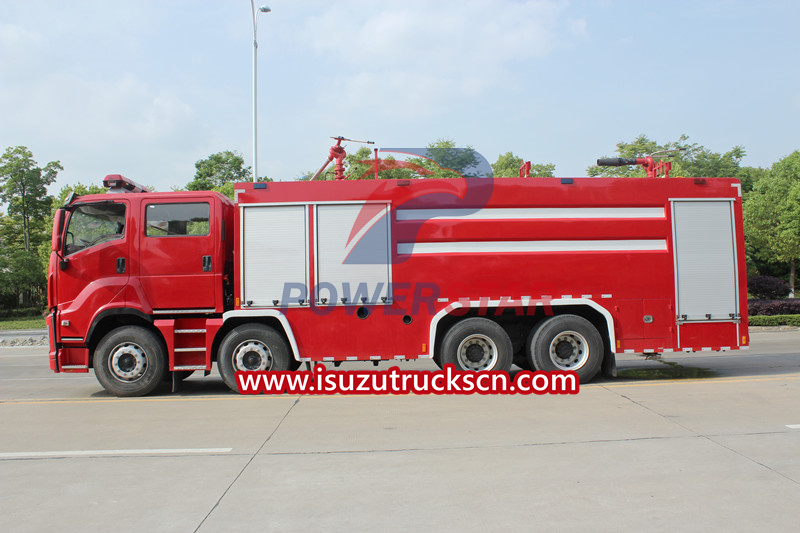

The vehicle consists of two parts: the firefighter's cabin and the body. The body layout is a three-piece structure. The front part is the equipment box, the middle part is the water tank, and the rear part is the pump room. The tank body is a parallelepiped box-type tank.

structure

The main frame structure is welded with high-quality square tubes, and the outer decorative plate is welded with carbon steel plates. The roof is non-slip and can be walked on. (Aluminum alloy square tube welding can be used according to user needs)

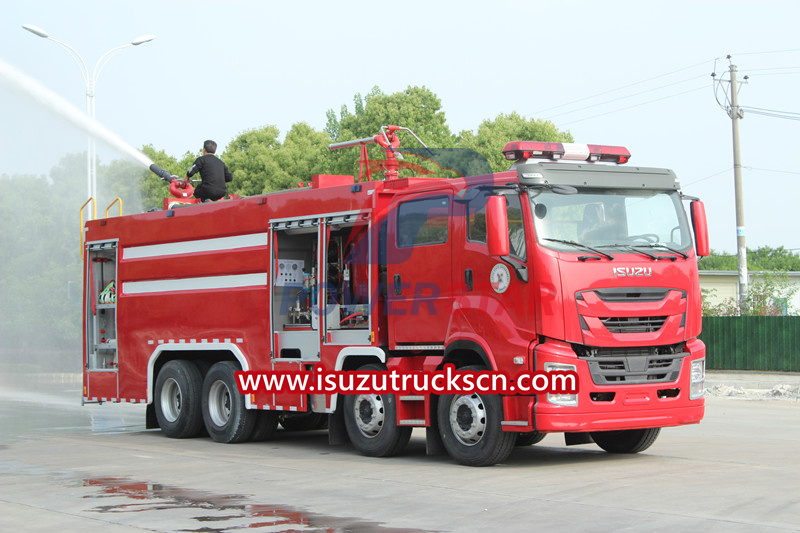

Equipment box

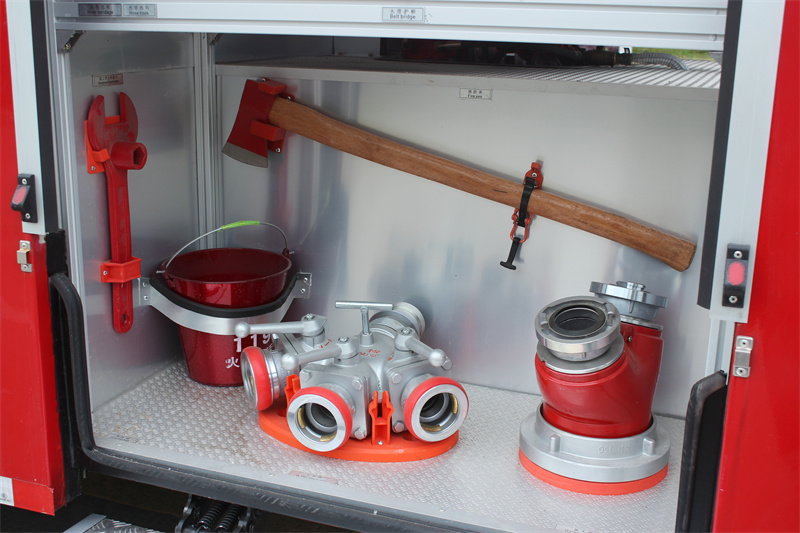

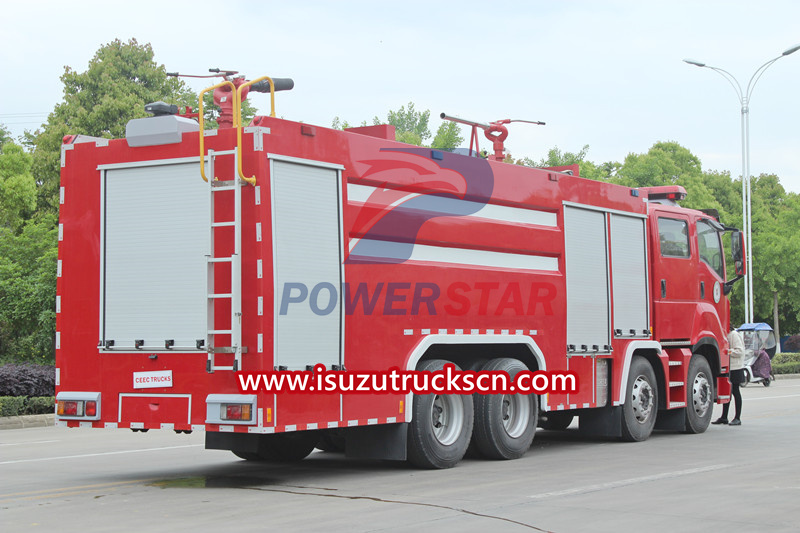

The equipment box is located at the rear of the passenger compartment, with aluminum alloy rolling doors on both sides and lighting lamps inside. Dry powder tank, nitrogen bottle and dry powder system are installed in the equipment box.

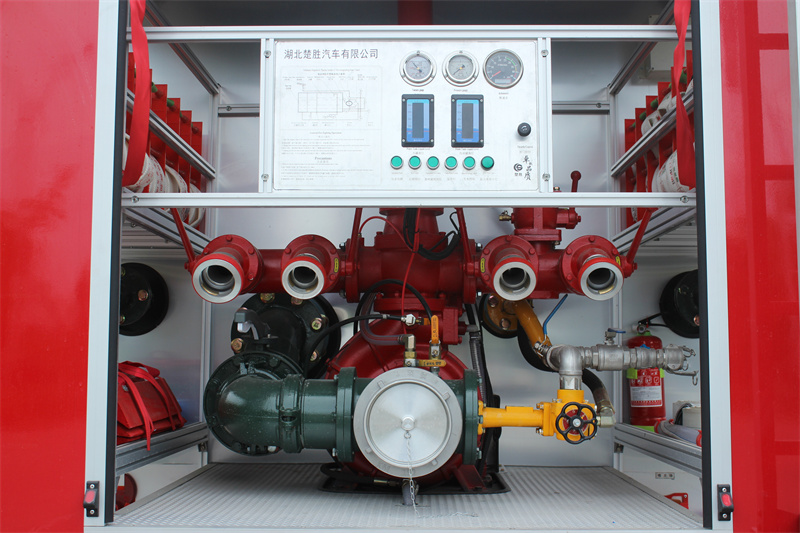

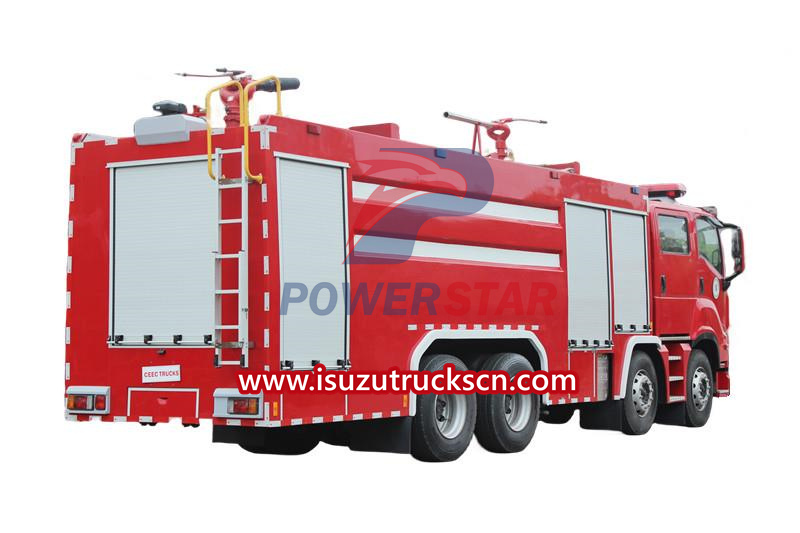

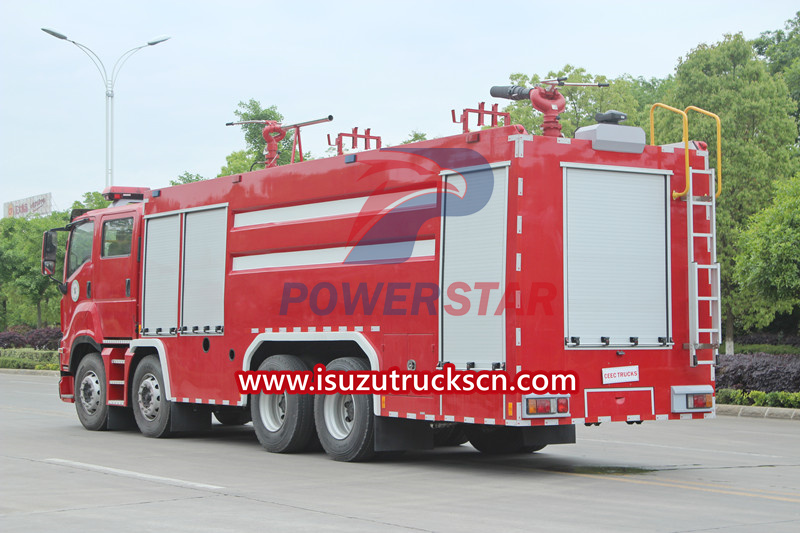

Pump room

The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutters on both sides and the back, with lights inside. Some common equipment can be placed on both sides of the pump room; suction pipes and fire ladder brackets are placed on the top of the car box.

Insulation position: Install fuel heater (optional according to customer needs)

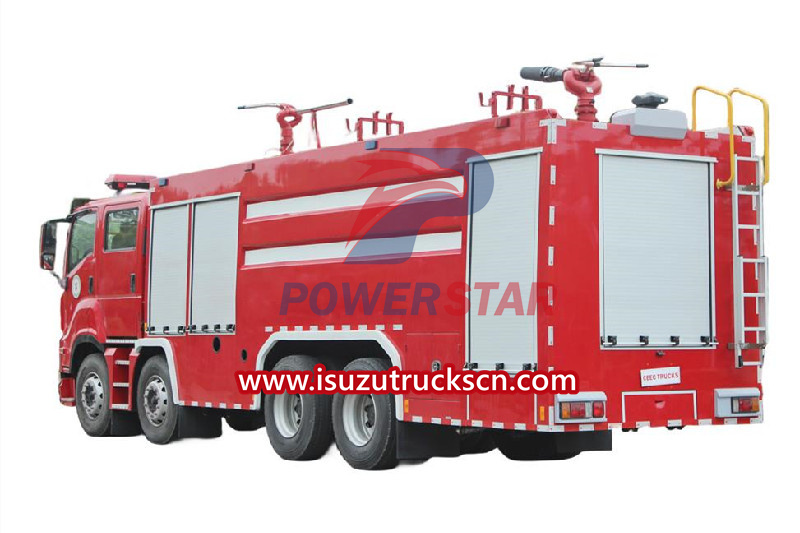

Ladder and handle

The rear ladder is made of aluminum alloy two-section flip ladder. It is used when it is not more than 350mm from the ground. The handle of the car is made of non-slip round steel pipe with a groove on the surface and the surface is sprayed with plastic.

capacity

10000L

Material

High-quality carbon steel with a thickness of 5mm (can be made of stainless steel and PP according to user needs)

Tank fixing

Flexible connection with chassis frame

Tank settings

Manhole: One DN460 manhole, with quick lock/open device

Overflow port: one DN65 overflow port

Remaining water outlet: set a DN40 water tank to discharge remaining water outlet, equipped with ball valve

Water injection port: connect a DN80 interface on the left and right sides of the water tank

Water inlet and outlet: one water tank to the water inlet pipe of the pump, DN150 valve, which can be controlled pneumatically and manually, one water pump to the water filling pipe of the tank, DN65 valve, which can be pneumatically and manually controlled

model

CB20.10/30.60 type medium and low pressure vehicle fire pump

form

Medium and low pressure centrifugal

Limited Data

60L/s @1.0MPa 30L/s @2.0MPa

Rated outlet pressure

1.0MPa

Maximum suction depth

7m

Water diversion device

Built-in sliding vane pump

Diversion time

Maximum suction depth≤50s

Pipe material

High-quality seamless steel pipe

Suction pipe

There is a DN150 suction port on the back side of the pump room

Water injection line

There is a DN80 water injection port on the left and right sides of the water tank, and a DN65 water pump is installed in the pump room to inject water into the tank

Outlet pipe

There are 2 DN65 and 1 DN80 water outlets on the left and right sides of the pump room, with shut-off valve and ampoule

Cooling water pipeline

Cooling water pipeline and control valve with cooling power take-off

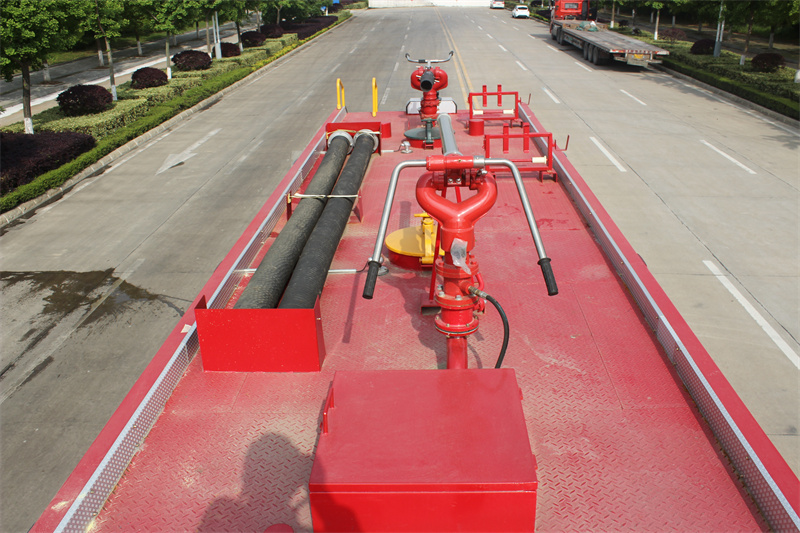

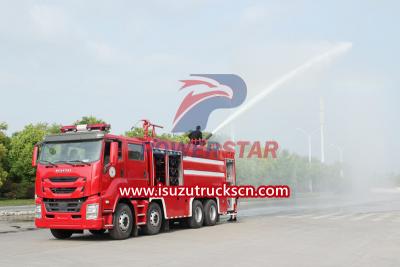

model

PL48

manufacturer

Chengdu West Fire Machinery Co., Ltd.

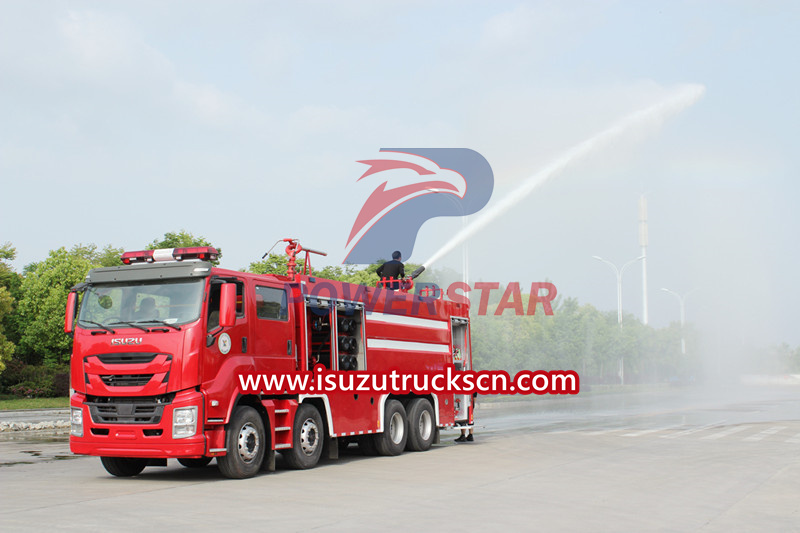

Rotation angle

360° horizontal rotation

Maximum elevation/depression angle

Depression angle ≤-15°, elevation angle ≥+45°

flow

60L/S

Range

≥70m

model

PF30

Control type:

Electric and pneumatic operation manual operation

Material:

Corrosion-resistant materials

Spray intensity:

30kg/s

Working pressure:

1.4Mpa

1 set of dry powder reel, length 30m, diameter DN25, with dry powder gun, manual winding.

Number of nitrogen bottles:

6 (meet the use of dry powder, with a steel bottle rack), the design meets the requirements of GB5099

capacity:

70L

Filling pressure:

15Mpa

Inflatable time:

45s, with centralized inflation interface

1 set of dry powder reel, length 30m, diameter DN25, with dry powder gun, manual winding.

Cab control

Water pump disengagement, warning light alarm, lighting and signal device control, etc.

Pump room control

Bodywork main power switch, parameter display, status display

Additional electrical

Set up an independent circuit

Auxiliary lighting

Firemen's room, water pump room and equipment box are equipped with lights respectively, and lighting and indicator lights are set on the control panel

Strobe light

Install red and blue strobe lights on both sides of the body

Warning device

Long row of red warning lights, installed on the top of the cab

Siren, the control box is under the driver's front

Fire field lighting

Install a 35W fire searchlight at the back of the jacket

Topcoat

High-quality domestic paint

color

The main color of the outer surface of the car body is RO3 fire red
