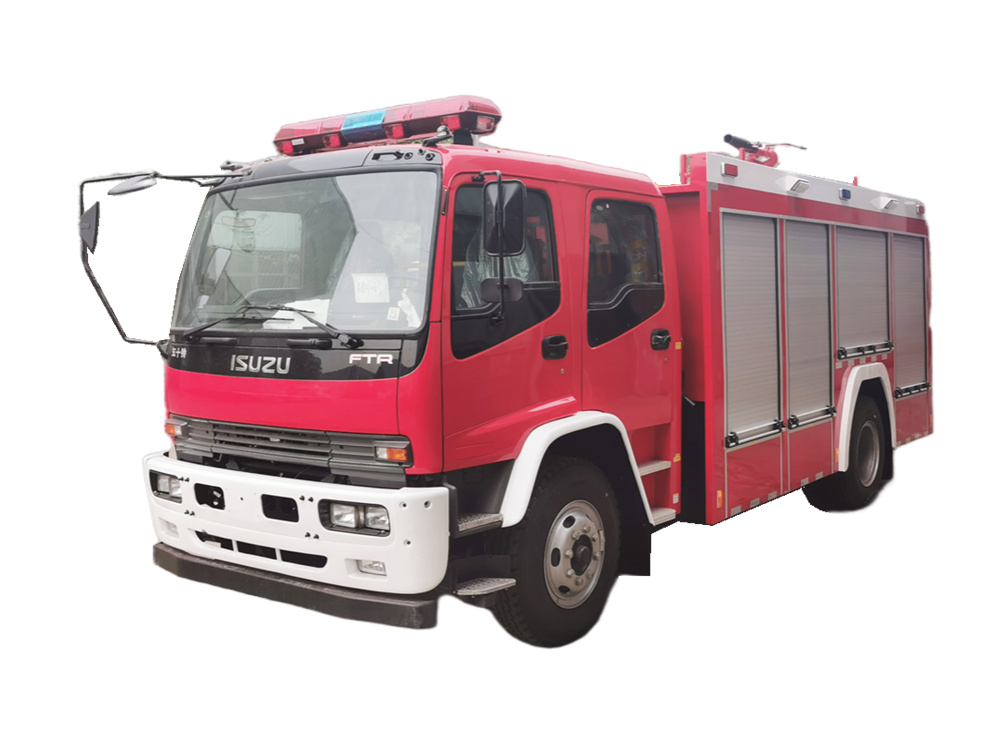

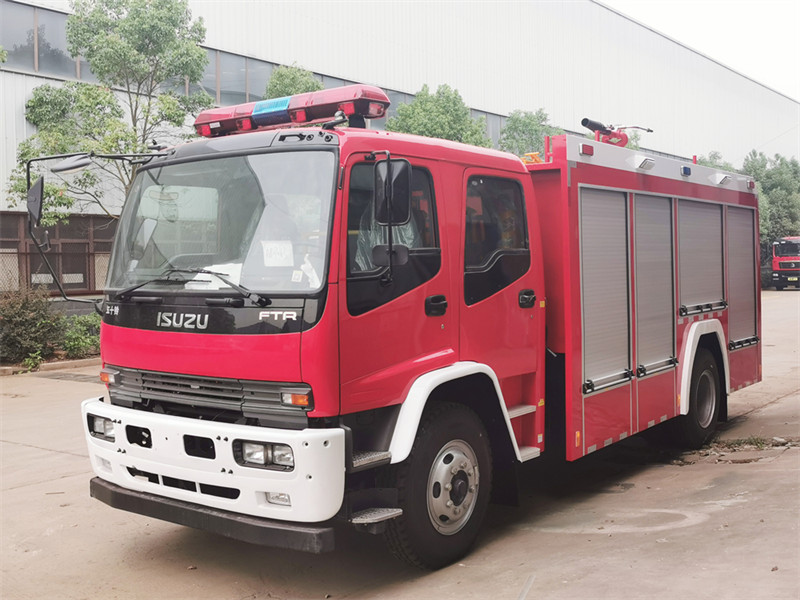

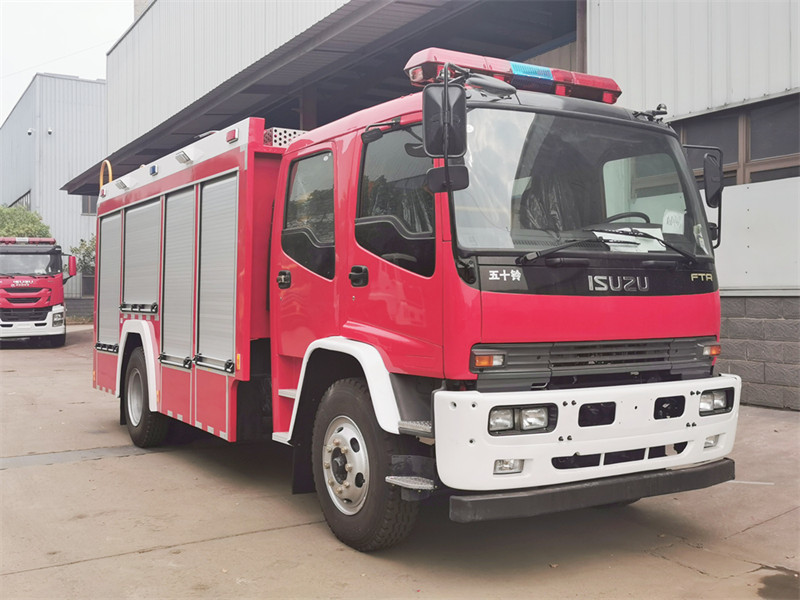

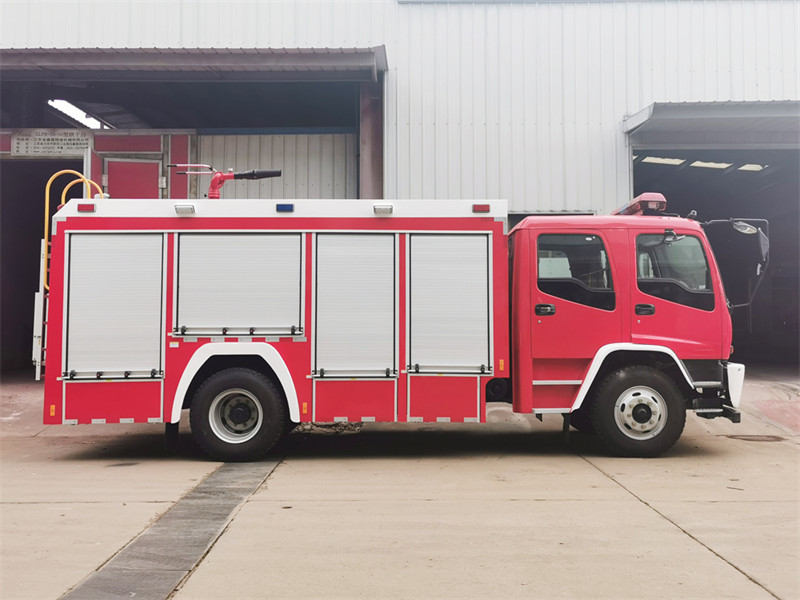

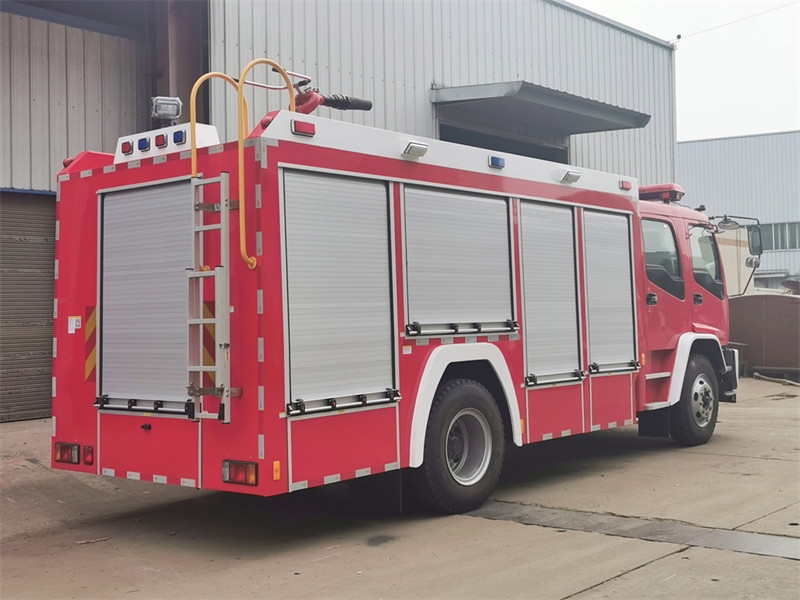

ISUZU FTR foam tender fire truck

Foam fire trucks play an important role in fire rescue, especially in extinguishing special types of fires such as oil or forest fires. The Isuzu FTR foam tender fire truck is equipped with an Isuzu diesel engine, which has strong power and low fuel consumption, ensuring rapid response in complex terrain and harsh environments.

In terms of upper body, the vehicle is equipped with a large-capacity water tank, a foam tank and a high-efficiency fire pump and fire monitor, which can quickly provide a large amount of fire-fighting water and improve fire-fighting efficiency. Equipped with an advanced foam fire extinguishing system, it can quickly spray foam fire extinguishing agent onto the fire source, effectively reducing the intensity of the fire and preventing the spread of the fire. The cab is equipped with advanced communication equipment to enable firefighters to maintain communication with the command center and other firefighting vehicles to better coordinate fire-fighting operations.

Isuzu FTR foam firefighting trucks have a wide range of uses. They are not only suitable for extinguishing large-area fires in forests, grasslands, etc., but can also be used for rescue operations in urban high-rise building fires.

Product Parameters

Foam Fire Truck Maintenance Tips

As the main vehicle for firefighting, foam fire trucks must be maintained in accordance with the requirements stipulated in national standards or industry standards. It is important to do maintenance and upkeep based on the actual conditions of foam operation and use. In terms of daily maintenance, in addition to routine maintenance of the car's engine, chassis and other parts, the following maintenance work also needs to be done.

1. Rinsing after foaming work

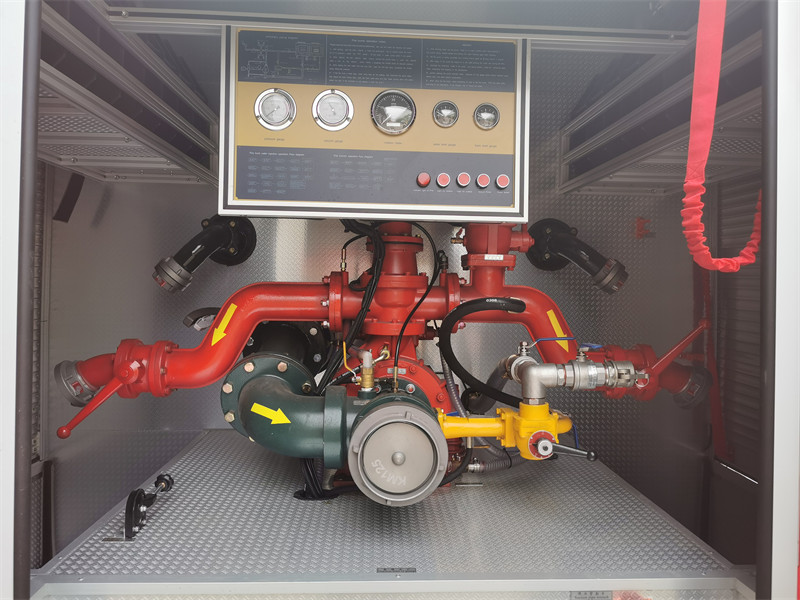

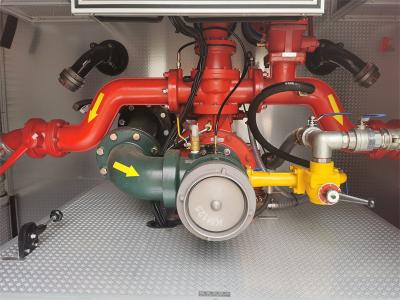

In order to ensure that the fire pump can work reliably, it is very important to flush the fire pump, diversion pump, and foam proportioning mixer after each use of foam or salty water to extinguish a fire: connect the water treatment pump to the outlets on both sides of the fire pump, and connect the external foam suction pipe and put it into the clean water; after running the pump to bring in water, use low pressure to work and open the foam operating valve; open the water pump outlet, adjust the speed, and increase the pump pressure to a maximum of 0.5MPa; after completing the flushing, adjust the fire pump, adjust the speed so that the outlet pressure is lower than 0.2MPa, and turn on the water diversion switch of the pump until clean water flows out of the exhaust pipe.

2. Other maintenance precautions
