Work capacity:
10000 LitersTruck model:
PT5180GXWF10Engine power:
205 hpEngine type:
4HK1-TC60Axle drive:
4x2Gear box:
MLD 6-shift manualRemarks:
Italy MORO PM80A vacuum pump with air flow rate 12000L/min

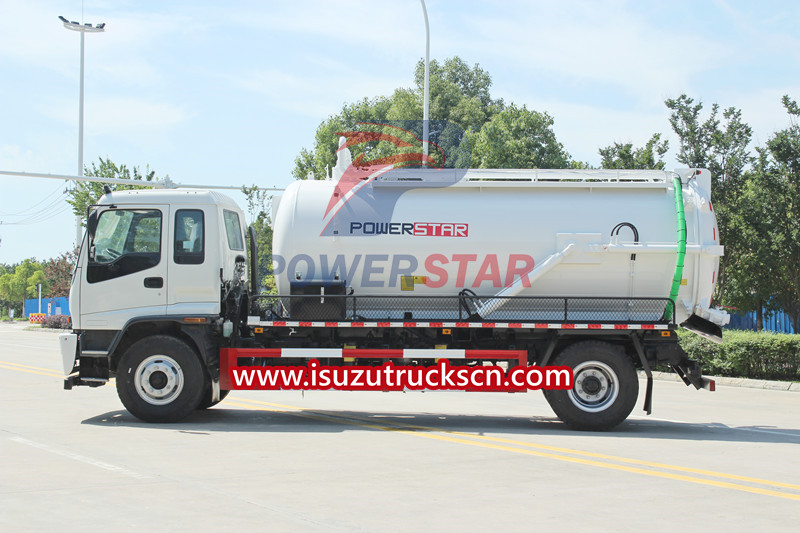

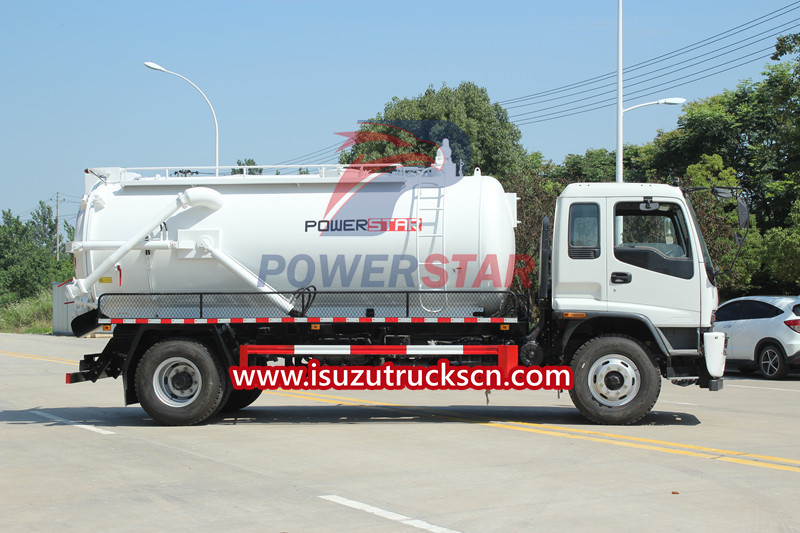

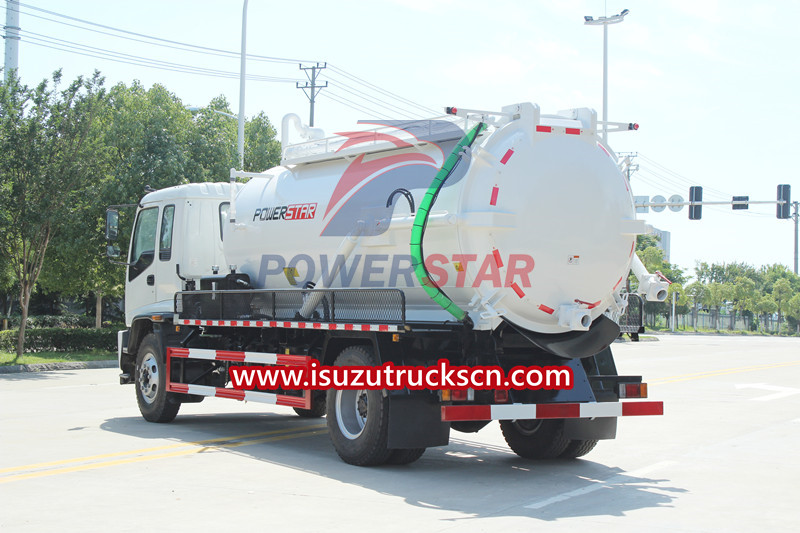

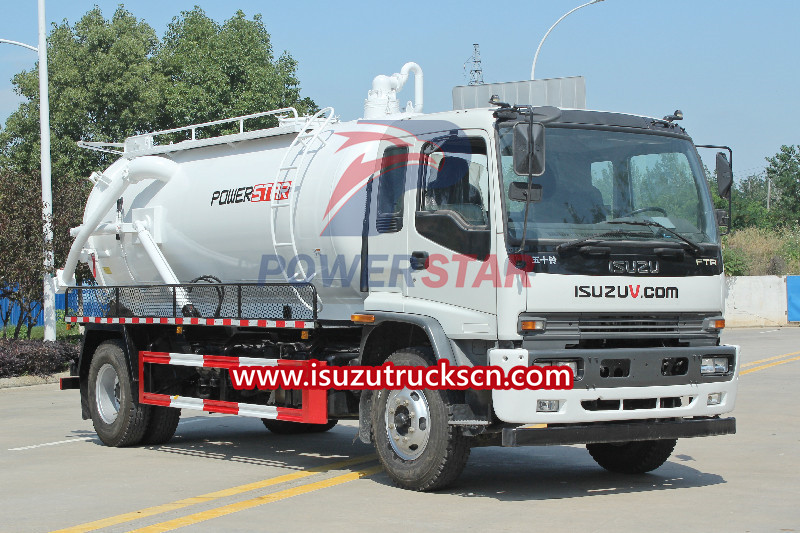

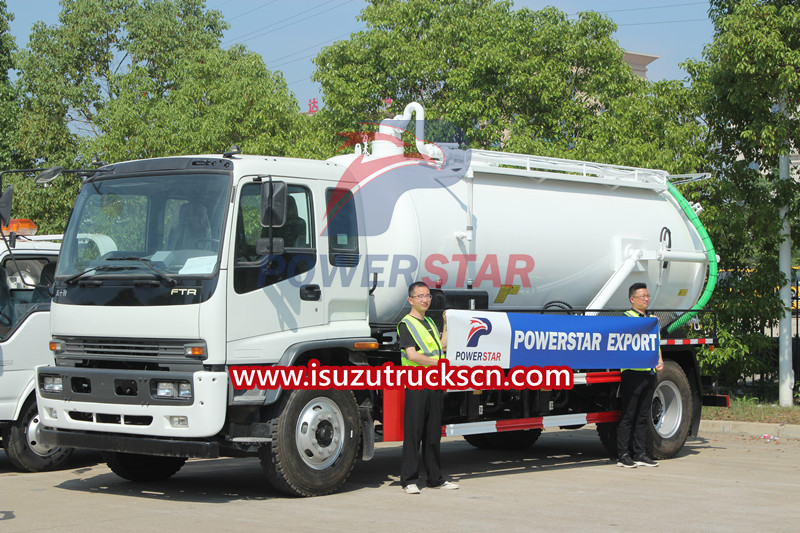

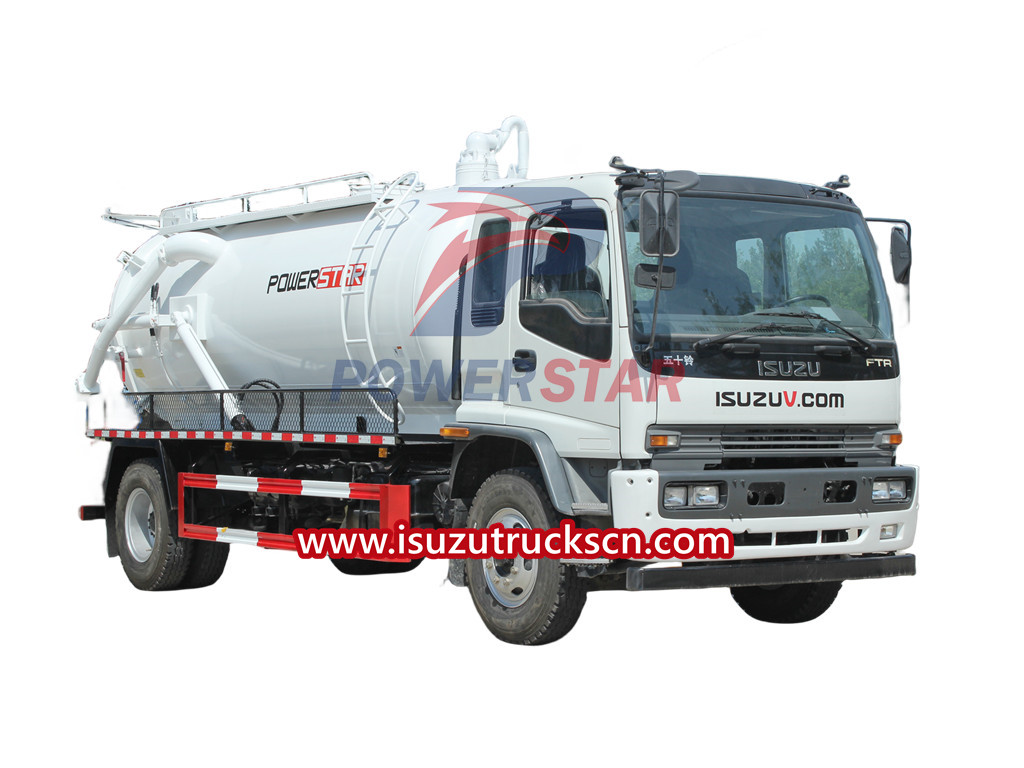

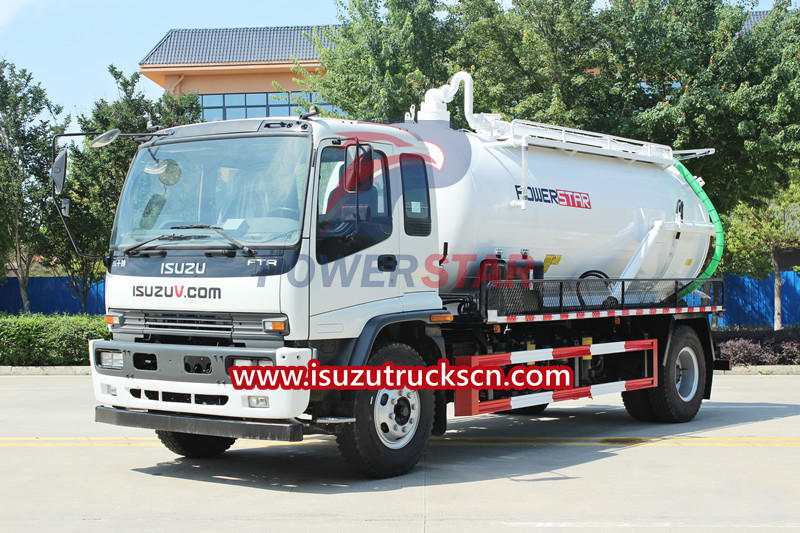

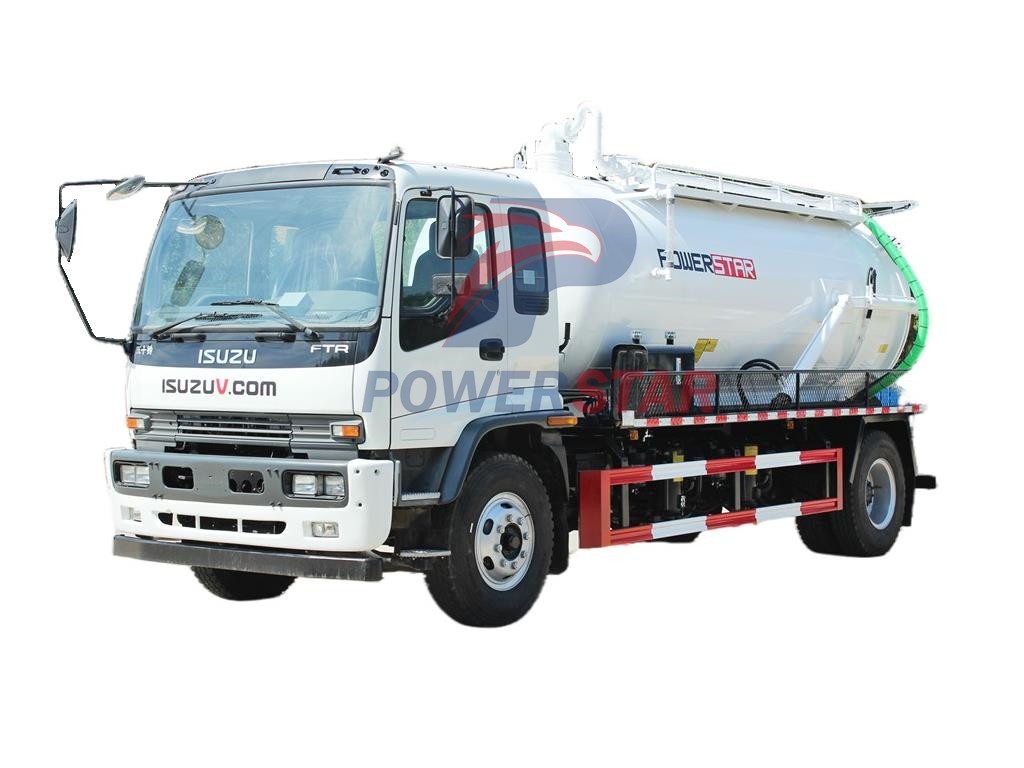

Brand new ISUZU FTR sewage suction truck is a new type of environmental sanitation vehicle that collects and transfers sludge and sewage to avoid secondary pollution. The Isuzu sewage trucks can absorb and discharge itself, with fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud and crude oil. The Isuzu Ftr septic pump truck adopts the vacuum pump of the sewage suction truck with domestic leading technology, which has large suction force and long suction range. It is especially suitable for the suction, transportation and discharge of sediment in the sewer, especially for large objects such as sewage mud, sludge, stones and bricks. The Isuzu cesspit emptier has the same principle as the manure suction vehicle, but the Isuzu vacuum tanker has different purposes from the manure suction vehicle. The difference is that the tank body of the sewage suction vehicle is a circular tank, which has a tighter structure, can withstand higher pressure and provide greater suction, and can be used to collect, clean and transport sewage and sludge. Also the Isuzu vacuum truck equipped with original Italy brand MORO PM80A vacuum pump.
Products Parameters
The Isuzu FTR 10 cubic meters sewage suction trucks can also be equipped with cleaning function to make it become a sewer jet truck, which can be used for both cleaning and sewage suction, that is, the so called combined dredging cleaning truck, Isuzu sewer cleaner truck. The Isuzu cesspit emptier can be equipped with watering function according to the customer's requirements. The water tank and sewer tank can be separated or combined, which can suck cesspool and sprinkle water. One truck can be used for two purposes. From the above points, it can be seen that there is still a great difference between the sewage suction vehicle and the sewage suction vehicle, When you buy, you must choose according to your own needs.
Isuzu FTR 10000L Cesspool Emptier Truck Description
Overall dimensions
8200*2500*3250mm
GVW
18000kg
Curb weight
8580kg
Chassis brand
ISUZU FTR
Traction type
4*2 LHD
Tanker Description
Tanker
Capacity
10000 Liters
Material
6mm thickness, high quality
carbon steel
Structure
Welding, vacuum tank,
Cylindrical
Pump
Type
Italy brand Vacuum pump PM80A
Flux
12000(L/min)
Rating speed
1000~1400(r/min)
Shaft power
14(kw)
Features
The New AIR series PM80A radiant cooled vacuum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on a purpose for an employment in the industrial or agricultural sector
Manufacture
Italy MORO brand
Pipe
Suction and discharge pipe, with diameter DN50, DN65, DN76, DN80 and DN100 optional
Special function
Suction time ≤ 8min,
Standard configuration
Equipped with Inspect
window,discharge valve,cleaning apparatus, 7 meter long suction
pipe,oil-water separators, overflow valve,etc.
Optional configuration
Tanker material: stainless
steel.
Chassis model
QL1180JQFRCY
Steering
LHD
Cab
FTR truck, VC61 single row,
with A/C
Wheelbase
4500 mm
Tire
specification
295/80R22.5
Tire quantity
6 tires and 1
spare tire
Engine
Engine model
4HK1-TC60
Emission level
EURO 6
Displacement/output
5193ml/151kw
Horse power
205HP
Gear box
Model
ISUZU MLD
Number of gears
6-speed, 6 forward and 1 reverse
Brake system
Air break
Axle
Front
6.3T
Rear
13T
Fuel tanker
Type
Stainless steel/Carbon steel
Capacity
200L
Effective suction range ≥ 8,
Max vacuum degree ≤ 18 Mpa,
Dump angle ≥ 45°

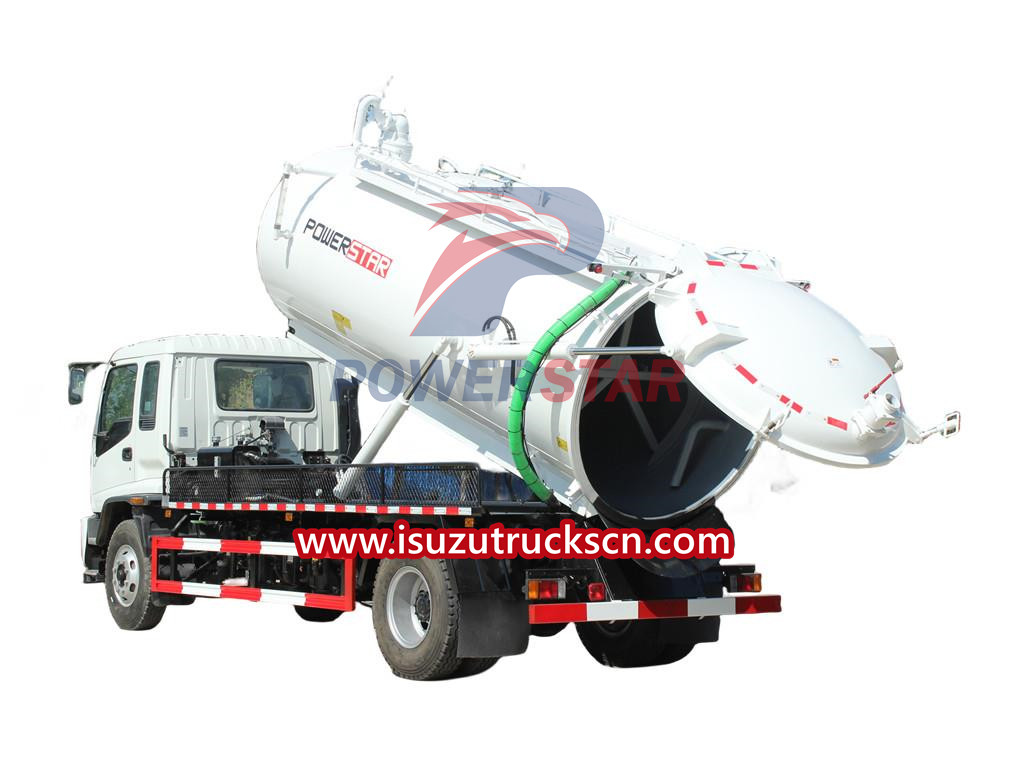

Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tan
Chassis
Description
Brand new ISUZU vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction
tanker ,vacuum waste collection truck ,sewage suction truck,sewage
vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully
emptier,etc.) is used to collect, transport and discharge liquid such as
dirty water,sludge,septic,crude oil and solid stuff such as small
stones,bricks as well.It is suitable for cleaning the
sewer,cesspit,gully ,etc. It is widely used in environment and
sanitation field. Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank,
moisture separator, gas-oil separation, multiple directional control
valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system. As for pump system, which equipped with world top famous Italy brand MORO PM80A vacuum pump.

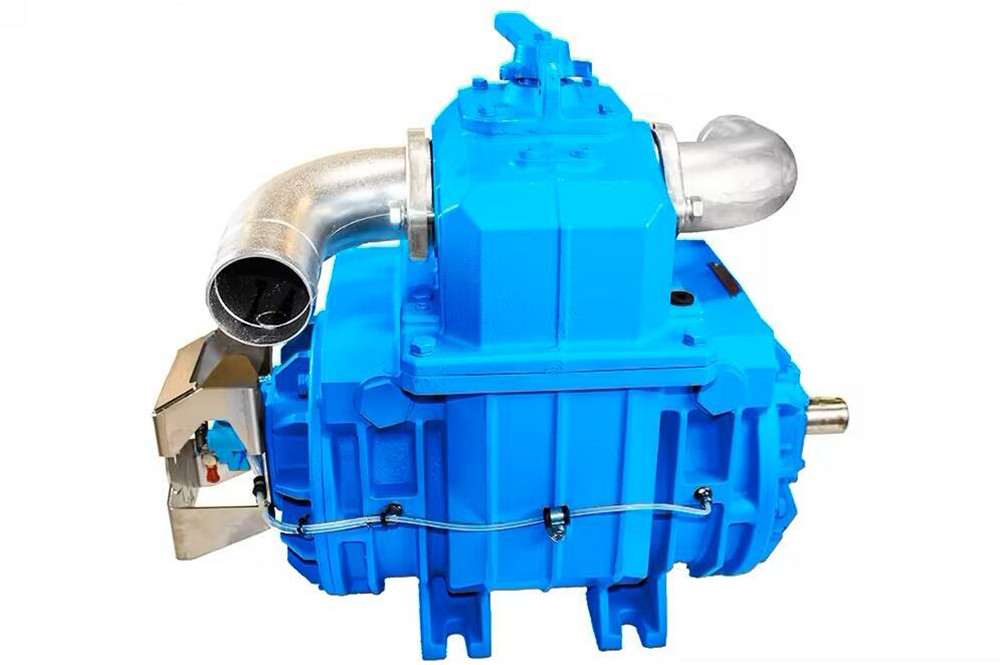

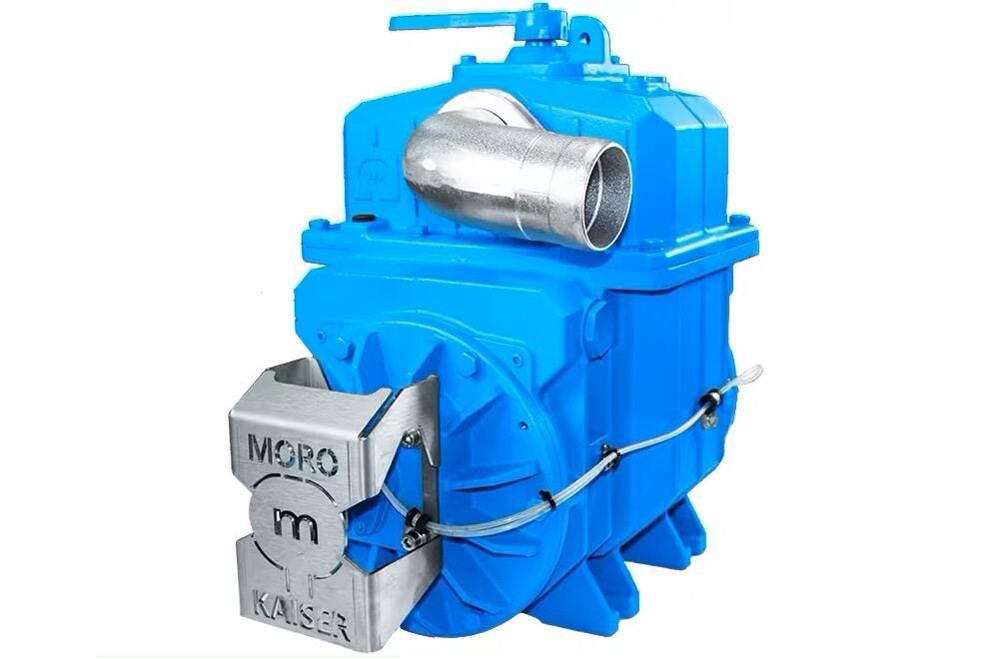

And below detailed description of the MORO PM80A vacuum pump:
1. The Moro AIR Series radiant cooled vacuum pumps embody the most elevated
standards in the field of vacuum suction pumps. These pumps are
designed to be used in industrial applications that have varying
capability requirements. Moro offers three separate AIR Series pumps to
meet these differing application needs.
2. The AIR Series vacuum
pumps are crafted with a cast iron body to guarantee maximum
reliability. Cast Iron is the most efficient material for releasing heat
from the pump. The air intake and discharge are designed to reduce
noise and heat production. This series is equipped with a special
inspection port in the pump body allowing the operator to visually check
the pump’s operation. The non-return and the four-way valves are
integrated into the pump. The hose connection elbows consist of flange
couplings and can be moved in a desired direction in accordance with the
requirements of the vacuum pump usage.
3. This series was
designed to improve the heat exchange of the pump in heavy-duty usage.
This series can be easily mounted onto a truck frame and connected
directly to the truck’s drive system, making this vacuum pump essential
for any pump-related duties.
4. Air Cooled MORO PM80A Vacuum Pump produces free air flow of 424 CFM.
The value and significance of ISUZU sewage trucks lies in its excellent sewage treatment capabilities, important role in environmental protection and public health, efficient and reliable performance, as well as economic and cost-effectiveness. This vehicle can effectively solve the problems of sewage treatment and transportation, making important contributions to the sustainable development of society and people's well-being.
Sewage treatment capacity: ISUZU sewage tanker trucks are equipped with professional sewage treatment systems, which can efficiently collect, transport and treat sewage. The system includes equipment such as sewage containers, pumps and filtration devices, which can collect sewage from the sewage source, treat it and then discharge or transfer it to a treatment site. This can effectively improve the sewage treatment process and reduce environmental pollution and health problems.
Environmental protection and public health: ISUZU vacuum tanker trucks play an important role in both urban and rural areas and can be used in garbage treatment plants, sewage treatment plants, industrial areas, construction sites and other occasions. By quickly collecting and transporting sewage, it avoids direct discharge of sewage into natural water sources, improving environmental sustainability and water resource protection. At the same time, it also helps reduce disease transmission and public health problems, creating a healthier and safer living environment for people.
Efficient and reliable: ISUZU sewer jet trucks are known for their stable performance and high quality. This vehicle has strong power and reliable operating system, and can efficiently perform sewage treatment tasks. In addition, the vehicle is designed and manufactured with careful consideration to cope with complex road conditions and usage environments. It has good durability and friction resistance and can transport and treat sewage reliably for a long time.
Economic benefits: The use of ISUZU vacuum tanker mounted trucks can effectively improve work efficiency and operating cost-effectiveness. It can reduce manpower and time consumption and improve the efficiency of sewage treatment and transportation. At the same time, due to the effective treatment and proper transportation of sewage, it helps to reduce damage to facilities, equipment and infrastructure, and reduces the cost of repair and replacement.
