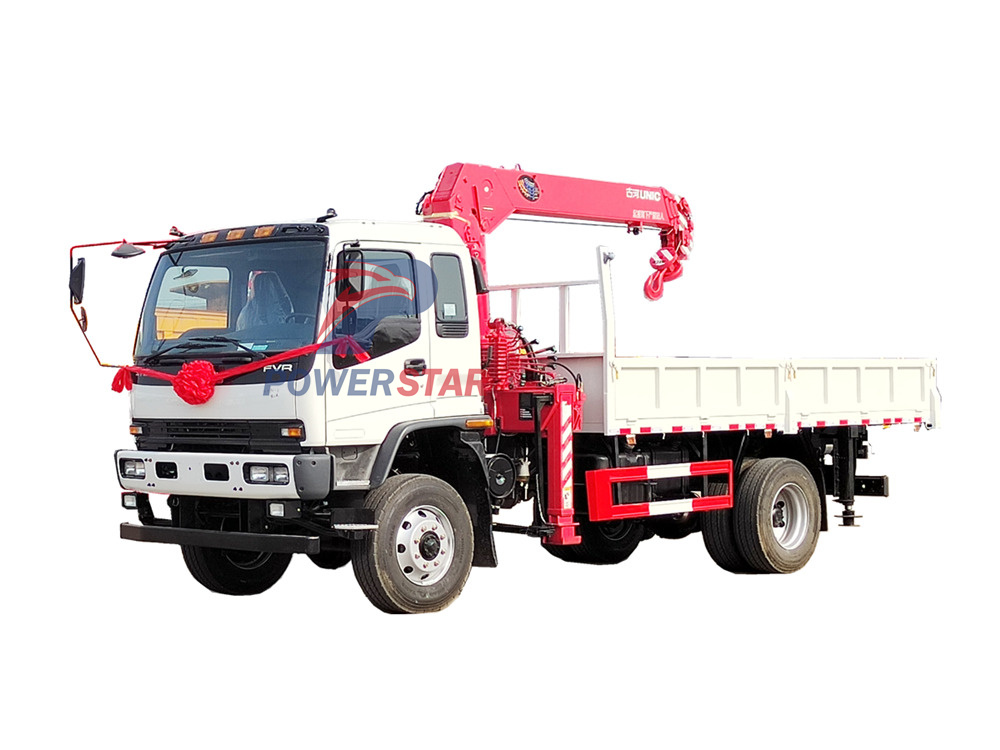

Isuzu FVR 4x4 Off road truck mounted UNIC crane
Work capacity:
8TonsTruck model:
PT5180TSCEngine power:
240 HPEngine type:
6HK1-TCLAxle drive:
4x4Gear box:
ISUZU MLDRemarks:
Original FVR 4x4 drive type
Yemen Introduces Isuzu FVR 4x4 Off-road Truck Mounted UNIC Crane to Enhance the National Emergency Firefighting Brigade's Rescue Capabilities
In a groundbreaking effort to enhance the rescue capabilities of Yemen's National Emergency Firefighting Brigade, the country has introduced the Isuzu FVR 4x4 off-road truck mounted UNIC crane. This exclusive development aims to strengthen the brigade's ability to respond to emergency situations, improve efficiency in rescue operations, and safeguard the lives of its citizens.

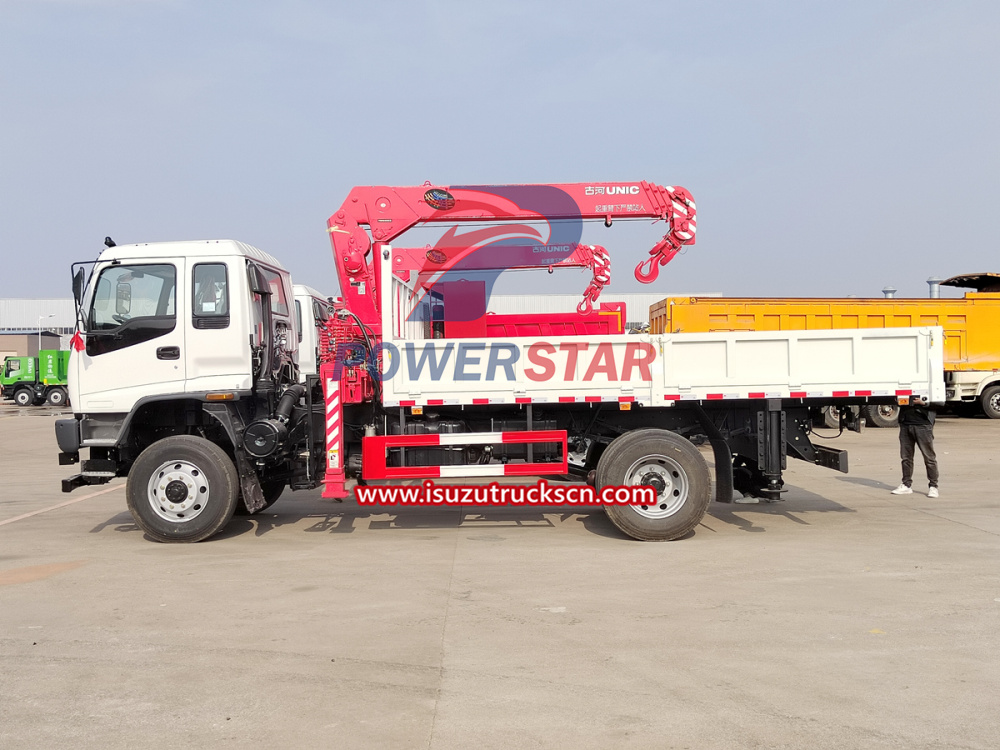

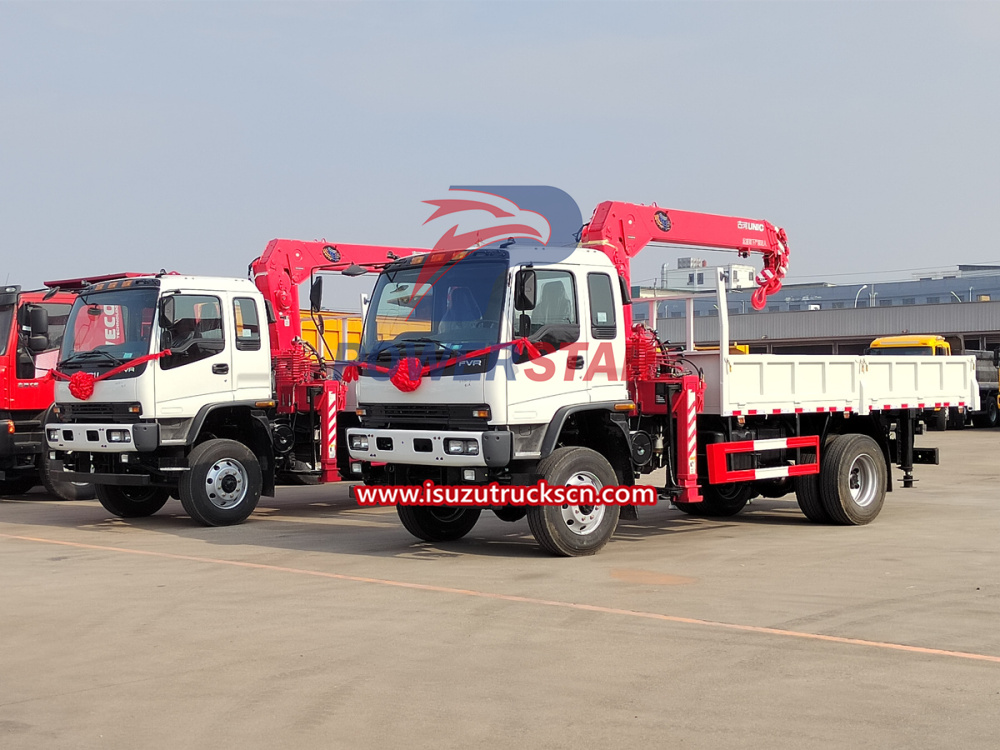

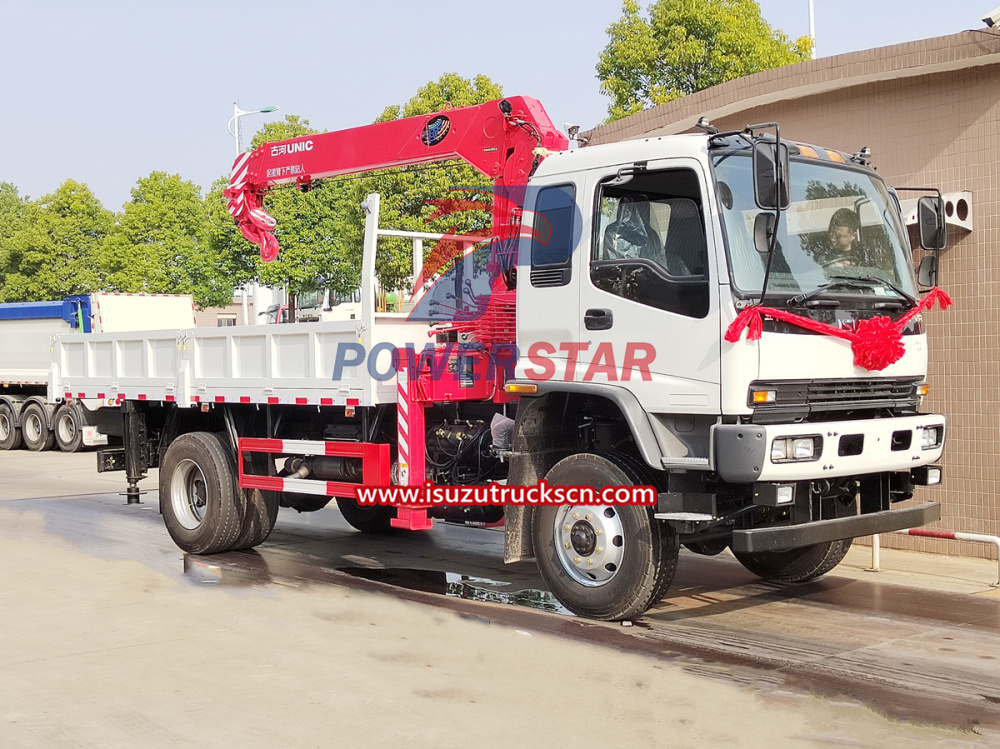

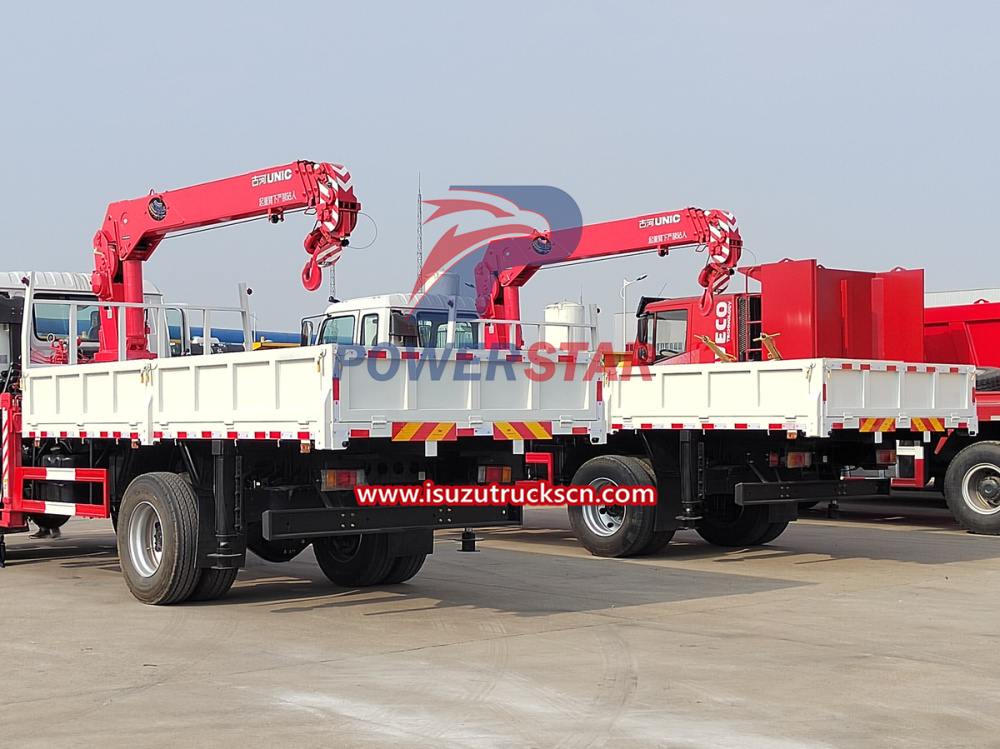

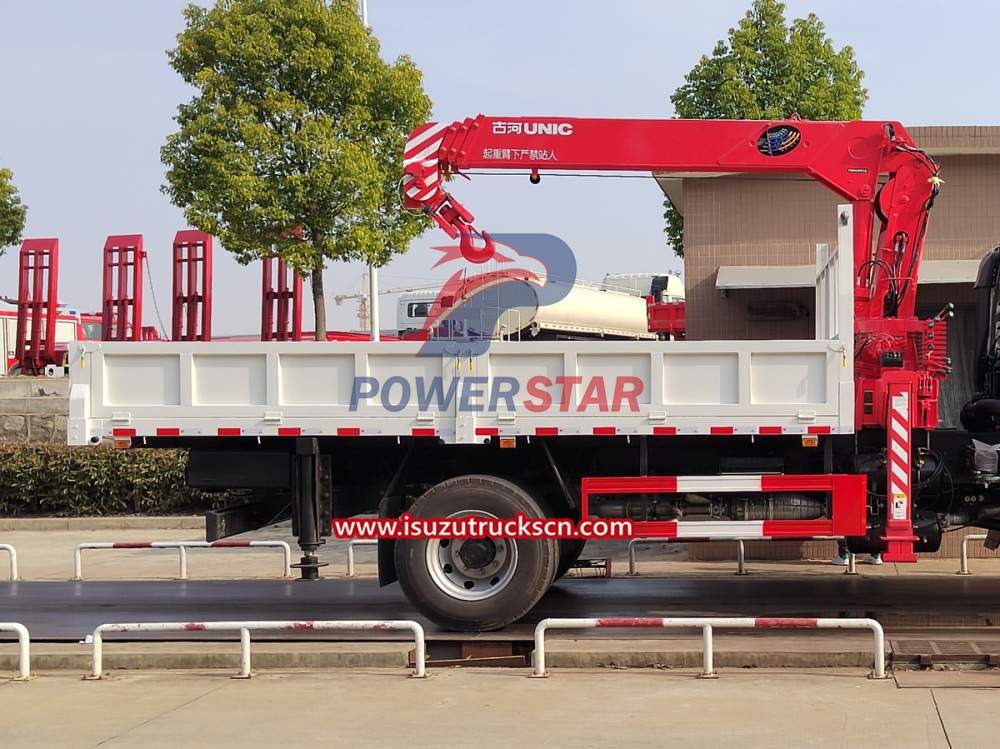

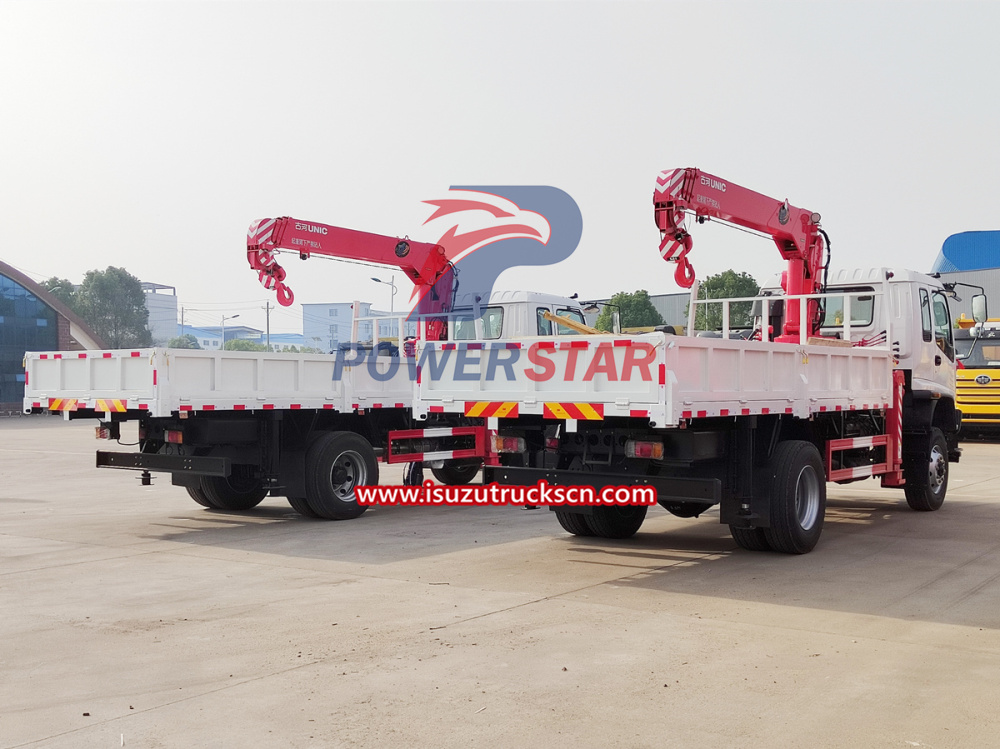

JAPAN ISUZU FVR 4x4 Off Road Flatbed Cargo Truck with 8 tons UNIC Boom Crane for Yemen

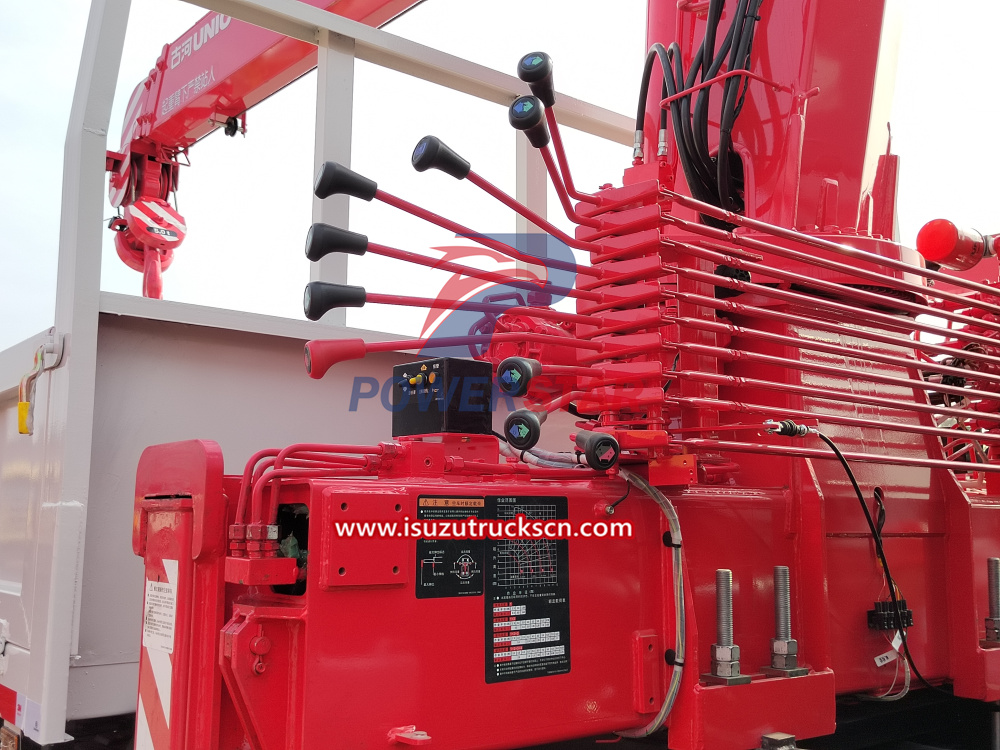

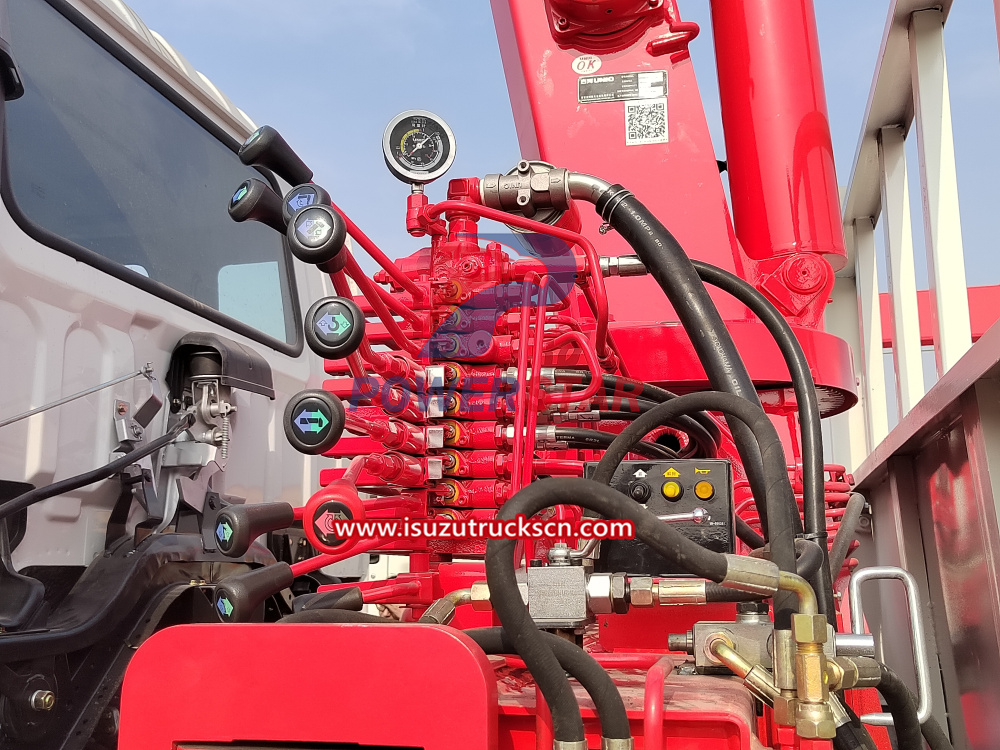

All drive FVR Isuzu stiff boom crane,off road boom crane truck Isuzu FVR, referred to as Isuzu FVR 4x4 truck-mounted crane,truck with crane,crane mounted on truck, is a kind of equipment that realizes the lifting, turning and lifting of goods through a hydraulic lifting and telescopic system.
| Truck Chassis | ||||
| Condition | New condition/left hand drive/4x4 | |||
| Chassis | Brand | ISUZU FVR | ||
| Curb weight(kg) | 8300 kg | |||
| Wheelbase(mm) | 5000 mm | |||
| Dimensions(mm) | 8900X2500X3450 mm | |||
| Front/Rear Axle loading(kg) |
6300kg 13000kg |
|||
| Max. driving speed(km/h) | 95 | |||
| Clutch | Reinforced diaphragm clutch | |||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||
| Tire | Quantity | 10 pcs with one spare tire | ||
| Specifications | 295/80R22.5 | |||
| Fuel box | 200L with lockable cap | |||
| Transmission | Manual type ISUZU MLD, 6 Forwards and 1 reverse | |||
| Cab |
|
|||
|
Engine |
Brand | ISUZU | ||
| Model | 6HK1-TCL | |||
| Fuel type | Diesel | |||
| Displacement(ml) | 7900 ml | |||
| Power(kw) | 177kw | |||
| Horsepower(HP) | 240HP | |||
| Max. Torque(N.m) | 1500 | |||
| Fuel consumption at full load(g/kw.h) | 193 | |||
| Cylinder number | In-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection | |||
| Emission standard | Euro II | |||
| Crane | ||||

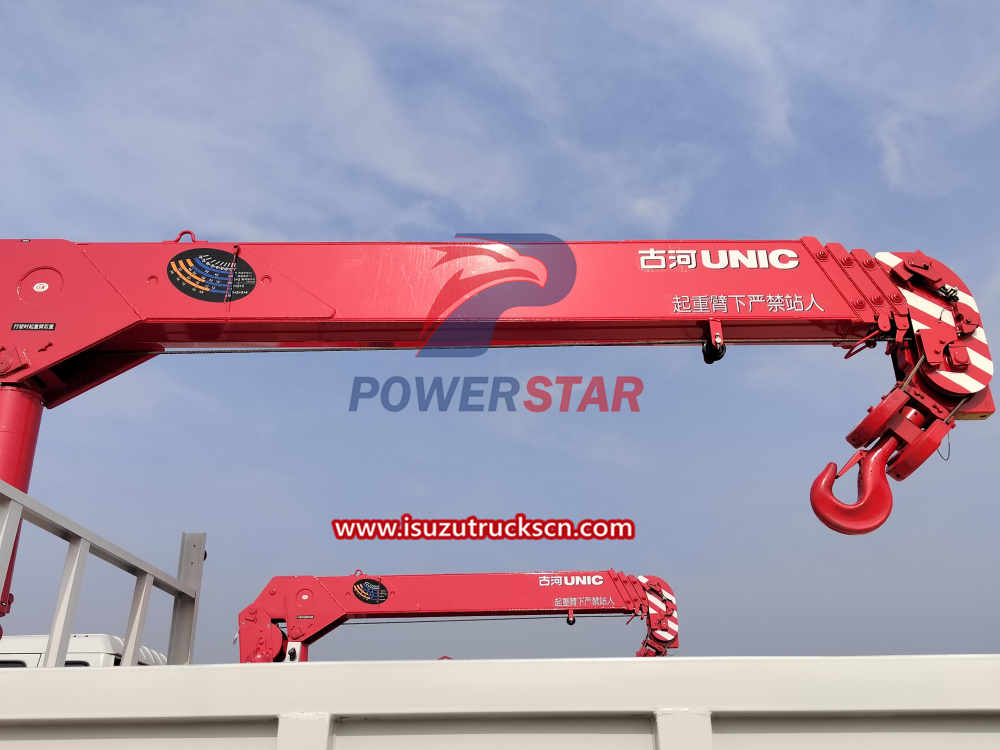

| Model | UNIC UV800 | |||
| Capacity | 8 Tons | |||
| Flatbed Size | 5000X2450 mm | |||
Recognizing the need for specialized equipment to navigate challenging terrains and conduct efficient rescue operations, the Yemeni government conducted extensive research to identify the most suitable manufacturer for their requirements. After careful evaluation, Isuzu and UNIC, globally recognized leaders in their respective fields, emerged as the preferred manufacturers, renowned for their expertise and reliability in producing off-road trucks and crane systems.
The Isuzu FVR 4x4 off-road truck mounted UNIC crane has been specifically customized to meet the unique demands of Yemen's National Emergency Firefighting Brigade. This versatile and high-performance vehicle boasts a robust chassis and enhanced suspension to navigate through rugged and inaccessible areas that are often encountered during emergency rescue operations. The UNIC crane, mounted on the truck, enables the brigade to lift heavy objects and perform intricate operations, facilitating efficient rescues and saving precious time in critical situations.
To ensure optimal utilization of the Isuzu FVR 4x4 off-road truck mounted UNIC crane, the Yemeni government has planned comprehensive training programs for the brigade's personnel. These training initiatives focus on equipping the team members with the necessary skills to operate the crane, ensuring adherence to safety protocols and promoting effective collaboration during rescue operations. By investing in continuous training, the brigade will be well-prepared to handle a wide range of emergency scenarios and enhance their overall rescue capabilities.
Looking towards the future, the introduction of the Isuzu FVR 4x4 off-road truck mounted UNIC crane sets the stage for further advancements in Yemen's National Emergency Firefighting Brigade. The government envisions expanding and modernizing the brigade's fleet with technologically advanced vehicles and equipment that can withstand diverse and challenging environments. By staying at the forefront of innovation, Yemen will be able to effectively respond to emerging fire and rescue challenges, ensuring the safety of its citizens and minimizing property damage.
To ensure the authenticity of this exclusive news, the Yemeni government has taken stringent measures to prevent plagiarism. All documentation, agreements, and invoices associated with the procurement of the Isuzu FVR 4x4 off-road truck mounted UNIC crane have been thoroughly reviewed to comply with legal and ethical standards, maintaining transparency and accountability.
