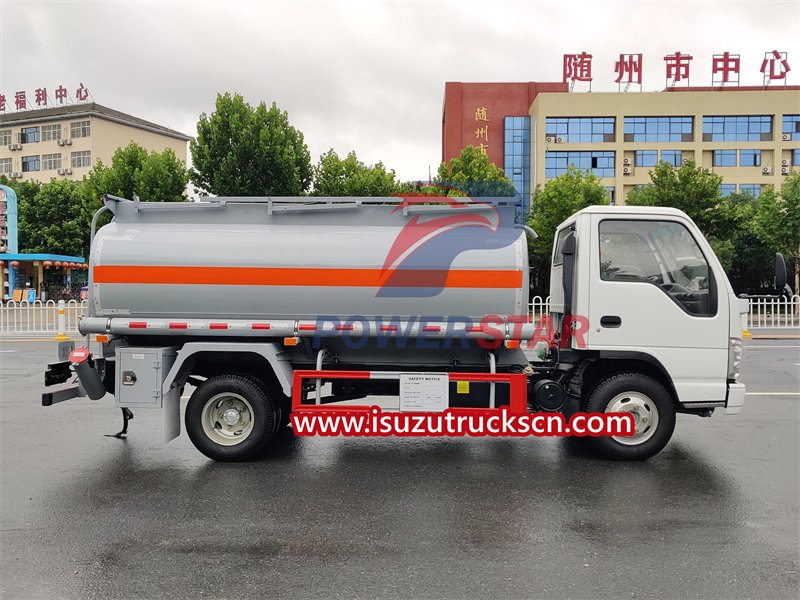

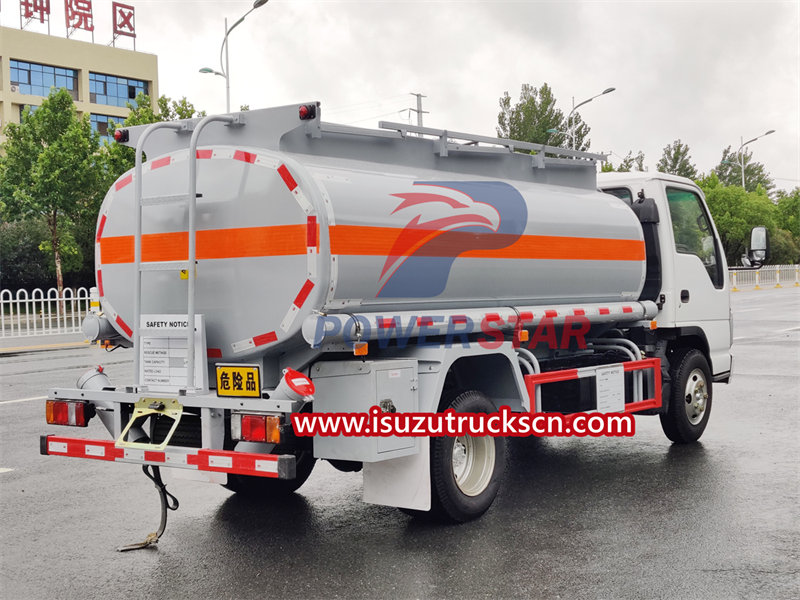

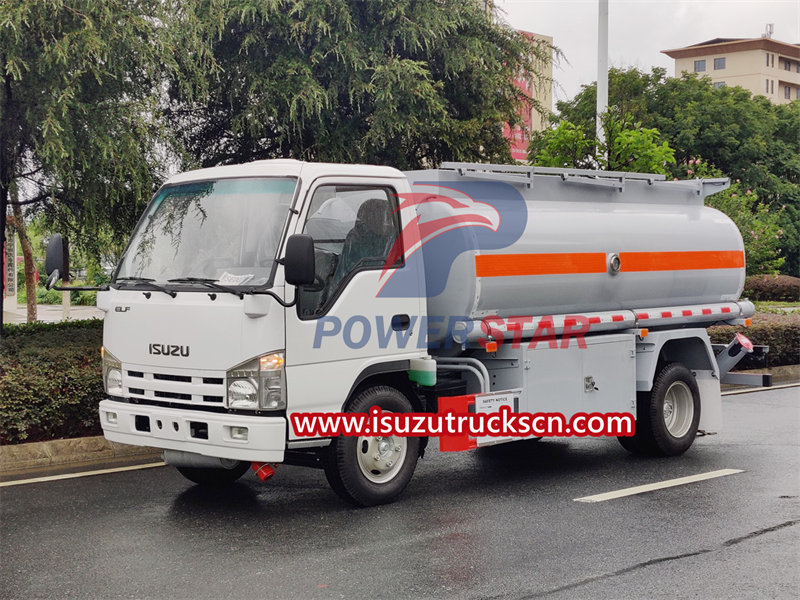

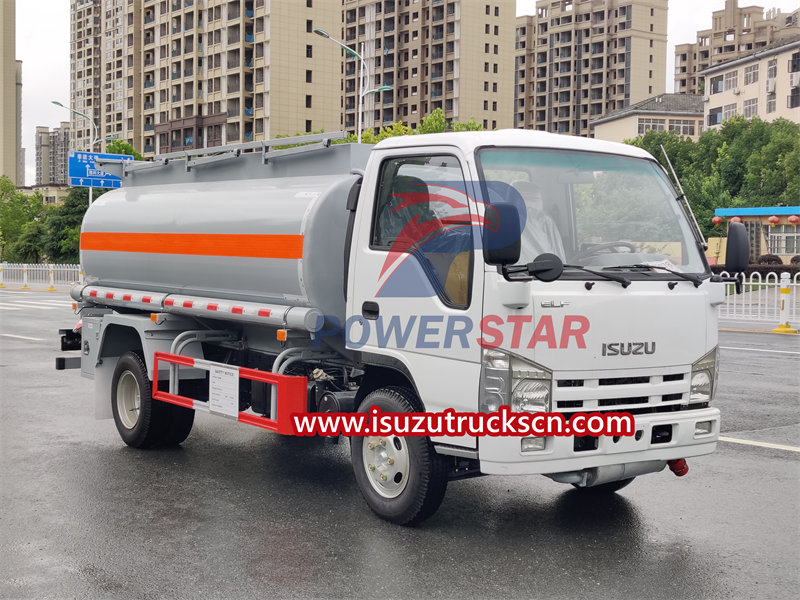

ISUZU Mobile Fuel Bowser

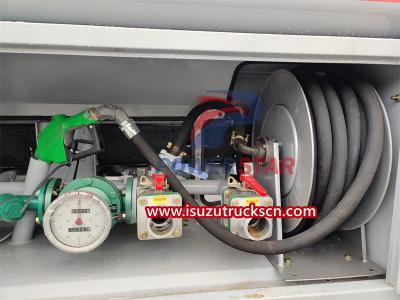

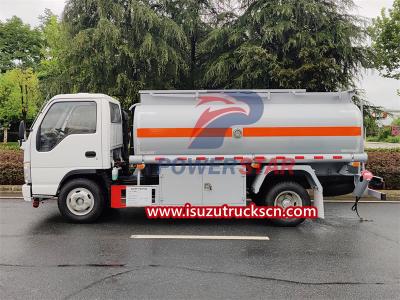

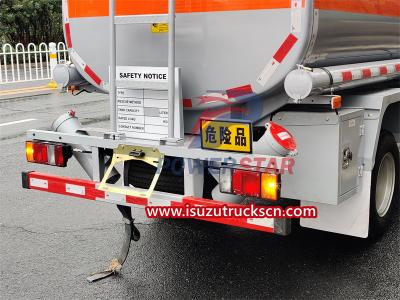

ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker
ISUZU NKR mini mobile fuel tanker

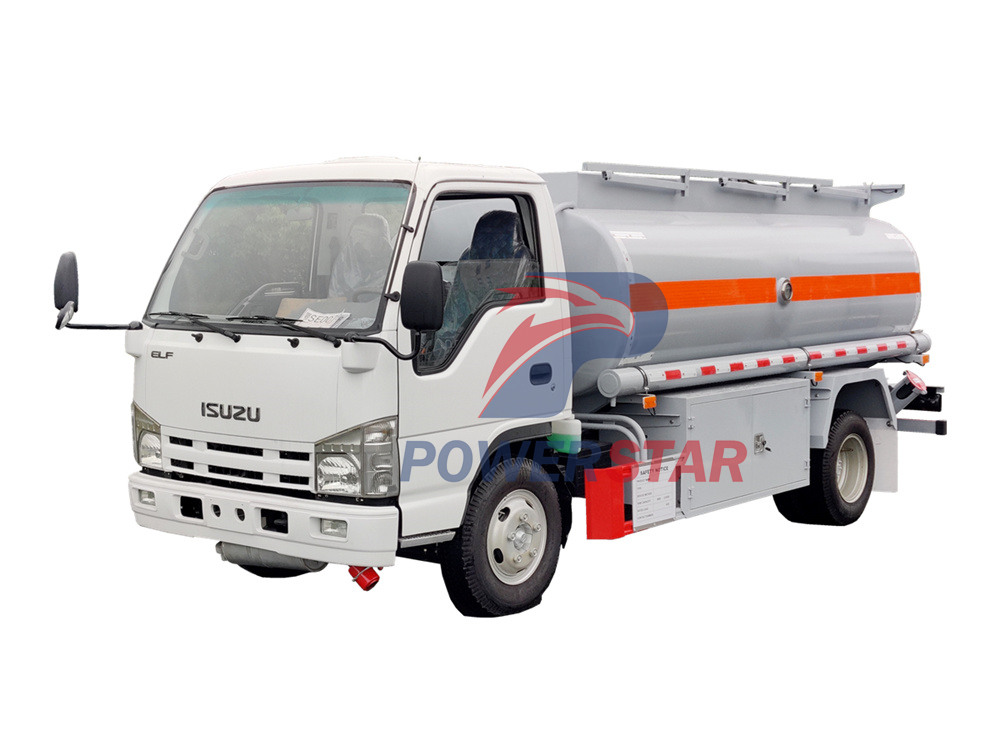

ISUZU Mobile Fuel Bowser

The Isuzu mobile fuel bowser is a convenient and flexible energy replenishment solution designed to meet changing energy needs. This vehicle combines refueling and fuel transportation functions and is suitable for a variety of application scenarios. Whether in cities, rural areas or remote areas, it can provide fuel supply services quickly and efficiently.

  • Work capacity:

    5000 Liters
  • Truck model:

    PT5050GJY
  • Engine power:

    98 HP
  • Engine type:

    4KH1CN5LS
  • Axle drive:

    4×2
  • Gear box:

    MSB 5-speed, manual
  • Remarks:

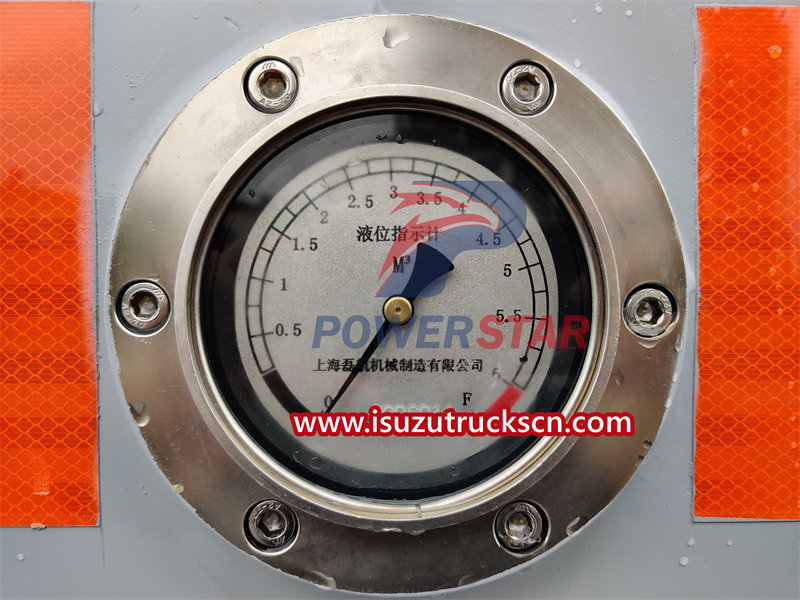

    With fuel dispenser, float level gauge

ISUZU mobile fuel bowser is a convenient oil transportation and supply equipment, often used in on-site operations, remote areas or areas without access to traditional gas stations. It can provide oil supply within a certain range and plays an irreplaceable role in emergencies, field operations or emergency rescue.

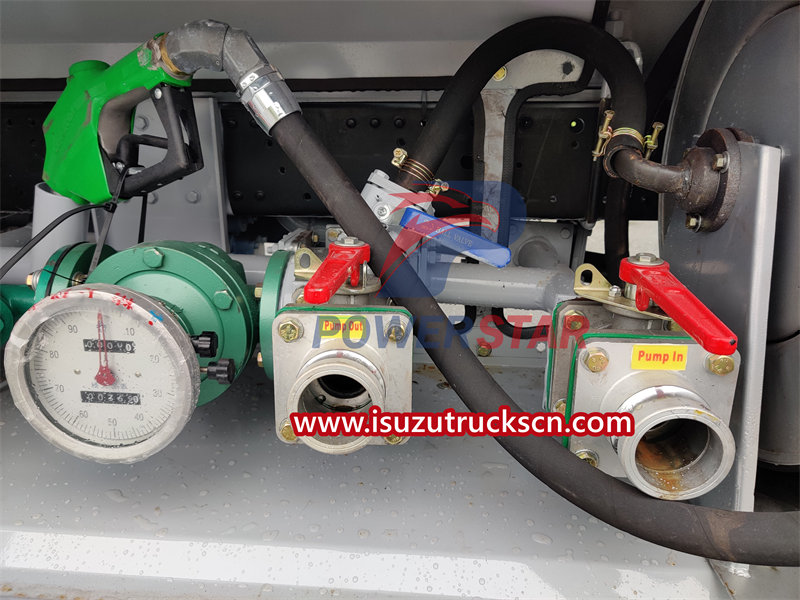

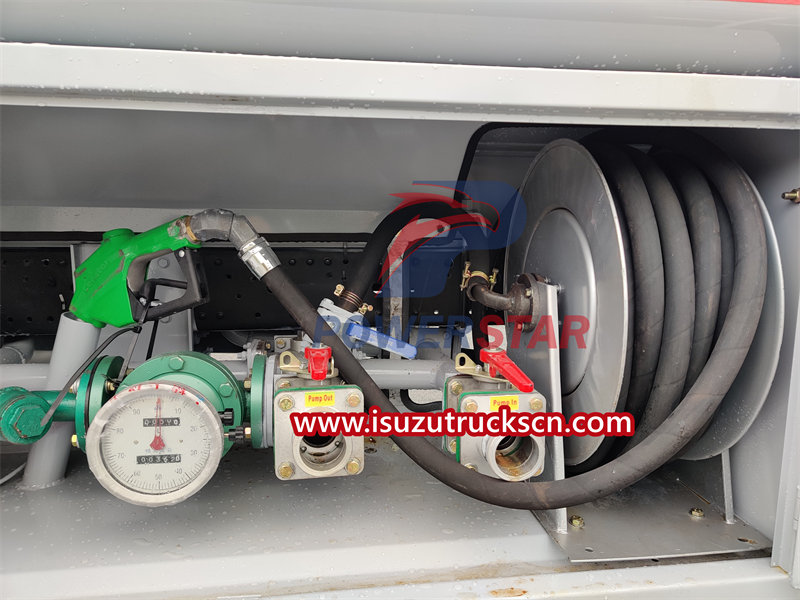

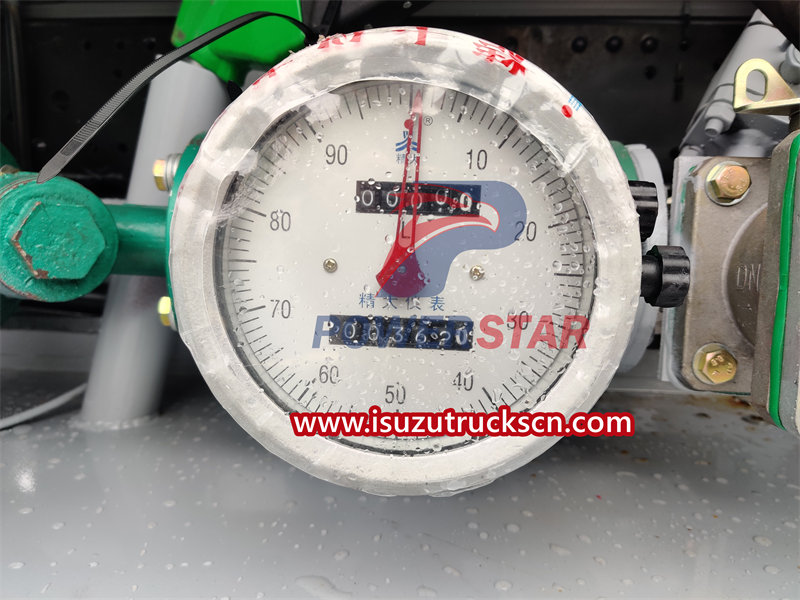

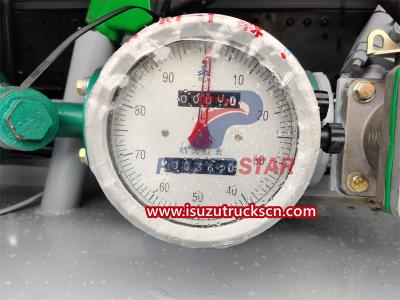

ISUZU oil tanker truck consists of chassis, oil tank, pump, dispenser and related auxiliary devices. The tank is used to store oil, the dispenser is used to control the flow and direction of the oil, and the chassis provides transportation capabilities. The vehicle is also equipped with an automatic control system, which can realize automatic metering and pumping of oil products. When oil flows from the tank, the flow meter inside the dispenser will accurately measure and deliver the oil to the oil-receiving equipment through the oil pipeline. Some advanced refueling machines also have an automatic shut-off function, which can automatically cut off oil delivery when the oil-receiving equipment is filled with oil.

ISUZU mini refueling truck

With the development of social economy and the continuous improvement of infrastructure construction, the market demand for mobile fuel trucks will continue to grow. Especially in emergency rescue, engineering operations and supply in remote areas, mobile fuel trucks have broad application prospects. In the future, with the continuous advancement and application of technology, mobile fuel trucks will become more intelligent and environmentally friendly, with huge market potential.

Product Specifications

ISUZU Mobile Fuel Bowser Specifications

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

5900 * 2100 * 2350 mm

GVW / Kerb Weight

7,300 kg / 3,400 kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Standard

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Moedl

4KH1CN5LS

Power

98 Ps (72 KW)

Displacement

2999 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, left or right hand drive

Transmission

ISUZU MSB 5-speed, manual

Wheelbase/No. of axle

3360 mm / 2

Tyre Specification

7.00R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

5,000 Liters

Tank Material

Carbon steel

Pump

Equipped for overhead delivery, 1000 litres / min

Suction Head

6 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers.....

Optional

Tank material could be carbon steel, stainless steel, aluminum alloy
It can be divided into many compartments
Each compartment can be equipped: manhole cover, dispenser, fuel counter (flow gauge), fuel dispenser, hose reel, level gauge
Heat preservation & heating system
Bottom loading system

ISUZU fuel bowser drawing

Specific application scenarios of ISUZU fuel tanker trucks

1. Construction projects

In the field of construction engineering, ISUZU fuel trucks are mainly used to provide fuel for various mechanical equipment on the construction site, such as excavators, loaders, road rollers, etc. These equipment need to continue to operate during the construction process, and the fuel truck can replenish fuel for these equipment at any time to ensure the smooth progress of the project.

2. Transportation

In the field of transportation, ISUZU fuel bowsers are mainly used to provide fuel for road transportation vehicles such as trucks and buses. These vehicles require frequent refueling during long-distance transportation or urban logistics, and refueling trucks can provide convenient refueling services and improve transportation efficiency.

3. Agricultural machinery

In the field of agricultural machinery, ISUZU oil tanker trucks are mainly used to provide fuel for agricultural machinery and equipment such as tractors and harvesters. With the development of agricultural modernization, agricultural machinery and equipment are used more and more widely. Refueling trucks can provide timely refueling services for these equipment to ensure efficient agricultural production.

4. Emergency rescue

In the field of emergency rescue, ISUZU refueling trucks are mainly used to provide fuel for emergency rescue vehicles such as fire trucks and ambulances. These vehicles need to respond quickly when dealing with emergencies, and fuel trucks can follow the rescue team to supply fuel for the vehicles in a timely manner to ensure the smooth progress of the rescue work.

ISUZU oil tanker truck for sale

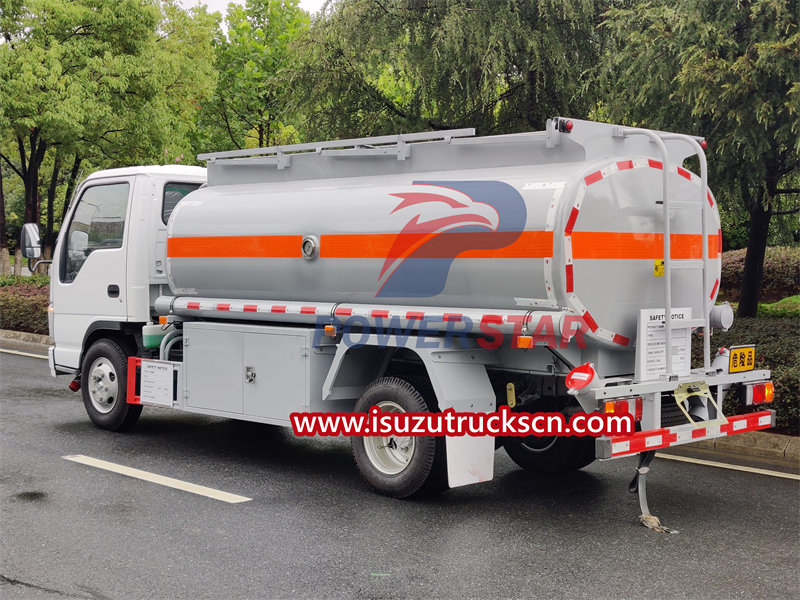

ISUZU gasoline tanker truck
