Work capacity:
5000 LitersTruck model:
PT5050GXWEngine power:
130HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
ISUZU MSB 5-speedRemarks:
China famous vacuum pump, Italy Jurop/MORO pump for option

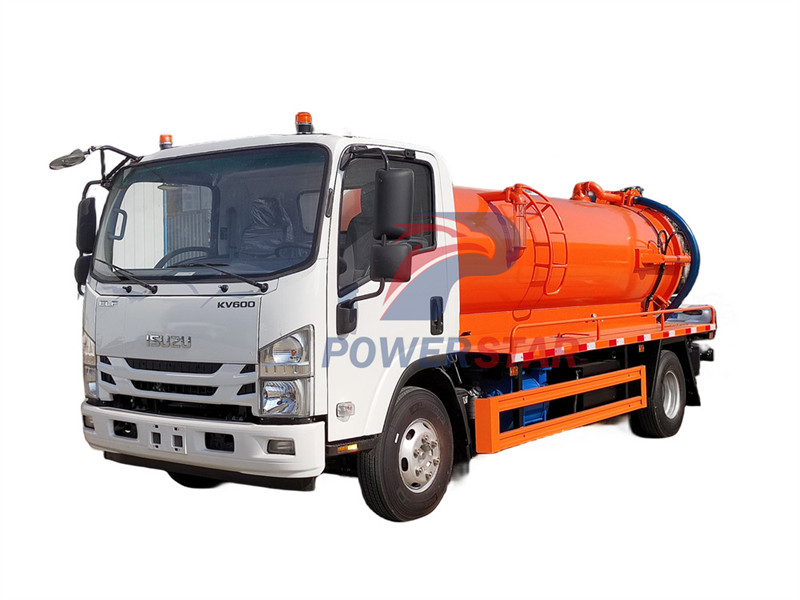

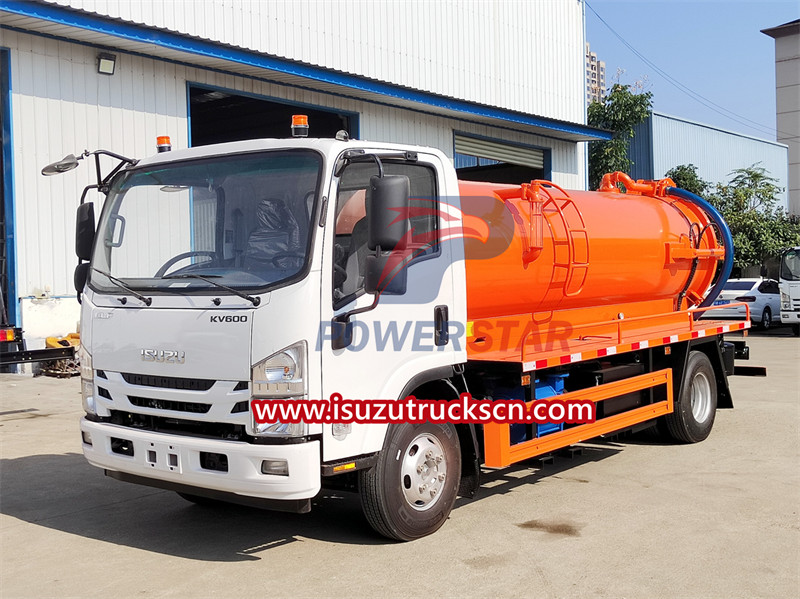

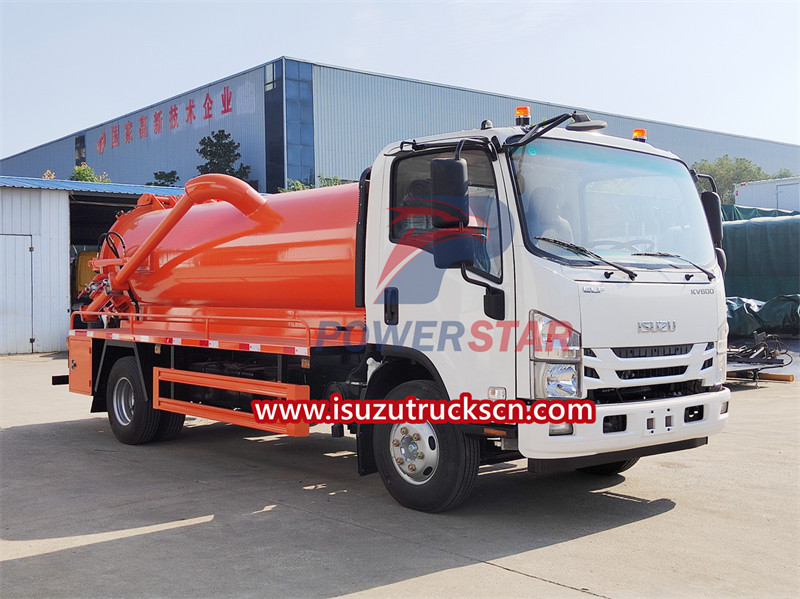

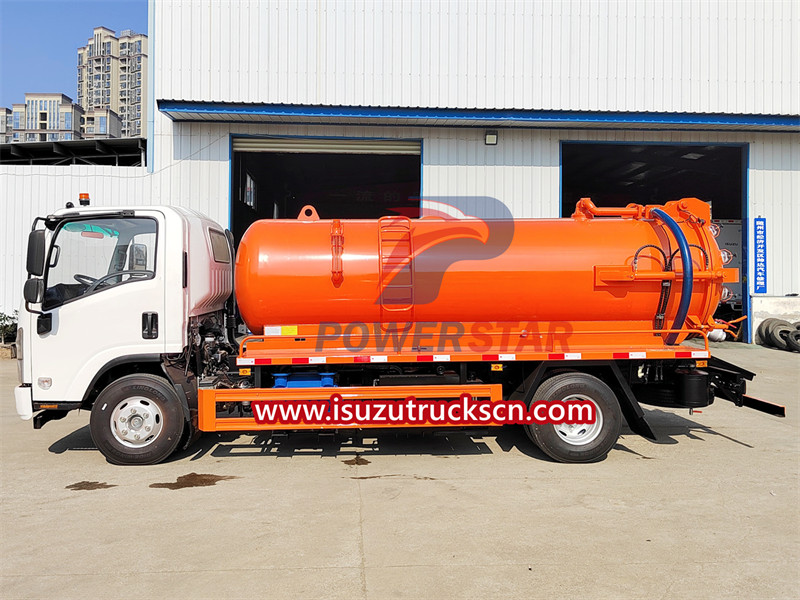

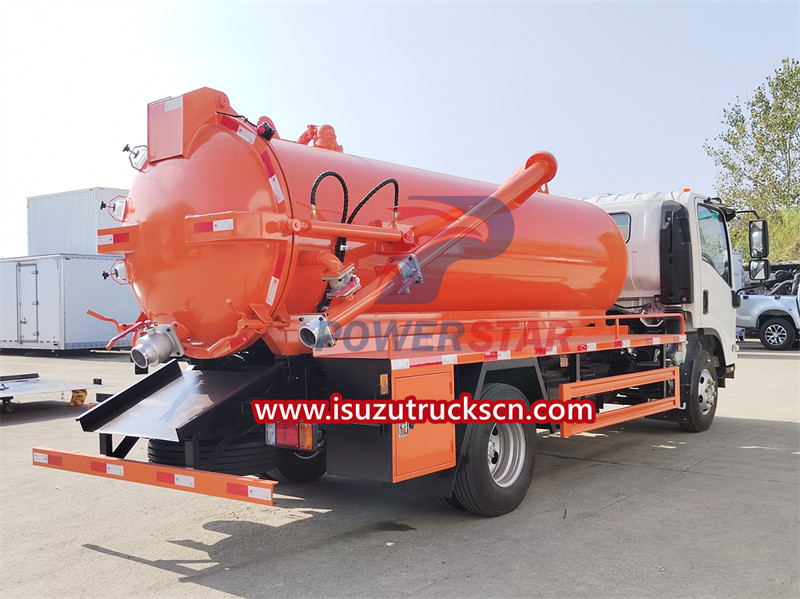

The ISUZU NKR vacuum suction trucks produced by POWERSTAR are equipped with high-power vacuum pumps, which can self-prime and self-discharge. The discharge adopts self-drainage and pressure discharge. The vacuum tank can be hydraulically lifted and self-unloaded, and the back cover can be opened hydraulically. It has the characteristics of high vacuum degree, large tonnage, high efficiency and wide application.
Product Parameters
Vehicle Description
Overall dimensions
6800*2300*2500mm
GVW
7300kg
Curb weight
4800kg
Vehicle brand
POWERSTAR
Driving type
4*2
Vacuum Tanker Description
Tanker
Capacity
5000 Liters
Material
6mm thickness, high quality carbon steel
Structure
Welding, vacuum tank, cylindrical

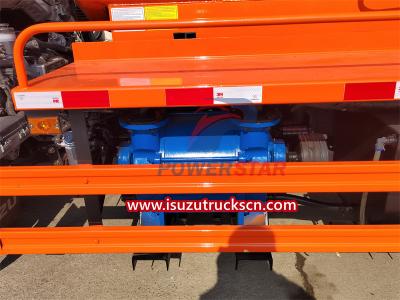

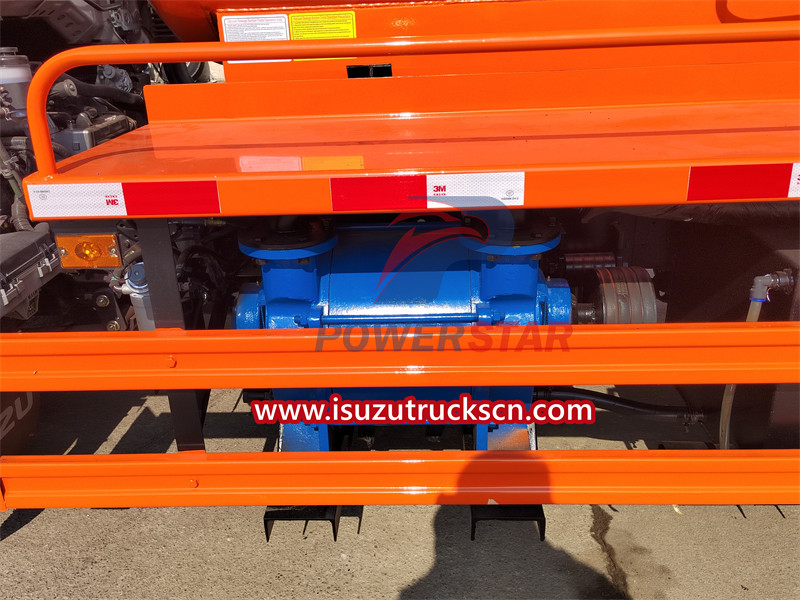

Pump
Type
Rotary vane pump
Flux
68(L/S)
Rating speed
800~1000(r/min)
Shaft power
5(kw)
Features
Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Manufacture
Hangzhou WEILONG Pump Co., Ltd.
Pipe

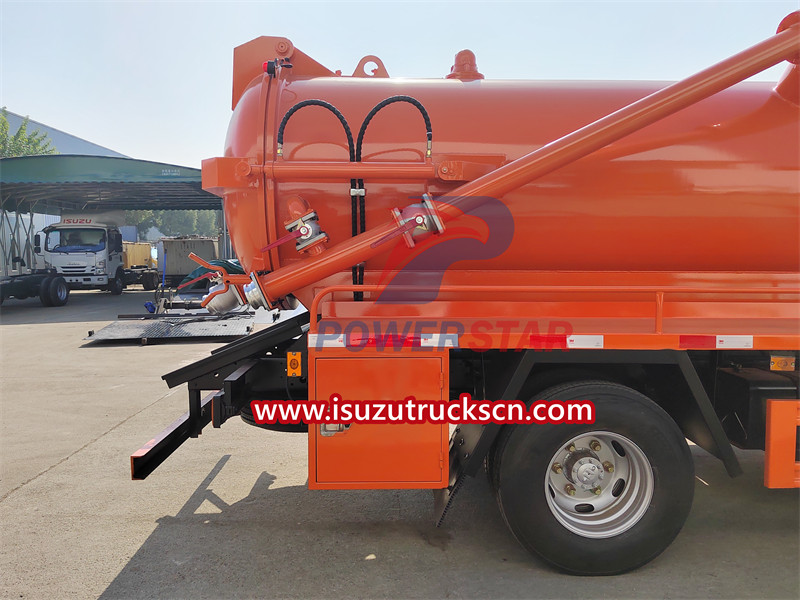

Suction and discharge pipe
Special function
Suction time ≤ 5min,
Standard configuration

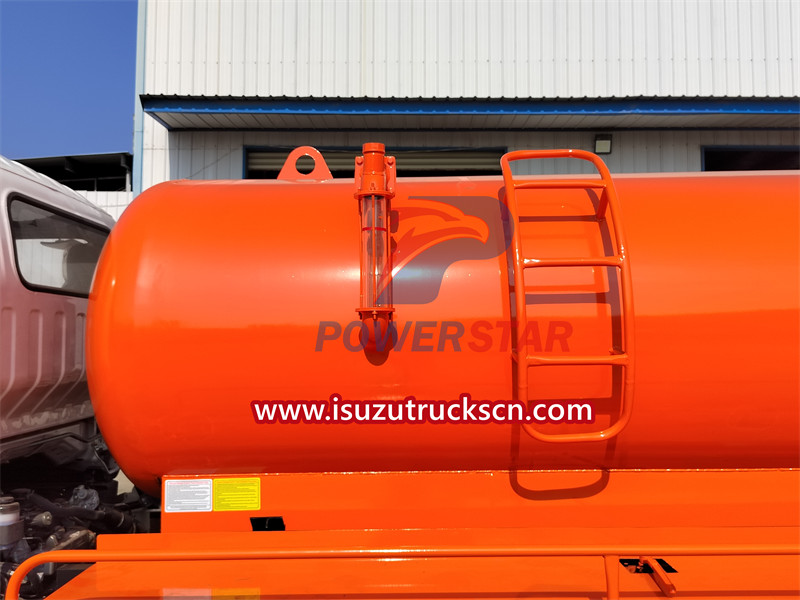

Equipped with view window, discharge valve, cleaning
device, 7 meters suction pipe, oil-water separators, overflow valve, etc.
Anti-rust coating inside tank
Optional configuration
Tanker material: stainless steel.
Chassis Description
Chassis brand
ISUZU
Steering
Power assist
Cab
ELF KV600, single row, with A/C
Wheelbase
3815mm
Tire specification
7.00R16
Tire quantity
6 tires and 1 spare tire
Engine
Engine model
4KH1CN5HS
Emission level
EURO 5
Power
130 HP
Displacement
2999 ml
Torque
290 N.m
Max. torque speed
1500 rpm
Gear box
Model
ISUZU MSB, manual
Number of gears
5-speed
Brake system
Air break
Axle
Front
4T
Rear
7T
Fuel tanker
Type
Iron
Capacity
100L
Effective suction range ≥ 7,
Max vacuum degree ≤ 15 Kpa,
Tank lifting angle ≥ 45°
Vacuum tank can be lifted
hydraulically to

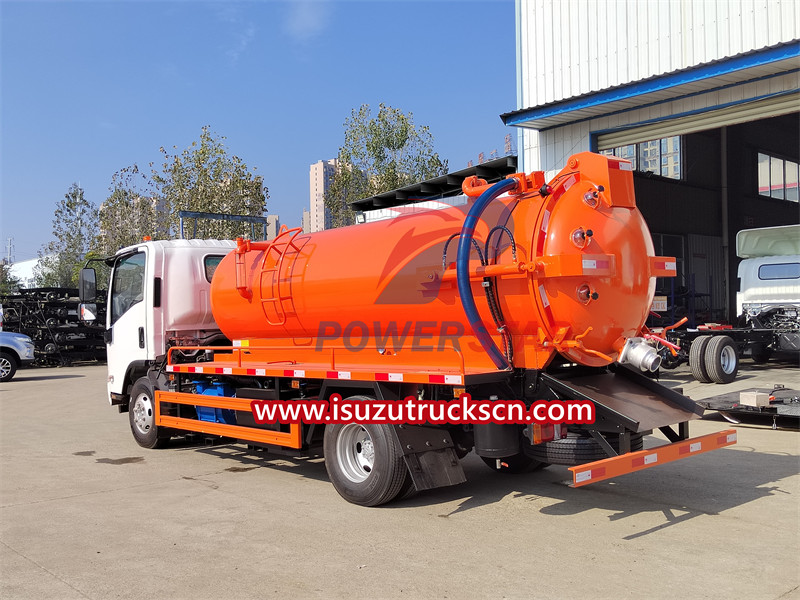

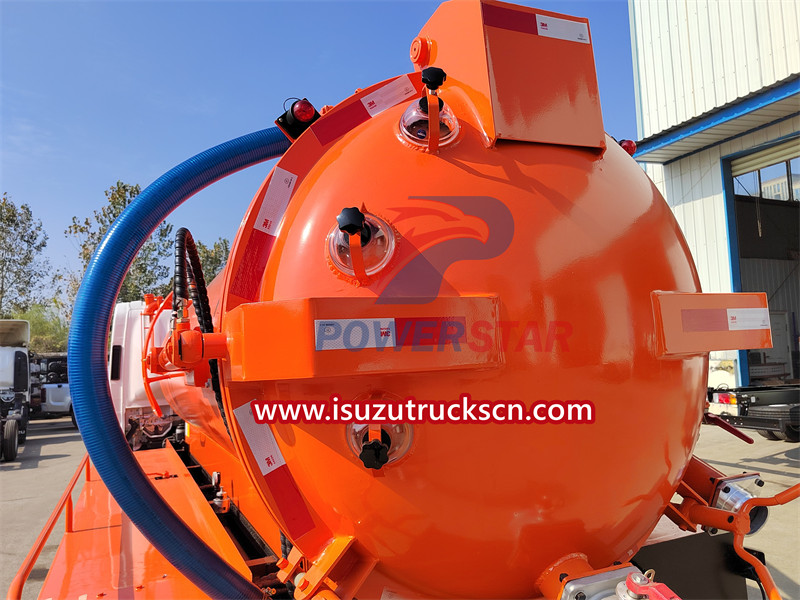

45 degree. Rear cover can be
opened and closed hydraulically.
Vacuum pump : Italy
Jurop/BP/MORO vacuum pumps.
Precautions for operating sewage tank trucks
1. Maintain the appropriate rotation speed of the vacuum pump of the ISUZU vacuum tank truck: If the vacuum pump speed is too high, the rotor will heat up; if the speed is too low, it will cause engine vibration and components will cause additional impact, which will affect the service life. Maintain a suitable working speed and adjust the maximum adjustment position of the hand throttle in advance.
2. The sewage suction truck needs to be hydraulically lifted and dumped on a flat ground. It is strictly forbidden to hydraulically lift and dump the sewage suction truck on a sloping road. Otherwise, the uneven road surface will cause the weight of the vehicle body to tilt to one place, causing distortion and deformation of the components there, and easily causing a rollover accident.
3. When hydraulically lifting the vacuum truck, open the rear door first. The rear door of the tank should be opened before hydraulic lifting to unload sludge. It is strictly prohibited to hydraulically lift the tank body of the sewage suction truck before opening the rear door of the tank, otherwise there will be a risk of overturning due to the rearward shift of the center of gravity.
4. When operating the PTO, the operator must control the accelerator, make the engine idle, and fully step on the clutch pedal. After engaging the PTO to extract power, the driver must slowly release the clutch pedal. Do not engage the PTO without depressing the clutch, otherwise the PTO gear will hit the running gearbox gear, causing damage to both gears. The power take-off lever of the sewage suction truck must be placed in the middle position when the vehicle is driving.
5. Vacuum sewage trucks are not allowed to suck or transport waste oil and dangerous goods. When entering or repairing the sludge tank of a sewage suction truck while the sludge tank is hydraulically lifted, support rods and safety stops must be used. When transporting sewage, a manual rear door tank clamping device must be used. Since there is no anti-wave plate in the tank and the center of gravity is high, the vehicle must drive at a medium or low speed and cannot make sharp turns or brakes.
