Work capacity:
1000 LTruck model:
PT5100GXWEngine power:
190HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:

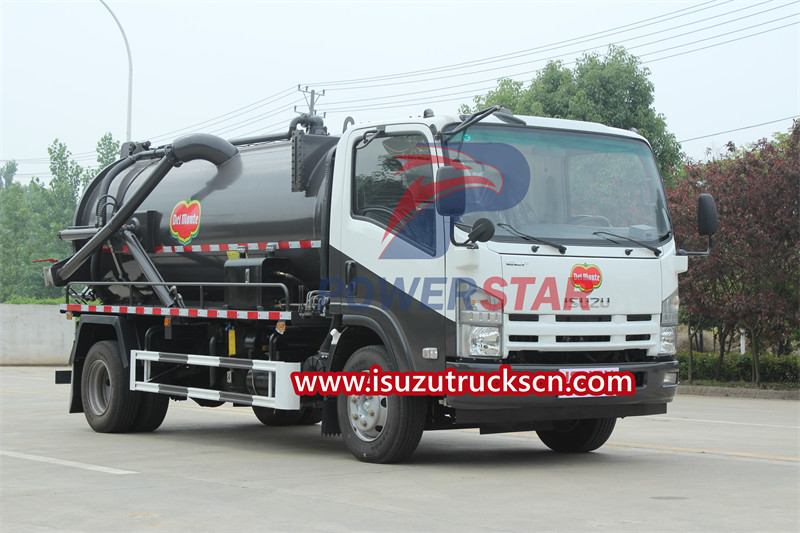

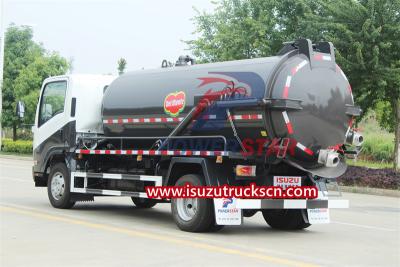

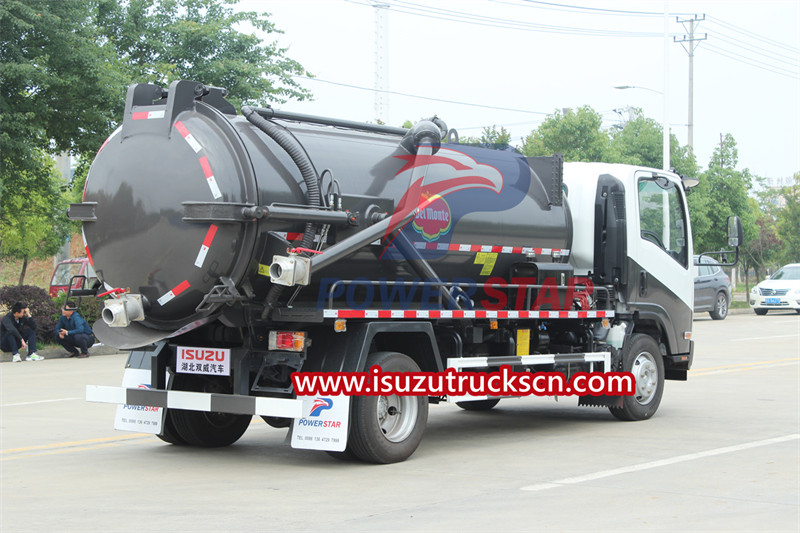

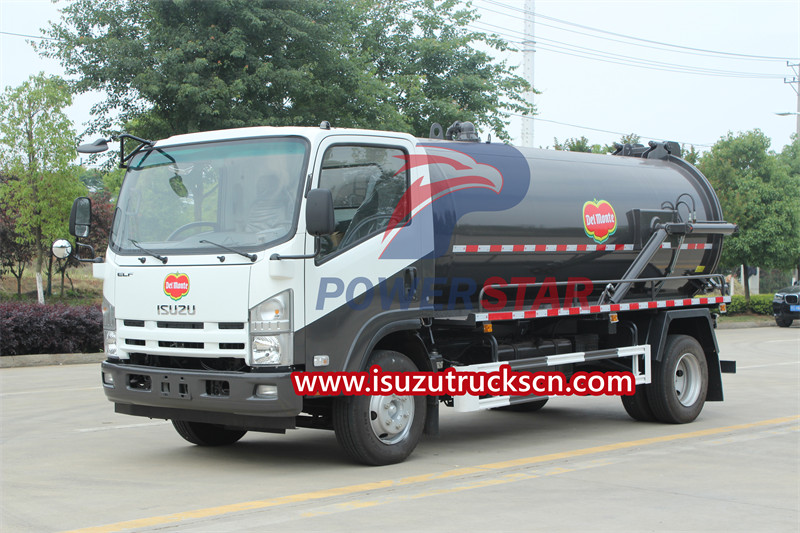

Large vacuum tank, customized color and logoThe ISUZU sewer cleaning truck, with its large capacity and high efficiency, is especially suitable for large-scale cleaning operations. Whether it is cleaning municipal sewers or sewage treatment in industrial areas, it can do the job and help users complete their tasks quickly.
This 10000L septic tank truck is equipped with a powerful original engine from ISUZU, which ensures the vehicle's stable performance in different operating environments. The powerful suction generated by its vacuum pump can quickly absorb all kinds of sewage and debris. In addition, the unique pipeline design further improves sewage suction efficiency and reduces operating time.

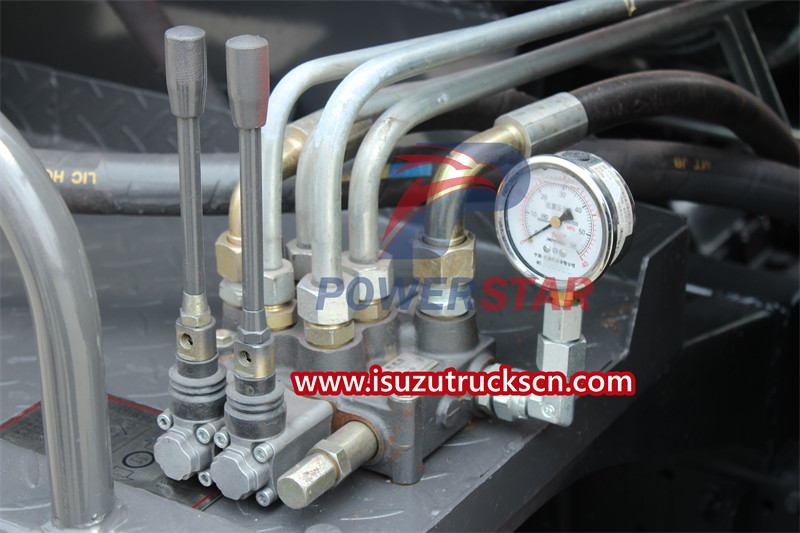

The control system of the truck is designed to be user-friendly and easy to operate. Drivers can master various operations proficiently after a short period of training, which greatly lowers the threshold for use. Moreover, the vehicle is also equipped with various smart sensors and safety protection devices to help drivers complete their work safer and more accurately.
Product Specifications
Product name
ISUZU sewer cleaning truck
Vehicle Parameters
Overall Dimension
7800×2300×2650mm
Curb Weight
4900Kg
Loading Weight
6000Kg
GVW
11000Kg
Wheelbase
4175mm
Drive Type
4x2
Engine
Engine Model
4HK1-TC51
Engine Power
190HP/139(kw)
Displacement
5193(ml)
Emission Standard
Euro 5 or 6
Transmission
Transmission
MLD-6Q
Type
Manual
Forward Gear
6 Speed Gear
Reverse Gear
1 Speed Gear
Seats
Passengers
3
Chassis
Front Track
1680mm
Rear Track
1650mm
F/R Axle Loads
4000/7000Kg
Tires
7 pcs (including spare tire)
Tire Model
235/70R17.5
Configuration
Power Steering
Standard
AC
Standard
Retro-reflective Marking
Standard
ABS
Standard
Free Maintenance Battery
Standard
Air brake
Standard

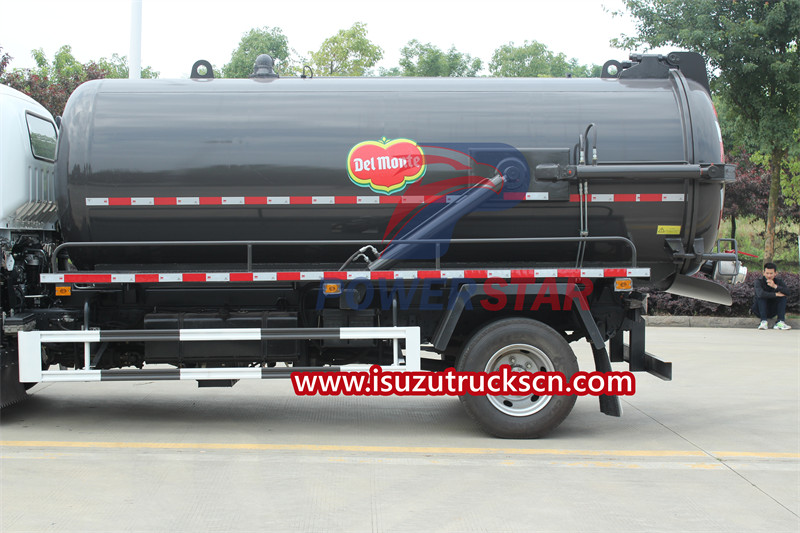

Tanker
Material
Carbon steel
Capacity
10000L
Wall thickness
6mm
Head thickness
6mm
Design pressure
full vacuum
Working pressure
-0.98bar
Tipping cylinder
Front tipping cylinder for tank unloading at 45
degree
Safety support
Safety valve for easy working under a tipped tank
Liquid level view window
Mounted at the side of tank body.
Over pressure device
Over pressure valve at the top of tank
Vent Valve
Mounted to control the vacuum inside the tank
Discharge Gutter
At the rear of the tank in order to keep the rear of
the vehicle clean
Rear cover
Operation
Hydraulic operation
Safety
Hydraulic valve automatic check
Locking mechanism
Manual
Seal
Positive seal with rubber seal in neoprene

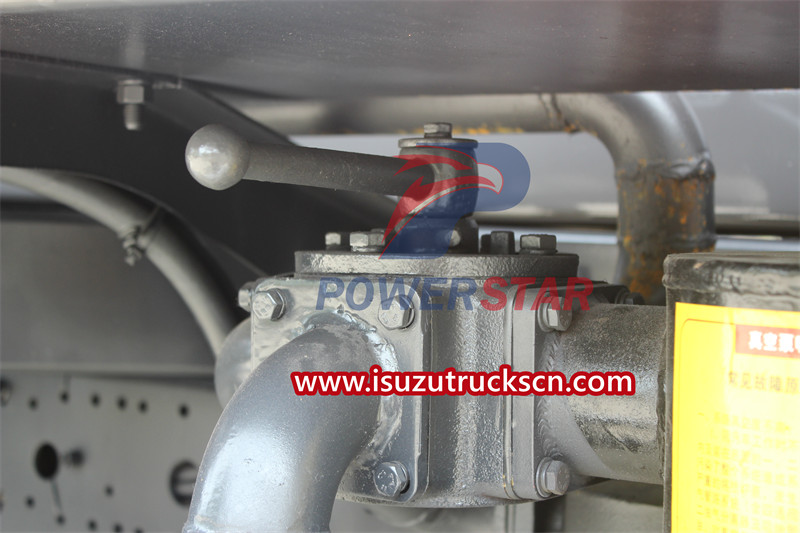

Inlet valve
DN100mm
Outlet valve
DN100mm

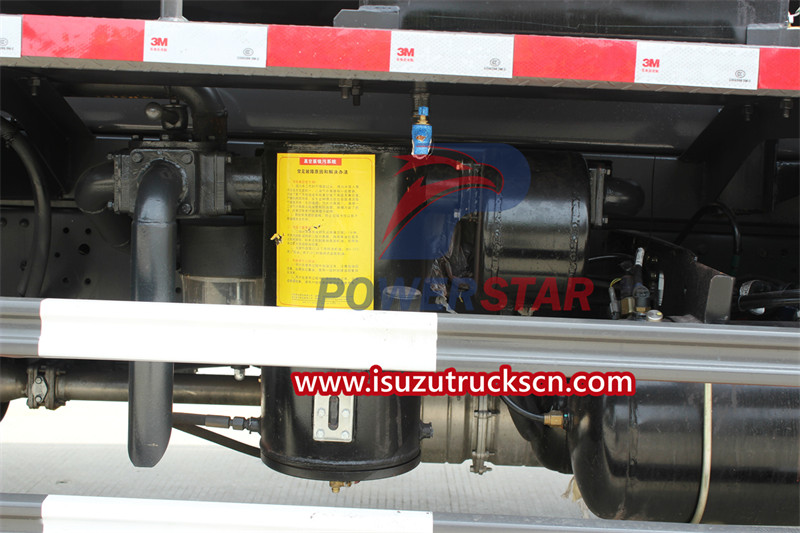

Vacuum pump
Brand
China famous brand WEILONG
Model
68/7000
Speed
800 rpm
Vacuum degree
93%
Absolute work pressure
7000 Pa
Flow
68 L/s
Drive type
By PTO, engaged and disengaged in cab
Product Application:
ISUZU vacuum pump trucks are mainly used in the following fields:
1. Municipal sanitation: used for cleaning and transporting sewage, rainwater, silt, etc. in public areas such as urban roads, squares, parks, etc.
2. Sewage treatment plant: As a mobile sewage treatment equipment, it can pump and treat scattered sewage points to reduce the processing pressure of the sewage treatment plant.
3. Industrial sites: In factories, warehouses and other places, it is used to remove wastewater, waste materials, oil pollution, etc. generated during the production process to ensure a clean environment and prevent pollution.
4. Construction site: During the construction process, construction waste, silt, sewage, etc. are cleaned and transported.
5. Emergency rescue: After the occurrence of natural disasters such as floods and heavy rains, it is used to clean up the environment in the disaster-stricken areas and restore normal production and living order as soon as possible.
Safety tips for using ISUZU sewer cleaner trucks:
When using a ISUZU sewer cleaner truck to clean sewage and dirt, you need to pay special attention to the following safety matters:
1. Obey traffic rules: When operating a sewage truck, be sure to abide by traffic rules and make sure there are no pedestrians, vehicles and other obstacles around.
2. Prevent leakage: When the ISUZU vacuum tank truck is driving, ensure that the tank and the sewage suction pipe are tightly connected to prevent sewage and dirt from leaking.
3. Pay attention to the switch power take-off: The switch power take-off of the truck must be in neutral, step on the clutch, and release the clutch slowly. It is strictly prohibited to turn on the power take-off switch during the process of suctioning or discharging waste.
4. Control the working time: The continuous suction time of the truck should not exceed 30 minutes to avoid excessive burden on the vehicle.
5. Ensure the normal operation of the hydraulic cylinder: When using a sewage suction truck, it is necessary to regularly check whether the hydraulic oil in the hydraulic cylinder is sufficient to ensure its normal operation.
6. Pay attention to safe operation: When operating the vehicle, you should remain alert and avoid using mobile phones or other distracting factors. Operators need to undergo special training to understand the functions and usage of each control button, and to be familiar with the performance characteristics of the sewage suction truck.
7. Avoid use in flammable and explosive environments: Sewage suction trucks should avoid use in flammable and explosive environments to avoid accidents.
8. Regular maintenance: In order to ensure the normal operation of the ISUZU septic tank truck and extend its service life, regular maintenance should be carried out, including cleaning and repairing the sewage suction tank, nozzles, pumps and other equipment.
9. Pay attention to discharge: When cleaning sewage and dirt, make sure to discharge it in a suitable place to avoid pollution to the environment.
10. Wear protective equipment: Operators should wear appropriate protective equipment, such as protective clothing, gloves, and masks, to protect their own safety and health.
