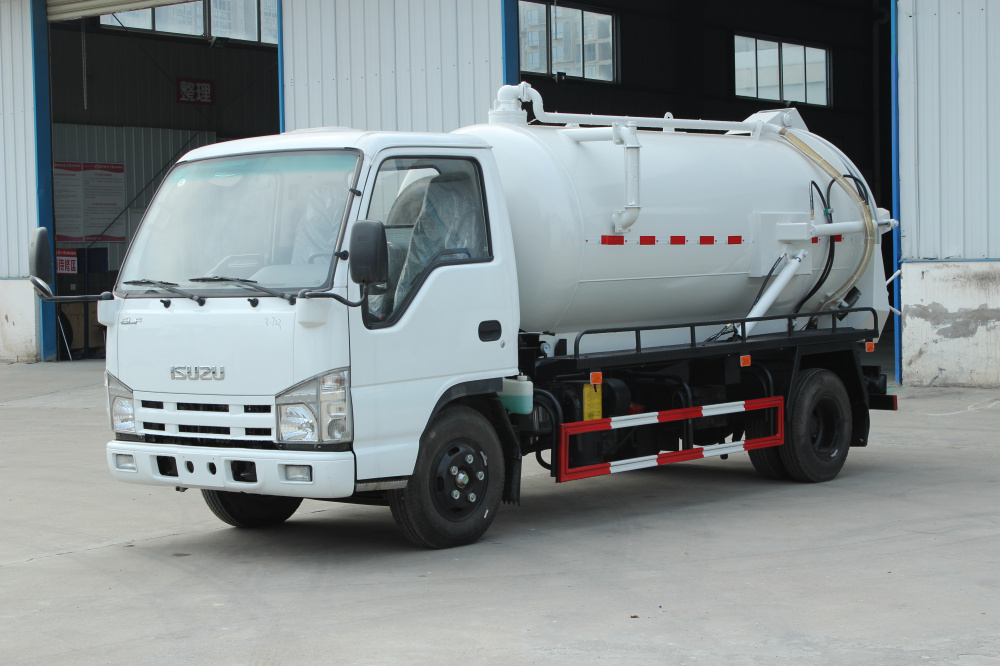

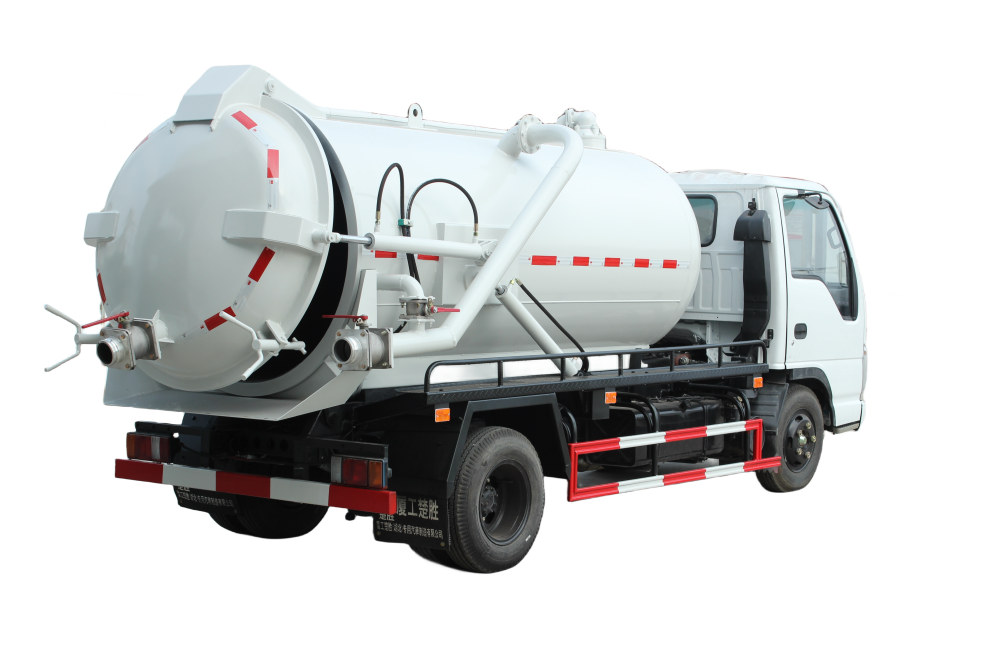

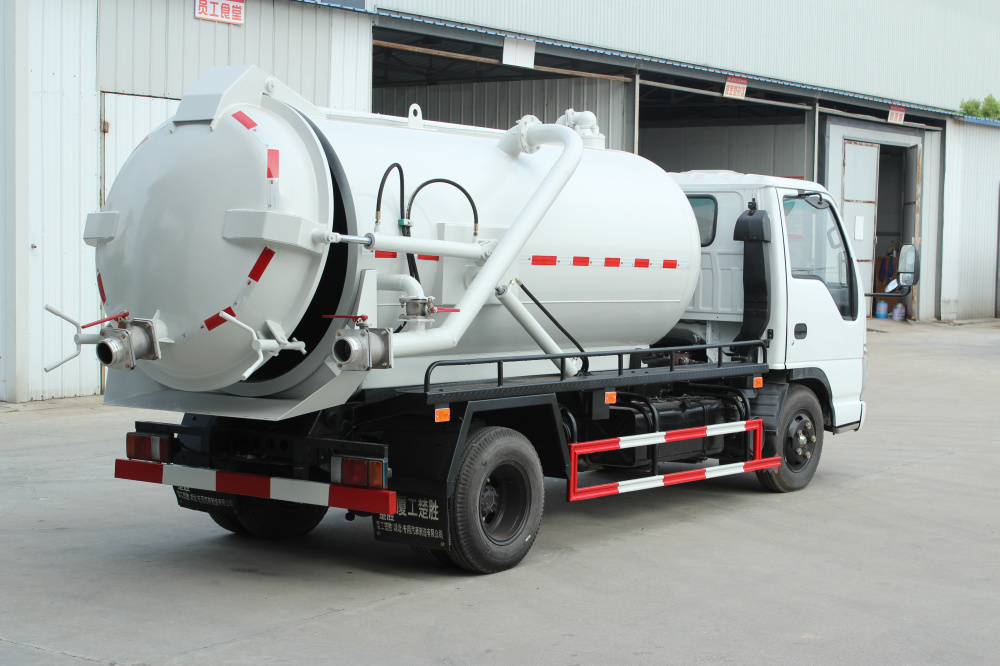

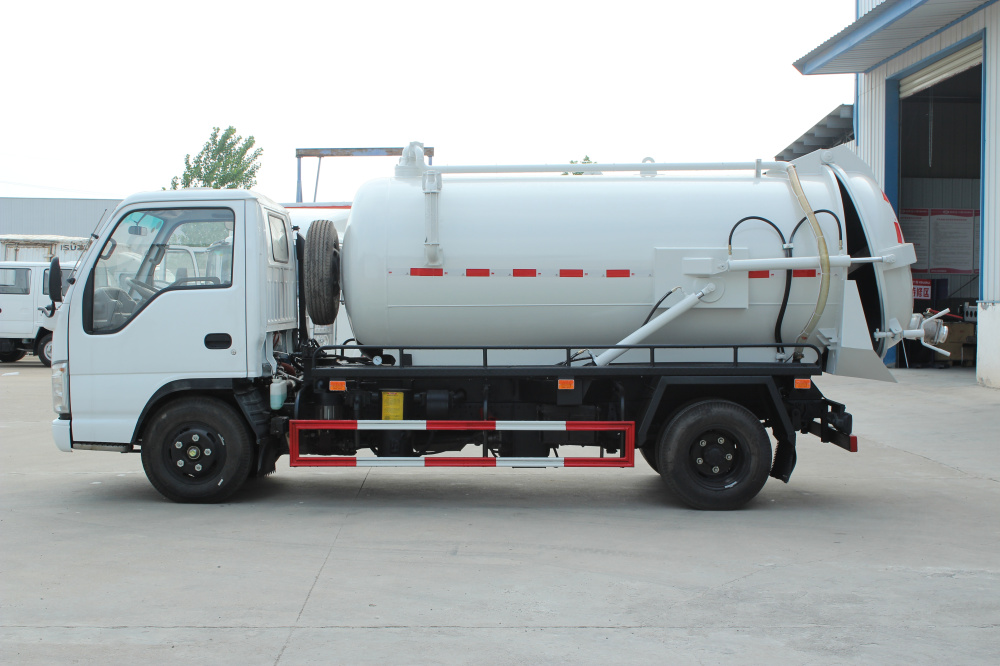

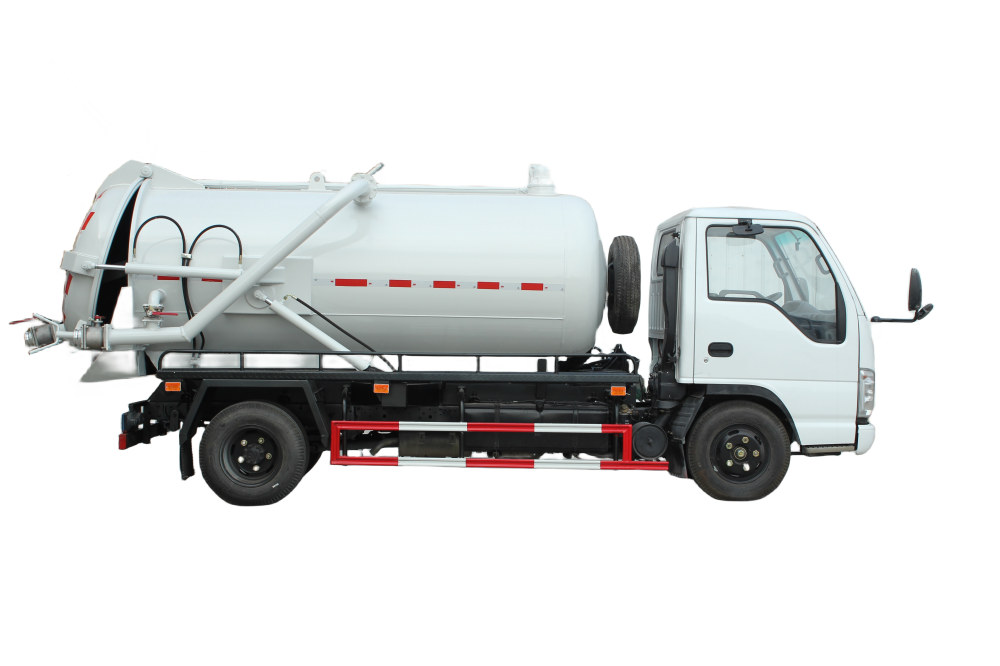

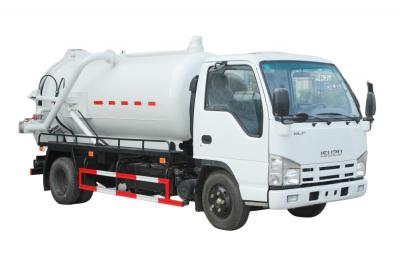

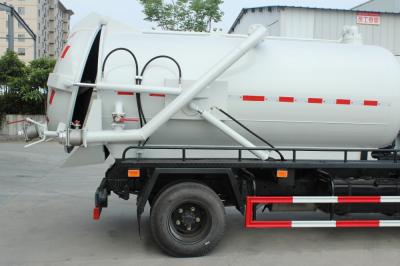

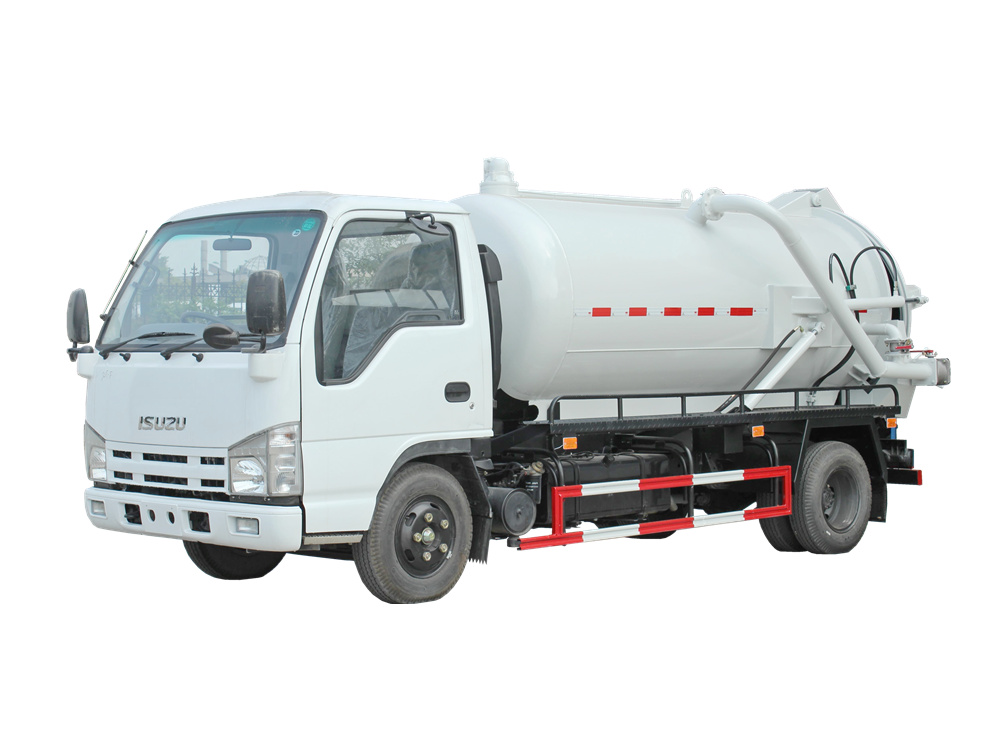

Isuzu elf Wastewater Disposal Services Truck is a powerful and efficient solution for sewerage cleaning. Its superior features, advantages, and versatile applications make it a valuable asset for municipalities, industries, and commercial establishments alike. With our dedicated after-sales service and customizable options, we strive to provide the best possible experience for our customers.
The Sewerage Cleaner Truck Isuzu is an exceptional product designed specifically for efficient and comprehensive sewerage cleaning. It offers a superior solution for the removal and transportation of waste and debris from sewer lines, contributing to a cleaner and healthier environment.
Features of the Sewerage Cleaner Truck Isuzu:
1. Powerful Suction: The Sewerage Cleaner Truck Isuzu boasts a high-performance vacuum pump system that can generate strong suction, enabling it to effectively remove solid waste and liquid from sewer lines.
2. Large Capacity Tank: It is equipped with a spacious tank, allowing for the collection and transport of substantial volumes of sewage and debris, reducing the frequency of emptying and increasing operational efficiency.
3. Precision Nozzles: The truck is equipped with precision nozzles that aid in directing the water flow, ensuring thorough cleaning of sewer lines, and preventing potential blockages.
4. Enhanced Maneuverability: With its compact design and flexibility, the Isuzu Sewerage Cleaner Truck can easily navigate narrow streets and congested areas, ensuring accessibility to different locations.
Advantages of the Isuzu elf Wastewater Disposal Services Truck:
1. Efficient Cleaning: The powerful suction and precision nozzles of the truck ensure efficient and thorough cleaning of sewer lines, preventing blockages and maintaining their functionality.
2. Time and Cost Savings: The large capacity tank reduces the need for frequent emptying, saving time and labor costs. Additionally, the precise cleaning capabilities of the truck minimize the need for repetitive cleaning cycles.
3. Versatile Applications: The Isuzu Sewerage Cleaner Truck is suitable for various applications, including municipal sewer maintenance, industrial waste management, and commercial property sanitation.
4,000 Liters Sewerage Cleaner Truck Isuzu | ||
Function | ||
Function: It is designed for cleaning sludge, mud, sedimentation from sewage, rainwater wells, inspection wells, septic tanks and a variety of channels. It is useful for cleaning the city sewer, pipeline sediment, mud ditch dredge, can also be used for cleaning industrial drainage pipes, wall and so on. | ||
Vehicle description | ||
Overall Dimension mm (LxWxH) | 6,720×2,050×2,500 (mm) | |
Max.Weight | 11,495 (kg) | |
Curb weight | 4,150 (kg) | |

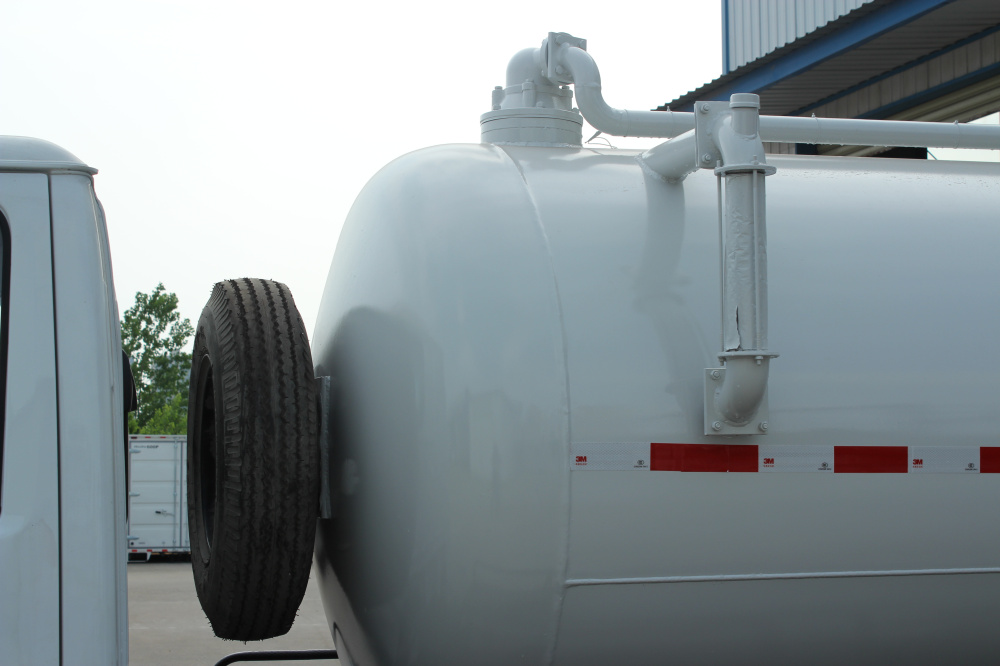

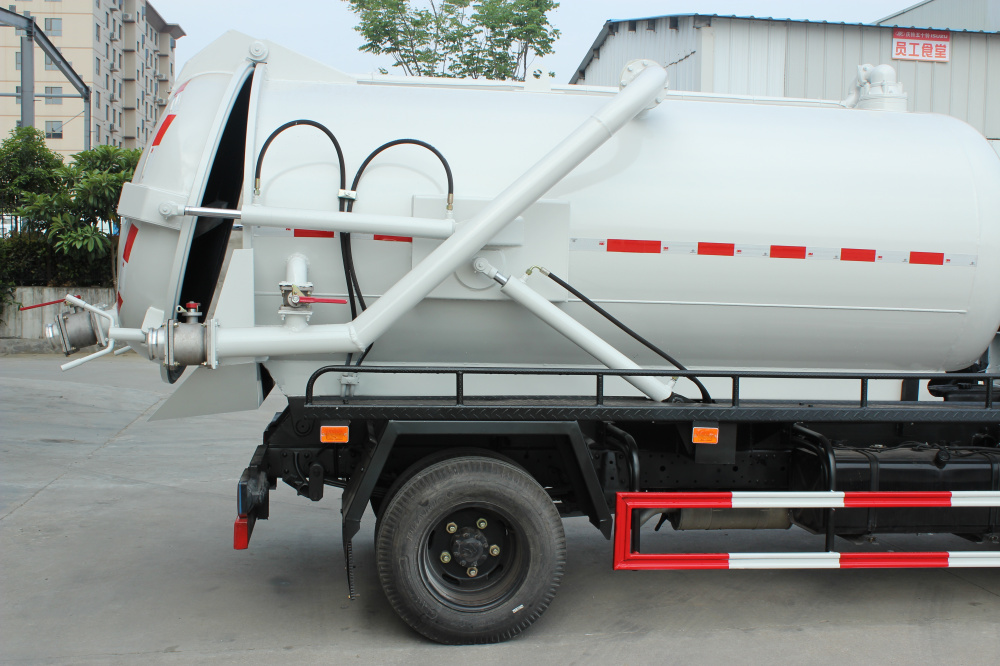

Suction tanker description | ||
Tanker | Capacity | 4,000~5,000L |
Material | High quality carbon steel, 6mm thickness | |
Thickness | 6mm for tanker body and rear cover | |
External tank treatment | Rust proofing treatment as standard | |
Structure | Machine welding automatically, cylindrical tank | |
Hydraulic dump system | The tank lift angle could be higher up to 45° | |
Rear door hydraulic open Hydraulic lock with mechanical interlocking |
||
Painting as previous order |
Vacuum pump | Brand | WEILONG |
Model | 50QZXDH - 68/7000 | |
Pumping rate | 244.8 M3/H | |
68 L/S | ||
Max speed | 800 r/min | |
Power | 5kW | |
Suitable | 5,000Liter | |
Standard Specs | PTO | Equipped |
Oil pump | Equipped | |

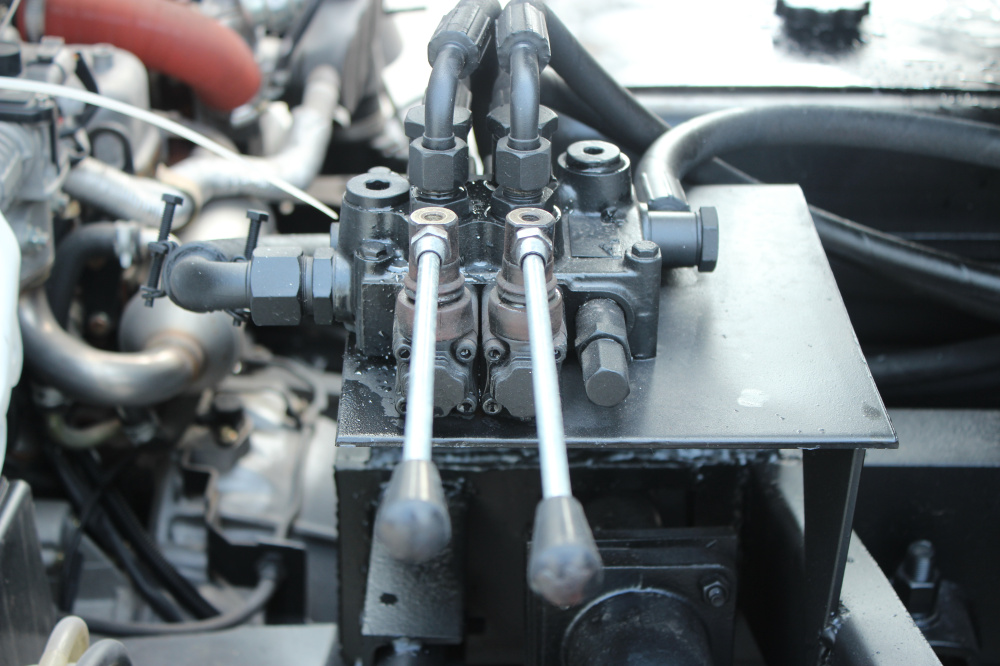

Multi-directionalcontrol valve | Equipped | |
Hydraulic cylinders | 4sets | |
Liquid level pipe | Equipped | |
Liquid level alarm device | Equipped | |
Anti-overflow valve | Equipped | |
Suction hose | Equipped, 5meters | |
Water separator | Equipped | |
Oil separator | Equipped | |
Drain valve | Equipped |
Chassis Description | |||
Chassis brand | ISUZU - 100P model | ||
Chassis condition | Brand new - year of 2024 | ||
Cab | Exporting standard - 600P cab | ||
Two seat with A/C | |||
Driving type | Left hand driving, 4x2 - 6wheeler | ||
Tire | 7.00R16 tire, 6+1(pcs) | ||
Engine | Brand | ISUZU - 4KH1-CN5HD | |
Fuel | Diesel | ||
Emission standard | Euro V - without ad blue | ||
Displacement | 3000cc | ||
Horse power | 130hp / 96kW | ||
Number of cylinders | 4 | ||
Maximum torque | 290 N.m at 1500-1900rpm | ||
Gear box | Brand | ISUZU - MSB | |
Number of gears | 5 Forwards gear & 1 reverse gear | ||
Axle | Front | 2.5T | |
Rear | 4.8T | ||
Brake System | Oil brake and vacuum booster pump |

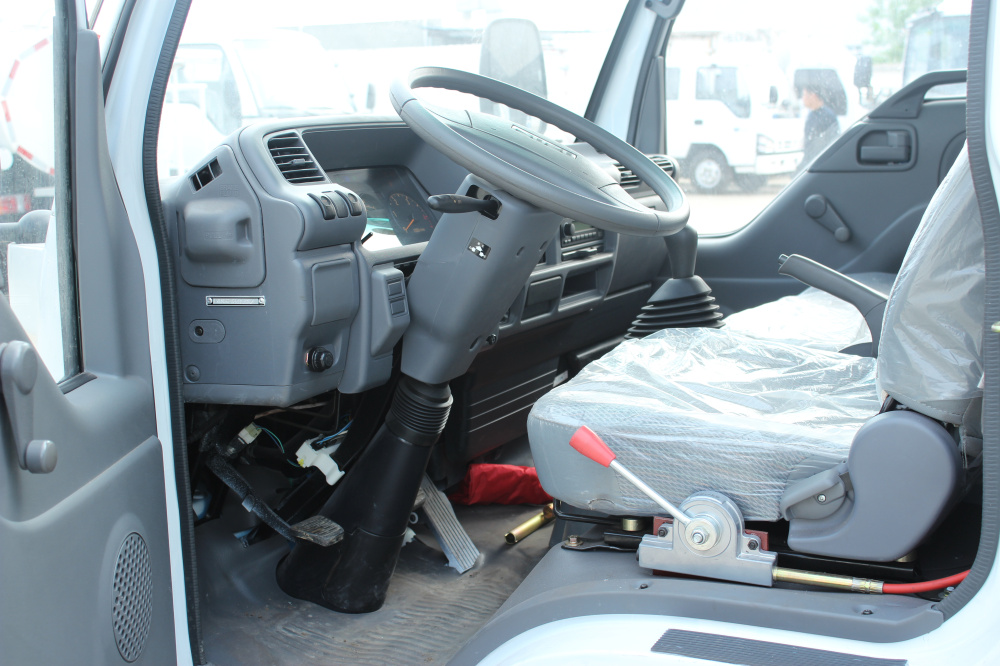

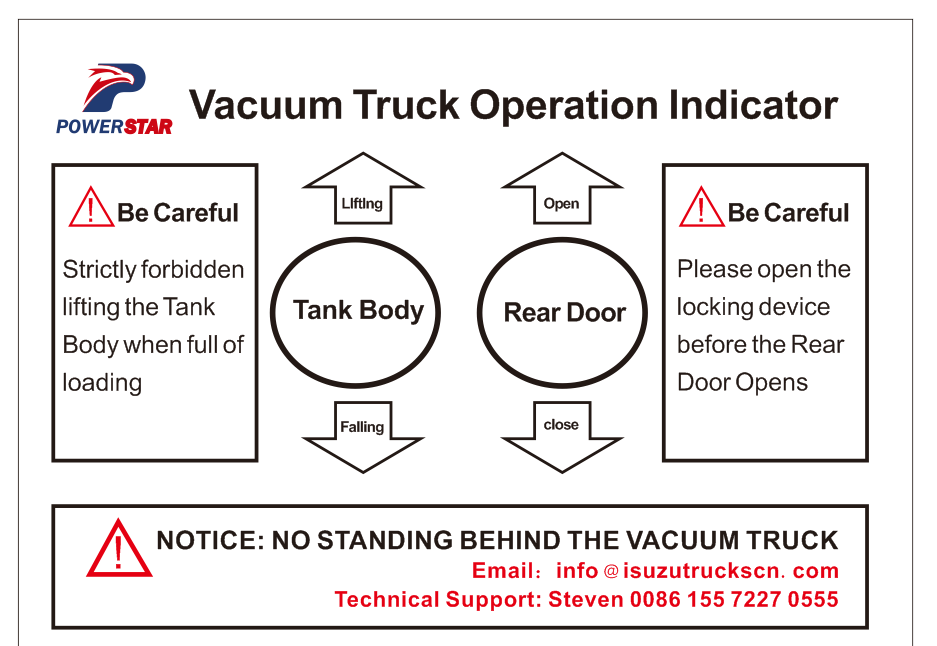

Operation panel for Isuzu elf Wastewater Disposal Services Truck
Applications:
1. Municipalities: The truck is ideal for municipal authorities responsible for maintaining and cleaning sewer lines in urban and rural areas.
2. Industries: Industries dealing with wastewater, such as manufacturing plants and wastewater treatment facilities, can benefit from the truck's efficient cleaning capabilities.
3. Commercial establishments: The truck is useful for maintaining the cleanliness and functionality of sewer lines in shopping centers, hotels, and other commercial properties.
After-sales service:
We offer comprehensive after-sales service to ensure the smooth operation and longevity of the Sewerage Cleaner Truck Isuzu. Our dedicated team of technicians is available for maintenance, repairs, and technical support whenever required. Additionally, we provide training programs to ensure the efficient and safe operation of the truck.
FAQ:
Q1: What is the capacity of the Sewerage Cleaner Truck Isuzu?
A1: The truck has a capacity of [insert capacity] liters, allowing for efficient collection and transportation of waste.
Q2: Can the truck be customized to meet specific requirements?
A2: Yes, we offer customization options to suit the unique requirements of our customers.
Q3: How often does the truck require maintenance?
A3: Regular maintenance is recommended to ensure optimal performance. Our technicians can provide guidance on the maintenance schedule.
Q4: Is the truck environmentally friendly?
A4: Yes, the Isuzu Sewerage Cleaner Truck adheres to environmental standards and regulations, minimizing its impact on the environment.
Q5: Are spare parts readily available?
A5: Yes, we ensure the availability of genuine spare parts to facilitate quick repairs and minimize downtime.
