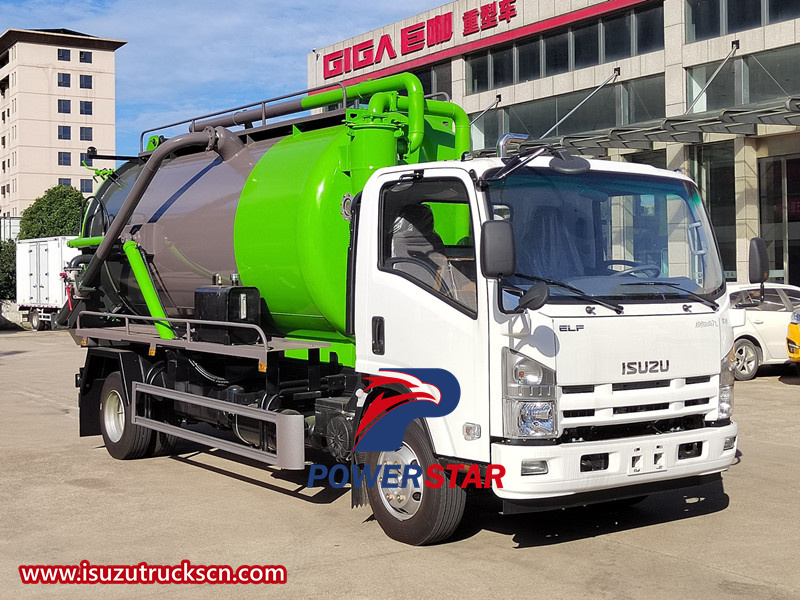

Philippine Isuzu 7 cbm vacuum tanker truck
ISUZU 7cbm Vacuum Tanker Truck is consists of a large tank for storing liquids, a strong pump for vacuuming and a series of hoses, collecting and transporting hazardous and nonhazardous liquid and semi-liquid waste.The 700P chassis is provided with ISUZU 4HK1-TC51 engine. And the power of engine is 140Kw,displacement is 5193ml,horsepower is 190hp, and transmission is Manual MLD 6-speed.The tank capacity is 7000 liters, welded from high tensile steel thick in 6mm, to vacuum suction, pressure discharge and self-flow discharge, sewer etc. HangZHou WEILONG vacuum pump driven by belt and pulley from transmission PTO.
Work capacity:
7cbmTruck model:
PT5070GQWEngine power:
190HPEngine type:
4HK1-TC51Axle drive:
4X2. left hand driveGear box:
MLD 6-speed, manualRemarks:
optional vacuum pump
Philippine Isuzu 7 cbm vacuum tanker truck also called Isuzu vacuum sewage suction truck, sewage vacuum pump truck,Isuzu mini vacuum tank truck, Isuzu sewage disposal trucks, Isuzu sewer tanker truck, Isuzu septic suction truck, Isuzu vacuum cleaner truck ,Isuzu vacuum suction truck,Isuzu sewage vacuum truck ,Isuzu waste vacuum truck ,Isuzu sewer truck ,Isuzu cesspit emptier ,etc.
The Philippine Isuzu 7 cbm vacuum tanker truck is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
With excellent talents and leading technology, we provide domestic and foreign customers with high quality products for Isuzu 7cbm Vacuum Tanker Truck,and perfect customer service. We practice strong, unyielding pioneering spirit. Then We will give our best prices to you. We wholeheartedly welcome shoppers, business associations and friends from all over the world to contact us and seek cooperation for mutual benefit. Our development is based on modern, technological, intelligent and innovative marketing services.
|
Vehicle Description |
||
|
Overall dimensions |
7200*2250*2500 mm |
|
|
Gross vehicle weight |
11000kg |
|
|
Curb Weight |
6200kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4*2 |
|
|
Chassis Description |
||
|
Chassis model |
Isuzu |
|
|
Cab |
Singer cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. |
|
|
Traction type |
LHD or RHD |
|
|
Drive type |
4*2 |
|
|
Wheelbase |
4175mm |
|
|
Tire specification |
235/75R17.5 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Emission level |
Euro5/6 |
|
Displacement/output |
5193ml / 140kw |
|
|
Horse power |
190hp |
|
|
Gear box |
Model |
China famous brand |
|
Number of gears |
MLD,6 forward gears& 1 reverse, synchronized |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
|
|
Axle |
Front |
4tons |
|
Rear |
7tons |
|
|
Tanker Description |
||
|
Tanker |
Capacity |
7000L |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump |
Type |
Double vacuum pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Manufacture |
Hangzhou WEILONG Pump Co., Ltd. |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5mins, |
|
|
Standard configuration |
Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. |
|
|
Optional configuration |
Tanker material: stainless steel. |
|
The Isuzu 7cbm vacuum tanker truck is a vehicle specially designed for cleaning and transporting liquid waste, sewage and sludge. It is widely used in urban drainage systems, factories, sewage treatment plants, construction sites and other situations where liquid waste needs to be processed. The vehicle has a liquid storage capacity of 7 cubic meters, equipped with a powerful vacuum pump system and efficient suction, which can effectively absorb various slurries and wastewater, ensuring that the waste treatment process is efficient and clean. The Isuzu 7cbm vacuum sewage truck is very practical in cleaning sewers, cleaning sewage pools, dealing with blocked pipes and other water treatment work, and helps maintain environmental hygiene and prevent environmental pollution.
Technical drawing of Philippine Isuzu 7 cbm vacuum tanker truck
The features of Isuzu 7cbm vacuum tanker truck is as follow:
Chassis Truck
Equipped with the 4HK1-TC engine of Isuzu’s latest technology, which precisely controls fuel injection and power output, reasonably matches the 6-speed transmission and rear axle speed ratio, and the maximum vehicle speed can reach 120km/h or more to meet the needs of high-speed logistics transportation.
Reinforced Chassis Capacity
The design of the frame, axle and other assemblies is based on the premise of ensuring the carrying capacity, using high-strength materials, stamping and welding processes to achieve the lightweight design of the chassis, making the vehicle operation more economical.
Equipped with large-size brakes (widened shoes), brake load-sensing proportional valves, engine exhaust brakes and other functional devices to ensure driving safety, making driving safer.

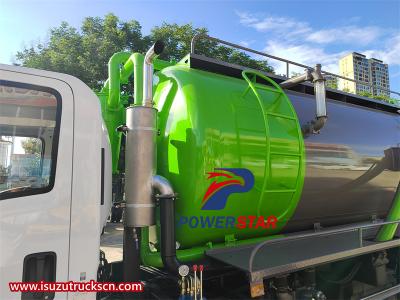

Isuzu 7cbm vacuum tanker truck
Q235 high tensile steel sheet of thickness 6 mm and side panel 5 mm thickness.

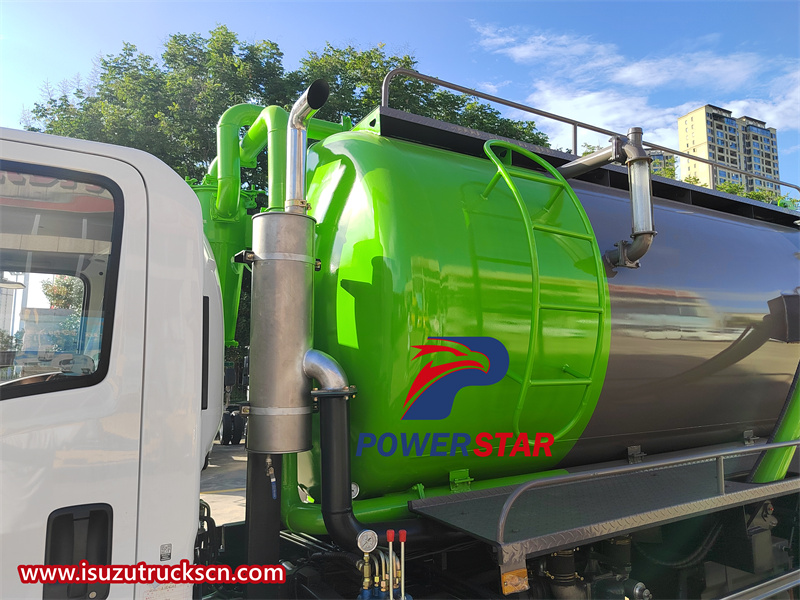

-Anti-overflow Valve installed at the top of the tank, which is connected to the suction port of the pump to protect it.

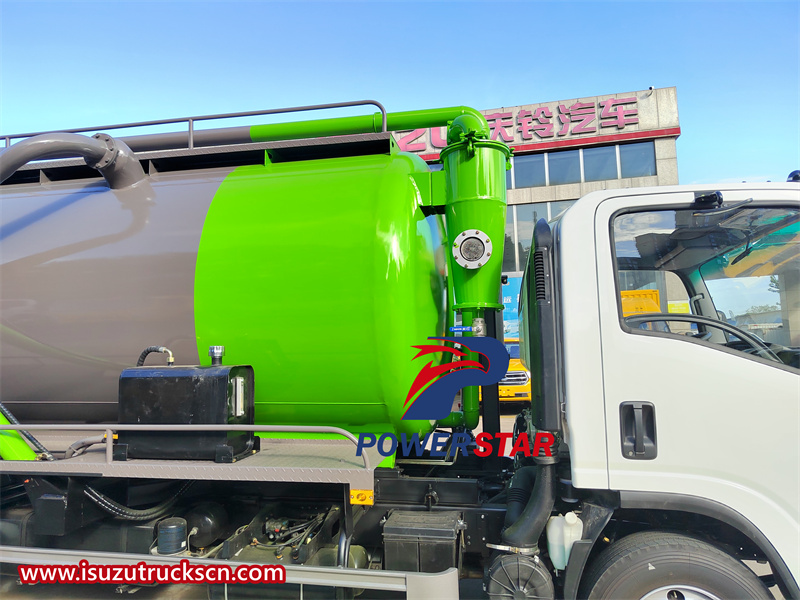

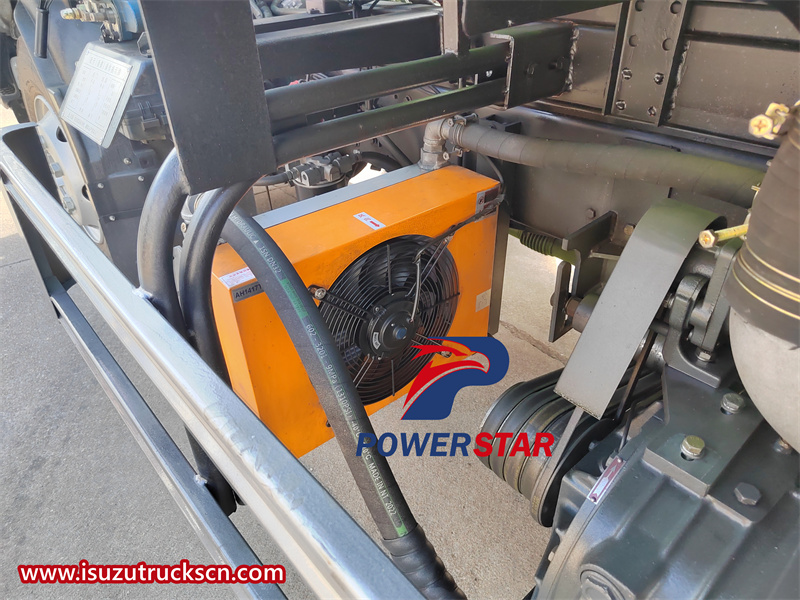

-Oil/Water Separator, water vapor and oil and gas to ensure the normal operation of the engine and the vacuum pump and prolong the service life.

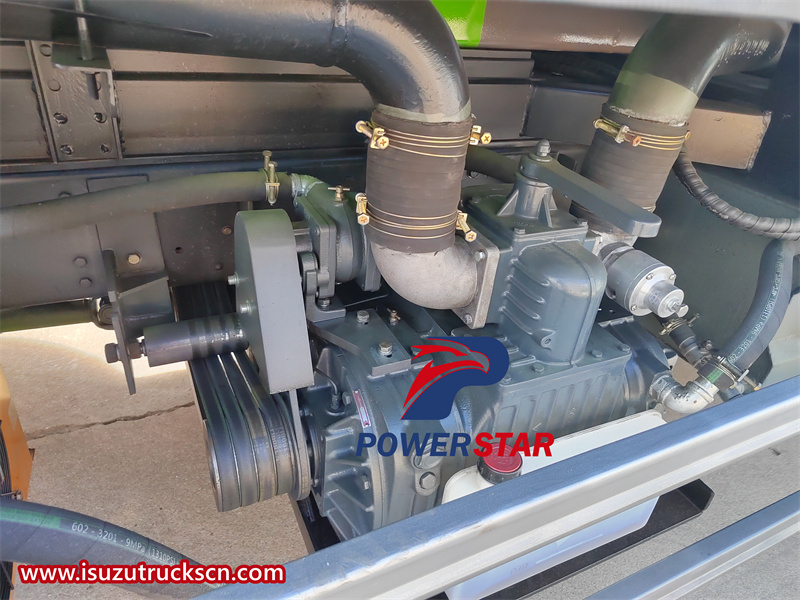

HangZhou WEILONG, Sliding Vane.

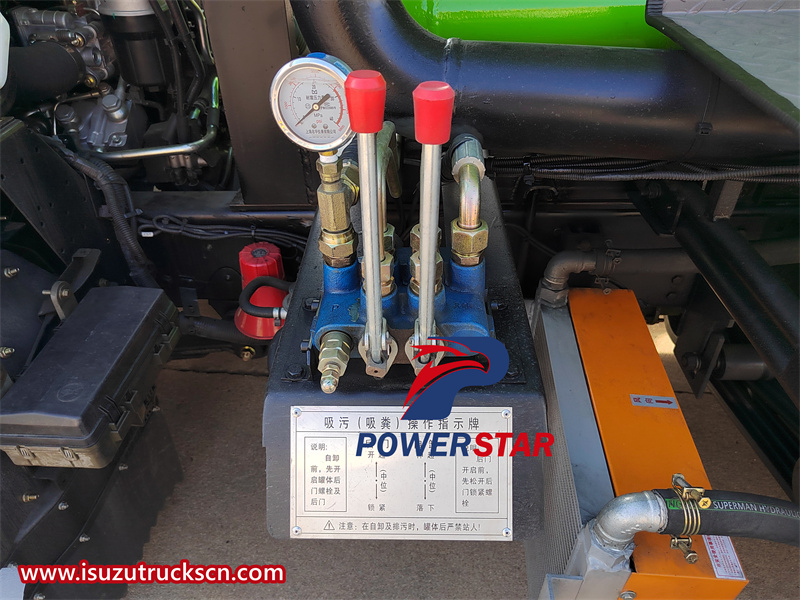

The control valve, oil cylinder and connecting pipeline of the hydraulic system of the sewage suction truck have advanced structure, reliable performance, simple operation and convenient maintenance.

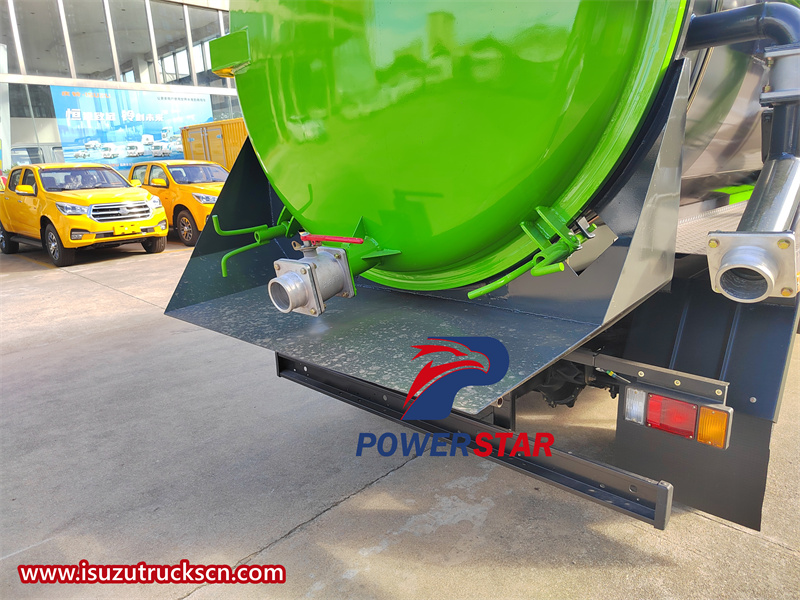

Tip-to-Dump or pressure unloading
– Vacuum pump brand or flow capacity
– Valves from 75mm to 150mm diameter, level or air operated
– A fully opening rear door, hydraulically operated or side mounted manual
– A 600mm diameter rear access manholes can be fitted

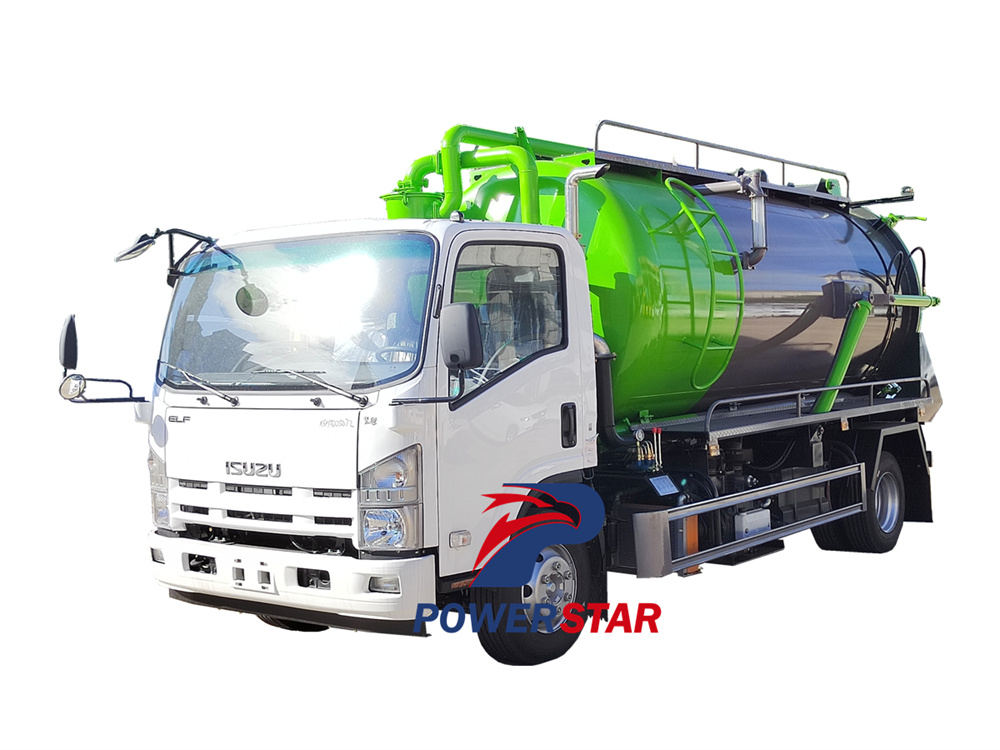

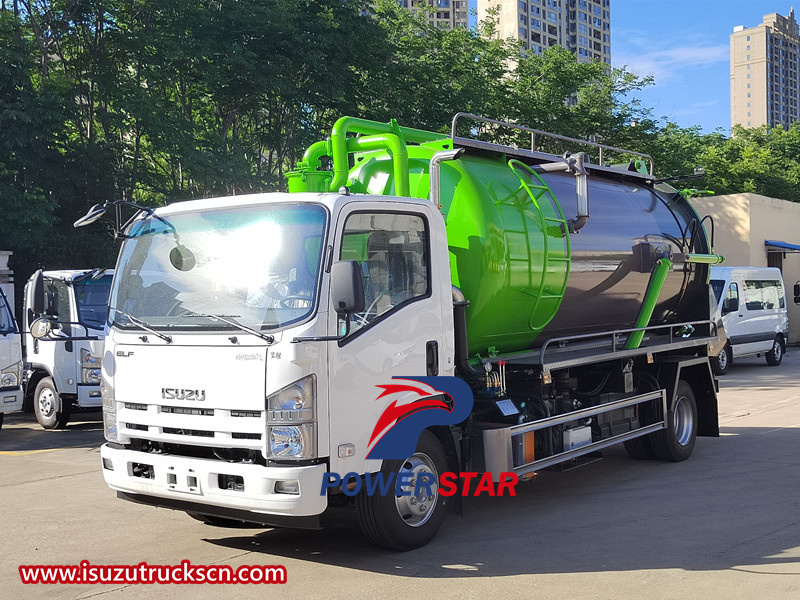

Isuzu 4x2 700P sewer cleaning truck

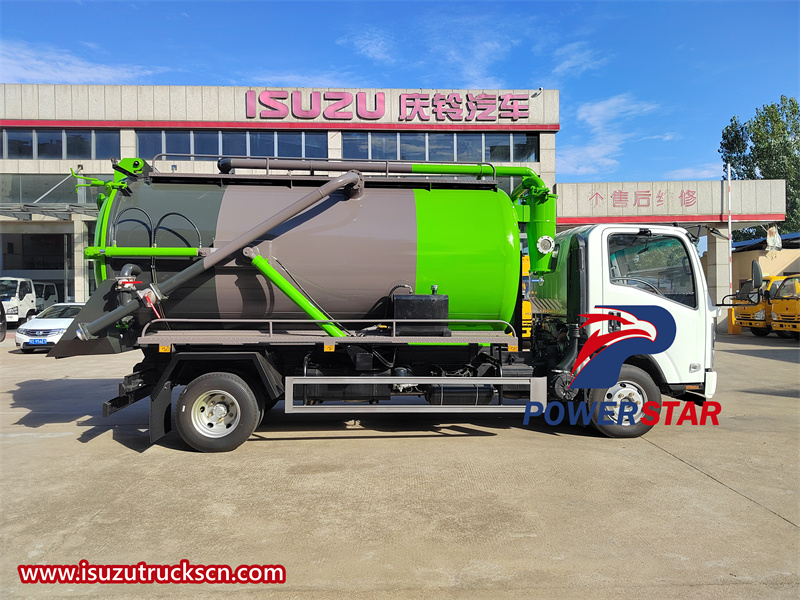

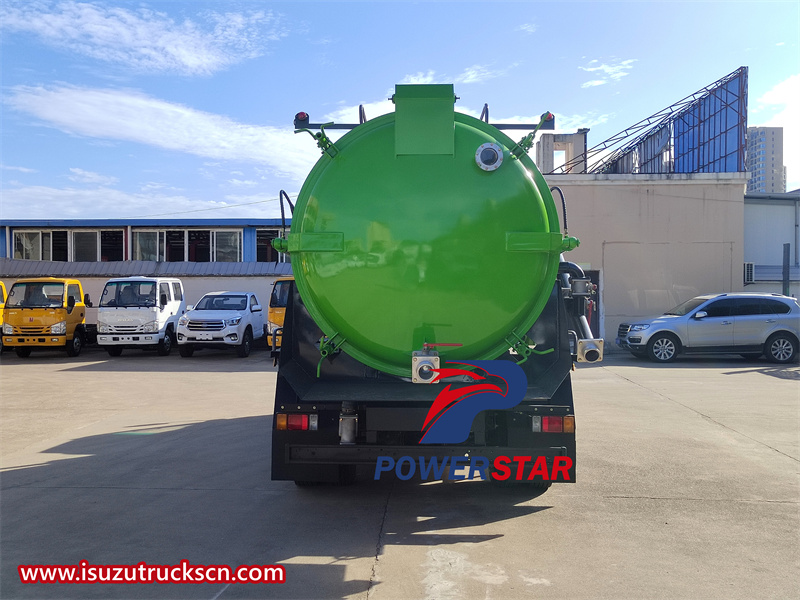

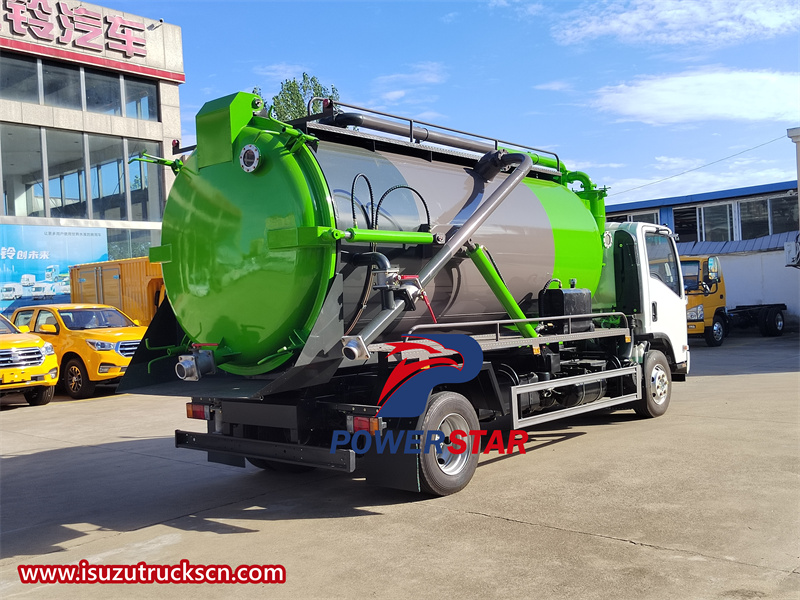

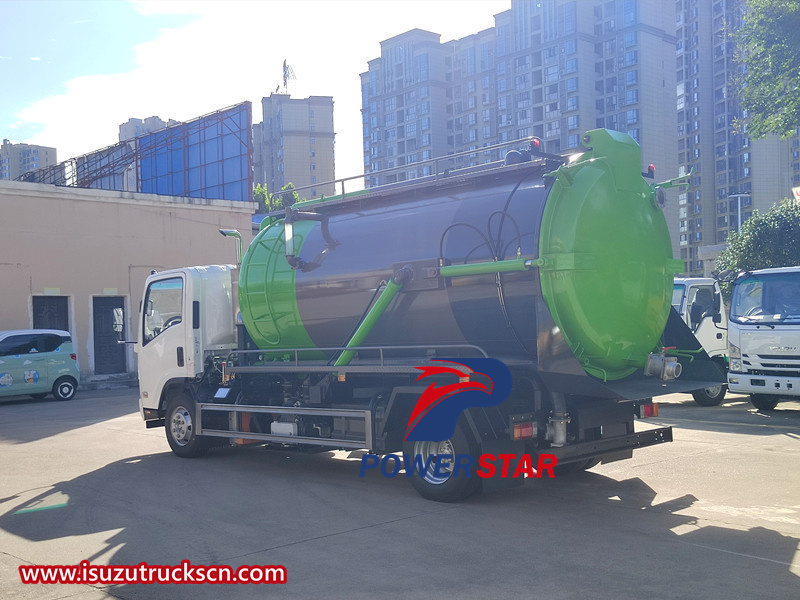

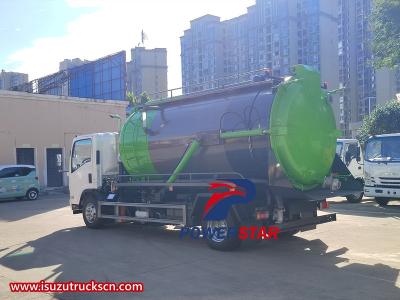

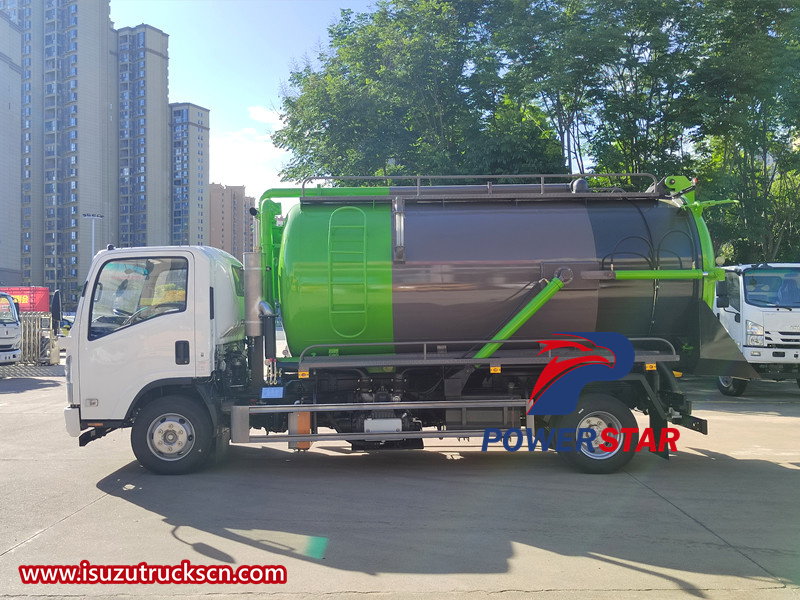

Philippine Isuzu 7 cbm vacuum tanker truck details
