Road sweeper washer truck Isuzu NPR

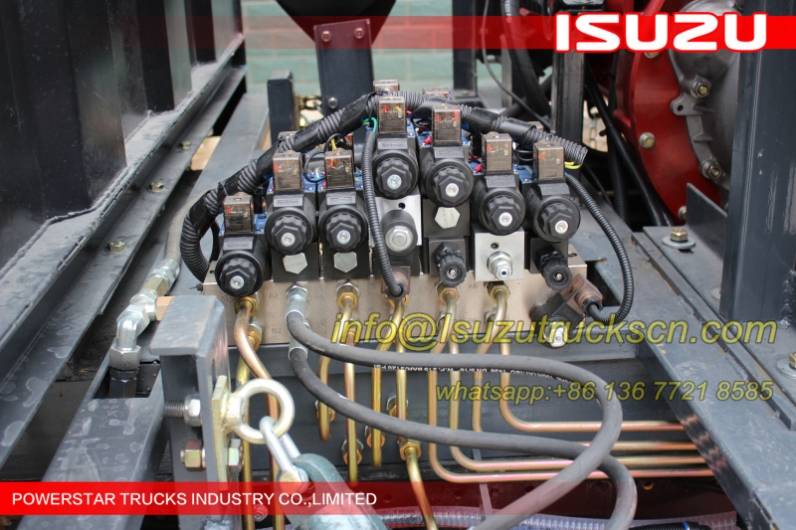

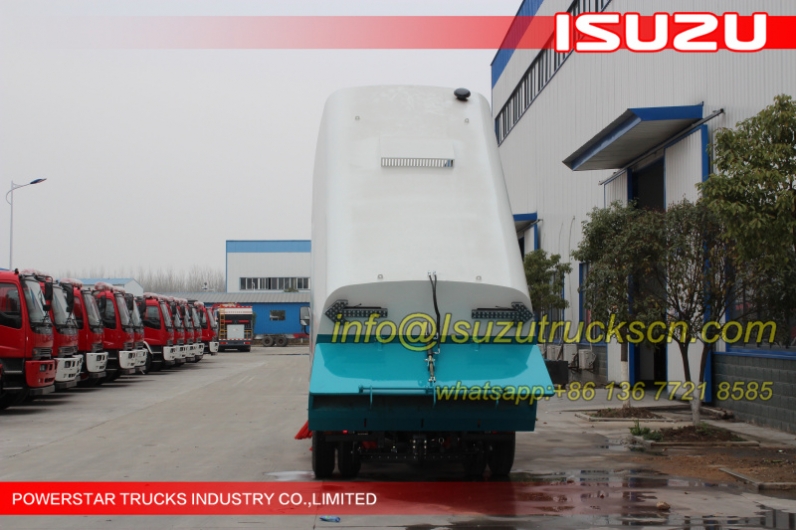

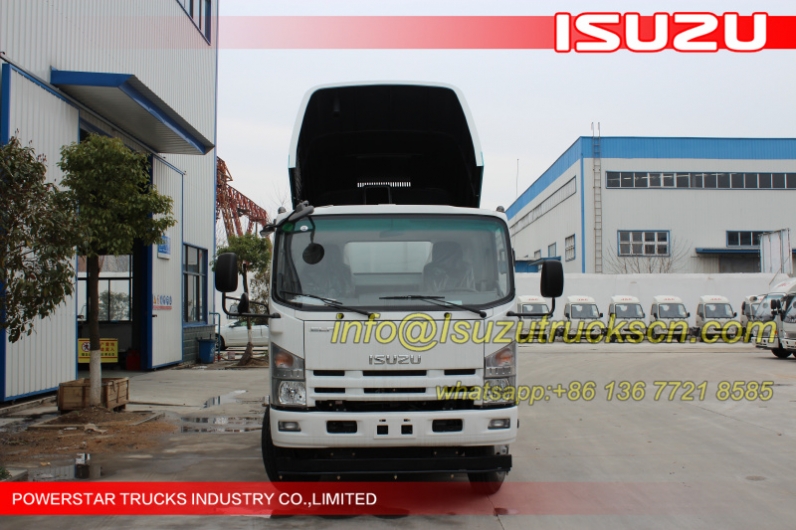

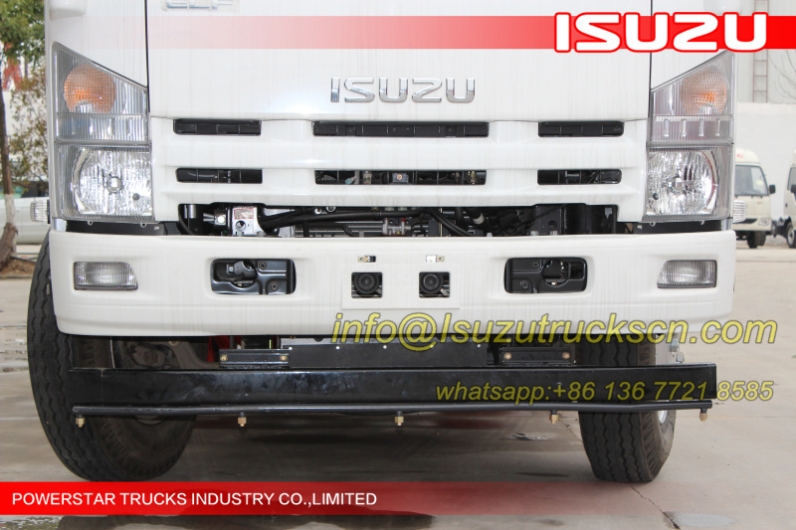

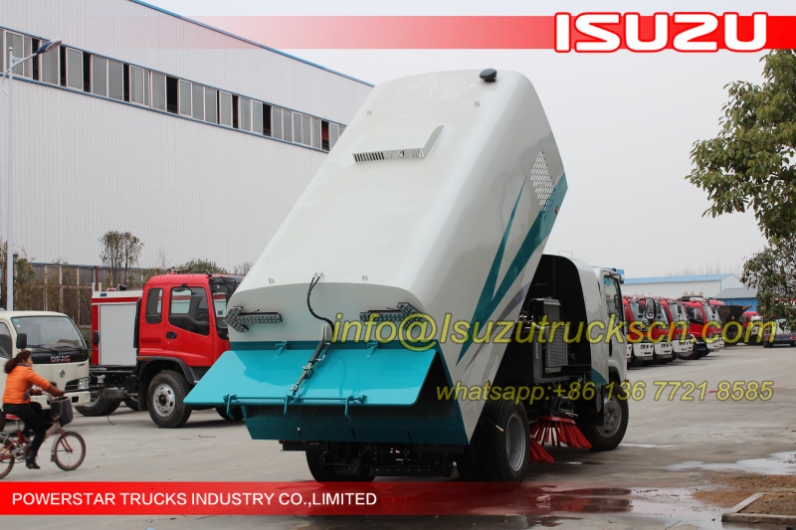

Street Sweeper and Washer Isuzu trucks

Details

High performance road sweeping vehicle Isuzu NPR with 10cbm

high performance road sweeper truck Isuzu NPR

Road sweeping vehicle Isuzu (also called Isuzu street sweeper vehicle, road cleaning vehicle, vacuum road sweeper ISUZU, Isuzu elf truck mounted road sweeper, multi functional road sweeper, Environment sweeper truck, industrial road sweeper truck, suction road sweeper truck, all weather road sweeper truck) can be widely used in sweeping city roads, highways, construction sites, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



Features:

   Easy operation and easy maintenance!

  Combined suction and sweeping, wet methods of dust elimination, make sure swept clean and also prevent dust from spread

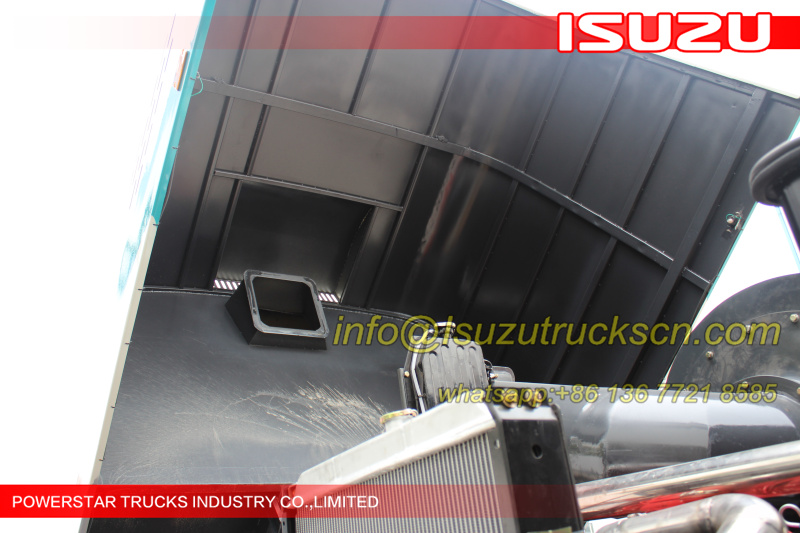

   The dustbin is made of stainless steel, corrosion resistance and large capacity, which can last for a long time without stop

  With imported PLC (programmable logic controller) for integrated control

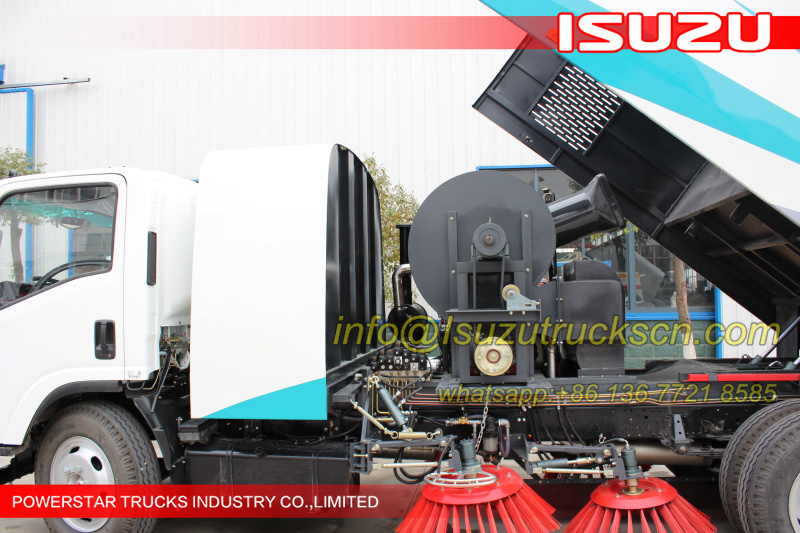

  Sub-engine drive blower and working equipment which ensure that power can meet the work demands in any case

  Rotating speed of sweeping tray can be adjusted according to working condition

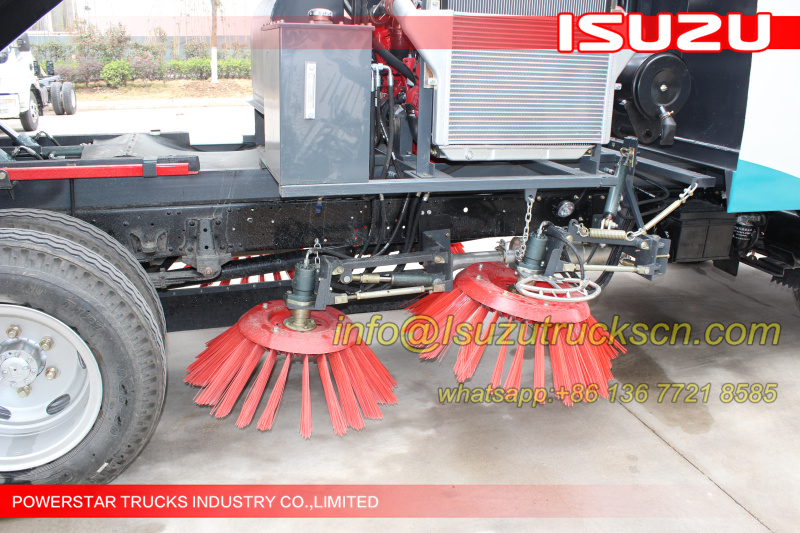

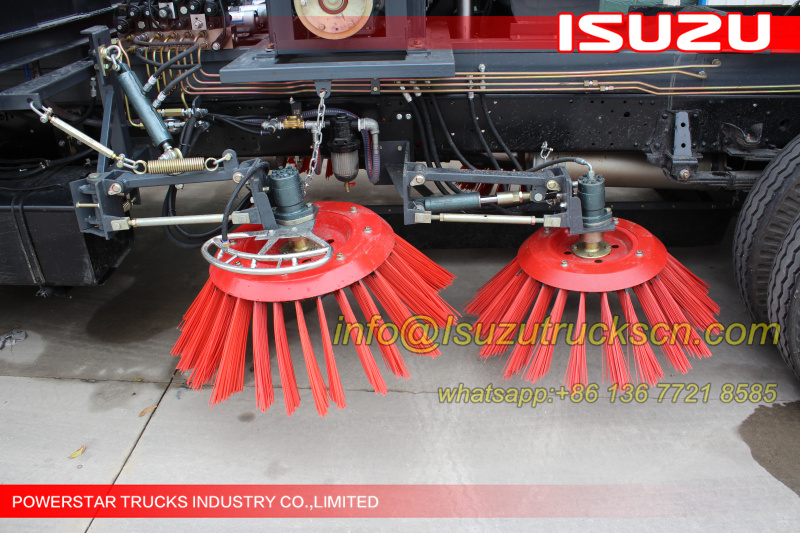

  The sweeping broom has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically



Main specifications of ISUZU ROAD SWEEPER:



Model

PT5100TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Overall Dimension

6925X2200X2550 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

Stainless Steel Hopper Effective Volume

7 CBM

Stainless Steel Water Tank Volume (L)

3000

Sweeping Width (mm)

3200

Sweeping speed (km/h)

3~25

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (195 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h

 HOT sale Isuzu Trucks

 Isuzu Fuel Tank Truck Excellent Quality for Africa Market  8000L ISUZU NPR refueling tanker trucks  Isuzu ELF water fire fighting trucks Isuzu ELF water fire fighting trucks
 Isuzu foam fire vehicle for export  Japan Isuzu water foam fire fighting tender fire engine  Philippines custom made 5tons street cleaning sweeper truck Isuzu  Japan high performance Isuzu sweeping vehicle
 5tons city used garbage compactor truck Isuzu trucks  Japan quality Isuzu rubbish compactor trucks  Customized 5tons Isuzu trucks mounted crane for sale  Africa ghana order Isuzu heavy duty truck with crane
 Japan 16Meters Isuzu Aerial plaftform trucks  Isuzu Water Jetting high pressure truck for sale  Isuzu 3tons flatbed tow wrecker trucks  Customized fuel oil tanker semi trailer made in china

Custom made examples

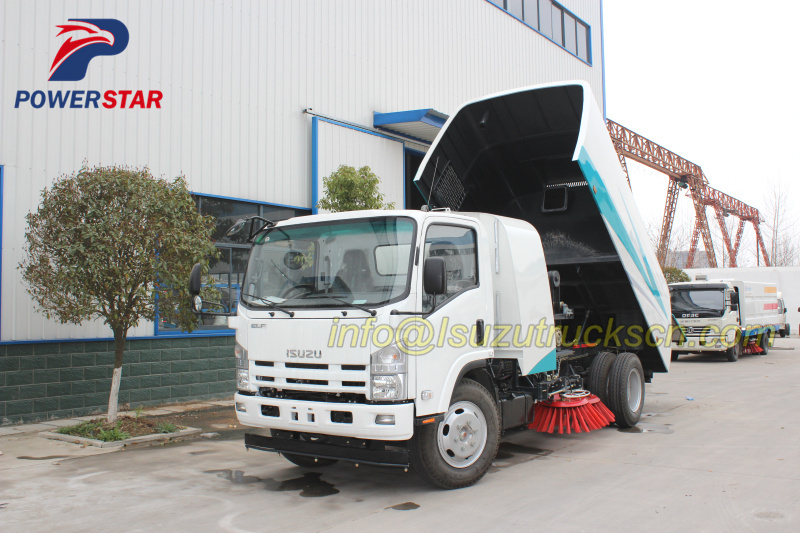

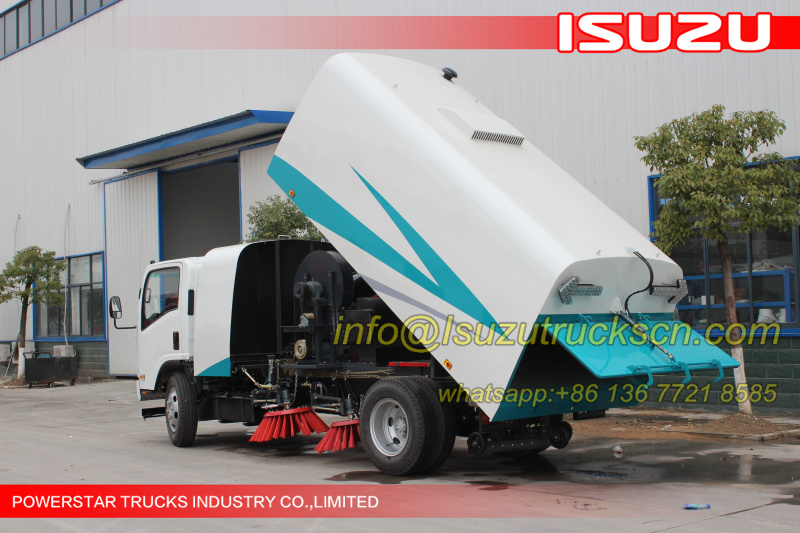

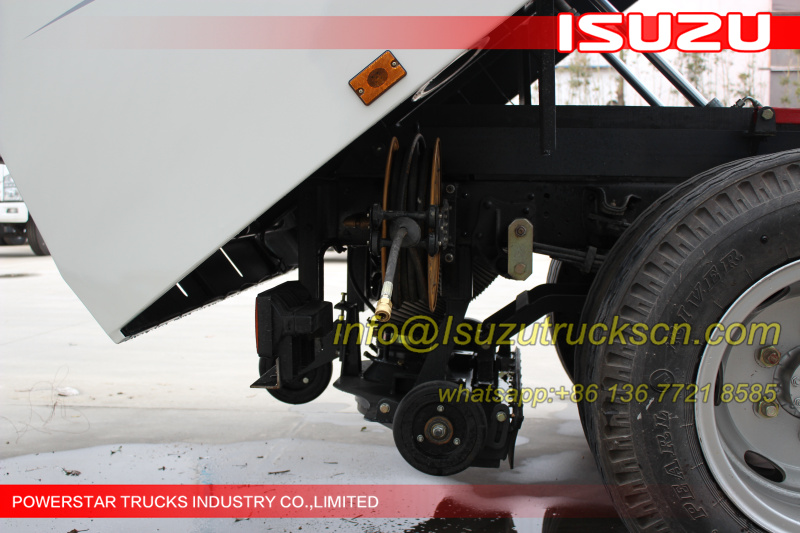

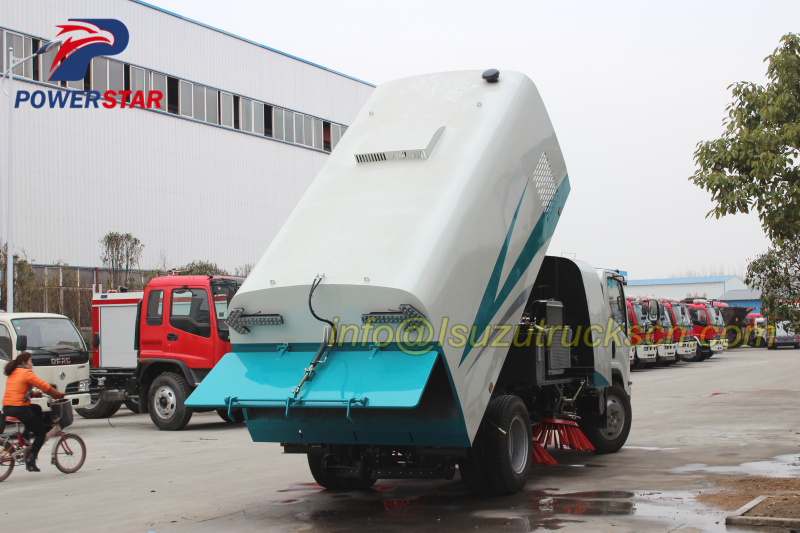

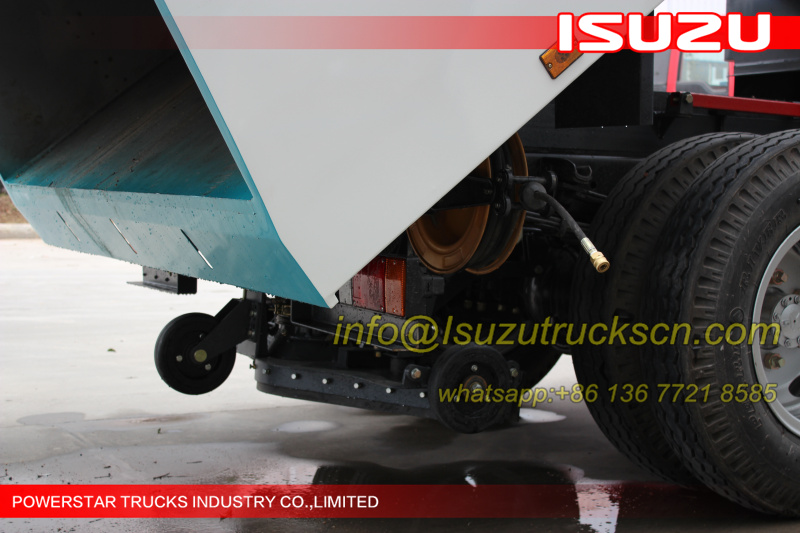

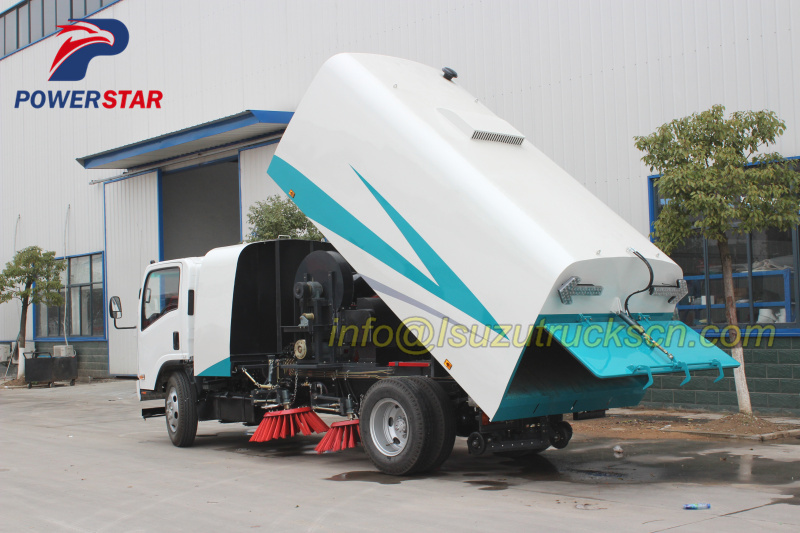

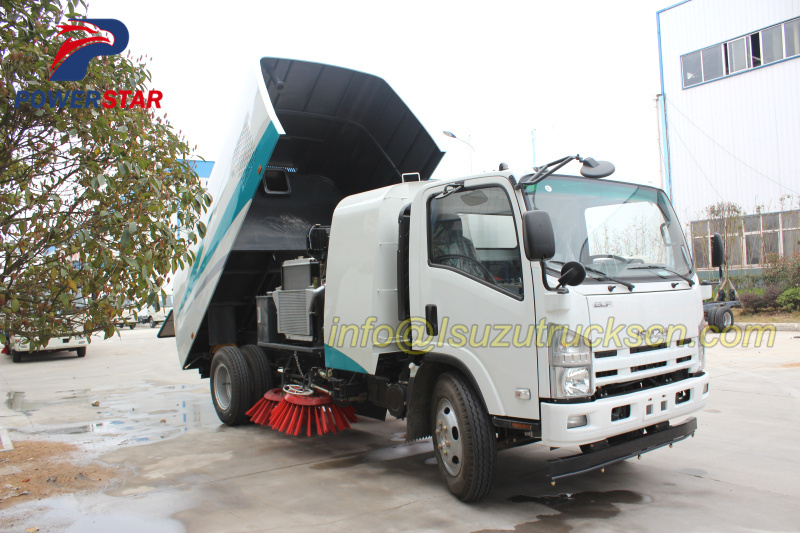

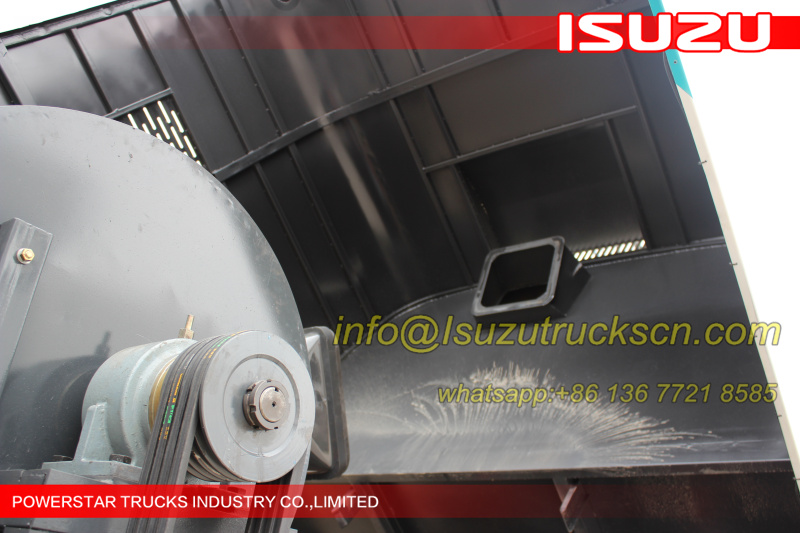

 Japanese brand High performance road sweeping vehicle Isuzu NPR with 10cbm pictures    Japanese brand High performance road sweeping vehicle Isuzu NPR with 10cbm pictures
