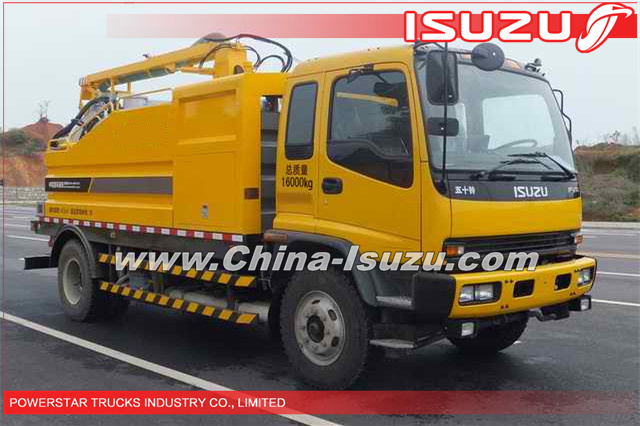

10000L Nigeria Isuzu High pressure industrial cleaning Vehicle

6WHEELS 10,000L Isuzu High pressure industrial cleaning Vehicle

Details

10,000L Nigeria Isuzu High pressure industrial cleaning Vehicle


 10,000L Nigeria Isuzu High pressure industrial cleaning Vehicle

Isuzu high pressure sewer jetting truck works by flushing and thrusting actions of high pressurized water which is transmitted to the clogged sewer line with a high pressure water hose and a sewer jetting nozzle. Destroying with high pressured water jet, remaining waste material is either naturally eliminated by sewer flow or carried to the manhole opening for collecting with a vacuum loader (suction truck). All its duty is keeping municipal sewers, sanitary and storm sewer lines, laterals, and drainage lines clean and frees flowing.



Areas of Application and Use

  Hydrodynamic sewer and pipeline cleaning of diameters from 200 to 1100 mm

  Tanker size: 3000 L up to 15,000 Liters

  English control panel is simple and easy to use

  Carbon Steel, Stainless Steel, and Aluminum Tanks Available

  Hydrodynamic drain line cleaning.

  High pressure surface cleaning.

  High pressure industrial cleaning.



Main specifications:



Model

PT5140GQX

Driving Type

4x2    (Left hand drive)

Wheelbase

4500mm

Engine

139 kw (190hp)

Tyre

9.00-20

Water Tank

Capacity

10,000 L

Material

Q345weathering steel

Shell thickness

4mm

Water level protection

1, Too high; 2, Too low; 3, No water

High pressure water pump

Pump type

As option

Three-plunger pump, PRATISSOLI brand, Italy top brand

Flow

122 L/min

Max working pressure

Pressure can be freely adjusted between0-160 bar

Safety devices

1, Low water level protection

2, Water particles protection

Hose Reel

Jetting hose

Inner diameter 3/4", length 80m. With 3/4"BSP-F coupling on both ends, which allows hose direction changing.

Horizontal rotation

160°

Parts

3/4" rotation shaft,  3/4" high pressure ball valve

Reel control

By the control unit on the panel on the hose reel

Hose retract & wind

Hydraulic operated, with adjustable speed

Color

As option



Customers build examples:
