Isuzu fire truck user manual

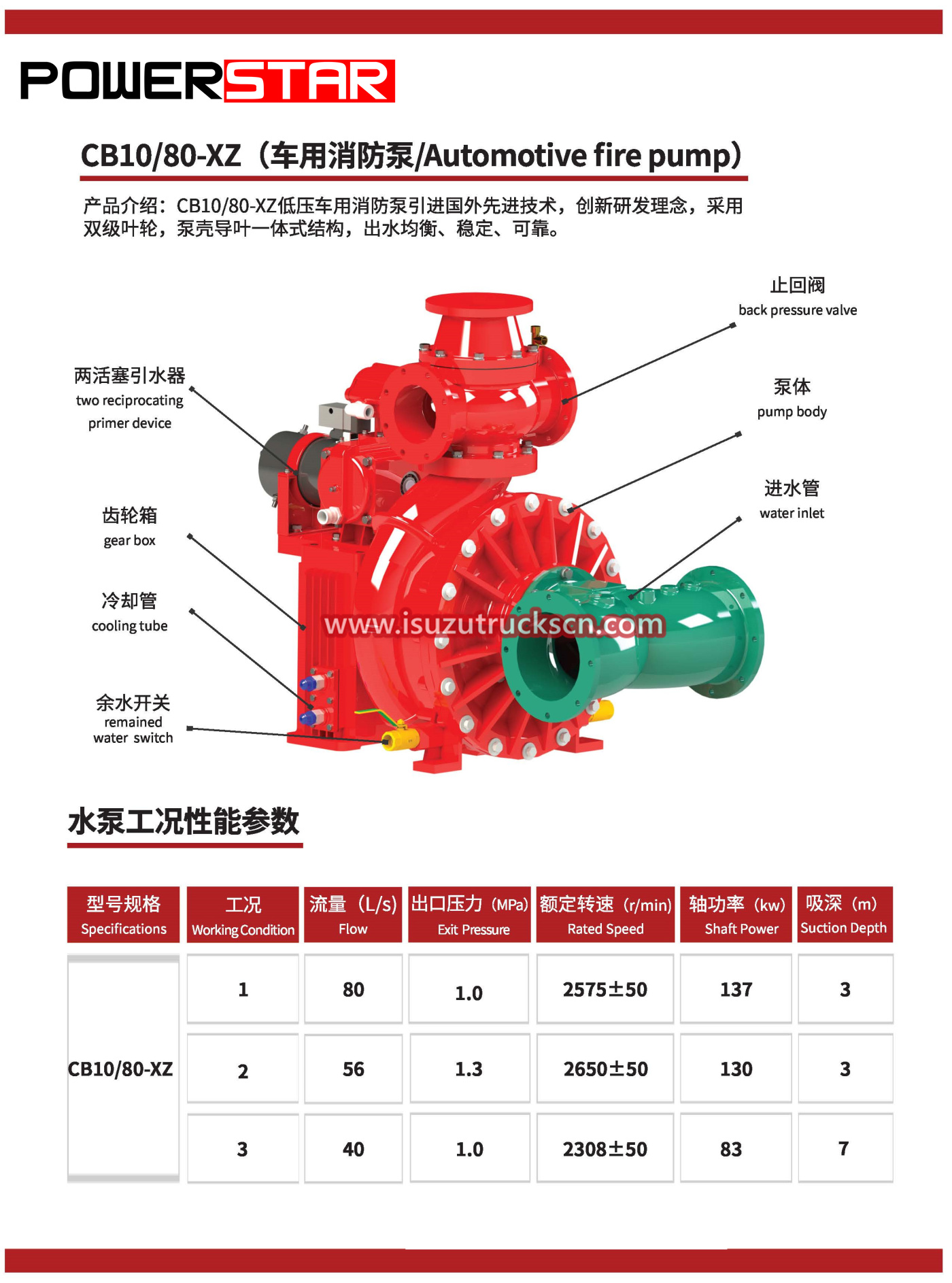

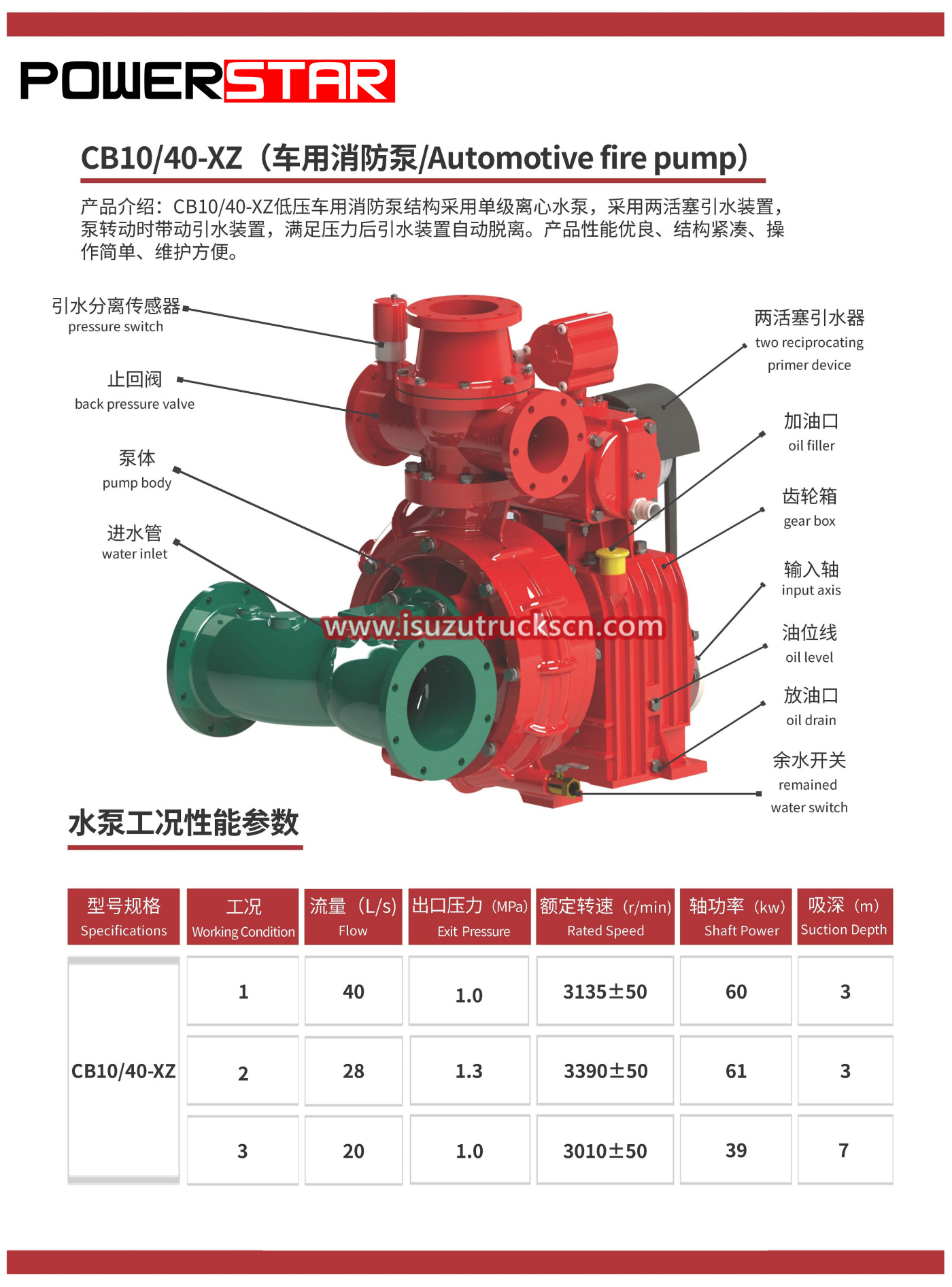

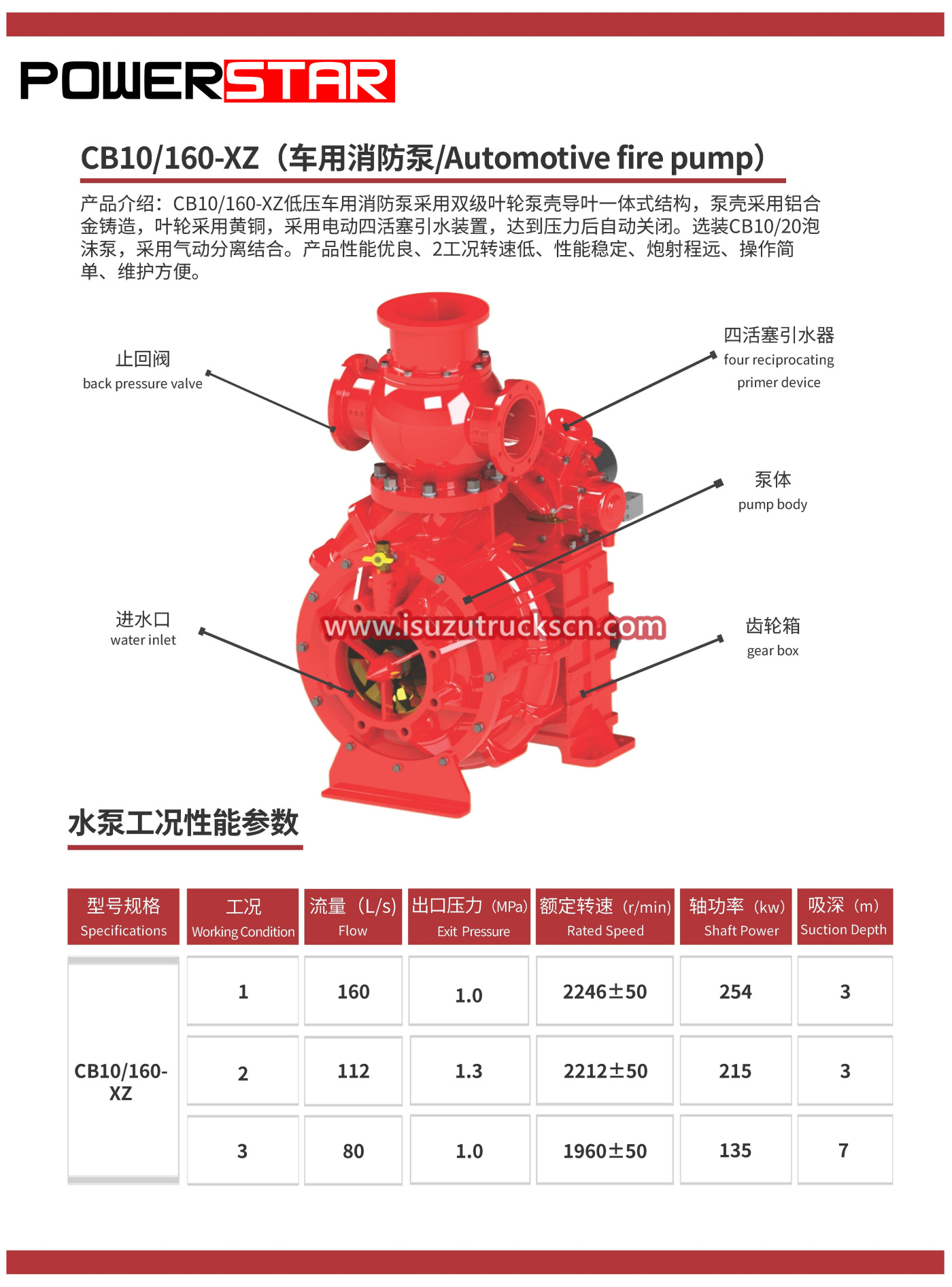

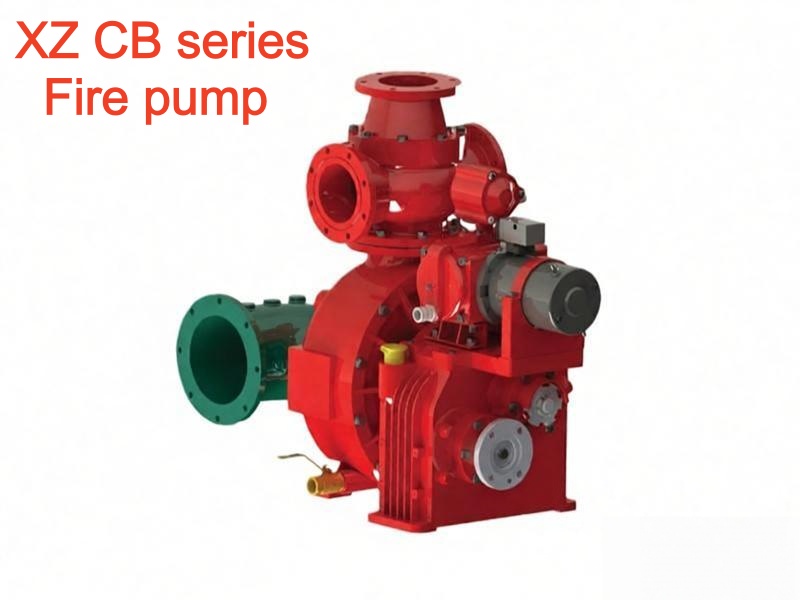

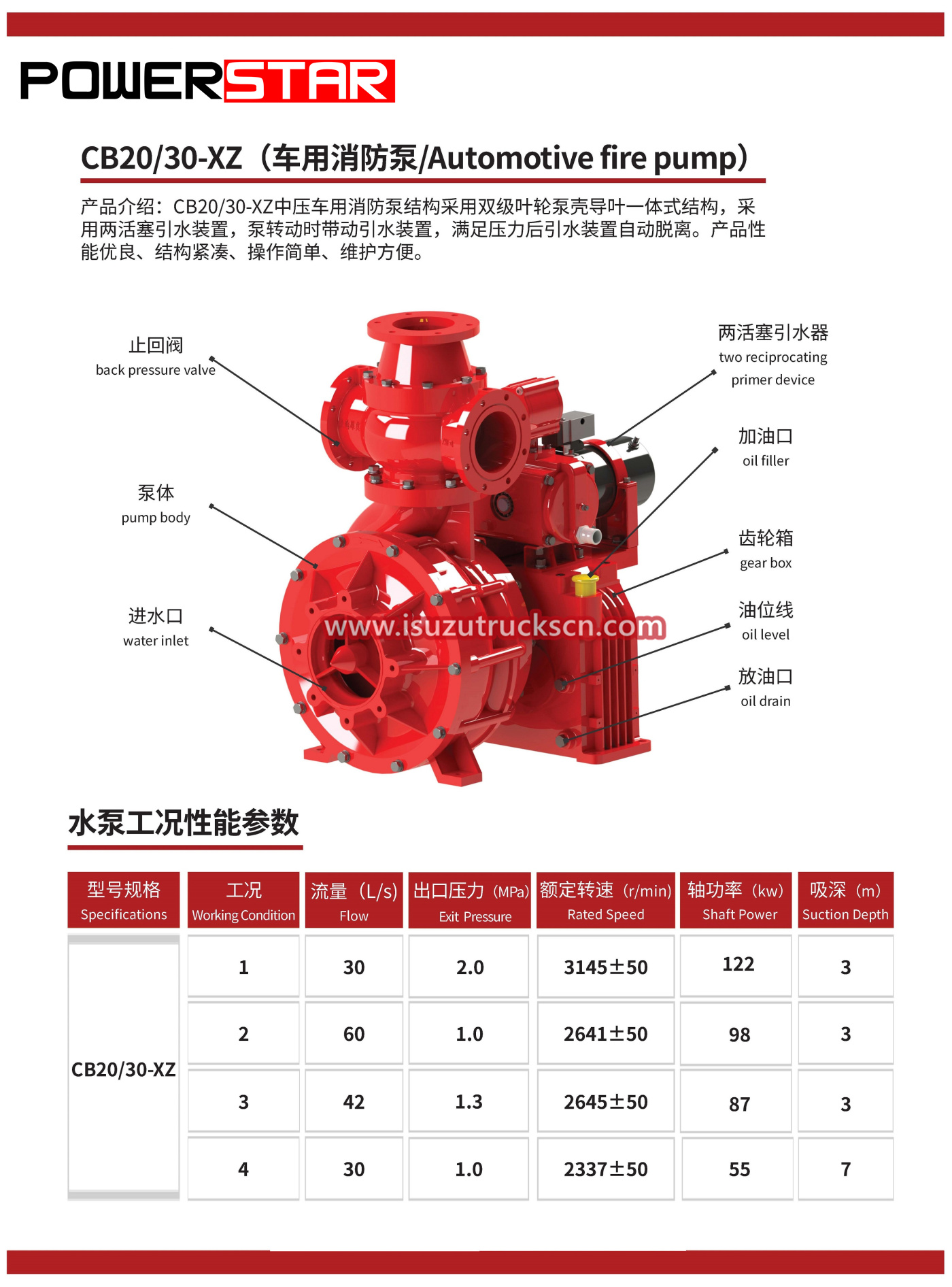

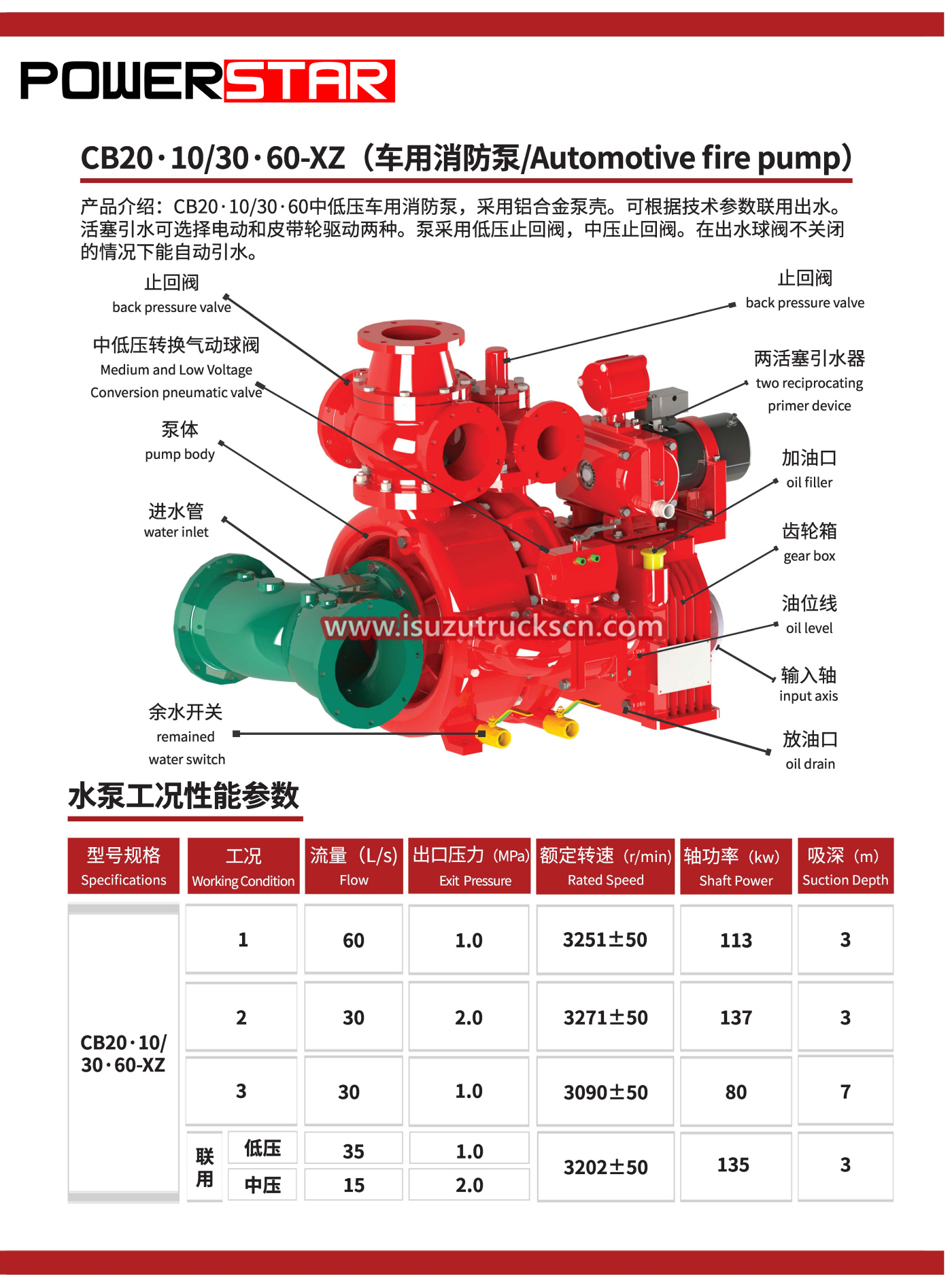

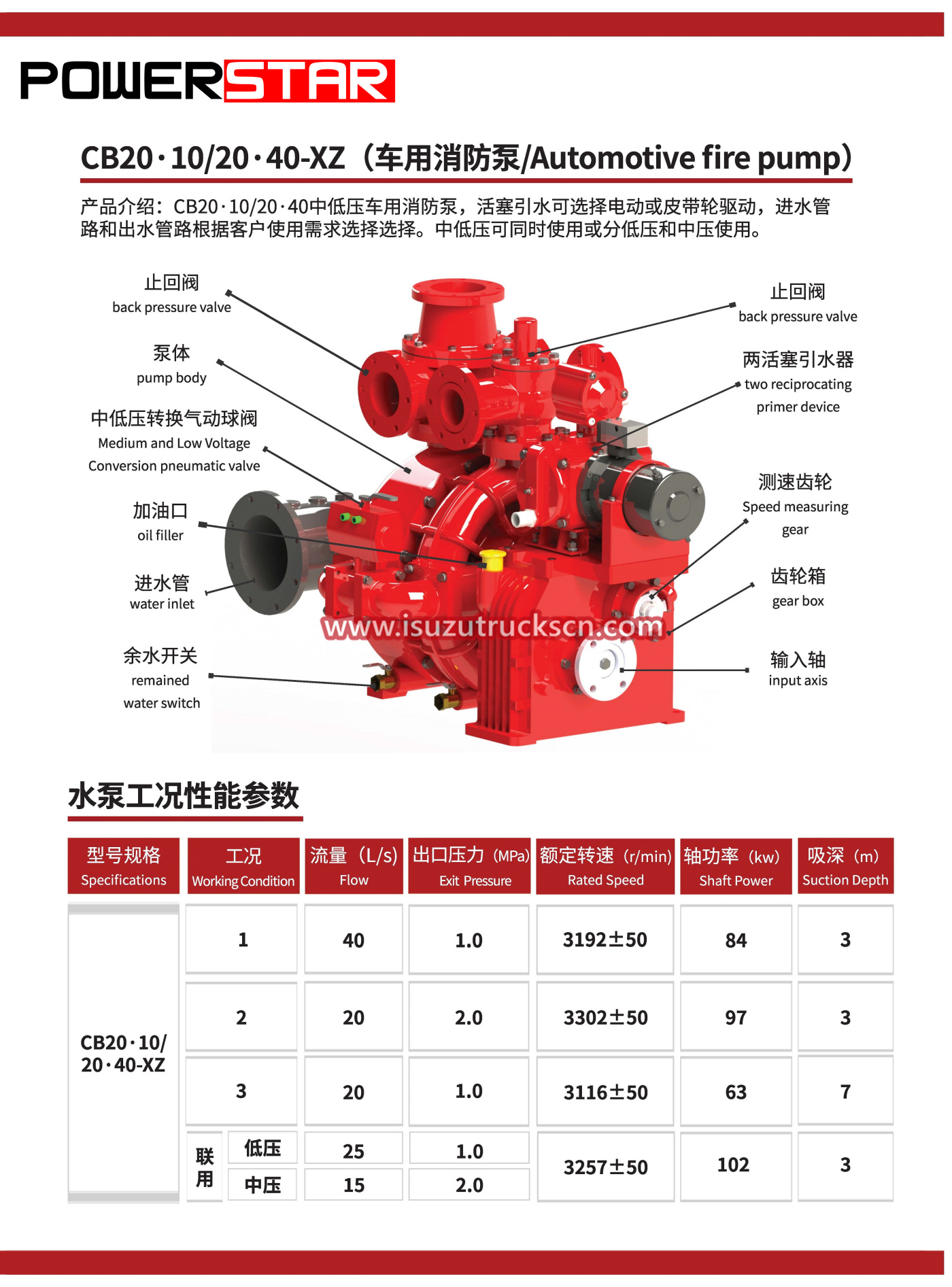

What you need is a Isuzu fire truck with enough water to fight the fire and enough equipment. Whether you're dealing with forest fires, floods, or industrial rescues, whether you need a small, agile vehicle or a powerful, durable behemoth, Powerstar Trucks offers a variety of body and water tank combinations. This list of fire trucks and water tankers is sure to have one that suits you and your team.       Fire pumps CB series PDF Download:  Fire Trucks Fire Pumps CB10 series Manual     Powerstar Trucks boasts a comprehensive product line, covering four main categories: Water foam firefighting vehicles, aerial ladder trucks, specialized support trucks, and support trucks, totaling over 200 models.   Product Types: Firefighting: Includes water tanker foam fire trucks, compressed air foam fire trucks, dry powder and combined fire trucks, airport fire trucks, etc. Aerial Ladder Trucks: Covers aerial platform fire trucks, ladder trucks, and aerial spray fire trucks. Specialized Support Trucks: Includes rescue fire trucks, lighting fire trucks, smoke extraction fire trucks, communication command fire trucks, chemical rescue fire trucks, and decontamination fire trucks. Support Trucks: Includes self-loading fire trucks, gas supply fire trucks, liquid supply fire trucks, long-range water supply fire trucks, and equipment fire trucks.   CB10/40-XZ Fire truck fire pumps   CB10/60-XZ Fire pump for fire vehicle CB10/80-XZ Rescue fire truck with fire pumps   CB10/160-XZ Fire fighting truck fire pumps   Featured Product: Liquid Supply Fire Truck: Utilizing a Mercedes-Benz 8x4 chassis, equipped with a dual-pump simultaneous suction and supply system, it can continuously supply foam concentrate to the fire front line, making it an essential piece of equipment for fire rescue in large petrochemical enterprises. All-terrain fire truck: Modified from a FAW Jiefang high-mobility off-road chassis, adaptable to complex environments such as mountains, deserts, earthquakes, and water, possessing characteristics such as high altitude resistance, low temperature resistance, and all-weather drive. Airport-specific fire truck: Equipped with a Scania DC16 V8 diesel engine, it can accelerate to 80km/h in 28 seconds, and features a high-flow-rate fire extinguishing system, a foam mixing fire extinguishing system, and a dry powder fire extinguishing system, specifically designed for aircraft fires.   CB20.10/20.40-XZ Fire fighting pump   CB20.10/30.60-XZ Truck mounted Fire pumps   Original Factory for xiongzhen CB series fire pumps

Isuzu water tank foam fire truck is a special fire truck modified based on Isuzu QL1180JQFRY type II automobile chassis. Isuzu 4HK1 model 205HP tanker fire apparatus is specially designed for fire fighting and rescue tasks, which is export to Dubai Jebel Ali seaport, and can be widely used in Dubai, Saudi Arabia, Yemen, Oman, Jordan, etc. Isuzu pumper fire truck combines water tank and foam tanker, matched with fire extinguishing CAFS system and has rapid response, efficient fire fighting and multi-functional operation capabilities. Isuzu fire tender is equipped with a dual-media storage system of water tank and foam liquid tank, and integrates fire pump, water cannon, pipeline system and rescue equipment. It is suitable for fighting various types of fires. Below video showing details of this type Isuzu fire truck.     Dubai clients customized ISUZU GIGA 4X FTR 6ton firefighting truck equipped the double-row cabinet, with a crew of 2 + 4 SCBA seats for people, and the fire engine is comfortable and light. The tanker upper body kit are equipped with water and foam tanks, the fire tanker vehicle liquid capacity is 5000kg and the foam is 1000kg. The equipment box is made of high-quality aluminum alloy roller shutter door. Chassis equipped with diesel engine model is 4HK1-TCG60, the maximum power of 151kW / 205HP, through the cardan coupling to drive the Shanghai Xiongzhen CB10/40 atmospheric fire pump installed in the rear pump room of the fire apparatus, can stably output 40L/s flow at 1.0MPa; The roof is installed with the PL8/32 fire cannon produced by Chengdu West Fire Equipment Co., Ltd., with a flow rate of 32L/s, a corresponding pressure of 0.8MPa, a maximum pressure of 1.3MPa, and a range of 60m water and 50m foam, which can be rotated 360°. At the same time, the car has the characteristics of high specific power, strong comprehensive performance, and simple control. Below showing detailed operation manual for ISUZU fire tender, which introduced of all functions of the Isuzu fire engine also the steps by steps to operate the truck correctly to avoid any misoperation.     The chassis system of fire trucks has extremely high requirements for stability, power output and continuous operation capability. Isuzu has been accumulated for a long time, with high-power engines, efficient transmission systems and high-strength frame designs, which can meet the rapid response needs of complex fire scenes. Dubai clients mostly perfer to buy reliable quality fire engine for fire extinguishing and people rescue, the ISUZU brand fire fighting trucks can always meet the requirement. As the world most reliable Isuzu fire truck manufacturer, we POWERSTAR can not only provide reliable quality Isuzu fire department trucks, but also produced detailed English version documents for operation guidance and maintenance service, including Fire Truck Operation Manual, Isuzu Truck User Manual, Isuzu Spare Parts Manual, etc. Feel free to call us at 24 hours a day, 7 days a week.

Isuzu 4x4 all-wheel drive fire truck refers to an ISUZU fire truck that uses the Isuzu brand 100P smaller truck chassis, which modify as 4x4 four-wheel drive system. Also mounted with 3000L water tanker system for fire fighting rescue system. Isuzu 4x4 fire truck adopts four-wheel drive technology. This driving method can ensure that the vehicle can drive stably in harsh and complex terrain environments, such as mountainous areas, forests and other complex road conditions, and improve the off-road capability and passability of the fire truck. Also truck mounted with Japanese ISUZU technology 4KH1CN6LB diesel engine with 120HP and emission 2999cc. In order to meet the needs of rapid response and efficient fire extinguishing of fire trucks, Isuzu 4x4 all-wheel drive fire trucks are usually equipped with high-performance engines and transmission systems, providing strong power output to ensure that the vehicle can quickly reach the fire scene under various road conditions. In addition to the basic vehicle configuration, Isuzu 4x4 fire pumper trucks are also equipped with professional firefighting equipment, such as fire pumps, fire monitor, fire hydrants, all sets fire fighing rescue equipment, etc., for performing firefighting and rescue tasks. And the POWERSTAR fire trucks widely used in Asia, Africa, America and Europen countries. Isuzu mini ELF NKR 3tons water fire truck PT5070GXF is fast & flexible, and can be widely used in communities, towns, industrial and mining, forests and other places. It can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for fire department. Technical parameters of the whole vehicle3.1 Dimensions: 6260mm×1920mm×2550mm3.2 The total mass of full load: 7300 kg3.3 Fire extinguishing agent capacity: 3000kg (water)3.4 Number of crew: 53.5 Maximum speed: ≥90km/h   POWERSTAR TRUCKS Fire Truck based on type II ISUZU small ELF 4x4 offroad Left Hand Drive chassis, water tanker body capacity could up to 3,000Liters, all based on high strength carbon steel material tank with anticorrosion painting, truck equipped with XIONGZHEN CB10/30 fire pump and PS30 fire monitor, very convenient for daily use. Mainly used for firefighting project in any areas. The vehicle designed to fully rely on the advantages of the original of ISUZU brand chassis, fully consider the product's convenience and reliability, also the chassis ISUZU ELF 4x4 offroad technology features. The body material is international standard carbon steel with antirust and anti-corrosion painting, which can effective to avoid rusting and service for long life. The ISUZU ELF 4x4 offroad Fire Truck equipped with 4x4 offroad drive system, Sandwich PTO, fire pump, fire monitor, crew room, fire hose reel, hose box, pump room, English version control box, inlet and outlet pipeline, rear climbing ladder, top bule pillow lamp, and all necessary firefighting equipment. Customized Double-row cabin with 2+4 SCBA seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project.Firefighting and rescue: The main purpose of the Isuzu 4x4 all-wheel drive fire truck is to perform firefighting and rescue tasks. When a fire occurs, it can quickly reach the fire scene and use the on-board firefighting equipment to perform firefighting operations to protect people's lives and property.Emergency rescue: In addition to firefighting tasks, the Isuzu 4x4 all-wheel drive fire truck can also be used to perform emergency rescue tasks. In natural disasters or emergencies, it can provide necessary rescue equipment and personnel transportation services to help the affected people escape from danger. Japanese Isuzu 4x4 all-wheel drive fire truck is a fire truck with powerful power, high-performance firefighting equipment and good adaptability. It plays an important role in fire fighting and rescue and emergency rescue tasks, and is one of the indispensable important equipment for the fire departmentStrong adaptability: Due to the use of four-wheel drive technology, the Isuzu 4x4 fire truck can adapt to various complex road conditions, ensuring that it can quickly reach the fire or rescue site in an emergency.High firefighting efficiency: The on-board firefighting equipment is complete and has superior performance, allowing the Isuzu 4x4 all-wheel drive fire truck to quickly and effectively control the fire and reduce losses during firefighting operations.High reliability: The Isuzu brand is known for its reliability and durability, so the Isuzu 4x4 fire engine can maintain stable performance in long-term use and reduce the possibility of failure.

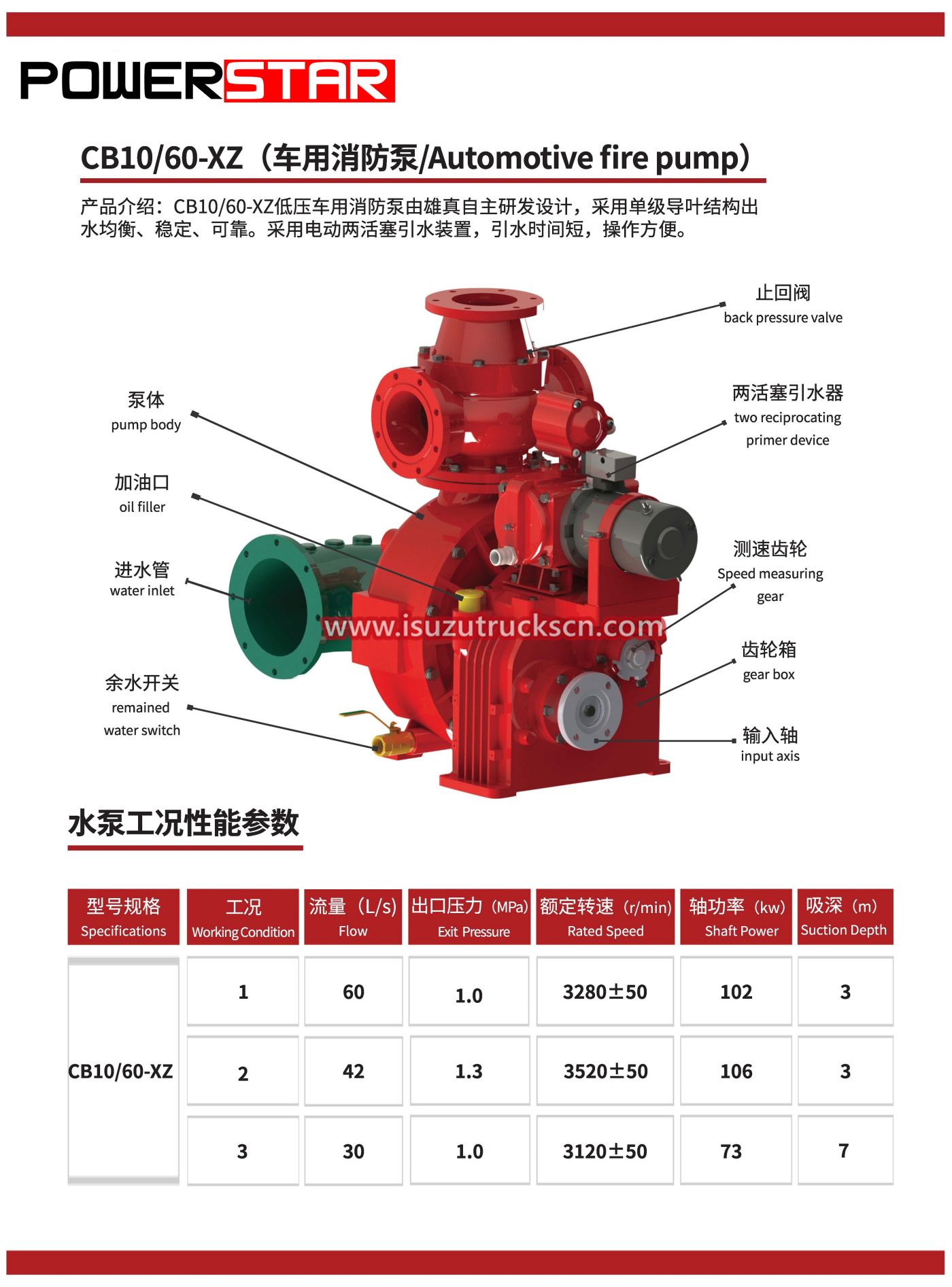

Isuzu GIGA 8 cbm water fire truck, as a leader in the field of firefighting, has won wide recognition for its excellent performance and reliable quality. This fire truck adopts Isuzu's classic double-row cab design, providing firefighters with spacious riding space and comfortable operating environment. In terms of power, Isuzu GIGA 8cbm water fire truck is equipped with 6UZ1-TCG61 engine. This engine is well-known for its excellent power performance, fuel economy and durability, providing strong power support for fire trucks and ensuring stable driving under various complex road conditions.   In addition, Isuzu GIGA 8000 liters water fire truck is also equipped with CB10/60 fire pump and PS40W fire cannon. CB10/60 fire pump has efficient and stable water supply performance, which can quickly deliver water to the fire scene and provide strong support for fire fighting. The PS40W fire cannon has the characteristics of long range and flexible spray angle, which can accurately strike the fire source and improve the efficiency of fire fighting.     Specifications Working Condition Flow Exit Pressure Rated Speed Shaft Power Suction Depth   CB10/60 1 60 1.0 3280±50 102 3 2 42 1.3 3520±50 106 3 3 30 1.0 3120±50 73 7     Model Flow（L/s） Water Rang（m） Rated working pressure（Mpa） Pitch rotation （°） Horizontal rotation （°） Length × Width × Height （mm） Weight （Kg） PS40W 40 ≥65 ≤0.7 -30～+70 0～360 1000*340*600 ≤50   The Isuzu GIGA water tank fire truck is not only equipped with a high-performance 6UZ1-TCG61 engine, advanced CB10/60 fire pump and PS40W fire monitor, but also fully equipped with a series of professional firefighting equipment including fire extinguishers, water guns, water collectors, water filters, water distributors and fire hoses. These equippment together constitute the vehicle's powerful firefighting and rescue capabilities, ensuring rapid response and effective response in various emergency situations, providing solid protection for the safety of people's lives and property.   When facing the severe challenges of emergency rescue and firefighting tasks, a fire truck with excellent performance and complete equipment is undoubtedly the core element to ensure the complete success of the mission. The Isuzu GIGA 8m3 double-row water fire truck is a firefighting weapon ingeniously built based on this demand. This manual will comprehensively and thoroughly introduce the various excellent functions, efficient operation procedures and key maintenance knowledge of this fire truck, aiming to help users deeply understand and make full use of its powerful performance, so as to show unparalleled efficiency and professionalism in various firefighting and rescue tasks.

Isuzu GIGA double-row foam water fire truck is designed for a variety of firefighting and rescue scenarios, including but not limited to urban fires, forest fires, industrial fires, traffic accident rescue and emergency response after natural disasters. The vehicle is equipped with a powerful power system, sufficient water and foam storage capacity and advanced firefighting equipment, ensuring that firefighting operations can be carried out quickly and effectively in various emergency situations.   Main technical parameters 1. Water tank capacity: 4000 liters, ensuring long-term and large-scale firefighting operations. 2. Foam tank capacity: 200 liters, providing sufficient foam agent to enhance the firefighting effect. 3. Engine model: Isuzu 6UZ1-TCG61, with an output power of up to 380 horsepower, providing strong power support for the vehicle. 4. Fire pump model: XIONGZHEN CB10/60, with efficient and stable water flow output capacity. 5. Fire monitor model: PL48, which can achieve 360-degree rotation and pitch adjustment, and flexibly respond to various firefighting scenarios. Vehicle configuration and functions 1. Power system: Adopt Isuzu 6UZ1-TCG61 engine, which has strong power and rapid acceleration, ensuring that the fire truck can quickly reach the fire scene under various road conditions.   2. Water tank and foam tank: The 4000 liters water tank and the 200 liters foam tank are located in different positions of the vehicle, which are convenient and quick to use. At the same time, the tank body is made of high-quality materials, which is corrosion-resistant and high-temperature resistant to ensure long-term service life.   For different types of fires, the vehicle can flexibly adjust the type and spraying method of the fire extinguishing agent. For example, for oil fires, foam fire extinguishing agent can be used; for general solid material fires, water can be used directly for fire fighting. In addition, the long range and high precision of the fire cannon enable the vehicle to effectively extinguish fires at a safe distance away from the fire source.   3. Fire pump: The XIONGZHEN CB10/60 fire pump has efficient and stable water flow output capacity, and can adjust the water pressure and flow according to actual needs to meet different types of fire extinguishing needs.   4. Fire cannon: The PL48 fire cannon can achieve 360-degree rotation and pitch adjustment, with a wide coverage and long range, and can quickly and accurately strike the fire source.   5. Firefighting equipment: The vehicle is equipped with complete firefighting equipment, including fire hoses, fire axes, demolition tools, etc., to ensure that firefighters have sufficient tools and equipment support during the firefighting process.   In emergency rescue and firefighting tasks, a fire truck with excellent performance and excellent equipment is the key to ensure the success of the mission. Isuzu GIGA double-row foam water fire truck is carefully designed to meet this demand. This manual aims to comprehensively introduce the various functions, operation methods and maintenance points of this fire truck to ensure that users can give full play to its performance and efficiently complete various firefighting and rescue tasks.

The Isuzu FVR Fire Truck is a versatile and powerful emergency vehicle built on the reliable Isuzu FVR 4x2 chassis with a wheelbase of 4500mm. This robust platform supports a double-row cab that comfortably accommodates 2+4 seats, ensuring ample space for the crew. Under the hood, it is powered by the robust Isuzu 4HK1-TCG61 engine, delivering an impressive 240 horsepower, matched with a FAST 9-speed transmission for smooth and efficient gear changes.   The body of this fire truck boasts an impressive capacity of up to 5,000 liters, divided into dedicated tanks for 3,000 liters of water, 1,000 liters of foam, and another 1,000 liters of dry powder. This comprehensive setup allows for a versatile response to various firefighting scenarios. For its firefighting capabilities, the Isuzu FVR Fire Truck is equipped with a XIONGZHEN CB10/30 fire pump and a PL24 fire monitor, providing strong and controlled water or foam discharge. The truck is also fully outfitted with essential equipment such as a power take-off (PTO), fire pump, fire monitor, crew cabin, hose compartment, pump room, English-language control panel, inlet and outlet piping, a rear access ladder, an overhead pillow lamp, and a complete set of firefighting gear.   ISUZU FVR 4x2 foam water dry powder fire rescue truck Manufacturer POWERSTAR TRUCKS INDUSTRY CO.,LIMITED Vehicle Brand Series ISUZU Vehicle Model PT518GXF Chassis parameters Overall dimensions mm 9240*2530*3260 Gross weight kg 18000 Curb weight 12750 Axle capacity 6300/13000 Wheel base mm 4500 Driving type 4*2，LHD Chassis model ISUZU FVR Number of axles 2 Tire specification 295/80R22.5 16PR Number of Tires 6+1 Passengers in cab 2+4 Engine Engine model 6HK1-TCG61 Gear box FAST 9-speed, manual Type of fuel Diesel power HP 240HP/177Kw Max speed Km/h 95 Emission standard EURO  6 Fire performance Tank capacity water tank capacity:3000L foam tank capacity:1000L Dry powder capacity:1000L Fire pump Brand: Shanghai Xiongzhen Model: CB10/30 Low-pressure:30L/S Fire monitor Brand: ChengDU West Model:PL24 Flow:24L/S Water jet distance:≥50m Foam jet distance:≥45m Electronic alarm LY  CJB-100-C24 Alarm lamp LY TBD-XF-168LED   The following is the manual of Isuzu FVR 5000 liters foam water dry powder fire engine, which details the Main Technical Data, Structure Components, Working Principles, Fire equipment, Attentions and Maintenance, which can help you better understand the vehicle and operate and maintain it correctly.

ISUZU 700P foam water tank fire truck is a high-performance fire truck designed for various fire rescue scenarios. It adopts a spacious and comfortable double-row cab design and is equipped with a 4HK1 diesel engine. The vehicle has a 4 cubic meter water tank and a 1 cubic meter foam tank. This combination not only ensures sufficient water for conventional fire fighting, but also improves the fire fighting efficiency by adding foam, effectively dealing with different types of fires. It is equipped with a CB10/30 fire pump and a PL24 fire cannon, which can efficiently handle fires. The equipment room is equipped with necessary fire fighting equipment to assist fire fighting operations. This model is particularly suitable for airports, emergency fire fighting, petroleum, chemical industry, highway and engineering rescue, docks, and oil depots. It is the preferred vehicle for quickly extinguishing fires. This user manual details the main technical parameters, structural components, working principles, operation methods, other fire fighting equipment, precautions for use, maintenance, common faults of the pump system and treatment methods of the ISUZU 700P foam water tank fire truck, aiming to help car owners better understand and use the vehicle. You can only use the vehicle after understanding its performance characteristics, operation methods and precautions to avoid possible injuries or dangers.   You can download the full detailed manual at the beginning of the article.

The Isuzu 100P double-row 3000 liters foam water tank fire truck is a high-performance firefighting vehicle specially designed to handle various fire rescue tasks. Whether it is urban high-rise fires, forest fires or chemical accidents, it can respond quickly and operate efficiently, providing a solid guarantee for protecting people's lives and property. Core equipment: • Large-capacity liquid storage system: The vehicle is equipped with a 2000 liters water tank and a 1000 liters foam tank. This configuration allows the fire truck to quickly provide sufficient water sources and foam fire extinguishing agents after arriving at the fire scene, effectively responding to different scales. of fire.   • Material selection: Both water tanks and foam tanks are made of high-quality Carbon Steel, which is not only high-strength and corrosion-resistant, but also ensures stability and safety for long-term use.   • Power system: Equipped with a 4KH1CN6LB engine, which is known for its excellent fuel economy, low noise and powerful power output. It provides a stable and reliable power source for fire trucks, ensuring rapid response in various complex road conditions. and arrive at the scene.   • Transmission system: MSB 5-speed gearbox, with smooth shifting and easy operation. It can flexibly adjust vehicle speed and torque output according to actual needs to meet the power needs in different fire-fighting scenarios.   • Fire pump system: Equipped with CB10/30 fire pump, which is highly efficient and energy-saving. It can quickly extract and pressurize water or foam mixture to ensure that the fire extinguishing agent is sprayed accurately and quickly to the fire source.   • Fire monitor device: A PL24 fire monitor is installed on the roof of the vehicle. It has a long range and wide coverage. It can achieve precise positioning through remote control operation, effectively attack high or long-distance fire points, and improve fire extinguishing efficiency.   • Fire-fighting equipment: Equipment includes air foam guns, water guns, fire suction pipes, water filters, water distributors, fire hoses and other equipment. These equipment are basic tools in fire-fighting operations and can deal with different types of fires.   Isuzu 100P 3cbm water foam fire truck Main specifications Chassis brand ISUZU Overall dimension(L*W*H)  5995×2000×2860mm GVW 7300Kg Curb weight 2300Kg Tank volume 2,000 liters water tank and 1000 liters foam tank Cabin double cabin, 2+3seats,with Air conditioner, electronic windows, USB Chassis Drive model 4x2 left hand drive Axle (front/rear) loading 2.5ton/4.8ton Front/rear suspension 1015/1620mm Wheel Base 3360mm Approach/departure angle 24/13(°) Tyre size & number 7.00R16 with one spare tire Transmission ISUZU MSB brand, manual, 5 gears with reverse  Max speed 105km/h Brake Oil brake, With ABS Color Red and white including tanker , standard . Engine Brand ISUZU Model  4KH1CN6LB Engine Type Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling Horse power  120 HP/88Kw Displacement 2999ml Max Torque 290N·m Emission Euro 6 Upper Body   Tank   Volume 2,000 liters water tank and 1000 liters foam tank Material Carbon steel Thickness  4 mm Standard configuration 2 sets manhole with quick lock and open device. 2 sets overflow device, 2 sets fluid level gauge; 2 sets drain outlet with manual controlled Fire pump    Model CB10/30, Normal pressure pump Pressure 1.0～1.3 Mpa Max suction height 7 m Flow 30 (L/S) rated speed 3365±50 (r/min) Input 1 unit, diameter: 100mm Outlet 2 units, diameter: 65mm Fire monitor    Model  PL24, mounted on the top of tank  Rated working pressure 0.8 Mpa working pressure range 0.5-1.2Mpa  Flow 24 L/S Range (≥m) Foam ≥40m Water ≥45m Pitch angle (°) -30~+70 Rotation angle 360° Standard configurations Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose   The following is the instruction manual for the Isuzu 100P double row 3000L foam fire truck. You can download the full version at the beginning of the article.
