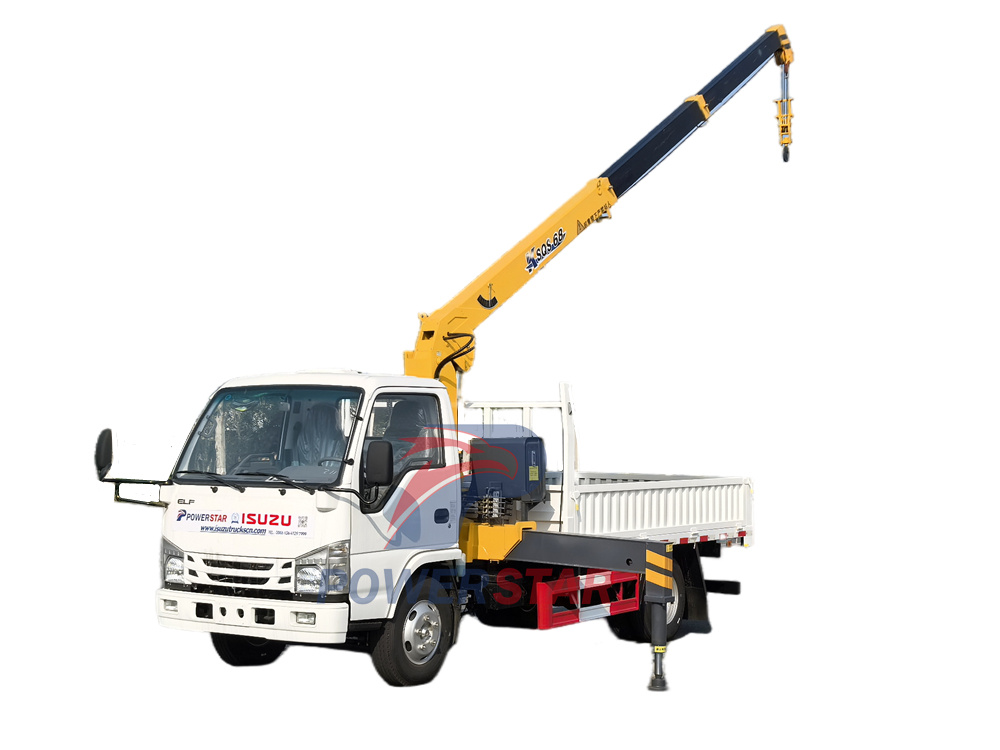

In fields such as engineering construction and logistics transportation, a high-performance crane is the key to improving efficiency. The POWERSTAR Isuzu 100P cargo truck mounted 3.2T boom crane, with its outstanding configurations and performance, has become a capable assistant for small and medium-sized engineering operations. Reliable Chassis and Efficient Power This crane is equipped with the Isuzu 100P chassis and has a wheelbase of 3360mm. It is powered by the Isuzu 4KH1CN6LB 120HP engine, which is robust and meets the Euro VI emission standards. This engine provides sufficient power support for various operations of the crane. Paired with the Isuzu MSB 5-speed gearbox, it offers smooth gear shifting and is easy to operate. Versatile Upper-body Design The upper-body cargo box is made of carbon steel with a thickness of three sides and four bottoms, making it sturdy and durable, capable of carrying a large amount of cargo. With dimensions of 3500x2000x450mm, the cargo box provides ample space to meet the transportation needs of different types of goods. Product Parameters ISUZU ELF 3.2tons Boom Crane Truck General Technical Parameters Overall Dimension 5850×2100×2550 mm Gross Vehicle Weight 7300Kg Curb Weight 4250Kg Chassis Specification Chassis Brand ISUZU Drive model 4x2 Cabin Isuzu ELF 100P cabin, Left Hand Driving, with air conditional Number of Passengers 2 Engine Style 4-stroke direct injection, 4-cylinder in-line with water cooling, inter-cooling, EGR Model Isuzu 4KH1CN6LB Power 88KW/120HP Emission standard EURO 6 Displacement 2999ml Max torque 290N.m Fuel type Diesel Gearbox Isuzu MSB 5-speed,manual Brake System OiL brake Wheel Base 3360mm Front/Rear Axle Loading 2580/4750Kg Tire 700R16 Max Driving Speed 115km/h Upper structure Specification Cargo Body Dimension 3500x2000x450mm Material Q235 carbon steel Cargo Thickness Side 3mm, Bottom 4mm Working System Boom Type Straight 3-Arm telescopic boom Boom model POWERSTAR KSQS68-3 Max Lifting Moment 6.72t·m Max Lifting Capacity 3200kg Max lifting height 9.5m Rotation angle 360° ALL Rotation Installation space 680mm Max working radius 7.5m Hydraulic system flow 20L/min Crane weight 1600kg Oil tank capacity 60L Other Configuration Control system in 2 side; 3.2T arm, etc. Efficient, Flexible, and Highly Practical Crane The POWERSTAR KSQS68-3 3-section straight-arm crane has a maximum lifting capacity of 3.2 tons, a lifting height of 9.5 meters, and a maximum working radius of 7.5 meters, enabling it to easily handle various lifting tasks. It features a 360-degree full-rotation function. The hydraulic outriggers on both sides provide stable support for crane operations, ensuring safe operation. Precise and Convenient Operation Design The manual hydraulic control levers on both sides are reasonably designed. Operators can easily control the crane's extension, retraction, lifting, lowering, rotation, as well as the lifting and lo...
