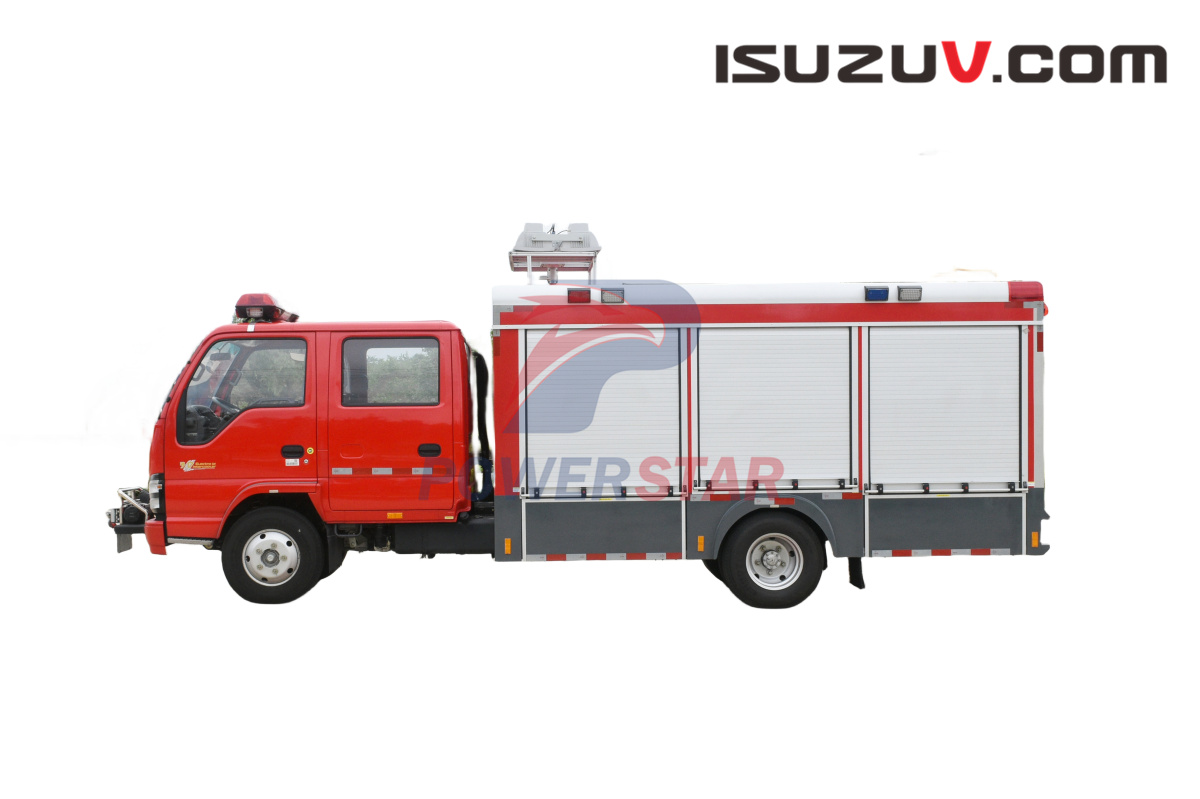

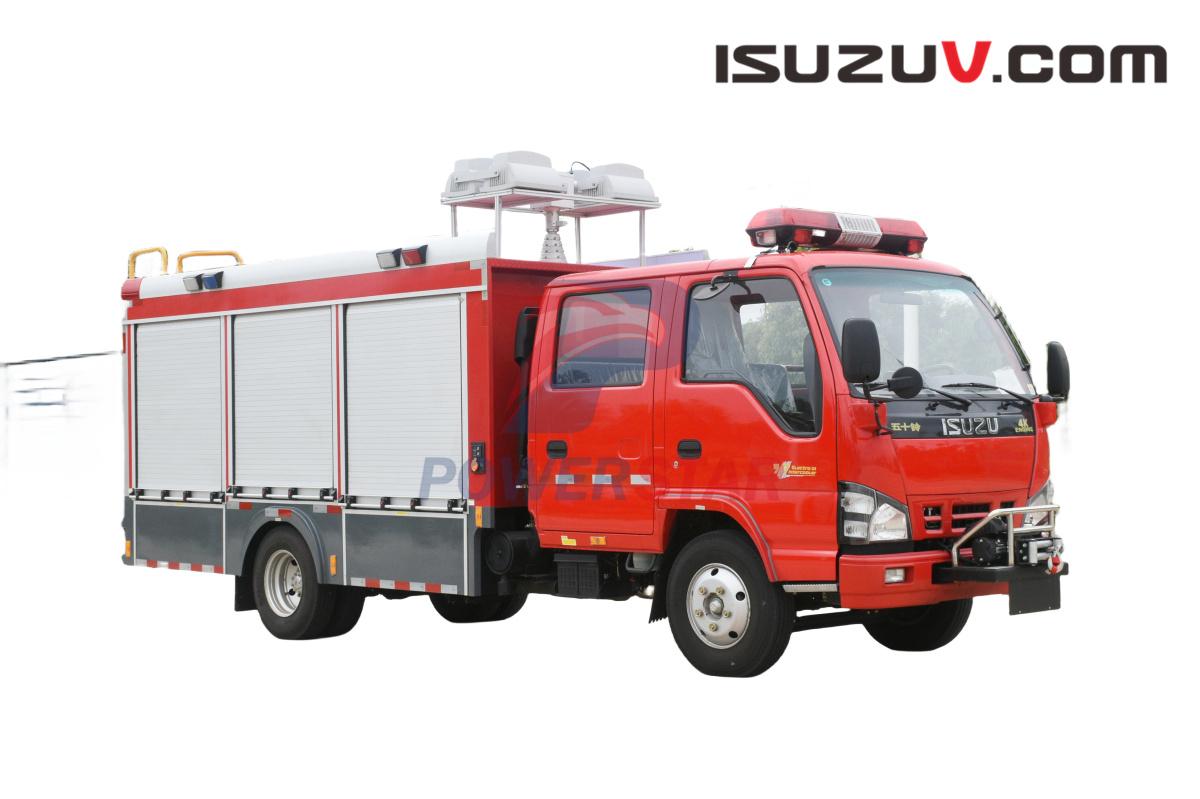

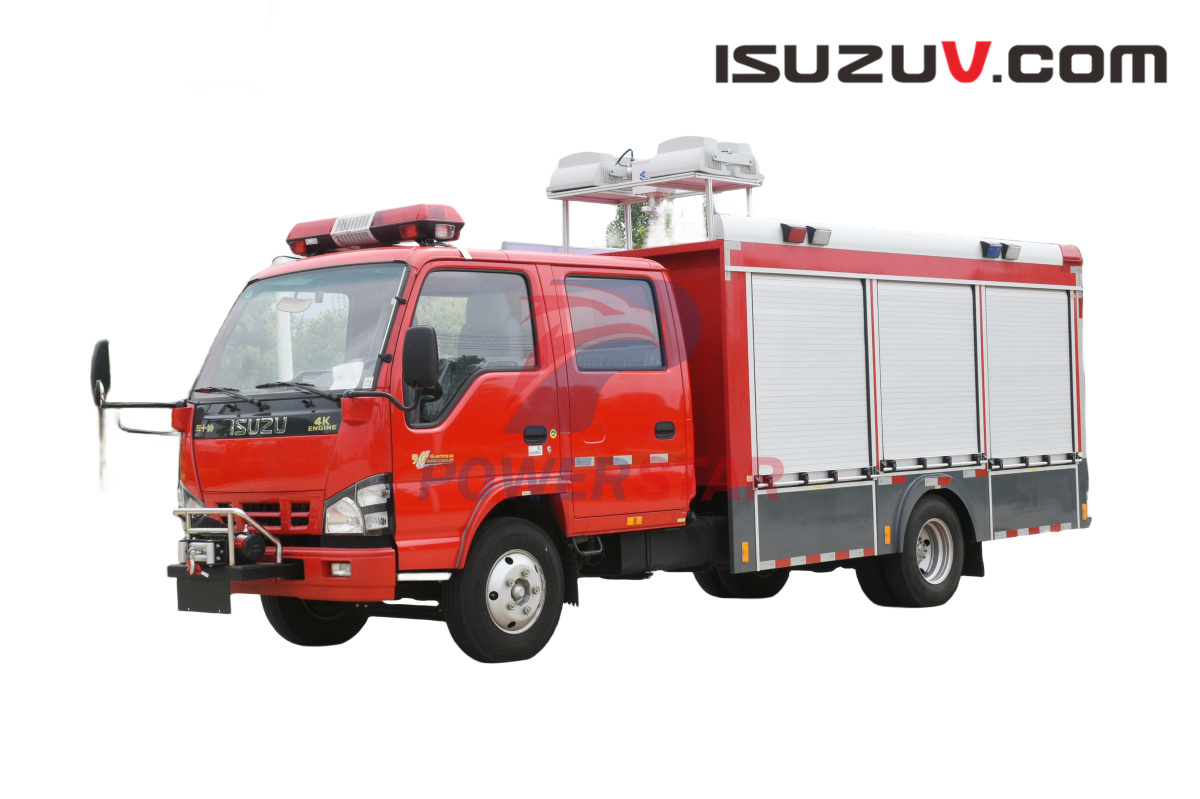

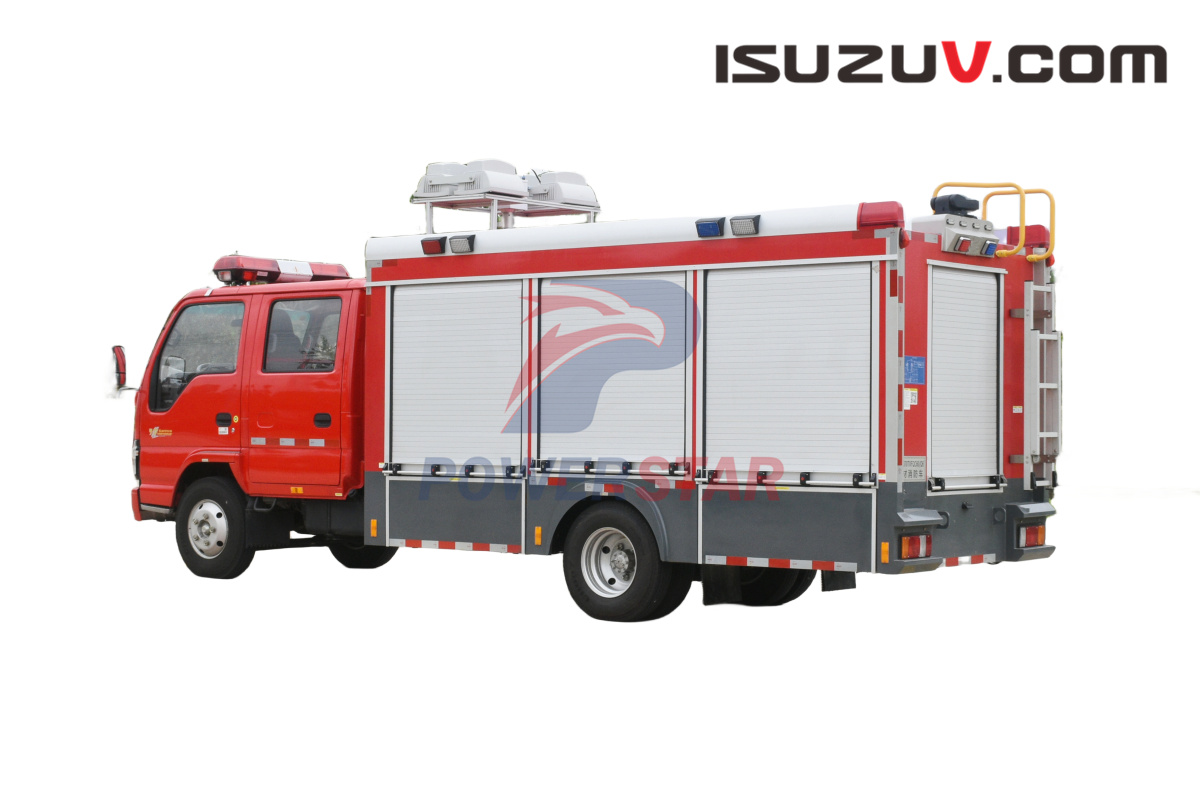

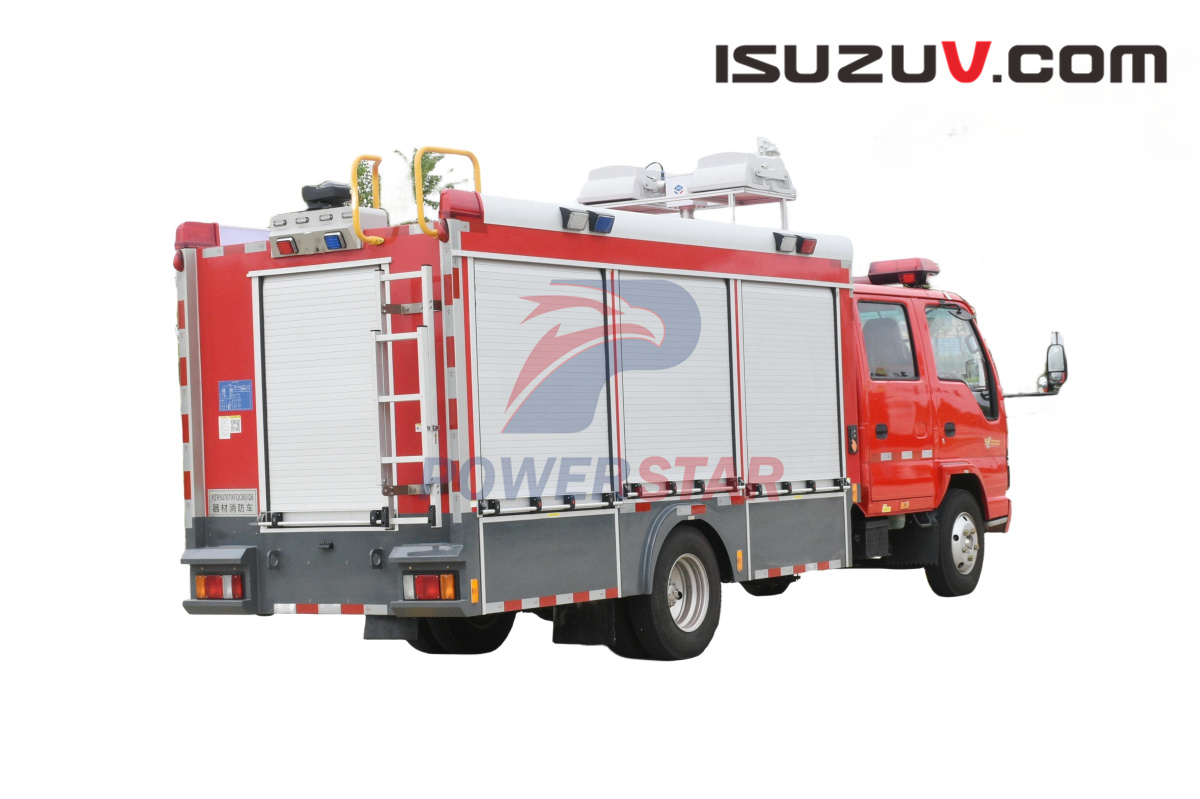

Japan Isuzu NPR NKR Emergency Rescue Fire Engine Fire Truck with Rescue Equipment
The Isuzu NKR NPR 600P emergency rescue vehicle is composed of a Isuzu chassis and an upper body. The Isuzu NKR rescue vehicle is equipped with various fire rescue equipment, special protective equipment for firefighters, fire rescue tools and fire source detectors. It is a dedicated fire fighting vehicle for rescue tasks. It is widely used in fire brigades to respond to various natural disasters and emergencies etc.
No.
Main Items
Technical Parameters
1.1
Model
PST5110GXF
1.2
Overall Dimension
6580mm×2400mm×3500mm
1.3
Max. Load Weight
11000Kgs
1.4
Number of the Crew
2+3 (including driver)
1.5
Max. Speed
90km/h
1.6
Painting
Red Color of U.S. PPG Brand
2. Superstructure Parameters
2.1 Compartment
Material: All made of high-strength aluminum alloy profiles.
Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.
Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.
Ladder frame: A set of multifunctional ladder frame is set on the top.
Rear ladder: An aluminum alloy safety ladder leading to the roof is set on the right side of the rear.
Structure: A diversion groove on the top and a sealing strip around it, which has good rainproof and dustproof sealing performance.
Layout: The sides of the equipment box and the rear pump room.
2.3 Foot Pedal
Material: High-quality aluminum alloy profile.
Structure: Overall drawing structure of aluminum alloy profile, with a width of 50cm and a load-bearing capacity of more than 300kg.
Layout: Under the equipment box and pump room.
2.4 Electrical System
Warning light warning: Long row warning light are set on the top; The control devices are installed in the cab.
Equipment box lights: There are LED white lighting strips on both sides of the equipment box. The light switch and the rolling door are linked.
Strobe lights: Strobe lights for warning are arranged on the upper part.
Exterior lighting: LED lights for lighting are provided on the upper part of the compartment.
Roof lighting: LED lights are provided inside the top of the carriage.
Side Indicater Light: Built-in yellow indicater lights are installed on pedals.
3. Rescue Equipment
No.
Main Items
Technical Parameters
3.1
Crane
3.1.1
Brand
Optional
3.1.2
Model
Optional
3.1.3
Max. Lifting Weight
3.2 Tons
3.1.4
Max. Working Weight
10 Meters
3.1.5
Max. Operate Range
8 Meters
3.1.6
Swivel angle
370°
3.1.7
Installation Type
The rear of the vehicle and in the longitudinal centerline of the vehicle
3.2
Winch
3.2.1
Brand
Optional
3.2.2
Model
Optional
3.2.2
Installation Type
Under the front bumper
3.2.3
Drive Type
Electric
3.2.4
Voltage
24V
3.2.5
Max. Traction
6118 Kgs
3.2.6
Max. Towing length
38 meters
3.3
Generator
3.3.1
Brand
Optional
3.3.2
Model
Optional
3.3.3
Drive Type
Gasoline Generator
3.3.4
Rated Power
10 KvA
3.3.5
Rated Frequency
50 Hz
3.3.6
Rated Voltage
220 V
3.3.7
Location
In storage compartment
3.4
Telescopic Light
3.4.1
Brand
Optional
3.4.2
Model
Optional
3.4.3
Power
2x2000W
3.4.4
Lamp
Quartz halogen lamp
3.4.5
The Max. Height
8 Meters from the ground
3.4.6
Rotation Angle
Horizontal:360° Pitch:120°
3.4.7
Working Voltage
220V
3.4.8
Installation Type
On the top
