Philippine isuzu giga 6UZ1-TCG50 engine fire fighting truck supplier
Philippine isuzu giga 6UZ1-TCG50 engine fire fighting truck supplier
June 09, 2023
The Isuzu GIGA fire truck is a powerful and reliable vehicle designed to combat fires in even the most challenging conditions. The isuzu Giga fire fighting truck is equipped with a range of features that make it a versatile tool for firefighters, including a powerful diesel engine, an advanced water pumping system, and a spacious cabin that can accommodate a crew of up to six people.
One of the most important features of the Isuzu GIGA fire truck is its water pumping system. With a maximum capacity of up to 4,000 liters per minute, it can quickly distribute water to the source of the fire, allowing firefighters to get the situation under control as soon as possible. In addition, the truck comes equipped with multiple outlets, including both high and low-pressure hoses, making it easy to direct the water flow precisely where it is needed.
The cabin of the Isuzu GIGA fire truck is designed with safety and comfort in mind. It has a spacious and ergonomic layout that allows firefighters to move around easily, even when wearing heavy protective gear. The cabin is also equipped with a range of safety features, such as emergency lighting, warning alarms, and advanced communication equipment, to help ensure the crew can respond quickly and effectively to any situation.

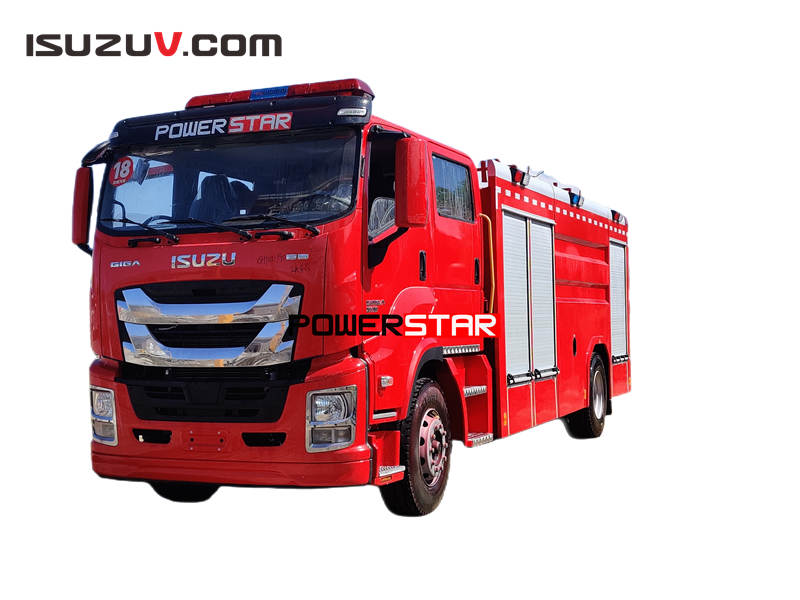

Isuzu 6 wheeler fire fighting truck with 6UZ1 engine
In addition to its primary firefighting capabilities, the Isuzu GIGA fire truck can also be equipped with a range of specialized rescue tools, such as cutters, spreaders, and hydraulic rams.
ISUZU 4x2 Fire Fighting Truck Specification
▪ Truck Chassis:
› Type: ISUZU FTR chassis for Fire application
› Drive system: 4x2 Left hand drive
› Engine: 420 HP 6UZ1-TCG50
› Transmission: ISUZU Automatic
› Tyre: 315/80R22.5
› Crew cabin: Twin cabin with A/C
› Seats capacity: 3+3 person
▪ Extinguishing agent tank:
› Water tank: 6,000 L
› Foam tank: 600L
› Dry powder 180 kg
› Tank material: Stainles steel304
› Design: Tank is designed that the centre of gravity as low as possible. › Tank Manhole: DN500mm
▪ Extinguishing system:
▪ › Fire pump: CB10/60 with 60L/S
▪ › Fire monitor: PS40
▪ › Monitor throw: Water throw≥65meter,
▪ › Rotation: 360º rotation; elevation: 0-80°, depression -10°
▪ › Water Pumper Inlet Diameter 1*125 mm
▪ › Water Pumper Outlet Diameter 2*65 mm

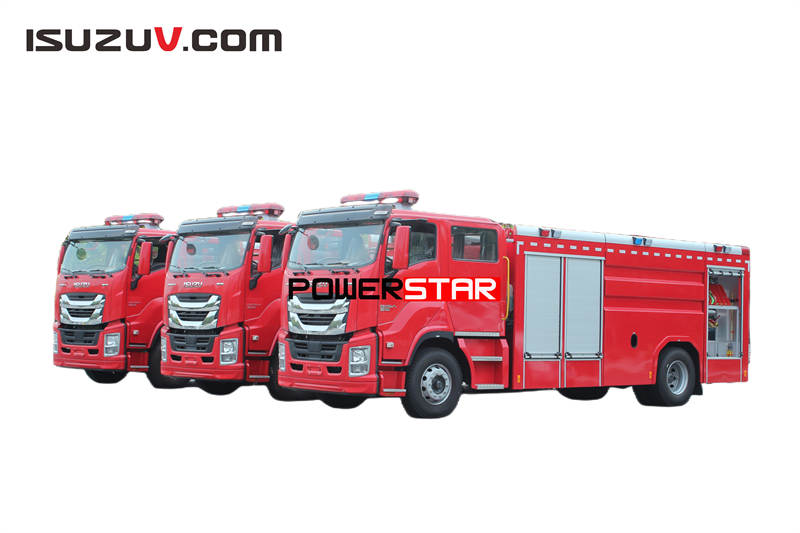

Isuzu giga cabin fire fighting truck with 10 cbm water tanker upper body
▪ Control Panel:
› Fire pump operation: pump PTO on / off from inside the drivers cabin, all other operation will be done from the rear of the pump
› Panel Location: in the pump compartment, rear side
› Instruments: Vacuum gauge, Pressure gauge,
Achometer, Tank Liquid level, Accelerator, all necessary switch.
› Panel language: English or appointed.
› Automatic monitor system
▪ Monitor :
Horizontal range 60 degrees, vertical range 30 degrees.
Monitors may be controlled from the cabin, the monitor control must be sited so that the nozzole can be operated from both the drive and front passenger seat
▪ Equipment compartment:
› Bodywork: Body is made of approved steel
tube construction, Flooring made of chequered aluminium
› LED lighting in equipment compartment
› Each compartment closed by light aluminum
roller shutter.
› Including customer-specific additional equipment
› According to human body engineering principle design all kinds of equipment frames
› 1-2 action can take any equipment standing on the ground or pedal

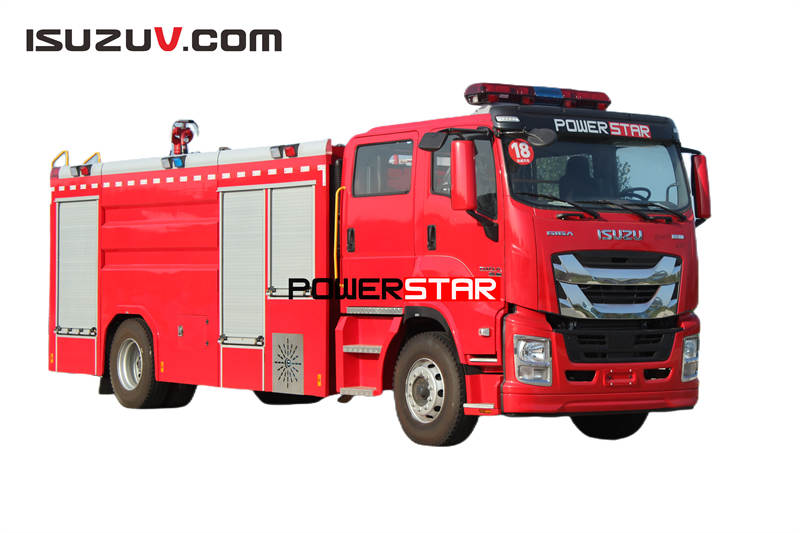

Philippine isuzu giga water fire fighting truck for Philippine country.
▪ Painting:
› Fire Red: R03 Fire Red
› Logo: According to customer wish
▪ Dimensions & weight:
› L × W × H =9300*2500*3550 mm
› Permissible total weight: 18,000 kg
▪ Acceleration:
0 to 80 Km within 40 s without engine pre heating

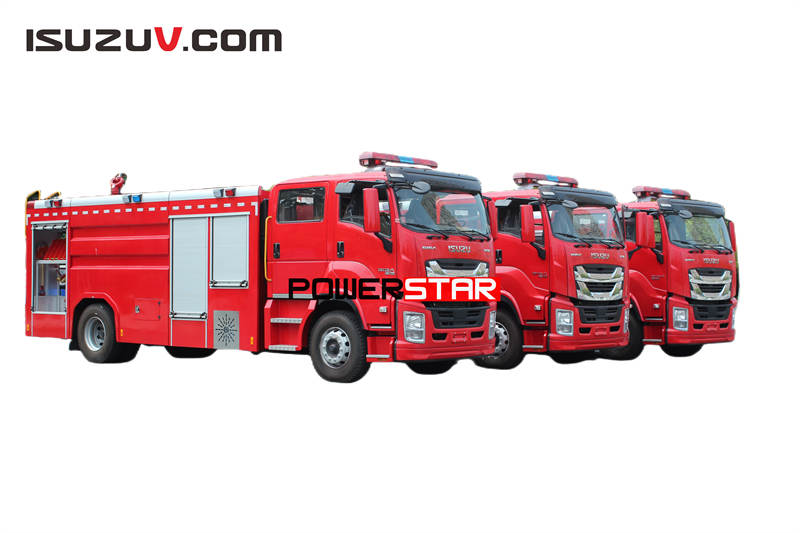

Philippine isuzu giga fire rescue trucks for Philippine country .
▪ Stop:
To be able to stop the vhicle in 12 m when travelling at 32 km fully loaded on dry surface
▪ Documents
› English operation manual, Spare parts list, and all necessary export docs.
