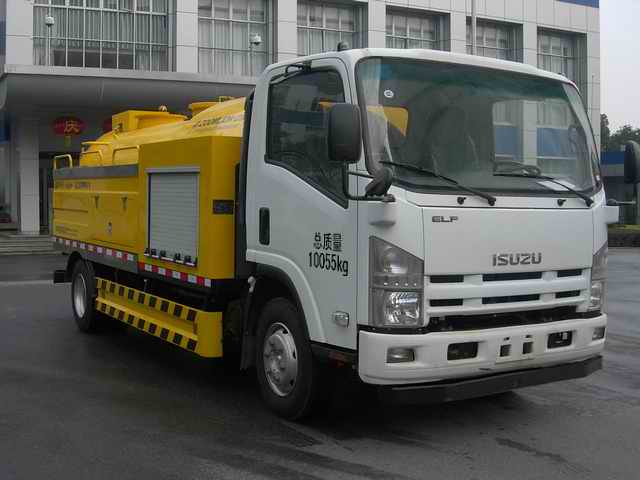

Quality Isuzu water jetting and sewage suction tanker truck
Brief introduction of water jet sewage suction tanker truck
The water jet sewage suction tanker truck is also called sewer cleaning truck, sewer truck,etc. The water jet sewage suction tanker truck is a multi-functional truck which has high pressure cleaning function and sewage suction function.
The water jet sewage suction tanker truck is intended for elimination of emergency blockages and washing of sewer networks. The high pressure sewer truck shall be equipped with a
flushing nozzle on the sleeve which is reeled up on an additional drum. Meanwhile,the high pressure sewer truck shall be equipped with necessary equipment for:
-- ----cleaning of pipes from cleaning of pipes from pollutionpollution
-----liquidation of emergancy blockages
-----removal of ground formations
-----flushing of spirals of various lengths and diameters with tension devices
Meanwhile, the water jet sewage suction tanker truck is also can suck the sewage, dredge, gravel, slurry and other bock which blocked the sewer, drainage, pipeline,etc.
The high pressure water jet sewage suction tanker truck is consists of sandwich power-take-off, clean water tank, sewage tank, high pressure water pump, vacuum pump,valves, pipeline systems, hose reel, etc. You also can add some sprinkler for road spraying.
As a professional special vehicle manufacturer in China, the high pressure flushing truck we manufacture is with many advantages.Such as light curb, high efficiency, etc.
Technical parameters of Isuzu high pressure water jet sewage suction tanker truck
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
Sewer Suction and Cleaning Truck |
Drive Type |
4*2 |
|
Gross Vehicle Weight(kg) |
9400 |
|
Curb Weight (kg) |
4605 |
|
Overall Dimensions L*W*H(mm) |
6450×2285×2700 |
|
Engine |
Engine Model |
4HK1 |
Engine Brand |
ISUZU |
|
Fuel Type |
Diesel |
|
Power |
139kw/190HP |
|
Emission Standard |
Euro III |
|
Displacement(ml) |
5999 |
|
Engine Type |
4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
|
Chassis |
Chassis Brand |
ISUZU |
Tire No. |
6 |
|
Tire Specification |
8.25-16 Nylon tire |
|
Wheelbase (mm) |
4500 |
|
Gear Box |
6 speed forward with 1 reverse, manual |
|
Steering Whee |
Left hand drive |
|
Brake |
Air brake |
|
Radiator |
Suitable for tropical climate |
|
Tank |
Clean Water Tank Volume(L) |
3000 |
Sewage Tank Volume(L) |
3000 |
|
Tank shape |
Cylindrical |
|
Tank Material |
4mm thick carbon steel |
|
Suction Hose |
1nos x5m |
|
