Why the Isuzu FTR vacuum truck is popular in philippine

July 14, 2023

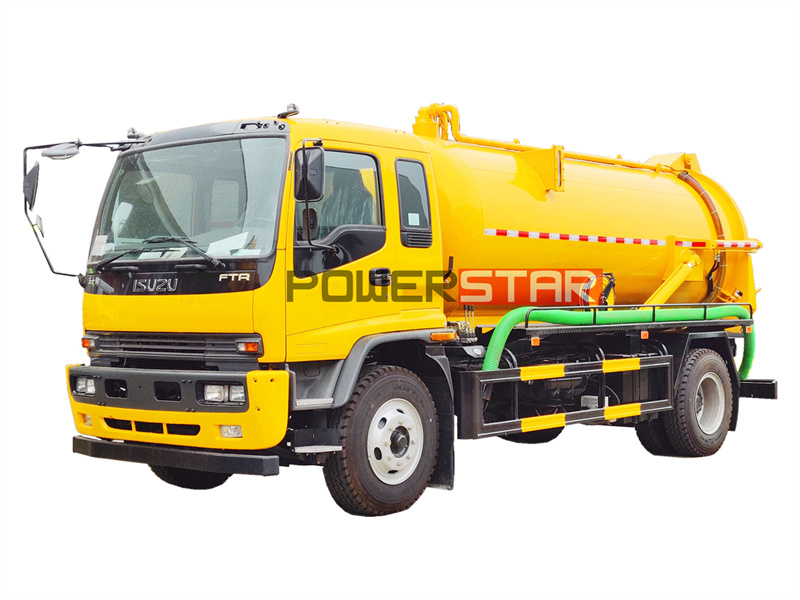

The Isuzu FTR Sewage Suction Truck in the Philippines is an efficient cleaning vehicle designed for urban environments. The car has good suction and a large dirt storage capacity, which can efficiently clean up dirt and garbage on the road.

Isuzu FTR sewage suction truck adopts advanced technology and design, equipped with powerful vacuum pump, efficient filtration system and reliable sewage storage tank.

It has excellent suction, can pick up all kinds of dirt, and performs well in cleaning work. At the same time, the car has added environmental protection factors and is equipped with a filtration system to effectively filter waste water and exhaust gas and reduce pollutant emissions.

Isuzu FTR sewage suction truck also has convenient operation performance and flexible operation ability. The design of the vehicle is reasonable, and the operation is simple, and the driver can easily master the operation skills. At the same time, the vehicle has a small turning radius and a good suspension system, which can flexibly adapt to various roads and environments. In addition, the car is equipped with a safety system to ensure the safety of the driver and passengers.

Isuzu FTR sewage suction truck has received wide attention and application in the Philippine market. Its high-efficiency dirt-absorbing capacity and excellent performance have won the favor of many municipal departments and cleaning companies. As a professional sewage suction vehicle, it performs well in urban cleaning work and contributes to improving environmental sanitation and enhancing the image of the city.

POWERSTAR TRUCKS Vacuum Tanker Truck based on type II ISUZU 4*2 Left Hand Drive chassis, capacity for vacuum tank can be up to 10,000Liters, which also installed with best performed Chinese brand WEILONG vacuum pump. The truck main consist of below system: PTO, Driving system, Combined double vacuum pump system, Durable vacuum tank system, High pressure working system, Pipeline system, Vacuum gauge, View window, Washing system, etc.

The vehicle designed to fully rely on the advantages of the original of ISUZU brand chassis, fully consider the product's convenience and reliability, also the chassis ISUZU technology features. The vacuum tanker truck has advantage of big capacity and suction efficiently, and maintenance for whole truck can be easily. The tank material is international standard strength carbon steel, which treated with antirust painting both inside and outside.

The ISUZU 4x2 Vacuum Tanker Truck is ideal and special-purpose machinery used for dredging city sewer, specially applied to pumping, cleaning and transporting the sewage sludge, also can be used for suction droppings and some other works. The truck is widely used for all kinds of suction work in city, high-way service station, airport, community, factory, etc. Therefore, the vehicle is an ideal Vacuum Truck mainly for liquid sewage suction

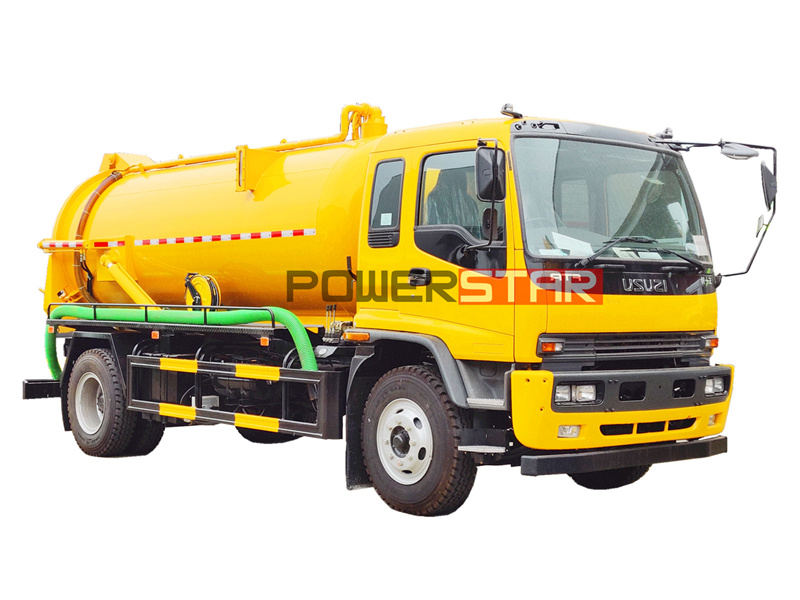

Isuzu FTR sewage suction truck
Items    10,000 Liters ISUZU Vacuum Tanker Truck

   Outer Dimension（L×W×H）(mm)    8000x2500x3200
   Wheelbase (mm)    4500
Kerb Weight（kg）    8500
GEAR    Gearbox brand    ISUZU MLD
   Model    6-shift gearbox
   Type    Manual
Cab capacity（includes driver）    2
   Brand    ISUZU
   Model    4HK1-TC50
   Type    Four cylinder inline, four stroke, water-cool, turbocharged Inter-cooling, diesel
   Rating Power（kW/HP）    150 / 205
Note: 1.The vehicle height includes top filter and overflow alarm.
2. We keep the right to revise the parameters on the list above.

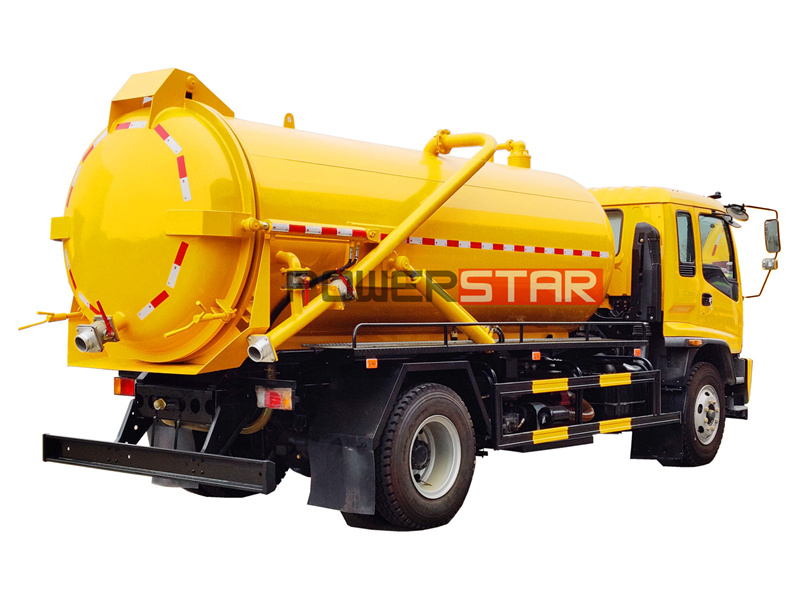

Isuzu FTR sewage suction truck
Sewage Suction System basic parameter list
Items    Parameter
Superstructure     Dirty water tank    10,000 liters
   Material    Carbon steel, 6mm thick
   Design pressure    Full Vacuum－0.9bar
   Vacuum pump    China famous WEILONG pump
        Combined Double pump system
   Clean Water Tank    Equipped
   Suction Pipeline    PVC hose with 4" diameter, 7m long
   Full-suction time    ≤5min
   Discharge valve    6" discharge valves
   Rear cover    Hydraulic open and Manual locking

ⅱ,Vacuum tanker trucks application notice
(1) Keep the vacuum pump at suitable revolution speed:

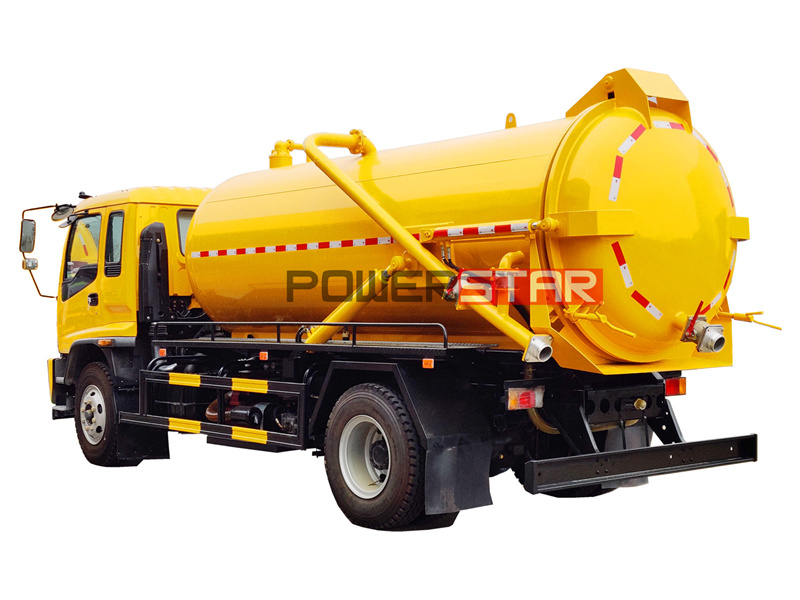

Isuzu FTR sewage suction truck
   If the pump too speedy, the rotor’s temperature will be very high; on the contrary, the pump too slowly, engine knock will happen, which will impact the parts and affect the service life. In one word, the proper revolution speed is necessary, and should have the HAND THROTTLE to the largest adjustment position in advance.

(2) Rollover the tanker on flat road

   Rollover the tanker on the tilt road will not only make parts distortion and lead to malfunction, but also an accident.

(3) Open rear door before rollover the tanker

   Open rear door before rollover the tanker is very important, or there may be an accident.

(4) When clutch pump and vacuum pump take power form PTO, have the engine idling, and completely press the clutch pedal, then slowly lift the clutch pedal.

(5) NOTES: Keep the PTO box’s joysticks in middle position while driving.

(6) Waste oil and other danger things are not allowed to be carried by this vehicle.

(7) The supporting rods and safety stop must be used while tanker is raising position before entering the base or repairing the tanker.
