QL1070A5HWY ISUZU 16Meters high operation aerial platform truck

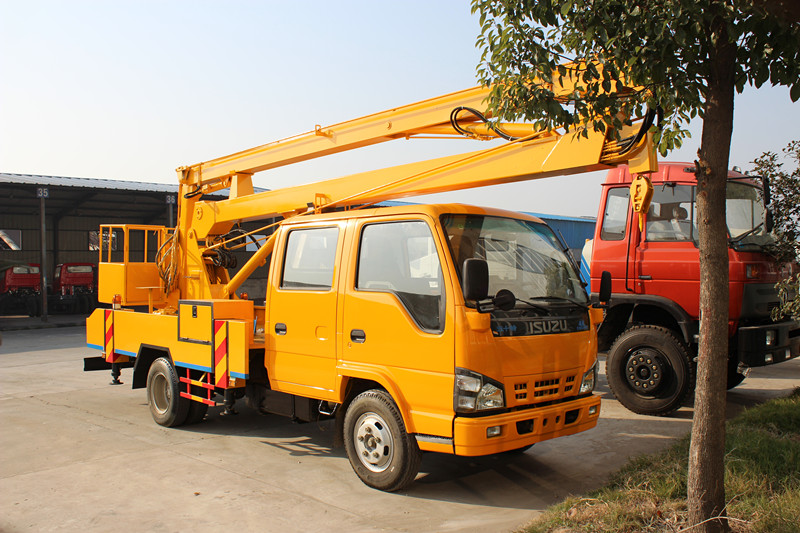

120hp 4*2 ISUZU Hydraulic Lift AerialOperation Truck 16 m with 4KH1CN5HS


Similar Key Words:  iSUZU Aerial working platform (truck mounted), cargo truck mounted aerial platform, truck mounted aerial lift, aerial platform truck, hydraulic aerial truck, hydraulic lifting platform truck, telescopic platform truck.

 120hp 42 ISUZU Hydraulic Lift AerialOperation Truck 16 m with 4KH1CN5HS


Aerial Platform Truck ISUZU (14-18M)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU
Overall Dimension 7650 x 1980 x 3100 mm
GVW / Kerb Weight 6,810 kg / 5,855 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4KH1CN5HS
Power 120Ps (88KW)
Displacement 2999 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 14-16 M
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane.
