What are ISUZU water tanker trucks?
ISUZU water tanker trucks, also known as ISUZU water spray trucks or ISUZU water bowser trucks, are specialized sanitation vehicles built on an ISUZU chassis with the installation of water tanks, water pumps, pipelines, and spraying systems. Their core functions include water storage, water transport, pressurization, and multi-directional spraying, and they are widely used in urban cleaning, dust suppression, greening, emergency firefighting, and other scenarios.

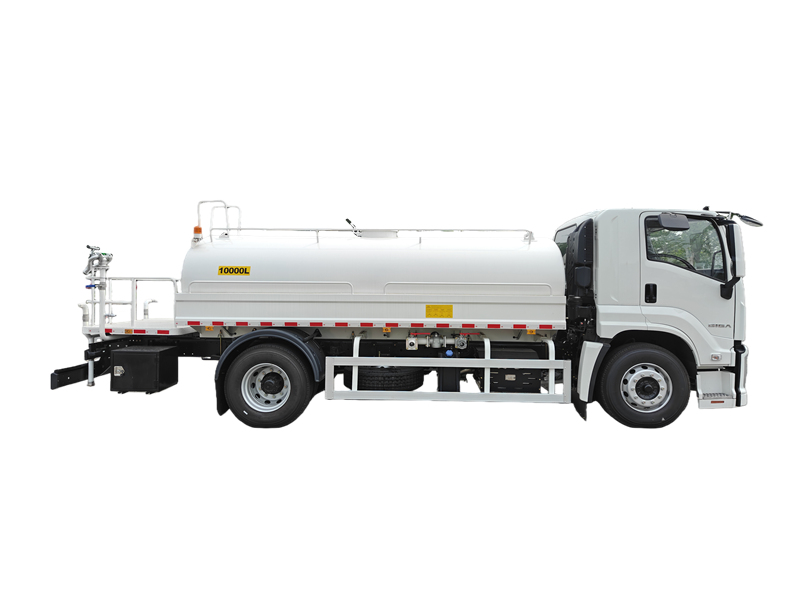

ISUZU FTR water spray truck specifications
|
Chassis |
ISUZU FTR 4×2, 4HK1-TCG60, 205HP |
|
Water tank capacity |
10000 liters |
|
Material |
Carbon steel; stainless steel available |
|
Water pump |
China top brand, flow 60m ³/h |
|
Spraying width |
≥14m |
|
Water cannon range |
≥35m |

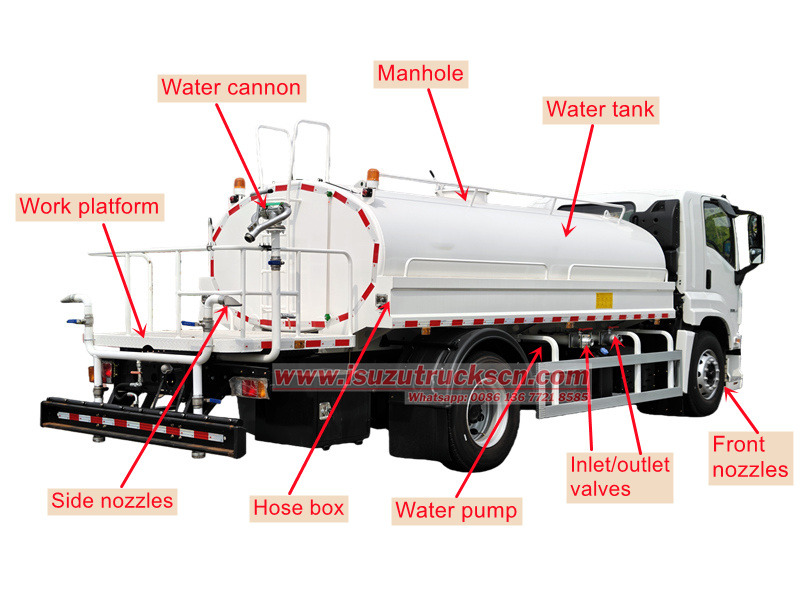

What are the components of an ISUZU sprinkler truck?
The ISUZU water truck mainly consists of the following parts:
1. ISUZU chassis
2. Water tank
3. Water pump
4. Piping system
5. Spraying device

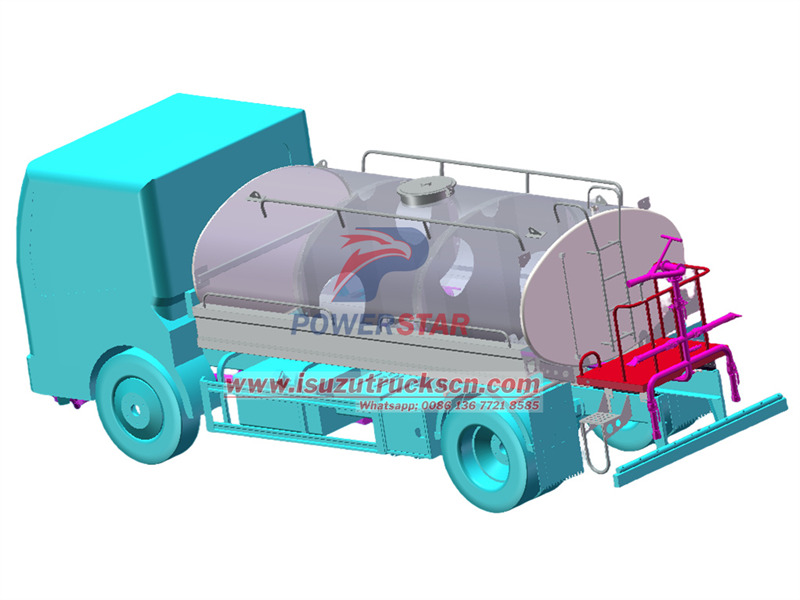

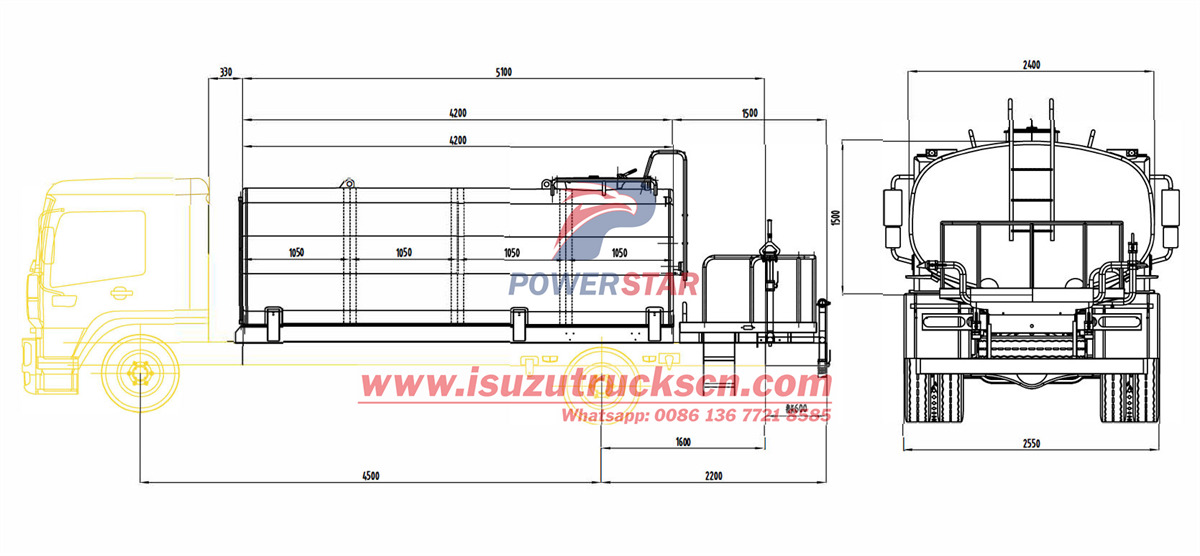

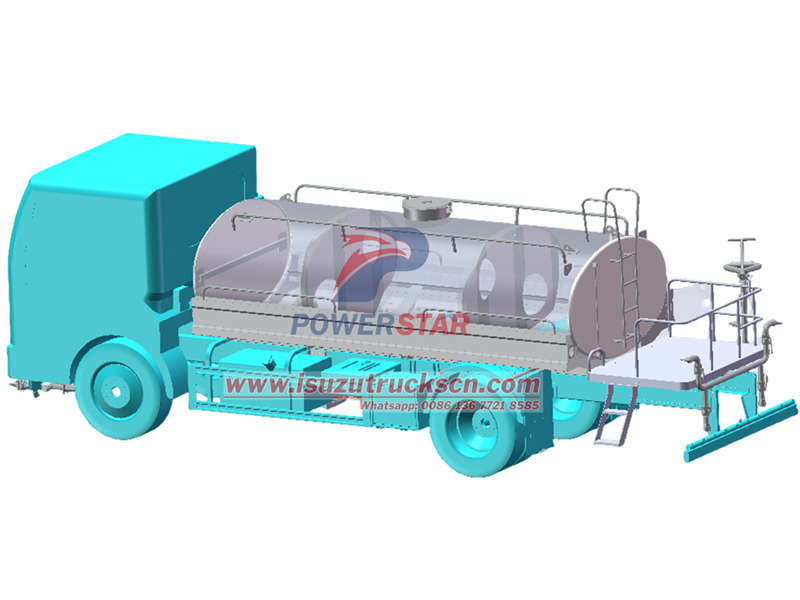

Technical drawings of ISUZU FTR water tank lorry
We design ISUZU water bowser trucks according to customer needs.

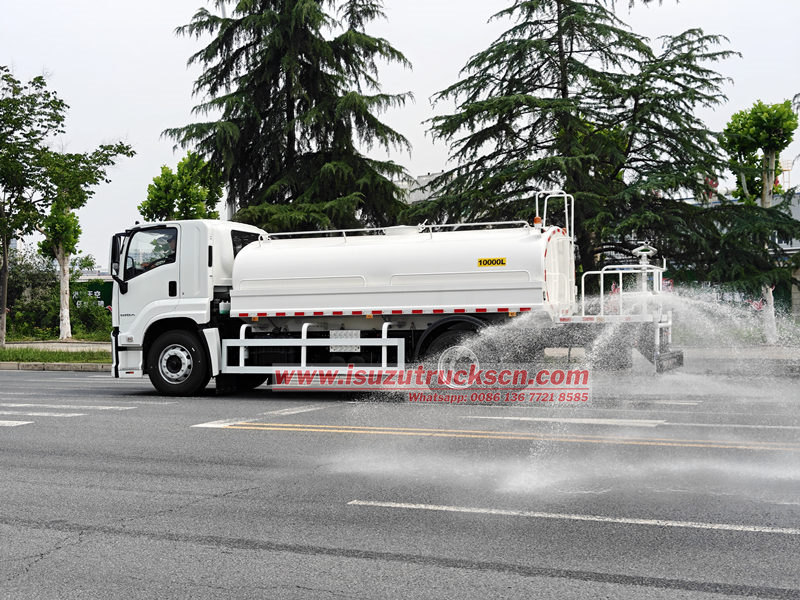

ISUZU Water Spray Truck Application
