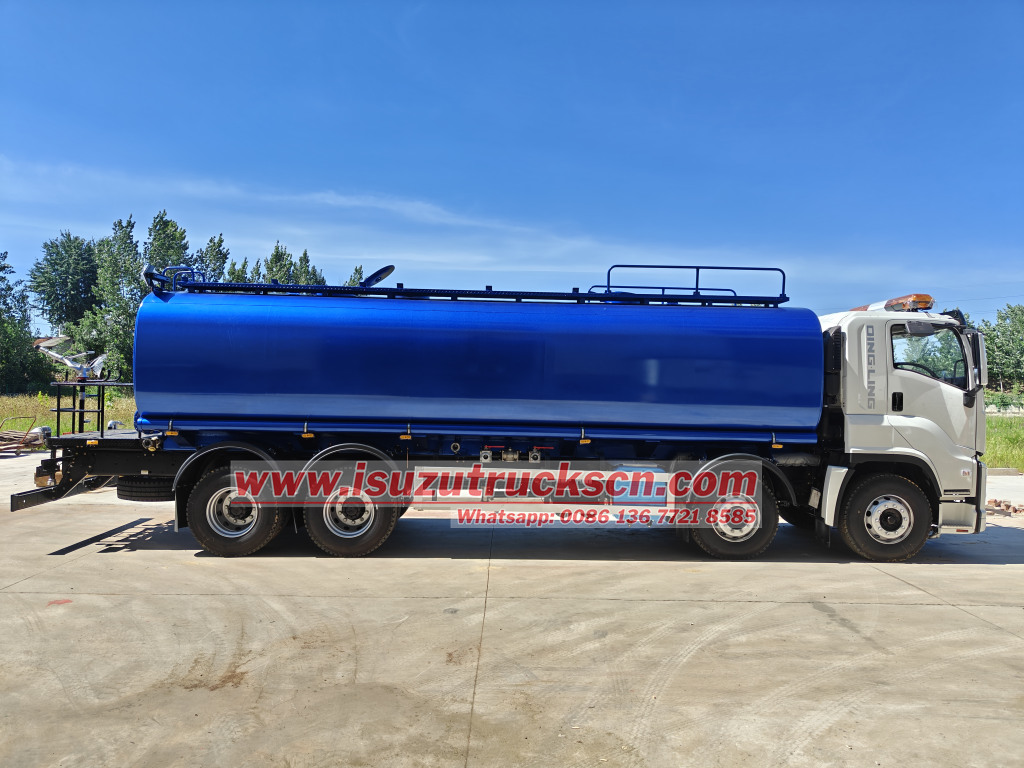

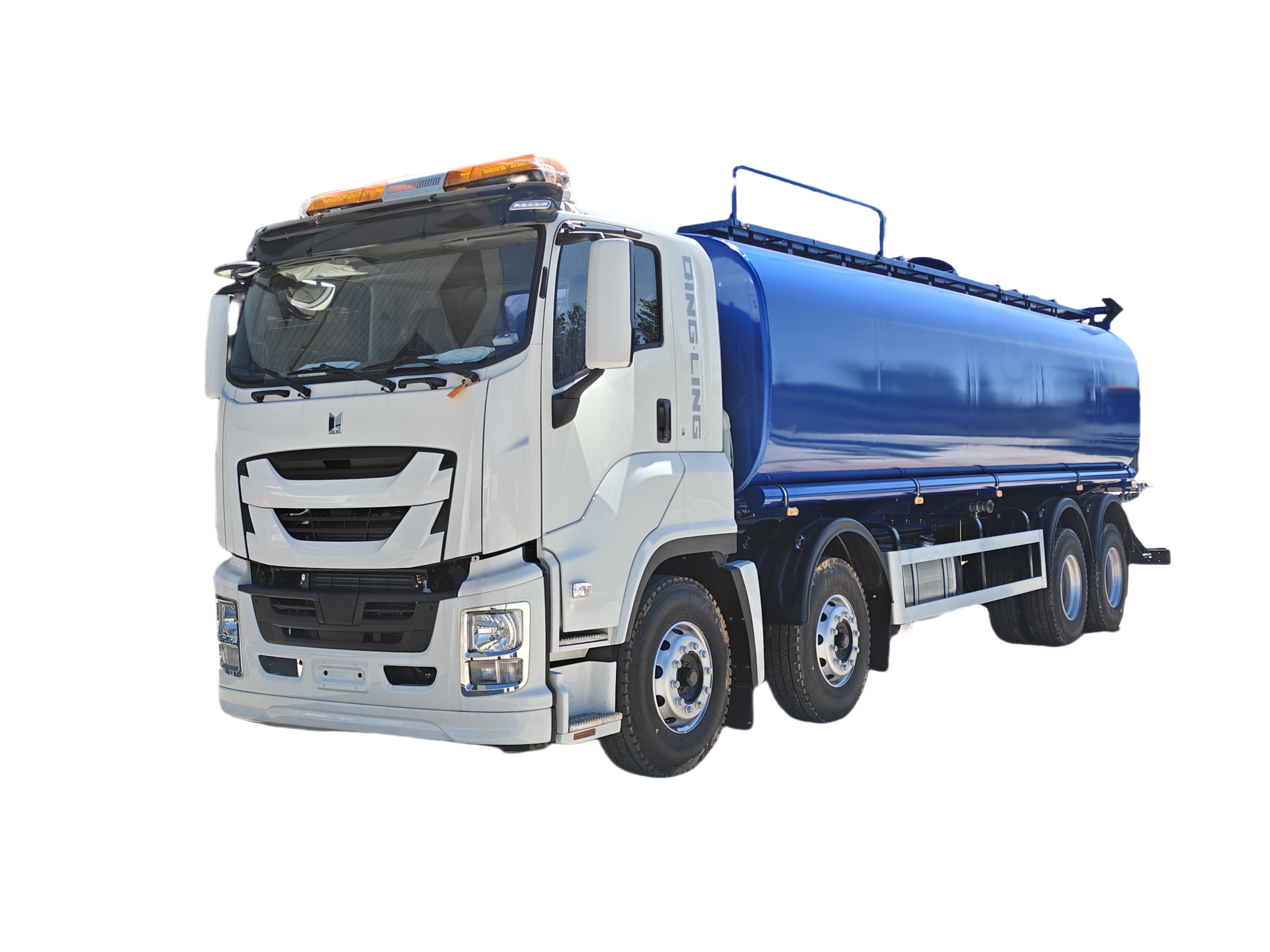

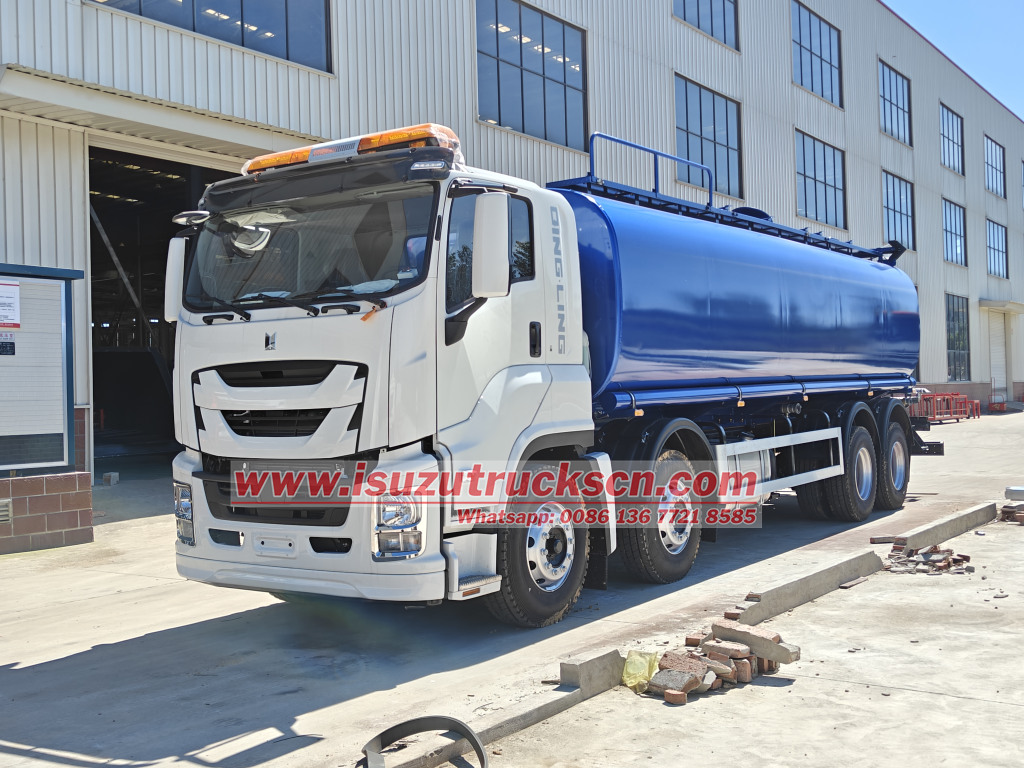

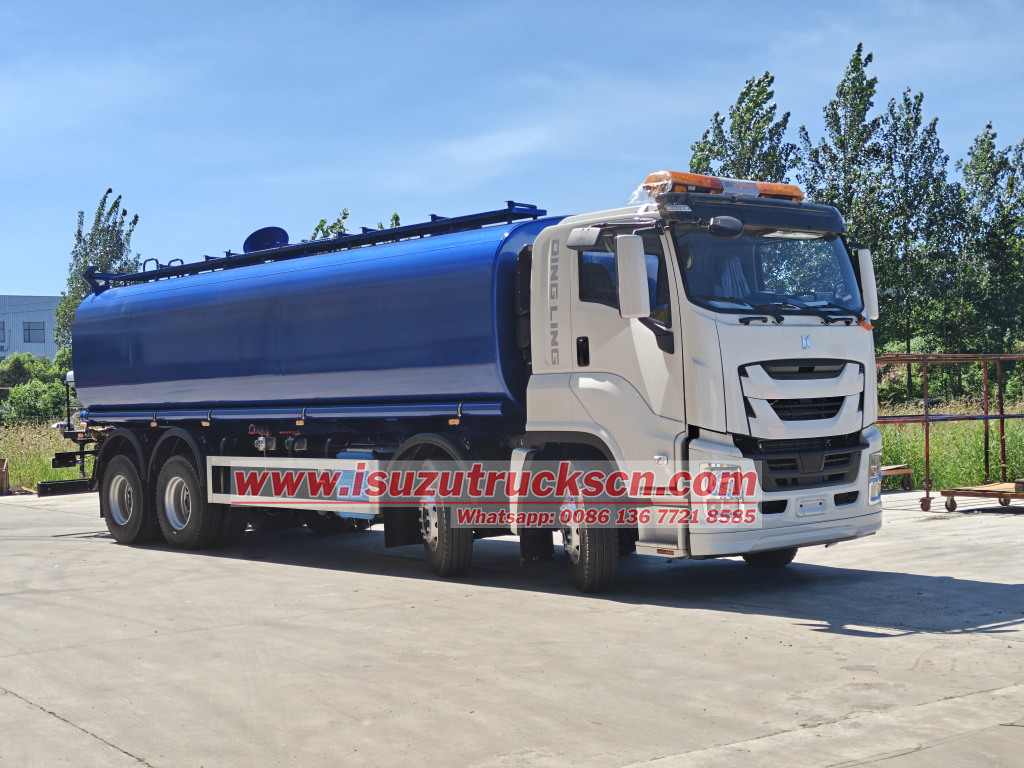

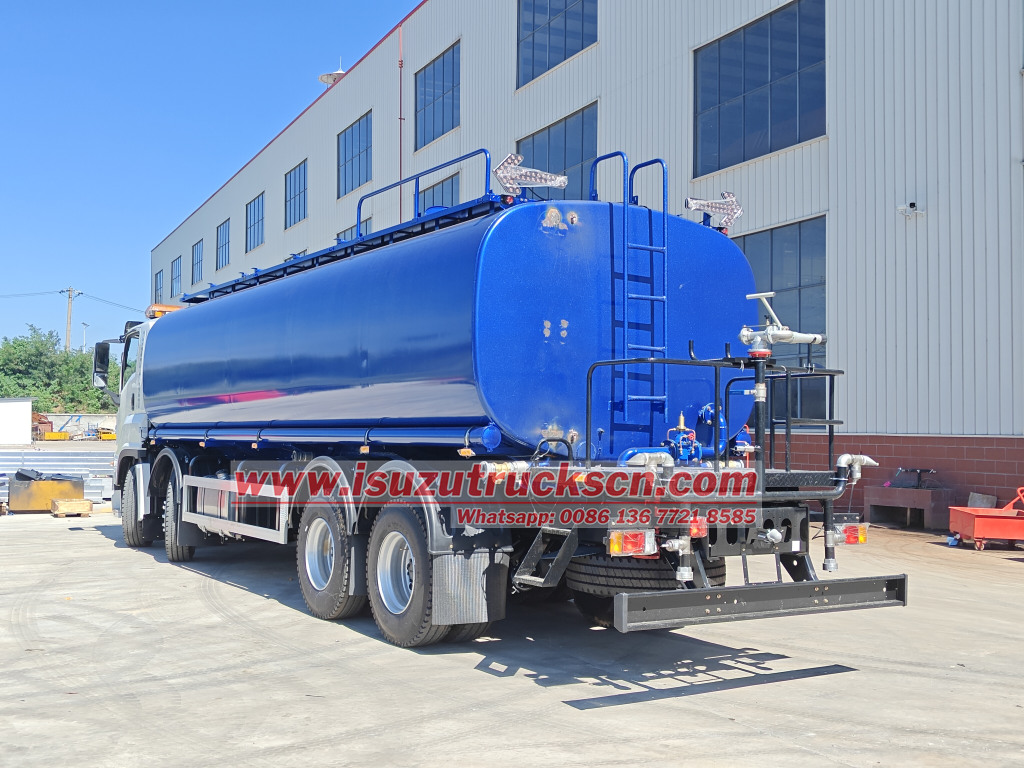

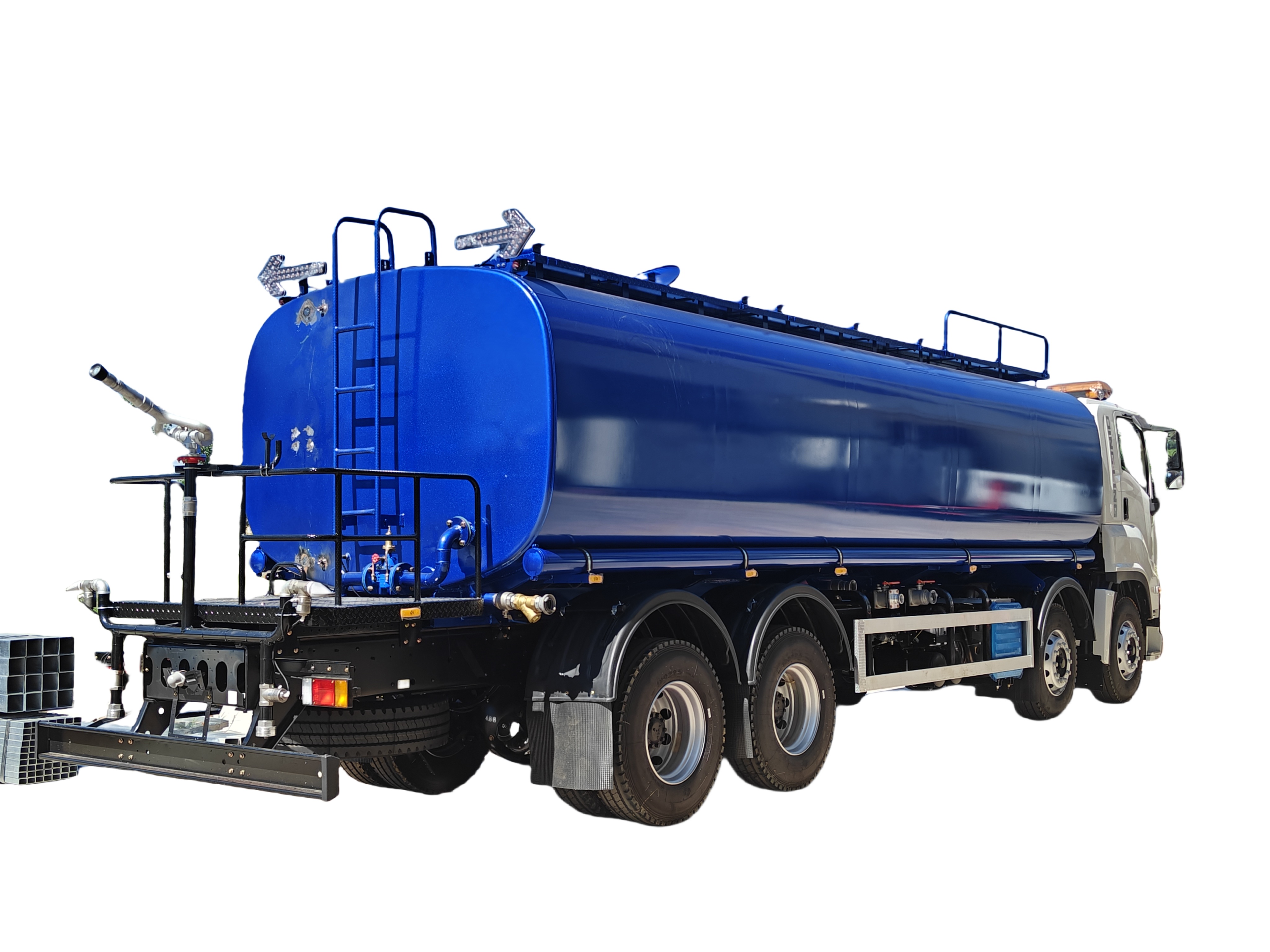

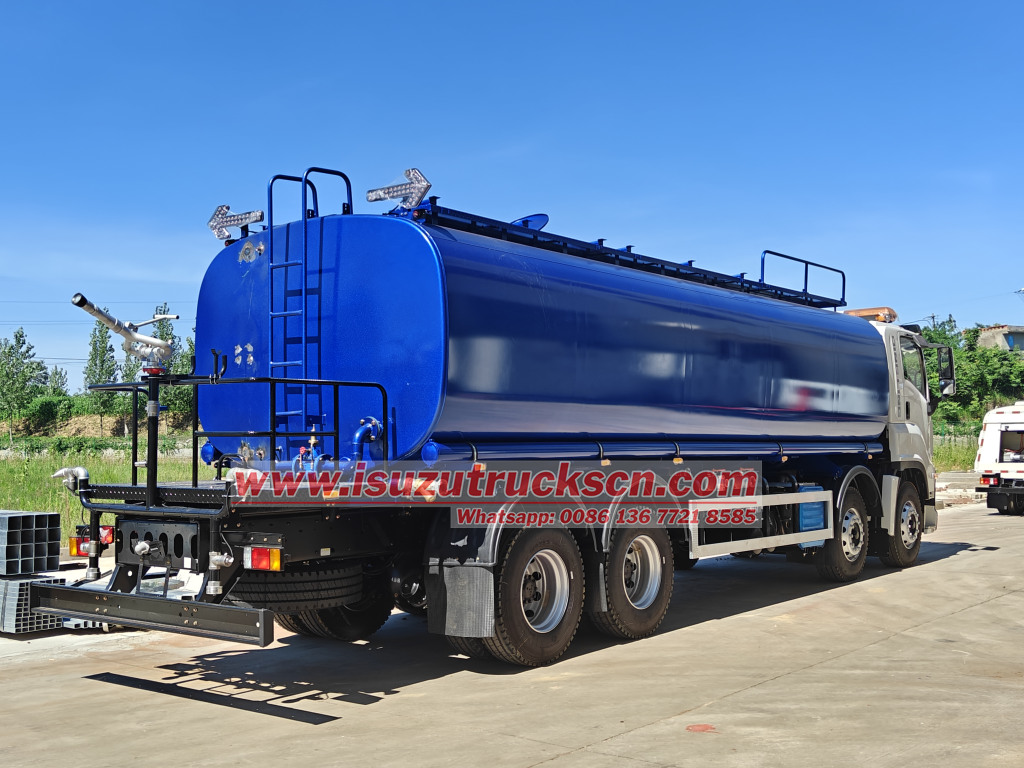

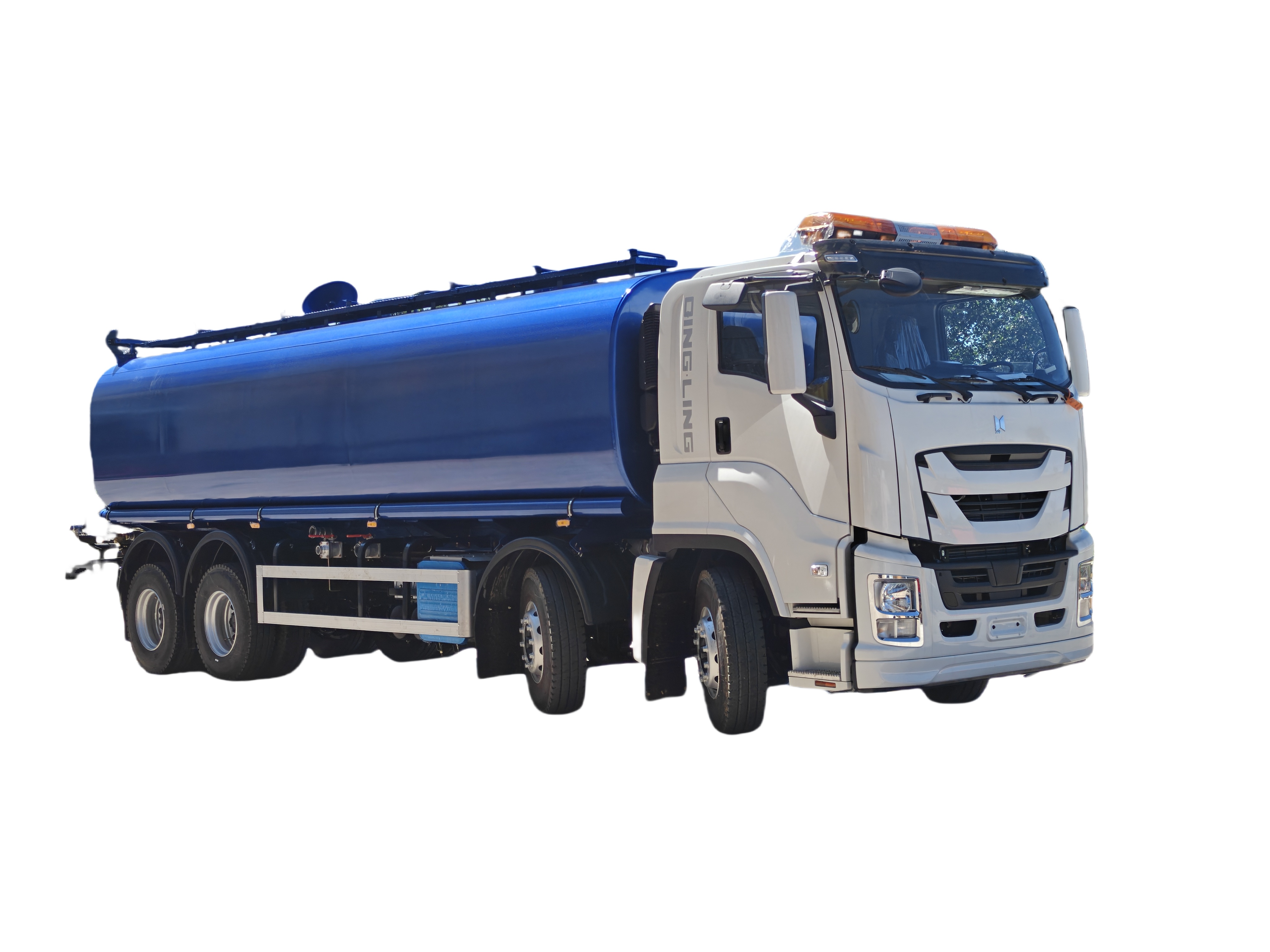

Powerstar Isuzu giga 8x4 30,000L Water Tanker Trucks, is used to transport and supply water, whatever industrial or agriculture water,widely used in construction engineering, farm irigation, draught relief, etc. Powerstar provide comprehensive bulk water delivery services, offering high-quality water solutions for a wide range of applications. Whether for construction, agricultural, or emergency use, Powerstar Trucks ensures reliable and efficient water supply to meet your specific requirements.
» I. Applications
» II. QUICK DETAILS
1. Suction≥ 7m Sprinkler width≥ 14m Range≥ 28m

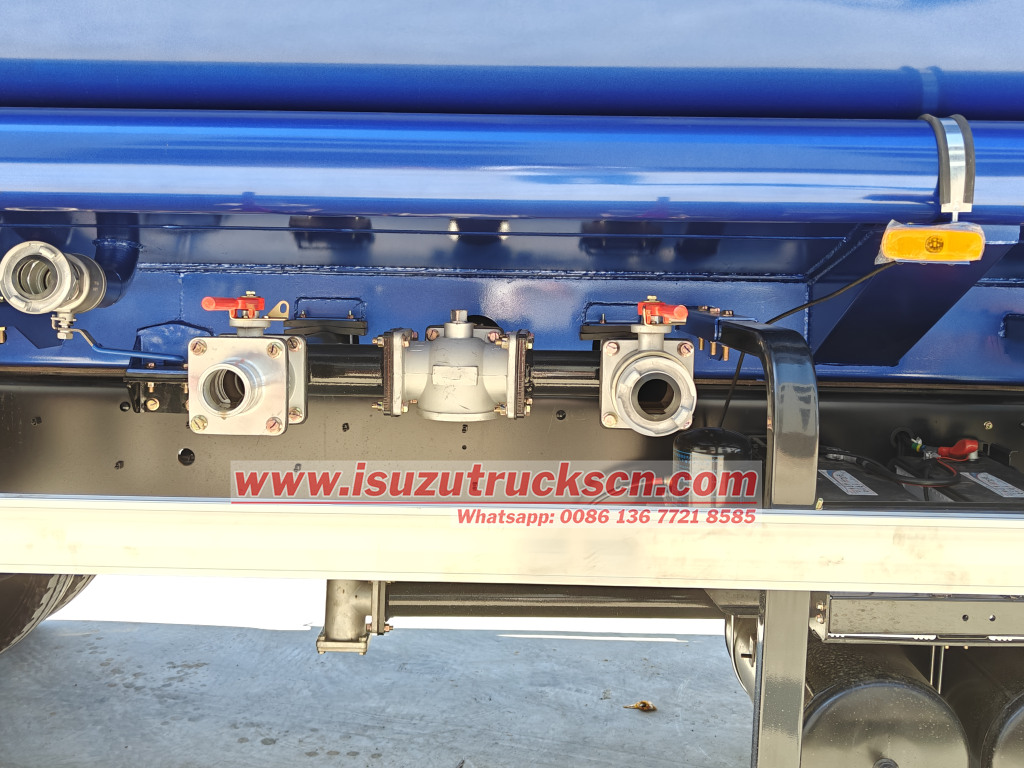

2. With front spout, back spill and side spout function

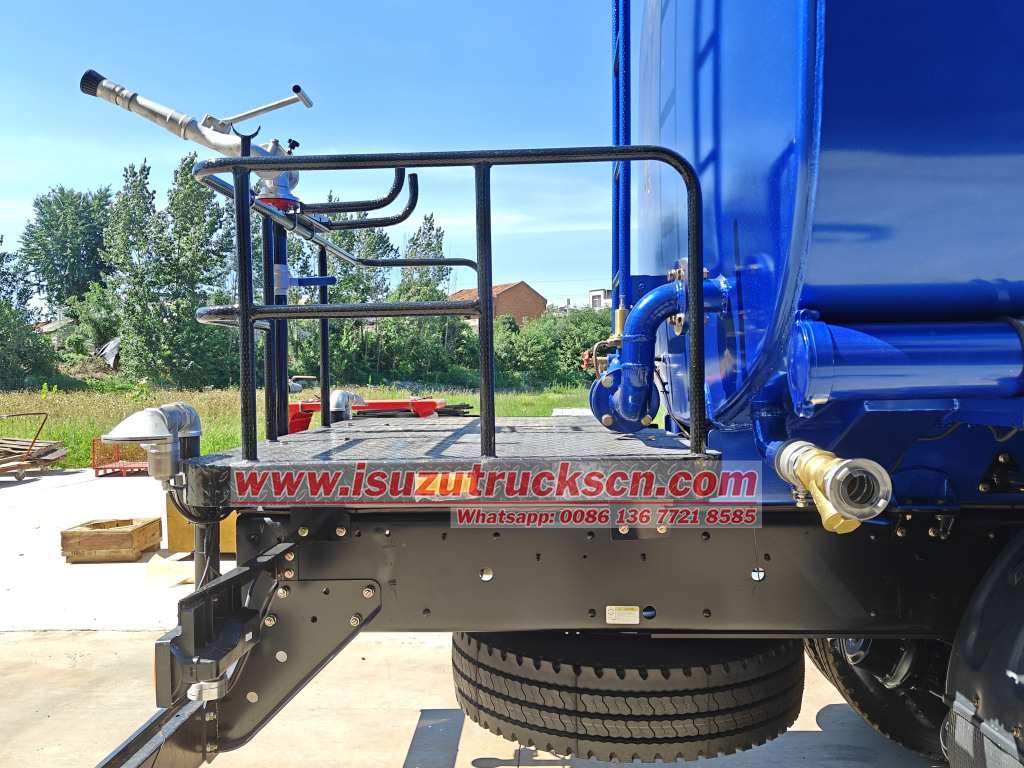

3. With the working platform at the back, wich can be installed green high-pressure water spray gun. (The spray gun shape can be adjustable: Heavy rain, moderate rain, drizzling rain or haze.
4. Provide the best high-power sprinkle pumps quality of the national, And with fire coupling, self-flow add self- priming function.
5. Tanker capacity from 2,000L to 35,000L available.
» III. SPECIFICATION
| Vehicle Description | ||
| Overall dimension | 10900*2550*3450mm | |
| GVW | 44000kg | |
| Curb weight | 13000kg | |
| Chassis brand | ISUZU GIGA | |
| Traction type | 8*4, left/right hand drive | |
| Chassis Description | ||
| Model | ISUZU GIGA Heavy duty | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electrical windows, central lock. | |
| Wheelbase | 1800+3800+1350mm | |
| Tire specification | 295/80R22.5 | |
| Tire quantity | 12+1 units | |
| Engine | Engine model | ISUZU 6WG1-TCG61 |
| Emission standard | Euro 6 | |
| Exhaust/output | 14L/338kw | |
| Horse power | 460hp | |
| Gear box | Model | ZF 16-shift gearbox |
| Type | 16 forward gears& 2 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake. | |
| Axle | Front | 8T*2 |
| Rear | 13T*2 | |
| Suspension | Front | 8- Leaf spring with shock absorber |
| Rear | (9+9)-Leaf spring | |
| Battery | Voltage | 12V*2 |
| Capacity | 165A.h*2 | |
| Fuel tanker | Type | carbon steel tank with lockable cap |
| Capacity | 180L | |
| Up-part discription | ||
| Tanker volume | 25cbm~30cbm | |
| Tanker material | 1.The inner layer is made of 5mm Carbon Steel | |
| 2.The middle layer of the tank is made of 80mm thick polyurethane | ||
| 3. The outer layer of the tank is made of stainless steel. | ||
| The temperature | The temperature rise or fall during transportation is less than or equal to 2 degree within 24hours. |
|
| Automatic cleaning system |
Automatic cleaning system is adopted in the tank, and the cleaning device rotates 360 degree to ensure no residual milk. |
|
| Optional configuration | ABS ETC |
|
 |
 |
 |
 |
