Isuzu fire fighting truck

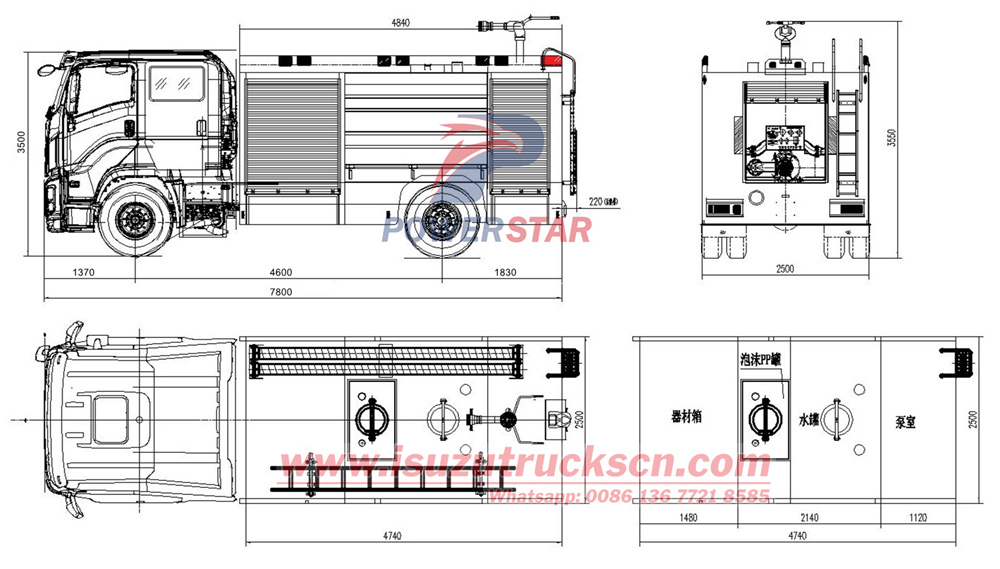

The parameter drawings for the Isuzu GIGA 4.5cbm foam fire truck are a technical solution specifically designed for this fire truck. It details the layout and design dimensions of each piece of equipment. The drawings are clear and the design logic is reasonable, making it easier for workers to cut materials, weld, and assemble. Through these drawings, we can understand all the key information that the fire truck should have, and we can also more intuitively show our design concept to our customers.

 ▶Truck Model : Isuzu GIGA 4X2

 ▶Speficiation : 4000L water + 500L foam

 ▶Application Area : Fire resuce department / Municipal fire bureau

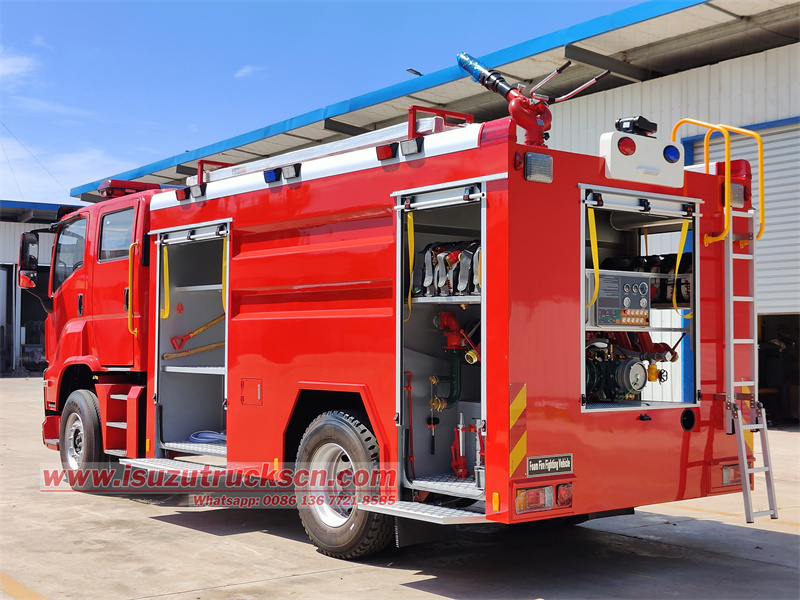

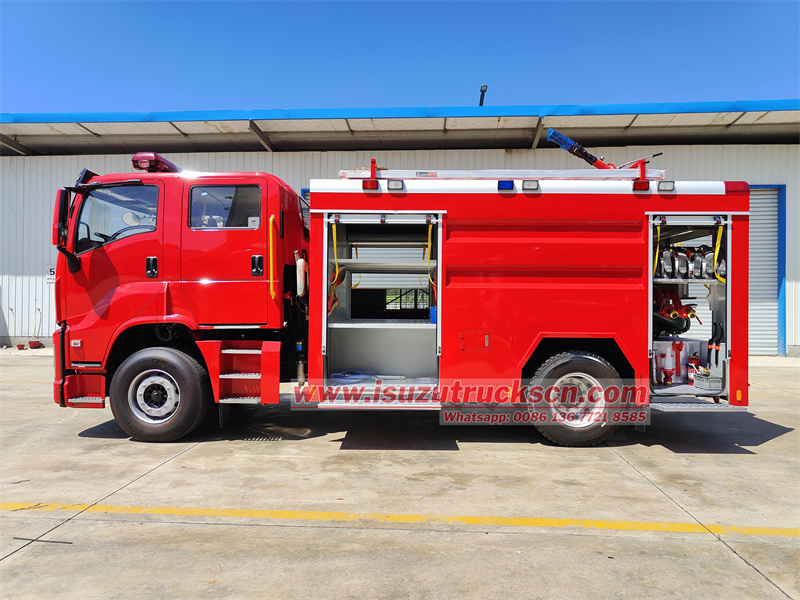

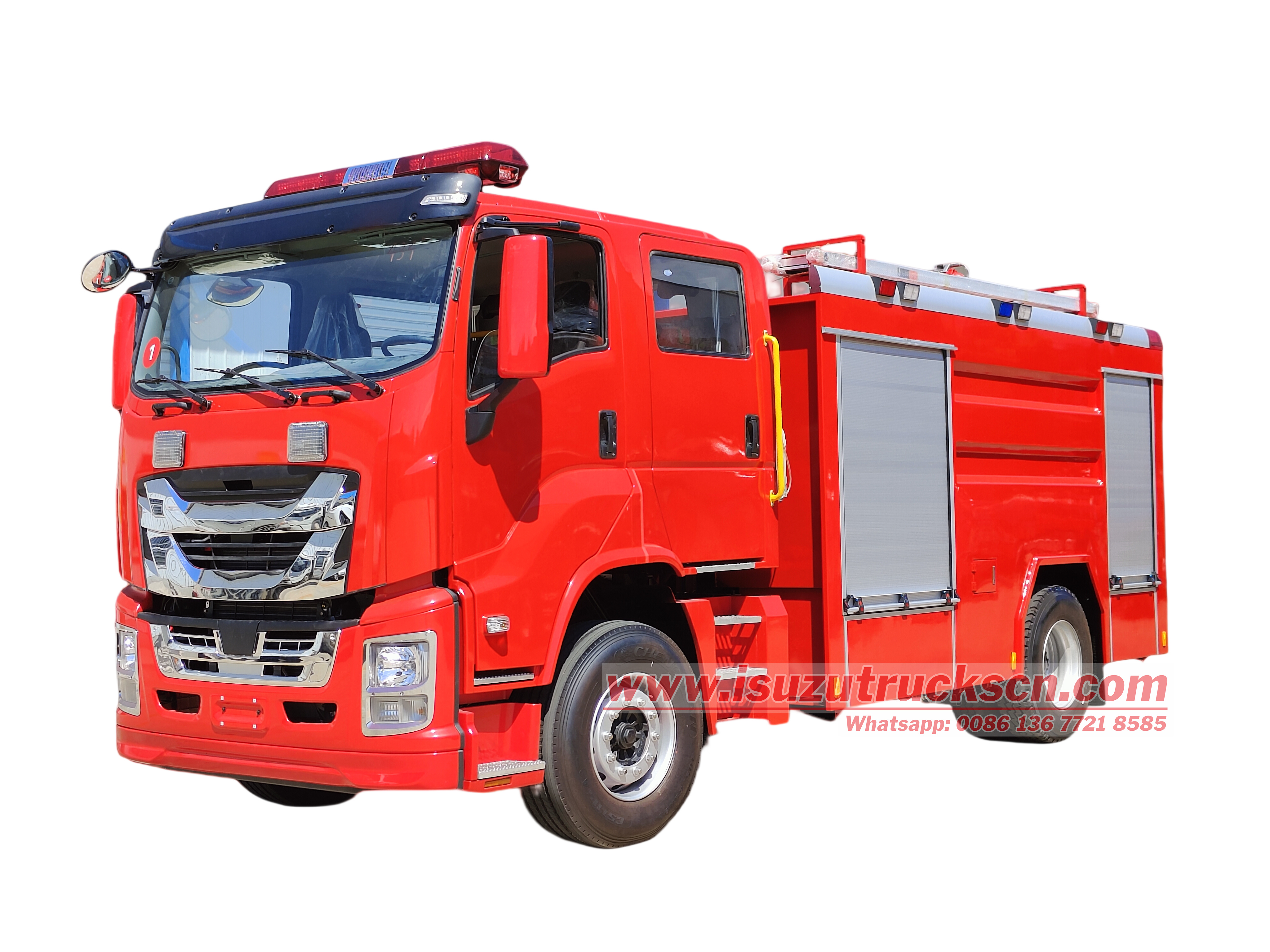

The Isuzu GIGA 4.5 cbm foam fire rescue truck is a mainstay in fire emergency rescue and firefighting. It features a 4600mm wheelbase, an Isuzu 6UZ1-TCG50 engine, a FAST 12-speed transmission, and an equipment compartment at the front of the superstructure equipped with various firefighting equipment. Core features include a 4 cubic meter carbon steel water tank, a 500-liter stainless steel foam tank, and an integrated CB10/60 fire pump and PL8/48 fire monitor. It combines water and foam firefighting methods and is particularly effective at extinguishing Class B fires involving oil and chemicals. It is a primary firefighting equipment for urban firefighting, chemical industrial parks, and port terminals.

• Powerful Engine and Excellent Mobility: The Isuzu GIGA fire-fighting chassis is equipped with an Isuzu 6UZ1 engine and a FAST 12-speed transmission, enabling rapid response to fire scene needs even when fully loaded.

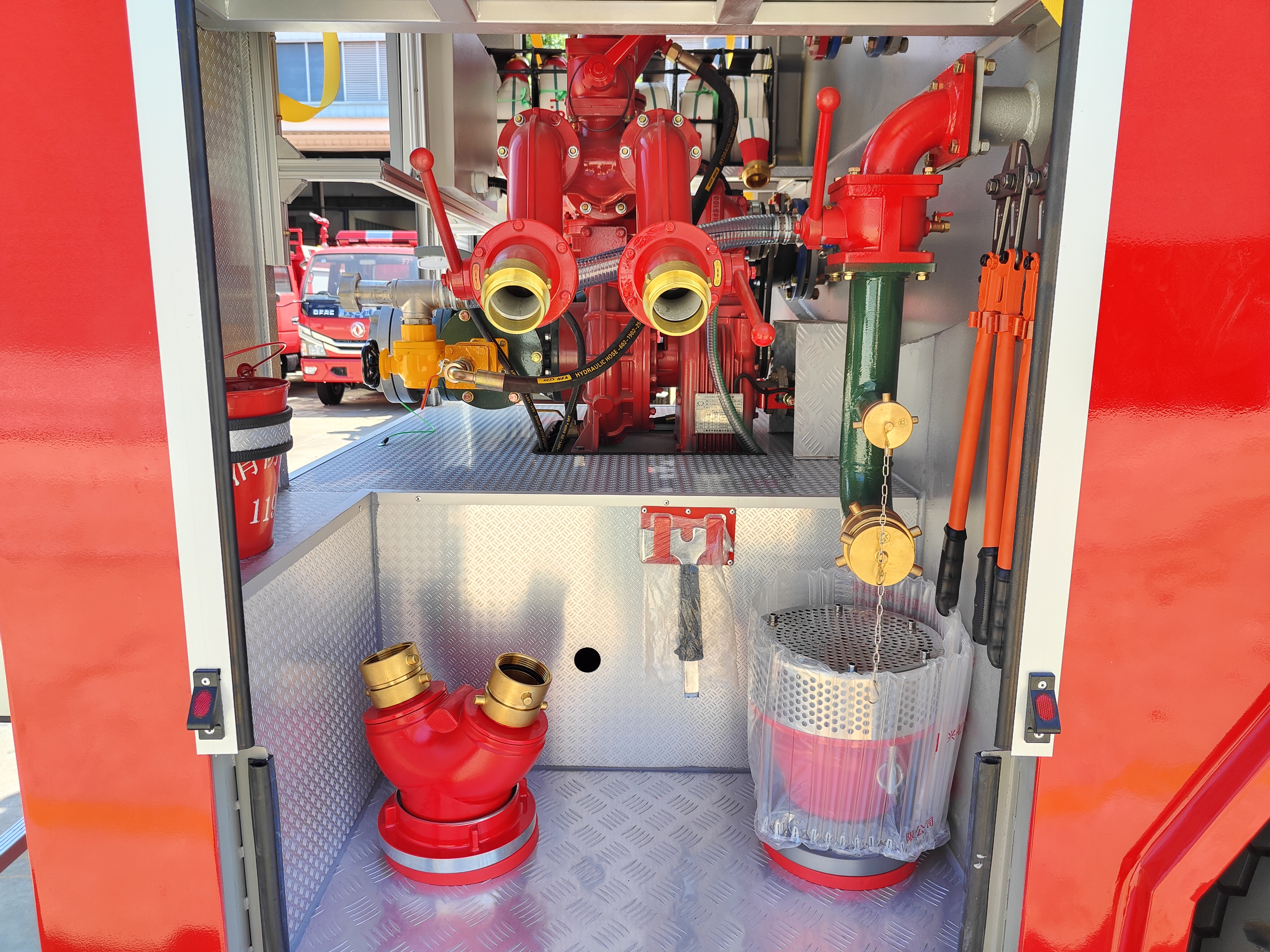

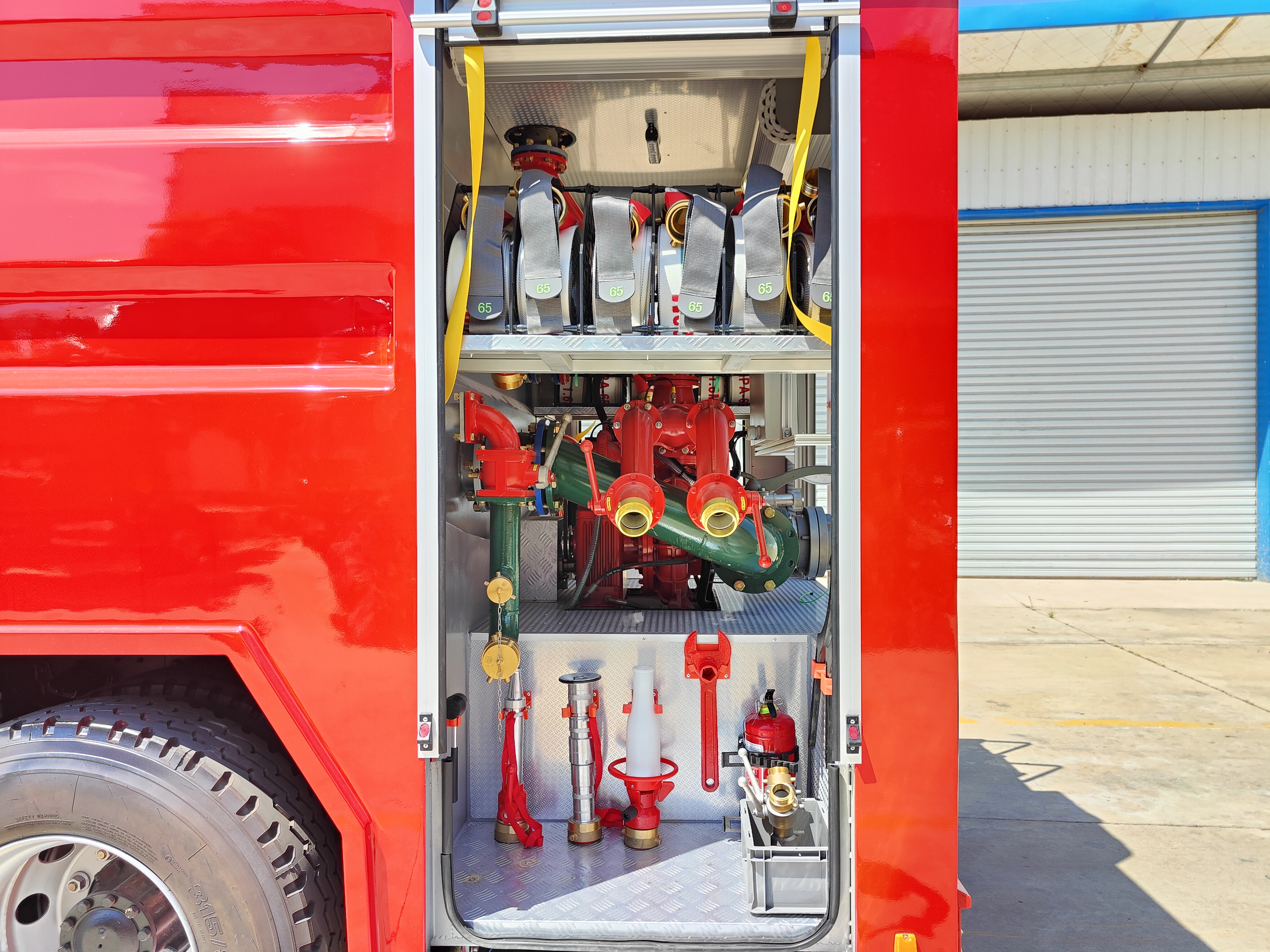

• Upper Structure and Liquid Storage: An equipment compartment is located at the front, equipped with a full range of fire-fighting equipment. The vehicle features a 4cbm carbon steel water tank and a 500-liter PP foam tank, ensuring corrosion resistance and structural robustness. An intelligent monitoring system provides real-time feedback on tank pressure, liquid level, and other data.

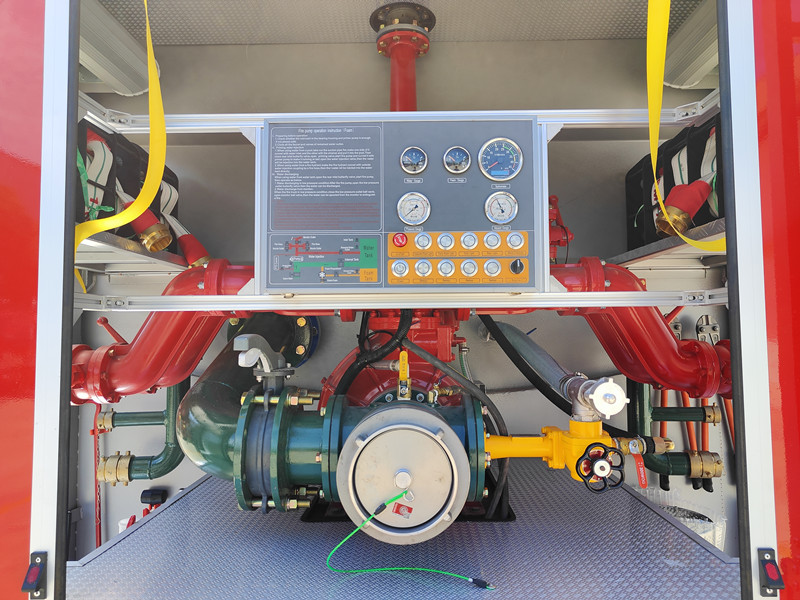

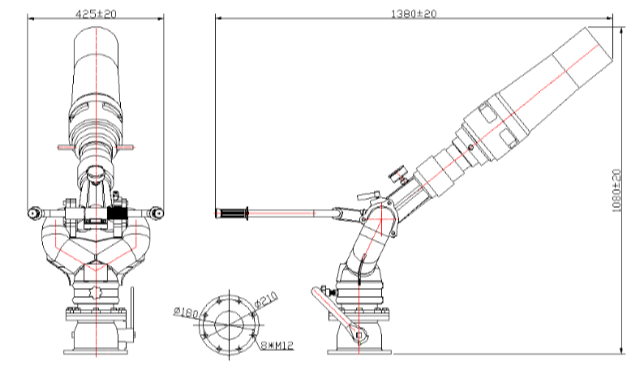

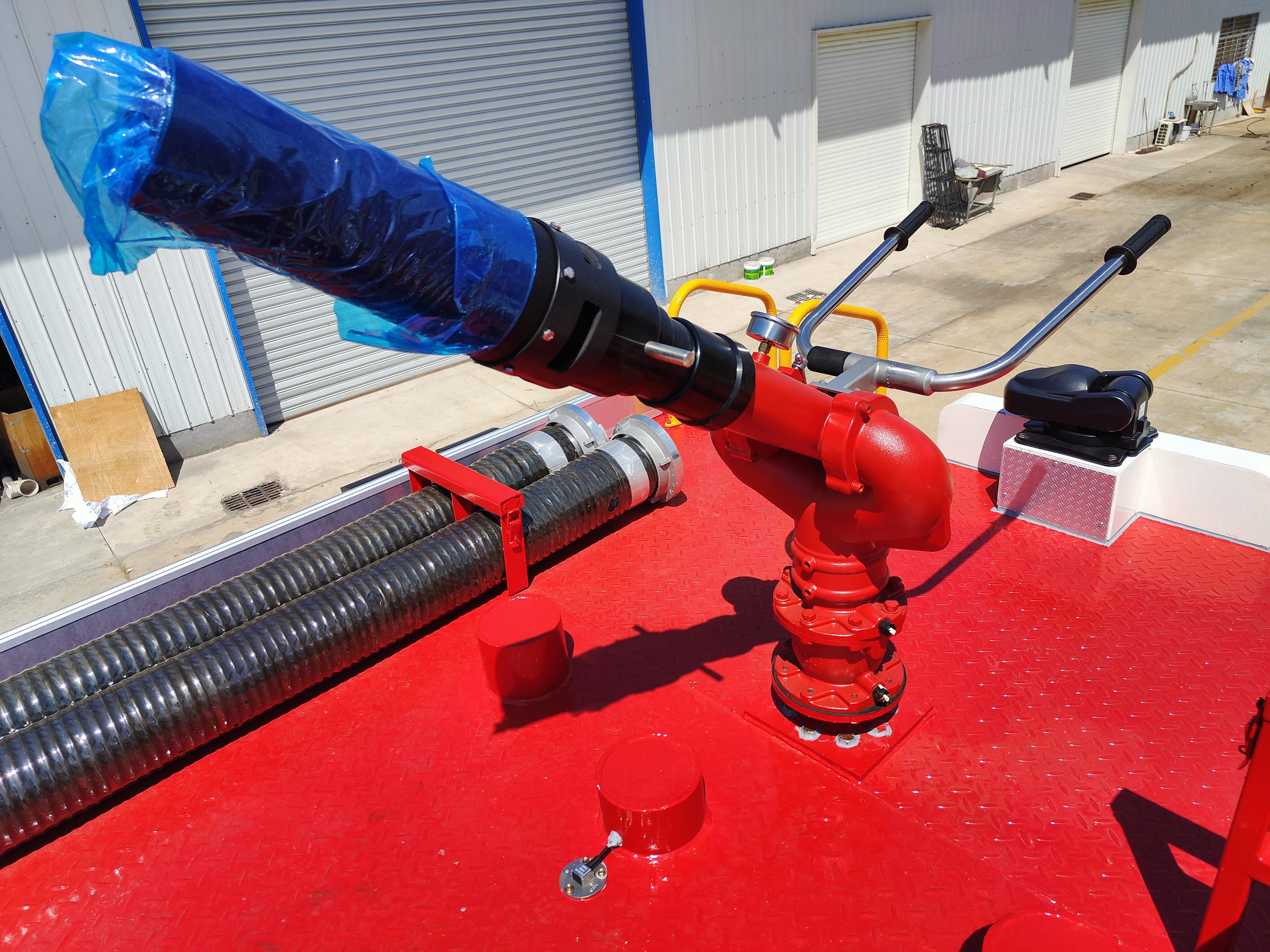

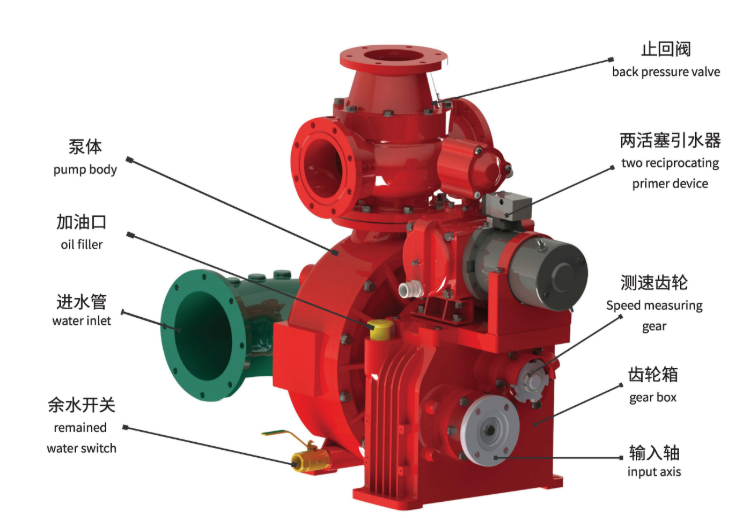

• Fire Extinguishing System: Integrates a CB10/60 fire pump and a PL8/48 fire monitor, supporting switching between water and foam extinguishing methods, with high flow rate, long range, and wide coverage.

• Urban Firefighting: Rapid response to fires in residential areas, commercial areas, and high-rise buildings, with both water and foam extinguishing capabilities.



• Chemical Industrial Parks: Primarily responsible for fighting Class B fires involving oil and chemicals; foam systems can effectively cover leaked or burning areas of flammable liquids.



• Industrial Warehousing: Initial firefighting for large factories and hazardous chemical warehouses.

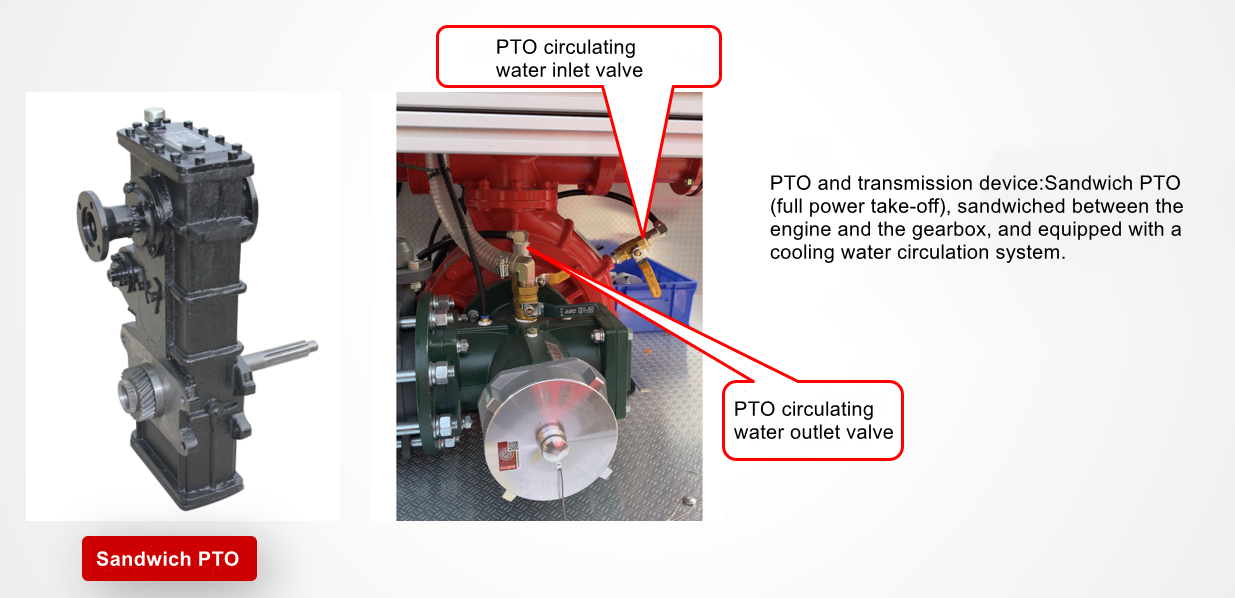

Sandwich PTO
