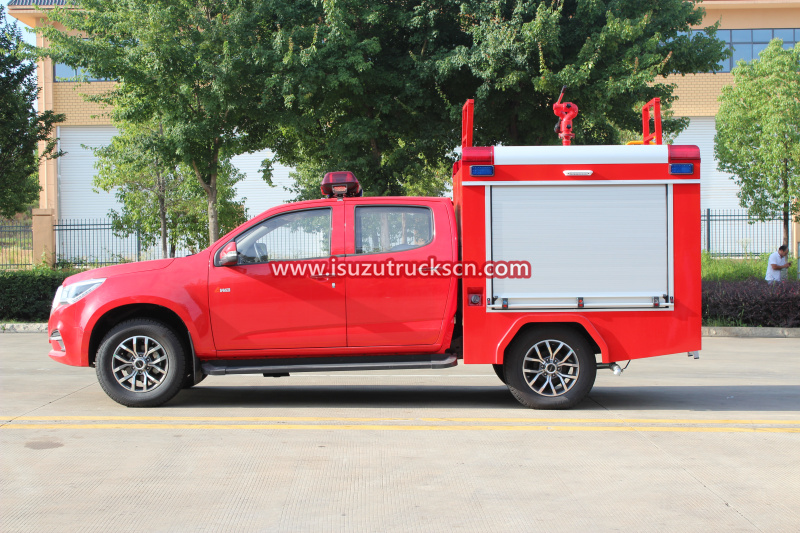

Isuzu 4x4 Fire pickup truck technical drawing, also named Isuzu light rescue fire pickup drawing or Isuzu water fire pickup 3d drawing, is composed of components such as a Isuzu pickup chassis, water tank, fire pump, pipeline system, and instrument & electrical circuit system.The vehicle is equipped with a detachable aluminum alloy rear climbing ladder, with the pump room located at the rear of the vehicle.The tank is steel plate welded and made of high-quality aluminum alloy plate, with a water capacity of 1.5 cubic meters.This fire engine is fitted with a CB10/30 fire pump and a PS8/30W fire water monitor.
This Isuzu small rescue fire pickup truck technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department. Upon on different kinds of commands, customer can require wide range of wheelbase ( 3900 mm, 4500mm, 5000mm) and engine horse power ( 240 Hp, 300 Hp)
▶Truck Model : Isuzu 4x4 pickup
▶Speficiation : 600 L water + 400 L foam
▶Application Area : Fire resuce department / Municipal fire bureau
| Truck Item | Speficiation | Project Location |
| Isuzu small fire pickup truck | 1000 liters, 143 Hp engine | Fire rescue department |
Isuzu 4x4 Fire pickup truck technical drawing share

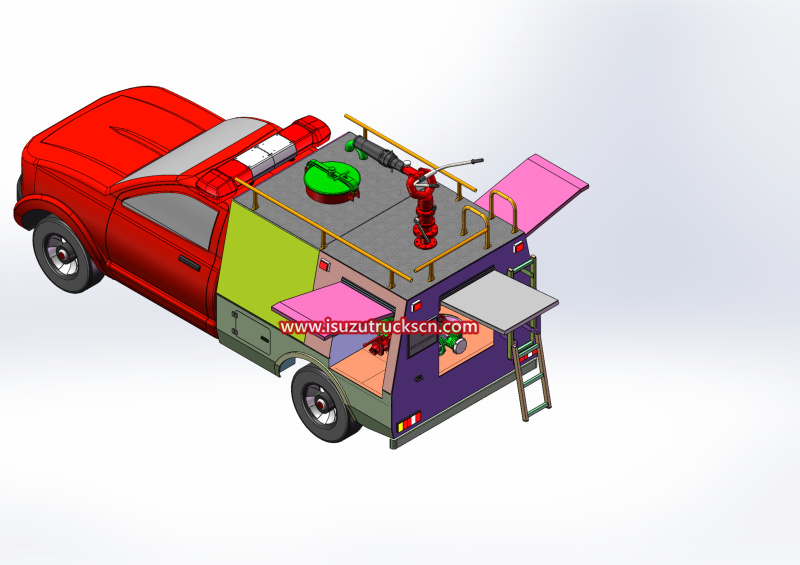

Isuzu all drive Pickup Fire Truck drawing
| Item | Specification |
|---|---|
| Vehicle Model | PST5040GXFSG |
| Overall Dimensions | 5080 × 1940 × 2640 mm |
| Gross Vehicle Mass | 4130 kg |
|
Water Capacity Foam Capacity |
600 L 400 L |
| Maximum Speed | 135 km/h |
| Rated Flow of Water Pump | 30 L/s @ 1.0 MPa |
| Rated Flow of Fire Monitor | 30 L/s @ 0.8 MPa |
| Water Range of Fire Monitor | ≥ 60 m |
| Approach Angle / Departure Angle | 28° / 23° |

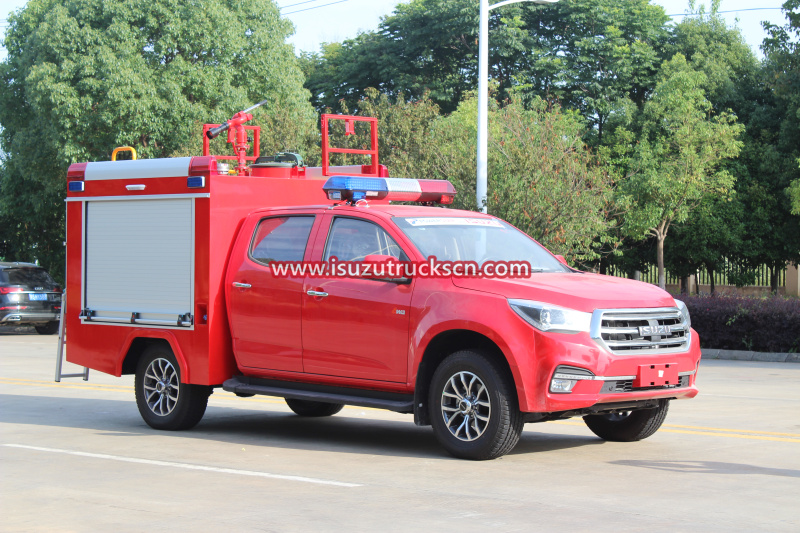

Isuzu Wildland Fire Pickup truck is a lightweight, flexible fire-fighting vehicle developed based on a pickup chassis, integrating mobility and fire-extinguishing capabilities. It is compact in size, with a reasonable overall structure, which allows it to pass through narrow roads, rural areas, mountainous regions and other places.
All our Isuzu small fire pickup trucks, Equipped with a high-quality aluminum alloy water tank, it can carry a certain amount of fire-fighting water and is matched with a professional fire pump and fire monitor, which can quickly spray water to extinguish fires, with a long spray range and stable performance.

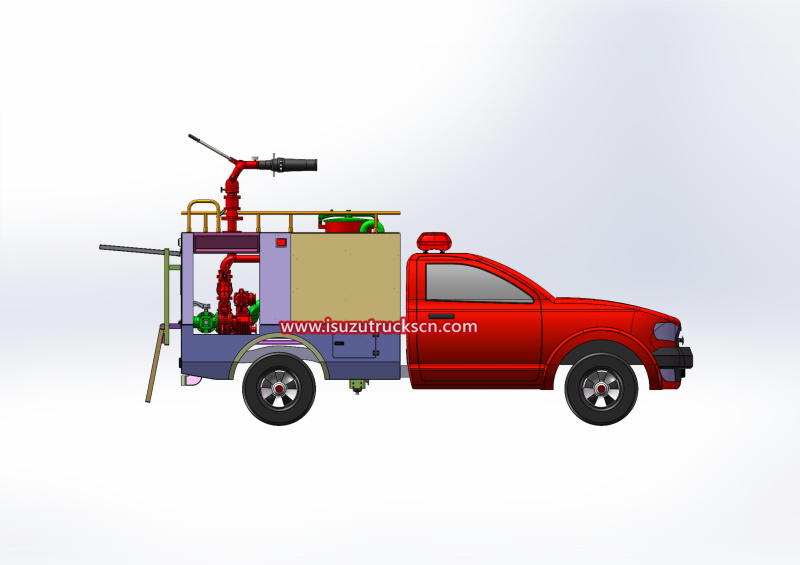

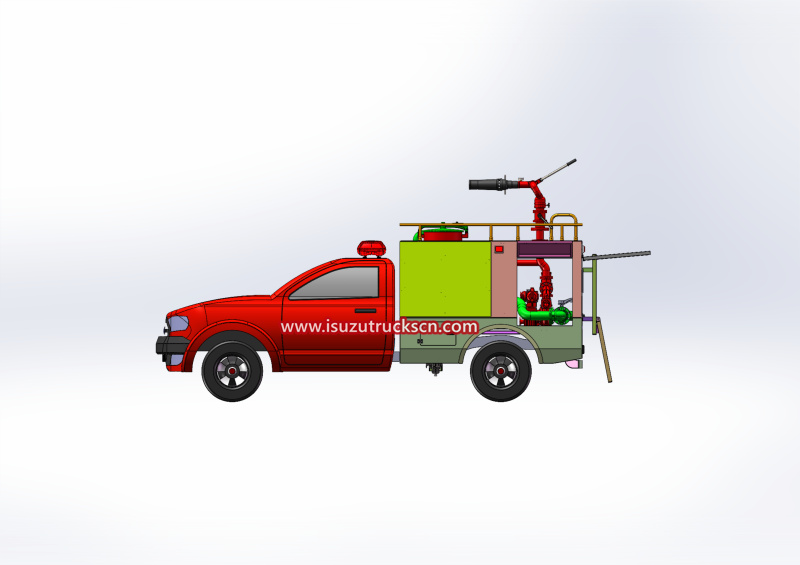

Isuzu brand Light Rescue Pickup CAD drawing

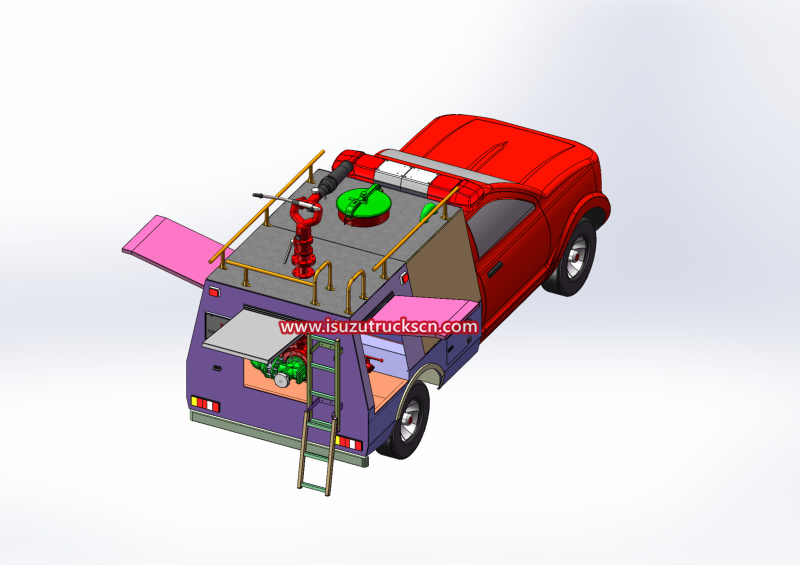

Isuzu Wildland Fire Pickup 3D drawign
Detail pump system of Isuzu wildland Fire Pickuip Trucks:
| Item | Specification |
|---|---|
| Tank Pipeline Material | Seamless steel pipe, connected with components via flanges. |
| Tank Outlet Pipeline | Equipped with 1 DN100 tank outlet pipeline for water flow from tank to fire pump, fitted with 1 DN100 manual butterfly valve. Tank and fire pump are connected by DN100 flexible joint. |
| External Suction Pipeline | There is 1 external water inlet at the rear of the fire pump, connected with 100 suction hose and threaded pipe coupling. |
| Outlet Pipelines | - 1 DN80 normal pressure outlet on each side of the fire pump.
|
| Water Filling Pipelines | - 2 DN65 external filling pipelines located on left and right sides under the tank.
|
| Residual Water Drain Pipeline | Residual water valves are installed at the lowest points of pipelines to protect the fire pump and ball valves. |
| Cooling Water Pipeline | Equipped with cooling water pipeline and ball valve to enable the power take-off (PTO) to cope with various complex working conditions. |

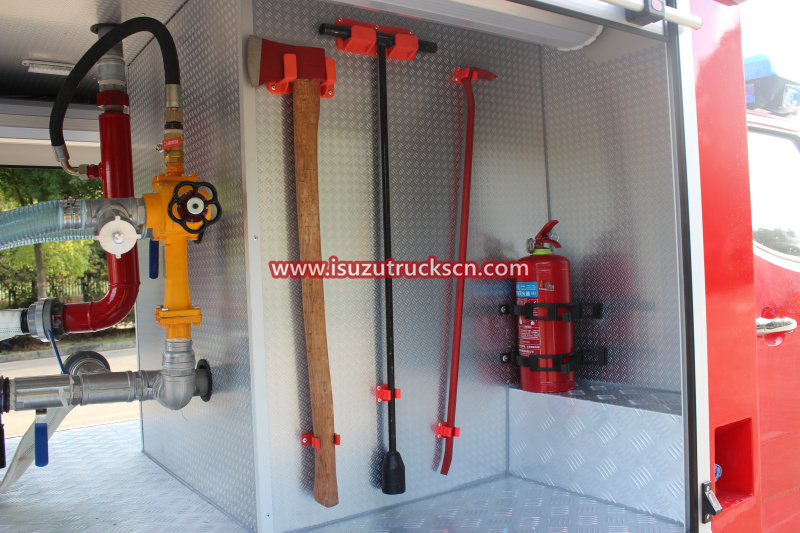

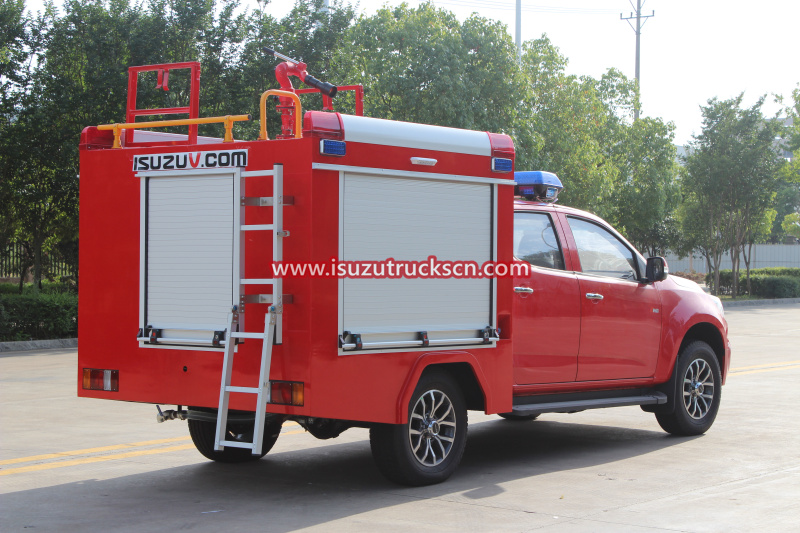

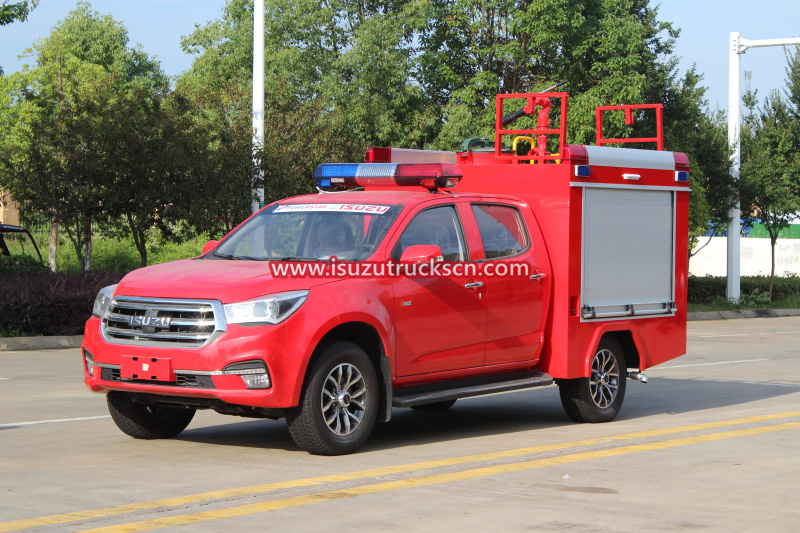

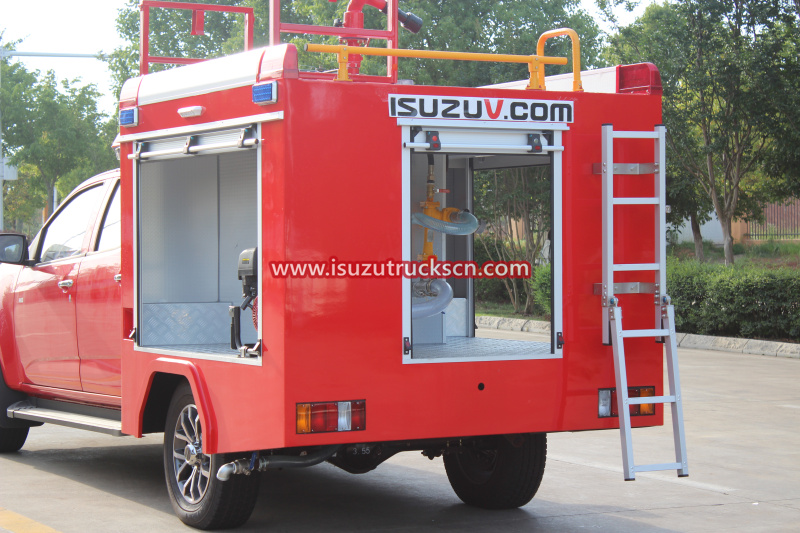

japan Isuzu 4x4 pickup fire fighting truck factory pictures
