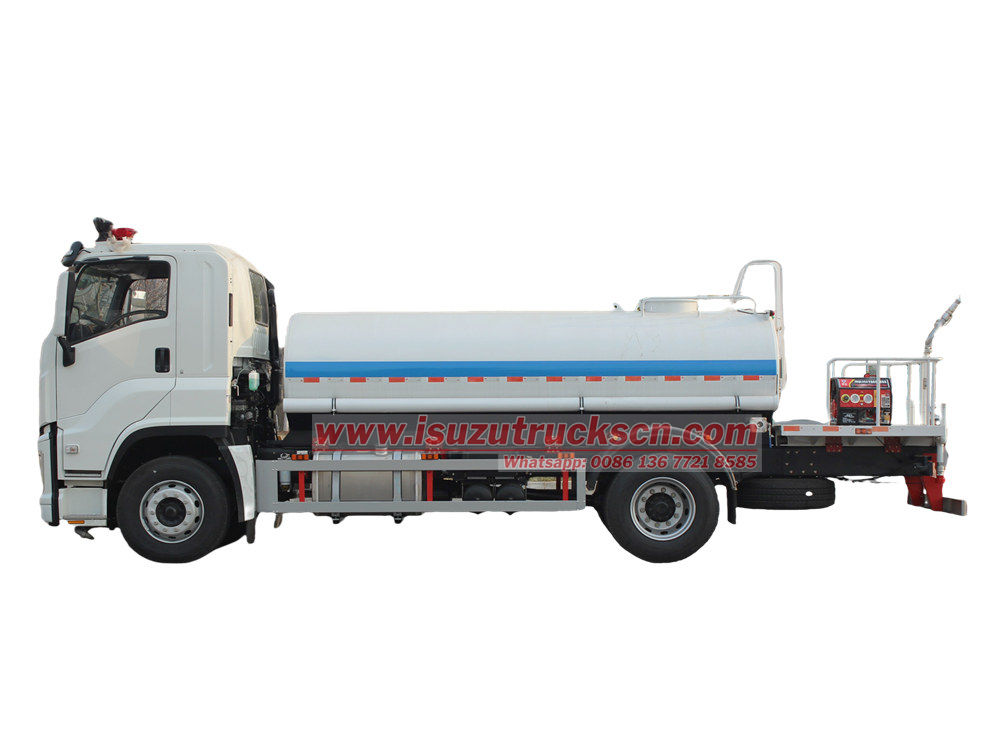

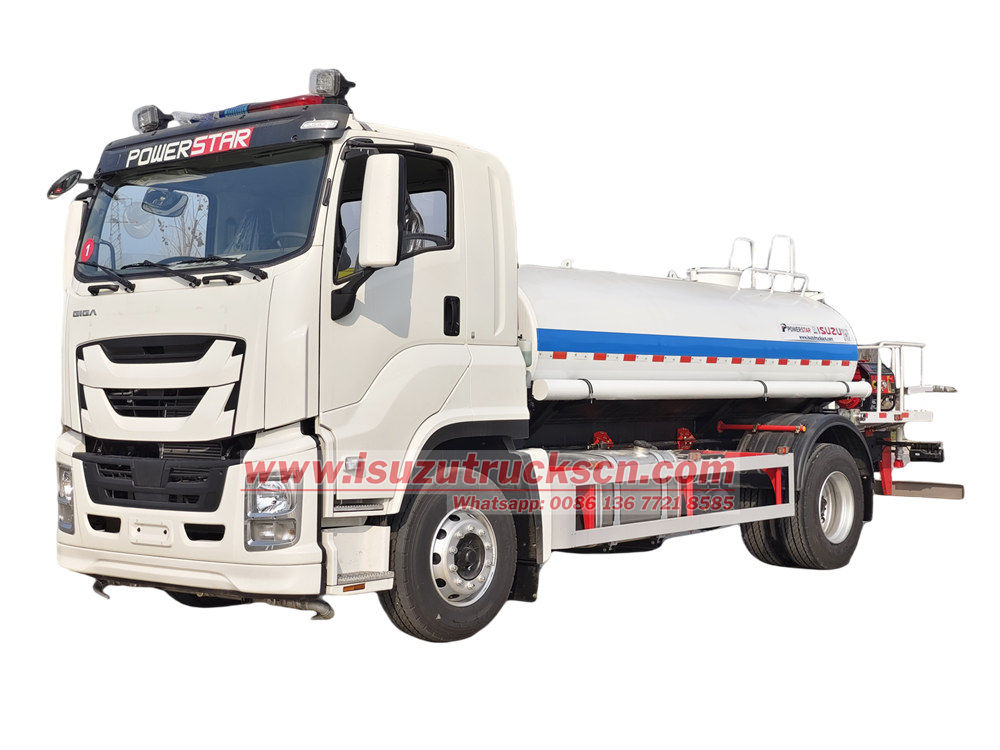

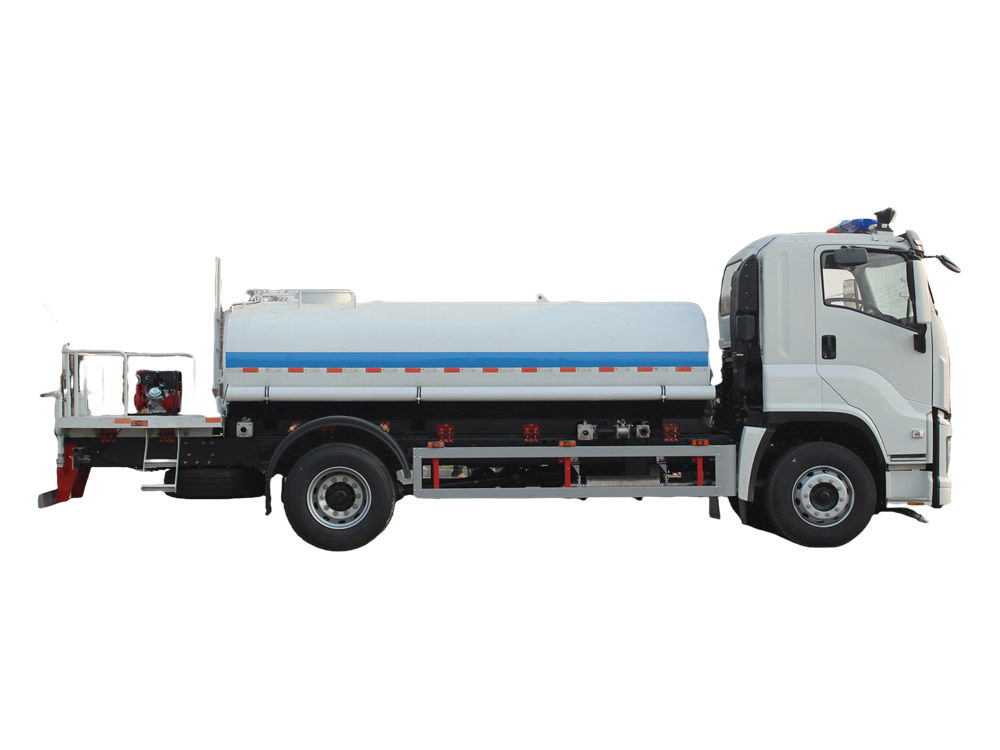

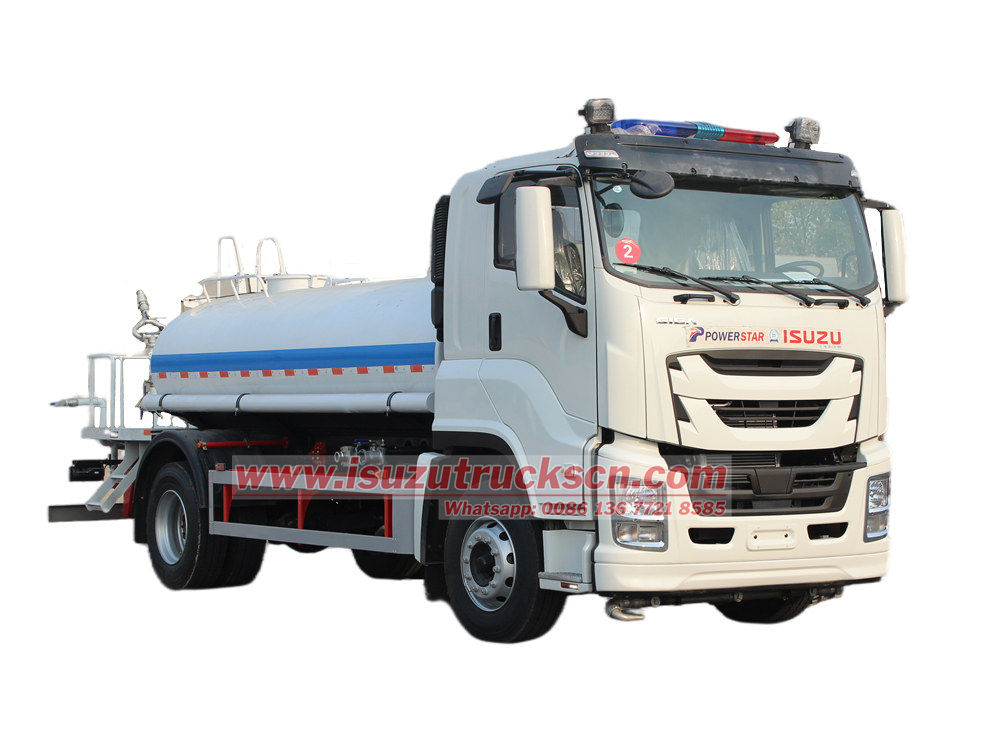

Isuzu water truck

Isuzu GIGA 10cbm water bowser truck is a multifunctional sanitation vehicle, mainly used for urban road cleaning, dust reduction and greening maintenance. Its core functions include high-pressure washing of stubborn road stains, spray dust suppression to improve air quality, and watering vegetation on both sides of the road.

Isuzu GIGA water bowser truck is equipped with a large-capacity water tank, made of high-quality carbon steel anti-corrosion material, equipped with a high-power centrifugal water pump, front flushing, side spraying, rear sprinkling, with a working platform and high-pressure water cannon at the tail, adjustable fan-shaped/columnar nozzles, and a range of more than 30 meters.

Isuzu GIGA water bowser truck (also called water spraying truck, mobile water truck, watering truck, water carrying truck,  water distribution truck) is used to transport and supply water, whatever industrial or agriculture water. widely used in construction engineering, farm irigation, draught relief, etc.With non-toxic treatment inside tank or tank made of stainless steel.

The Isuzu GIGA FVR water bowser truck has a high-end and practical overall configuration, integrating advanced chassis technology and efficient upper body design. Its chassis adopts the Isuzu FVR GIGA 5X cab chassis, equipped with a 4500mm wheelbase, equipped with a powerful Isuzu 6HK1-TCG61 diesel engine and FAST 8-speed gearbox, ensuring excellent driving performance and operating stability.

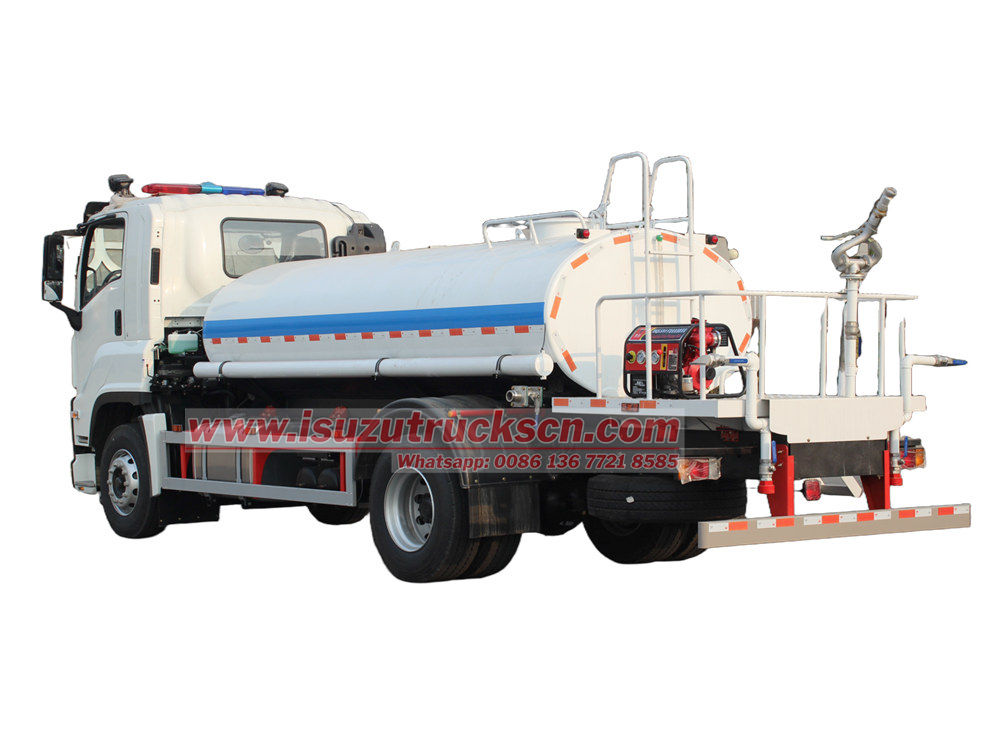

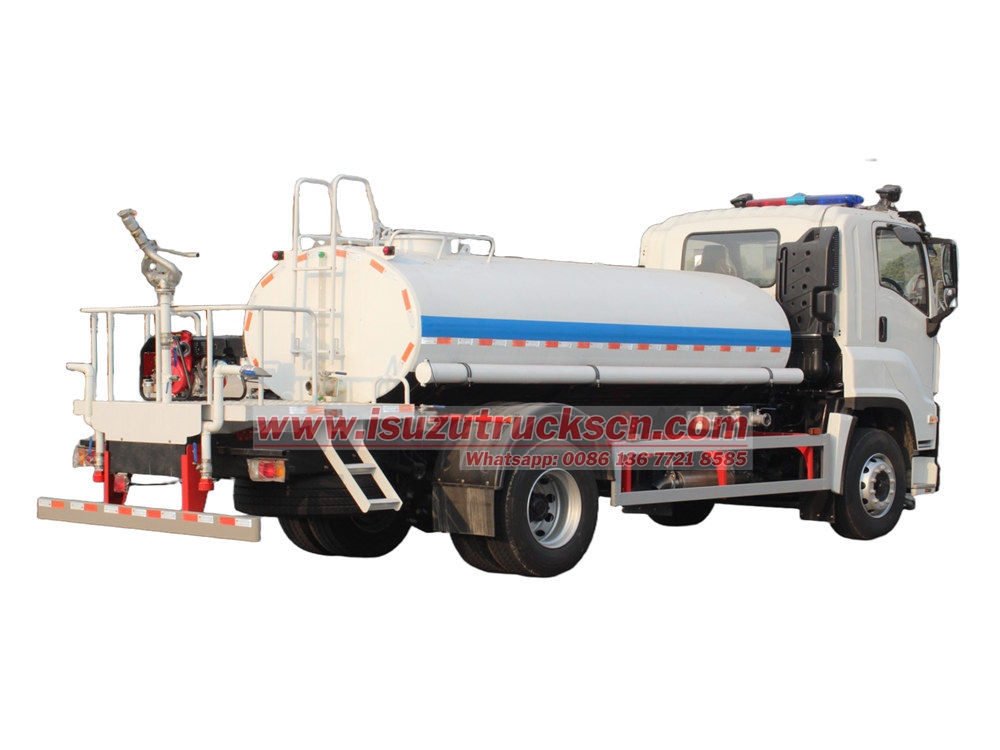

The upper body is an ellipse carbon steel water tank with a capacity of 10 cubic meters, equipped with a WEILONG 80QZF-60/90S pump, pipeline storage boxes on both sides, the rear of the tank is working platform, with a high-pressure water spray gun and a portable fire pump set on the platform. In addition, the vehicle also has three spraying modes: front water spray nozzle, rear water spray nozzle and water cannon spray monitoring, which can meet a variety of watering operation needs.

1. Material of Isuzu GIGA water tanker truck

The tank of Isuzu water tanker truck is made of corrosion-resistant, wear-resistant and strong materials, such as stainless steel and carbon steel. Stainless steel has good corrosion resistance and can resist the erosion of corrosive media such as water and salt spray for a long time, extending the service life of the tank. Carbon steel has high strength and rigidity, can withstand the pressure of water in the tank, and ensure the structural stability of the tank.

2. Working principle of Isuzu mobile water bowser

a. Water Suction Stage

The power of Isuzu mobile water bowser comes from the vehicle engine, which transmits power to the water pump (usually a centrifugal pump) through the power take-off (PTO). After the water pump is running, negative pressure is formed at the water inlet, and water is pumped into the tank through the water suction hose (connected to water sources such as fire hydrants and rivers). The tank is equipped with a filter to prevent impurities from entering, and the water volume is controlled by a liquid level sensor, which automatically stops after the water storage is completed.

b. Spraying operation

●Front flushing function: High-pressure water flows through the front duckbill nozzle (pressure 0.3-0.6MPa) to form a fan-shaped water curtain, with a coverage width of up to 15 meters, which is used for road washing.

●Rear spraying function: The strip spray holes at the rear of the tank spray water evenly, which is suitable for dust reduction operations, and the water volume can be adjusted by the valve.

●High-pressure water cannon: The range can reach more than 30 meters, the mist coverage width is more than 12 meters, and the cannon head can be rolled and adjusted so that the water flow can switch between columnar and mist. The column has a long range and the mist spray is uniform. It is suitable for ground protection, flower and grass watering, ground flushing and irrigation of super-tall trees.

3. Main uses of Isuzu GIGA water bowser truck

◆Road cleaning and dust reduction：Isuzu GIGA water bowser truck uses high-pressure forward-spraying nozzles to effectively wash away road sediment and garbage, while suppressing dust and improving air quality. It is suitable for urban roads, construction sites and other scenes.

◆Landscape irrigation：Equipped with side spray and rotating nozzles, it can evenly irrigate green belts, park vegetation and newly planted trees, achieve efficient water-saving irrigation, and maintain the urban greening environment.

◆Firefighting assistance and emergency operations：Isuzu GIGA water bowser truck is equipped with high-pressure water cannons with a range of more than 30 meters. It can be used for firefighting cooling, emergency fire control, and can also be used with disinfectants for epidemic prevention and disinfection to respond to public emergencies.
