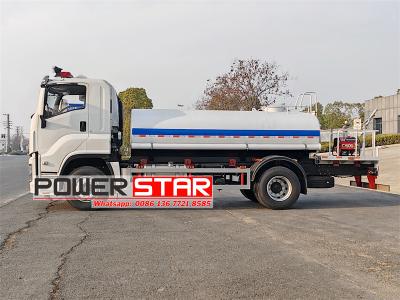

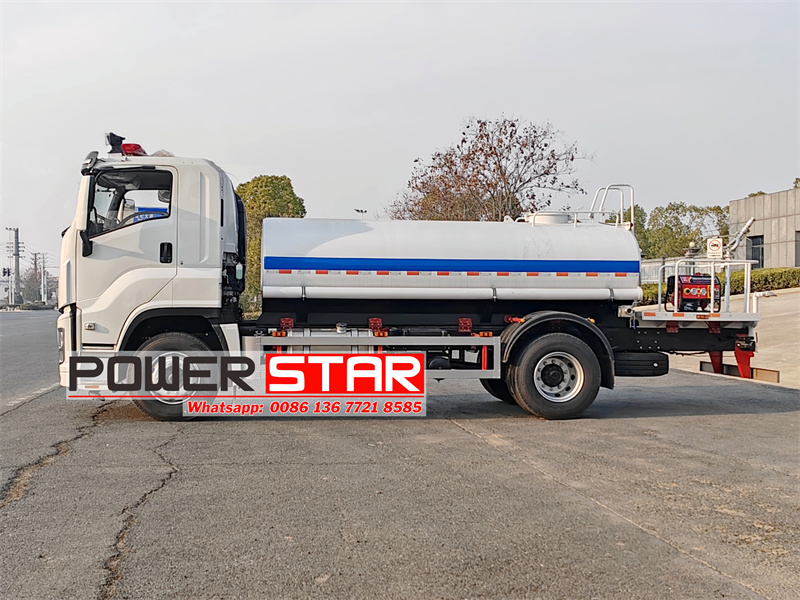

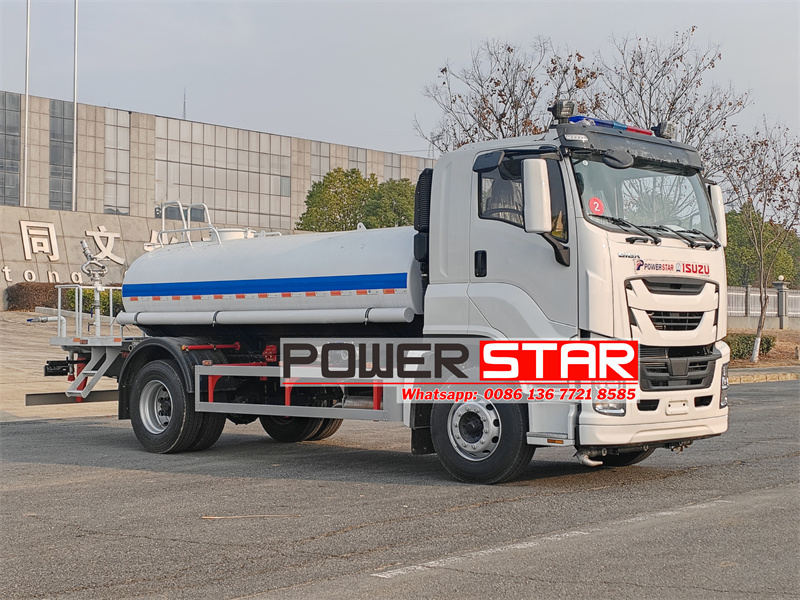

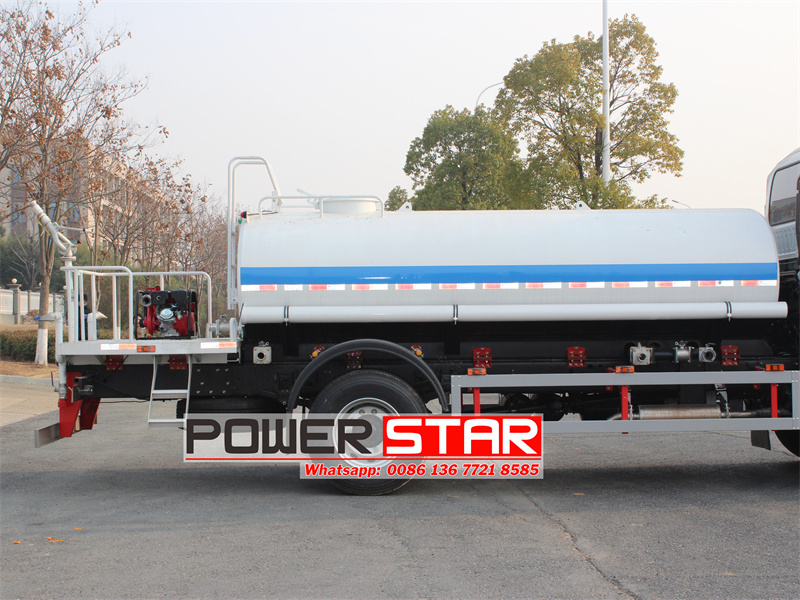

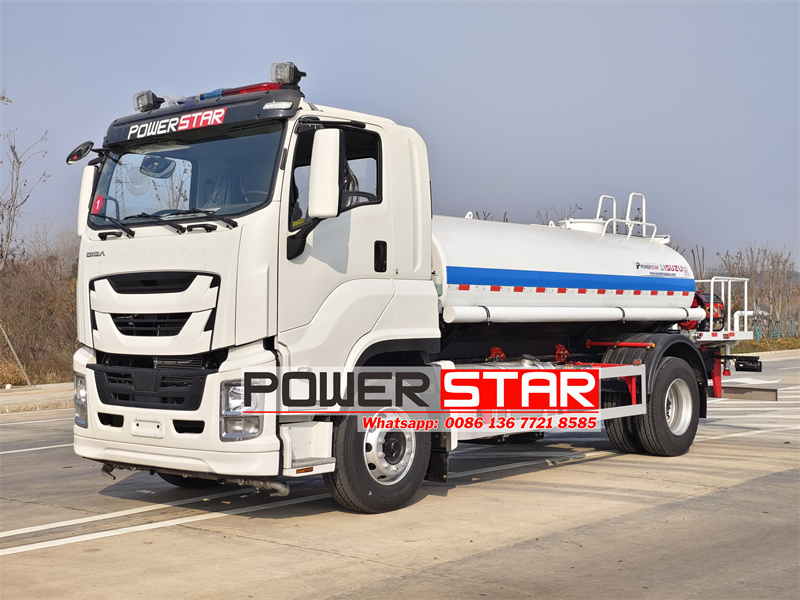

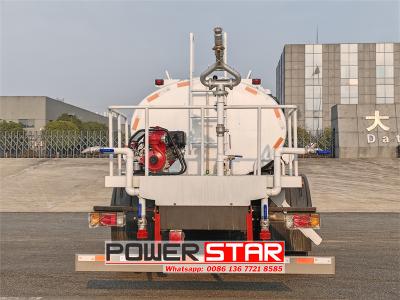

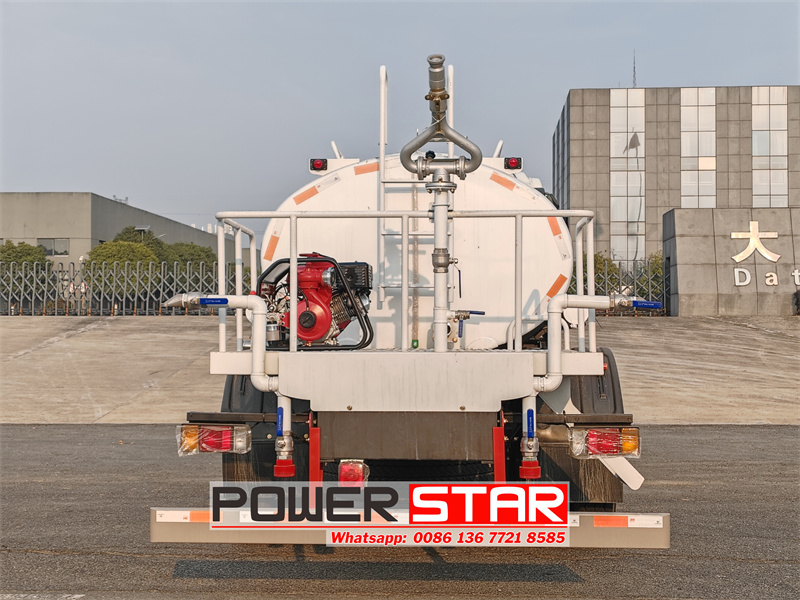

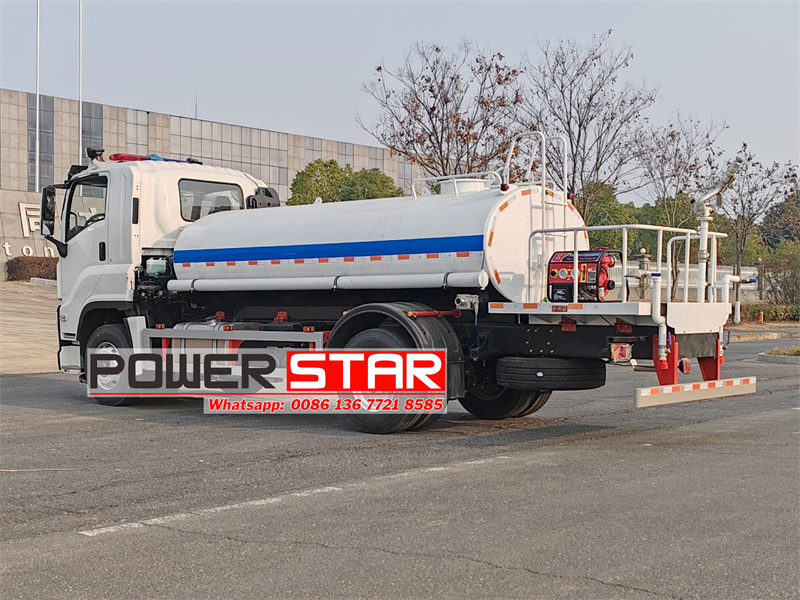

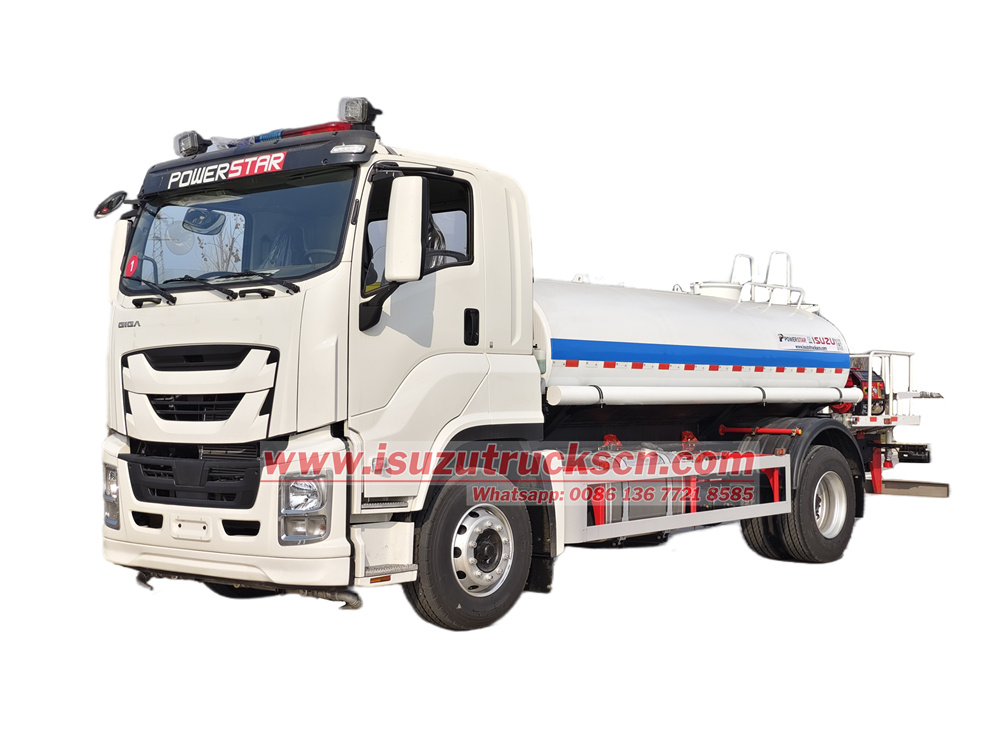

Isuzu FVR 10 cubic meter water sprinkler, it is modified on the new Isuzu FVR GIGA 5X chassis, 6HK1-TCG61 engine, inline 6 cylinder 4 stroke, FAST 8-speed gearbox, the upper part is a 10 cubic meter carbon steel water tank, it is equipped with front water spraying nozzles, rear water spraying nozzles, water spraying monitor, the tail of the tank is a platform, on which is installed JBQ5.5/9.0 portable fire pump set.
Work capacity:
10000LEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-shift gearbox,manualRemarks:
Isuzu new FVR GIGA 5X chassis cabin，10cbm water tank volumeIsuzu FVR 2000 gallon water bowser truck is carefully built based on the new FVR GIGA 5X chassis, equipped with a powerful 6HK1-TCG61 inline 6-cylinder engine and FAST 8-speed gearbox to ensure efficient and stable operation. It is equipped with a 10 cubic meter large-capacity carbon steel water tank, combined with front water nozzles, rear water nozzles and rear water spray monitors to achieve all-round precise spraying to meet diverse operational needs. The tail of the tank is equipped with a JBQ5.5/9.0 portable fire pump set to enhance emergency handling capabilities.
● China best Isuzu water sprinkler truck factory
● More than 30 years professional manufacturer experience.
● 50 units Isuzu water tank trucks in stock, 5 cbm, 8 cbm, 12 cbm
● customized service, print your company logo
● Fast delivery time, Quick 10 days shipping time
Key Features
---- ISUZU FVR chassis, perfect performance
---- ISUZU 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
|
Main Technology Parameter |
||
|
Model Name |
Isuzu FVR 10000L water tanker truck |
|
|
Driving Type |
4×2,left hand drive |
|
|
Color |
White,blue,color can choose |
|
|
Weights |
||
|
GVW |
18000kg |
|
|
Rated payload weight |
10000lg |
|
|
Curb weight |
7850kg |
|
|
Dimensions |
||
|
Wheelbase |
4500 mm |
|
|
Overall Dimension |
8050*2300*2850mm |
|
|
Box dimension |
10000L |
|
|
Front/rear overhang |
1335/2215mm |
|
|
Front/rear track |
1960/1855 |
|
|
Max speed |
105 km/h |
|
|
Engine |
||
|
Engine model |
Isuzu 6HK1-TCG61 |
|
|
Engine type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
|
Horsepower |
240HP |
|
|
Max. output (kw) |
177Kw |
|
|
Displacement(L) |
7.79L |
|
|
Drive Line |
||
|
Transmission |
FAST 8-shift gear box, manual operation |
|
|
Steering |
Power steering |
|
|
Brake |
Air brake |
|
|
Cab |
||
|
Cabin |
Isuzu FVR GIGA 5X cabin chassis,one and half row |
|
|
Standard configuration |
with A/C,USB,direction assistance |
|
|
Axle |
||
|
Front axle |
6500kg |
|
|
Rear axle |
11500kg |
|
|
Tire specification |
||
|
Tire specification |
295/80R22.5 standard tire,6 tires+1 spare tire |
|
|
Water truck |
||
|
Tank volume |
10000L |
|
|
Water tanker material |
High quality carbon steel (Q235). Ellipse tank |
|
|
Introduction |
1. Suction≥7m Sprinkler width≥14m Range≥28m |
|
|
2. With front water spraying nozzles, rear water spraying nozzles, water spraying monitor |
||
|
3. with the working platform at the back, installed high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
||
|
4. Equipped with a portable fire pump set |
||
|

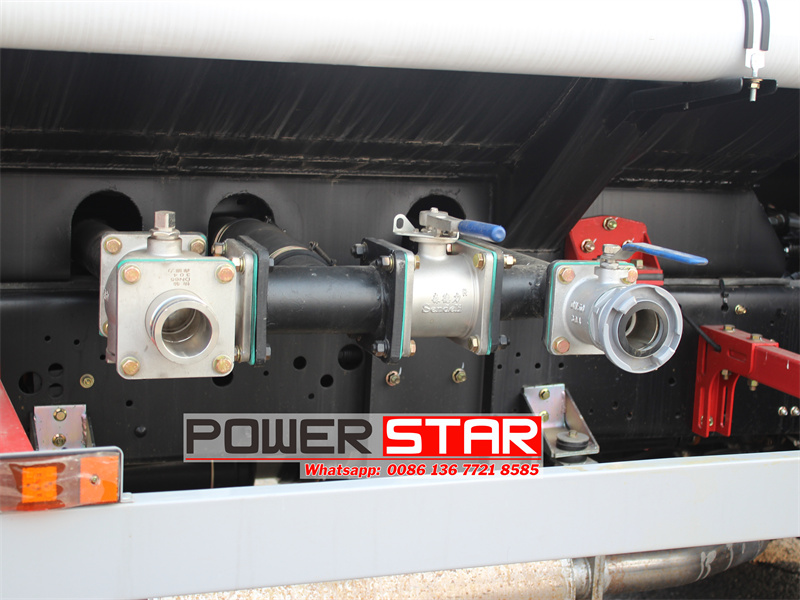

5. Water Inlet & Outlet control valves |
||
|
6. Equipped with pipeline storage box at the side of tank |
||
|

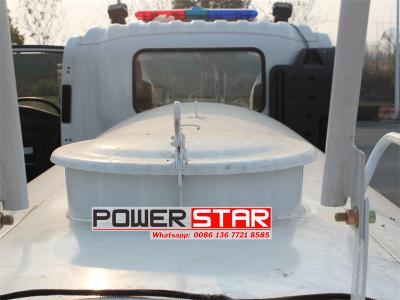

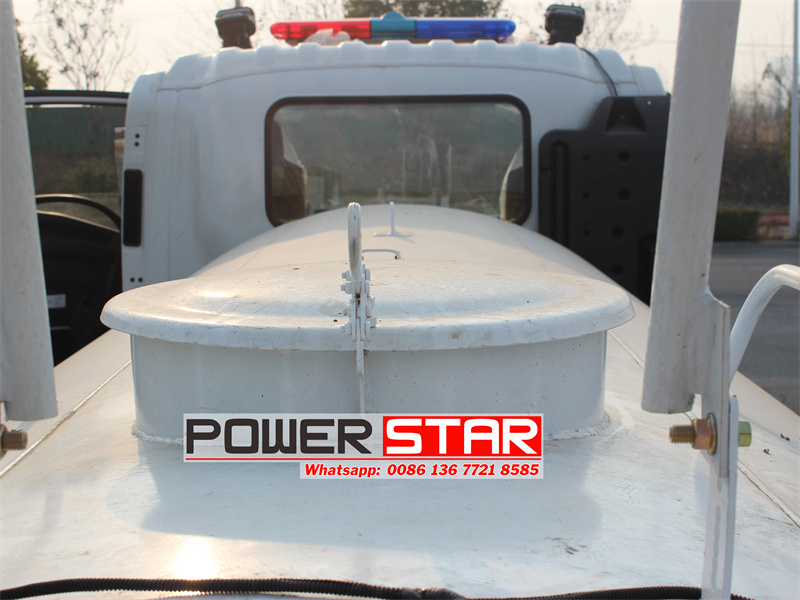

Manhole |
Man way access hole on top of tank;1 units DN500mm manhole |
|
|
Horse reels |
Two hose pipes on each side of the tank |
|
|

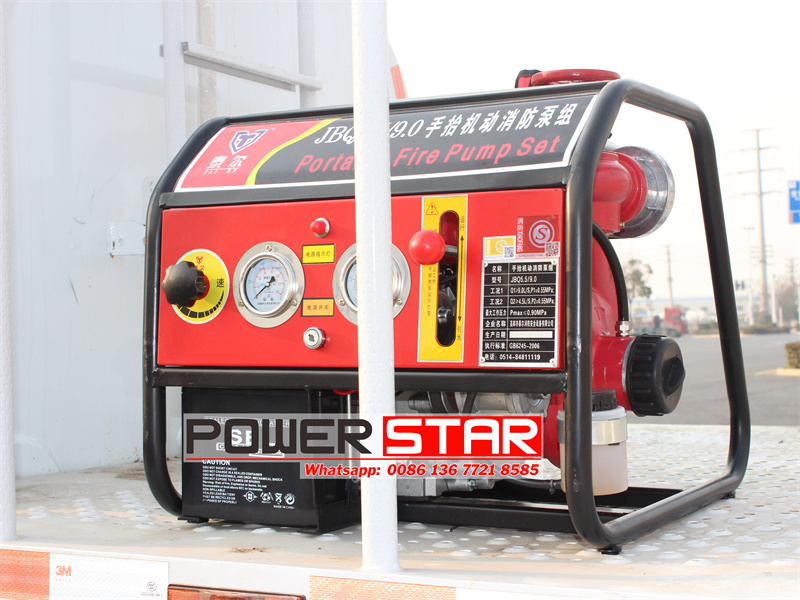

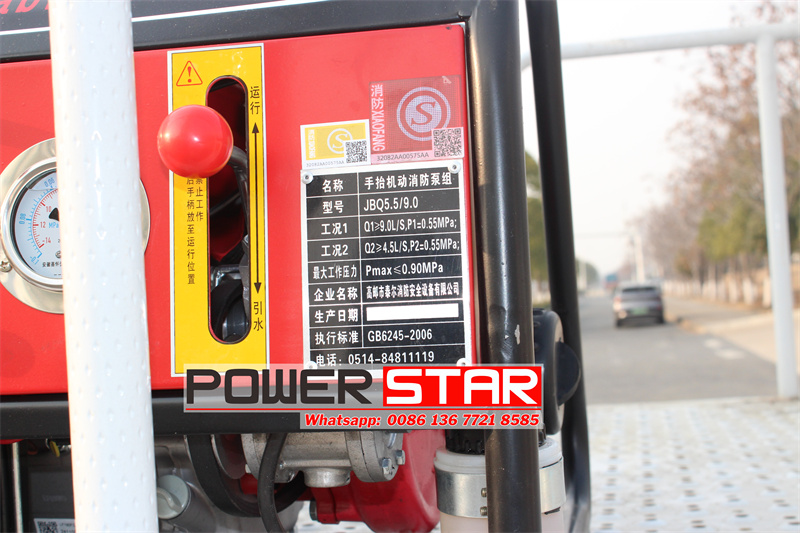

Portable fire pump set |
Model |
JBQ5.5/9.0 portable fire pump set |
|
Type |
Single stage centrifugal pump |
|
|
Starting method |
Electric start/hand start |
|
|
Power |
13HP（9.6KW） |
|
|
Speed |
2500r/min |
|
|
Oil capacity |
1.1L |
|
|
Lift |
55m |
|
|
Water diversion time |
＜30s |
|
|
Working condition 1 |
Flow≥9L/s, 0.55MPa |
|
|
Working condition 2 |
Flow≥4.5L/s, 0.55MPa |
|
|
Max working pressure |
≤0.9Mpa |
|
Isuzu FVR 10 cbm water sprinkler is an efficient and multifunctional road cleaning and maintenance equipment carefully modified based on Isuzu's latest FVR GIGA 4X2 chassis. The vehicle not only inherits the reliable and durable characteristics of Isuzu vehicles, but also greatly improves its application capabilities in urban sanitation, landscaping and road construction through professional modification.
★ Chassis configuration

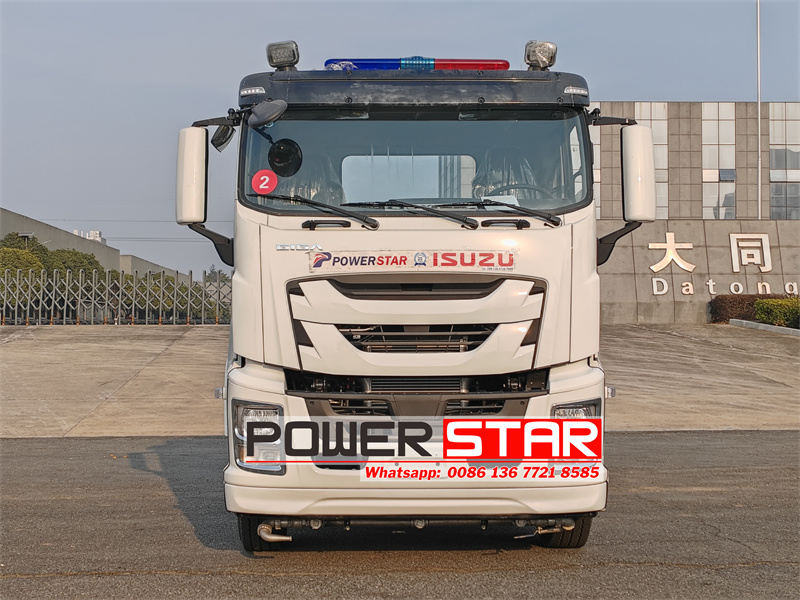

• Chassis model: Isuzu FVR GIGA 5X cabin chassis, this chassis is known for its strong carrying capacity and excellent driving comfort, providing a solid foundation for sprinkler trucks.
• Engine: Equipped with 6HK1-TCG61 engine, this is an inline 6-cylinder diesel engine, with its high efficiency, energy saving, low noise and low emissions, ensuring the stable operation and environmental protection performance of the sprinkler truck under various working conditions.
• Transmission: Matching FAST 8-speed manual transmission, smooth shifting, high transmission efficiency, effectively improving the vehicle's fuel economy and power response speed.
★ Upper configuration
• Water tank capacity: A water tank with a capacity of 10 cubic meters is installed on the top of the vehicle. It is made of high-quality carbon steel material with strong corrosion resistance, ensuring stability and safety under long-term use.
• Equipped with pipeline storage box at the side of tank, Water Inlet & Outlet control valves for easy operation
• Spraying system: The sprinkler is equipped with a full range of spraying systems, including front water spraying nozzles, rear water spraying nozzles, and water spraying monitor. It can flexibly adjust the spraying mode according to different operating requirements to achieve various purposes such as road cleaning and greening irrigation.

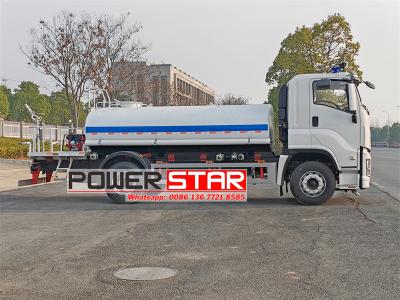

In terms of watering function, the Isuzu FVR 10 cbm dust control water truck integrates a variety of advanced spraying modes, including front water spraying nozzles, rear water spraying nozzles, and water spraying monitors. These designs together ensure the efficiency and flexibility of the vehicle in different operating environments.
The front water spray nozzle is mainly used for quick cleaning and preliminary dust removal of the road surface. When the vehicle is driving, the water mist sprayed by the front water spray nozzle can effectively cover the road ahead, remove the dust and impurities accumulated on the surface, and keep the road clean.
The rear water spray nozzle is designed at the rear of the vehicle. When the sprinkler truck is driving at a certain speed, the rear water spray nozzle will continue to spray water mist on the road surface, which not only helps to further remove the residue on the road surface, but also effectively reduces the road surface temperature and reduces the road surface damage caused by high temperature. At the same time, it increases the air humidity and improves the urban microclimate.
The rear water spraying monitor is a highlight of the vehicle. It can rotate 360 degrees and adjust the angle up and down to achieve precise spraying. The water spray monitor is not only suitable for irrigation of green belts and fine maintenance of roadside vegetation, but also plays an important role in emergency situations, such as cleaning of road accident sites or rapid cooling of specific areas. Its strong water pressure and adjustable spraying range enable the sprinkler truck to adapt to more diverse operational needs.
The sprinkler system is equipped with intelligent control, which can automatically adjust the spraying intensity and mode according to the road conditions and weather conditions to maximize the use of resources.

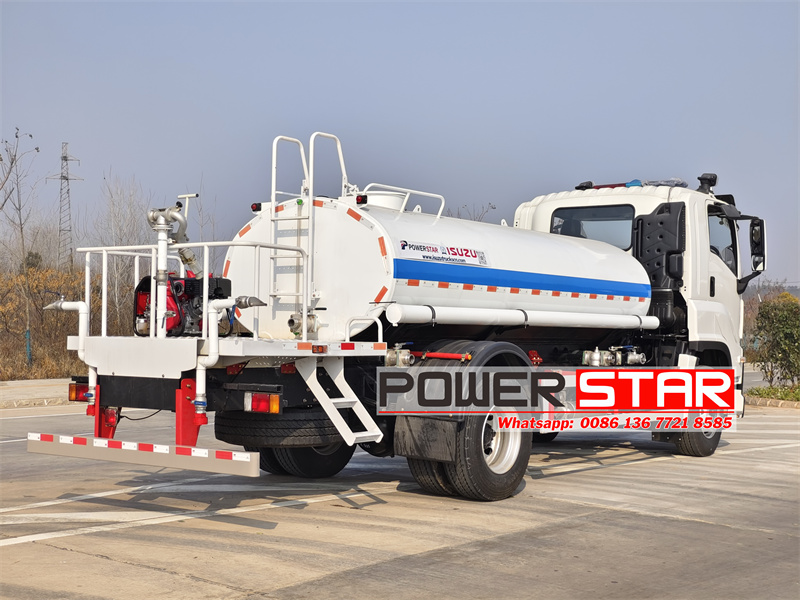

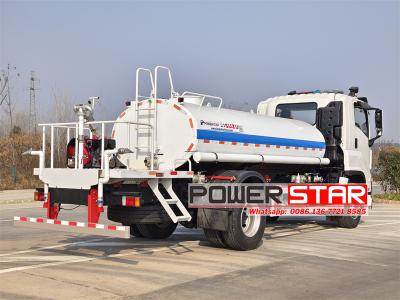

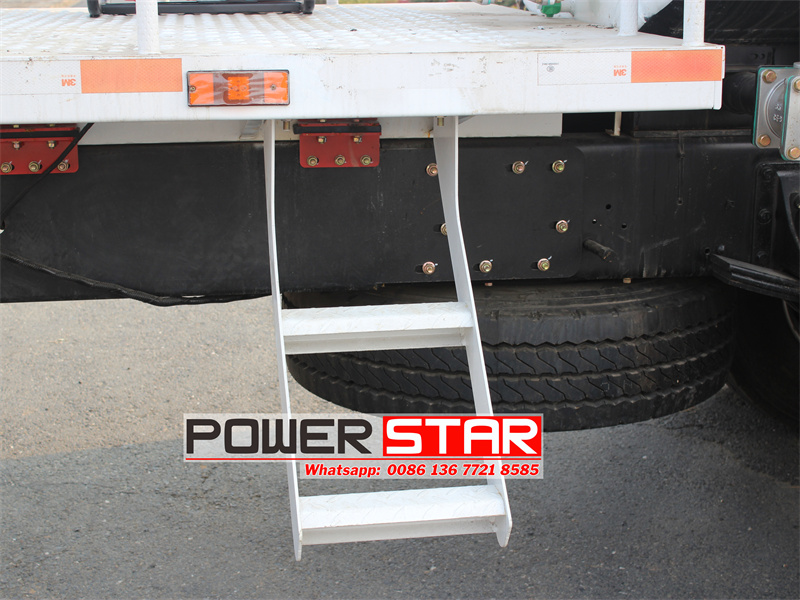

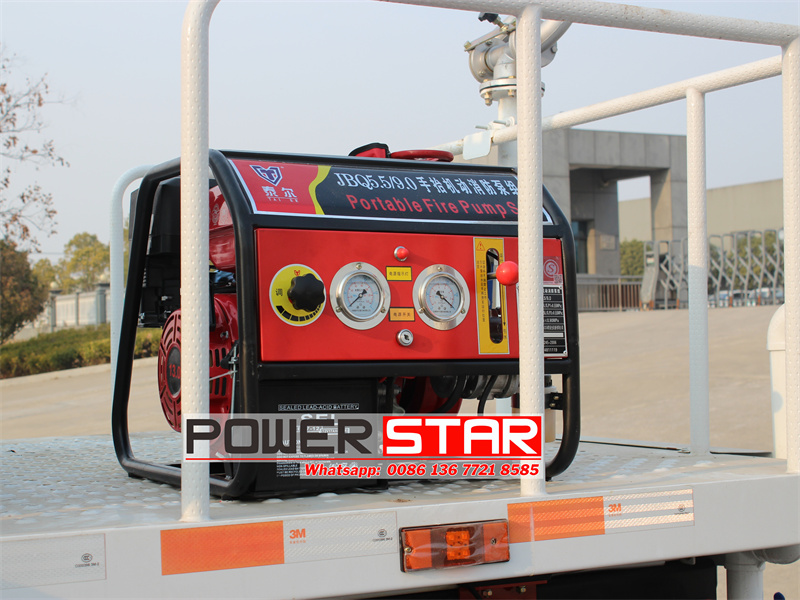

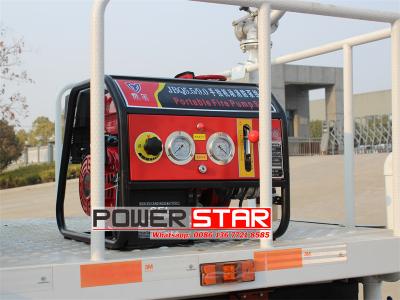

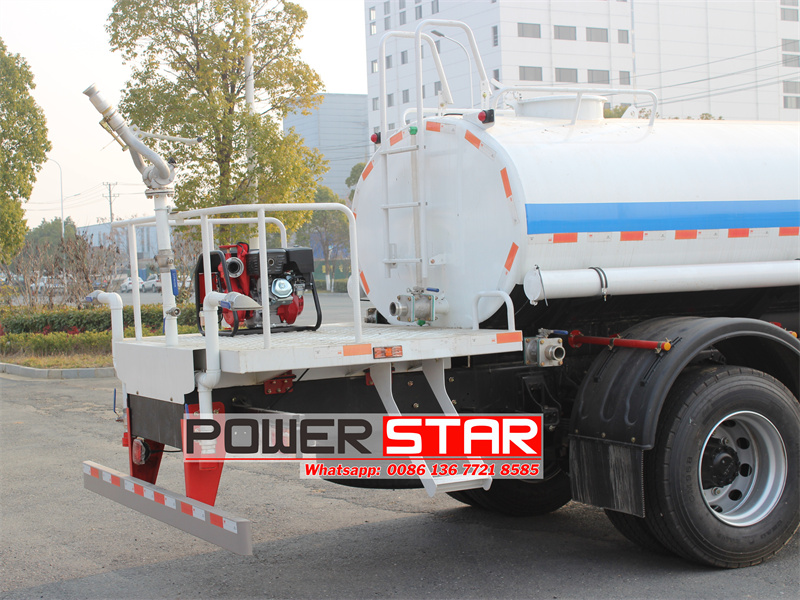

• Tail platform and portable fire pump set: A spacious working platform is designed at the tail of the tank, which is convenient for operators to stand or place tools. The platform is equipped with a JBQ5.5/9.0 portable fire pump set, which has the characteristics of high pressure and large flow. It can not only be used for firefighting operations in emergency situations, but also provide strong water pressure support when needed, such as flushing stubborn stains or long-distance spraying.
★ Application scenarios
Isuzu FVR GIGA 10000 liters water spray truck is widely used in various scenarios such as urban road cleaning, highway maintenance, landscaping irrigation, construction site dust reduction and emergency firefighting due to its excellent performance configuration, and has become an indispensable tool for urban management and construction. Its high efficiency, flexibility and environmental protection not only improve work efficiency, but also meet the pursuit of green and sustainable development in modern cities.
