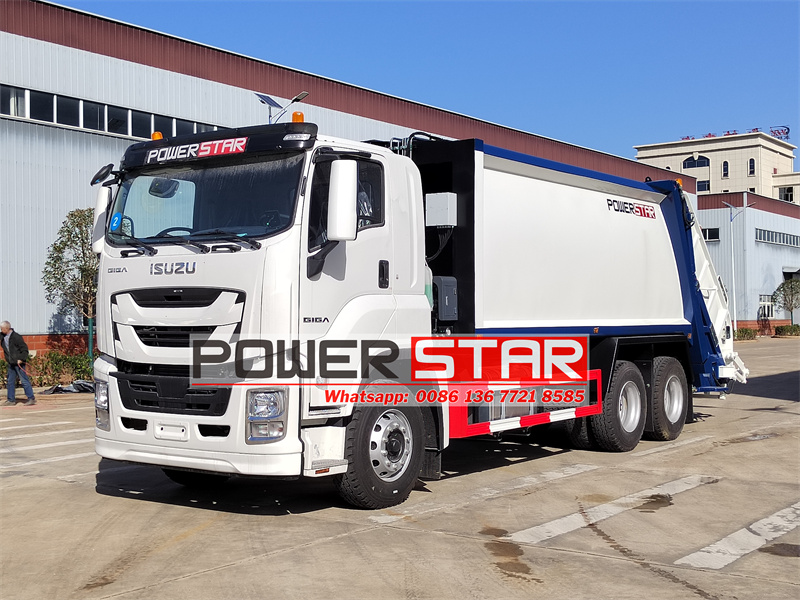

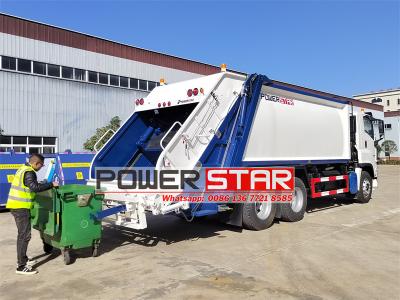

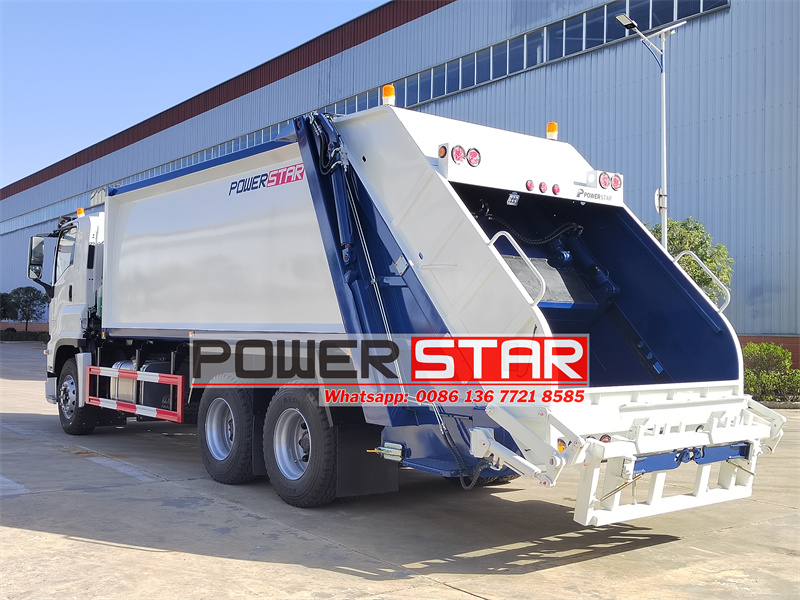

Isuzu 22cbm hydraulic garbage compactor

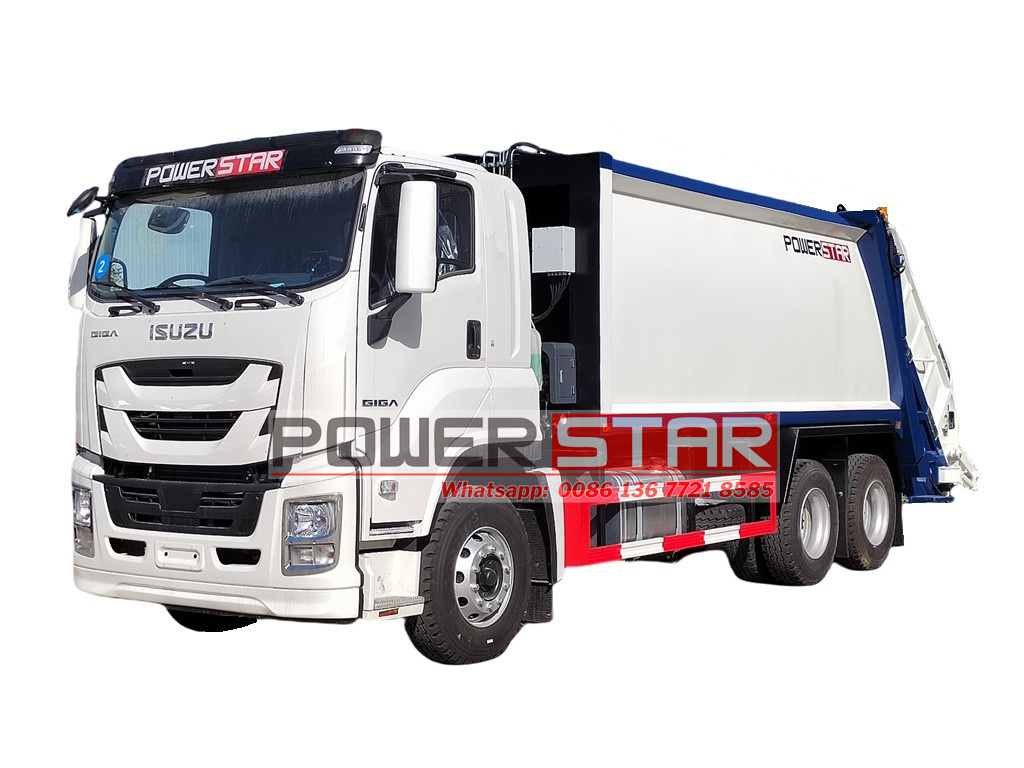

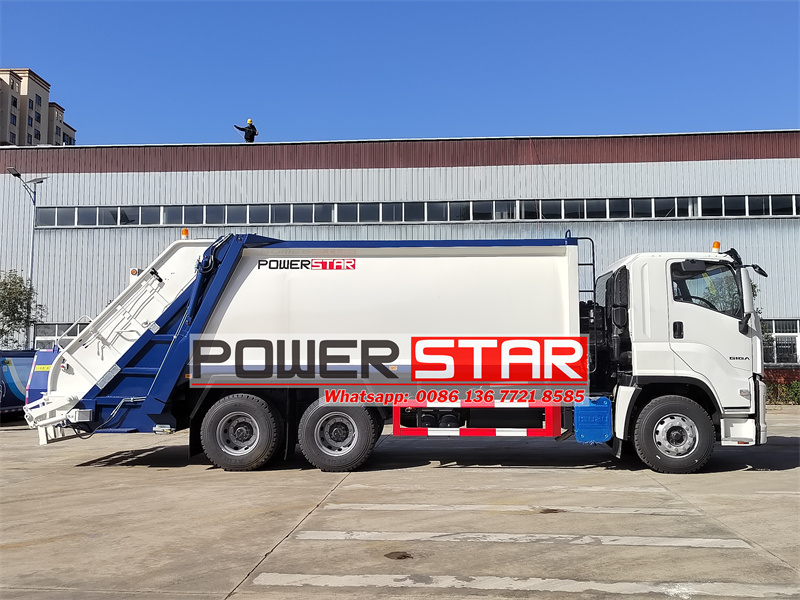

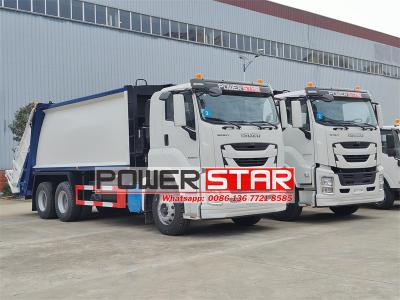

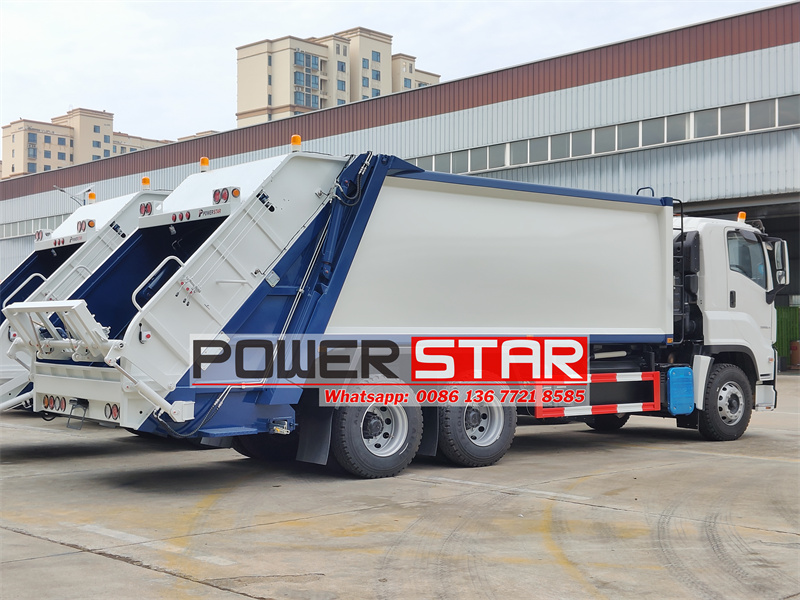

ISUZU GIGA 6x4 LHD Refuse Compactor Truck with capacity 22cbm, with overall dimensions of 10200×2500×3200mm, based on QL1250U4SDZY series GIGA 6x4 truck chassis. CAN BUS electric and Hydraulic System making it an ideal choice for garbage truck modifications. The ISUZU GIGA 25 yard compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.
Manufacturer:
Powerstar TrucksWork capacity:
22cbmDimension:
9900 x 2500 3180 mmCabin type:
Isuzu GIGA VC61 cabin,3 seatsWheelbase:
4600+1370mm / 3Engine power:
380HPEngine type:
Isuzu 6UZ1-TCG61Axle drive:
6X4Gear box:
FAST 12-speed,manualRemarks:
Shipping to Latin America marketISUZU GIGA 6x4 Waste Compactor Truck (also called garbage compactor, ISUZU GIGA waste compressor truck, brand new ISUZU GIGA Rear loader, ISUZU GIGA compressed refuse truck, high quality ISUZU GIGA trash compactor truck, ISUZU GIGA 6×4 refuse compression truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units. The Isuzu GIGA refuse compactor truck tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective. Isuzu Garbage compactor truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
ISUZU garbage compactor trucks are a type of specialized vehicle designed to collect and transport solid waste materials efficiently and hygienically. These trucks serve a crucial role in waste management systems in many urban areas around the world. Isuzu rear loader compactor truck also feature leak-proof bodies and sealed compartments to prevent any leakage or spillage of waste during transportation.This ensures a high level of hygiene and prevents any odor or contamination fromspreading. Isuzu garbage compactor trucks come in various sizes, ranging from small compators suitable for narrow streets and residential areas to larger trucks for commercial district and industrial areas. They are built with durability in mind.employing sturdy materials and robust construction to withstand the heavy loads and demanding operating conditions.
● 30 years experience on rear loader truck designing
● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
Technical Parameters for ISUZU GIGA 22cbm rear loader:
| ISUZU GIGA hydraulic refuse compactor truck (22 cbm) | ||
| General | Vehicle Brand | POWERSTAR Truck |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9900 * 2500 * 3180 mm | |
| GVW / Kerb Weight | 25,000kg / 9,200kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU 6UZ1-TCG61 | |
| Power | 380HP | |
| Displacement | 9839 ml | |
| Emission Standard | Euro 6 | |
| Chassis | Drive Type | 6X4 (left hand drive) |
| Transmission | FAST 12 speed levers with 2 reverse | |
| Wheelbase/No. of axle | 4600+1370mm / 3 | |
| Tire Specification | 12R22.5 | |
| Tire Number | 10 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 22 cbm |

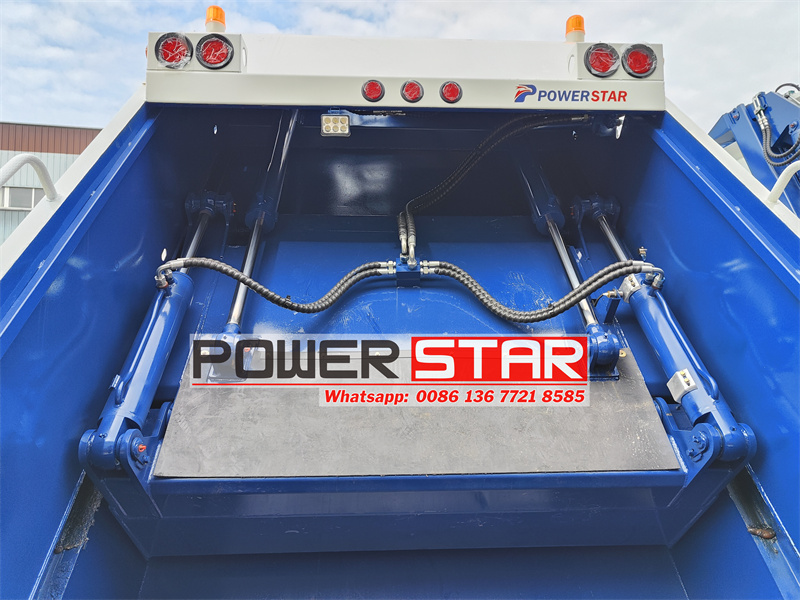

| Fill Hopper capacity | 2.4 cbm | |
| Sewage tank | 200 liters | |
| Filling work cycly time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control |
|
| Control panel | English or Your language | |
| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... |
||

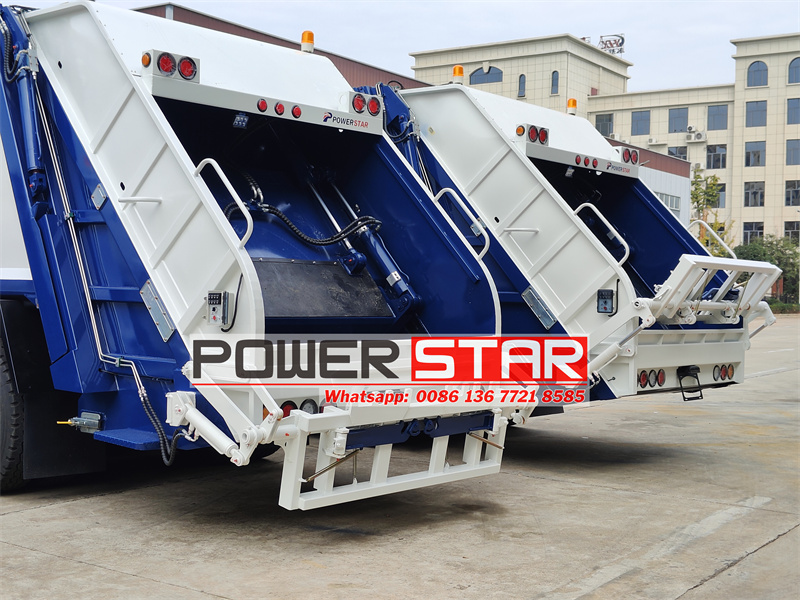

| Optional | ** Back alarm and Camera can be equipped. ** Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. |
|
Features for ISUZU 22cbm garbage compactor truck:
1.Increased Efficiency : Isuzu rear loader is continuously working towards developling garbage compactor trucks that are more efficient in terms of waste collection and compaction.
2.Advanced safety features: Isuzu is focusing on enhancing the safety features of their garbage compactor trucks. This includes the integration of collision avoidance systems,advanced braking systems,and improved visibility to ensure the safety of both the operators and pedestrians.
3.Smart Technology Integration: Isuzu is incorporating smart technology features in their garbage compactor trucks to provide real-time monitoring and date analysis, this enables efficient route planning,waste management,and preventive maintenance,resulting in cost savings and improves operational efficiency.
4.Customization Options: Isuzu recognizes the importance of catering to diverse customer needs and is providing more customization options for their garbage compactor trucks. This includes varying payload capacities, body configurations, and noise reduction measures, ensuring a perfect fit for different waste.
Why prefer to choose ISUZU GIGA trash compressor truck:
ISUZU GIGA 22cbm garbage truck is an efficient, environmentally friendly and safe garbage collection and transportation tool suitable for garbage disposal needs in large communities, commercial areas or industrial areas. ISUZU GIGA 25yard rear loader compactor truck is a specially designed garbage collection and transportation vehicle, which based on sealed garbage compartment and used to load and compress garbage, with good sealing performance to prevent garbage from scattering or generating odor during transportation. Hydraulic system are installed to provide power for garbage compression, and realizes garbage compression and unloading through the telescopic movement of the hydraulic cylinder. Operating system for ISUZU rear loader trucks including control box, buttons, instruments, etc., used to control various functions of the garbage truck, such as compression, unloading, driving, etc.
How to operate ISUZU 22cbm hydraulic compactor truck:
ISUZU 22cbm garbage compactor truck requires needs to be fully inspected before operation, including checking as below
1. whether the bolts of each part are loose
2. whether the accessories are complete
3. whether the instruments and control handles are sensitive and effective
4. whether the pipelines and joints of the fuel and brake systems are loose and damaged
5. whether the tire pressure and the engine fan belt tension are appropriate, the battery electrolyte and joints
6. whether the lubricating oil, fuel oil and water of each part are sufficient.
7. whether there are people and debris around the vehicle to ensure safety.

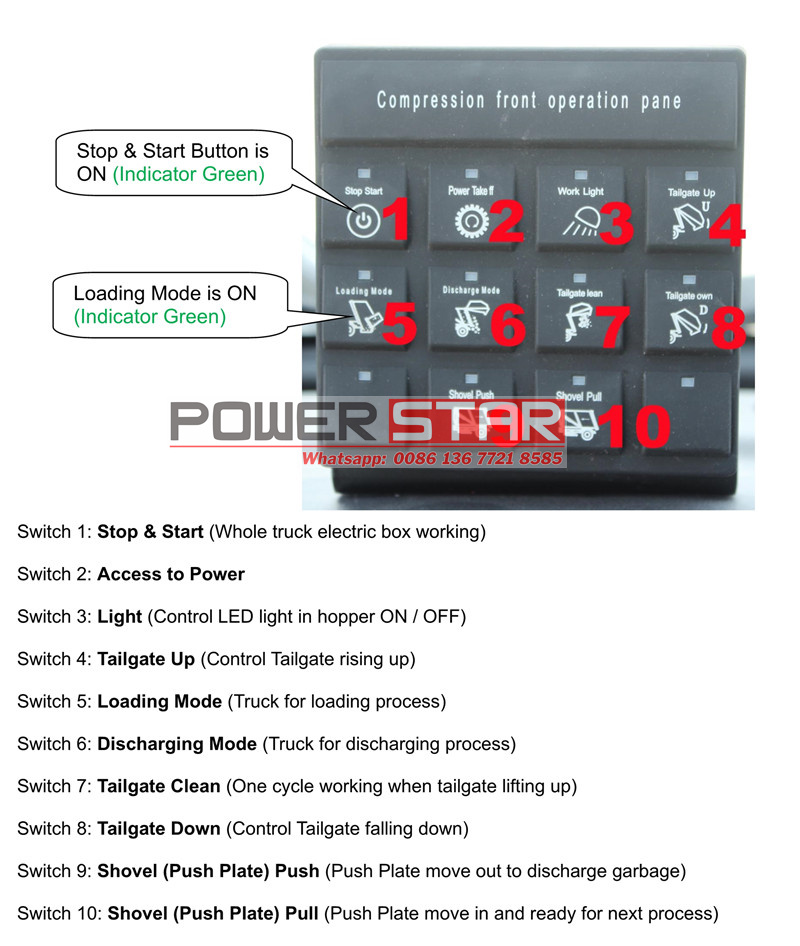

After well checked the working system, please use CAN BUS electric control box to operate the truck, system as below showing:

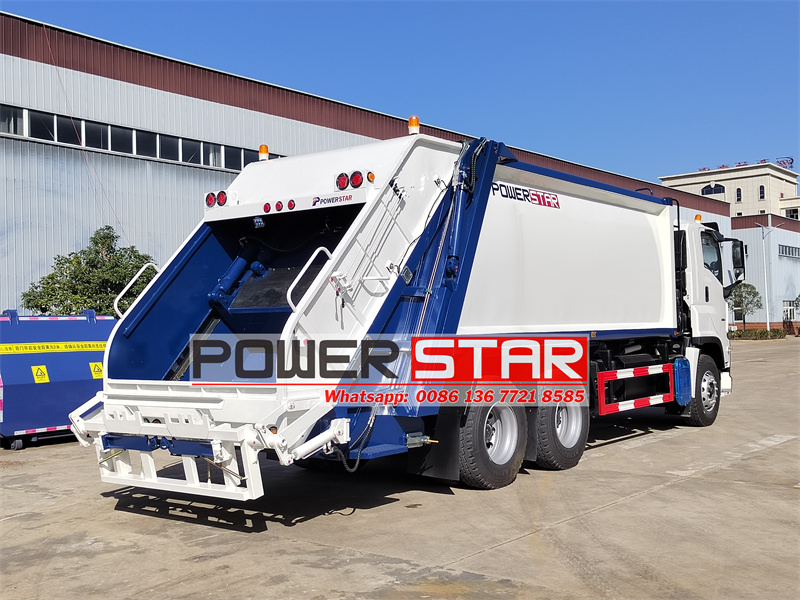

ISUZU rear loader truck is a high efficiency garbage vehicles which with crushes,compresses and compacts collected refuse, isuzu rear loader garbage truck are used by municipal services to collect waste from standard-sized bins in residential areas and dump it at designated dumpsites. As best of isuzu refuse compactor truck supplier in china. POWERSTAR trucks can customize ISUZU compression refuse collector vehicle based on your project.

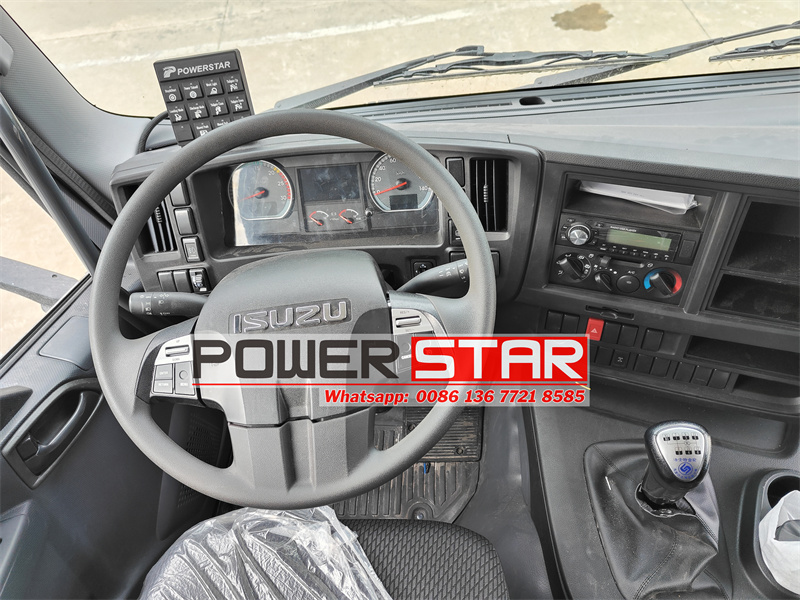

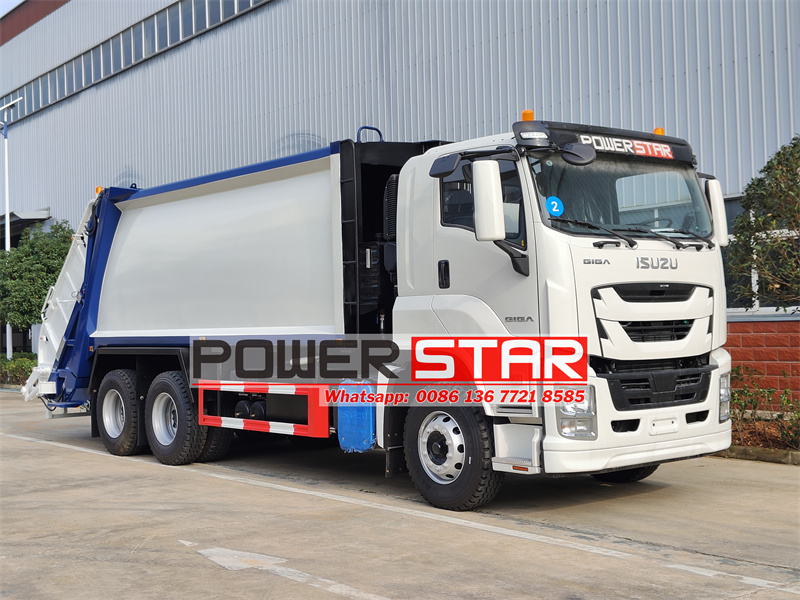

Japanese ISUZU GIGA truck cabin with control box
Operators can now use the In-Sight Display to safely and efficiently operate standard body functions. With all in-cab body switches being moved to the In-Sight Display, constant modification and future additions are possible. The In-Sight Display enhancement also allows for troubleshooting from the safety of the cab. The cab of the ISUZU GIGA, with its spacious space, intelligent configuration, low wind resistance design and durability, is a leader among light commercial vehicles suitable for a variety of commercial and municipal uses. The headlight group may uses full LED light source, including near and far light and turn signal, excellent lighting effect, improve the safety of night driving. The control panel layout in the cab is reasonable, the dashboard display is clear, and the operation is simple, which improves the driver's control body.

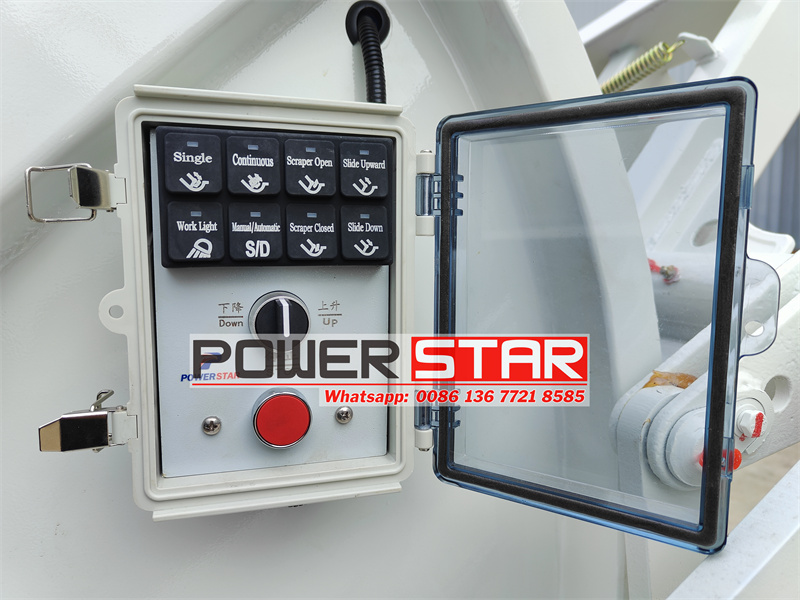

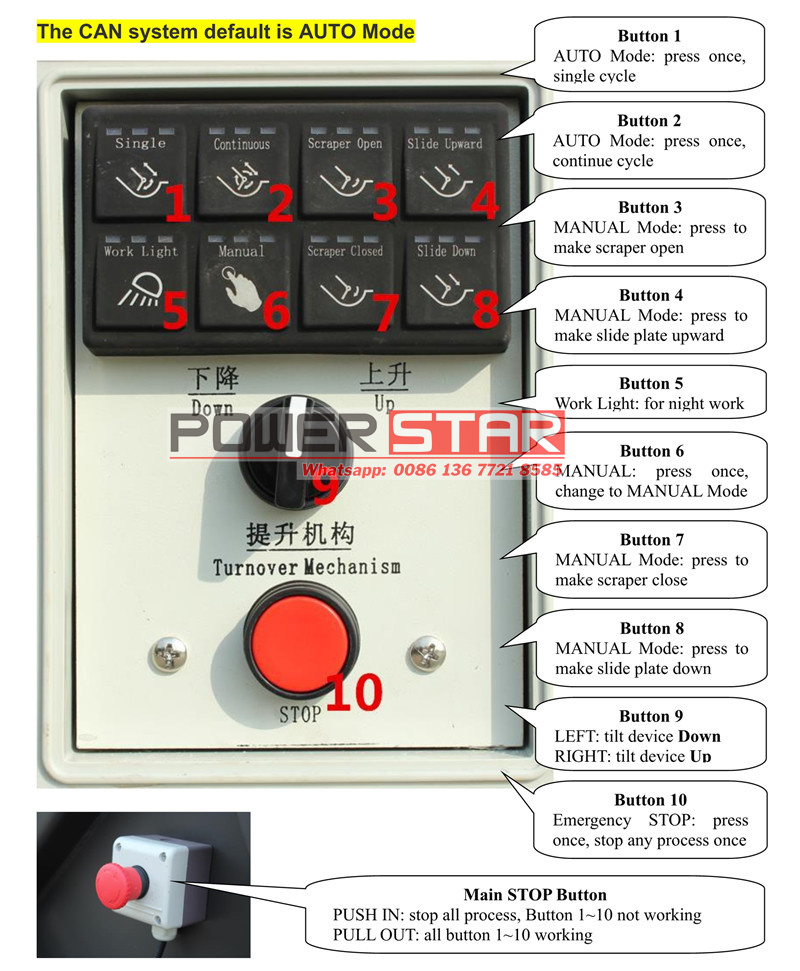

CAN BUS electric system for convenient working
ISUZU rear loader garbage truck equipped CAN-BUS control system of compressed garbage truck is an advanced communication technology, Easy-to-read and understand push-button controls are standard on the curbside, and can also be mounted on the streetside of the tailgate. You can now easily control the packer, tipper, reever, and roll bar operations with the push of a button. The application of CAN-BUS control system not only improves the operation convenience and stability of garbage trucks, but also realizes intelligent control and reduces maintenance costs.
