The Isuzu GIGA 6x4 hooklift garbage truck features a 5100+1370 mm wheelbase, a gross vehicle weight of 35 tons, and a payload capacity of 30 tons. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The superstructure is a hooklift system capable of carrying 30 tons. The cargo box has external dimensions of 6706x2300x2438mm, is made of Q345B steel, and side thickness 6mm a bottom thickness 8mm.
Manufacturer:
Powerstar TrucksWork capacity:
30TDimension:
9600 × 2550 × 3850 mmCabin type:
Isuzu GIGA 6x4 cab,3 passengersWheelbase:
5100+1370mmEngine power:
380HP/278Kw@1800rpmEngine type:
ISUZU 6UZ1-TCG61Axle drive:
6x4,LHDGear box:
FAST 12-speed,manual,12F&2RRemarks:
Loading capacity from 2 to 30T.The Isuzu 30 Tons roll on roll off truck is a high-efficiency special-purpose vehicle designed specifically for heavy-duty garbage transfer. With a gross vehicle weight of 35 tons and a robust load-bearing capacity, its 30-ton payload combined with a high-strength cargo box allows for stable transport of heavy materials such as construction waste. The superstructure is equipped with a hydraulically driven hooklift system for quick loading and unloading of standard garbage containers. The cargo box is made of Q345B high-strength steel, featuring a thick construction, impact resistance, and corrosion resistance, making it suitable for urban sanitation, construction waste disposal, and emergency rescue applications.
▶ Features:
---- Isuzu GIGA 6X4 chassis, perfect performance
---- Isuzu 6UZ1 380HP engine, FAST 12-speed gearbox,super powerful; reliable performance, no overhaul within 100,000 km.
---- Loading capacity from 2 to 30T.
---- Easy operation and easy maintenance.
---- Garbage container dimensions can be customized.
▶ Product Parameters:
|

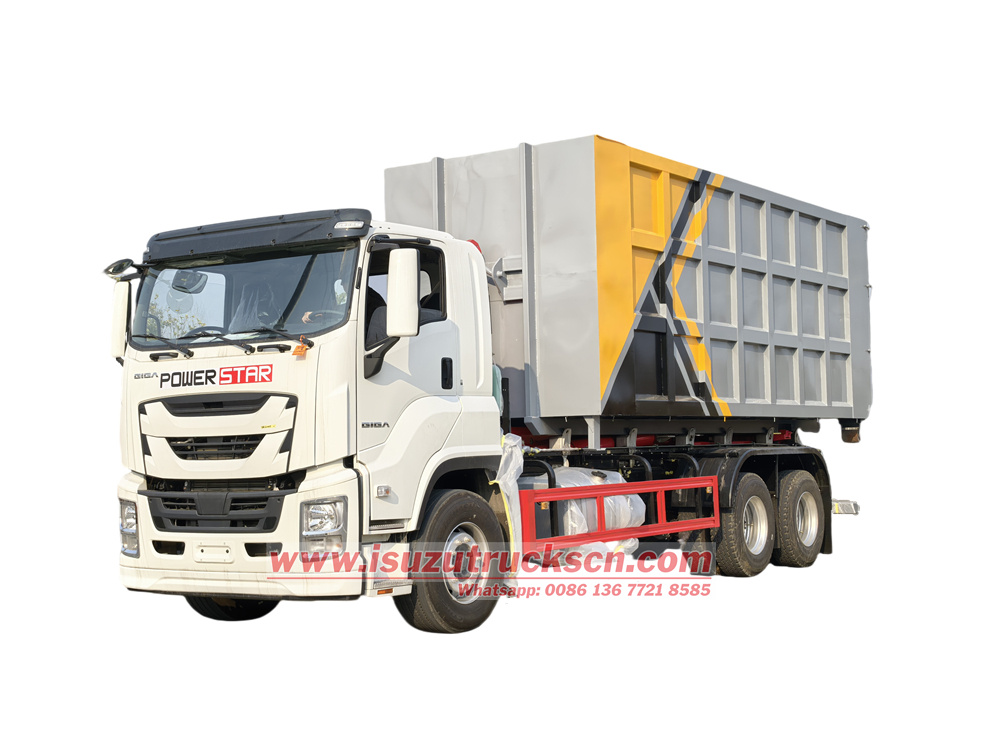

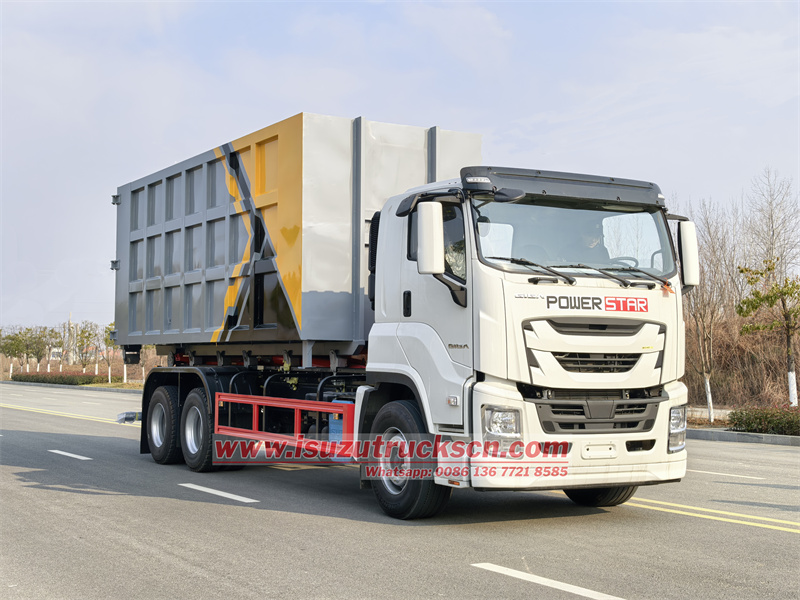

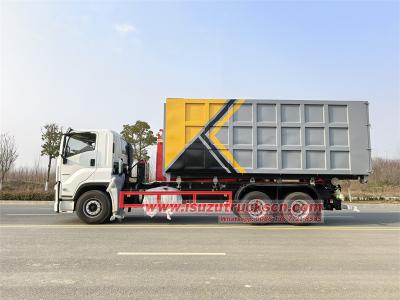

Isuzu 6x4 heavy duty hook lift truck |
||
|
Cabin |
Driving type 6x4, left hand drive |
|
|
2 seats,a sleeper,with A/C. |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) |
9600×2550×3850 mm |
|
Wheelbase |
5100+1370 mm |
|
|
Weight in KGS |
GVW/Curb weight |
35000/14850kg |
|
payload |
26000kg |
|
|
Front axles loading capacity |
9000kg |
|
|
Rear axles loading capacity |
13000/13000kg |
|
|
Max. driving speed |
100 km/h |
|
|
Engine |
Brand |
Isuzu |
|
Model |
6UZ1-TCG61 |
|
|
Horse Power(HP) |
380HP/278Kw@1800rpm |
|
|
Max torque |
1756N.m@1000-1200rpm |
|
|
Emission standard |
Euro 6，9839ml |
|
|
Gearbox |
FAST 12-speed,manual,12F&2R |
|
|
Steering |
Left hand drive, power assistant steering |
|
|
Tire |
Front 385/65R22.5,rear 315/80R22.5 tires, 12 pieces with one spare |
|
|
Fuel tank |
400L |
|
|
Hook lift system |
||
|
Lift capacity |
30T |
|
|
System pressure |
29.5MPa |
|
|
Discharging angle |
50° |
|
|
Telescopic distance |
1300mm |
|
|
Oil pump displacement |
80ml/r |
|
|
Hydraulic oil tank volume |
80L |
|
|
Time of lifting container |
55s |
|
|
Electric control voltage |
24V |
|
|
Garbage bin |
||
|
Volume |
37cbm |
|
|
External dimensions |
6706x2300x2438mm |
|
|
Material |
Q345B High tensile steel |
|
|
Thickness |
Side:6mm Bottom:8mm |
|
|
Lift type |
Hydraulic cylinder lifting self-loading, with rear roller support |
|
|
Lift angle(°) |
≥50° |
|
|
Control method |
hydraulic control on the body side |
|
▶ Chassis System:
• Drive Type: 6x4 (Three-axle drive, adaptable to complex road conditions)
• Wheelbase: 5100+1370 mm (Extra-long wheelbase design, improving driving stability and load capacity)
• GVW: 35 tons (Meets heavy-duty requirements)
• Rated Payload: 30 tons (High-strength design ensures efficient full-load transportation)
• Powertrain
Engine: Isuzu 6UZ1-TCG61 (Inline six-cylinder diesel engine, 380HP/278Kw@1800rpm, 1756N.m@1000-1200rpm, high torque at low speeds, powerful and fuel-efficient)
Transmission: Fast 12-speed transmission (Multi-gear design, smooth shifting, adaptable to power output requirements under different operating conditions)

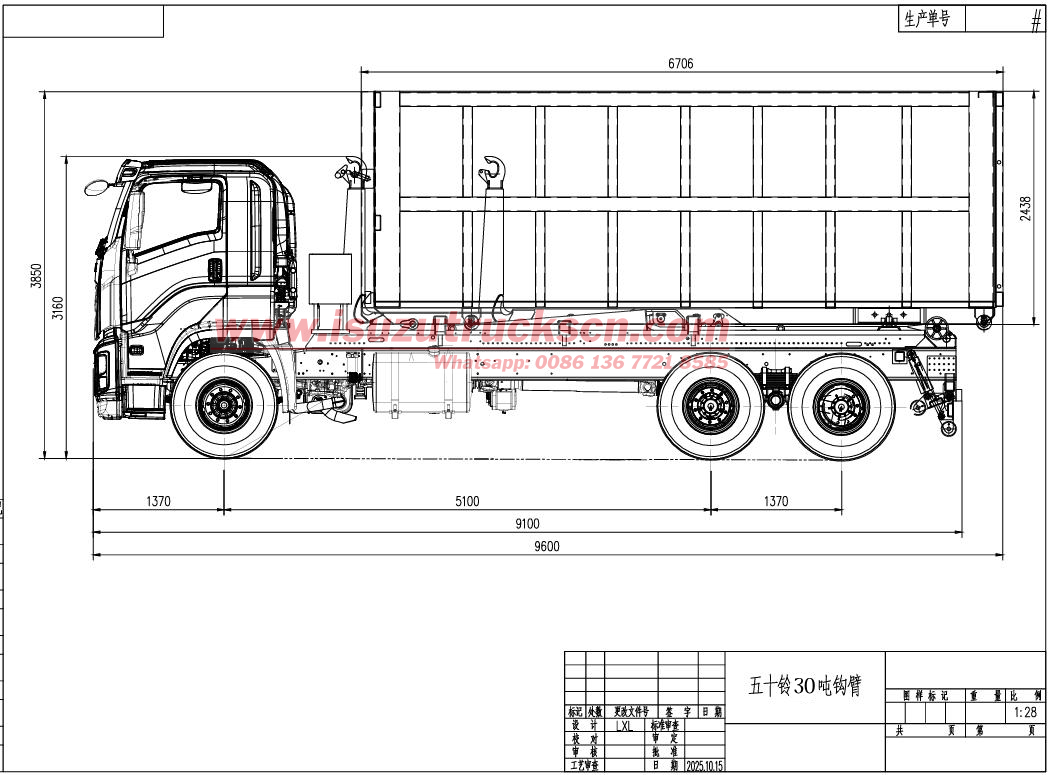

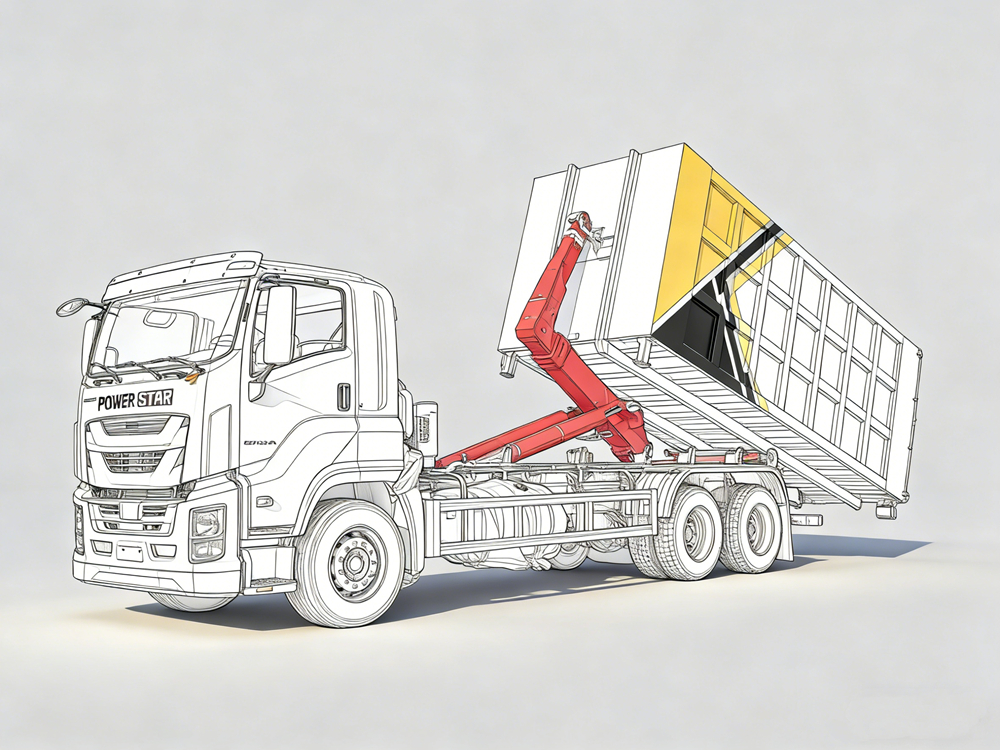

Technical drawing of Isuzu 6x4 30T hook lift garbage truck

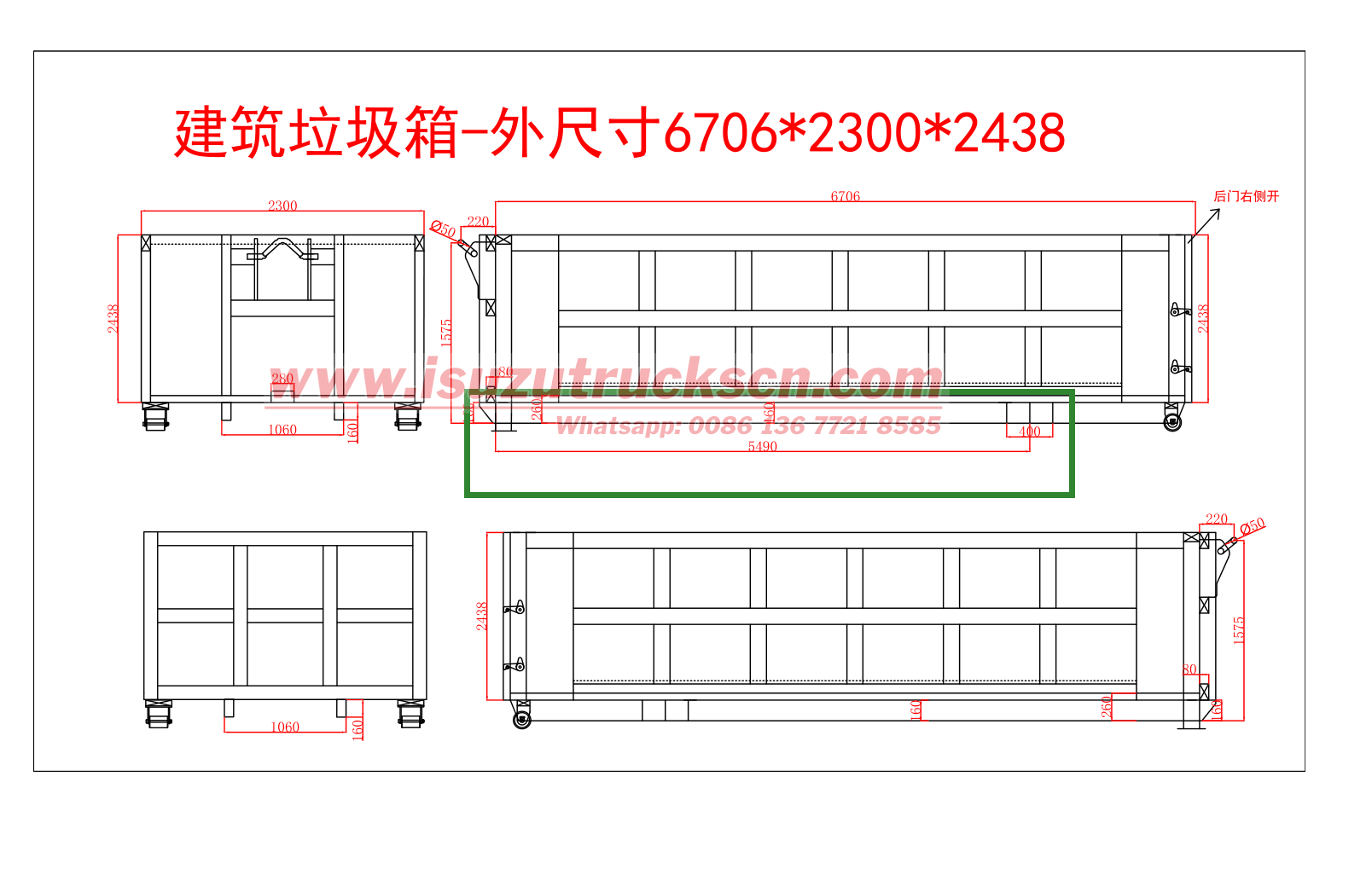

Technical drawing of Isuzu 6x4 30T hook lift truck garbage container
▶ Upper Structure Configuration:

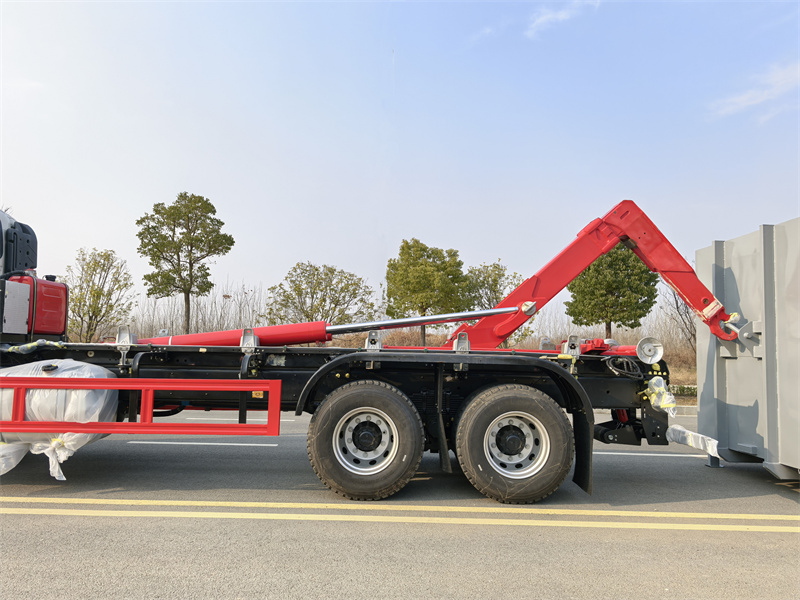

• Hook-arm system: Maximum load capacity 30 tons (hydraulic drive, easy operation), 29.5MPa, loading/unloading angle ≥50°. The system uses a multi-link mechanism driven by hydraulic cylinders to complete the grabbing, lifting, unloading, and placement of standard garbage containers.

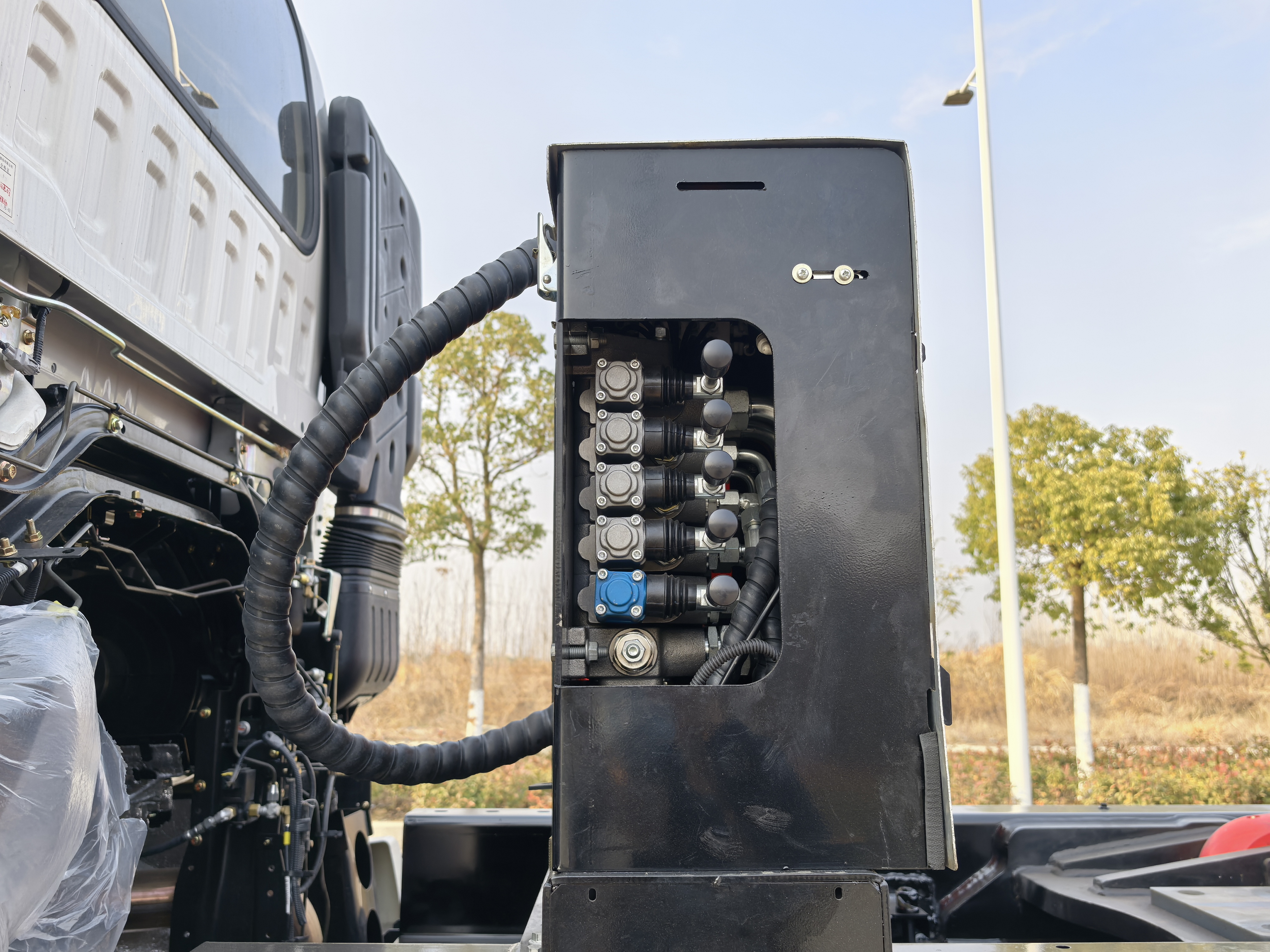

• Operation is controlled by valve groups inside and outside the cab, highly efficient and convenient.
• Cargo box: External dimensions 6706×2300×2438 mm (large capacity design, significantly increasing single-trip transport capacity)
• Cargo box material: Q345B high-strength structural steel (6mm thick side plates, 8mm thick bottom plates, impact resistant, corrosion resistant, extending service life)

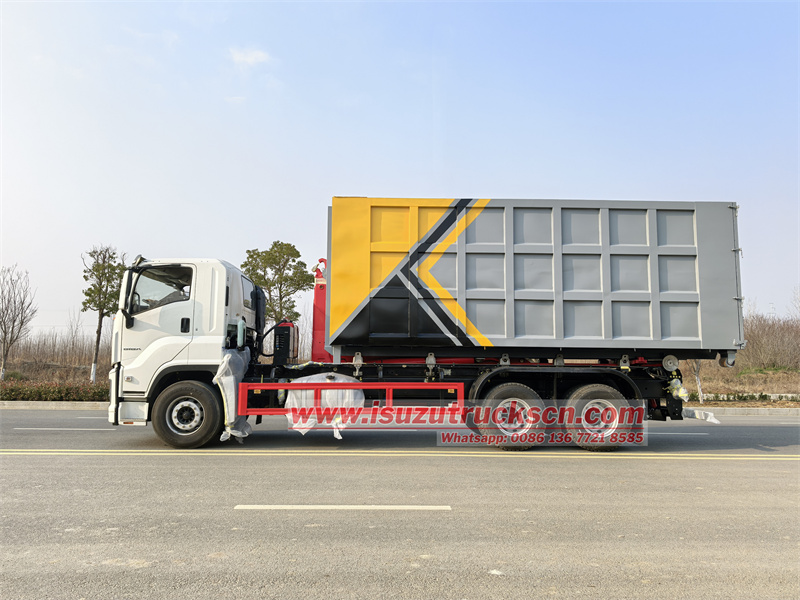

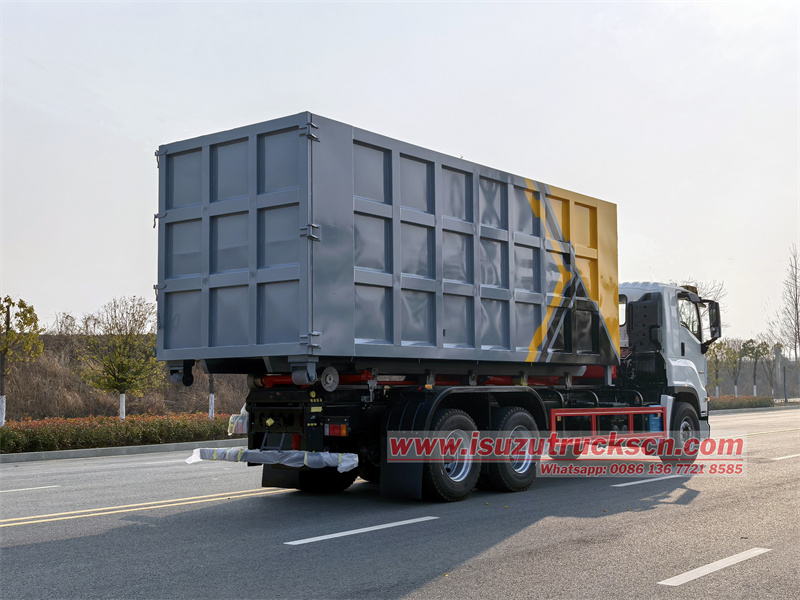

Isuzu 6x4 30T hook lift garbage truck

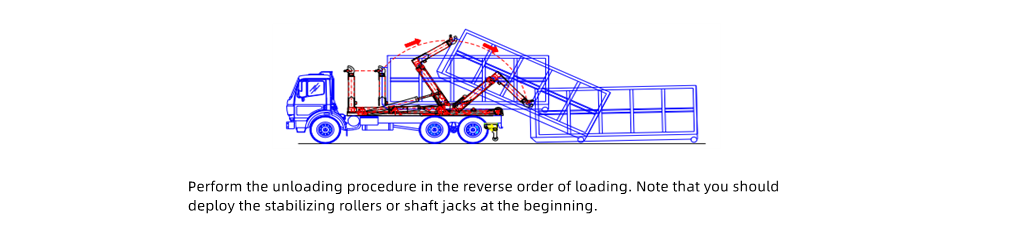

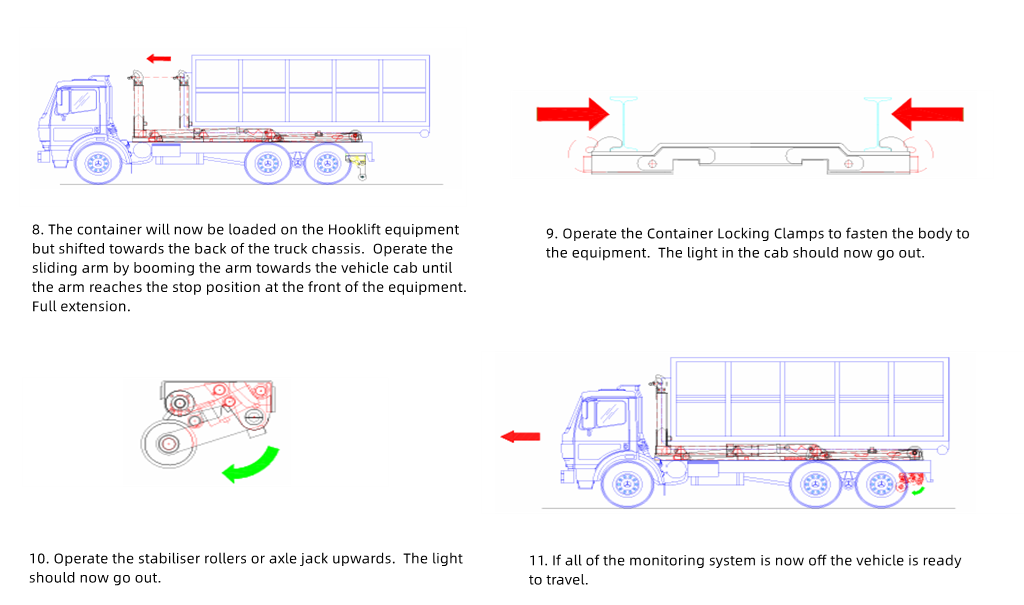

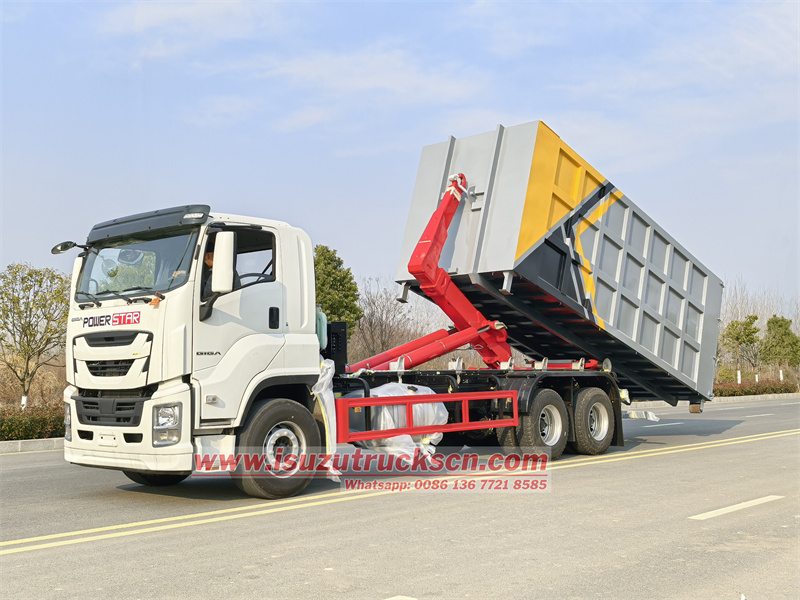

Unloading Procedure
