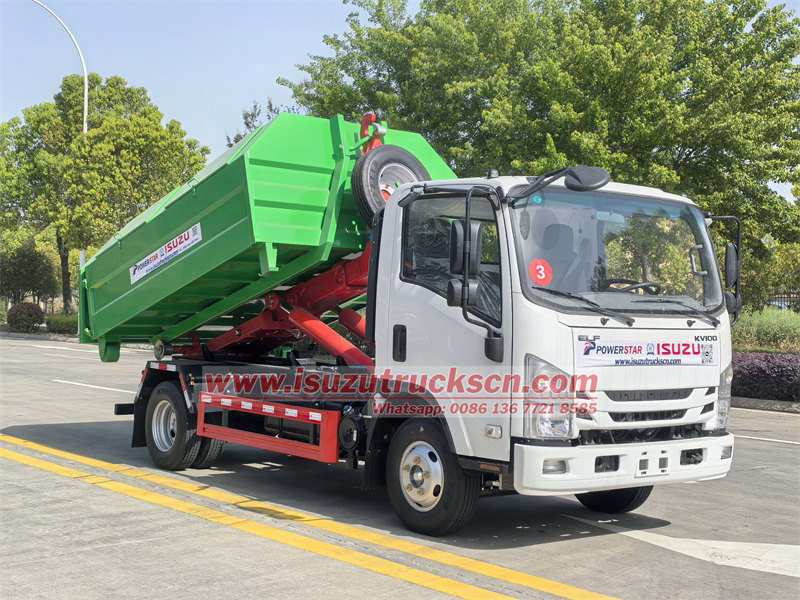

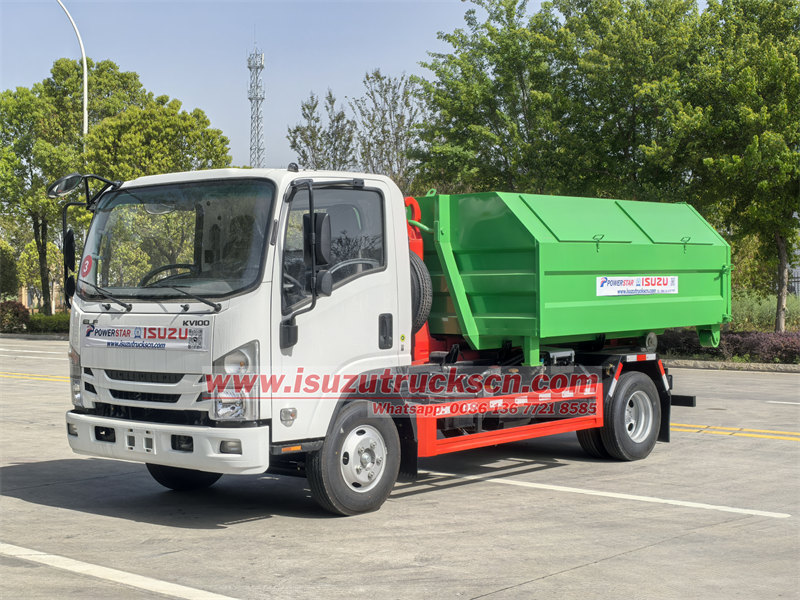

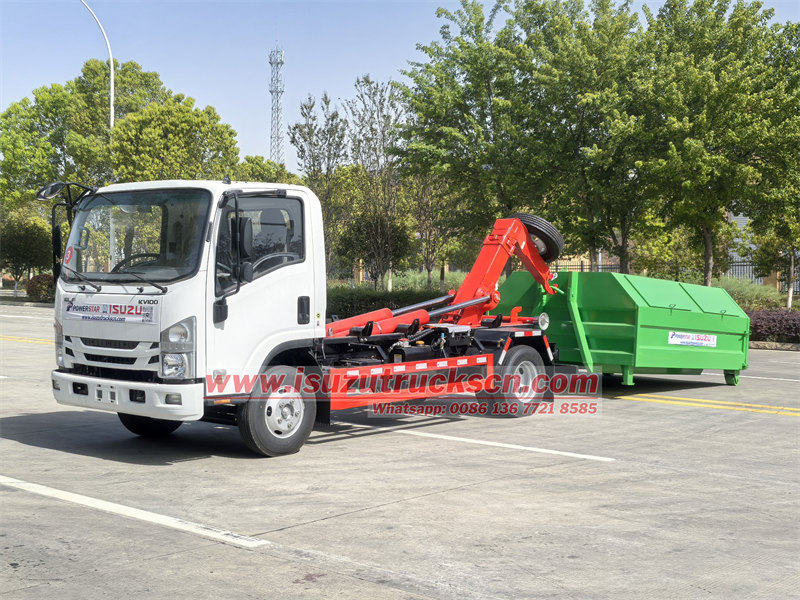

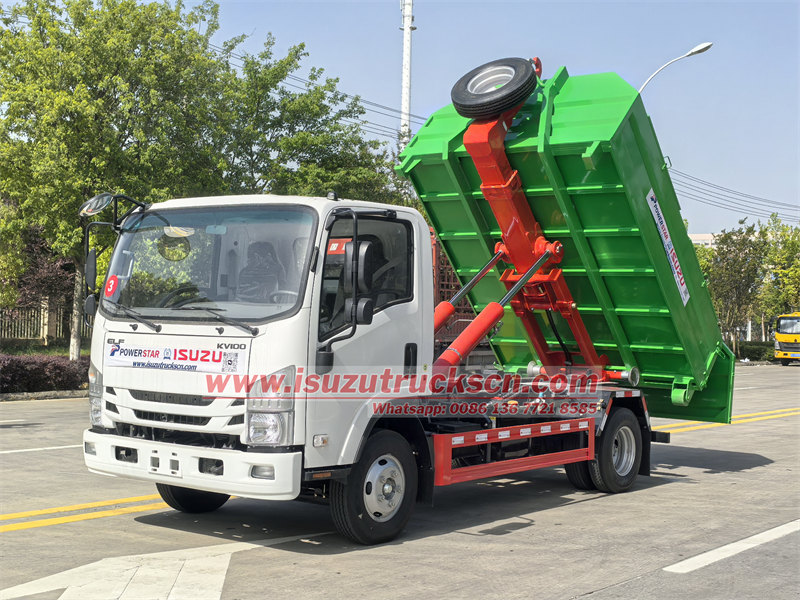

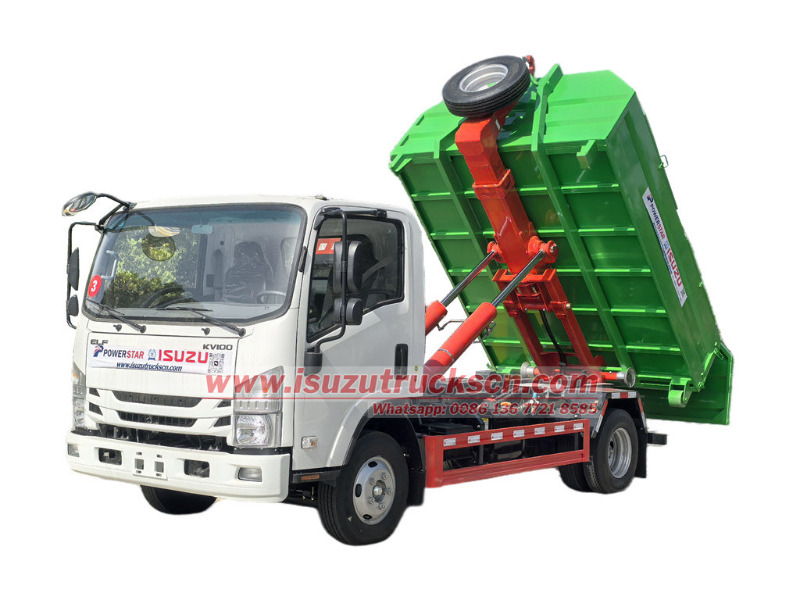

The ISUZU Light-duty Hook Lift Garbage Truck is a professional waste collection and transportation equipment built on the ISUZU ELF chassis. With compact dimensions of 5900×2200×2340mm, it offers excellent maneuverability. Powered by a 3.0L turbocharged diesel engine delivering 120HP maximum power and paired with a 5-speed transmission, it features an innovative 8-ton hook arm system with dual manual/remote control operation, achieving a loading/unloading cycle time of ≤55 seconds. The 6 cubic meter capacity garbage container is constructed with high-strength Q235 steel and features side+rear opening design, meeting various waste collection needs. Particularly suitable for waste collection operations in urban streets and residential areas with limited space, it represents an ideal choice for modern sanitation systems.
Manufacturer:
POWERSTARWork capacity:
6CBMDimension:
5900x2200x2340mmCabin type:
ISUZU ELF wide cabinWheelbase:
3360 mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2, left hand driveGear box:
MSB 5-speed, manualRemarks:
Right hand drive is optionalThe ISUZU Light-duty Hook Lift Truck is a professional waste collection equipment based on the ISUZU ELF light truck chassis. Measuring 5900×2200×2340mm overall with a 3360mm wheelbase, it features a single-row cabin accommodating 3 crew members. The vehicle is equipped with a Euro 6 compliant 4KH1CN6LB turbocharged diesel engine producing 120HP maximum power, mated to a 5-speed manual transmission with a top speed of 95km/h. Its core advantage lies in the perfect coordination between the 8-ton hook arm system and 6 cubic meter garbage container, achieving loading/unloading cycle times under 55 seconds, making it particularly suitable for waste collection in urban communities and commercial districts.

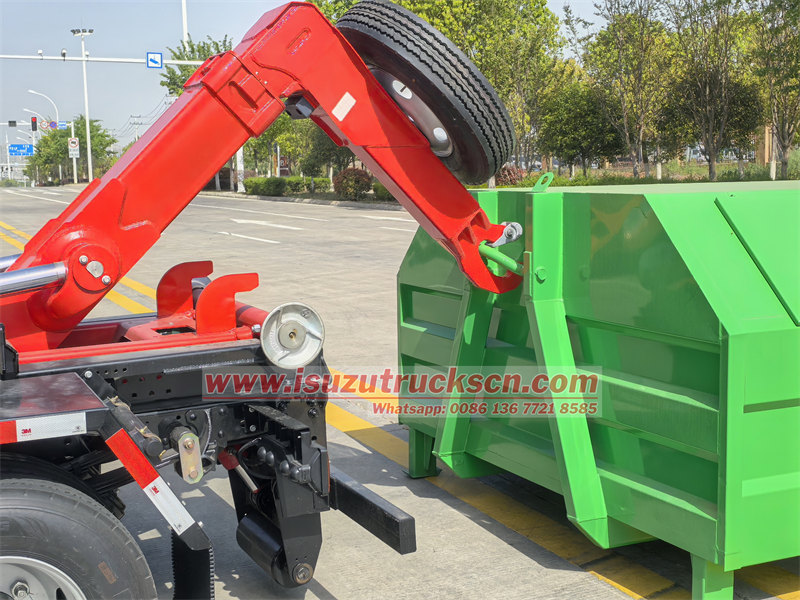

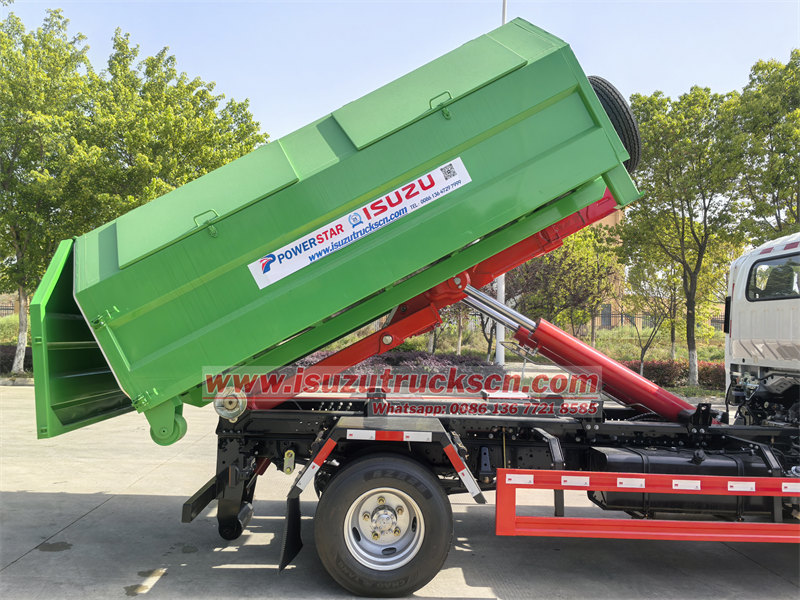

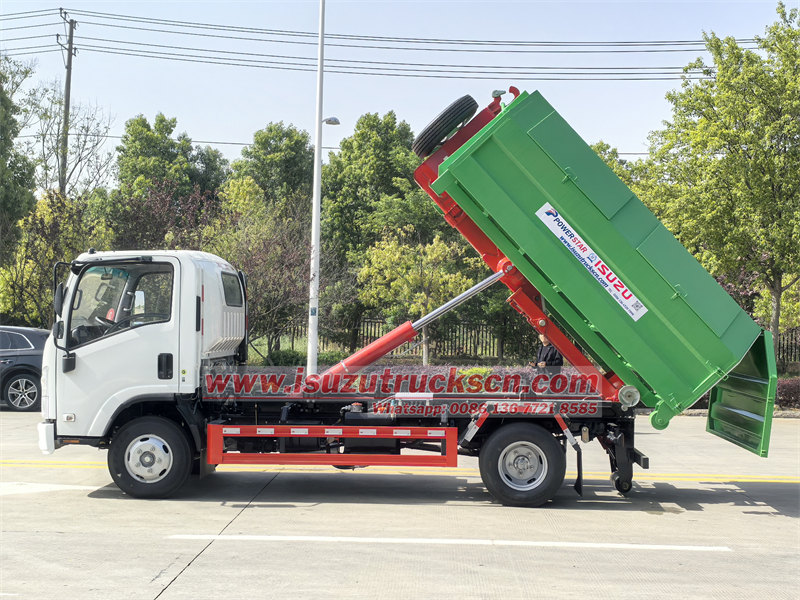

The heart of this ISUZU mini hook loader truck is its specially designed hydraulic hook arm system. With a hook center height of 1570mm, guide rail width of 1060mm, and 800-900mm adjustable arm length, it can accommodate various container specifications. The hydraulic system utilizes a 60L/min flow pump operating at 26MPa maximum pressure, ensuring stable operation at 50° dumping angles. The container is constructed with high-strength Q235 steel, featuring 3mm side walls and 4mm base plate, along with side+rear dual-opening design for easy loading and dumping. Notably, the external locking mechanism significantly enhances operational safety by preventing container detachment during transport.

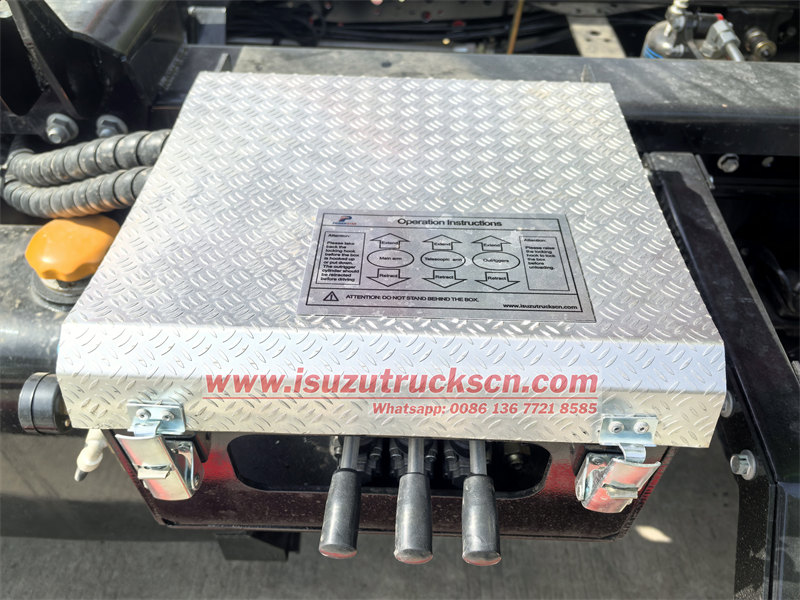

This ISUZU NKR roll off bin truck also features a dual control system: manual control joysticks behind the cabin and wireless remote control with 10-meter effective range. This dual operation mode provides flexible and convenient control while reducing direct contact risks between operators and waste containers, effectively minimizing potential safety accidents caused by improper operation.
● 30 years experience on road sweeper truck designing
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu hook lift garbage truck factory
Product Specifications
|
TECHNICAL SPECIFICATION |
||
|
Main specification |
Product Name |
ISUZU light duty hook lift truck |
|
Capacity |
6 CBM |
|
|
Dimension |
5900x2200x2340mm |
|
|
Chassis |
Brand |
ISUZU |
|
Cabin |
ELF, single row cabin, 3 seats, with A/C |
|
|
Drive Mode |
4x2, Left hand drive |
|
|
F/R Axles |
2.5T/4.8T |
|
|
Wheelbase |
3360mm |
|
|
Gearbox |
MSB, 5-Forwards & 1-Reverse |
|
|
Tire |
7.00R16, 6+1pcs |
|
|
Fuel Tank |
100L |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN6LB |
|
|
Fuel type |
Diesel |
|
|
Power |
120 HP (88KW) |
|
|
Displacement |
3.0 L |
|
|
Emission Standard |
Euro 6 |
|
|
Type |
4-cylinders in-line, turbo-charged intercooling |
|
|
SUPERSTRUCTURE |
||
|
Upper Parts |
Hooking capacity |
8 tons |
|
Hook center height |
1570mm |
|
|
Width of guild rail |
1060mm |
|
|
Clearance height of box track |
≥150 |
|
|
Dump angle |
50° |
|
|
Loading/unloading cycle time |
≤55s |
|
|
Garbage bin locking mode |
Lock outside |
|
|
Extension of hook arm |
800-900 mm |
|
|
Pull rod offset |
270mm |
|
|
Hydraulic pump flow |
60l/min |
|
|
Maximum pressure of hydraulic system |
26Mpa |
|
|
Control system |
Manual control joysticks and remote control |
|
|
Garbage Container |
Volume |
6 CBM |
|
Type |
Side open and rear open container |
|
|
Material |
High-strength steel Q235 |
|
|
Thickness |
Side plate 3mm, bottom plate 4mm |
|
Product Features

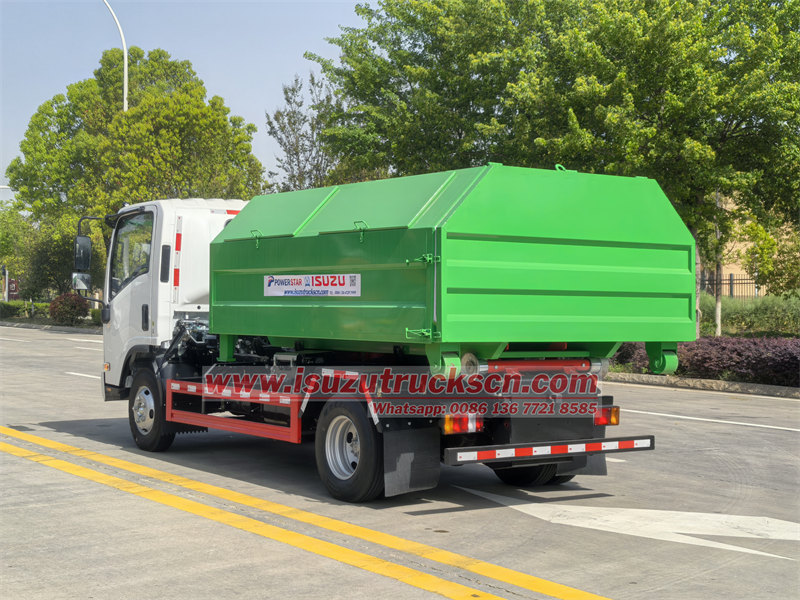

6CBM garbage container, made of high-strength Q235 steel and features side+rear opening design

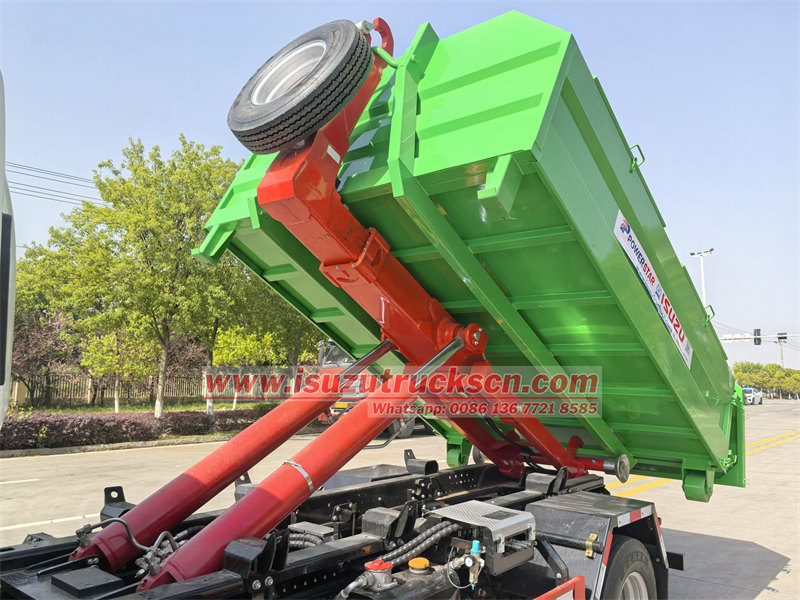

Dual hydraulic lifting cylinders ensure stable and powerful lifting with excellent hooking capability.
The hook arm is constructed with high-strength steel plates for exceptional durability and extended service life.

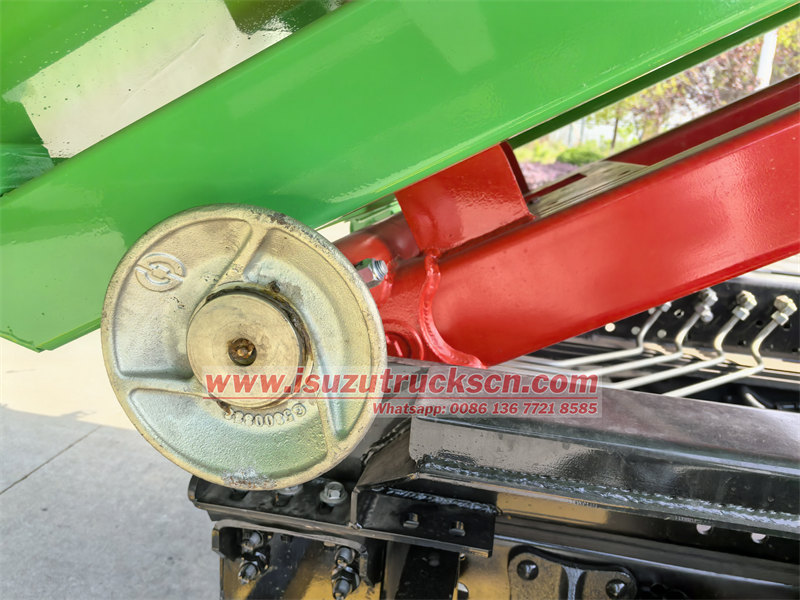

Galvanized solid wheel offers superior strength and deformation resistance under heavy loads.
The premium multi-way valve delivers stable performance with low failure rate and responsive operation.

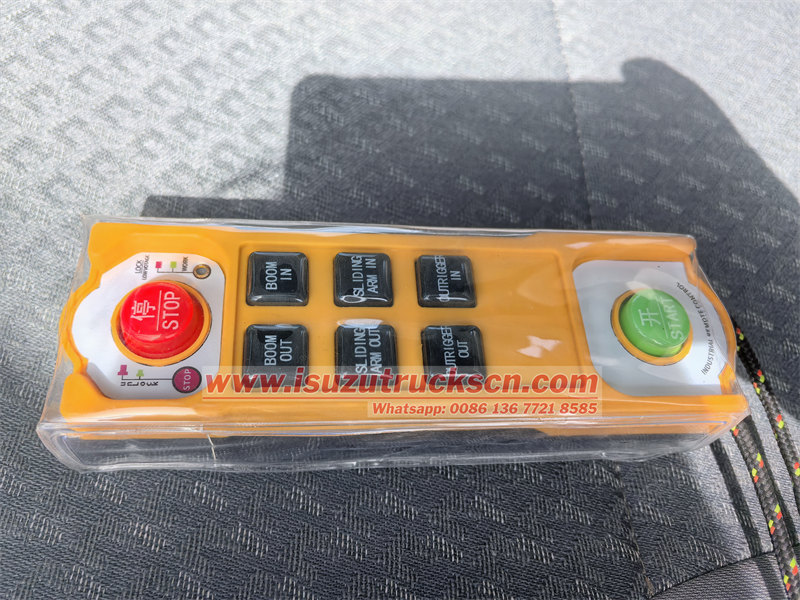

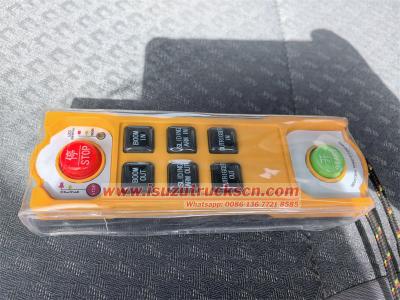

Wireless remote control allows convenient multi-angle operation within 100 meters, enhancing both operational efficiency and job safety.
