The Isuzu 4x4 all-wheel drive pickup truck mobile service vehicle produced by POWERSTAR is modified based on the Isuzu all-wheel drive pickup truck. The vehicle is equipped with a 4KH1CT6H1 143HP engine, provides a 3406mm wheelbase, and has a maximum torque of 320N·m. It is matched with an Isuzu MSB 5-speed transmission, which has strong power and smooth shifting. The tool box at the rear of the vehicle can be equipped with the required service tools according to needs.
Work capacity:
900kgEngine power:
143HPEngine type:
4KH1CT6H1Axle drive:
4X4,LHDGear box:
MSB 5-speed,manualRemarks:
Isuzu 4x4 all wheel drive pickup,can be customizedProducts Description
Isuzu mobile service pick up also called Isuzu workshop service pick up,Isuzu pickup tool truck,Isuzu mobile workshop pickup,Isuzu 4x4 pickup service truck,Isuzu 4WD mobile tool truck.
This Isuzu mobile service pick up has become an indispensable mobile service solution for many industries with its excellent off-road performance, strong carrying capacity and flexible configuration options. It is equipped with an advanced four-wheel drive system and an efficient diesel engine to ensure stable driving in various complex environments. The spacious and comfortable cab and the flexibly configured cargo box provide a good working environment for drivers and operators. At the same time, its excellent fuel economy and environmental performance reduce operating costs and improve work efficiency. Whether it is power repair, road rescue or field exploration, this Isuzu pickup service vehicle can respond quickly and provide timely and effective on-site support.
Key Features:
★ ISUZU pickup truck, perfect performance
★ ISUZU engine & gearbox, super powerful, no overhaul within 100.000 km
★ Large space, comfortable driving, with tool box
★ Easy operation and easy maintenance
Specrfications
|
Isuzu 4x4 Pickup service truck |
||
|
Drive Model |
4x4,LHD |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
5660×1885×2550 |
|
Wheel base (mm) |
3406 |
|
|
Wheel track (front/rear) (mm) |
1570/1570 |
|
|
Approach/Departure angle(°) |
28/21 |
|
|
Cab |
Double row,2+3 seats,A/C,USB... |
|
|
Weight in KGS |
Curb Weight |
2200 |
|
GVW. |
3175 |
|
|
Max. driving speed(km/h) |
140 |
|
|
Engine |
Model |
4KH1CT6H1 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
|
|
Horse Power(HP) |
143HP/105Kw |
|
|
Displacement(ml) |
2999 |
|
|
Max torque(N·m） |
320 |
|
|
Max torque speed(rpm) |
1450 |
|
|
Emission standard |
Euro VI |
|
|
Fuel tank volume (L) |
76 |
|
|
Fuel form |
Diesel |
|
|
Gearbox |
MSB 5 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
245/70R17LT, 4pcs + 1 spare tire |
|
|
Brakes |
Exhaust brake |
|
|
UPPER |

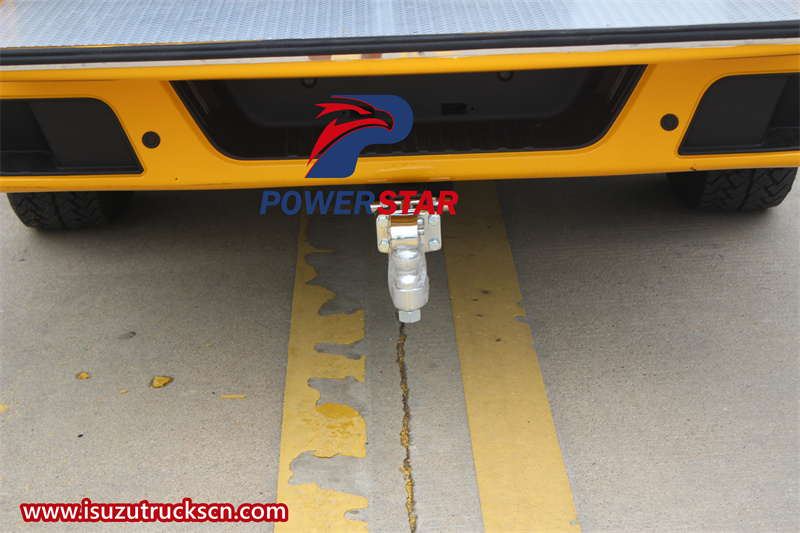

Trailer hook |
2 units,front and rear both have |
|

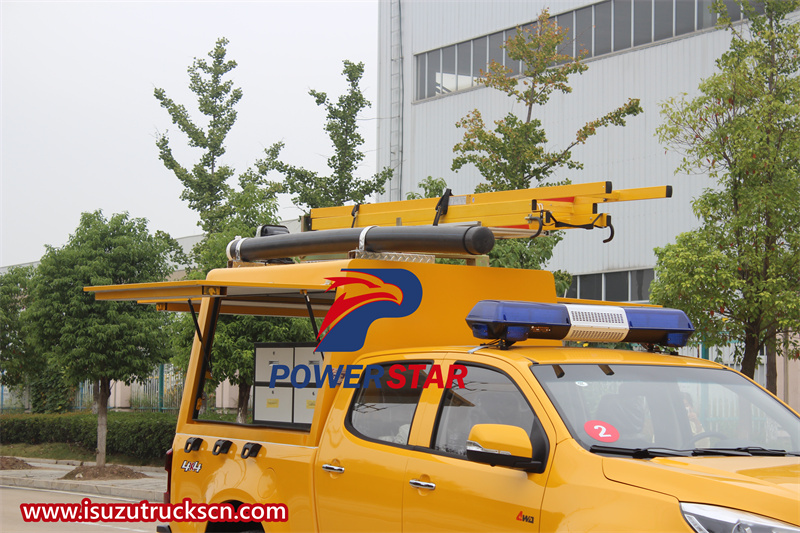

Pillow |
Equipment,at the top of cabin |
|
|
φ125 pipeline |
Equipment,at the top of cabin |
|
|
Ladder |
Equipment,at the top of cabin |
|
|
Handle |
6 pcs,3 pcs on each side of the rear body |
|
|

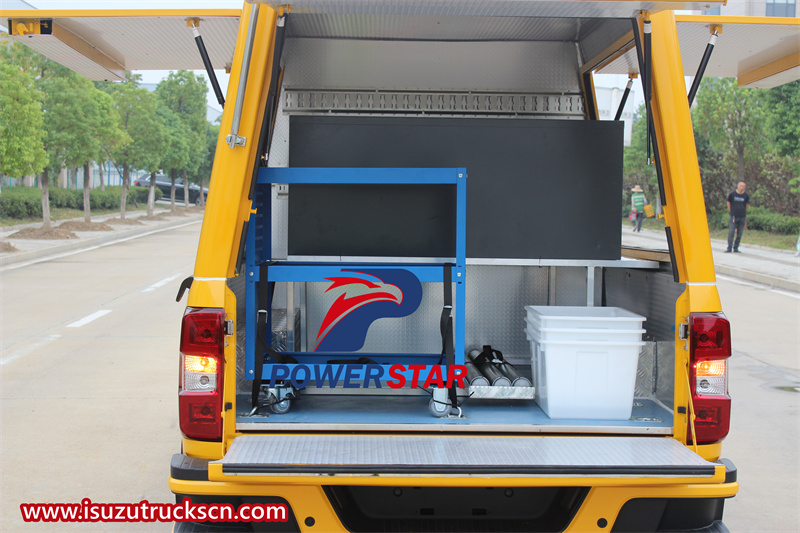

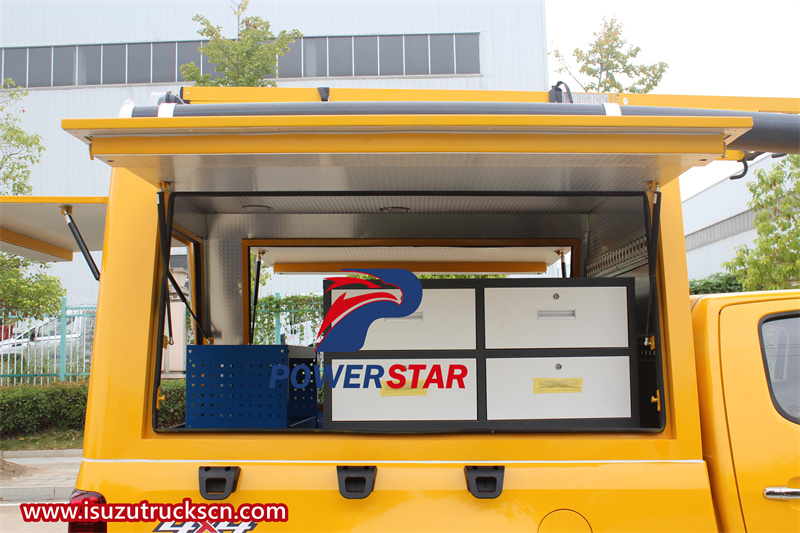

Rear tool box |
Equipment,at the rear of pickup |
|
|
Storage Box |
4 drawer storage box in the tool box |
|
|
Mobile small cart |
Equipment,in the tool box |
|
|

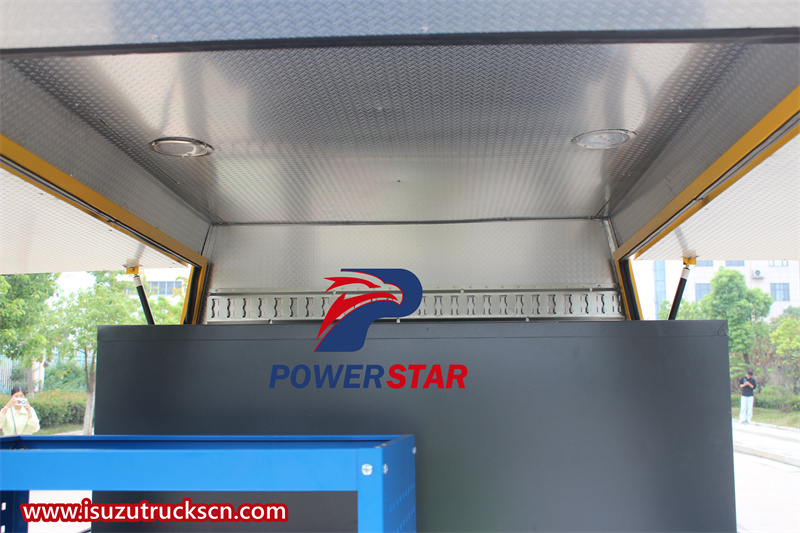

Lighting |
Equipment,Inside the tool box top |
|
Applications
Isuzu 4x4 Pickup Tool Truck is a professional service vehicle that combines high performance, versatility and durability. It adopts an advanced four-wheel drive system and is equipped with a powerful diesel engine. It can easily cope with rugged mountain roads, muddy fields and city streets, ensuring stable driving in various complex environments and quickly arriving at the service site.
Technical drawing of Isuzu 4x4 mobile service pickup

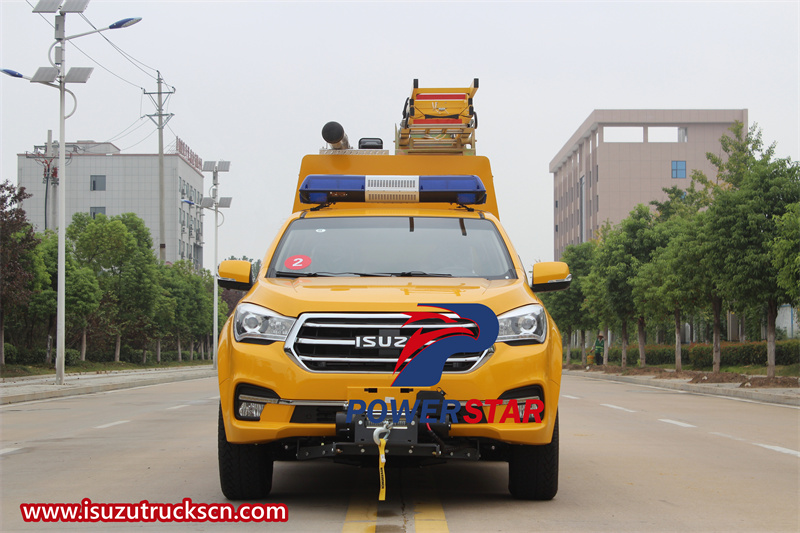

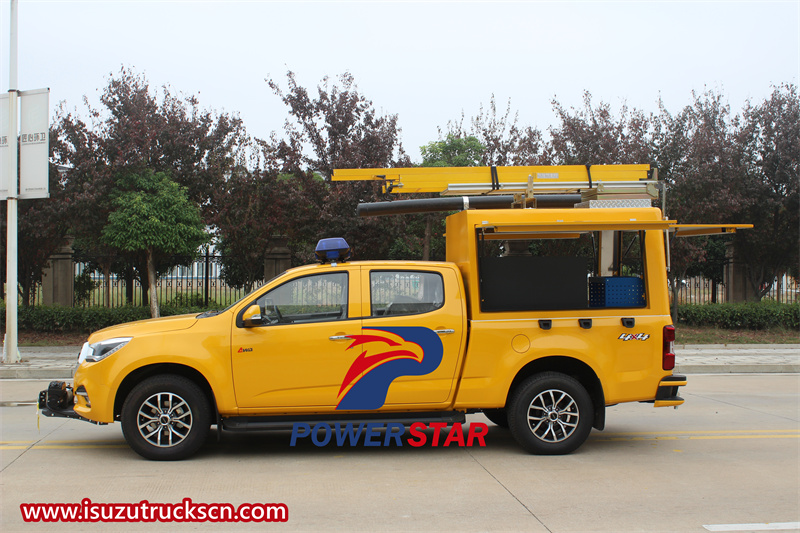

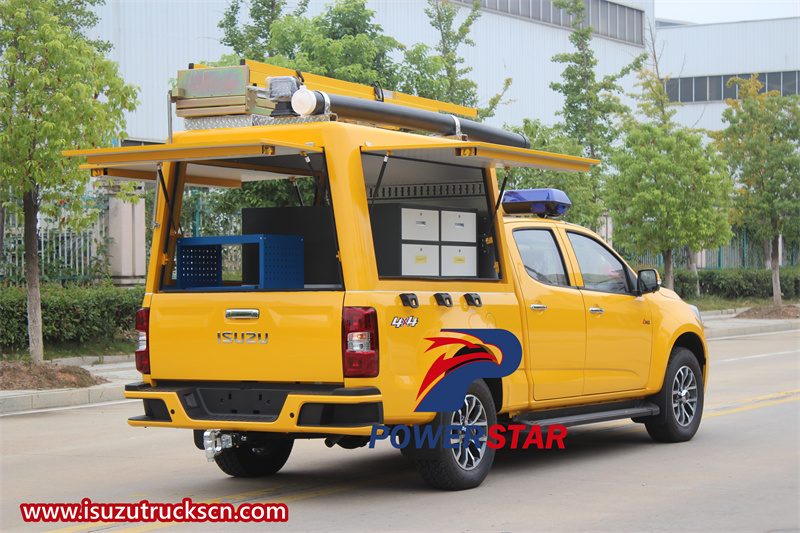

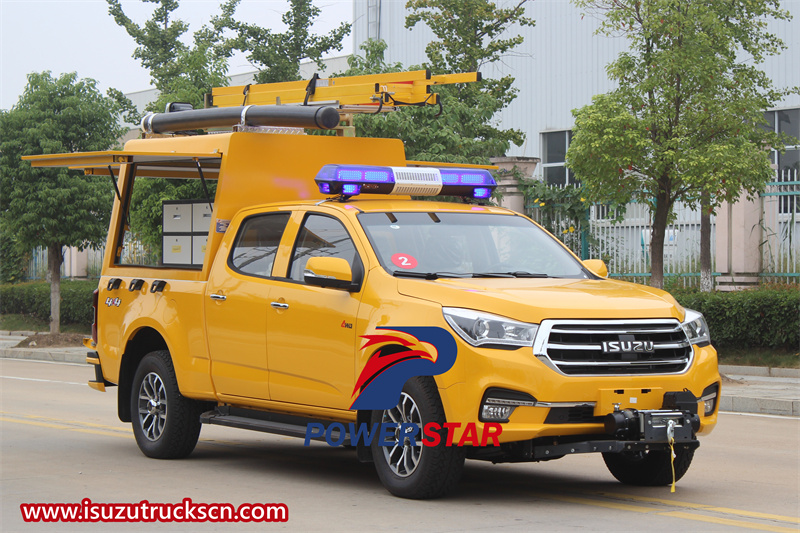

Isuzu 4x4 all wheel drive mobile service pickup
The body design is sturdy and durable, the tool box is spacious and can be flexibly configured with various professional tools and equipment according to needs, making it a real "mobile workstation". The cab is spacious and comfortable, equipped with advanced driving assistance systems and infotainment systems to enhance the driver's control experience and riding comfort.
Isuzu all-wheel drive pickup truck also has excellent fuel economy and environmental performance, ensuring efficient operation during long-term operations and reducing operating costs. Its strong carrying capacity, flexible configuration options and excellent off-road performance make it an ideal choice for power repair, road rescue, field exploration, emergency medical services and other fields.

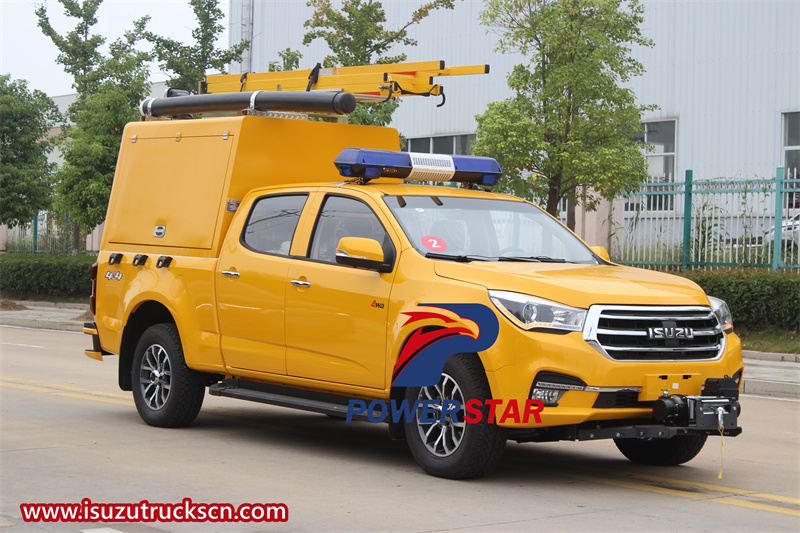

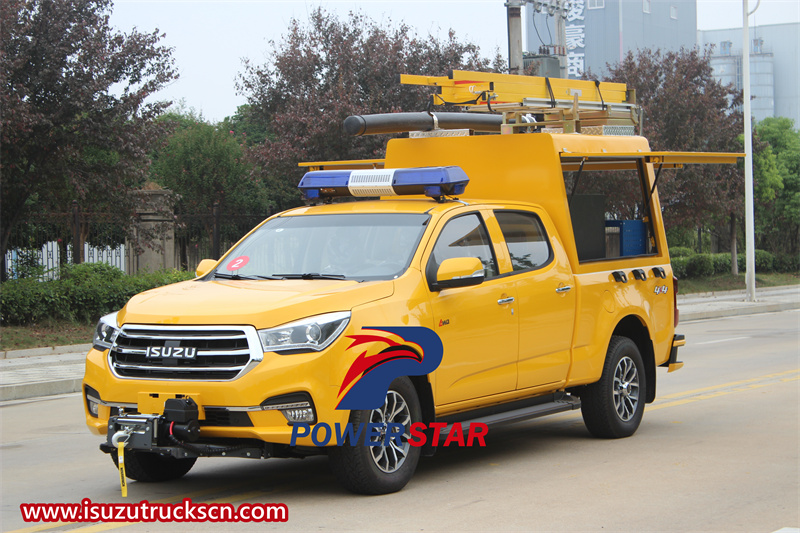

Isuzu 4x4 Pickup Tool Truck

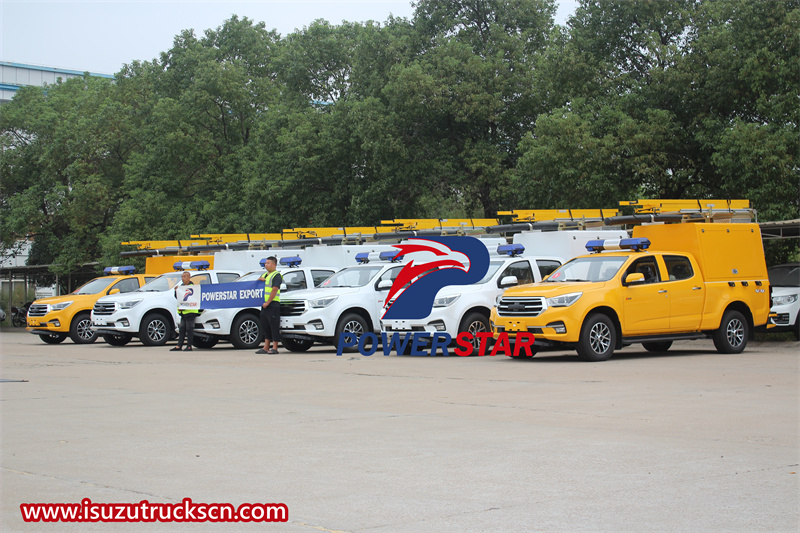

6 units Isuzu 4x4 pickup service truck for export
Appearance design
Isuzu 4x4 Pickup mobil workshop truck adopts tough body lines and wide wheel arch design, showing a strong off-road style. The body is made of high-strength steel, with excellent anti-torsion and anti-collision performance, ensuring safe operation in harsh environments. Its unique cargo box design can flexibly configure various tools and equipment according to different service needs, achieving full coverage from simple maintenance operations to complex technical support.
Power performance
Equipped with an efficient and reliable 4KH1CT6H1 diesel engine, the Isuzu 4x4 pickup tool truck provides ample power output and smooth acceleration, and can easily cope with heavy loads or climbing. With the advanced four-wheel drive system, whether it is muddy country roads, rugged mountain roads or extreme environments, it can show excellent passability and traction, ensuring that the service vehicle can quickly reach any required location.

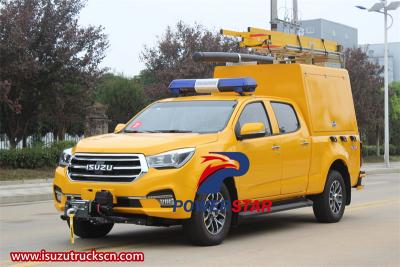

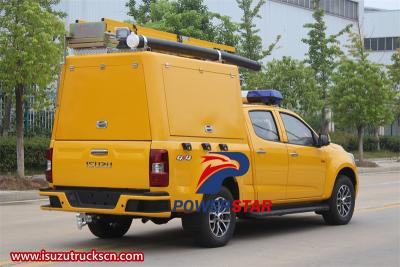

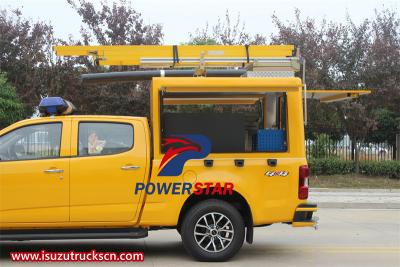

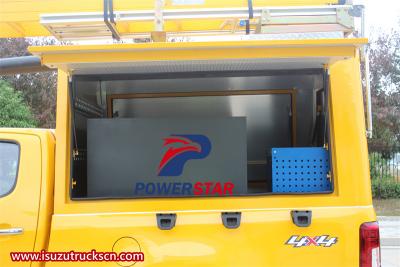

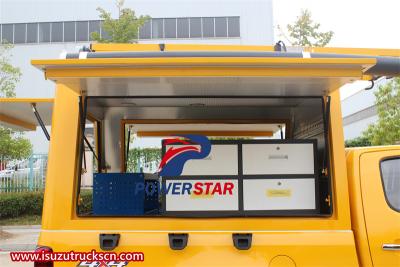

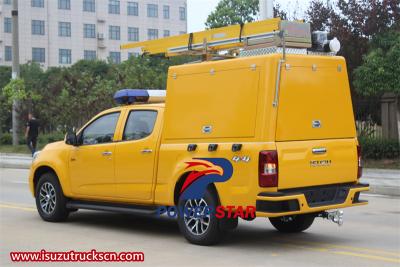

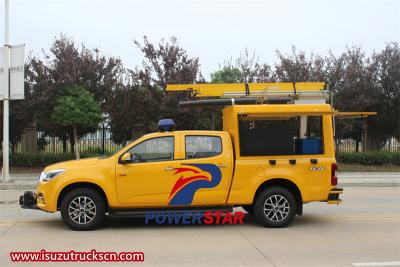

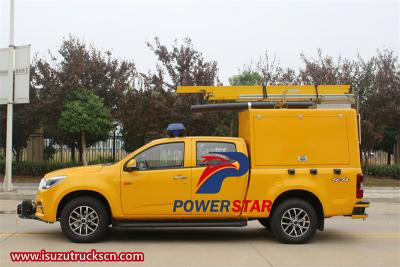

Isuzu workshop service pick up
Interior and comfort
Although it mainly serves outdoor operations, the interior design of the Isuzu 4x4 pickup tool truck also focuses on the comfort experience of drivers and passengers. The ergonomic seats provide good support and wrapping, and can maintain comfort even for long driving. The center console has a clear layout and integrates advanced driver assistance systems and infotainment systems, which is easy to operate and improves driving safety. In addition, the vehicle is equipped with ample storage space for personal belongings and work necessities.
Mobile service function
As a mobile service vehicle, the Isuzu 4x4 pickup tool truck is equipped with a large number of rescue tools such as tool boxes and first aid kits, making it a real "mobile workstation". Whether it is power repair, road rescue, field exploration or emergency medical services, it can respond quickly and provide timely and effective on-site support.

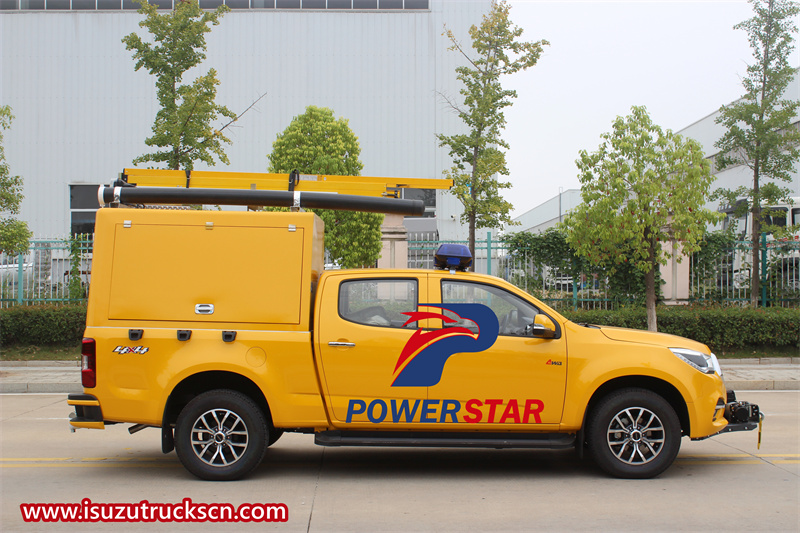

Isuzu 4x4 maintenance pickup vehicle
Isuzu 4x4 pickup mobile service truck has a wide range of applications in many fields due to its versatility, durability and excellent off-road performance. The following are some typical application scenarios of this vehicle in different industries:
1. Power and communication industry
·Power maintenance: When a power failure occurs, Isuzu 4x4 pickup tool truck can quickly arrive at the scene, carrying generators, wires, maintenance tools and other necessities, to carry out emergency repairs and restore power supply.
·Communication base station maintenance: As a means of transportation for communication base station maintenance personnel, the vehicle can carry necessary communication equipment and maintenance tools to ensure that it can arrive and perform maintenance in time when base stations in remote areas fail.
2. Road rescue industry
·Automobile rescue: Isuzu 4x4 pickup service truck can be used as a road rescue vehicle, equipped with tow ropes, jacks, air pumps, maintenance tools and other equipment to provide on-site rescue services for faulty vehicles.
·Emergency accident handling: In the event of a traffic accident or emergency, the vehicle can be used as an on-site command vehicle, carrying emergency equipment such as first aid kits and fire extinguishers to assist rescue personnel in handling the accident scene.
3. Field operations and exploration
·Geological exploration: As a means of transportation for geological exploration personnel, the Isuzu 4x4 pickup tool truck can carry exploration equipment, sample boxes and other necessities, cross complex terrain, and conduct geological exploration operations.
·Field construction: When carrying out road construction, bridge construction and other operations in the field, the vehicle can be used as a means of transportation and a temporary workstation for construction personnel, carrying construction tools, materials and other equipment to provide on-site support.
4. Emergency medical services
·Ambulance: In remote areas or areas with inconvenient transportation, the Isuzu 4x4 pickup tool truck can be converted into an ambulance, carrying medical equipment, emergency medicines and other necessities to provide timely medical assistance to the injured and sick.
·Transport of medical supplies: In emergency situations, the vehicle can be used to transport medical supplies, such as vaccines, blood products, etc., to ensure the timely delivery of medical resources.
Lighting
The Isuzu 4x4 all-wheel drive maintenance vehicle is a vehicle used for emergency service maintenance of trapped vehicles. It is modified based on the Isuzu all-wheel drive pickup truck with a tool room added to the rear. It uses a powerful 4KH1CT6H1 engine with 143 horsepower, is equipped with an Isuzu MSB 5-speed transmission with smooth shifting, and a 76L diesel fuel tank. It can provide long-distance driving and provide protection for service maintenance vehicles. It is widely used in industry, agriculture, construction, transportation and other fields.
