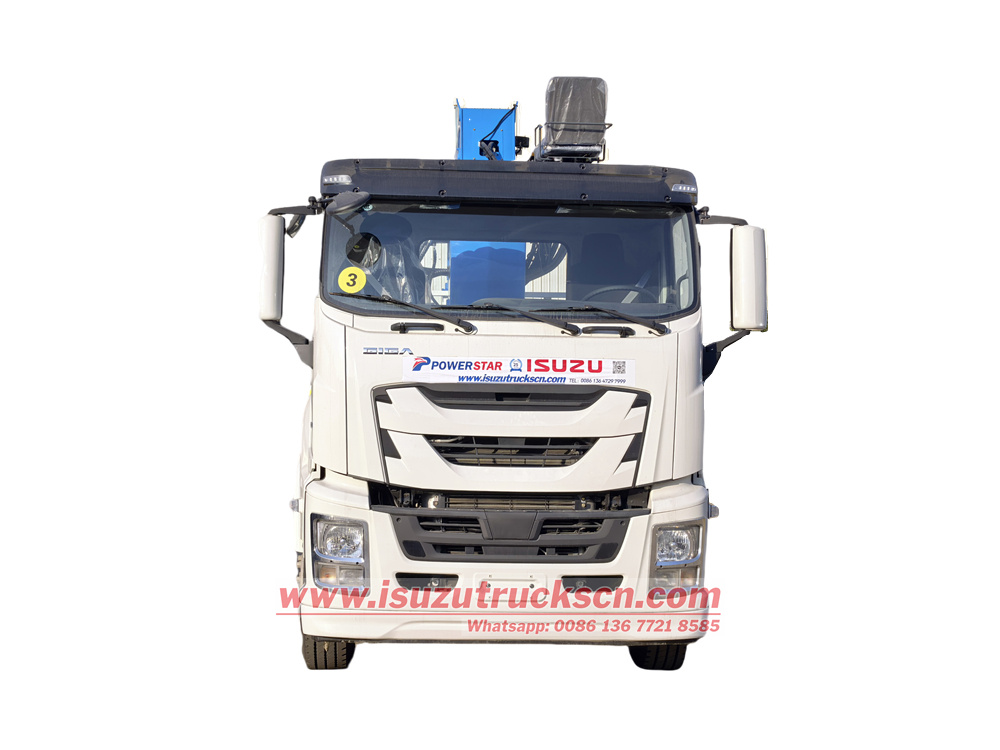

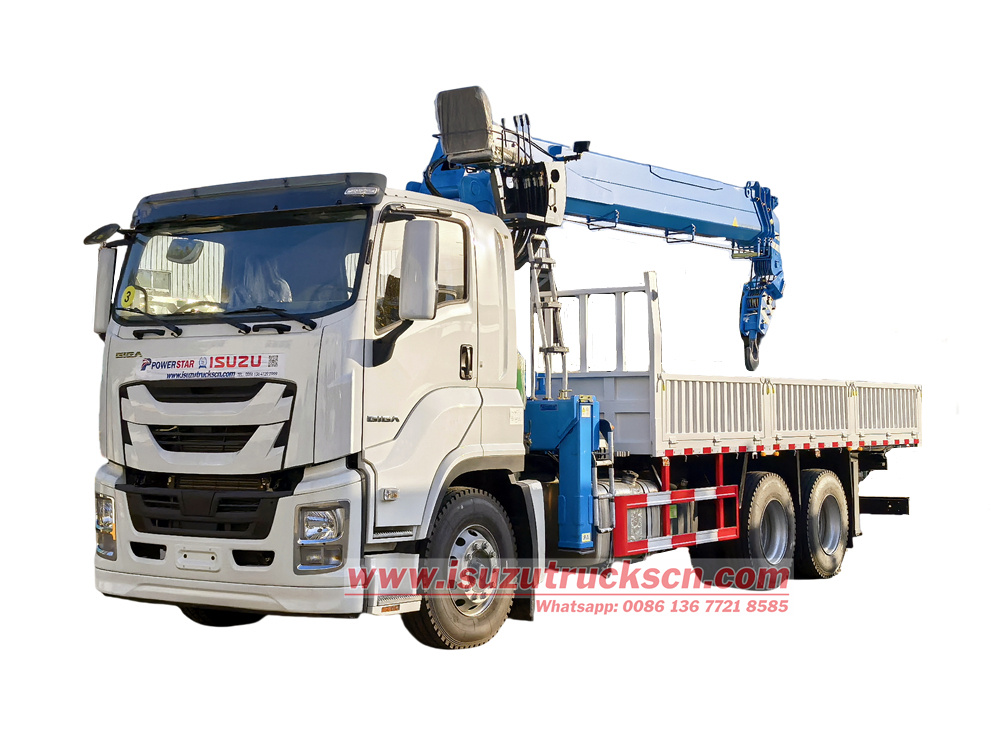

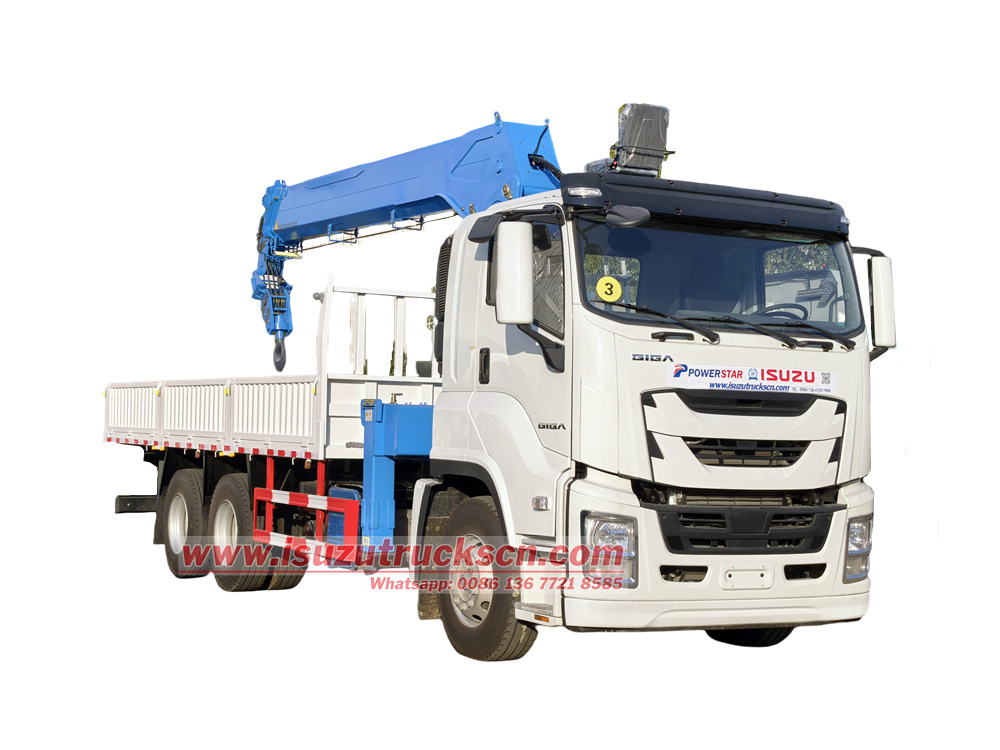

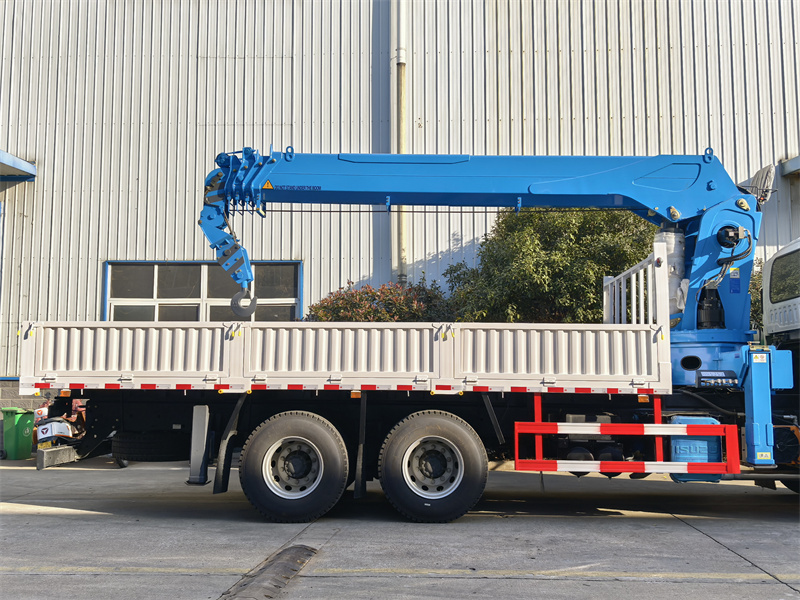

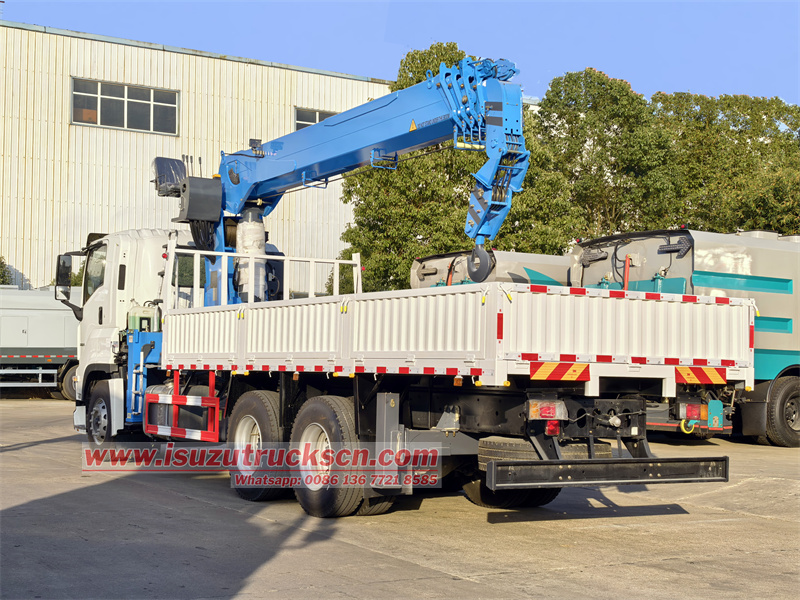

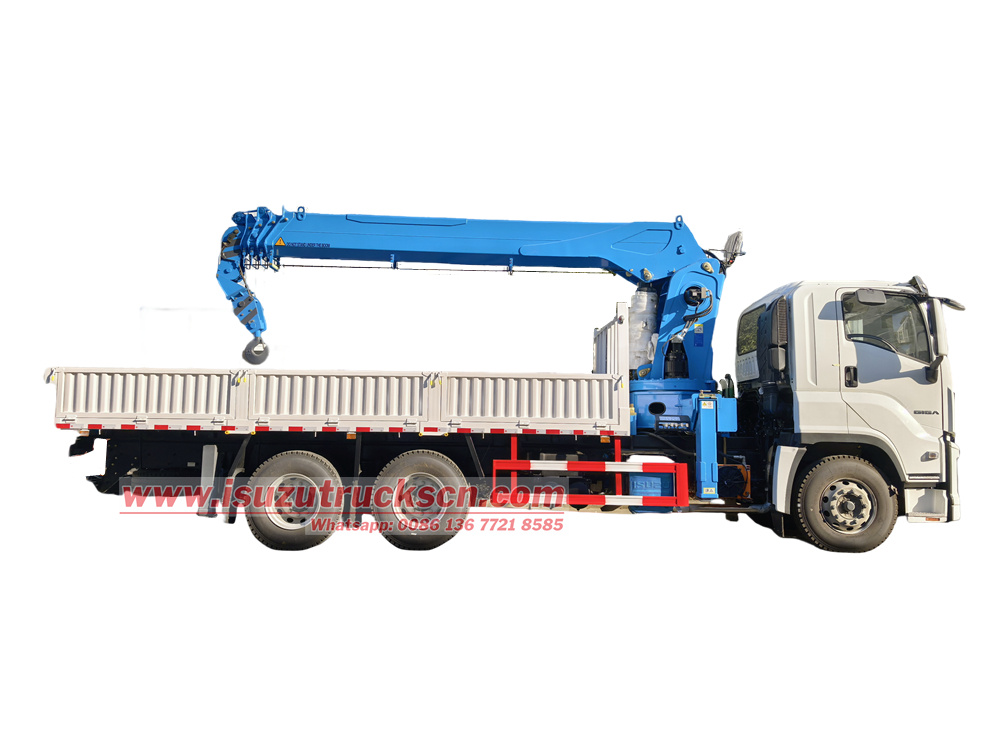

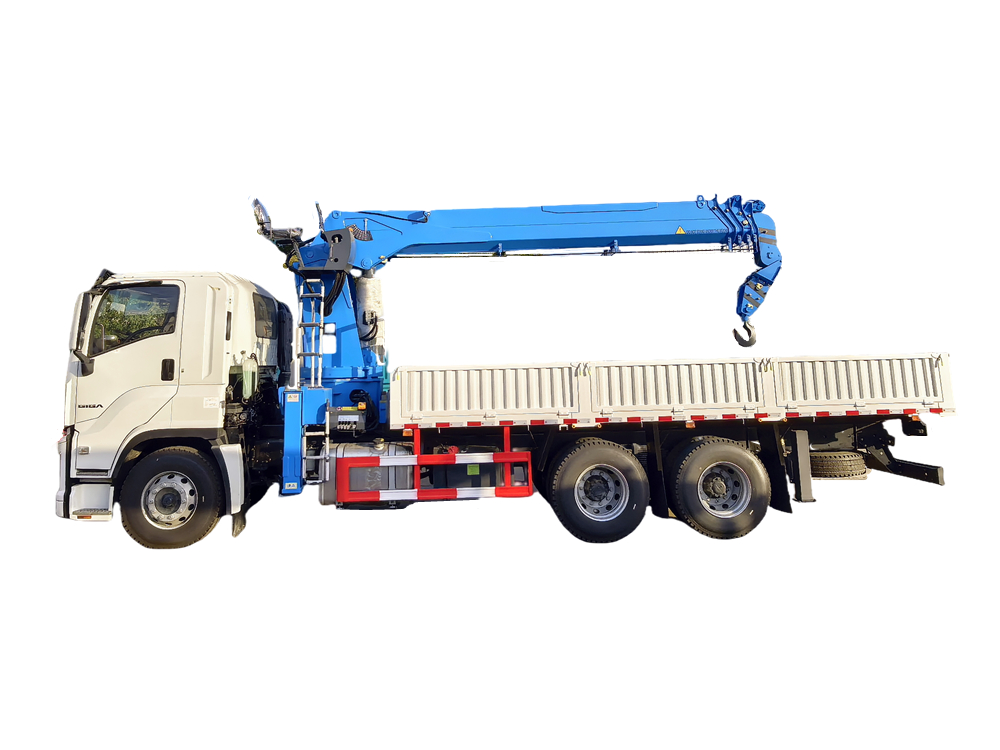

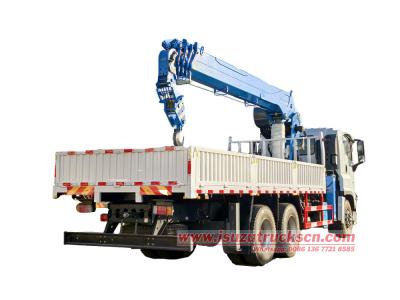

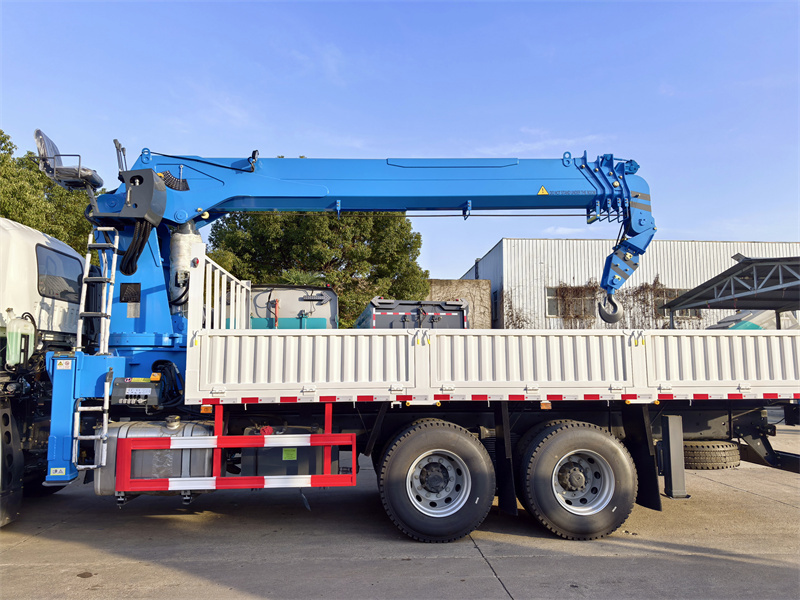

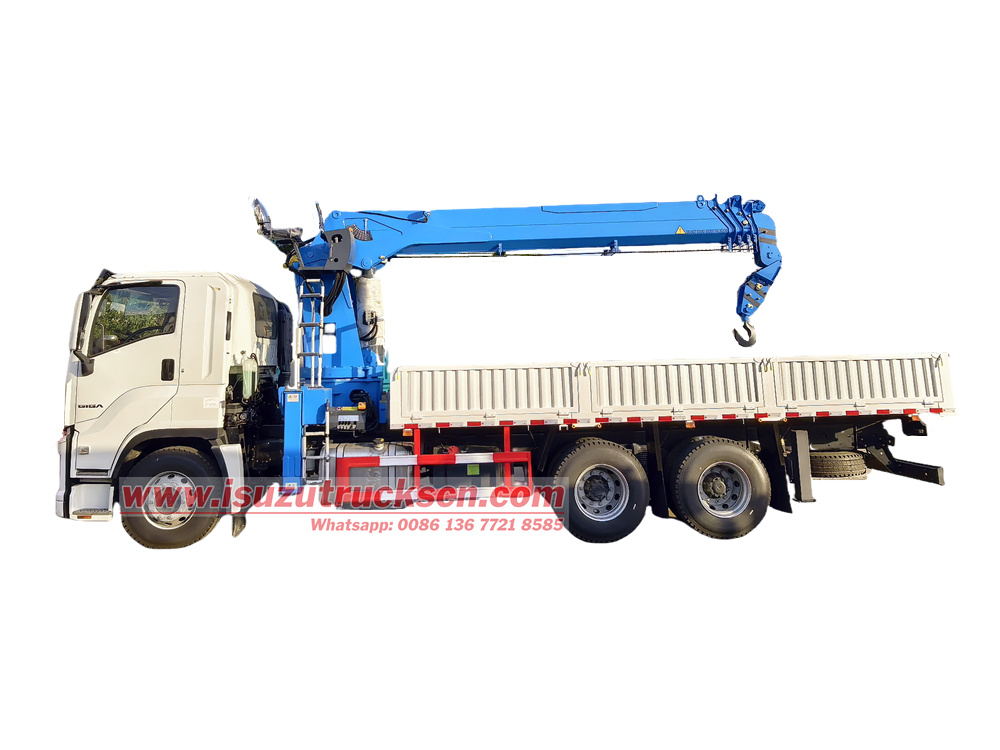

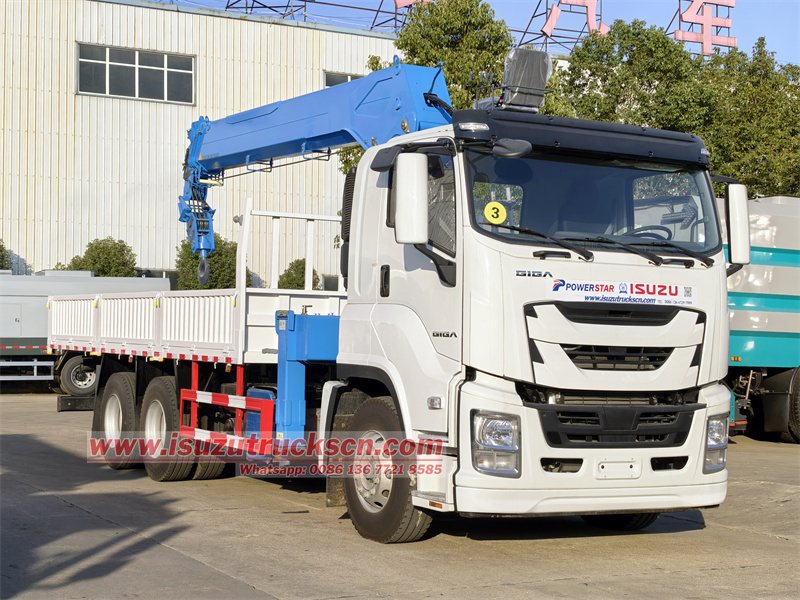

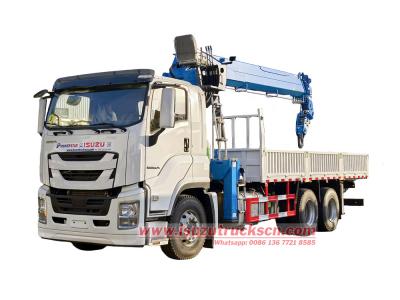

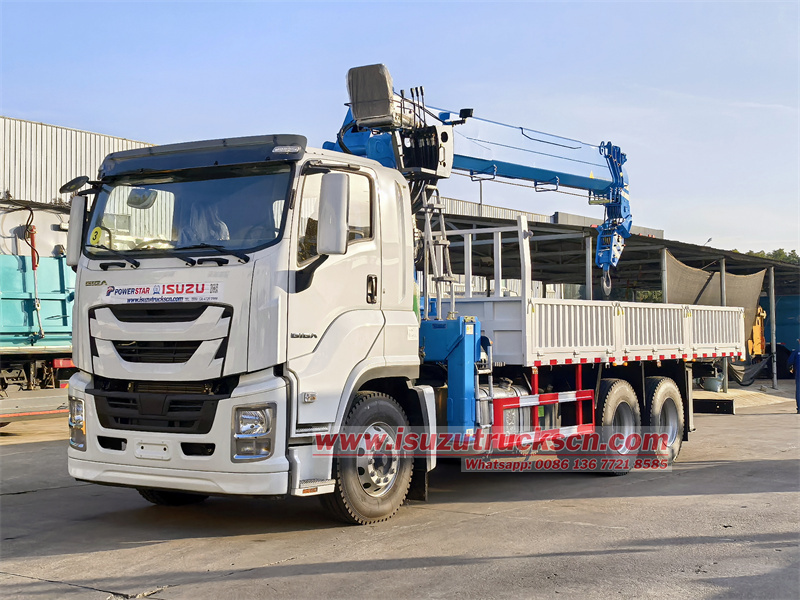

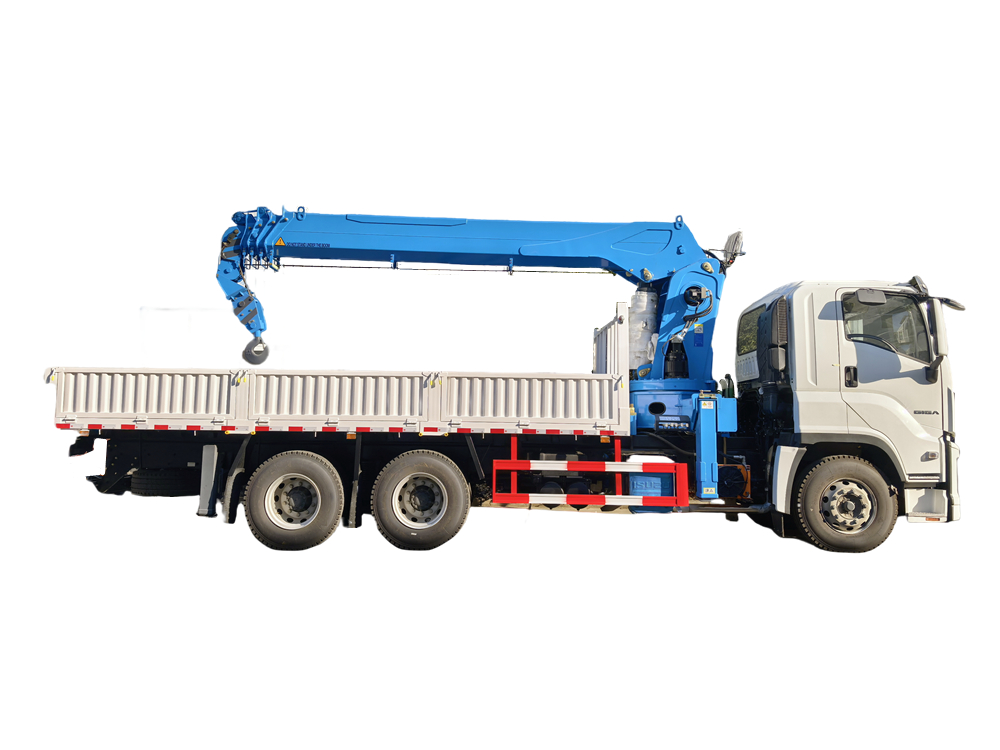

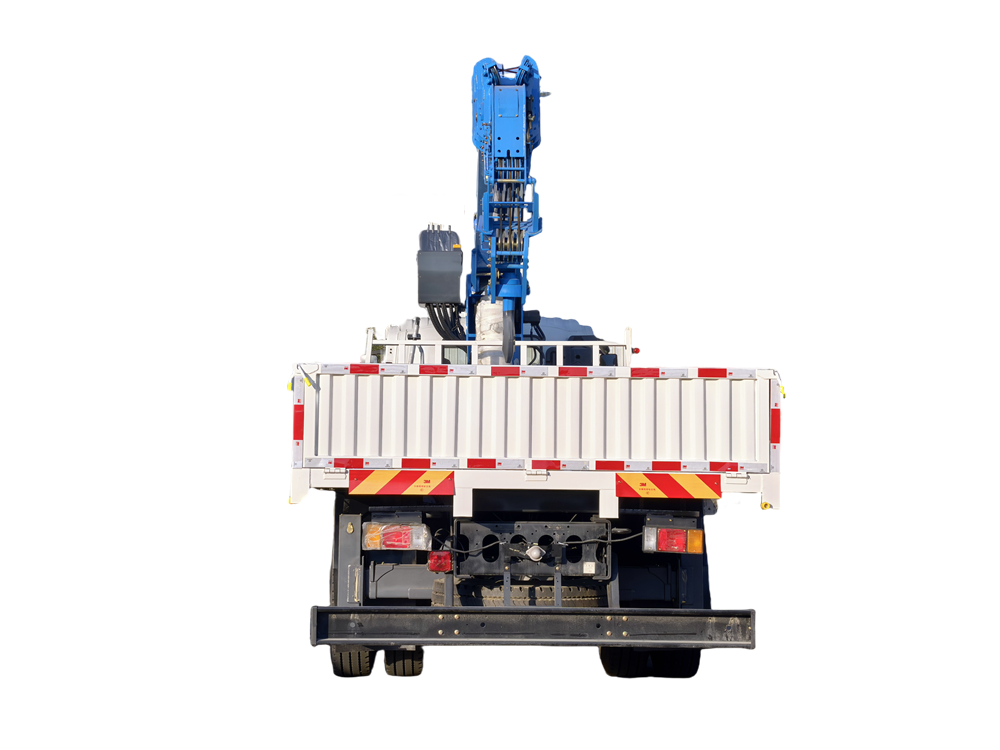

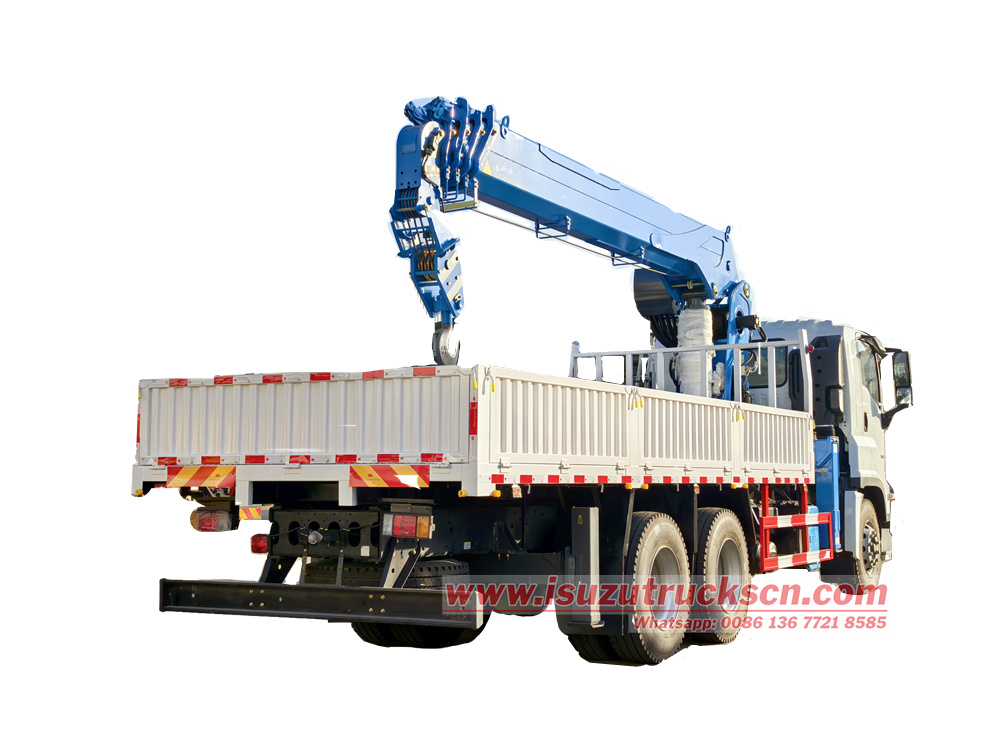

The Isuzu GIGA 14-ton truck-mounted crane adopts an Isuzu GIGA 6x4 cab chassis with a 4600+1370mm wheelbase. It is equipped with an Isuzu 6UZ1-TCG61 engine, a FAST 12-speed transmission, and a 6200x2450x600mm cargo box. It features a 14-ton, 5-section straight boom crane with a maximum lifting height of 19.2m and a maximum working radius of 17.2m. It also includes front and rear outriggers.
Manufacturer:
Powerstar TrucksWork capacity:
14 tonsDimension:
10700 x 2550 x 4070 mmCabin type:
Isuzu GIGA 6x4 cab,with A/CWheelbase:
4600+1370 mmEngine power:
380 HP / 278 kWEngine type:
ISUZU 6UZ1-TCG61Axle drive:
6x4Gear box:
FAST 12-speed,manualRemarks:
XCMG brand,knuckle type crane availableThe Rwanda Isuzu 14Tons lorry loader crane is specifically designed for heavy-duty engineering projects. Its Isuzu 460hp engine and Fast 12-speed transmission form a golden powertrain, providing ample low-speed torque and excellent fuel economy. The superstructure is equipped with a 14-ton 5-section straight boom crane, with a maximum lifting height of 19.2 m and a working radius of 17.2 m, offering flexibility and efficiency. The large cargo box can transport heavy equipment, and the front and rear outriggers have a 6.5m span, ensuring stable and safe operation. This vehicle integrates transportation and lifting functions, making it an ideal choice for engineering construction, logistics, and emergency rescue.
▶ Features:
★ Isuzu GIGA 6x4 type,6UZ1 380HP powerful engine
★ Loading capacity 3.2tons,5tons,8tons,10tons,12tons,14tons,16tons available
★ Stable and simple operation
★ XCMG,PALFINGER,UNIC brand crane available
★ Knuckle type available
▶ Product Parameters:
|
ISUZU GIGA 14tons Boom Crane Truck |
|||
|
General Technical Parameters |
|||
|
Overall Dimension |
10700×2550×4070 mm |
||
|
Gross Vehicle Weight |
25000Kg |
||
|
Curb Weight |
16250Kg |
||
|
Chassis Specification |
|||
|
Chassis Brand |
ISUZU |
||
|
Drive model |
6x4 |
||
|
Cabin |
Isuzu GIGA 6x4 cab,one and half row, with air conditional |
||
|
Number of Passengers |
3 |
||
|
Engine |
Style |
4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR |
|
|
Model |
Isuzu 6UZ1-TCG61 |
||
|
Power |
278KW / 380HP |
||
|
Rated speed |
1800rpm |
||
|
Max torque |
1756 N.m |
||
|
Max torque speed |
1000-1200rpm |
||
|
Emission standard |
EURO 6 |
||
|
Displacement |
9839ml |
||
|
Fuel type |
Diesel,400L |
||
|
Gearbox |
FAST 12-speed,manual |
||
|
Brake System |
Air brake |
||
|
Wheel Base |
4600+1370mm |
||
|
Front/Rear Axle Loading |
7000/18000(2 axles) kg |
||
|
Tire |
12R22.5 18PR |
||
|
Max Driving Speed |
85km/h |
||
|
Upper structure Specification |
|||
|
Cargo Body |
Dimension |
6200x2450x600mm |
|
|
Material |
Q235 carbon steel |
||
|
Cargo Thickness |
Side 4mm, Bottom 5mm |
||
|
Working System |
Boom Type |
Straight 5-Arm telescopic boom |
|
|
Boom model |
SQS350-5 |
||
|
Max lifting moment |
360kN·m |
||
|
Max Lifting Capacity |
14000kg |
||
|
Max lifting height |
19.2m |
||
|
Rotation angle |
360° |
||
|
Installation space |
1100mm |
||
|
Max working radius |
17.2m |
||
|
Crane weight |
6500kg |
||
|
Max oil flow of hydraulic system |
63+50L/min |
||
|
Max pressure of hydraulic system |
28MPa |
||
|
Oil tank capacity |
240L |
||
|
Other Configuration |

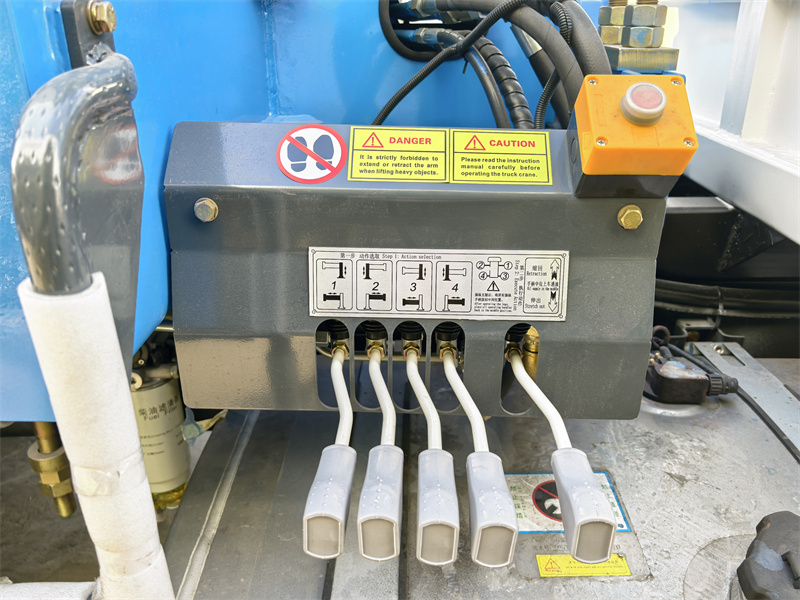

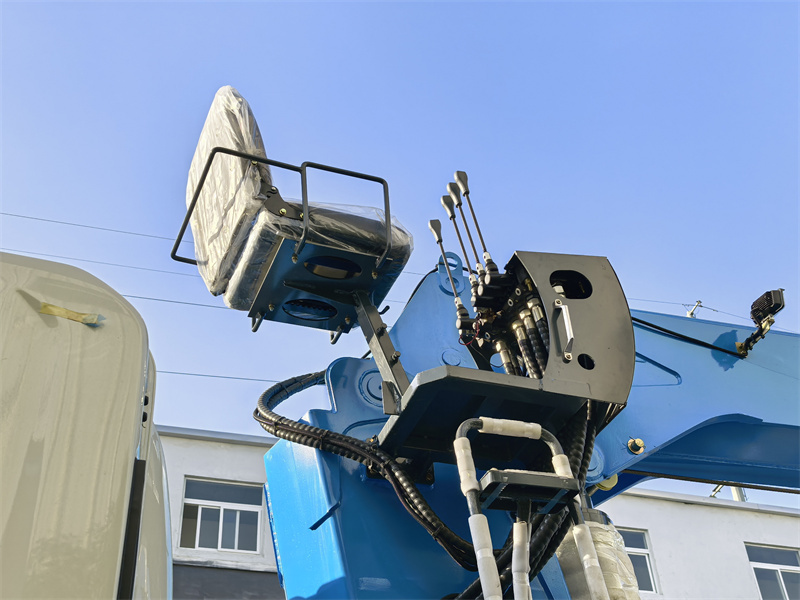

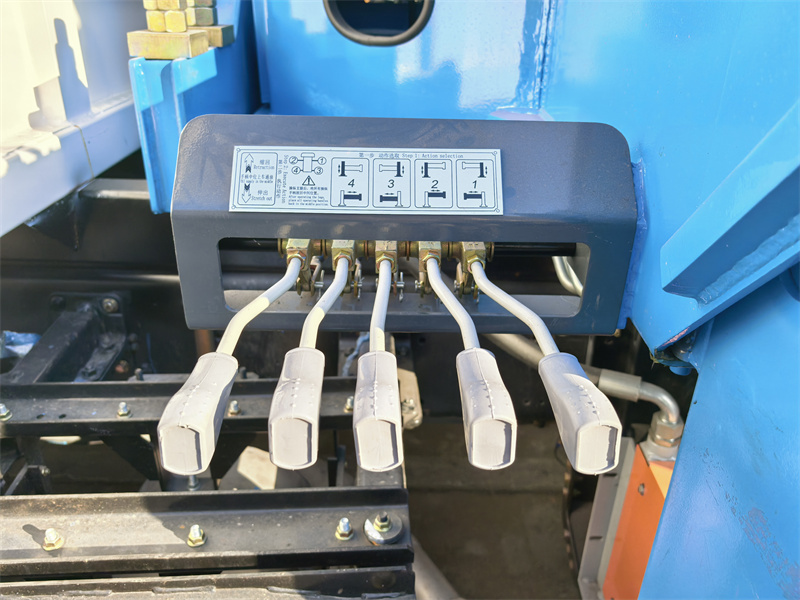

Control system in 2 side; aerial control panel, yellow warning fire; 14T arm, etc. |
||
▶ Chassis System:
• Architecture: Isuzu GIGA 6x4 heavy-duty chassis, 4600+1370mm long wheelbase design, ensuring stable driving.
• Wheelbase: Low center of gravity, adaptable to complex road conditions.
• Engine: Isuzu 6UZ1-TCG61, 12L displacement, 460 horsepower, 2200 N·m torque, strong low-end power.
• Transmission: Fast 12-speed fully synchronized gearbox, first gear ratio 12.1, high gear ratio 0.78, balancing climbing and cruising economy.
• Front and Rear Axles: 7.5t front drum axles, 13-ton double-reduction axles, outstanding driving capability.
▶ Upper Structure Operation Capabilities :

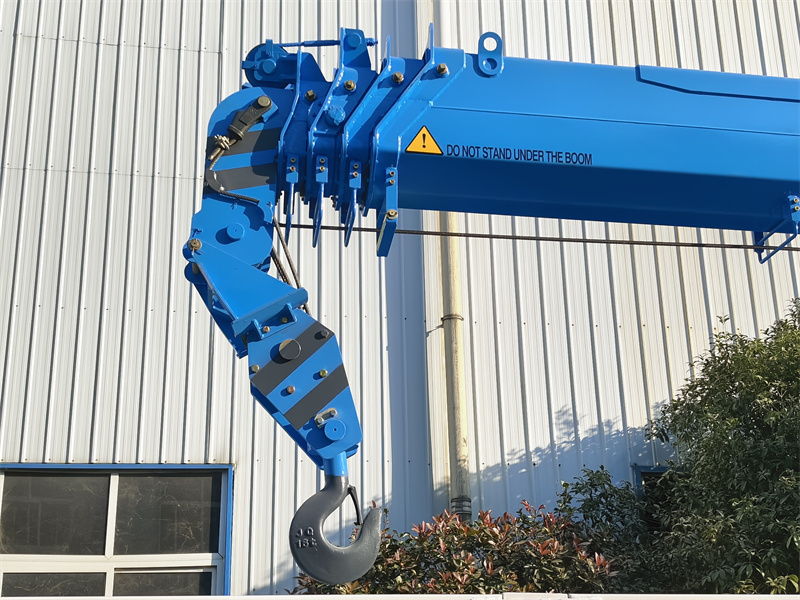

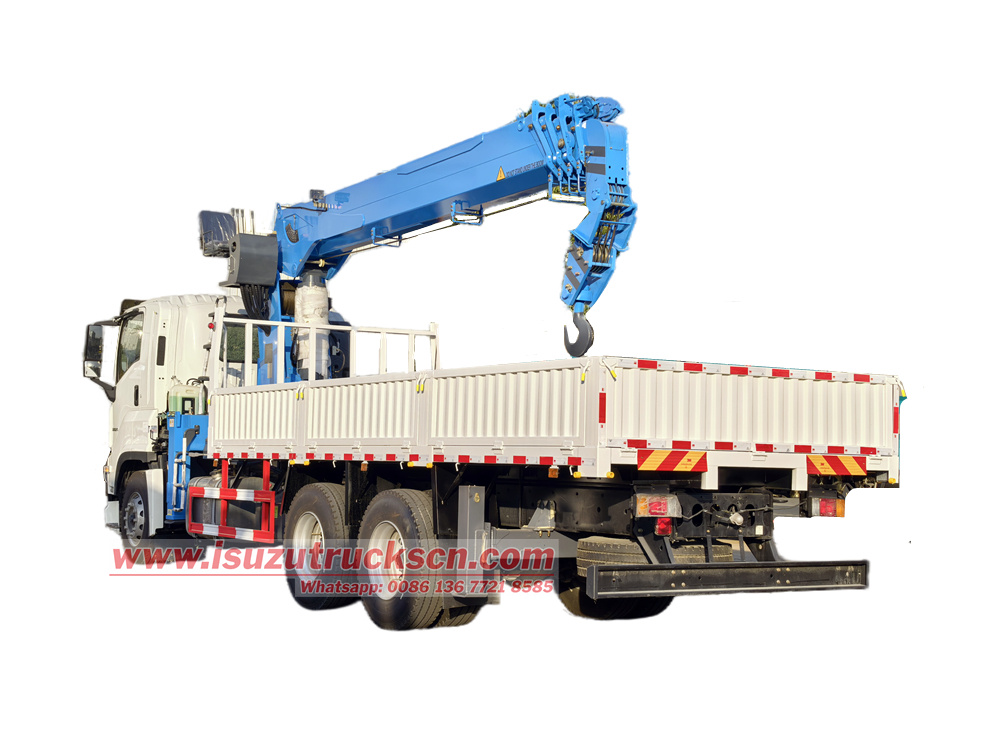

• Truck-Mounted Crane: Equipped with an SQS350-5 14-ton five-section straight boom hydraulic crane.
Maximum Lifting Capacity: 14 tons.
Maximum Lifting Torque: 360 kN·m
Maximum Lifting Height: 19.2 meters (fully extended boom + boom angle).
Maximum Working Radius: 17.2 meters.
• Cargo Box Dimensions: The upper structure cargo box dimensions are 6200 x 2450 x 600 mm, providing approximately 9.1 cubic meters of effective cargo space. While completing lifting tasks, it can carry a large number of tools, materials, or small equipment, achieving integrated lifting and transport.

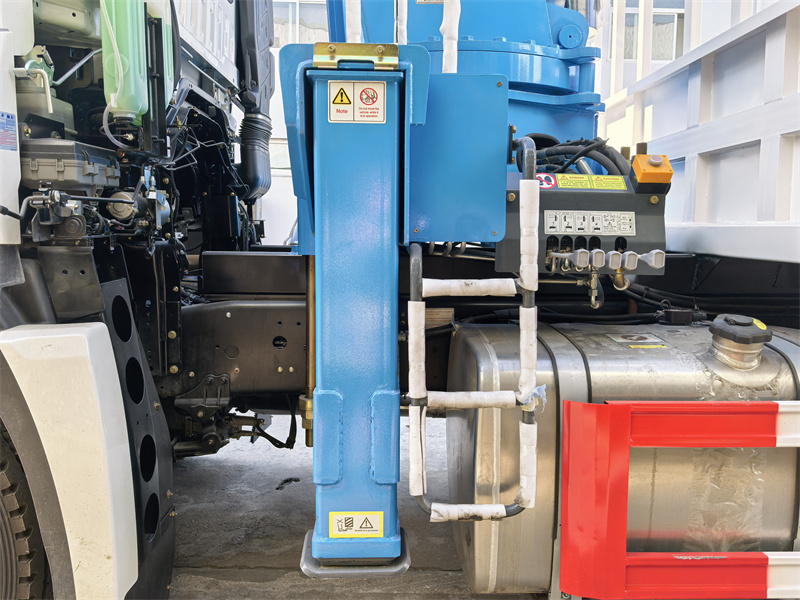

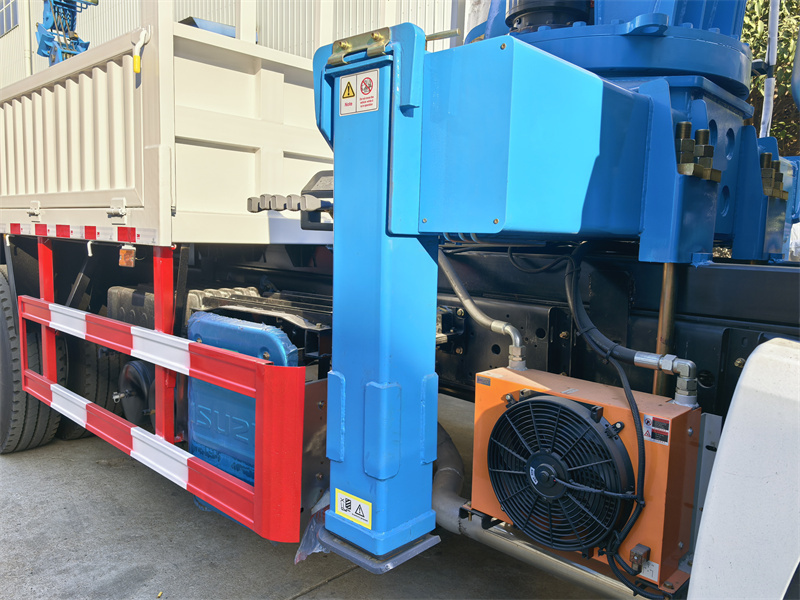

• Safety and Stability System: Equipped with front and rear hydraulic outriggers, which significantly increases the support span during operation, ensuring a stable and safe lifting process and fully utilizing the crane's lifting capacity.
• Safety Design: The crane is equipped with overload protection, emergency braking devices, hydraulic locking function for the outriggers, self-leveling function, and structural limit devices.

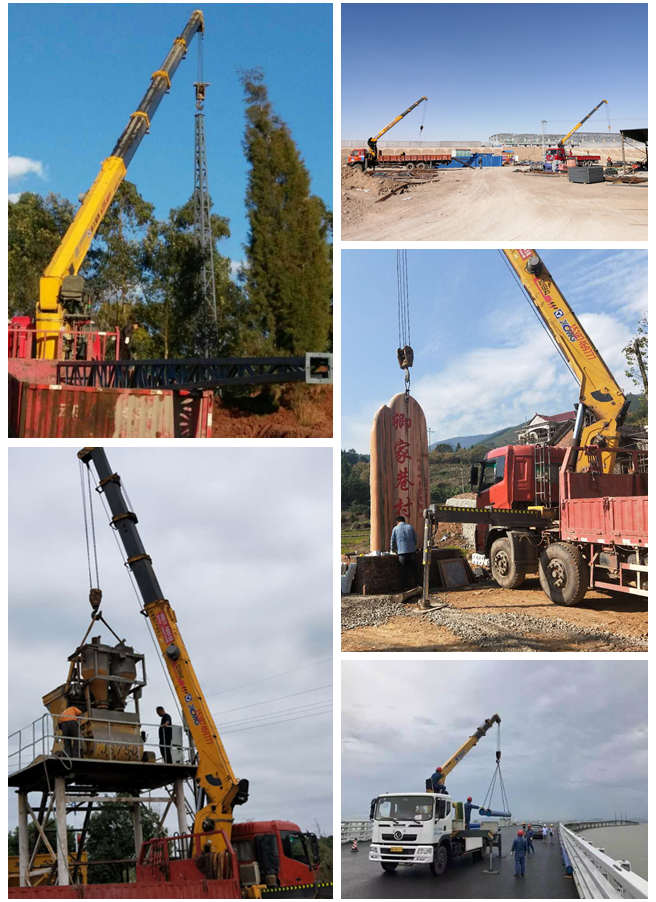

▶ Typical Rwanda Application Scenarios:
• Hoisting and transportation of steel, formwork, and prefabricated components at construction sites.
• Installation and emergency repair of utility poles and transformers for power and municipal departments.
• Loading, unloading, and short-haul transportation of heavy equipment within logistics parks.
• Handling and positioning of large materials within factory workshops.
• Other comprehensive engineering tasks requiring both medium-to-large-scale hoisting and cargo transportation.
▶ Test:
Before the vehicles leave the factory, our factory conducts performance tests, including the lifting, extension, and rotation of the crane and outriggers. We also repeatedly test the smoothness of operation to ensure vehicle quality.
