Custom made 2.1ton Isuzu Transportation Lorry Mounted Crane



2.1ton Isuzu Transportation Lorry Mounted Crane


Description:

Often the delivery urgency of Trucks gets affected in absence or due to delay of supporting loading or unloading equipment. What if the Truck gets its own power of self-loading and unloading? That is why we called Truck Mounted Crane - The Ultimate Loading and Unloading Solution for Trucks



Features:

  Adopt world-class ISUZU Chassis, High power and Fuel efficiency, Reliability, Uptime

  All Structural made of High Strength Steel

  Easy to mount and Minimum space required for Mounting

  Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load

  Optional Chassis 4x2, 6x4,8x4 and engine power

  Optional Crane brand:  XCMG, UNIC, PALFINGER, HIAB

  Optional Crane type:  Telescopic boom crane or knuckled boom crane

  Radio Remote Control Available as an Optional Fitment

  Top Seat Control are optional  (where the Operator Seat is attached to the Main Boom)

  Crane capacity :  2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons



Main specifications:



Model

PT2100

Unit

Max Lifting Capacity

2100

kg

Max Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max Oil Flow of Hydraulic System

20

L/min

Max Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

All Rotation

Crane Weight

875

kg

Installation Space

850

mm

Choice of Chassis

ISUZU All Series (NKR, ELF/700P, FTR, FVR, FVZ, VC46)

HINO and other brand



Lifting capability diagram

Working radius (m)

2.5

3

Lifting capacity (kg)

1800

1000

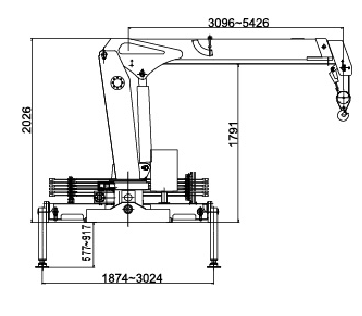

Dimension drawing

2.1ton Isuzu Transportation Lorry Mounted Crane

2.1ton Isuzu Transportation Lorry Mounted Crane

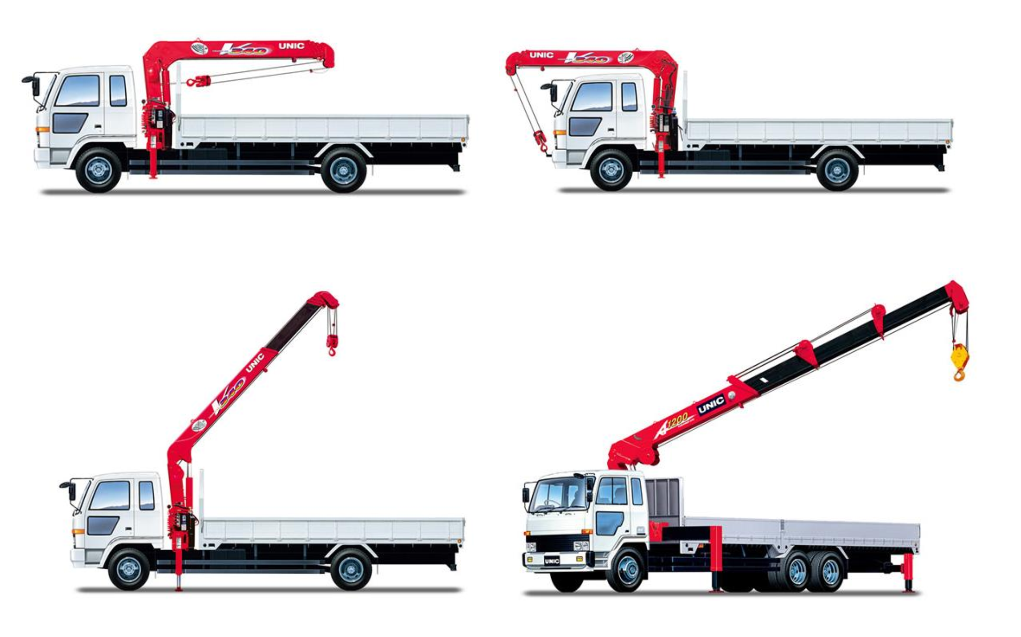

Working

 2.1ton Isuzu Transportation Lorry Mounted Crane

 Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
