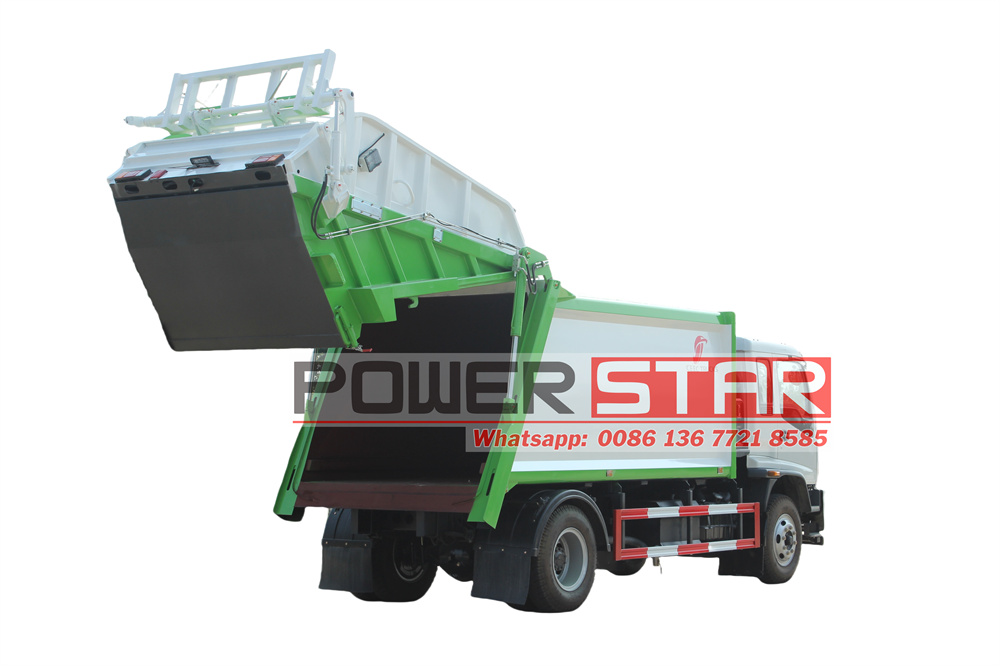

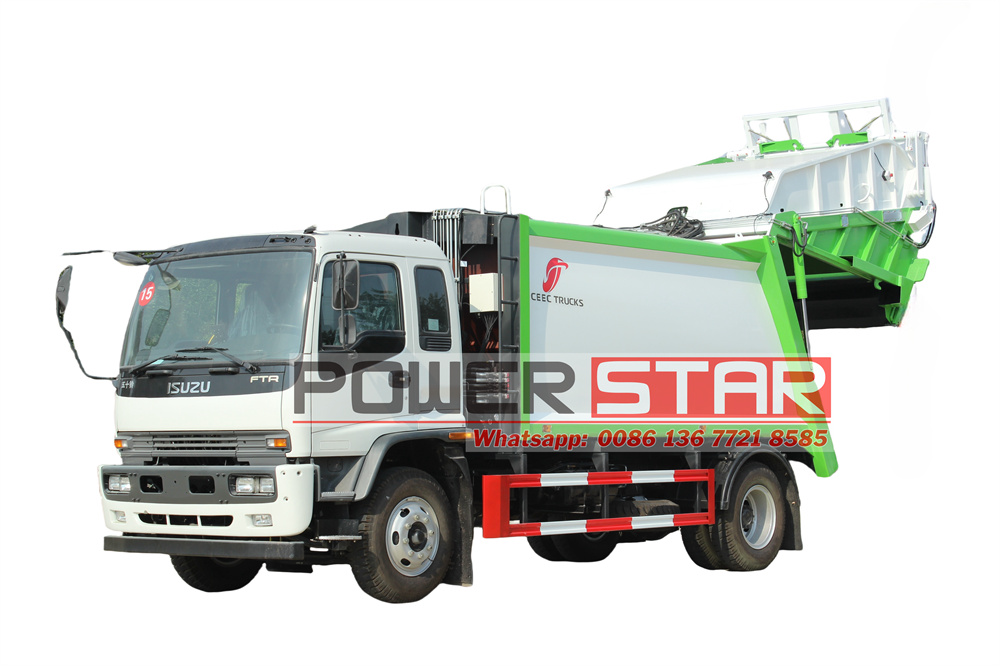

Isuzu FTR mobile garbge compactor truck
Isuzu FTR Mobile Garbage Compactor Truck is engineered for efficient waste management operations, integrating advanced technical specifications to optimize performance. Powered by the robust 4HK1-TCG60 engine, this model delivers 190 hp @ 2,500 rpm and 520 Nm torque @ 1,500 rpm, Isuzu FTR mobile compactor truck's reinforced chassis supports a front axle capacity of 6.3 tons with parabolic leaf springs for improved load distribution, complemented by a 13-ton rear axle equipped with dual-stage suspension
Manufacturer:
Powerstar TrucksWork capacity:
14 cbmDimension:
9600 × 2600 × 3300mmCabin type:
Isuzu FTR cabin，one and half rowWheelbase:
4500mmEngine power:
205 HPEngine type:
Isuzu 4HK1-TCGAxle drive:
4X2Gear box:
MLD 6-shift，manualRemarks:
4X4 drive, RHD drive avaiableIsuzu FTR Mobile Garbage Compactor Truck is a robust waste management solution engineered for urban and industrial applications. Powered by the advanced 4HK1-TCG60 diesel engine, this vehicle delivers a reliable 205 horsepower output, optimized for heavy-duty operations while adhering to stringent emission standards. Equipped with a hydraulic compactor mechanism, the FTR model compresses municipal solid waste to maximize load capacity and minimize collection frequency. The compactor system operates through a PTO (Power Take-Off) unit synchronized with the chassis engine, achieving compression ratios up to 5:1 for enhanced operational efficiency.
Isuzu FTR Mobile Garbage Compactor Truck is a specialized heavy-duty vehicle designed for efficient solid waste management in urban, residential, commercial, and industrial areas. Equipped with Powerstar hydraulic compactor system, it compresses municipal waste to reduce volume by up to 70%, maximizing load capacity.The compactor mechanism utilizes high-pressure hydraulics to compress diverse waste types, including household debris and recyclables
● Authorize isuzu garbage compactor truck factory
● Asia best sanitation truck manufacturer
● Full Germany SIEMENS PLC control
● DUAL CONTROL, automatic & Manual
Key Features:
★ Various size body from 3cbm to 25cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★lmported SlEMENS PLC integrated control high-efficient working
★Diffient rear lifting systerm are optional.
★Can be put into 20",40"container and ship to worldwide
|
Products Technical Specification |
||
|
Type |
ISUZU FTR 14 cbm garbage compactor truck |
|
|
Cab |
Power steering, one bed with air condition,USB,direction assistance, ISUZU FTR cabin |
|
|
Vehicle Description |
||
|
Overall dimensions（mm） |
9600×2600×3300 |
|
|
Curb weight(vehicle) (kg) |
16000 |
|
|
Loading capacity (kg) |
10500 |
|
|
Max speed (Km/h) |
90 |
|
|
Engine |
||
|
Mode |
Isuzu 4HK1-TCG60 |
|
|
Type |
Diesel,6-cylinder in line with water cooling, turbo-charging |
|
|
Max. power |
205HP /150 Kw |
|
|
Max. torque |
647 N.m |
|
|
Displacement |
5193 ml |
|
|
Emission level |
Euro 6 |
|
|
Chassis |
||
|
Wheelbase |
4500 mm |
|
|
Drive type |
4x2,LHD |
|
|
Tire |
295/80R22.5 |
|
|
Gear Box |
MLD 6 shift, 2revers,manual |
|
| Upper body | ||
|
Rear Loader |
Capacity: 14 cbm |
|
|
Sewage tank:100 L |
||
|
Material:Carbon steel |
||
|
Thickness: side 4mm bottom 5mm |
||
|
Compression ratio: ≥1:3.4 |
||
|
Loading cycling time: ≤25s |
||
|

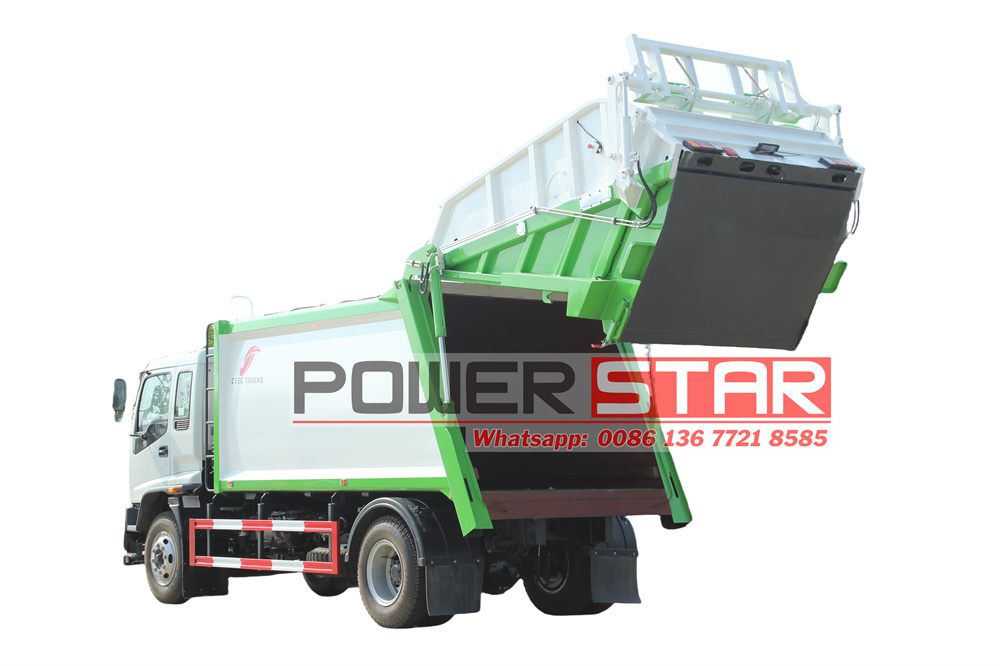

Unloading garbage time: ≤15s |
||
|
With rear and front working light, 4 operating modes, with discharge valve. |
||
|
1.Include garbage carriage,sewage tanker,a packer,scraper,shovel,multi-way reversing valve and hydraulic system. |
||
|
2. With convenient and efficient garbage collection function, high compression ratio, large loading capacity, automatic operation, good sealing. |
||
|
3.The dirty water is come into the sewage tank during compression; the main part is high quality imported parts. |
||
|
Painting |
Metallic paint |
|

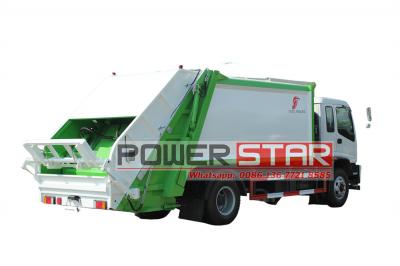

Isuzu GIGA 6x4 25cbm waste compactor truck is a multifunctional and powerful vehicle designed specifically for efficient waste management. The following is a detailed description of its specifications and functions:
Operation control:
Cab electric control box: This electric control box has buttons such as stop&start, PTO, work light, tailgate up/down, loading mode, discharge mode, tailgate clean, shock push/pull, etc., which can control the corresponding operations.
Driver's side manual hydraulic lever: located on the driver's side, it has two operating levers, lifting and shovel, which can control the lifting of the tailgate and the pushing and retracting of the shovel.

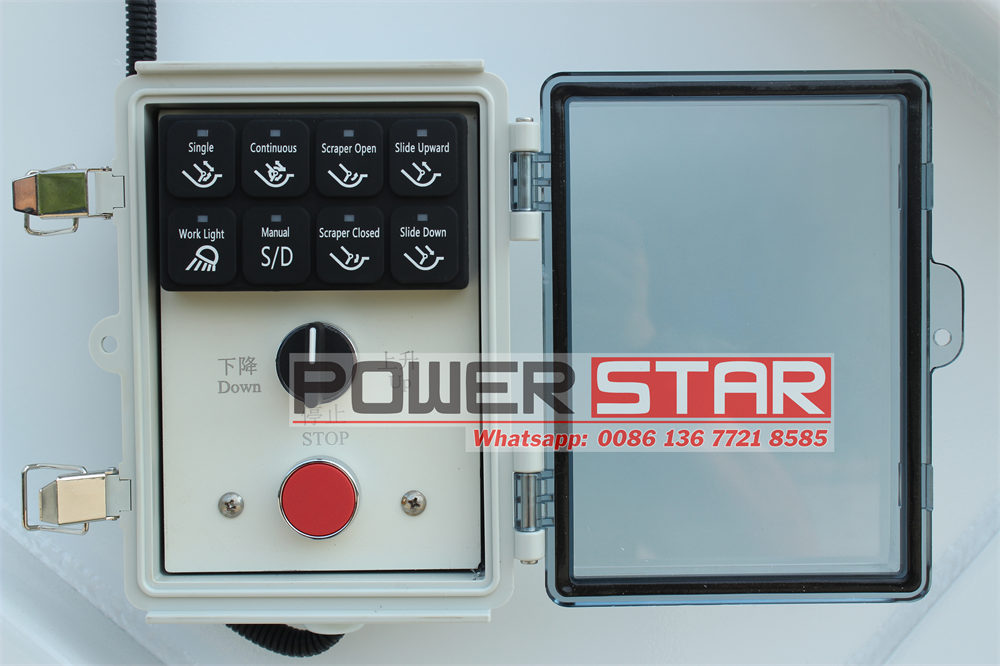

Electric control box on the left side of the tailgate: There is a single cycle on this control box, continuous cucle,scraper open/closed,slide upward/down,manual/automatic,work light,flip machanism up/down,emergency stop Wait for the button to control the compression process.

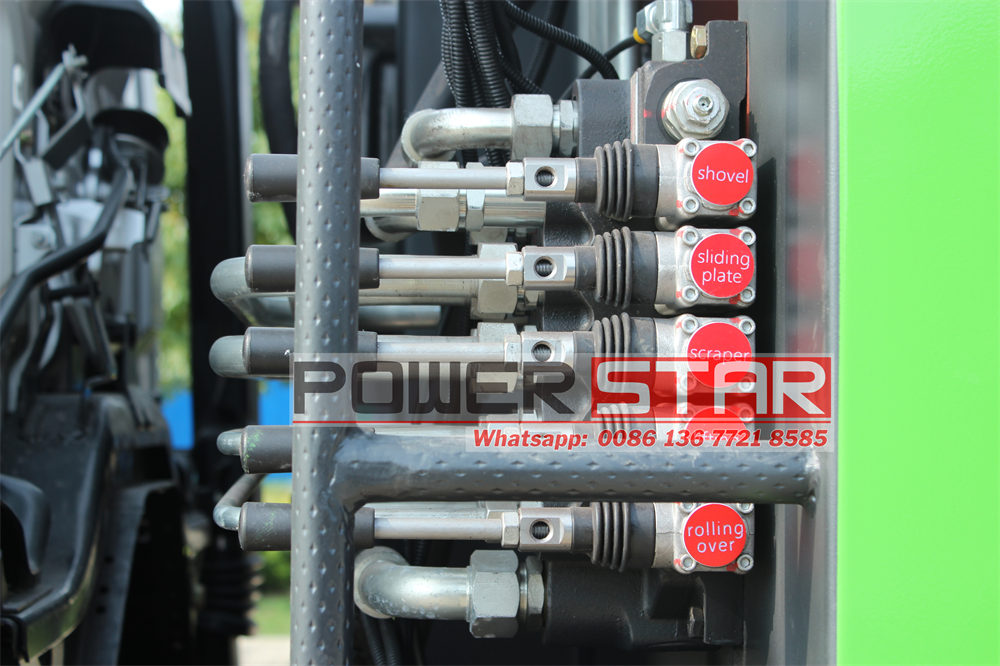

Manual operating lever on the right side of the tailgate: located on the right tailgate, it has three pull rods: rolling over, sliding plate, scraper, etc,
Isuzu FTR Mobile Garbage Compactor Truck serves critical waste management functions across Nigeria's urban and semi-urban landscapes through three primary applications. Firstly, it addresses rapid waste accumulation in metropolitan hubs like Lagos and Abuja by compacting refuse at a 3:1 ratio, enabling efficient transportation of up to 12 tons per trip. This compression capability proves vital in high-density settlements where daily waste generation exceeds 0.5kg per capita according to World Bank metrics, preventing landfill overflow and illegal dumping.
The truck's 12-15 cubic meter compression chamber reduces waste volume by 70%, enabling efficient transportation to designated landfills while minimizing fuel consumption and carbon emissions from multiple trips. This proves vital in cities generating over 14,000 tons of daily waste with limited disposal facilities.
