ISUZU 4WD 6CBM garbage compactor in Philippines
The ISUZU 4×4 6CBM garbage compactor truck is a high-quality product that combines power, efficiency, durability, and intelligence. Its robust power system, efficient garbage compression capability, sturdy body structure, and intelligent control system make it an ideal choice in the field of garbage collection and transportation.
Manufacturer:
Powerstar TrucksWork capacity:
6 CBMDimension:
6500 × 2200 × 2650mmCabin type:
ISUZU 600P single row cab, 2 seatsWheelbase:
3360mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
MSB 5-speed,manualRemarks:

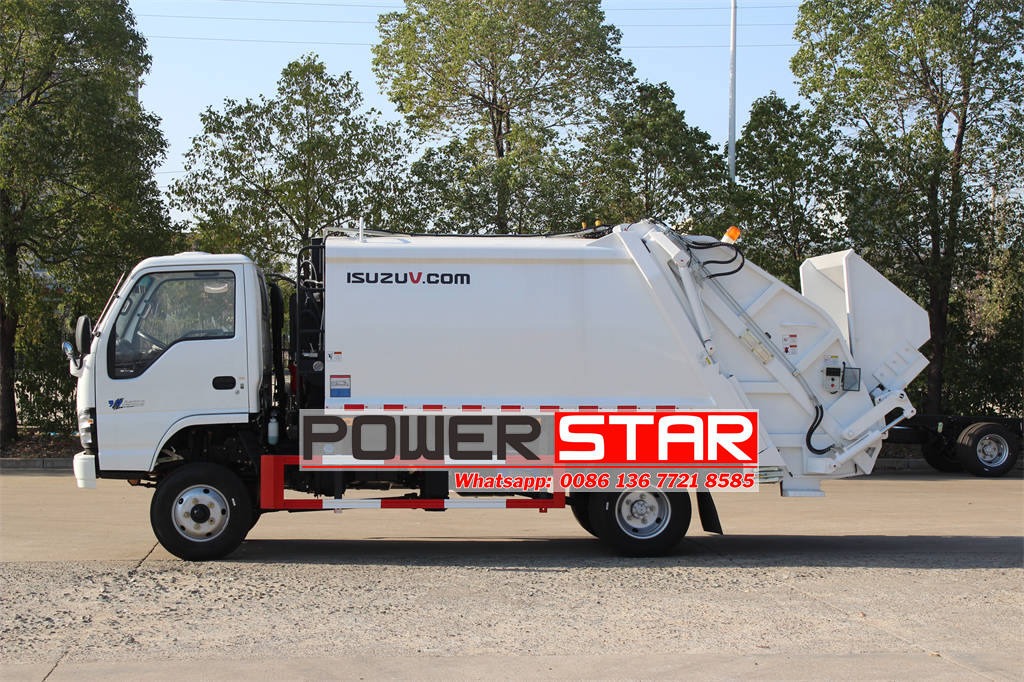

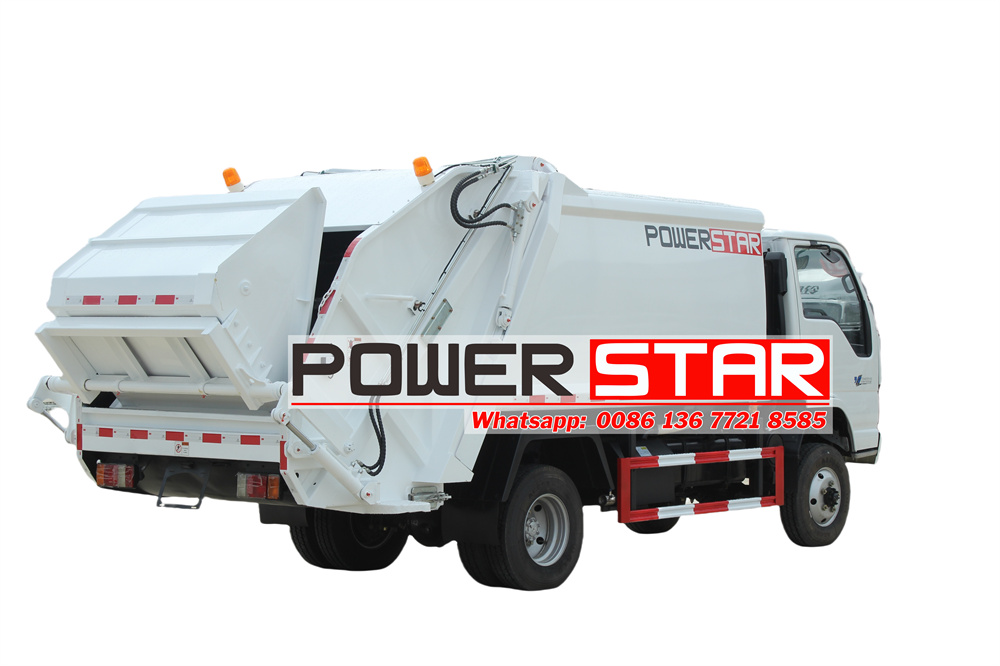

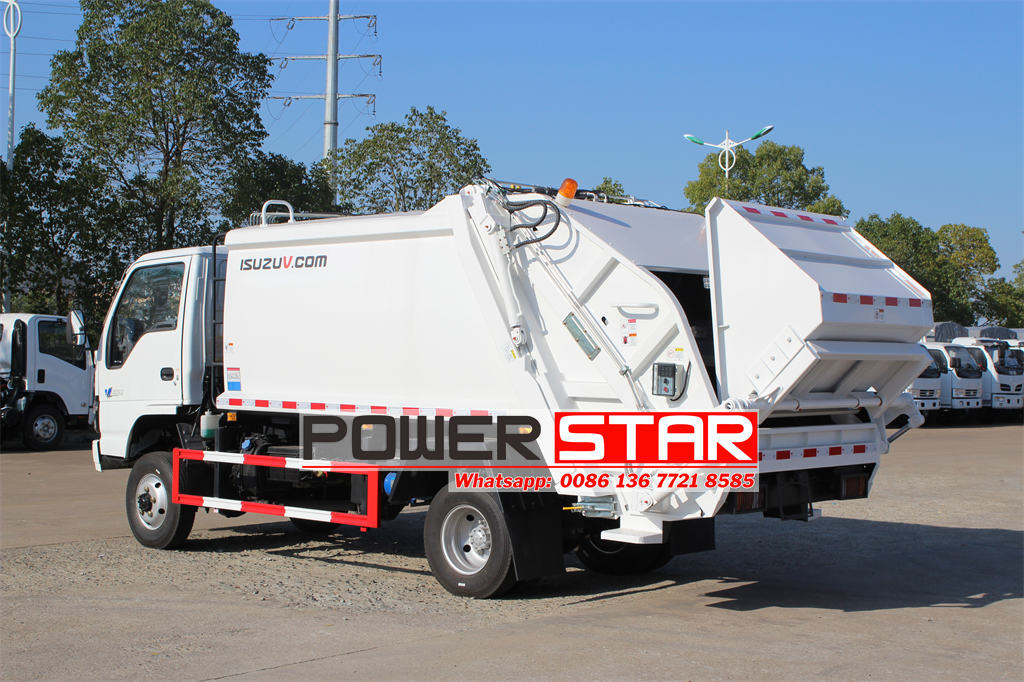

Based on ISUZU 4×4 all wheel drive chassisThe ISUZU 4×4 6CBM garbage rear loader is a high-performance specialized vehicle designed for urban sanitation and garbage collection. It is based on the ISUZU QL1070BUH chassis and equipped with a 4KH1CN6LB engine, providing powerful dynamics and efficient garbage processing capabilities. This vehicle adopts a 4×4 all-wheel drive system, making it suitable for various complex road conditions, especially for operating environments requiring high passability. Its core function is to significantly reduce the volume of garbage through bidirectional compression technology, thereby improving transportation efficiency and reducing operating costs. Whether it's city streets, communities, or industrial parks, this ISUZU 4WD garbage compactor is fully capable of handling heavy garbage collection tasks.
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Promptly delivery, any order is welcome
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality
● Professional sales team which will help you to choose suitable truck
Product Specifications
| Chassis parameters | |||
|
Chassis model |
QL1070BUH |
Chassis brand |
ISUZU |
|

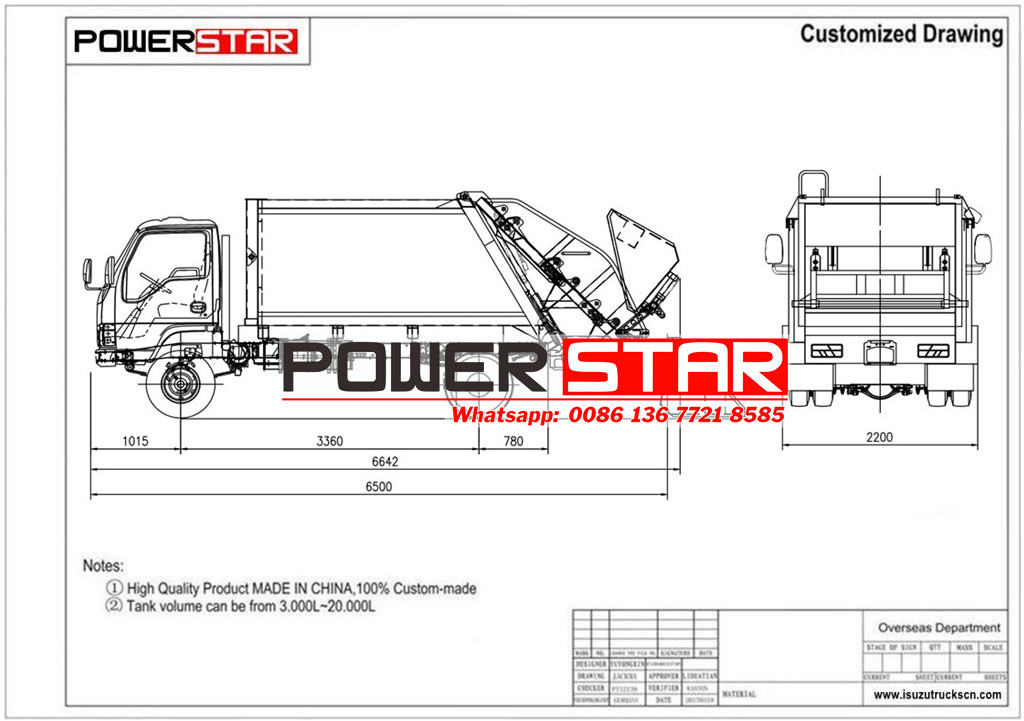

Overall dimensions |
6500×2200×2650mm |
Wheel base |
3360mm |
|
Front/rear wheel track |
1504/1425mm |
Front/rear overhang |
1055/2037mm |
|
Approach/departure angle |
27/13° |
Maximum speed |
80 km/h |
|
Cab |
Configuration |
ISUZU 600P single row cab, 2 seats, with air conditioner |
|
|
Color |
white, other color is optional |
||
|
Engine |
Model |
4KH1CN6LB |
|
|
Emission standard |
Euro 6 |
||
|
Type |
4 cylinders, in-line, 4-stroke, water-cooled, turbocharged, inter-cooling |
||
|
Rated power |
120hp/88kw |
||
|
Displacement |
2999ml |
||
|
Max. torque |
290N·m |
||
|
Bore x stroke |
95.4×104.9mm |
||
|
Tire |
Size |
7.00R16 |
|
|
Number |
6+1 nos |
||
|
Front axle load |
2580 kg |
||
|
Rear axle load |
4720 kg |
||
|
Drive form |
4*4 all wheel drive |
||
|
Transmissions |
ISUZU MSB, manual 5-speed transmission, 5 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Refuse compactor body parameters |
|||
|
Compactor Body |
|||
|
Volume |
6CBM |
||
|
Shape |
arc-shaped |
||
|
Sidewalls material |
T420 special steel (thickness: 4 mm) |
||
|
Floor material |
T420 special steel (thickness: 4 mm) |
||
|

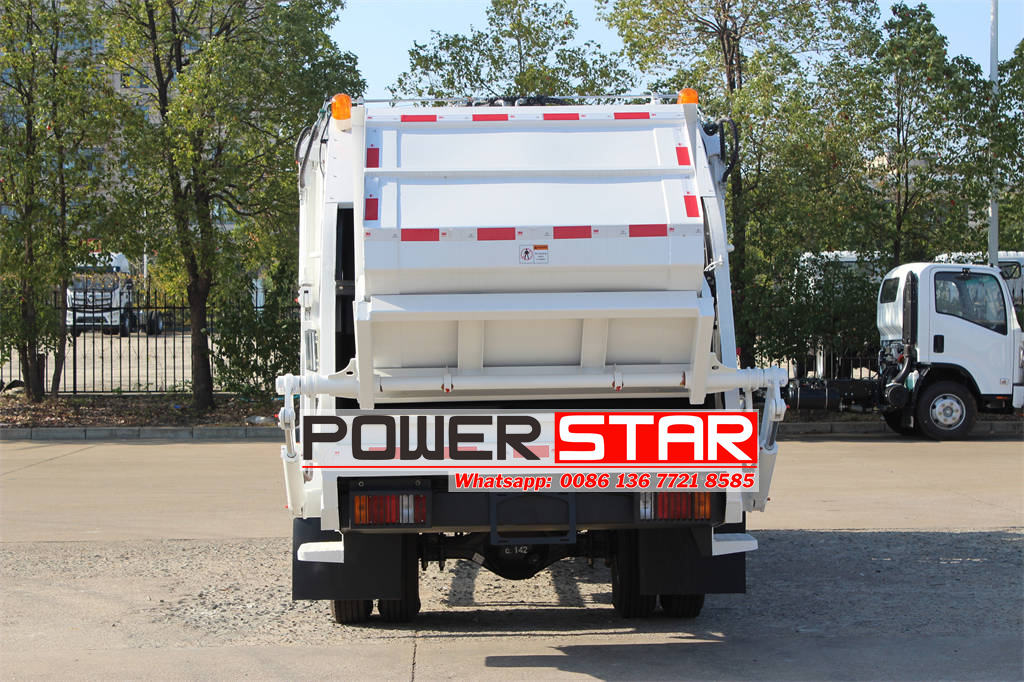

Tailgate |
|||
|
Loading bunker |
All-metal with sidewalls and a loading ladle |
||
|
Volume |
0.8 m3 |
||
|
Sidewalls material |
Sheet carbon steel (thickness: 3 mm) |
||
|
Floor material |
Sheet carbon steel (thickness: 4 mm) |
||
|

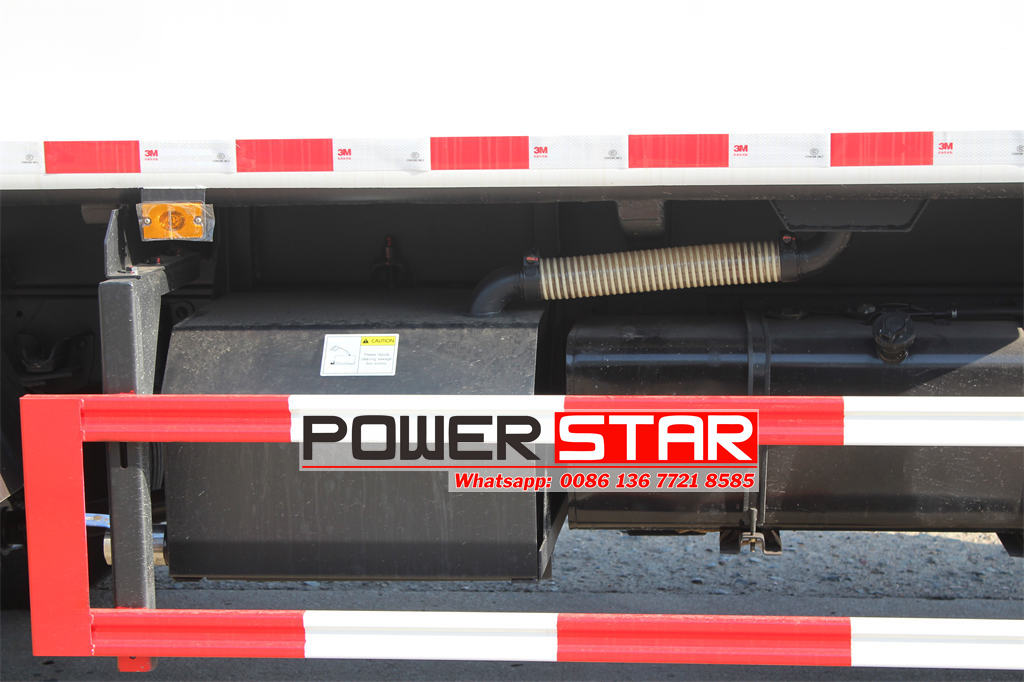

Sewage tank |
100L, carbo steel |
||
|
Working zone Lighting |
2 lamps |
||
|
Mechanism of raising |
Two hydraulic cylinders |
||
|
Compressing system |
|||
|
Features |
Control mode diversification, bidirectional compression |
||
|
Max. pressure |
18 Mpa |
||
|
Compaction ratio |
2.5:1 |
||
|
Loading cycle |
25-30 s |
||
|
Unloading cycle |
≤45 s |
||
|
Pressing mode |
Automatic pressing |
||
|
Control system |
CAN-bus control system |
||
|
Sewage tank |
200L, carbo steel |
||
|
Garbage loading system |
|||
|
Loading mechanism |

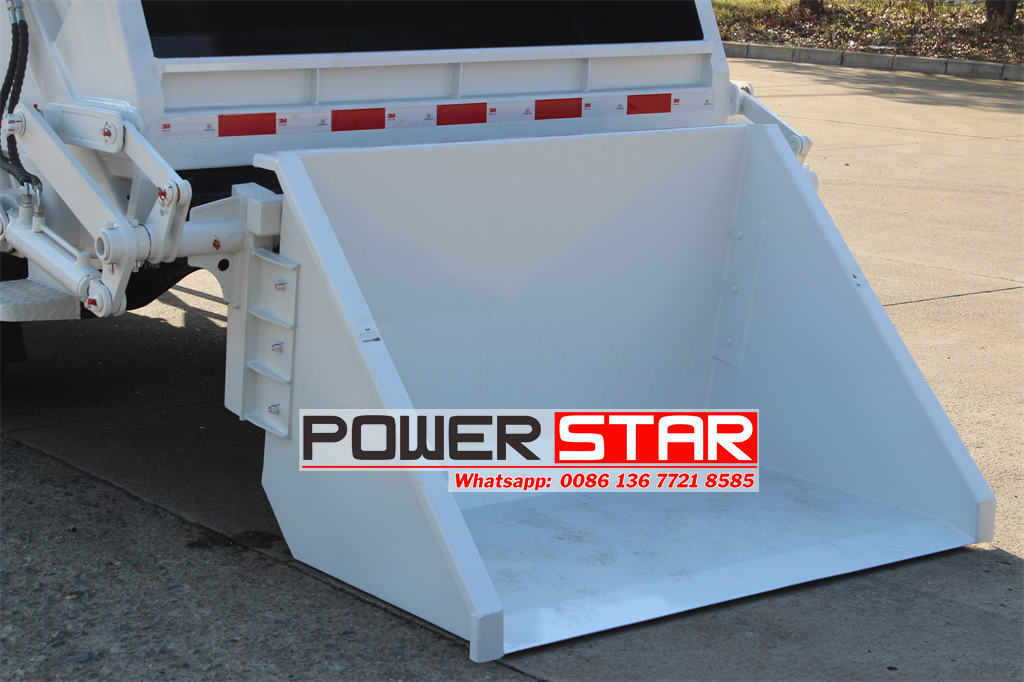

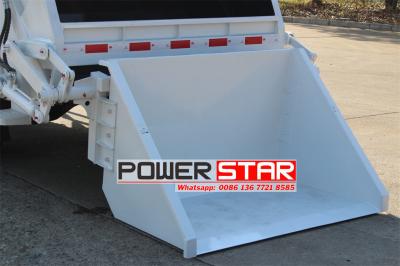

Semi sealed triangular bucket |
||
|
Mechanism of lifting |
Two hydraulic cylinders |
||
Key Performance and Features
① Electro-Hydraulic Combined Control
The control system of this ISUZU 4×4 garbage compactor truck comprehensively utilizes the advantages of both electronic and hydraulic control. By controlling the hydraulic valve group through the electronic control system, it enhances operational reliability and efficiency.
② Sealed Processing to Eliminate Secondary Pollution
During the compression, loading, and transportation of garbage, it remains in a sealed state. The interface between the garbage compactor and the tailgate is equipped with specially designed rubber seals, and a locking device is used for compression sealing. The sewage tank is fitted with a unique drain valve that provides reliable sealing and is resistant to clogging.

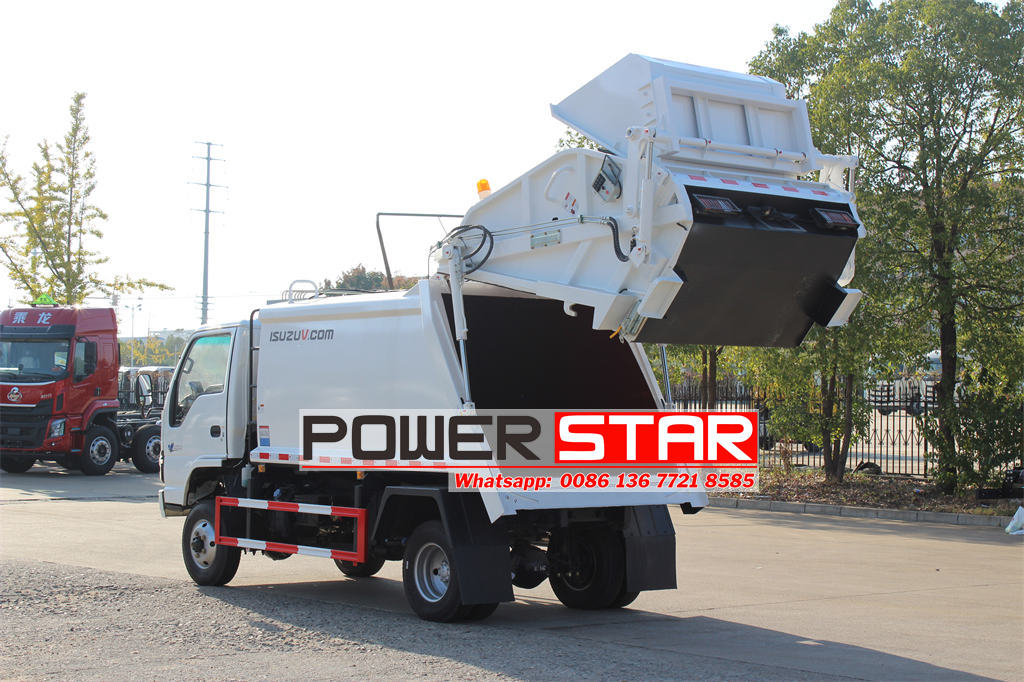

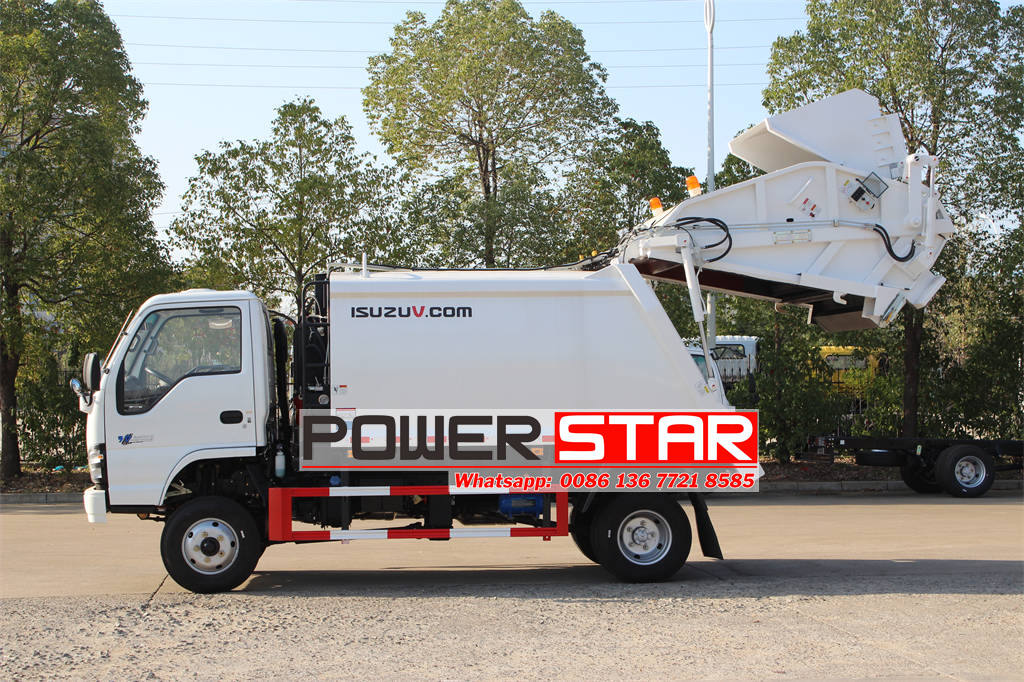

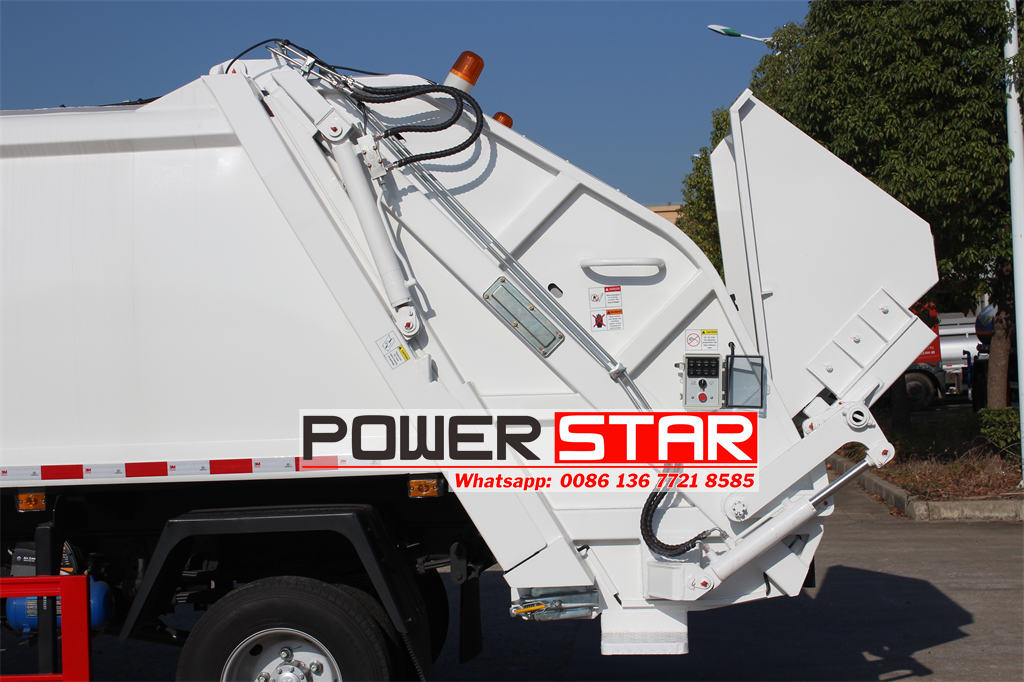

③ Hydraulic Lifting Safety Circuit
In the hydraulic system for lifting the tailgate, a bidirectional balance valve is installed. This valve not only ensures smooth lowering of the tailgate but also disconnects the lifting cylinder from the hydraulic hose directly. Even if the hose bursts, the tailgate will not suddenly fall, enhancing operational safety.

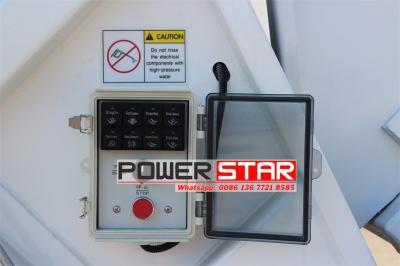

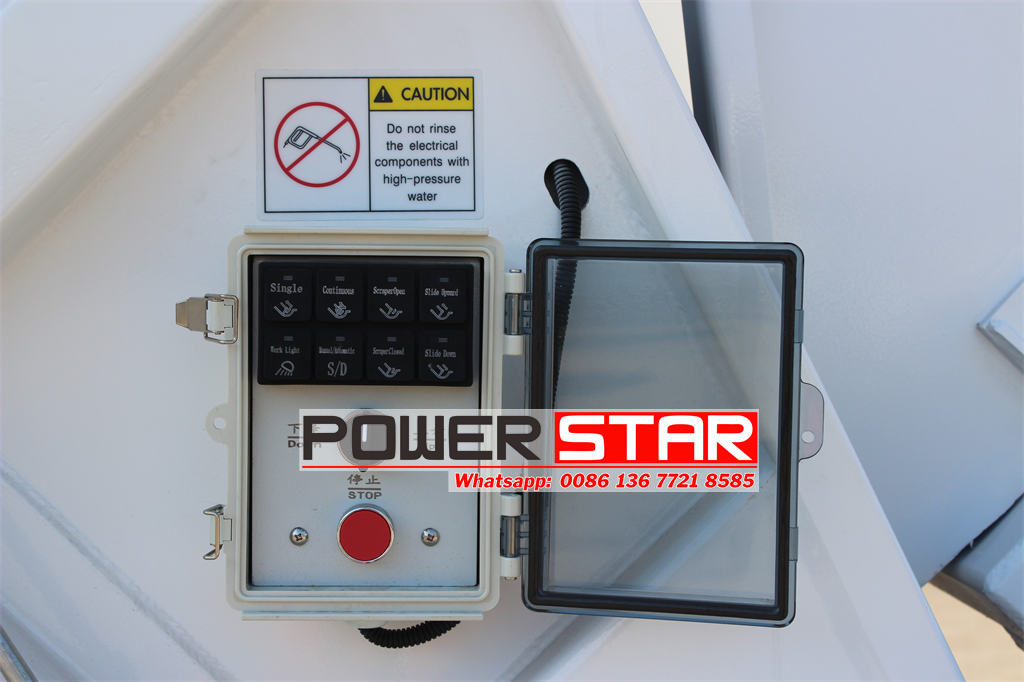

④ Advanced Electronic Control System
The ISUZU 4WD rear load garbage truck is equipped with a CAN-bus onboard controller. The control circuit is generated within the controller, using logic circuits to ensure that each operation command is executed in sequence and that there is interlocking between commands. Only wiring connections are external, reducing the incidence of failures and avoiding accidents caused by misoperations, thereby improving reliability. A specially designed emergency stop button allows the garbage compression mechanism to stop in any state or position, ensuring the safety of operators and equipment.
⑤ High-Quality Components
The key electrical and hydraulic system components of the ISUZU 4×4 waste compactor truck, such as the CAN-bus, multi-way directional valves, buttons, hydraulic cylinders and their seals, all adopt well-known brand components, enhancing the reliability of the garbage truck.
