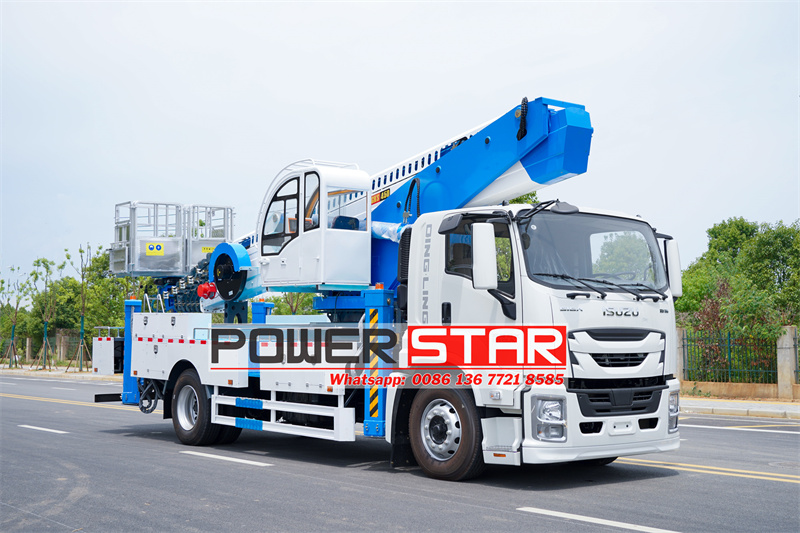

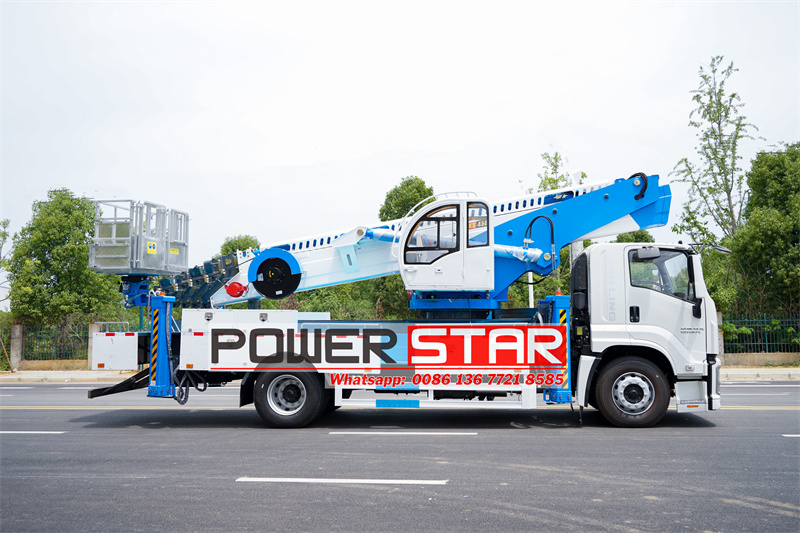

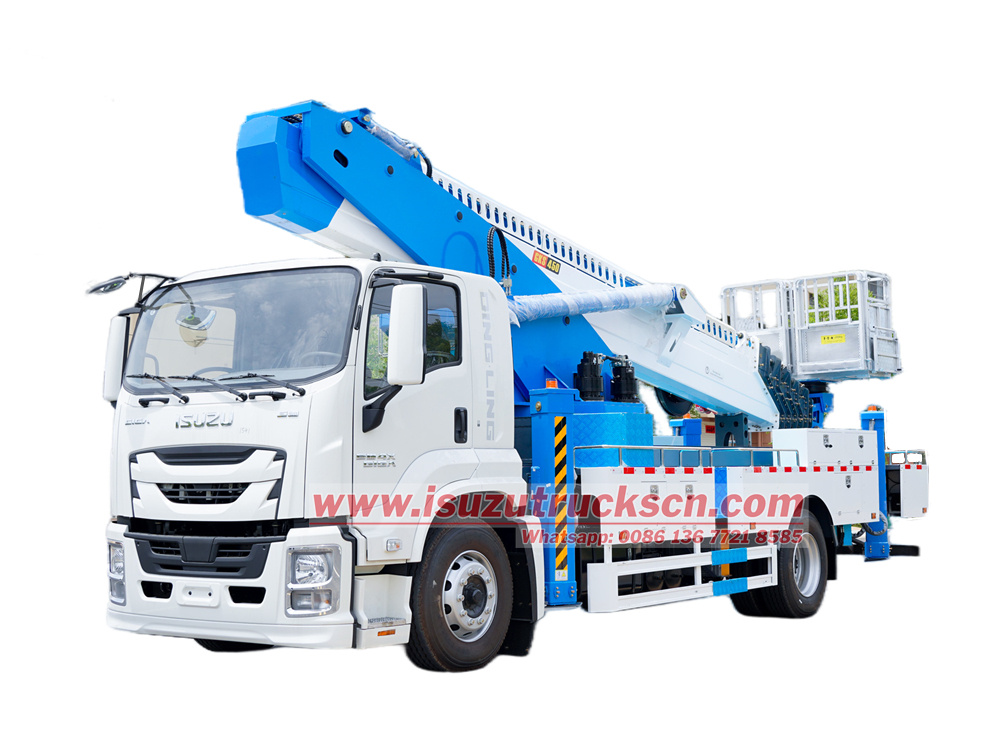

ISUZU New GIGA FTR 45m Manlifter Truck
The ISUZU FTR 45m aerial platform is a professional engineering special truck that integrates excellent technical performance and safety design. Based on the ISUZU New GIGA FTR chassis, the truck is equipped with a 4HK1-TC60 engine with a maximum output power of 205 horsepower and a total vehicle mass of 18,000 kg. The Isuzu FTR aerial platform truck has a maximum working height of 45 meters, a platform height of 27 meters above the ground, a maximum working radius of 7 meters, and a hydraulic static balance system to ensure stability.
Work capacity:
45 mEngine power:
205 HPEngine type:
4HK1-TC60Axle drive:
4X2,LHDGear box:
Isuzu MLD 6 forward gears& 1 reverseRemarks:
Remote control, easy to operateThe ISUZU FTR 45m aerial platform is a professional engineering special truck that integrates excellent technical performance and safety design. Based on the ISUZU New GIGA FTR chassis, the truck is equipped with a 4HK1-TC60 engine with a maximum output power of 205 horsepower and a total vehicle mass of 18,000 kg. The Isuzu FTR aerial platform truck has a maximum working height of 45 meters, a platform height of 27 meters above the ground, a maximum working radius of 7 meters, and a hydraulic static balance system to ensure stability.
● More than 30 years professional manufacturer experience.
● 50 units Isuzu aerial work truck in stock, 5 cbm, 8 cbm, 12 cbm
● Professional sales team which will help you to choose suitable truck.
● Promptly delivery. any order is welcome.
● 24 months long guarantee time assurance

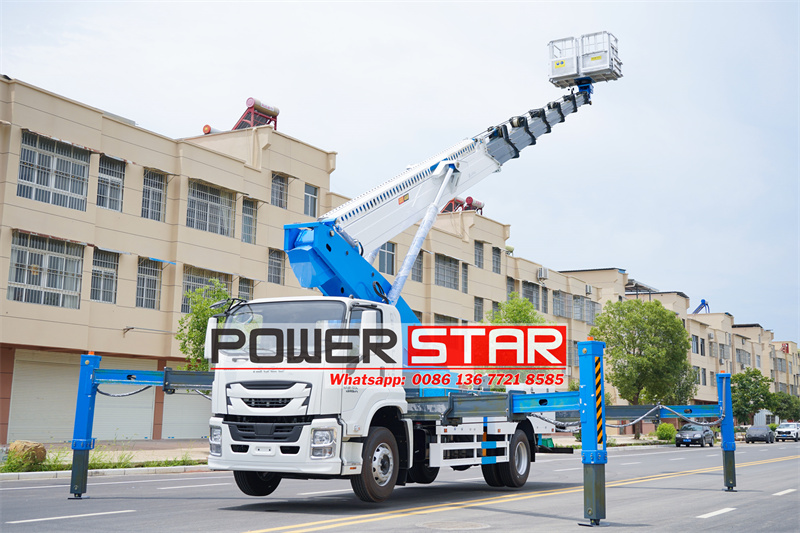

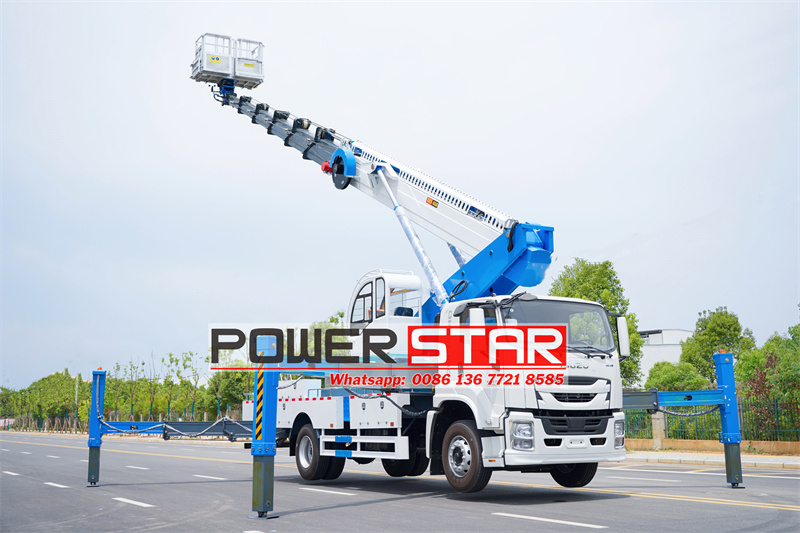

Its unique H-type hydraulic outrigger design has a horizontal and vertical expansion distance of 8,600 mm and is equipped with a two-way hydraulic locking mechanism to ensure stability during operation. The truck is also equipped with a dual operating system of manual and wireless remote control, a platform rated load of 200 kg, 360° hydraulic rotation, and built-in multiple safety protection devices, such as automatic out-of-bounds limit, emergency stop device and leakage protection.
Specification:
|
Isuzu FTR 45m aerial platform truck |
||||||
|
Vehicle model |
PST5183GKZ |
Overall dimensions (mm) |
9800×2600×3820 |
|||
|
GVW (kg) |
18000 |
Operational height (m) |
45 |
|||
|
Curb weight(kg) |
8600 |
Max. Speed (km/h) |
95 |
|||
|
Chassis Description |
||||||
|
Chassis Brand |
ISUZU GIGA FTR chassis |
|||||
|
Cab |
Single cab with A/C |
|||||
|
Allowable person in cab |
3 |
|||||
|
Wheel base (mm) |
4500 |
|||||
|
Front/Rear overhang (mm) |
1110/2475 |
|||||
|
Number of axles |
2 |
|||||
|
Axle |
Front axle (kg) |
7500 |
||||
|
Rear axle (kg) |
13000 |
|||||
|
Traction system |
4*2 |
|||||
|
Operation control system |
Power steering |
|||||
|
Braking system |
Air brake |
|||||
|
Transmission |
MLD 6-speed |
|||||
|
Tire specification |
295/80R22.5 18PR |
|||||
|
Tire quantity |
6+1 |
|||||
|
Engine Description |
||||||
|
Engine manufacture |
ISUZU Engines |
|||||
|
Engine model |
4HK1-TC60 |
|||||
|
Emission standard |
Euro 6 |
|||||
|
Exhaust/output |
5190 ml/ 151 kw |
|||||
|
Horse power |
205HP |
|||||
|
Upper Body Description |
||||||
|
Max. working height (m) |
45 |
|||||
|
Height of platform above ground (m) |
27 |
|||||
|
Max. working radius (m) |
7 |
|||||
|
Working pressure (Mpa) |
16 |
|||||
|
Control type |
1. Manual operation in two positions 2. Wireless remote operation |
|||||
|
Type |
Insulating type |
|||||
|
Rated loading (kg) |
200 |
|||||
|
Adjusting balance mode |
Hydrostatic Leveling System |
|||||
|
Safety belt |
1 set |
|||||
|
Rotation Angle |
360° Hydraulic |
|||||
|
Boom Amplitude Time |
160 ≤ t ≤ 180 |
|||||
|
Boom Telescopic Time |
140 ≤ t ≤ 160 |
|||||
|
Boom Rotation Time |
160 ≤ t ≤ 180 |
|||||
|
Hydraulic leg span |
Horizontal(mm) |
8600 |
||||
|
Vertical(mm) |
8600 |
|||||
|
Hydraulic leg retraction time (s) |
100 ≤ t ≤ 120 |
|||||
|
Type |
H type |
|||||
|
Quantity |
4 PCS |
|||||
|
Adjustment |
Adjusted separately or interconnected |
|||||
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
|||||
|
Strobe light on rear landing legs |
Two yellow lights |
|||||
|
Main structure |
||||||
|
Material |
High quality carbon steel and profiles, with slip-proof decorative steel plates |
|||||
|
Tool box |
Mould stamping door with stainless steel door lock |
|||||
|
Fencing |
Stainless steel tube |
|||||
|
Steps |
With steps on drivers’ side |
|||||
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
|||||
|
Wheel casing |
Injection mold molding, beautiful, high strength |
|||||
|
Rotary table |
||||||
|
Supporting Boom |
Low alloy steel plate welding |
|||||
|
Slewing bearing |
Single row of four - point contact ball belt outer teeth |
|||||
|
Reduction gears |
Planetary gear type |
|||||
|
Motor |
Axial piston motor |
|||||
|
Security configuration |
||||||
|
Automatic interlock device for get on and off |
Prevent the risk of misoperation |
|||||
|
Hand-operated emergency pump |
When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state |
|||||
|
Emergency stop device for working platform |
Used for emergency stop operation and restricted boom operation |
|||||
|
Automatically limit work range |
When the working range reaches the specified value, the dangerous direction is automatically restricted. |
|||||
|
Leakage protection device |
Equipped with leakage protector to ensure the safety of power supply and power tools |
|||||
Basic functions and safety configuration:
|
Isuzu FTR 45m aerial work truck basic functional safety configuration: The truck can achieve platform load of 200kg, maximum working height of 45m, maximum working range of 27m, boom amplitude angle range of -18° ~80°, and hydraulic automatic leveling of the working platform. |
|
|
Name |
Brief Description |
|
Outrigger safety inspection |
Real-time detection of the outrigger stress status, once the outrigger looseness is detected, an alarm will be issued to limit movement |
|
Automatic interlocking device for boarding and exiting |
Automatically realize interlocking of getting on and off the vehicle to prevent simultaneous operation of getting on and off the vehicle, thus achieving safety protection |
|
Emergency electric hydraulic pump |
Get workers back to the ground when the chassis engine or hydraulic main pump fails |
|
Emergency stop device |
Three emergency stop devices to ensure that all operations are stopped in an emergency |
|
Automatic Limiting |
Ensure that the vehicle operates within a safe operating range |
|
Vehicle level tester |
Detect the vehicle's tilt in both the lateral and longitudinal directions |
|
Engine ignition shut down |
Both the turntable and the remote control box can control the ignition and shutdown of the engine |
|
Compound Movements |
Simultaneous combined movements, such as platform rotation, turntable rotation, boom amplitude adjustment and extension |
|
Chain break protection device |
The rope extension is equipped with a balancing mechanism to ensure that the left and right wire ropes are evenly stressed. |
|
Electric emergency operation function |
In an emergency, restore the vehicle's motion to ensure that the vehicle can safely return personnel to the ground in dangerous conditions |
Safety Features:
1. The drag chains used in the dedicated pipeline conveying system of the ISUZU aerial platform truck are all imported brands with high reliability.
2. During the product development process, all structural safety checks, stability analysis, reliability verification and other methods are adopted to ensure the stability and reliability of the product within the operating range. In addition to the rated load test before leaving the factory, a dynamic load test with a coefficient of 1.25 times the rated load and a static load test with a coefficient of 1.5 times the rated load are also carried out. All key structural parts have undergone tens of thousands of fatigue cycle tests and destructive tests to ensure the safety and reliability of the equipment.
3. Complete safety devices, including cylinder retraction devices, outrigger retraction devices, interlocking devices for getting on and off the vehicle, emergency stop devices, soft leg protection devices, extreme deceleration, emergency manual operation and other safety protection systems to ensure the safety of high-altitude operations.
4. The ISUZU FTR 45m aerial platform truck is fully equipped, including high-end fenders, disembarkation operating boxes, etc.
5. All key structural parts are welded with low-alloy high-strength steel, which is strong and light. After multiple tests, they are fully verified to ensure precise matching of structure, electricity and hydraulic pressure. The main control components and key transmission parts are all internationally renowned brands with stable quality and high reliability.
Smooth operation:
1. Start and stop with buffer control to reduce the impact of the action.
2. Proportional reversing valve is used to control the extension and retraction of the outriggers, and the flow is controllable.
3. Balance valve is used to control the start and stop of each boom action to ensure stability during start and stop.
4. Load-sensitive proportional multi-way valve is used to reasonably match the flow and speed.
5. Reasonable arrangement of hinge points, no sudden pressure change in boom amplitude, uniform pressure change, and smooth action.
