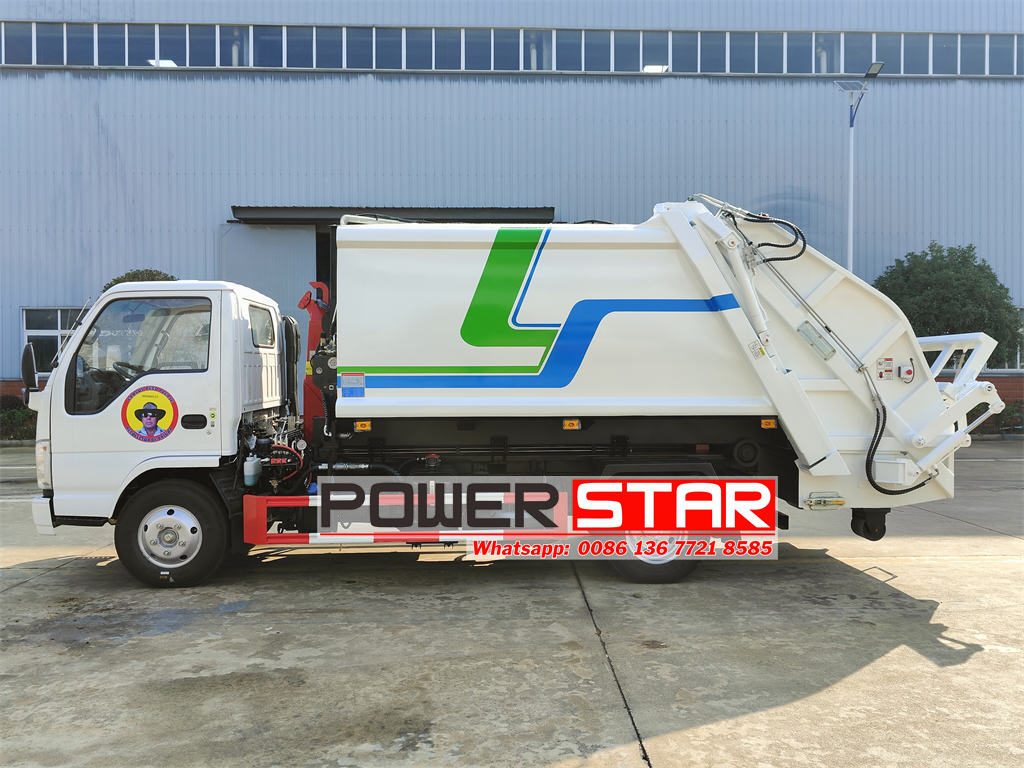

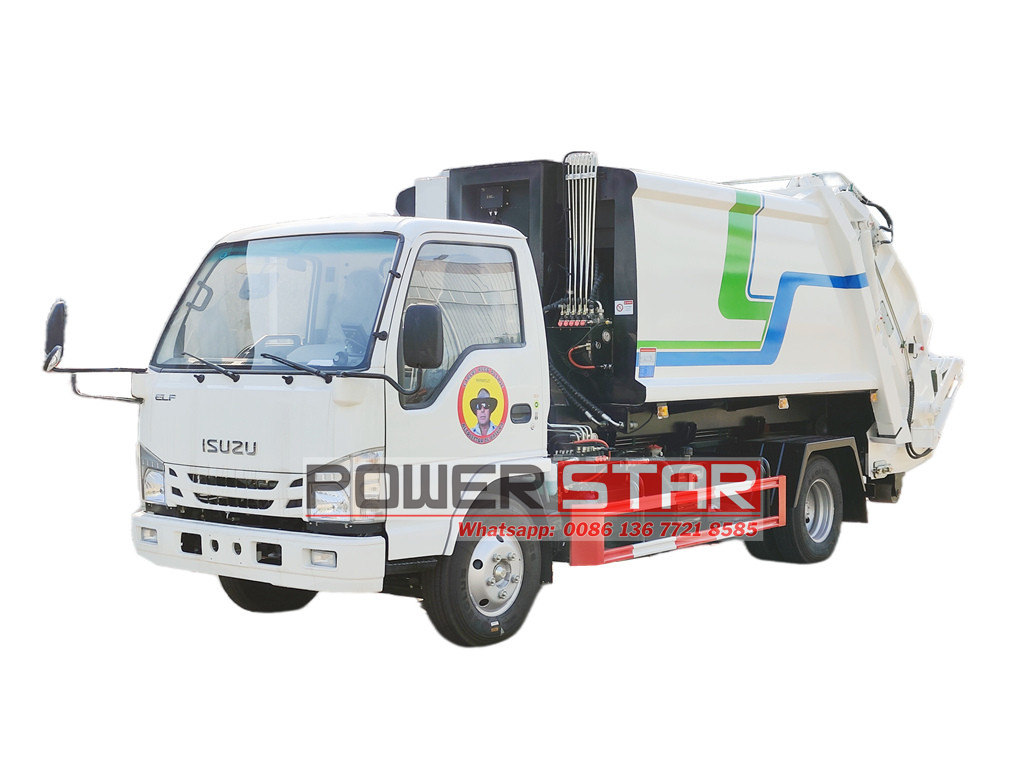

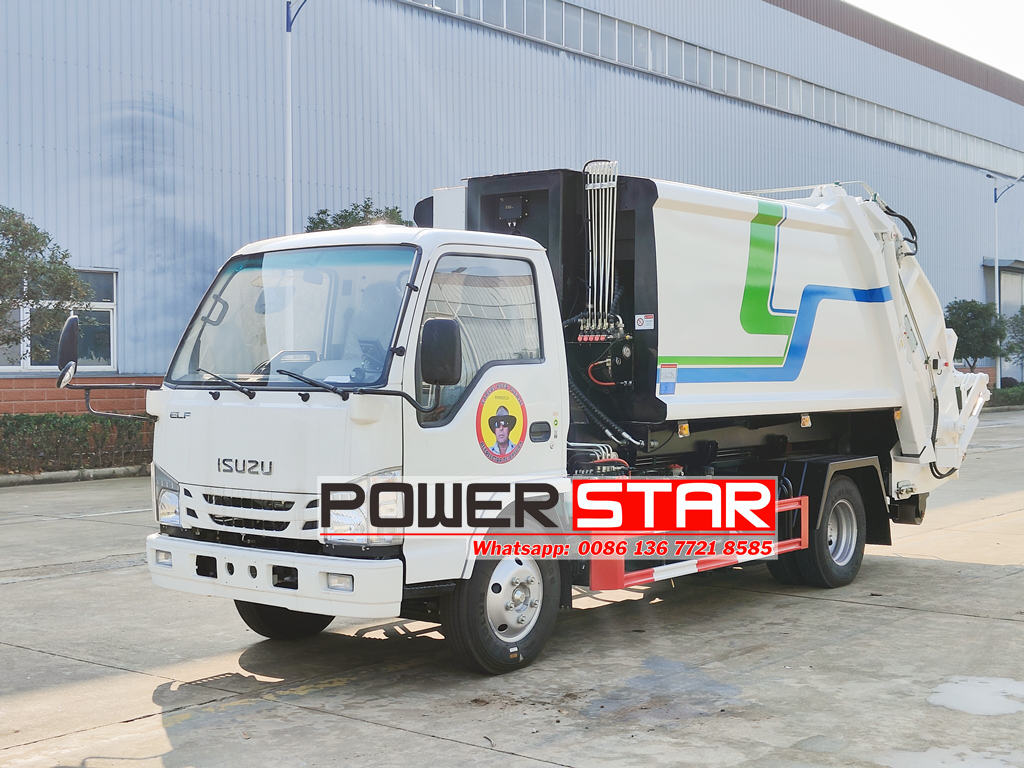

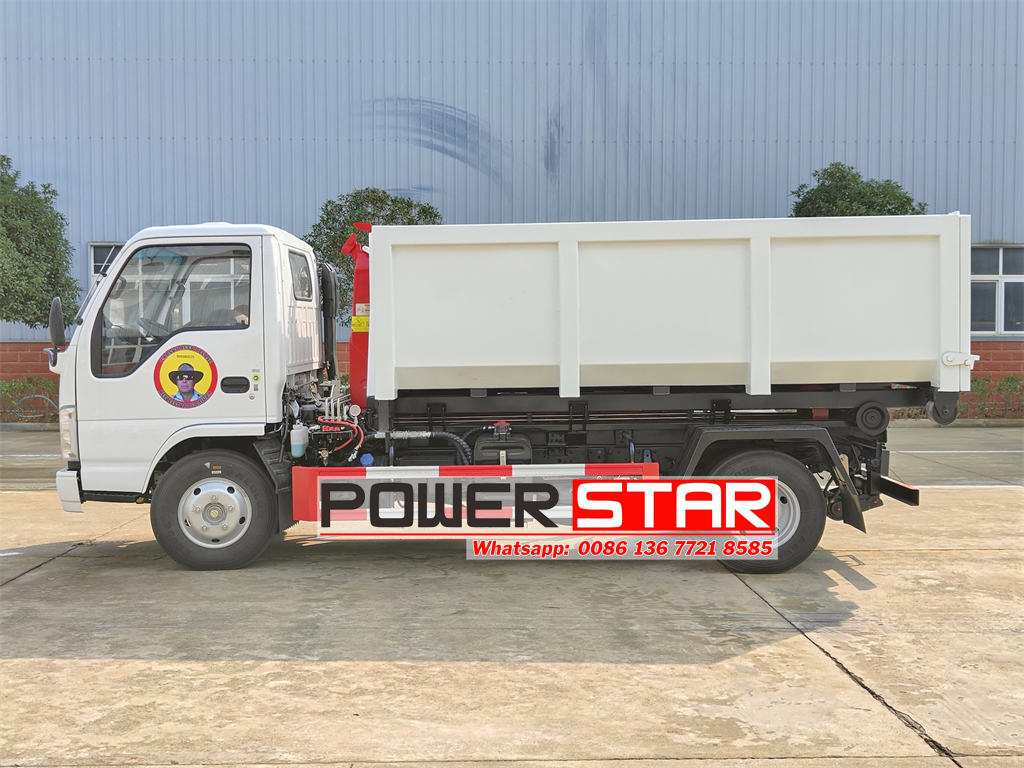

ISUZU NKR hook lift mounted garbage compactor
The ISUZU NKR hook lift mounted garbage compactor is equipped with an ISUZU 4KH1CN6LB diesel engine, boasting a maximum power of 120HP. The vehicle is fitted with a 5CBM capacity hook lift system and compaction system, with a hook lift loading/unloading cycle time of ≤45 seconds and a compaction ratio of ≥2.5, significantly reducing the volume of waste. The body of the compactor is constructed with T420 high-strength special steel, featuring 4mm thick side plates and 5mm thick bottom plates, ensuring exceptional durability. Suitable for urban, community, and industrial waste management, it supports both automatic and manual control, offering simple and efficient operation, making it an ideal choice for modern waste disposal.
Work capacity:
5CBMEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4x2, left hand driveGear box:
MSB 5-speed,manualRemarks:
Custom desigh, with both hook lift and compactor systemThe ISUZU NKR hook lift garbage compactor truck is a modern waste disposal equipment that integrates efficiency, versatility, and environmental friendliness. The vehicle is equipped with an ISUZU 4KH1CN6LB diesel engine, boasting a maximum power of 120 horsepower and complying with Euro 6 emission standards, combining robust power with environmental performance. The chassis features a 4×2 drive mode, with a wheelbase of 3,360 millimeters, and is equipped with a 5-speed forward and 1-speed reverse transmission, offering flexible handling and adaptability to various road conditions.

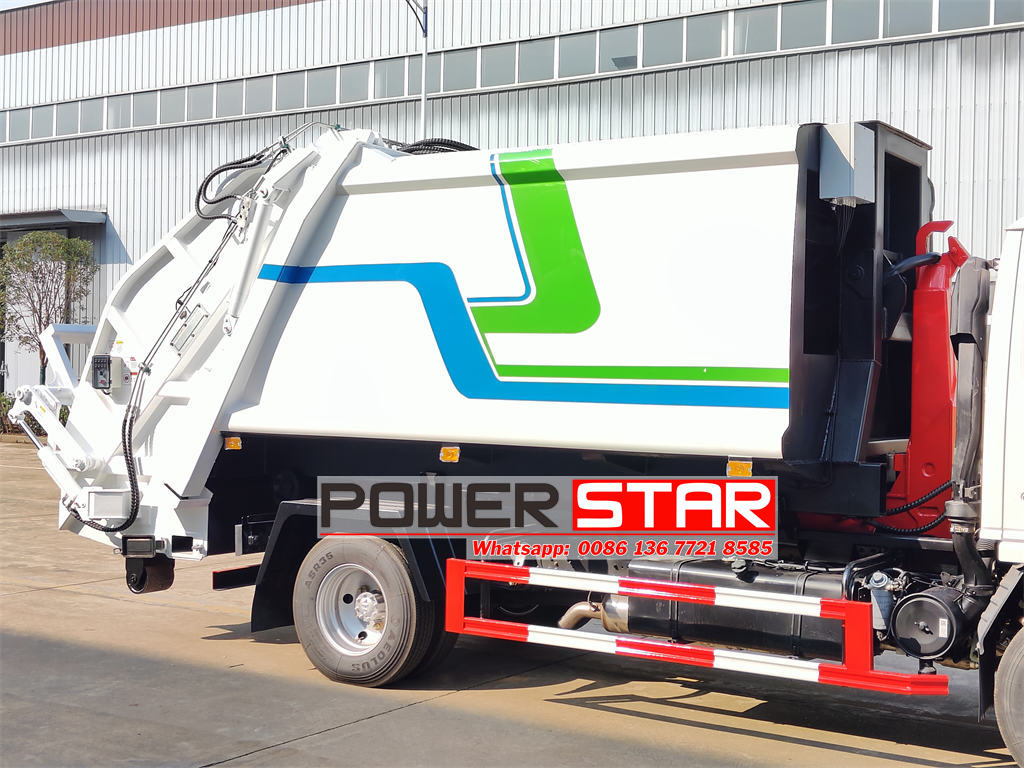

The upper structure consists of a hook lift system and a compaction system. The hook lift system has a maximum capacity of 5 cubic meters, with a loading/unloading cycle time of no more than 45 seconds. The compaction system boasts a compaction ratio of ≥2.5, significantly reducing waste volume and improving transportation efficiency. The body of the truck is constructed from T420 high-strength special steel, with 4mm thick side plates and 5mm thick bottom plates, ensuring durability and compression resistance.
The ISUZU hooklift mounted garbage compactor is not only suitable for urban waste disposal but also meets the needs of community waste collection, industrial waste treatment, and other various scenarios. The hook lift system supports external locking, with a box rod diameter of 50 millimeters and a hydraulic system maximum pressure of 26 MPa, ensuring safe and reliable operation. The compaction system is equipped with both automatic and manual control modes, with an unloading time of ≤45 seconds, providing simple and efficient operation. The body color and markings can be customized according to customer requirements, satisfying individual needs. Whether for daily waste disposal or special waste cleanup, this vehicle offers an efficient and environmentally friendly solution, making it an ideal choice for urban waste management.
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu garbage truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
TECHNICAL SPECIFICATION |
||
|
Main specification |
Product Name |
ISUZU hook lift mounted garbage compactor |
|
Capacity |
5CBM |
|
|
Dimension |
6500x2200x2650mm |
|
|
Chassis |
Brand |
ISUZU |
|

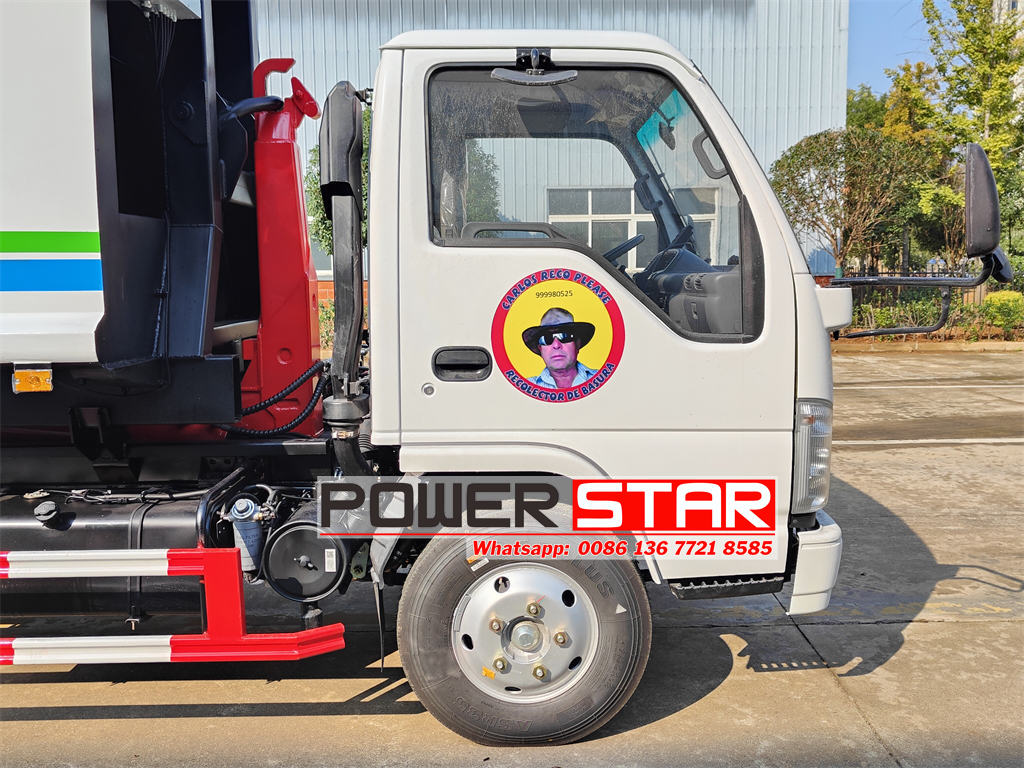

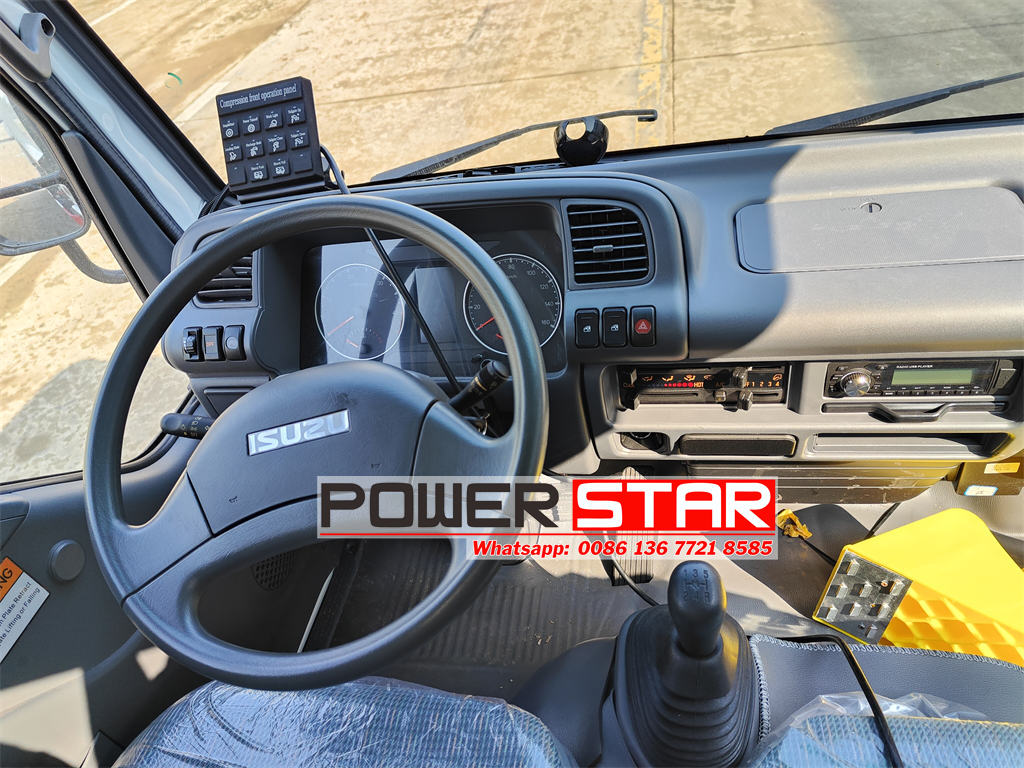

Cabin |
ISUZU ELF, single row cabin, with A/C |
|
|
Drive Mode |
4×2, Left hand drive |
|
|
F/R Axles |
2.5T/ 4.8T |
|
|
Wheelbase |
3360 mm |
|
|
Gearbox |
5-Forwards & 1-Reverse |
|
|
Tire |
7.00R16, 6+1pcs |
|
|
Color & Logo |
As client required |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN6LB |
|
|
Power |
120 HP |
|
|
Emission Standard |
Euro 6, diesel |
|
|
Type |
4-cylinders in-line, turbo-charged intercooling |
|
|
SUPER STRUCTURE |
||
|

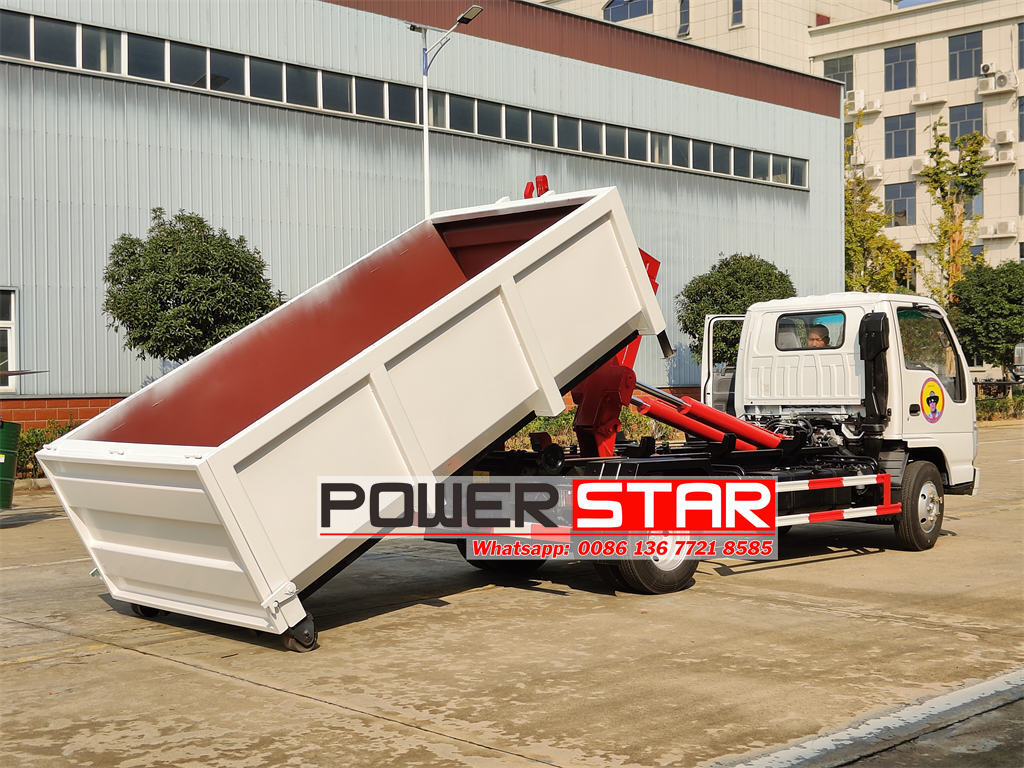

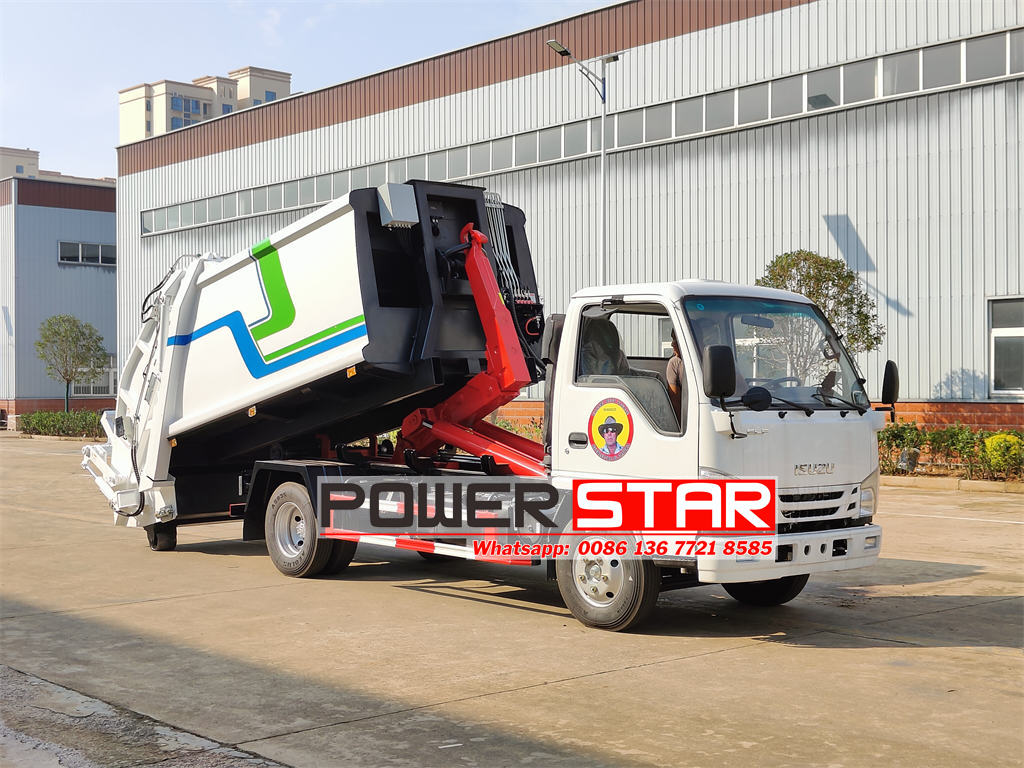

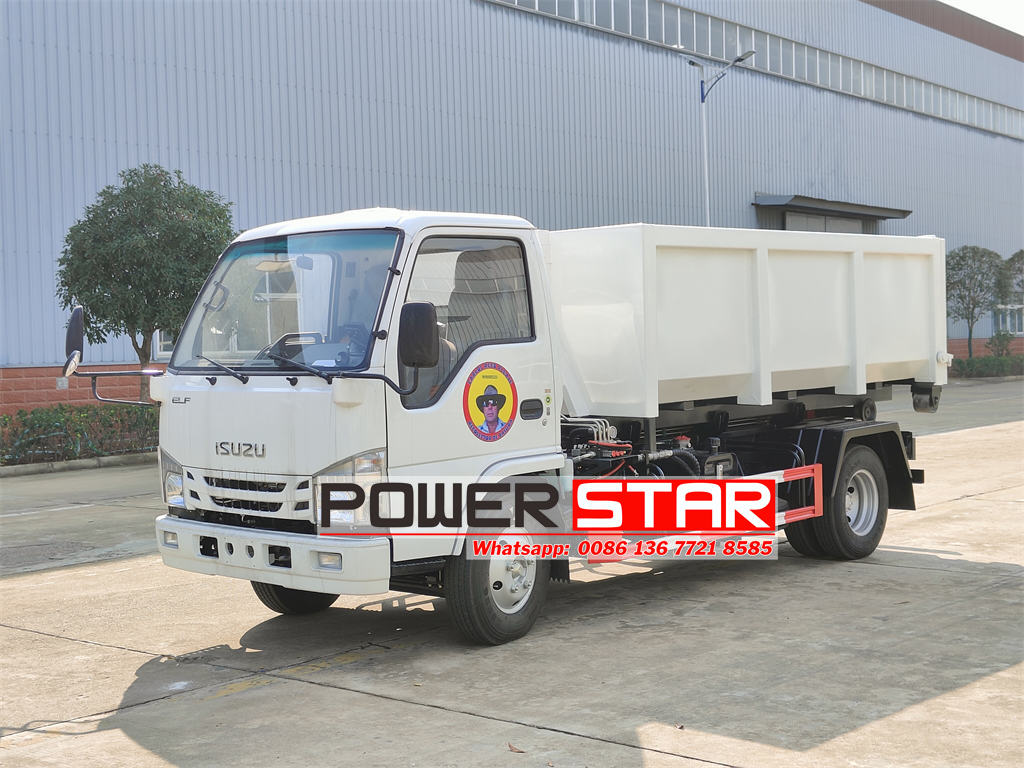

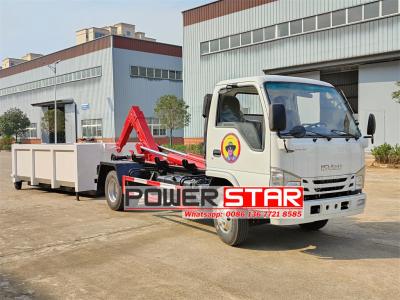

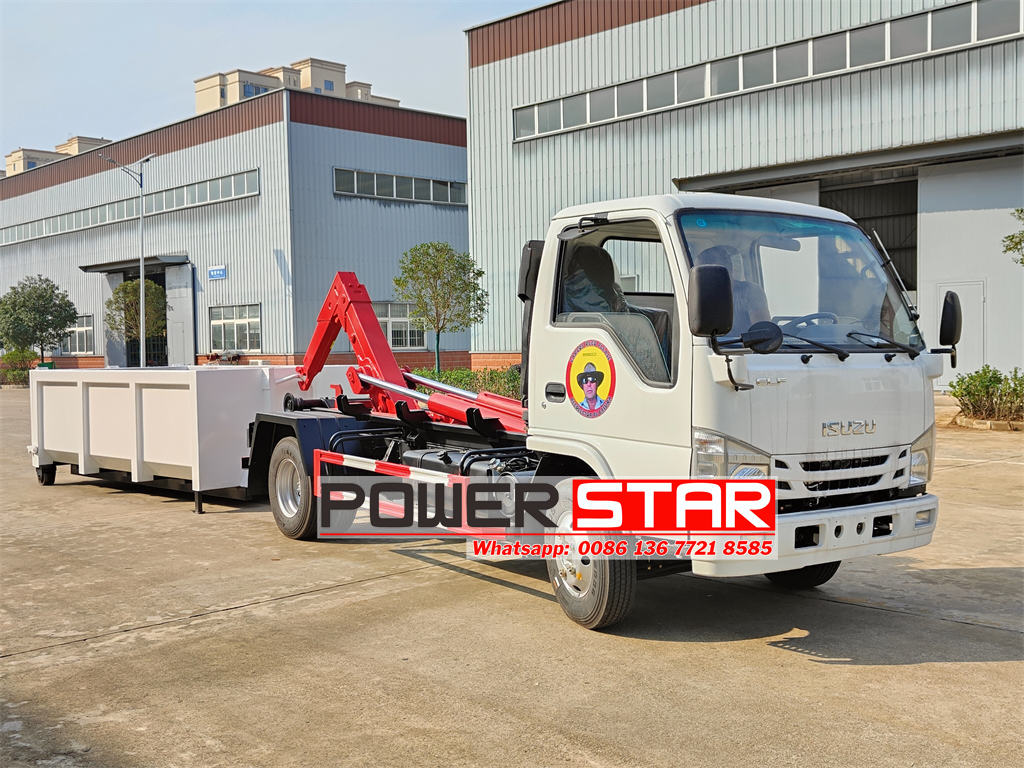

Hook lift system |
Maximum hook up capacity |
5CBM |
|
Hook center height |
1000mm |
|
|
Outer width of box track |
1060mm |
|
|
Clearance height of box track |
870 mm |
|
|
Dump angle |
50° |
|
|
Loading/unloading cycle time |
45s or less |
|
|
Box locking mode |
Lock outside |
|
|
Box rod diameter |
50mm |
|
|
Pull rod offset |
270mm |
|
|

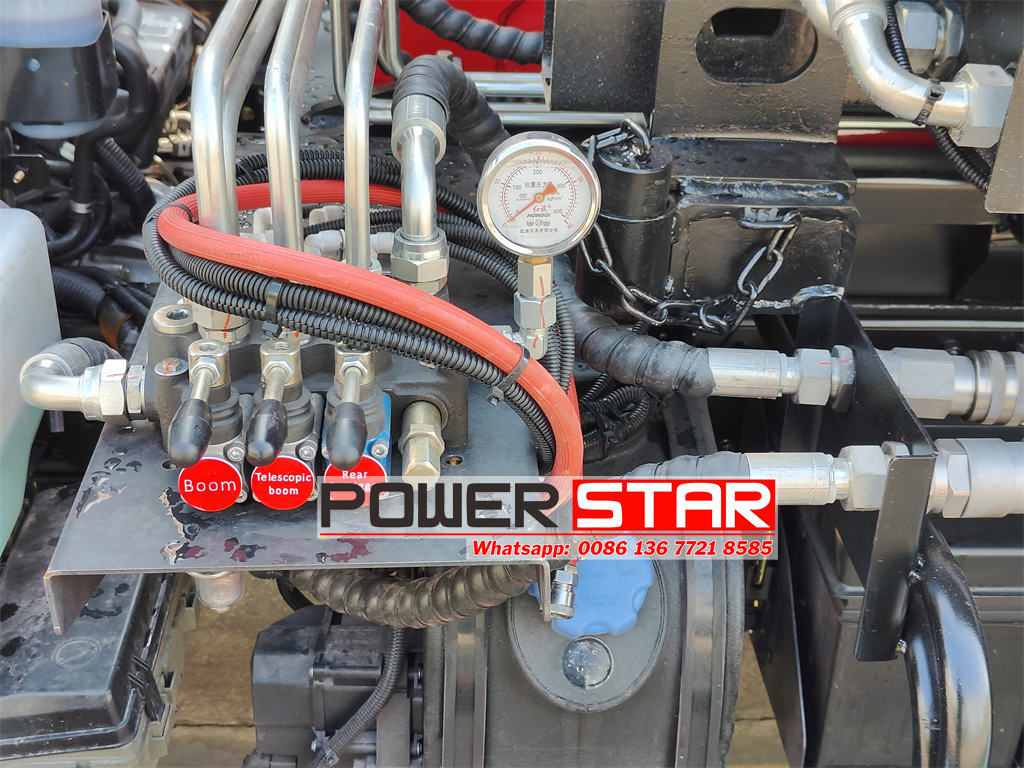

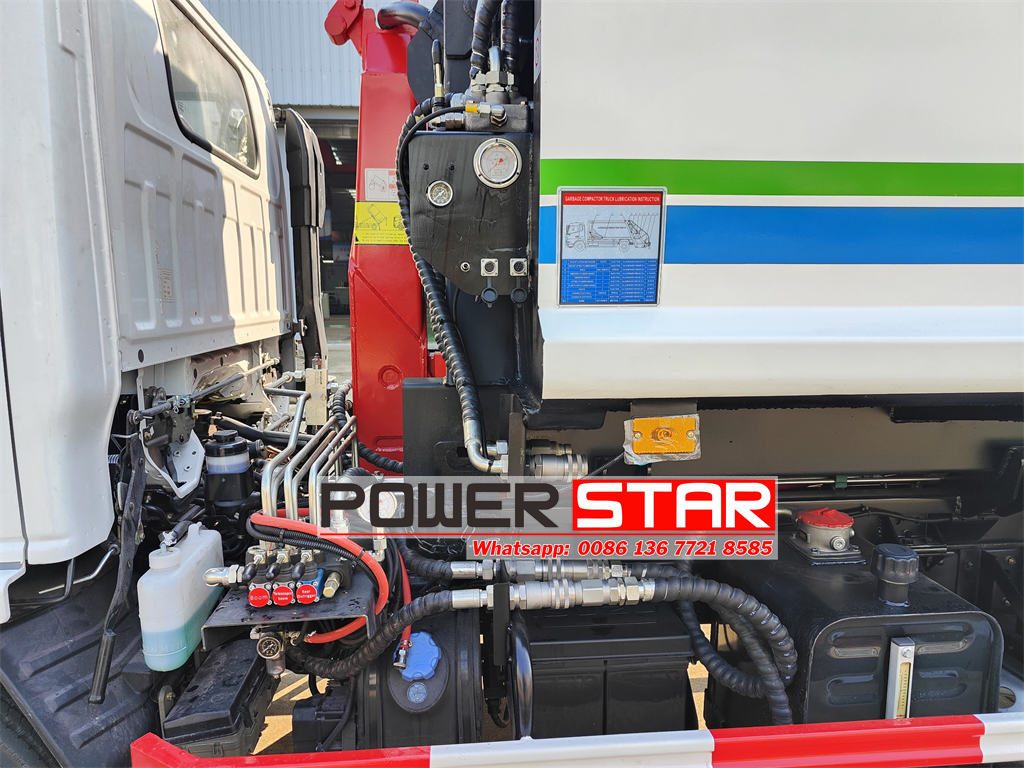

Maximum pressure of hydraulic system |
26 Mpa |
|
|
Multi way directional valve of hydraulic system |
Import Italy brand |
|
|
Garbage bin volume |
5CBM |
|
|
Garbage bin size |
2500×2200×1000mm |
|
|
Garbage bin size |
Top open |
|
|

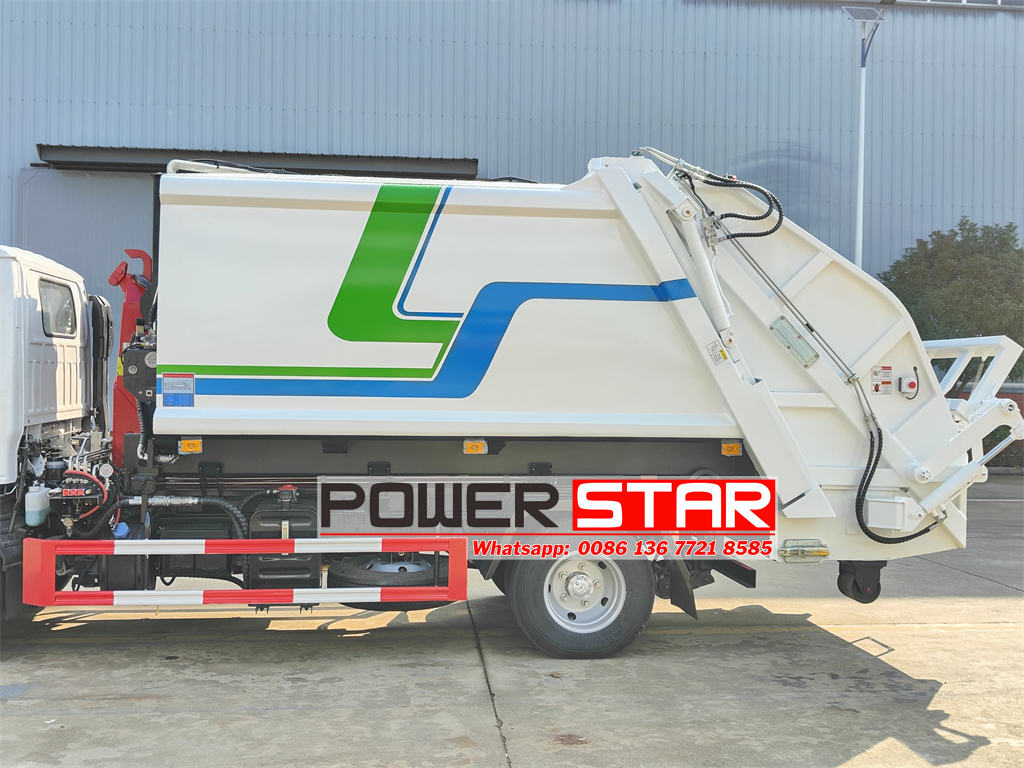

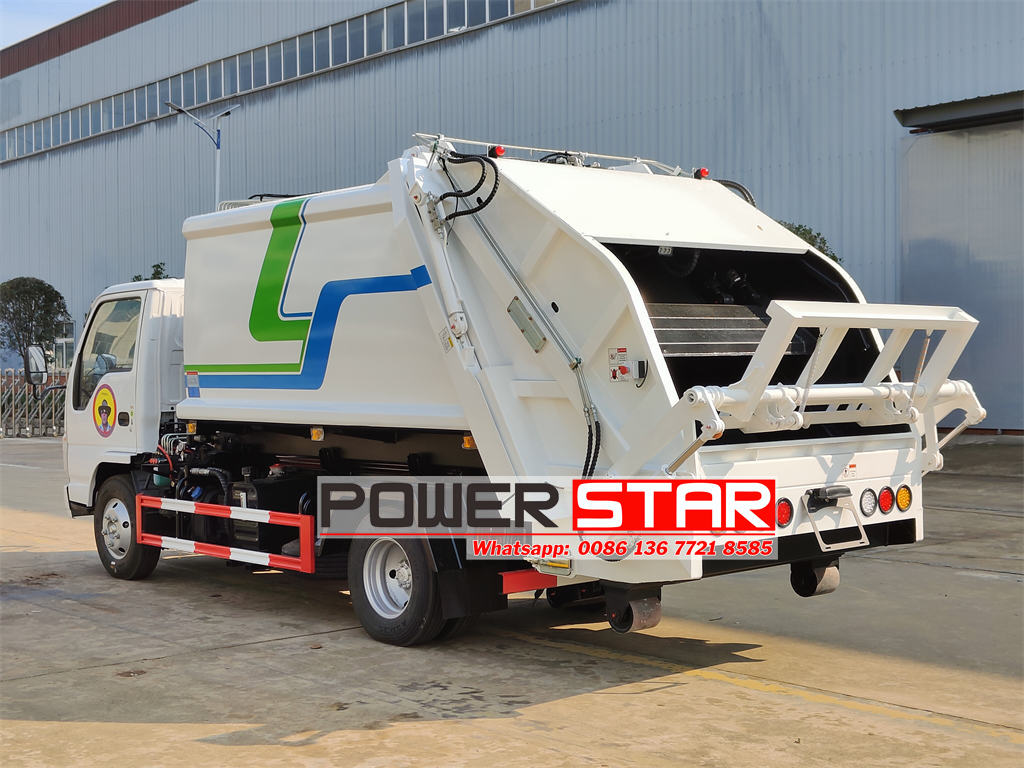

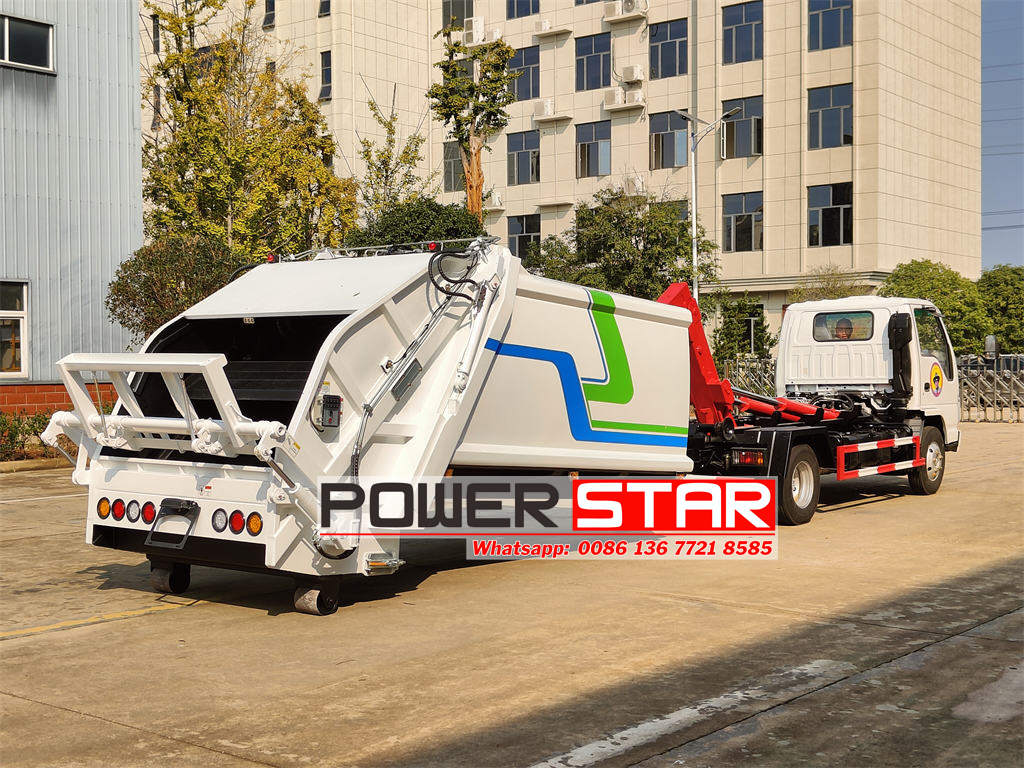

Garbage compactor |
Volume |
5CBM |
|
Material and thickness |
T420 high-strength special steel, side 4mm, bottom 5mm |
|
|
Compression ratio |
≥2.5 |
|
|
Filling hopper effective volume |
≥0.8 CBM |
|
|
Unloading time |
≤45S |
|
|
Control method |
Automatic, Manual |
|
Product Advantages
1. Efficiency
The hook lift system and compaction system can operate independently, enabling versatile use of the vehicle and significantly enhancing work efficiency. Whether for daily garbage collection or special waste disposal, this vehicle can handle the task with ease.
3. Durability
The body is constructed from T420 high-strength special steel, ensuring the durability and compression resistance of the bin. Both the chassis and engine are from ISUZU, guaranteeing the reliability and longevity of the vehicle.
4. Ease of Operation
Both the hook lift system and compaction system are hydraulically controlled, making operation simple and reducing the workload on the driver. With both automatic and manual control options, it adapts to different work requirements.
5. Customization
The body color and markings can be customized according to customer needs, satisfying the individual requirements of different users.
